Esse-ti GSM 200 User manual

Installation and User’s manual

Thank you for choosing an
Esse-ti product
This product has been especially designed
for easy operation. It has been manufactured
with perfect workmanship using suitable
materials for long-lasting performance.
All Esse-ti products are subjected to
extensive reliability and operational testing
in our laboratories in order to provide total
guarantee for the user.
The User shall be responsible for defects arising from the use of the
product. Esse-ti shall only be responsible for defects according to and
within the limitations set by the Presidential Decree dated 24/05/1988 no.
224 (fulfilling the EEC directive no. 85/374 on the harmonisation of
statutory and administrative regulations of the Member States on the
liability for damages arising from defective products under art. 15 of Law
no. 183 of 16 April 1987).
Esse-ti reserves the right to modify the characteristics of the products at
any time without prior notice.

TABLE OF CONTENTS
GENERAL INSTRUCTIONS FOR THE
INSTALLER ............................................................. 4
General Notes........................................................ 4
Making the Installation ......................................... 5
DESCRIPTION......................................................... 6
INSTALLATION...................................................... 7
Inserting the SIM card ................................................ 8
Inserting the antenna ................................................... 8
PROGRAMMING..................................................... 9
CONNECTIONS..................................................... 10
Helpy L300 / Helpy L300 TL ................................... 10
Helpy L200 / Helpy L200 TL ................................... 10
ST60 / ST61 / Helpy Quick / Helpy Quick-TL / Helpy
Vox............................................................................ 10
ST56 / Helpy Star...................................................... 11
GSM Combi board .................................................... 11
STARTING ............................................................. 12
Test call ..................................................................... 13
Module mounting operations.................................... 13
GSM200 installation recommendations ................... 14
SIGNALLING......................................................... 15
LED indicating device operation status (RED) ........ 15
LED indicating GSM signal strength (GREEN) ...... 15

Pagina 4
GENERAL
INSTRUCTIONS FOR THE
INSTALLER
GENERAL NOTES
Carefully read the notes contained in this section as they
provide important information on the correct safe
installation, use and maintenance of the product.
•The product must be EXCLUSIVELY used for the
purpose it was designed for. Esse-ti shall not be
responsible for damages arising from improper use.
•The product has been designed in compliance with the
regulations in force and must be installed in systems
that comply with the provisions of law.
•Always disconnect the product from the power supply
mains before carrying out any operation either inside
or outside the product (cleaning, maintenance, etc.).
•Always refer to an authorised assistance centre for
repair.
•Install the product in a well-ventilated place, making
sure not to obstruct the ventilation slots.
•Beware of symbols showing lightening with arrow
inside a triangle since they indicate the presence of
dangerous voltage.
•Beware of symbols showing an exclamation mark
inside a triangle since they indicate potentially
dangerous or even lethal situations that require utmost
attention.
•Do not use the product in association with other
electric or electronic devices that were not especially
designed to be used with it.
•Do not install the product in potentially explosive
environments.

Pagina 5
•Make sure that the product has been installed as
required.
•Do not introduce objects, liquids or powders inside the
product. Do not use sprays inside the product.
•Do not open the product case since it does not contain
any user-serviceable parts. If necessary, contact an
authorised assistance centre.
•Packing components (such as plastic bags, foam
polystyrene, etc.) must be kept out of the reach of
children because potentially dangerous.
MAKING THE INSTALLATION
Internal telephone installations must be carried out by
specialised personnel.
The installation and connection of telephone terminals
to the telecommunications network that do not comply
with the regulations in force is not permitted.

Pagina 6
DESCRIPTION
The GSM200 module can be used in conjunction with
the following Esse-ti devices:
•Elevator alarm systems:
-Helpy L300
-Helpy L300 TL
-Helpy L200
-Helpy L200 TL
-ST60
-ST61
-Helpy Quick
-Helpy Quick-TL
-Helpy Vox
-ST56
-Helpy Star
•GSM Combi Board
For the correct operation of the module , a standard SIM
Card is required.
This manual describes the GSM200 installation
procedure. For other instructions, please refer to the
elevator alarm system user manual or to the GSM
Combi user manual.

Pagina 7
INSTALLATION
¾Remove the cover.

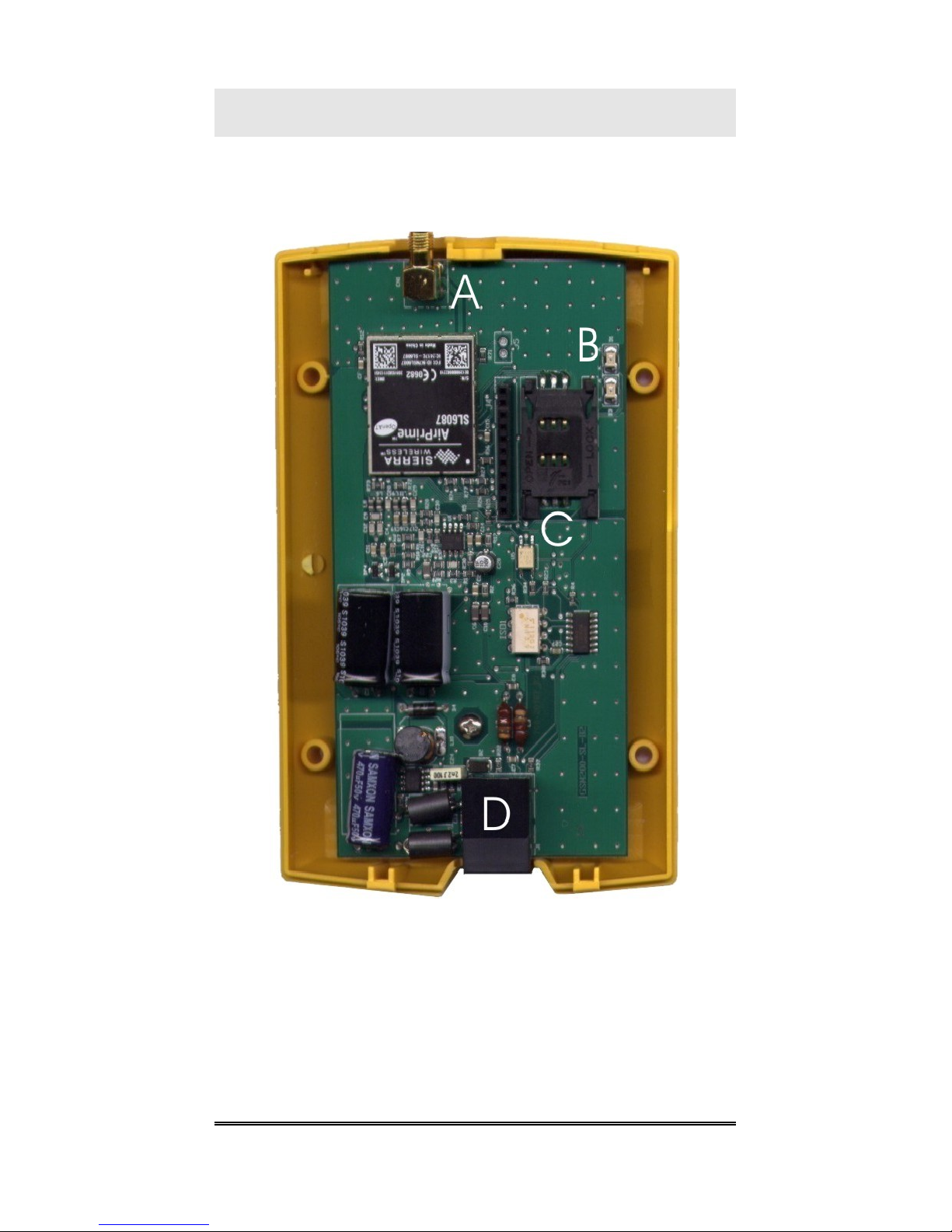

A ANTENNA connector
B LED indicating signal strength (green) and
LED indicating device operation status (red)
C SIM CARD housing
D RJ45 for module connection to Esse-ti
elevator alarm systems or GSM Combi board

Pagina 8
Inserting the SIM card
Before inserting or replacing the SIM card, always
make sure that the module has been disconnected from
the mains and that no electrostatic discharge is present
in order to avoid damaging it. Take all necessary
measures to avoid electrostatic discharge.
¾Shift the SIM card housing cover upward and lift
it.
¾Carefully slide the SIM card in its housing cover.
¾Lower the SIM card housing cover and shift it
downward until it blocks.
WARNING
The SIM Card must
have the PIN code
DISABLED. If the Sim
card has the PIN Code
enabled it is necessary
to disable it by means
of a normal mobile
phone.
¾Close the module cover.
Inserting the antenna
¾Screw the antenna in to the connector on the top
of the module.
WARNING
NEVER connect
GSM200 module
without having
installed the antenna.
The module may
damage.

Pagina 9
PROGRAMMING
When using the GSM200 module for connection with
any Esse-ti alarm system, please make sure the
parameter “Programming the type of telephone line” has
been adequately set in the specific alarm system.
¾Lift the local telephone handset of the elevator
alarm system.
¾Dial:
< Installer password >
(by default: ).
¾Set the type of GSM200 line:
¾Exit programming:
< Installer password>
(by default: ).

Pagina 10
CONNECTIONS
Helpy L300 / Helpy L300 TL
¾Make sure that the jumpers JP11 and JP12
located on the Helpy L300/Helpy L300 TL are in
position 2-3 (towards the RJ45 connector).
¾Insert the provided cable (pin-to-pin cable) in to
the two RJ45 connectors located on the Helpy
L300/Helpy L300 TL and GSM200 module.
In order to reach longer distances (up to 100m), please
use a cat.5 or higher cable.
Helpy L200 / Helpy L200 TL
¾Make sure that the jumper JP5 located on the
Helpy L200/Helpy L200 TL is in position 2-3
(towards the RJ45 connector).
¾Insert the provided cable (pin-to-pin cable) in to
the two RJ45 connectors located on the Helpy
L200/Helpy L200 TL and GSM200 module.
In order to reach longer distances (up to 100m), please
use a cat.5 or higher cable.
ST60 / ST61 / Helpy Quick / Helpy
Quick-TL / Helpy Vox
¾Make sure that the two jumpers, located near the
RJ45 connector on the ST60/ST61/Helpy
Quick/Helpy Quick-TL/Helpy Vox, are positioned
towards the RJ-45 connector.
¾Insert the provided cable (pin-to-pin cable) in to
the two RJ45 connectors located on the
ST60/ST61/Helpy Quick/Helpy Quick-TL/Helpy
Vox and GSM200 module.

Pagina 11
In order to reach longer distances (up to 100m), please
use a cat.5 or higher cable.
ST56 / Helpy Star
¾Make sure that, on the ST56/Helpy Star, jumpers
are inserted in the larger connector for optional
PSTN line board.
¾Insert the provided cable (pin-to-pin cable) in to
the two RJ45 connectors located on the
ST56/Helpy Star and GSM200 module.
In order to reach longer distances (up to 100m), please
use a cat.5 or higher cable.
GSM Combi board
¾In order to connect the GSM200 module to the
GSM Combi board, refer to the GSM Combi
board’s instruction manual.
Note: when connected to the GSM Combi
board, the green LED (indicating
signal strength) located on the
GSM200 module is not working.
To check the signal strength,
check the LED located on the
connection board provided with
the GSM Combi (CT-624) or the
LED located ont he GSM Combi
board (POLARIS/SMILE/FOX).

Pagina 12
STARTING
¾After the connection, make sure that the red LED
(indicating the device operation status) located on
the GSM200 module is switched on and stays lit
for a few seconds before it starts blinking. In case
the red LED should not be blinking, the GSM
module would not be correctly registered to the
GSM network provider. Disconnect the GSM200
and make sure that the SIM card has been
correctly inserted and no PIN is on.
For a correct registration of the GSM200 module you
must wait 1 minute’s time.
¾Check the signal strength by means of the green
LED located on the GSM200 module (see
paragraph:”Signalling”).
Note: the signal strength is also indicated
by the specific LED located on the
elevator alarm system.
Note: when connected to the Helpy
L200/Helpy L200 TL, the green
LED (signal strength) located on
the GSM200 module is not
working. Check the signal strength
by means of the LED indicating the
device operation status located on
the Helpy L200/Helpy L200 TL. (See
the Helpy L200/Helpy L200 TL user
manual).
¾If the signal strength is good, proceed with a test
call and mounting operations (see the following
paragraphs).

Pagina 13
Test call
¾Lift the local telephone handset of the elevator
alarm system.
¾Dial:
< Installer password >
(by default: ).
(dialing tone)
Dial:
(dialing tone)
Dial: ... (telephone number)
Note: wait about 10 seconds after dialling
the desired telephone number
before a confirmation tone
indicates that the call has been
forwarded.
Module mounting operations
¾Drill two holes with 5mm diameter on the wall at
a distance of 50mm.
¾Insert the 2 fischers and screw down until the
screws are at a 5mm distance from the wall.
¾Place the GSM200 module onto the two screws.

Pagina 14
GSM200 installation
recommendations
•The module is provided with a 3m. cable. Use a cat.5
or higher cable to connect the GSM200 module at a
longer distance (up to 100m).
•The minimum recommended distance, between the
GSM200 module and the elevator alarm system, is
50cm.
•The GSM200 module must be installed in a location
where the radio signal allows for using the GSM
system.
•It is advisable to leave plenty of space around the
module for maintenance operations.
•Do not lay the connection cable near the 230Vac
mains.
•Do not install the GSM200 module outdoors, since it
lacks protection devices against weather conditions
that can damage the module (water, humidity, etc.).
•Do not install the GSM200 module near electronic
(radio or TV sets, Personal Computers, wired radio
systems, etc.) or magnetic (credit cards, floppy disks,
etc.) devices that could be subjected to RF interference
from the module: recommended distance from the
antenna is min. 2.5m.
•Do not install the GSM200 module near medical
devices. Its operation may cause damage to hearing
aids or pacemakers.
•Always make sure that the device operation is
permitted in the place of installation (i.e. installation is
not allowed in hospitals, airplanes, etc.).
Note: when connecting the GSM200
module to the Helpy L300 or
L200, please make sure that a
12V battery is connected to the
terminals BATT of the device.

Pagina 15
SIGNALLING
LED indicating device operation status
(RED)
Normal operation
LED indicating GSM signal strength
(GREEN)
No signal
Low signal level
Medium signal level
High signal level

GSM200
Rel. dated 15/12/2011
