Esse-ti Helpy GSM User manual

7IS-80466 25/05/2021
Alarm system for elevators
QUICK GUIDE

Page 2 INSTALLING
INSTALLING
A Internal power-supply connector
B Built-in backup battery connector
C Antenna cable connector
D Reset pushbutton
E Alarm pushbutton
F SIM Card slot with front panel
G Built-in loudspeaker connector
H Serial port for PC connection
I Micro SD Card slot
L RJ11 connector for local telephone
M Battery compartment door
N Terminal blocks
O Built-in microphone

INSTALLING Page 3
LED signalling alarm / periodical test call (yellow)
LED signalling GSM signal strength (green)
LED signalling GSM status (red)
LED signalling power supply status (blue)
Terminal blocks
N. NAME DESCRIPTION
01 +POWER SUPPLY INPUT (11-14VDC)(1)
02 –
03 AIP GIVEN ALARM INDICATOR LIGHT (output: 12VDC)
04 ARP RECEIVED ALARM INDICATOR LIGHT (output: 12VDC)
05 +12 12VDC OUTPUT (max. 100mA)
06 C COMMON TERMINAL FOR INPUT ALC
(
2
)
07 –NEGATIVE POLE
08 ALC ALARM INPUT FOR THE ELEVATOR CAR
(
3
)
09 ALY ALARM INPUT FOR THE PIT
(
4
)
10 IN1 FILTER INPUT
11 ALT2 OUTPUT FOR CONNECTING THE LOUDSPEAKER OF A PASSIVE SPEAKER
UNIT
12 MIC2 INPUT FOR CONNECTING THE MICROPHONE OF A PASSIVE SPEAKER
UNIT OR A SINGLE MICROPHONE
13 MIC3 INPUT FOR CONNECTING THE MICROPHONE OF A PASSIVE SPEAKER
UNIT OR A SINGLE MICROPHONE
14 –NEGATIVE POLE
15 TEL LOCAL TELEPHONE
16 RL1 RELAY
(
5
)
17 RL1 RELAY
(
5
)
18 VVX OUTPUT FOR CONNECTING AN ADDITIONAL ACTIVE SPEAKER UNIT
19 VVY OUTPUT FOR CONNECTING THE PIT ACTIVE SPEAKER UNIT
20 ALZ ADDITIONAL ALARM INPUT
(
4
)
OR AUXILIARY INPUT
(
5
)
21 AIN GIVEN ALARM INDICATOR LIGHT (output: 0VDC)
22 ARN RECEIVED ALARM INDICATOR LIGHT (output: 0VDC)
23 C-L CAN-BUS
24 C-H CAN-BUS
25 TX RS-232
26 RX RS-232
27 –NEGATIVE POLE
28 C1 COMMON TERMINAL FOR INPUT IN1
(
2
)
(1) : before using this input disconnect the internal power-supply cable from the A
connector in the picture at page 2
(2) : can be connected to a block –, to the block +12 or to an external reference
(3) : allows to connect voltage free contact pushbuttons (NO or NC) or powered
pushbuttons
(4) : allows to connect voltage free contact pushbuttons (NO)
(5) : free contact NO

Page 4 INSTALLING
INSERTING THE SIM CARD
Before inserting the SIM card, make sure the device is off and use all due
precaution to avoid electrostatic discharge.
 Remove the cover by unscrewing the two screws.
 Push the SIM Card housing cover as indicated by the arrow OPEN until it
unlocks and lift it.
 Carefully slide the SIM Card into its housing cover.
 Lower the SIM Card housing cover and push it as indicated by the arrow
LOCK until it locks in place.
ATTENTION
It is not required to remove the PIN code prior to
the use of the HelpyGSM.
The PIN code can be entered, if necessary, by
setting parameter 282.
INSTALLING THE ANTENNA
 Screw the antenna extension cable provided in the appropriate
connector.
ATTENTION
Position the antenna with magnetic base so that any
metal surfaces do not block the signal.
ATTENTION
In order to avoid damage, never power up the base
station without having first installed the antenna.
ATTENTION
Do not install the product in the immediate vicinity
of other electrical or electronic equipment that was
not designed to be combined with it and that could
cause disturbance or interference.

INSTALLING Page 5
CONNECTING THE SPEAKER UNITS
HelpyGSM comes with a built-in active speaker unit.
It is also possible to connect to the HelpyGSM:
- up to 2 independent active speaker units
- up to 2 passive speaker units (or cables with microphone) combined to the
integrated active speaker unit.
It makes HelpyGSM extremely flexible and allows to realize many different
types of installation.
Note: an active speaker unit allows to realize an independent voice
point with dedicated pushbutton.
Note: a passive speaker unit must be connected to an active speaker
unit and allows to double it. The passive speaker unit can be
installed at max 6m distance from HelpyGSM (or from
another active speaker unit) by using a shielded cable.
Note: in case of connection of active speaker units, the type of
installation must be defined (by setting parameters 63 and
73).
 Connect the speaker units (beware of terminal polarity):
ACTIVE SPEAKER UNIT term. blocks HELPYGSM terminal blocks
+ VVY or VVX
– –
PASSIVE SPEAKER UNIT term. blocks HELPYGSM terminal blocks
A ALT2
B MIC2 or MIC3
– –
Examples of types of installation
Installation with passive speaker unit in the elevator car
bottom
DEVICE SPEAKER UNIT
terminal blocks
PUSHBUTTON
terminal blocks
ROOF HelpyGSM Built-in active speak. unit Built-in pushbutton
CAR Microphone cable MIC3 / –ALC / –
CAR BOTTOM Passive speak. unit ALT2 /MIC2 / –ALY / –
PROGRAMMING CODES "TYPE OF INSTALLATION" TO BE SET
631 (factory) 730 (factory)

Page 6 INSTALLING
Installation with active speaker unit in the pit
DEVICE SPEAKER UNIT
terminal blocks
PUSHBUTTON
terminal blocks
ROOF HelpyGSM Built-in active speak. unit Built-in pushbutton
CAR Microphone cable MIC3 / –ALC / –
PIT Active speak. unit VVY / –ALY / –
PROGRAMMING CODES "TYPE OF INSTALLATION" TO BE SET
632 730 (factory)
Installation with landing floors
DEVICE SPEAKER UNIT
terminal blocks
PUSHBUTTON
terminal blocks
ROOF HelpyGSM Built-in active speak. unit Built-in pushbutton
CAR Microphone cable MIC3 / –ALC / –
CAR BOTTOM Passive speak. unit ALT2 /MIC2 / –ALC / –
LANDING FLOOR 1 Active speak. unit VVY / –ALY / –
LANDING FLOOR 2 Passive speaker unit combined to the active
speaker unit positioned in the landing floor 1 ALY / –
LANDING FLOOR 3 Active speak. unit VVX / –ALZ / –
LANDING FLOOR 4 Passive speaker unit combined to the active
speaker unit positioned in the landing floor 3 ALZ / –
PROGRAMMING CODES "TYPE OF INSTALLATION" TO BE SET
633 730 (factory)
Installation with independent speaker units on car-top / car-
cabin / pit
DEVICE SPEAKER UNIT
terminal blocks
PUSHBUTTON
terminal blocks
ROOF HelpyGSM Built-in active speak. unit Built-in pushbutton
CAR Active speak. unit VVX / –ALC / –
PIT Active speak. unit VVY / –ALY / –
PROGRAMMING CODES "TYPE OF INSTALLATION" TO BE SET
633 731
Installation with HelpyGSM installed in the machine room
DEVICE SPEAKER UNIT
terminal blocks
PUSHBUTTON
terminal blocks
MACHINE ROOM HelpyGSM Built-in active speak. unit Built-in pushbutton
ROOF Passive speaker unit combined to the car active
speaker unit ALZ / –
CAR Active speak. unit VVX / –ALC / –
PIT Active speak. unit VVY / –ALY / –
PROGRAMMING CODES "TYPE OF INSTALLATION" TO BE SET
633 731

INSTALLING Page 7
CONNECTING THE EMERGENCY CALL BUTTONS
Car pushbutton
It is possible to connect (inside the elevator car) voltage free contact
pushbuttons or powered pushbuttons.
 Connect, following one of the diagrams shown below, the car
pushbutton.
Voltage free contact pushbuttons
Powered pushbuttons (12~24Vdc) – 2 solutions

Page 8 INSTALLING
Other pushbuttons
It is possible to use for the pit, the car-top or the landing floors, voltage free
contact pushbuttons (NO).
 Connect, following the diagram shown below, the other pushbuttons.

INSTALLING Page 9
CONNECTING THE INDICATOR LIGHTS
The GIVEN ALARM INDICATOR LIGHT (yellow) switches on after pressing
the emergency button to indicate the beginning of the alarm procedure and
stays steady light until the end. The RECEIVED ALARM INDICATOR
LIGHT (green) switches on when the alarm call is answered.
 Connect, following one of the diagrams shown below, the indicator
lights.

Page 10 INSTALLING
CONNECTING THE LOCAL TELEPHONE
 Connect the local telephone (for programming and managing the
device) directly to the RJ11 connector (L in the picture at page 2) or to
TEL and – terminals (irrespective of the polarity).
CONNECTING THE FILTER INPUT
 Connect the filter contact as per one of the modes shown in the table:
C1 TERMINAL CONNECTED TO: FILTER CONTACT
TERMINAL BLOCKS
+12 IN1 / –
–IN1 / +12
external reference IN1 / external reference
CONNECTING THE AUXILIARY INPUT
 Connect the external contact (normally open) to ALZ and – terminals.
Note: the ALZ input must be programmed as auxiliary input (by
setting parameter 55).
CONNECTING THE RELAY
 Connect the output RL1 (normally open contact) to the external device.
REPLACING BATTERY
ATTENTION
Only use replacement batteries supplied by Esse-ti.

INSTALLING Page 11

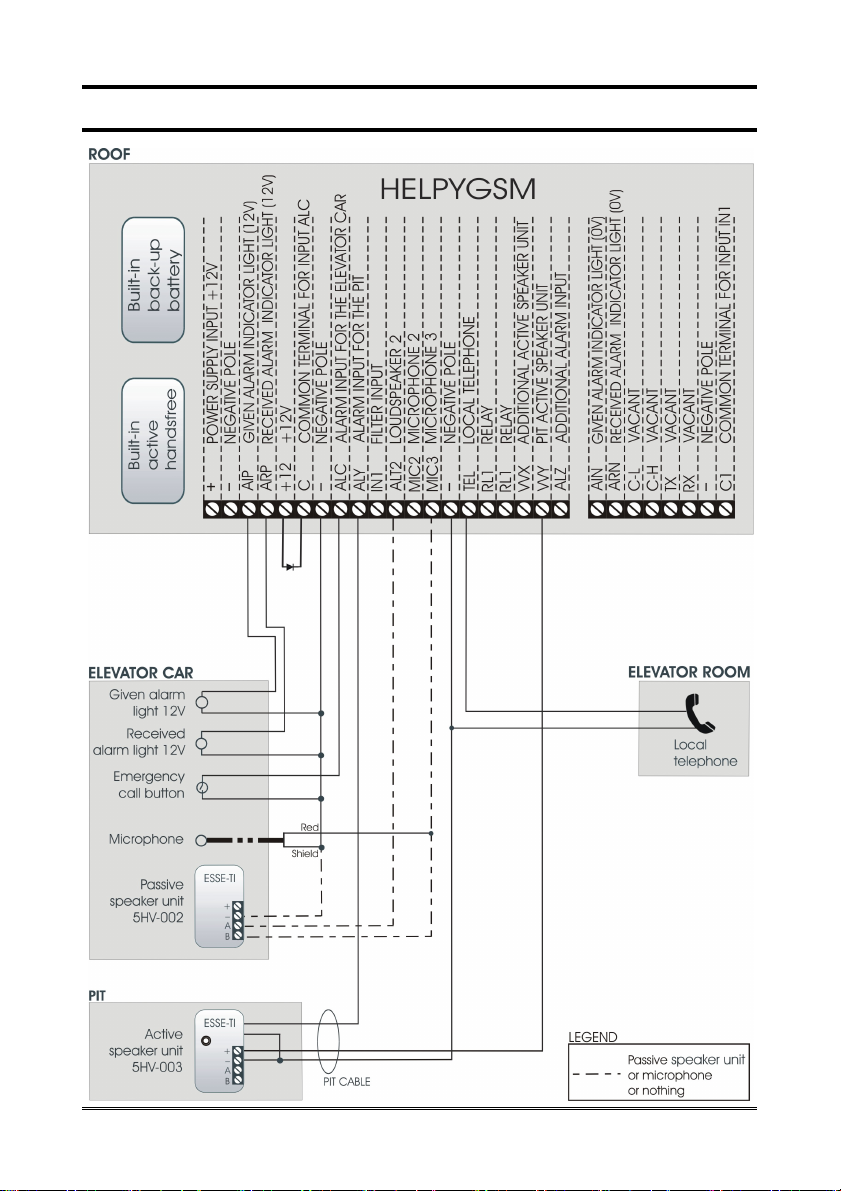

WIRING DIAGRAM –EXAMPLE 1

Page 12 INSTALLING
WIRING DIAGRAM –EXAMPLE 2

INSTALLING Page 13
TURNING ON
Power connection
 Connect the power supply cable to the 230Vac mains.
or
 Connect an external 12Vdc power supply (min. 11Vdc, max. 14Vdc) to
the power supply input of the terminal block (+ and – terminals).
 Connect the built-in backup battery cable to the slot B in the picture at
page 2.
 Close the cover by screwing the two screws.
Note: the power supply cable's plug must be always easily
accessible.
Note: a protection cut-out switch must be installed upstream to
interrupt power supply in case of fault.
Turning on
 Wait 1 minute after power-up to give time to the HelpyGSM to register
correctly with the GSM network.
 Make sure the GSM status LED ( ) flashes briefly once every 3 seconds
as shown in the paragraph “LED signalling GSM status” on page 29.
If the GSM status LED ( ) flashes quicker and stays lit for a longer time (see
on page 29), the HelpyGSM has not properly registered with the GSM provider
or the SIM card is protected by PIN:
 Check the SIM is correctly inserted and, if the SIM card has a PIN, enter
the PIN using the code 282.
 See also the chapter “Troubleshooting” on page 31.
 Check the intensity of the GSM signal using the LED (see paragraph
“LED signalling GSM signal strength” on page 28) and find, for the
placement of the antenna, an area with enough signal.

Page 14 INSTALLING

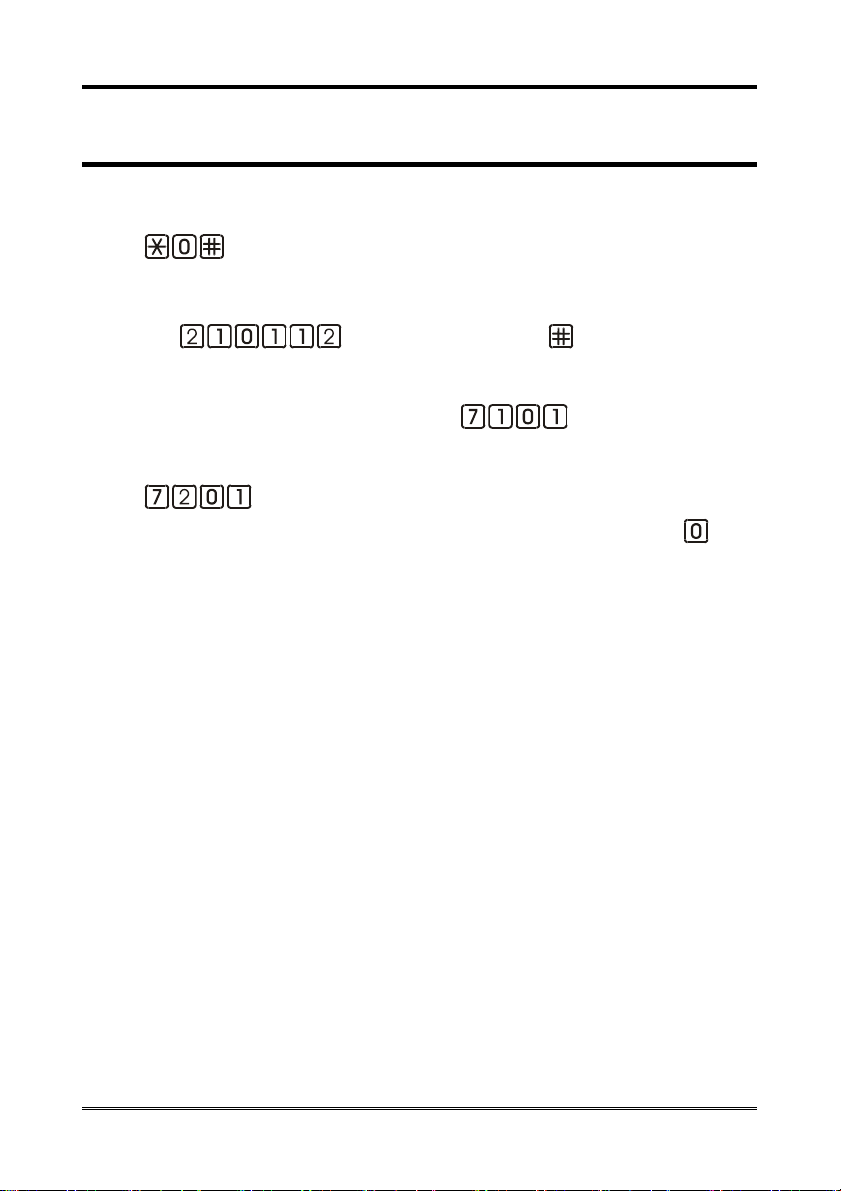

MINIMUM OPERATIONS TO VERIFY PROPER
INSTALLATION
1. PROGRAMMING
 Access to programming: lift the local telephone handset and dial
.
The programming activated message will be heard.
 Program a telephone number for the emergency-call alarm:
dial < telephone number > .
 Record the identification message of the specific elevator (max. 22
seconds), which is meant to contain all necessary information
concerning the elevator location: dial and, after the
"Correct" message, pronounce the message and hang up.
 To listen again to the previous message: lift the handset and dial
.
 Make an external call to check the telephone line presence: dial and,
after the "Correct" message, digit the telephone number to make a test
call.
2. TESTING THE ALARM PROCEDURE
 Press the emergency call button for more than 2 seconds (factory
value).
The alarm starts.
3. ANSWERING THE ALARM
Note: the activation mode of the communication with the trapped
person can be configured with the “Two-way communication
mode during an alarm” programming (code 78).
-1st mode: automatic two-way connection established after the messages
(factory default)
 Answer by the called party.
The two-way communication mode will be activated after the voice messages.
 Speak with the trapped person.
-2nd mode: two-way communication established after input of "Communication
activation" code
 Answer by the called party.
The voice messages will be heard.

INSTALLING Page 15
 Press to speak with the trapped person.
-3nd mode: immediate and automatic two-way communication (no messages)
 Answer by the called party.
 Speak with the trapped person.
4. RESETTING THE ALARM
Note: the alarm reset mode can be configured with the “Alarm reset
mode” programming (code 77).
-1st mode: reset by “End” code (factory default)
 Press to end the alarm.
-2nd mode: automatic reset
 Hang up (or press ) to end the alarm.
-3nd mode: automatic reset with local acknowledgement
 Hang up to end the call.
 Press the reset pushbutton to end the alarm.
An end-of-alarm call will be generated.
 Answer by the called party.
 Press .
If the reset pushbutton is not pressed within 6 hours, the alarm is automatically
ended.
Note: in case it should not be possible to stop the alarm procedure
remotely (i.e. the entered telephone number is incorrect)
simply lift the handset of the local telephone and dial
* <Password> # (by factory default: ) or press the
reset pushbutton.

Page 16 INSTALLING
USING THE RESET BUTTON
Note: the reset operation does not alter the previously set
parameters.
Use of the reset pushbutton (D in the picture at page 2):
- Pressing shortly
Allows to interrupt an alarm call.
By pressing shortly you get the same result as lifting the handset of the
local telephone and entering * <Password> #.
- Pressing longer (10 seconds)
Allows to reset the device.
By pressing longer, the HelpyGSM will be re-started with no need to
disconnect the power supply.

PROGRAMMING Page 17
PROGRAMMING
In the tables:
 INST indicates that programming is allowed by the installer;
 OPER indicates that the programming is allowed by the maintenance technician;
 factory programming is highlighted in bold.
Basic programming
BASIC PROGRAMMING
ACCESS TO
PROGRAMMING
<INSTALLER or OPERATOR PASSWORD>
(factory setting: )
EXITING THE
PROGRAMMING
<INSTALLER or OPERATOR PASSWORD>
(factory setting: )
TELEPHONE
NUMBERS
(INST)
(position
from 01 to
12)
SOURCE RECEIVER
…
(X…X =
telephone
number,
max 20
digits)
emergency-
call button
—
battery
alarms USER
periodic
automatic test
call
ESSE-TI
—CLI
SIM card
expiring
alarm
SMS
diagnostic
alarm P100
no external
power supply
alarm
—
auxiliary
alarm
—
end of
alarm
—

Page 18 PROGRAMMING

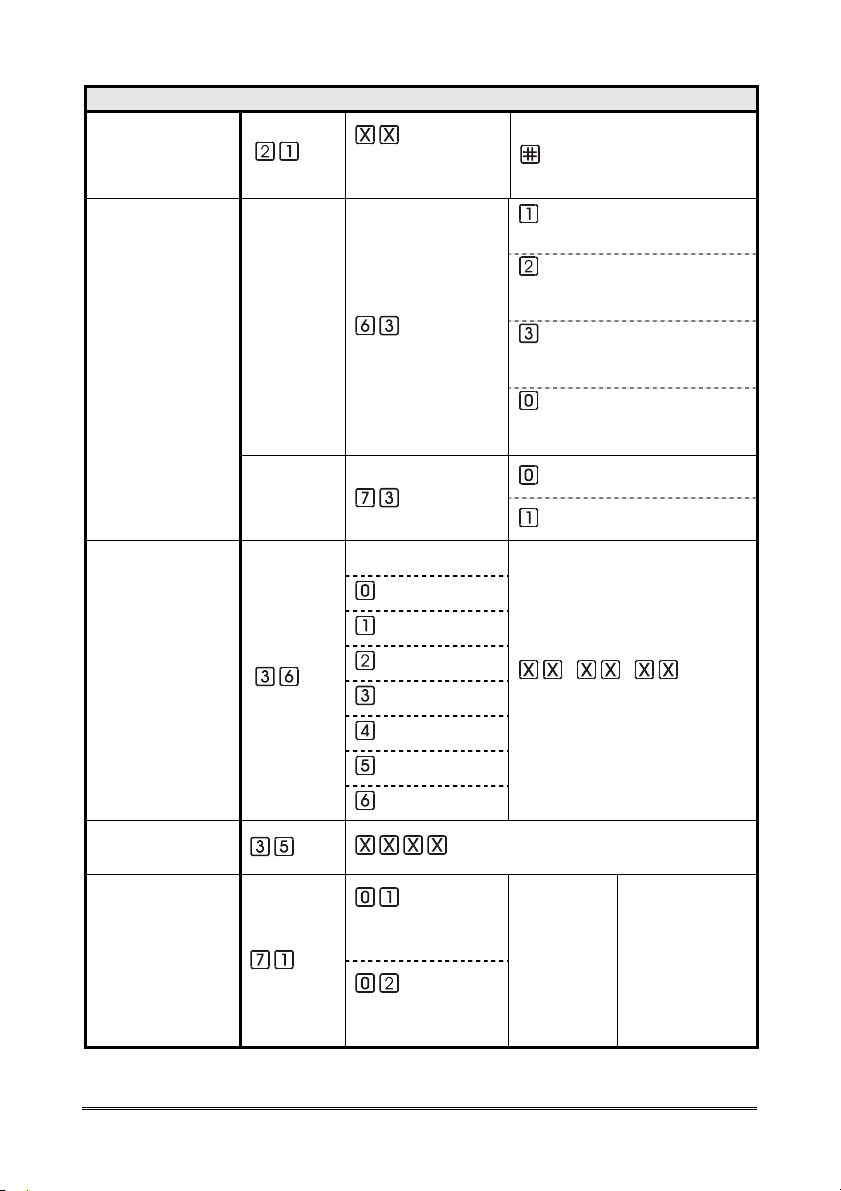

BASIC PROGRAMMING
DELETING
TELEPHONE
NUMBER
(INST)
( position from 01 to
12)
TYPE OF
INSTALLATION
(INST)
Number of
active
speaker
units
only the built-in active
speaker unit
built-in active speaker unit
and 1 active speaker unit
connected
built-in active speaker unit
and 2 active speaker units
connected
simultaneous communication
between all speaker units
connected
Active
speaker unit
in the car
no
yes
DATE
(INST)
WEEKDAY
(dd) (mm) (yy)
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
TIME
(INST) (hhmm; from 0000 to 2359)
RECORD THE
MESSAGES
(INST)
identification
message (max. 25s)
(record) (hang up)
courtesy message
(max. 25s)

PROGRAMMING Page 19
BASIC PROGRAMMING
LISTEN TO THE
MESSAGES
(INST/OPER)
identification
message
(listen)
courtesy message
LOW BATTERY
ALARM
(INST)
disabled alarm
enabled alarm
REPLACE
BATTERY ALARM
(INST)
disabled alarm
enabled alarm
AUTOMATIC TEST
DATA
(INST)
Frequency
days (days, from 1 to 9; factory default 3)
Time of the
call (hhmm; from 0000 to 2359)
Enabling
automatic
test
automatic test disabled
automatic test enabled (EN 81-28:2018)
automatic test enabled (EN 81-28:2004)
Manually perform a
test call
PROTOCOLS
IDENTIFICATION
CODE
(INST)
Esse-ti … (identification
code) []
P100
SPEAKER UNITS
VOLUME
(INST/OPER)
built-in
active
speaker unit
loudspeaker
(from 1 to
5; factory
default 2)
microphone
(from 8 to
9; factory
default 8)
speaker unit
connected to
VVY
speaker unit
connected to
VVX
MESSAGES
VOLUME
(INST/OPER) (from 1 to 5;
factory default 2)

Page 20 PROGRAMMING
BASIC PROGRAMMING
GENERAL
VOLUME
(INST/OPER)
loudspeaker
(from 1 to 5;
factory default
2)
microphone
from 8 to 9;
factory
default 8)
messages
(from 1 to
5; factory
default 2)
LISTEN TO THE
PROGRAMMING
AGAIN
(INST)
... (programming code prefix)
RESTORE
FACTORY
SETTINGS
(INST)
Advanced programming
ADVANCED PROGRAMMING
CHANGE
INSTALLER
PASSWORD “0”
(INST)
… []
(old)
.. [] .. [ ]
(new) (new)
CHANGE
OPERATOR
PASSWORD “1”
(INST)
… []
(old)
.. [] .. [ ]
(new) (new)
EMERGENCY CALL
BUTTONS DELAY
(INST)
(seconds, from 2 to 9; factory default 3)
CAR EMERGENCY
CALL BUTTON
(ALC) NORMALLY
CLOSED/OPEN
(INST)
normally closed
normally open
NO EXTERNAL
POWER SUPPLY
ALARM
(INST)
disabled alarm
enabled alarm with XX minutes delay
(from 01 to 99)
SPEAKER UNITS
DIAGNOSTIC
ALARM
(INST)
disabled alarm
enabled alarm for speaker unit connected to VVX
enabled alarm for speaker unit connected to VVY
enabled alarm for speaker units connected to VVX
and VVY
