EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

Introduction:
Thank you for your purchase. The EchoICON/EchoEDGE RGBWA+UV LED is a DMX
intelligent LED par light. This LED par light is for the serious production company looking
for high powered LED output with (8) 18Watt 6in1 RGBWA+UV LEDs. The CUBE Series
including the CUBE3, CUBE4, CUBE5, CUBEecho, CUBEechoUV, EchoICON and EchoEDGE as
well as the ElitePar Series are Designed in Houston, TX.
Unpacking: Thank you for purchasing the EchoICON/EchoEDGE RGBWA+UV light fixture.
Every EchoICON/EchoEDGE RGBWA+UV has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to be damaged, carefully inspect
your fixture for any damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are missing, please contact the
manufacturer or your dealer for further instructions. Do not return this unit to your dealer
without first contacting them.
Contents in each package: (1) EchoICON or EchoEDGE RBWA+UV, (1) IEC power cord,
(1) Bracket, (2) knobs, (4) washers.
FIRST CHARGE YOUR FIXTURE FOR 6 HOURS.
Securely, plug the IEC power
cord in the Power Input on the side of the light fixture, and then plug into the
EchoICON/EchoEDGE charging road case or into a powerstrip connected to a wall outlet
that supports 100-220V/50-60Hz. Flip the 3-way black switch to CHARGE position, having
the red power button in the OFF position. Reference “How to Charge the CUBEecho” below.
On the back of the fixture, the Battery Charge Indicator will illuminate Red while charging
or illuminate Green when fully charged.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself; doing so will void your manufactures warranty. In the unlikely event your unit
may require service please contact the manufacturer or your dealer.
How to Charge the CUBE Series Fixtures: (Note)-there are two switches:
1.) The black switch is for the battery option use of this fixture. It is a 3-way switch;
Battery ON, OFF (neutral position), and CHARGE.
2.) The red switch is used for AC power operation.
How to charge the fixture: Plug the IEC power cord into the Power Input. Flip the 3-way
black button switch to the CHARGE position. Caution! Never have the battery button
flipped to the ON position and the Red Power button in the ON position at the same time,
while the IEC power cord is plugged into the fixture. However, you can operate the fixture
2
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

with the IEC power cord plugged into the Power Input, Red Power button flipped to ON and
CHARGE the battery at the same time or have the 3-way switch in the OFF position.
How Long Does the Battery Last?
The EchoICON/EchoEDGE RGBWA+UV will last up to 20 hours on a single full charge. It
will depend on which LED colors and how many LED colors are being used at what
intensity based on the (0-255) Scale. The (0-255) Scale you see on the push button display
is directly related to the 0-255 scale you are using with a DMX controller or DMX software.
Example:
Full Red (255) will go about 22 hours
Full Green (255) will go about 18 hours
Full Blue (255) will go about 18 hours
Full White (255) will go about 18 hours
Full Amber (255) will go about 22 hours
Full UV (255) will go about 17 hours
With that being said once you color mix and you use the before stated run times of each
color and average the estimated run time you will be able to calculate about how long a
battery with a full charge should last.
For Example:
2 Colors at Full - Red (255) + Green (255) will go about 11 hours.
3 Colors at Full – Red (255) + Green (255) + Amber (255) will go about 7 Hours.
Note: With Color mixing 6in1 RGBWA+UV High Powered 18Watt LEDs. You will find that
you typically only need to mix only 2 or 3 main colors to achieve the desired color.
Keep in mind that a single color at FULL (255) is bright enough so when color mixing…to
achieve longer battery run times; instead of making the color “Purple” by way of Red (255)
+ Blue (255) which will give you about 10-12 Hours. Try making “Purple” by way of Red
(127) + Blue (128) which will equal “Purple” (127+128 = 255) which will give you about
19-22 Hours. This will be half as bright as before at full intensity. However, you will get
almost double the battery run time.
3
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

Features & Technical Specifications:
• (8) 18 Watt All in One RGBWA+UV LEDs
• All in One LEDs RGBWA+UV Fixture - RED, GREEN, BLUE, WHITE, AMBER and
UV!
• 3CH, 4CH, 5CH, 6CH, 8CH, 11CH or 13CH DMX Modes
• Flicker Free Refresh Rate >400 Hz (HDTV Video, Guaranteed No Flicker)
• Ideal for ideal for HDTV recordings with Flicker Free operation
• Sound Active with 2 Sound Active Modes (1 Without Strobe/1 With Strobe)
• Auto Mode with 8 Speed Settings
• Smooth Color Mixing
• Fade mode with 8 Speed Settings
•
50 built in PRE-SET Colors
• Manual Color Mix Mode on Push Button Display
• Built In Color Macros, Auto & Manual control
• 16 Digit, 2 Line, Full Text read out Back-Lit LCD Push Button Display
• Ability to create & store into memory 5 Custom/manual Colors.
• Power In & Power Out
• Master/Slave Control
• Up to 20 Hours of Battery Life
• Flush Mounted Wireless DMX Antenna recessed to keep the antenna safe
• 2.4gHz Wireless DMX Receiver that is also a Transmitter (Up to 300ft Line of Sight)
• Simultaneous master signal transmitting from Master to all other lights in range
• IR Remote control. Also the Signal Received from the IR Remote can Transmit to the
other lights by Wireless DMX.
(Compatible with CUBE5, ElitePar5, CUBEecho & EchoEDGE)
• Dual Mount Bracket for hanging or sitting on the floor
• Rubber feet for non intrusive lay flat design.
• PHOTOMETRICS: 19,345 LUX @ 1meter (Full Power)
4
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

Operation Guide:
Turn on the fixture by BATTERY ON or by plugging the IEC Power Cord into the Power
input and turn the Red power switch to ON
Start Up
Welcome to
ETERNAL LIGHTING
Switch to Display
Version
RGBWA (CH 3, 4, 5, 8, 11)
RGBWA+UV (CH 3, 4, 5, 6, 8, 11, 13)
DMX addr
CH mode
DMX addr: 001-512
RGBWA -CH-mode: 3 / 4 / 5 / 8 / 11
RGBWA+UV -CH-mode: 3 / 4 / 5 / 6 / 8 / 11 /13
Mast/Slave
Mast / Slave
Manual
R/G/B/W/A/UV (000-255)
SHND
Color
Color 01-31 (RGBWA)
Color 01-50 (RGBWA+UV)
Do not operate in Color50 with all colors at 255 other than Testing for short time.
Auto
Auto Speed 01-08
Custom Color A
Custom Color B
Custom Color C
Custom Color D
Custom Color E
Sound
Sound: 1
Sound: 2
Fade
01-10 (Fast to Slow)
Boot time
Work time
Operating Time
Total Operating Time
5
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

Battery Capacity
Battery Percentage Indicator
(90-100% is Fully Charged, 20-30% is Low to Depleted Battery)
Note: Light will shut off around 20-30% left on Battery Capacity
LCD Display time
Full on
10s/11s/12s…60s
IR INFA
Enable/Disable
Menu:
•Start Up – Welcome to Eternal Lighting Screen
•Switch to Display-When blinking, choose Program RGBWA or RGBWA+UV, press
UP and Enter
•DMX Address and Channel Mode – Press Enter to move up and down between
DMX Addr and CH. Press Down/Up to scroll through choices. Press Enter to save a
command then press Menu to back out.
•Master/Slave – Press Up or Down to change the command of Master or Slave, Enter
to save the command. (NOTE: In order to use the IR Remote, put the fixture in
Master Mode. The fixture will not respond to the IR Remote if it is in Slave Mode.)
•Manual – Press Enter to go through Red, Green, Blue, White, Amber, and UV. Press
Up or Down to adjust color brightness on a scale of 0-255. Enter to save. This serves
as the Master Dimmer for all the Pre-set colors.
•SHND –Press Up to scroll through options: Color, Sound, and Fade. Enter to select
choice.
oColor – Pre-set colors (1-50), after color 50 is AUTO change (Speed 1-8).
After AUTO, is Custom Color A – E; Enter make a custom color. You can make
5 custom colors that will be saved under A through E.
oSound – Sound 1 (auto change when hears sound & Fade when quiet). Sound
2 (Strobe effect when hears sound & Fade when quiet).
oFade – Color Fade 1 through 10. Fast (1) to slow (10).
•Boot Time and Work Time – Current operating time and total run time
•Battery Capacity – Indication of Percentage left on the battery
•LCD Display Time – Choose to have the Display back lit Full On/10sec-60sec
•IR INFA – Enable or Disable
6
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

How to use the Wireless Receiver: Turn the wireless Receiver button to the ON position.
There is a Wireless Indicator that illuminates the colors in the ID Code Selector.
ID Code Selector – Red (1), Green (2), Yellow (3), Blue (4), Purple (5), Cyan (6), White (7).
To change to ID Code Selector colors, press the small clickable button next to the ID Code
Selector. Choose a color, for example Blue (4), and do the same for all your CUBEecho
RGBWA+UV.
Master/Slave - Have one fixture in Master Mode and the rest of the fixtures in Slave Mode.
Turn on the Receiver button and put all fixtures on same ID Code Color. You now control
only the Master fixture and all the Slave fixtures will do what the Master is doing. The
Master fixture Wireless Indicator will start blinking RED (meaning transmitting signal) and
all the Slave fixture(s) will start blinking GREEN (meaning receiving signal).
How to use the XT-Mitter PRO 3.0 with your lights: To operate the XT-Mitter PRO, you
must connect the XT-Mitter Pro with a DMX cable to a DMX Controller.
To sync the EchoICON/EchoEDGE to the XT-Mitter PRO 3.0 transmitter, select the same ID
Code color on all the fixture(s) and select the ID on the XT-Mitter PRO to correspond to the
color. Reference the chart below. Note: Transmitter ID 8, 9, A, B, C, D, E, & F is inactive.
Only select 1-7 to coordinate with the Receiver Color on your fixture.
Transmitter
ID
1
2
3
4
5
6
7
Receiver
LED Color
RED
GREEN
YELLOW
BLUE
PURPLE
CYAN
WHITE
Transmission Power Level on XT-Mitter PRO: Displays current transmission power (1)
2dBm (Lowest), (2) 8dBm, (3) 14dBm, or (4) 20dBm (Highest). To change the
transmission power level, use the “PA” button located on the front panel. Recommended is
P4.
The XT-Mitter PRO will start blinking RED (meaning transmitting signal) and all the Slave
fixture(s) will start blinking GREEN (meaning receiving signal). You will have up to 300
feet, line of sight of communication with your XT-Mitter PRO and the EchoICON/EchoEDGE
RGBWA+UV. Please reference the DMX chart below for information on the Channel Mode
programs.
Helpful Trick: To Master Reset the EchoICON/EchoEDGE to Factory setting, press Menu
and Enter button at the same time and hold for 5 seconds. The light will go into the
following factory settings. AUTO color change mode, DMX Address back to 001, Channel
mode back to 6CH Mode, Slave Mode, IR Disabled, Display on for 60 Seconds, Manual Colors
back to 255, and put all custom colors (A-E) back to 0 color settings on all RGBWA+UV.
7
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

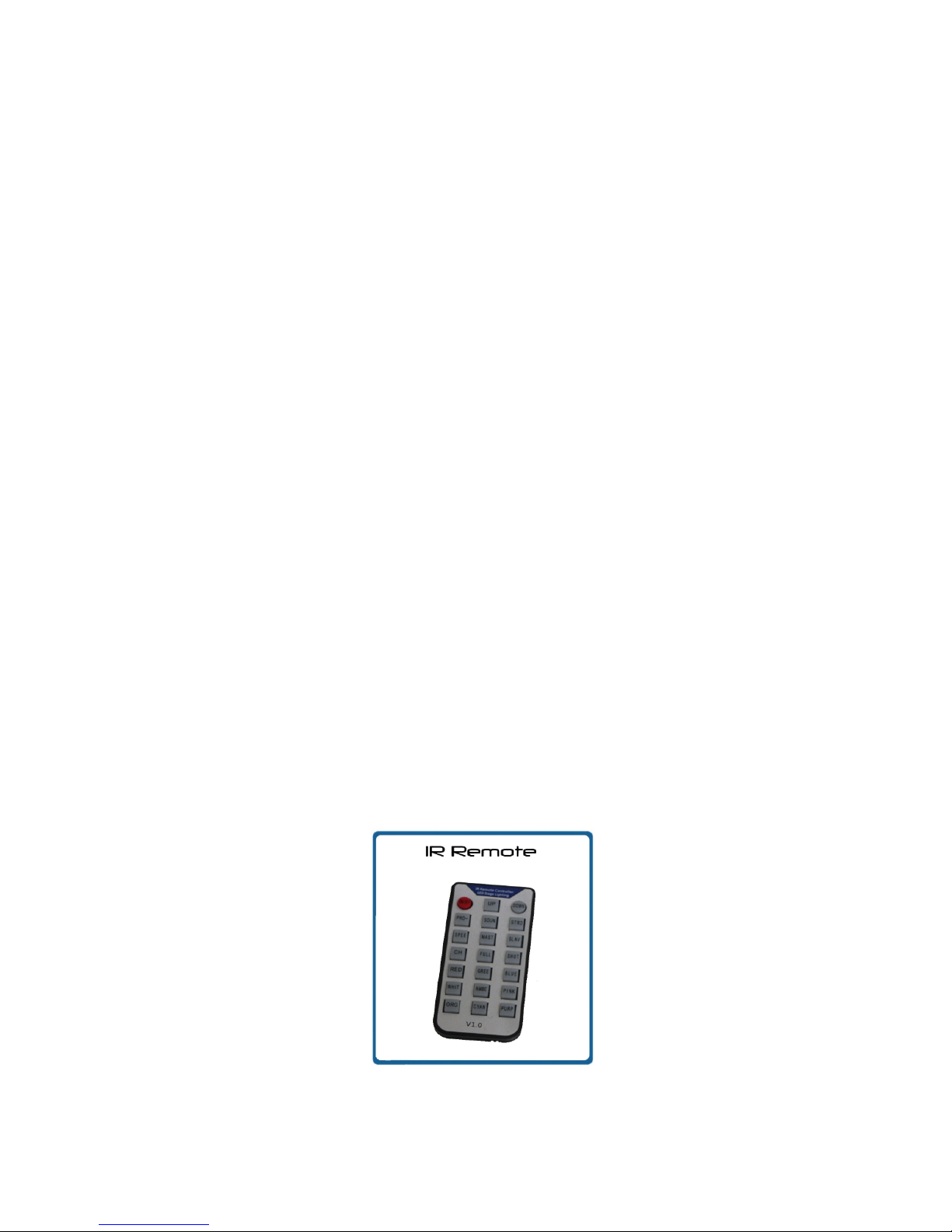

Infrared remote control:
To use the IR remote control on the EchoICON/EchoEDGE, first ENABLE the IR INFA
located in the MENU selection. Also, turn the fixture into a MASTER. To control the fixture
you must aim the remote at the infrared sensor located on the top of the fixture by the
LEDs.
Remote Functions:
ON/OFF turn on/off the light, if you don’t need the light for a while, you could press OFF to
save power
PRO Press to activate Auto or Fade program, press UP or DOWN to choose speed for Fade
SOU sound active mode press UP or Down to chose sound active mode 1 or 2
STRO strobe mode, press UP or DOWN to choose speed
SPEE speed for Auto program, press UP or DOWN
MAST master mode
SLAV slave mode
CH addr / channel
FULL all leds light up at 255
SHUT all leds turn off
Red red color GREE green color BLUE blue color
WHIT white color AMBE amber color PINK pink color
ORG orange/yellow color GYAN cyan color PURP purple/UV color
8
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

DMX Values and Functions: DMX Channel Mode 3ch / 4ch / 5ch / 6ch / 8ch / 11ch / 13ch
3CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON
4CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON
5CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
9
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

6CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON
8CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH6
0-255
Ultra Violet Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
Auto (0-10 Off, 11-255 Auto Change Color Snap through the preset colors)
CH6
0-255
Auto Slow to Fast (0-255)
CH7
0-255
R, G, B,W STROBE from slow to fast (0-15 Off, 16-255 Strobe Slow to Fast)
CH8
0-255
SOUND (Off 0-15 ON 16-255 Color change through preset colors)
10
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

11CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH6
0-255
R, G, B, W Master dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH7
0-255
Amber Master dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH8
0-255
Auto Program Built in Macro (0-10 Off, 11-31 RED, 32- 53 Green, 54-75 Blue, 76-96
Color Snap White to Amber, 97-119 UV, 120-141 Color Snap Red to Green to Blue to
White, 142-185 Color Snap UV to Yellow, 186-207 Orange as RED/Amber mixed,
208-255 Color Snap Red to Green to Blue to White to Amber)
CH9
0-255
Auto Speed Slow to Fast (0-255)
CH10
0-255
R, G, B,W, A STROBE from slow to fast (0-255)
CH11
0-255
SOUND 1 (Off 0-15, ON 16-255 Color change through preset colors)
11
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014

13CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH6
0-255
Ultra Violet Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH7
0-255
R, G, B, W Master dimmer (0 Off, 1-255 Dim to Bright)
CH8
0-255
Amber Master dimmer (0 Off, 1-255 Dim to Bright)
CH9
0-255
Ultra Violet Master dimmer (0 Off, 1-255 Dim to Bright)
CH10
0-255
Auto Program Built in Macro (0-10 Off, 11-31 RED, 32- 53 Green, 54-75 Blue, 76-96
Color Snap White to Amber, 97-119 UV, 120-141 Color Snap Red to Green to Blue to
White, 142-185 Color Snap UV to Yellow, 186-207 Orange as RED/Amber mixed,
208-250 Color Snap Red to Green to Blue to White to Amber, 251-255 Fade
Program)
CH11
0-255
Auto/Fade Speed Slow to Fast (0-255)
CH12
0-255
R, G, B,W, A STROBE from slow to fast (0-255)
CH13
0-255
SOUND 1 (Off 0-15, ON 16-255 Color change through preset colors)
For more information, please contact Support by email at [e-mail]
12
EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014
