Eternal Lighting EliteParHEX User manual

Eternal
Lighting

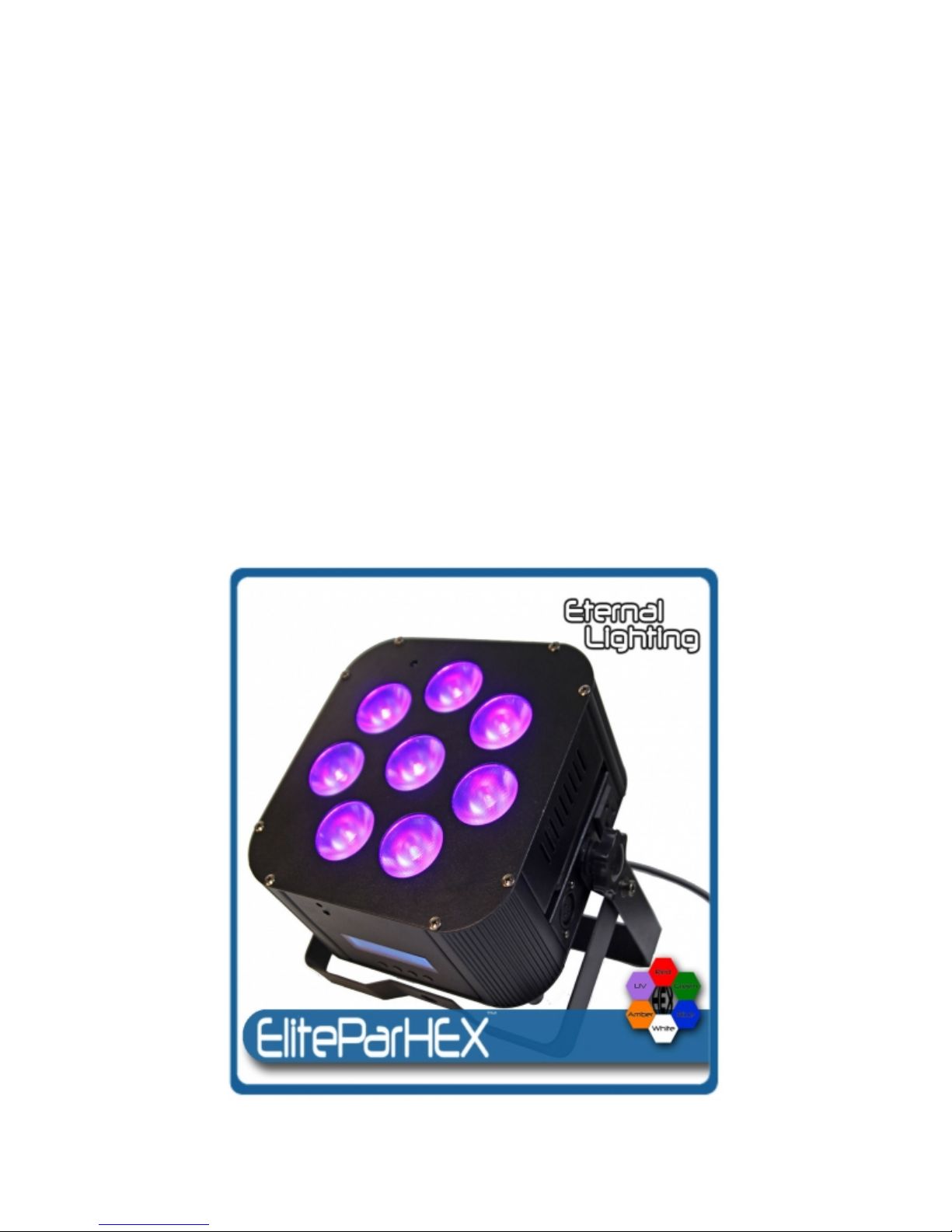

EliteParHEX
User Manual
1
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

Introduction:
Thank you for your purchase. The EliteParHEX RGBWA+UV LED is a DMX intelligent LED
par light. This LED par light is for the serious production company looking for high
powered LED output with (8) 18Watt 6in1 RGBWA+UV LEDs.
Unpacking: Thank you for purchasing the EliteParHEX RGBWA+UV light fixture. Every
EliteParHEX RGBWA+UV has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your
fixture for any damage and be sure all accessories necessary to operate the unit has arrived
intact. In the case damage has been found or parts are missing, please contact the
manufacturer or your dealer for further instructions. Do not return this unit to your dealer
without first contacting them.
Contents in each package: (1) EliteParHEX RGBWA+UV, (1) IEC power cord, (1) Bracket,
(2) knobs, (4) washers.
•IMPORTANT NOTE: Do Not LINK Power in to Power out more than 4 Units at a time.
You may blow a fuse. The fuse is 5A, 250V.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself; doing so will VOID your manufactures warranty. In the unlikely event your unit
may require service please contact the manufacturer or your dealer.
The CUBE Series including the CUBE3, CUBE4, CUBE5, CUBEecho, CUBEechoUV, EchoICON,
EchoEDGE and EliteParHEX as well as the ElitePar Series are designed in Houston, TX.
2
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

Features & Technical Specifications:
•(8) 18 Watt All in One RGBWA+UV LEDs
•All in One LEDs RGBWA+UV Fixture-RED, GREEN, BLUE, WHITE, AMBER and UV!
•3CH, 4CH, 5CH, 6CH, 8CH, 11CH or 13CH DMX Modes
•Flicker Free Refresh Rate >400 Hz (HDTV Video, Guaranteed No Flicker)
•Ideal for ideal for HDTV recordings with Flicker Free operation
•Sound Active with 2 Sound Active Modes (1 Without Strobe/1 With Strobe)
•Auto Mode with 8 Speed Settings
•Smooth Color Mixing
•Fade mode with 8 Speed Settings
•50 built in PRE-SET Colors
•Manual Color Mix Mode on Push Button Display
•Built In Color Macros, Auto & Manual control
•16 Digit, 2 Line, Full Text read out Back-Lit LCD Push Button Display
•Ability to create & store into memory 5 Custom/manual Colors
•Power In & Power Out
•Master/Slave Control
•Flush Mounted Wireless DMX Antenna recessed to keep the antenna safe
•2.4gHz Wireless DMX Receiver that is also a Transmitter (Up to 300ft Line of
Sight)
•Simultaneous master signal transmitting from Master to all other lights in range
•IR Remote control. Also the Signal Received from the IR Remote can Transmit to
the other lights by Wireless DMX.
(Compatible with CUBE5, ElitePar5, CUBEecho, EchoICON & EchoEDGE)
•Dual Mount Bracket for hanging or sitting on the floor
•Rubber feet for non intrusive lay flat design.
•PHOTOMETRICS: 19,345 LUX @ 1meter (Full Power)
3
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

EliteParHEX RGBWA+UV Operation Guide: Plug the IEC Power Cord into the Power
input and turn the power switch to ON
Start Up
Welcome to
ETERNAL LIGHTING
Switch to Display
Version
RGBWA (CH 3, 4, 5, 8, 11)
RGBWA+UV (CH 3, 4, 5, 6, 8, 11, 13)
DMX addr
CH mode
DMX addr: 001-512
RGBWA -CH-mode: 3 / 4 / 5 / 8 / 11
RGBWA+UV -CH-mode: 3 / 4 / 5 / 6 / 8 / 11 /13
Mast/Slave
Mast / Slave
Manual
R/G/B/W/A/U (000-255) – Master Dimmer
SHND
Color
Color 01-50 NOTE:
Do not operate in Color50 with all colors at 255 other than
Testing for short time.
Auto
Auto Speed 01-08
Custom Color A
Custom Color B
Custom Color C
Custom Color D
Custom Color E
Sound
S01- Auto Color Change Effect
S02 – Strobe Effect
Fade
01-10 - Fast (1) to slow (10)
Boot time
Operating Time
4
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

Work time
Total Operating Time
Battery Capacity
Battery Percentage Indicator
LCD Display time
Full on
10s/11s/12s…60s
IR INFA
Enable/Disable
Menu:
•Start Up – Welcome to Eternal Lighting Screen
•Switch to Display-When blinking, choose Program RGBWA or RGBWA+UV, press
UP and Enter
•DMX Address and Channel Mode – Press Enter to move up and down between
DMX Addr and CH also press Enter to save a command.
•Master/Slave – Press Up or Down to change the command of Master or Slave, Enter
to save the command. (NOTE: In order to use the IR Remote, put in Master Mode.
The fixture will not respond to the IR Remote if it is in Slave Mode.)
•Manual – Press Enter to go through Red, Green, Blue, White, Amber, & UV. Press Up
or Down to adjust color brightness on a scale of 0-255. This will act like your Master
Dimmer.
•SHND –Press Up to scroll through options: Color, Sound, and Fade. Enter to select
choice.
oColor – Pre-set colors 1-50, after color 50 is AUTO change (Speed 1-8). After
AUTO, is Custom Color A – E; Enter make a custom color. You can make 5
custom colors that will be saved under A through E.
oSound – Sound 1 (auto change when hears sound & Fade when quiet). Sound
2 (Strobe effect when hears sound & Fade when quiet).
oFade – Color Fade 1 through 10. Fast (1) to slow (10).
•Boot Time and Work Time – Current operating time and total run time
•Battery Capacity – (Non Active Feature on EliteParHEX as no battery in this light)

•LCD Display Time – Press Up to adjust 10 sec to Full On Display Back Lit Light
•IR INFA – Enable or Disable
5
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

How to use the Wireless Receiver: Turn the wireless Receiver button to the ON position.
There is a Wireless Indicator that illuminates the colors in the ID Code Selector.
ID Code Selector – Red (1), Green (2), Yellow (3), Blue (4), Purple (5), Cyan (6), White (7).
To change to ID Code Selector colors, press the small clickable button next to the ID Code
Selector. Choose a color, for example Blue (4), and do the same for all your other fixtures.
Master/Slave - Have one fixture in Master Mode and the rest of the fixtures in Slave Mode.
Turn on the Receiver button and put all fixtures on same ID Code Color. You now control
only the Master fixture and all the Slave fixtures will do what the Master is doing. The
Master fixture Wireless Indicator will start blinking RED (meaning transmitting signal) and
all the Slave fixture(s) will start blinking GREEN (meaning receiving signal).
How to use the XT-Mitter PRO 3.0 with your lights: To operate the XT-Mitter PRO, you
must connect the XT-Mitter Pro with a DMX cable to a DMX Controller.
To sync the EliteParHEX RGBWA+UV to the XT-Mitter PRO 3.0 transmitter, select the same
ID Code color on all the fixture(s) and select the ID on the XT-Mitter PRO to correspond to
the color. Reference the chart below. Note: Transmitter ID 8, 9, A, B, C, D, E, & F is inactive.
Only select 1-7 to coordinate with the Receiver Color on your fixture.
Transmitter
ID
1
2
3
4
5
6
7
Receiver
LED Color
RED
GREEN
YELLOW
BLUE
PURPLE
CYAN
WHITE
Transmission Power Level on XT-Mitter PRO: Displays current transmission power (1)
2dBm (Lowest), (2) 8dBm, (3) 14dBm, or (4) 20dBm (Highest). To change the
transmission power level, use the “PA” button located on the front panel. Recommended is
P4.
The XT-Mitter PRO will start blinking RED (meaning transmitting signal) and all the Slave
fixture(s) will start blinking GREEN (meaning receiving signal). You will have up to 300
feet, line of sight of communication with your XT-Mitter PRO and the EliteParHEX. Please
reference the DMX chart below for information on the Channel Mode programs.
Helpful Trick: To Master Reset the EliteParHEX to Factory setting, press Menu and Enter
button at the same time and hold for 5 seconds. The light will go into the following factory
settings. AUTO color change mode, DMX Address back to 001, Channel mode back to 6CH
Mode, Slave Mode, IR Disabled, Display on for 60 Seconds, Manual Colors back to 255, and
put all custom colors (A-E) back to 0 color settings on all RGBWA+UV.
6
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

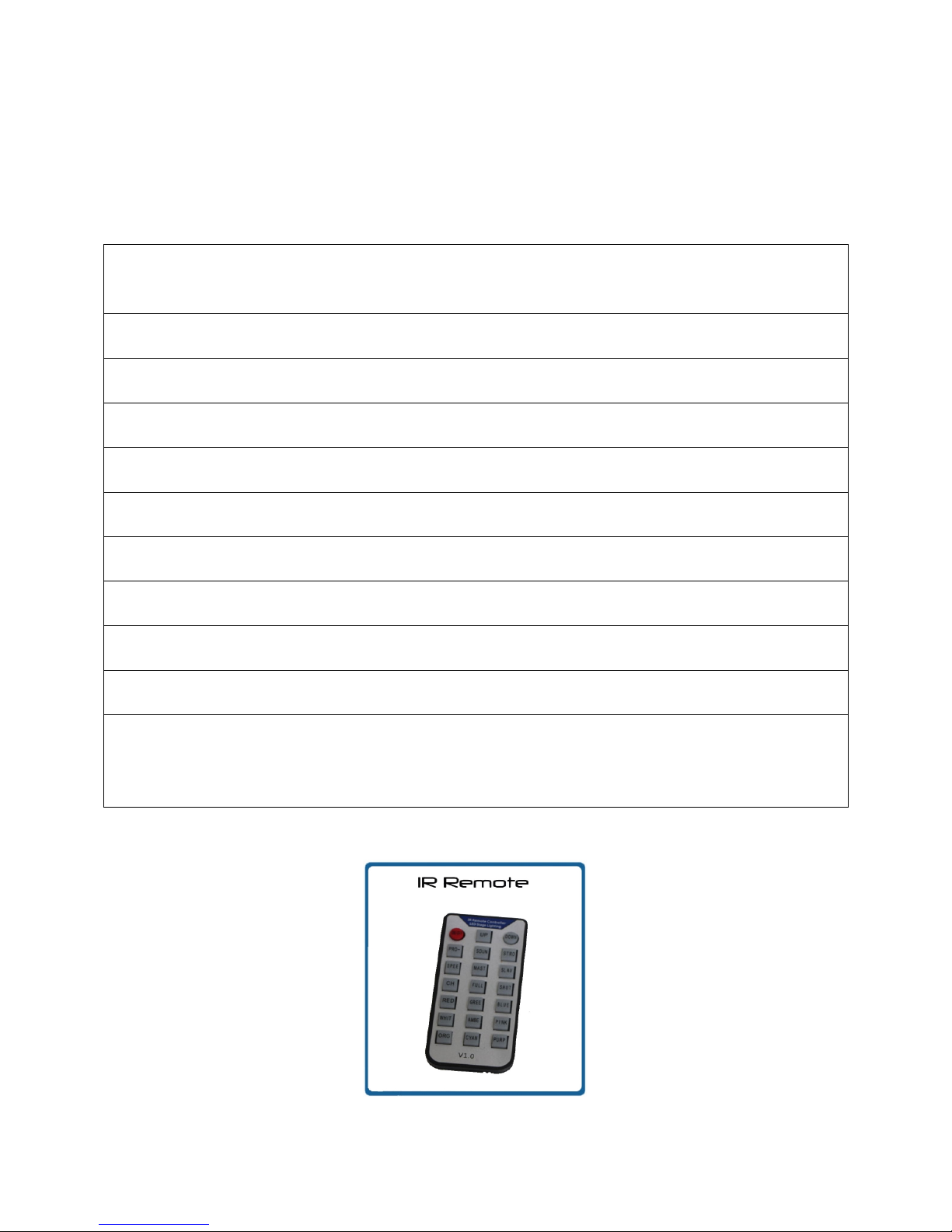

Infrared remote control:
To use the IR remote control on the EliteParHEX, first ENABLE the IR INFA located in the
MENU selection. Also, turn the fixture into a MASTER. To control the fixture you must aim
the remote at the infrared sensor located on the top of the fixture by the LEDs.
ON/OFF turn on /off the light, If you don’t need the light for a while, you could press OFF
to save electric energy.
PRO Press to activate Auto or Fade program, press UP or DOWN to choose speed for Fade
SOU sound active mode press UP or Down to chose sound active mode 1 or 2
STRO strobe mode, press UP or DOWN to choose speed
SPEE speed for Auto program, press UP or DOWN
MAST master mode
SLAV slave mode
CH addr / channel
FULL all leds light up at 255
SHUT all leds turn off
Red red color GREE green color BLUE blue color
WHIT white color AMBE amber color PINK pink color
ORG orange/yellow color GYAN cyan color PURP purple/UV color
7
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

DMX Values and Functions: DMX Cannel Mode 3ch / 4ch / 5ch / 6ch / 8ch / 11ch / 13ch
3CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX
4CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX
5CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
8
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

6CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX
8CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH6
0-255
Ultra Violet Color dimmer (0-1 Off, 2-255 Dimmer from Dim to
Bright)
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
Auto (0-10 Off, 11-255 Auto Change Color Snap through the preset
colors)
CH6
0-255
Auto Slow to Fast (0-255)
CH7
0-255
R, G, B,W STROBE from slow to fast (0-15 Off, 16-255 Strobe Slow
to Fast)
CH8
0-255
SOUND (Off 0-15 ON 16-255 Color change through preset colors)
9
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

11CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH6
0-255
R, G, B, W Master dimmer (0-1 Off, 2-255 Dimmer from Dim to
Bright)
CH7
0-255
Amber Master dimmer (0-1 Off, 2-255 Dimmer from Dim to
Bright)
CH8
0-255
Auto Program Built in Macro (0-10 Off, 11-31 RED, 32- 53 Green,
54-75 Blue, 76-96 Color Snap White to Amber, 97-119 UV, 120-
141 Color Snap Red to Green to Blue to White, 142-185 Color
Snap UV to Yellow, 186-207 Orange as RED/Amber mixed, 208-
255 Color Snap Red to Green to Blue to White to Amber)
CH9
0-255
Auto Speed Slow to Fast (0-255)
CH10
0-255
R, G, B,W, A STROBE from slow to fast (0-255)
CH11
0-255
SOUND 1 (Off 0-15, ON 16-255 Color change through preset
colors)
10
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014

13CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX
Value
RGBWA+UV 18 Watt x 6in1
CH1
0-255
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH2
0-255
GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH3
0-255
BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH4
0-255
WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH5
0-255
AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
CH6
0-255
Ultra Violet Color dimmer (0-1 Off, 2-255 Dimmer from Dim to
Bright)
CH7
0-255
R, G, B, W Master dimmer (0 Off, 1-255 Dim to Bright)
CH8
0-255
Amber Master dimmer (0 Off, 1-255 Dim to Bright)
CH9
0-255
Ultra Violet Master dimmer (0 Off, 1-255 Dim to Bright)
CH10
0-255
Auto Program Built in Macro (0-10 Off, 11-31 RED, 32- 53 Green,
54-75 Blue, 76-96 Color Snap White to Amber, 97-119 UV, 120-
141 Color Snap Red to Green to Blue to White, 142-185 Color
Snap UV to Yellow, 186-207 Orange as RED/Amber mixed, 208-
250 Color Snap Red to Green to Blue to White to Amber, 251-255
Fade Program)
CH11
0-255
Auto/Fade Speed Slow to Fast (0-255)
CH12
0-255
R, G, B,W, A STROBE from slow to fast (0-255)
CH13
0-255
SOUND 1 (Off 0-15, ON 16-255 Color change through preset
colors)
For more information, please contact Support by email at [e-mail]
11
EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014
