Product Instruction Manual
500W
Product Name: LED Grow Light
Model No.：55403161
Manufacturer: Elec-Tech International Co., Ltd.
Address: No.1 Jinfeng Road, Tangjiawan Town, Xiangzhou Dist, Zhuhai City, Guangdong Province,
China
Tel：[phone]
Fax：[phone]
Web：www.etissl.com.cn
Content


1.ProductIntroduction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3
1.1ProductDescription‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3
1.2SchematicDiagram‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3
2.ProductFeature‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2
2.1Productcharacteristic‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2
2.2Specification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3
2.3LightDistribution‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4
3.Methodofapplication‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4‐7
4.FunctionkeysInstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐7
5.Controlerpairinginstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8‐10
6.MaintenanceInstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐10
7.Environmentalrequirement‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐11
8.Productcarriedstandard‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐11
9.Packageinstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐11

1. Product Introduction


1.1. Product Description
1Out Size：700x350x138mm；
2
Frame:AL+ABS,Drivebox:SPCCPowderspray,lampcover:Temperedglass
3
built‐indrivedrivebox
4RadiatingSystim：AL+Airfan
5Samsung‐LED‐2835；OSRAM‐LED‐3030‐Red；OSRAM‐LED‐3030‐Blue



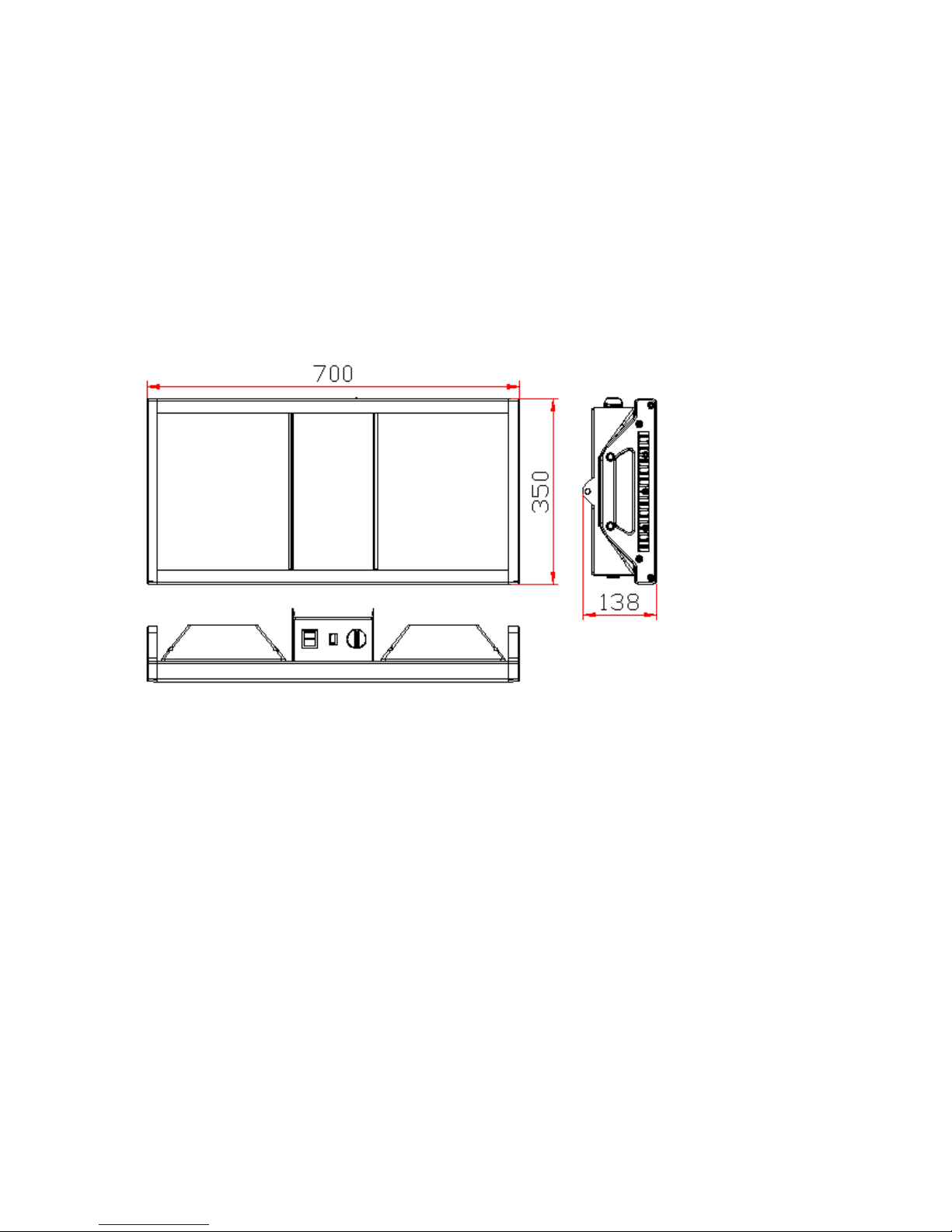

1.2.Product schematic diagram:

2. Product Featuers:
2.1. Product characteristics ：
ٛa. Long lifetime (above 50,000hrs) ；
ٛb. High efficiency, energy saving,
ٛc. Promote the growth and development of plants, increase the production and income of agricultural
industry, and advance the time of agricultural products market; It is suitable for planting fields such as planting and lighting
in agricultural greenhouses, artificial solar light source in plant factories, etc.
2.2 Specification


3 Installation Instructions
Item/Parameter
Electronicratings
WRatedPower/W500W
VRatedInputvoltage/VAC120‐277V
HzFrequency/Hz60Hz
%RatedPowerefficiency85%
（PF）RatedPowerFactor0.95
ARatedInputcurrent/A4.15A
RatedI‐THD<20%

Photometricratings
LEDtype/Qty.
Samsung‐2835/1W/280PCS
Osram‐3030‐R/3W/84PCS
Osram‐3030‐B/3W/60PCS
/PPF800umol/s
Red/Blue/5000K
BeamAngle≥100
Physicalinformation
MaterialPC+SPCC+AL
operatingtemperature‐0～45℃
storagetemperature‐10～50℃
IPratingIP20
(L×W×H)/mmLuminairedimension(L×W×H)/mm700x350x138
gNetweight13980g
hrsLifetime/hrs50000h



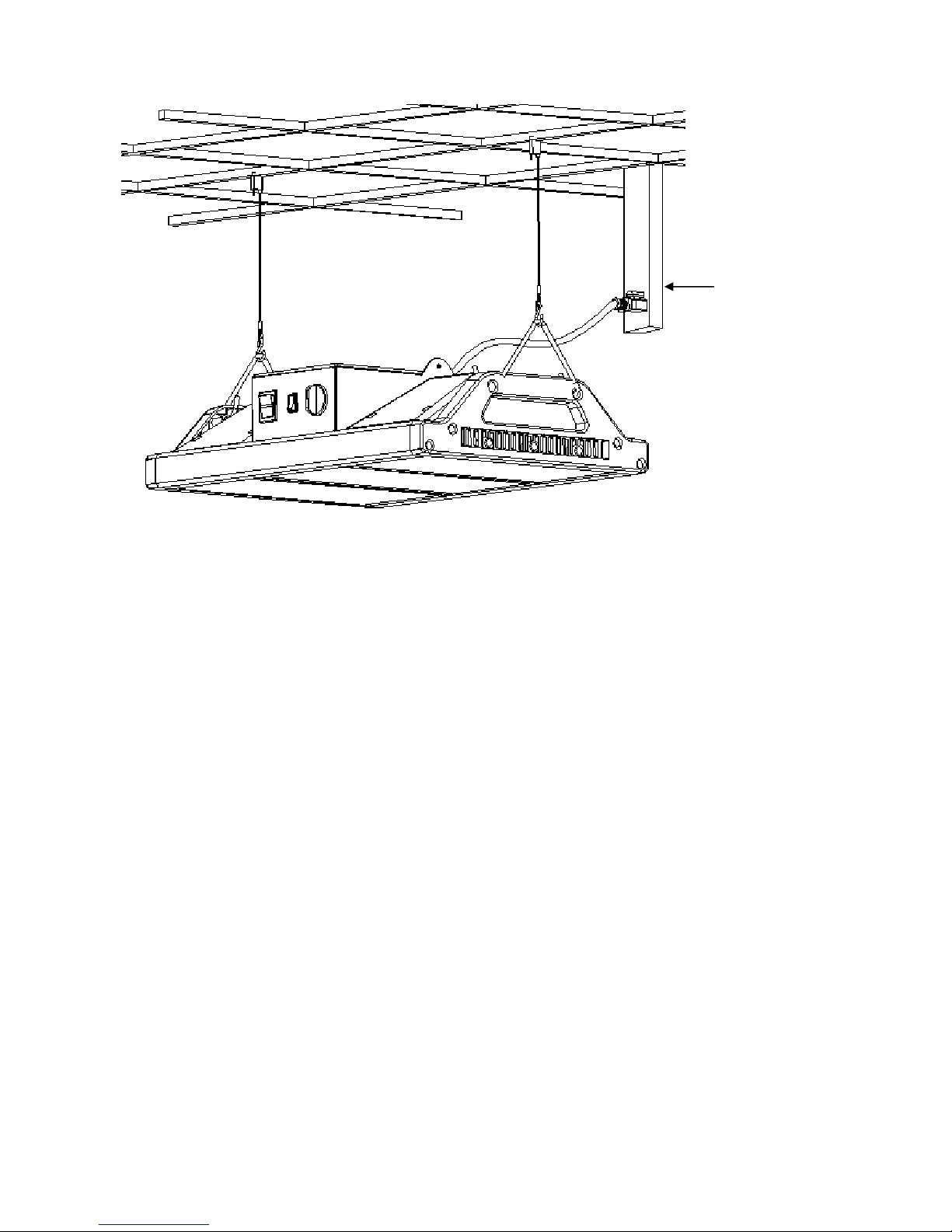

Hanging Mount

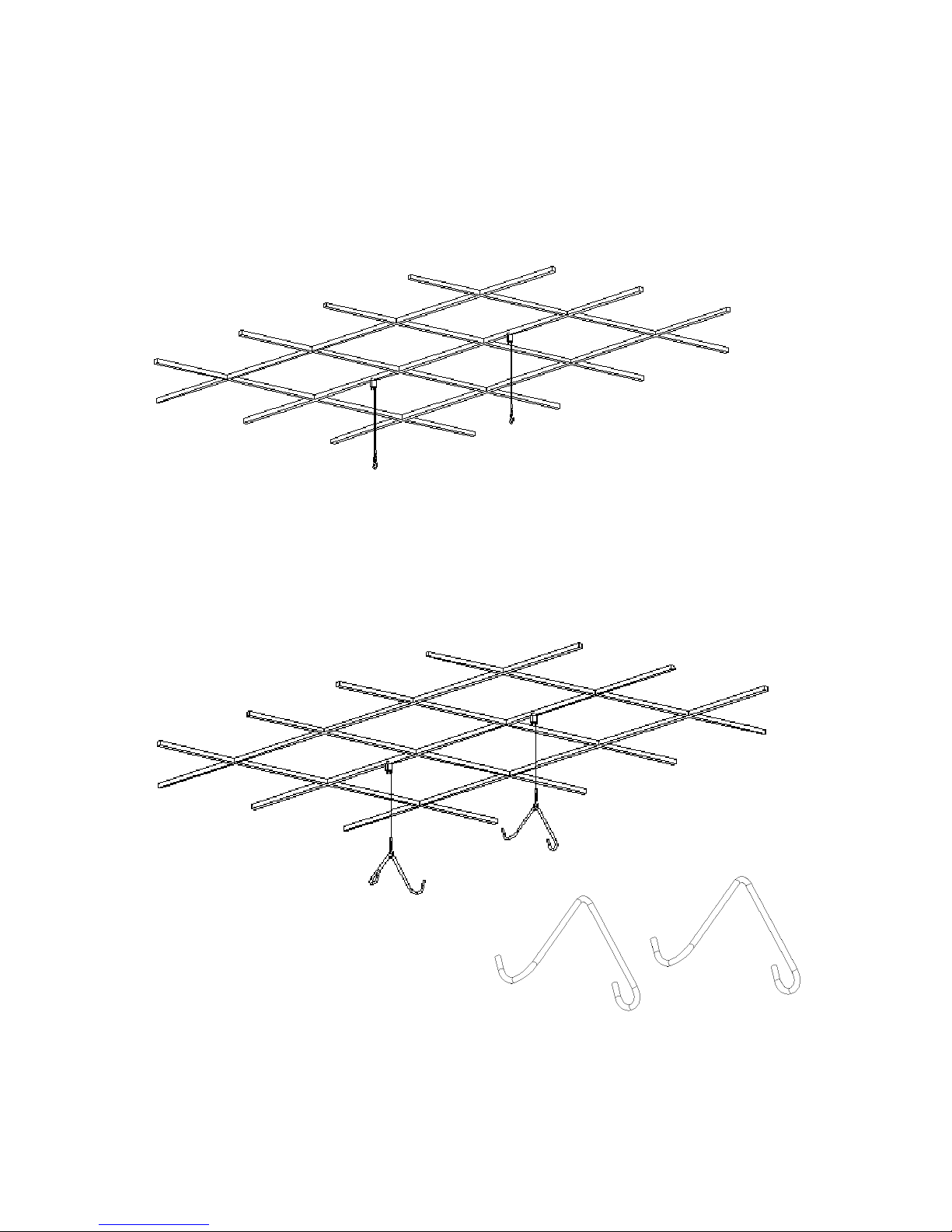

3.1Attached two rope hangers to the ceiling or the structure that can support the weight of grow light
plus some extra for power cords and rope hanger,etc.















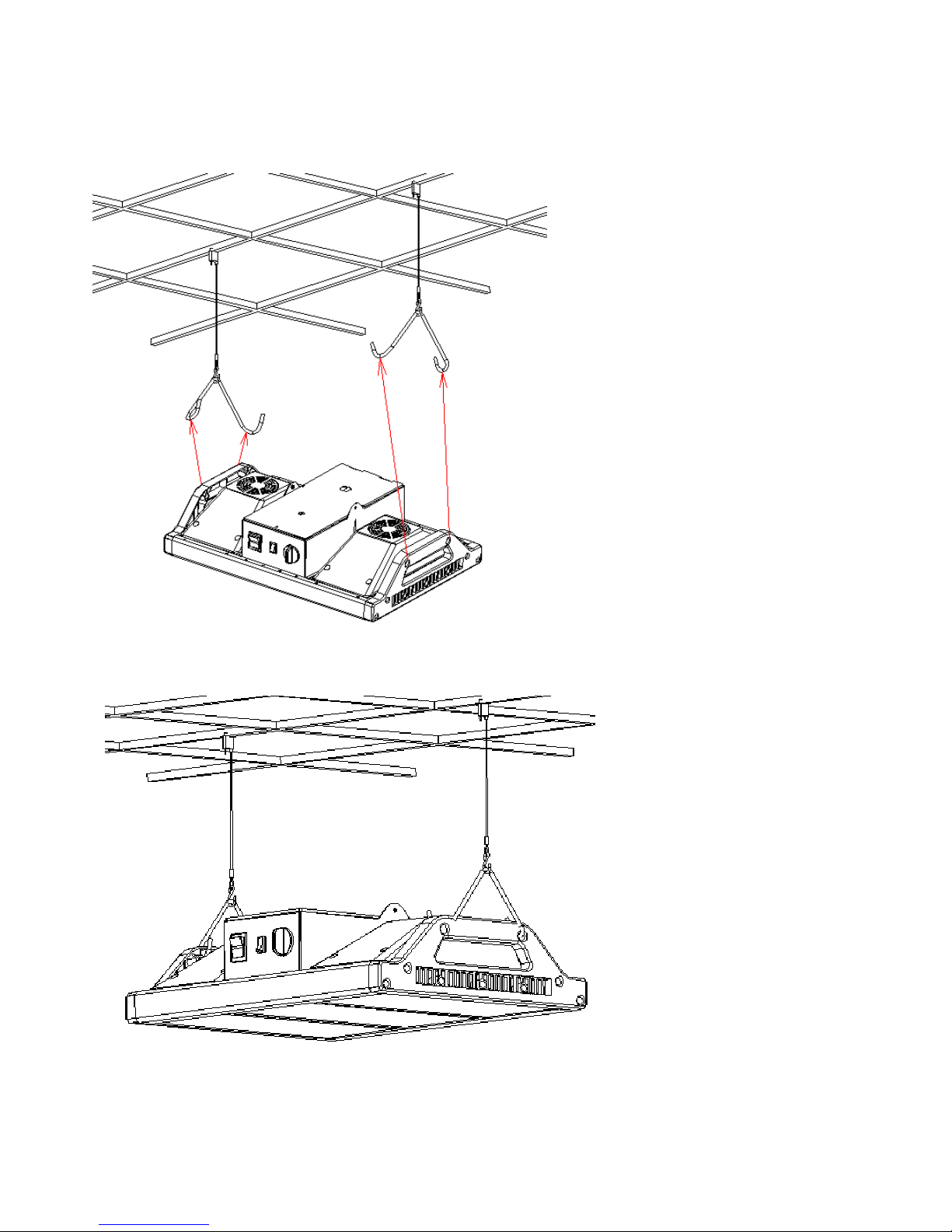

3.2 Place the provided V type hook over the hook of each rope hanger.Ensure both end of rope hanger
are secure.
