ETS ET9015 User manual

wireless charger ET9015
Information for the User Manual who should be adapted to related housing
design or mounting situation
Warning!
Safety Advices
1. Do not disassemble or throw into fire or water, to avoid damage.
2. Do not use wireless charger in severely hot, humid or corrosive environments, to avoid circuit damage and
occurs leakage phenomenon.
3. Do not place close with magnetic stripe or chip card (ID card, credit cards, etc.) to avoid magnetic failure.
4. Please keep the distance at least 30cm between implantable medical devices (pacemakers, implantable
cochlear, etc.) and the wireless charger, to avoid potential interference with the medical device.
5. Take care of the children, to ensure that they won't play the wireless charger as a toy.
6. Some phone case may affect the charging performance.
7. Ensure there is no any metal object between your phone or the charger.
Features
Charge for any QI compatibly wireless device such as Apple or Samsung smartphone.

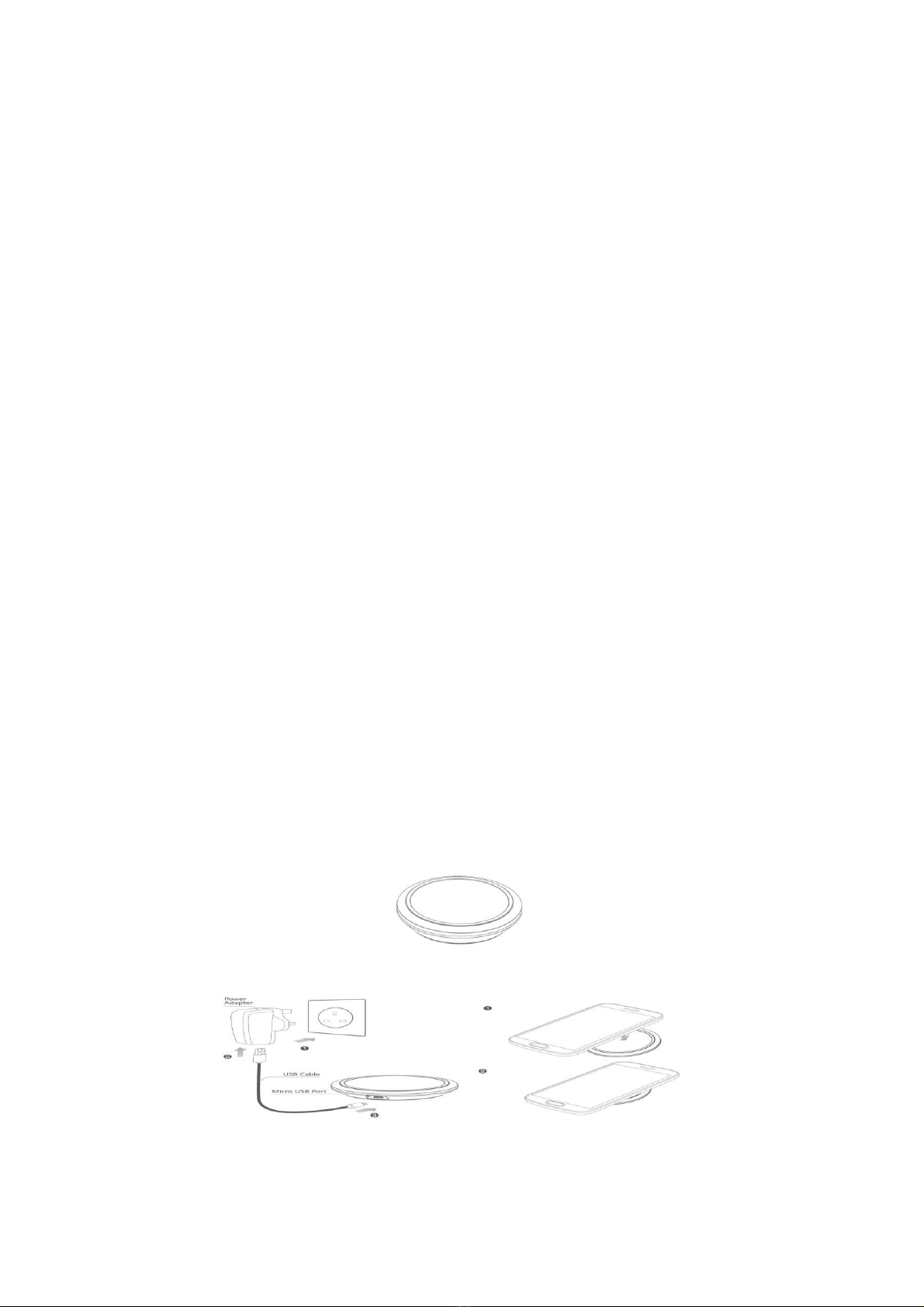

Sample Picture of a housing

1. Connect a USB power adapter (not included) to socket. QC2 or QC3 power adapter will required.
2. Connect the USB 2.0 cable to the USB C port to the pad.
3. The blue LED indicator light will flash twice and turn off into standby mode.
4. Place your Qi compatible device on the wireless charging pad to start charge.
5. To achieve fast wireless charging, a Quick Charge 2.0 or higher power adapter will be required.
Specification:
Input: QC2 or QC3 power source
Charging distance: <8mm
Conversion: >72%
Diameter: 90mm x H15 mm
12 Month Warranty
ETS warrants your new product to be free from defects in materials and workmanship for the period stated above, from
the date of purchase, provided that the product is used in accordance with accompanying recommendations or
instructions where provided. This warranty is in addition to your rights under the European Consumer Law.

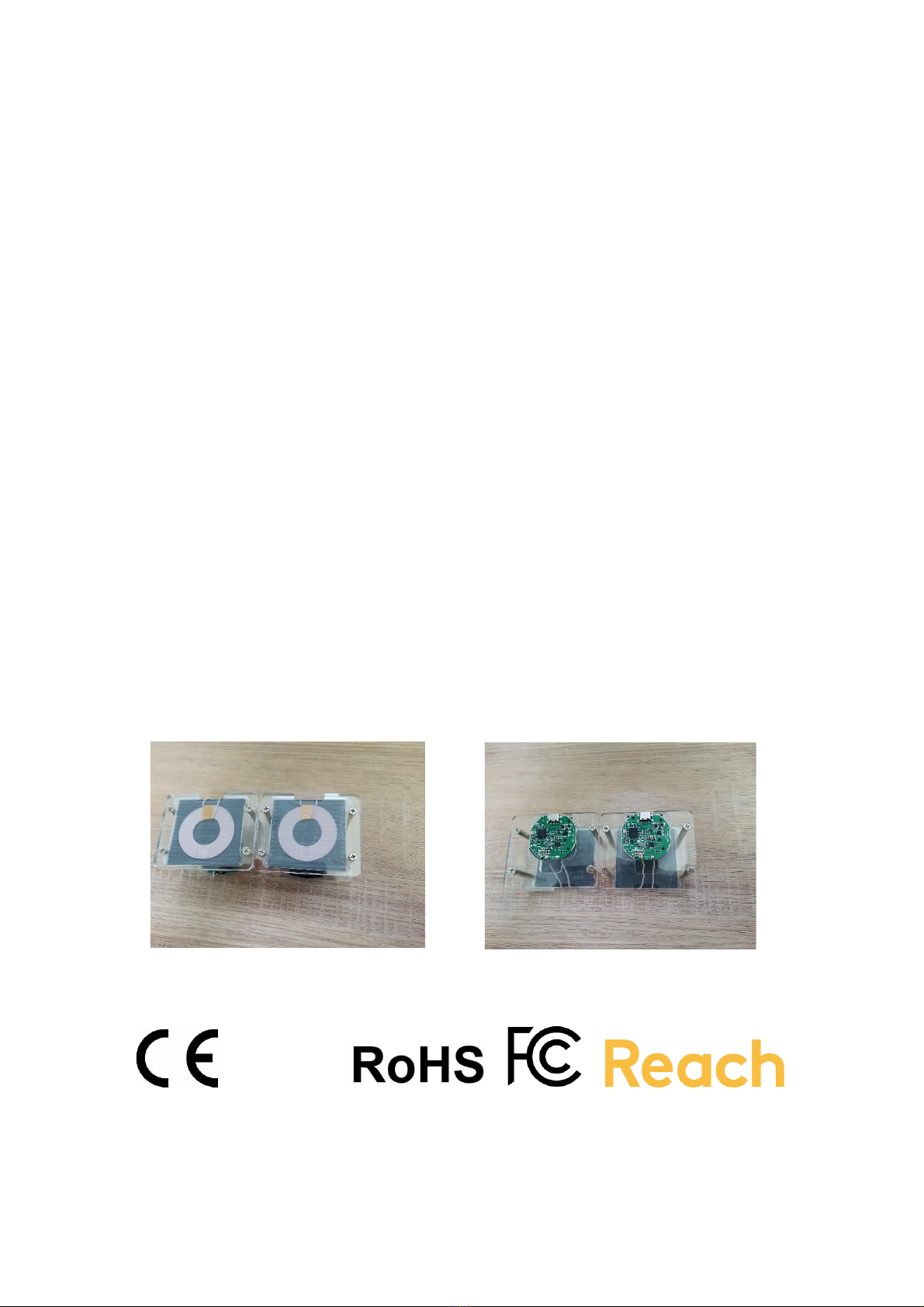

Pictures of the module in Test Housings
Certificates:
RED

Federal Communication Commission Statement (FCC, U.S.)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
FCC RF exposure statement:
To maintain compliance with FCC's RF Exposure guidelines, This equipment should be installed
and operated with minimum distance between 20cm the radiator your body.

OEM integration instructions:
This device is intended only for OEM integrators under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna. The module
shall be only used with the external antenna(s) that has been originally tested and certified with this
module.
As long as the conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
Validity of using the module certification:
In the event that these conditions cannot be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization for this module in combination with the
host equipment is no longer considered valid and the FCC ID of the module cannot be used on the
final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end
product (including the transmitter) and obtaining a separate FCC authorization.
End product labeling:
The final end product must be labeled in a visible area with the following: “Contains Transmitter
Module FCC ID: 2A38P-ET9015.”
Information that must be placed in the end user manual:
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or removethis RFmodule in the user's manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.

ETS Products Group
Integration instructions for host product manufacturers according to KDB 996369 D03 OEM
Manual v01
2.2 List of applicable FCC rules
FCC Part 15 Subpart C 15.207 & 15.209
2.3 Specific operational use conditions
The module is a WPT module with wireless charing function.
Operation Frequency: 115-205kHz
Modulation: ASK
Type: Coil Antenna
Gain: 0 dBi Max.
The module can be used for mobile or applications with a maximum 0dBi antenna. The host
manufacturer installing this module into their product must ensure that the final composit product complies
with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the
transmitter operation. The host manufacturer has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user's manual of the end product which integrates
this module. The end user manual shall include all required regulatory information/warning as show in this
manual.
2.4 Limited module procedures
Applicable. The module is a Limited module and complies with the requirement of FCC Part 15.212.
2.5 Trace antenna designs
Not applicable. The module has its own antenna, and doesn't need a host' s printed board microstrip
trace antenna etc.
2.6 RF exposure considerations
The module must be installed in the host equipment such that at least 20cm is maintained between
the antenna and users' body; and if RF exposure statement or module layout is changed, then the host
product manufacturer required to take responsibility of the module through a change in FCC ID or new
application. The FCC ID of the module cannot be used on the final product. In these circumstances, the
host manufacturer will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
