Etzinger etzMAN User manual

etzMAN –OPERATION GUIDE
Simplicity is the
soul of Efficiency
Austin Freeman

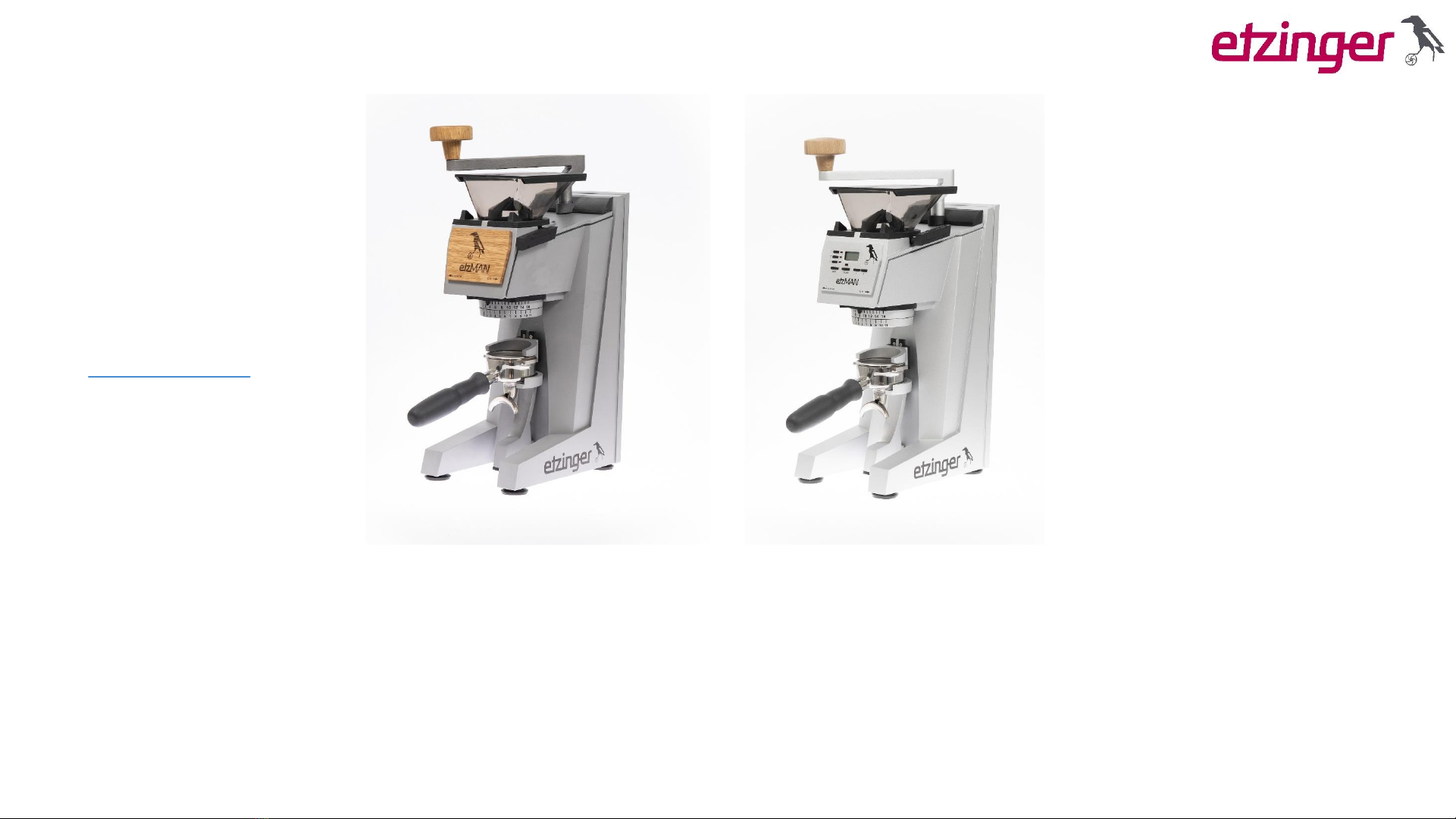

etzMAN Basic etzMAN-W
ETZINGER AG
Wirtschaftspark 44
FL-9492 Eschen
Phone: [phone]
www.etzinger-ag.com
[e-mail]
Please note: etzMAX and etzMAN are based on the same modular concept.
Pictures showing cleaning/adjusting instructions may be used likewise.
DISCLAIMER OF LIABILITY
ETZINGER Engineering & AG will not accept any liabilityfor damage, injury or warranty if the grinder is used other
than for its intended purpose, the grinding of roasted whole coffee beans, or is improperly operated or repaired.
The etzMAN is a manual tabletop Coffee Grinder that
may be used to grind whole, roasted beans.
DELIVERY CONTENT:
Grinder complete with Hopper 200g
Crank Handle
Portafilter Holder (Espresso Version)
Adjustment with AP-cone
Glove
2 Brushes
etzMAN-W only:
Calibration Weight (500g)
3 AAA-batteries (installed)

INSTALLING BEAN HOPPER
Fig. 1
NOTE: Hopper should be cleaned daily as coffee oil residues can have a negative
effect on the taste of your coffee. Once empty and removed (acc. to our
instructions), hopper and lid may be washed in warm soapy water. Rinse and dry
thoroughly.
PORTAFILTER HOLDER (Espresso) / PLATFORM (Filter)
Carefully unpack grinder and verify delivery contents according to attached list.
Clean all loose parts with a soft damp cloth and allow to dry completely before use.
GETTING STARTED
Fig. 2
Fig. 6
Push both locking levers rearwards
(arrow direction OPEN, Fig. 1).
Position hopper (bean-blocker handle to the right) at
intended opening.
Close locking levers and rotate bean-blocker by 180°
into OPEN-position (Fig. 2).
Fill in the beans and close lid.
Fig. 5
Fig. 3 Fig. 4
Use your index finger to press against the rear part part of the upper holding arm
(Fig. 3) while sliding the arm in position with your thumb –up/down (Fig. 4).
Once adjusted, insert the portafilter holder / platform (Fig. 6) onto the center hook
(Fig. 5) and slide it rearwards as far as it will go.
REMOVING BEAN HOPPER / SINGLE DOSING CAP
Close bean-blocker handle by turning it to the front. Open locking levers. Lift off
hopper and place it on its lid.
NOTE:
To more easily fill in beans (without having to pull off
the crank handle), just flip around the lid and slide it
onto the hopper from the front.
INSTALLING CRANK
Position and insert crank at respective outlet until locked into place.

The Adjustment (Fig. 7) consists of a stepped macro adjust and a stepless micro adjust.
Recommended settings (final setting depends on roast&brand; coarser settings
for lighter roasts)
Ristretto / Espresso / Longhi Macro 4-8 / 6-10 / 8-12 Micro 1
ADJUSTMENT
To move from fine to coarse, turn the macro ring to the left (Direction COARSE).
The pointer indicates your macro-setting. The micro adjust (bottom ring) ranges
from coarse (11) to fine (1) steplessly (0.01mm) and allows for even more precise
grind settings (Click 1 on macro ring serves as reference point for the micro ring).
The macro adjust includes 16 steps
(à 0.1mm).
To move from coarse (16) to fine (1), turn
the macro- (top) ring to the right
(Direction FINE).
Fig. 7
To change the setting, proceed as follows:
1. Select a Preset button (1, 2, 3)
2. Press + or –to program the weight (in
grams)
3. Once the desired weight setting in grams is
reached, press and hold the selected button
for 3 seconds. The display will flash to
confirm the setting and you will hear a
confirmation sound.
Repeat steps 1-3 to program the other
buttons.
PROGRAMMING your etzMAN-W
The etzMAN User Interface is equipped with three programmable buttons labeled
1, 2 and 3 (Fig. 8). These buttons adjust the grind weight in grams but not the
grind setting (Coarse/Fine).
BATTERY –Replacing the battery on the etzMAN-W
The etzMAN-W includes 3 AAA-Batteries that need to be replaced when reaching the
end of their life-span.
Fig. 8

USING / OPERATE your etzMAN
Before using your etzMAN, make sure for the Bean-Blocker-Handle to be in OPEN
position (if operated with Hopper). Insert Portafilter.
etzMAN-W only: Press desired Preset-button (1, 2, 3). Display will show the
programmed weight in grams. Press TARE.
Turn the crank counter-clockwise while holding on to the upper backside of the
grinder to ensure stability.
etzMAN-W only: While grinding, the display will show the corresponding weight in
grams. When drawing closer to the target weight, an acoustic alert will be heard.
Once the target weight is reached, the sound will be nonstop.
Use the enclosed cloth/glove (Delivery Content) to protect the grinders´ surface
while grinding and for a more comfortable grip.
Use AP-cone for traditional roasts or Pour Over, use ETZI-cone for lighter roasts.
CALIBRATE your etzMAN-W
After moving it or in case of inconsistencies, we recommend to recalibrate your
etzMAN-W as follows:
Take off Hopper and Portafilter Holder as described, then press any button to turn
on Display
Turn Adjustment to the left beyond Click 16 until Display turns itself off, then move
it back to 16. Press 1 and MODE simultaneously until the screen shows 0.00
followed by CAL.
Place 500g Calibration Weight onto the center hook, then press MODE for at least 3
seconds (500 will blink and then show END, followed by your setting).
Remove weight, press MODE and reposition weight on center hook to confirm
weight (500g). Press TARE to return to normal mode

CLEANING the etzMAN
Cleaning Schedule: We recommend cleaning on a regular basis (after having
ground around 1-2kg)
Fig. 9 Fig. 10 Fig. 11
Fig. 12
NOTE: To remove remaining coffee powder (stuck in between the sealings),
occasionally (after cleaning) turn macro ring to finest setting (Click 1) and back to
your settings.
Rotate bean-blocker handle from OPEN to the front. Insert portafilter / place cup and
clear grinding chamber by grinding until empty (8.5g). Remove portafilter.
Push both locking levers backwards as far as they will go. Lift off hopper (ensure lid is
closed) and place aside (Fig. 1). Close both locking levers. To remove portafilter
holder, pull it off the hook. Mark down settings!
Remove adjustment by turning the macro-ring counterclockwise (Fig. 10) until you
feel no more resistance. Slowly pull it downwards and out (Fig. 11).
Open locking levers (Fig. 1), place back hopper and close locking levers (Fig. 2).
Carefully rotate bean-blocker handle all the way to the back to OPEN position
(Fig. 2).
To clean grinding chamber, insert bottlebrush from above through the hopper
opening. Use small brush to clean the coneholder. If removing coneholder for
cleaning, ensure it`s perfectly snapped in when reassembling.
Reassemble adjustment in reverse order
(reposition at 8 o`clock, see marking before
mounting, Fig. 12).
Once snapped in properly, turn and return
to your previous settings. Insert portafilter
holder / platform onto center hook.
Please read the informationbelow very carefully. It contains important safety informationfor this
grinder. Please keep these instructions for future reference.
✓Only use the grinder for its intended purpose,the grinding of roasted whole coffee beans.
✓Ensure for the grinder to be set up on a smooth surface for maximum stability.
✓Make sure to stabilize grinder while rotating the handle.
✓Beware of edges when holding on to grinder / use enclosed cloth.
✓This grinder can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the grinder in a safe way and
understand the hazards involved.
✓Avoid for the burrs to get in contact with water
✓Cleaning and user maintenance shall not be made by children without supervision by a
qualified person. Maintenance and repair work to be carried out by manufacturer, its
service agent or qualified persons only.
SAFETY INSTRUCTIONS
In case of questions/issues, contact your Reseller or send an email to [e-mail]!
