eufy Security T8221 User manual

QUICK
START GUIDE
eufy Security Video Doorbell 2E (Battery)

TABLE OF
CONTENTS
What’s Included
01 08
Finding a Mounting Spot
Product Overview
03 10
Mounting the Bracket
How the System Works
04 13
Mounting the Doorbell
Connecting the Homebase
05 14
Detaching the Doorbell
Setting up the System
06 15
Recharging the Doorbell
Charging Your Doorbell
07 16
Notice

01 English

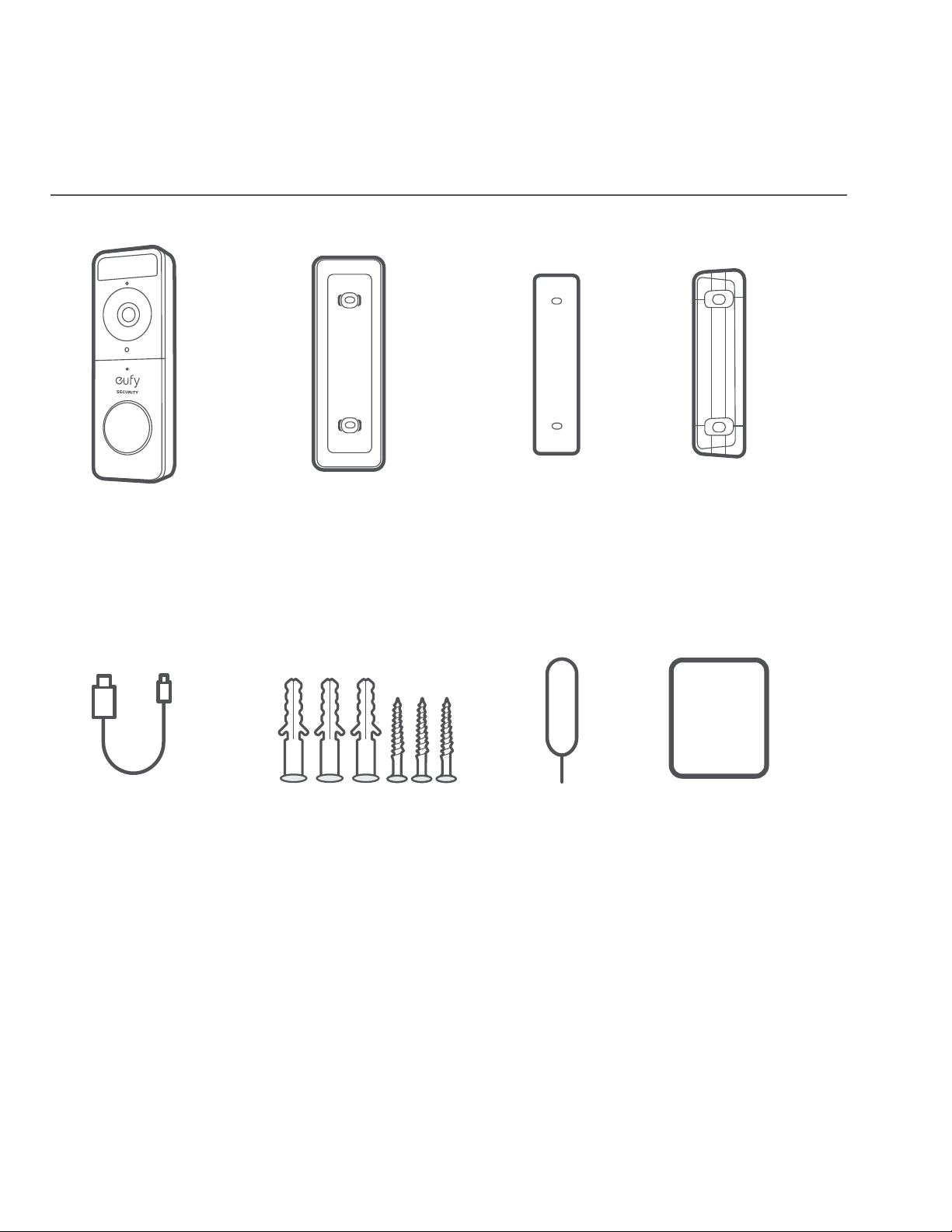

WHAT’S INCLUDED
For Video Doorbell Installation
QSG
Video Doorbell 2E
(Battery)
Model: T8221
Screw Packs (Spare
screws and anchors are
included)
Quick Start
Guide
Screw Hole
Positioning Card
Doorbell
Detaching Pin
15° Mounting
Wedge
(Optional)
Mounting Bracket
FCC ID: 2AOKB-T8220
IC: 23451-T8220
USB Charging
Cable

English 02
For HomeBase 2 Installation
Homebase 2
Model:T8010X
Power Adapter for
HomeBase 2
Ethernet Cable for
HomeBase 2
FCC ID:2AOKB-T8010X
IC: 23451-T8010X
Note: Power plug may vary in different regions.

03 English
PRODUCT OVERVIEW
Video Doorbell (Battery Powered)
Front view:
1
3
5
7
2
4
6
1. Motion Sensor
2. Microphone
3. Camera Lens
4. Ambient Light Sensor
5. Status LED
6. Doorbell Button
7. Speaker
Rear View:
1
3
2
1. Micro USB Charging Port
2. SYNC/RESET button
3. Detaching Mechanism
Operation How-to
Power on Press and release the SYNC button.
Add doorbell to Wi-Fi
Doorbell Chime
Press and hold the SYNC button until you hear a beep.
Power off the doorbell Quick-press the SYNC 5 times in 3 seconds.
Reset the doorbell Press and hold the SYNC button for 10 seconds.

English 04
HOW THE SYSTEM WORKS
How the System Works
The video doorbell system includes 2 parts. One is the video doorbell at your door.
The other is the HomeBase in your house.
The video doorbell detects motion at your porch and allows you to answer the door
anytime and anywhere.HomeBase 2 stores video clips on its built-in storage. When
someone rings the doorbell, people in the house will be notified.
HomeBase 2
Video Doorbell

05 English

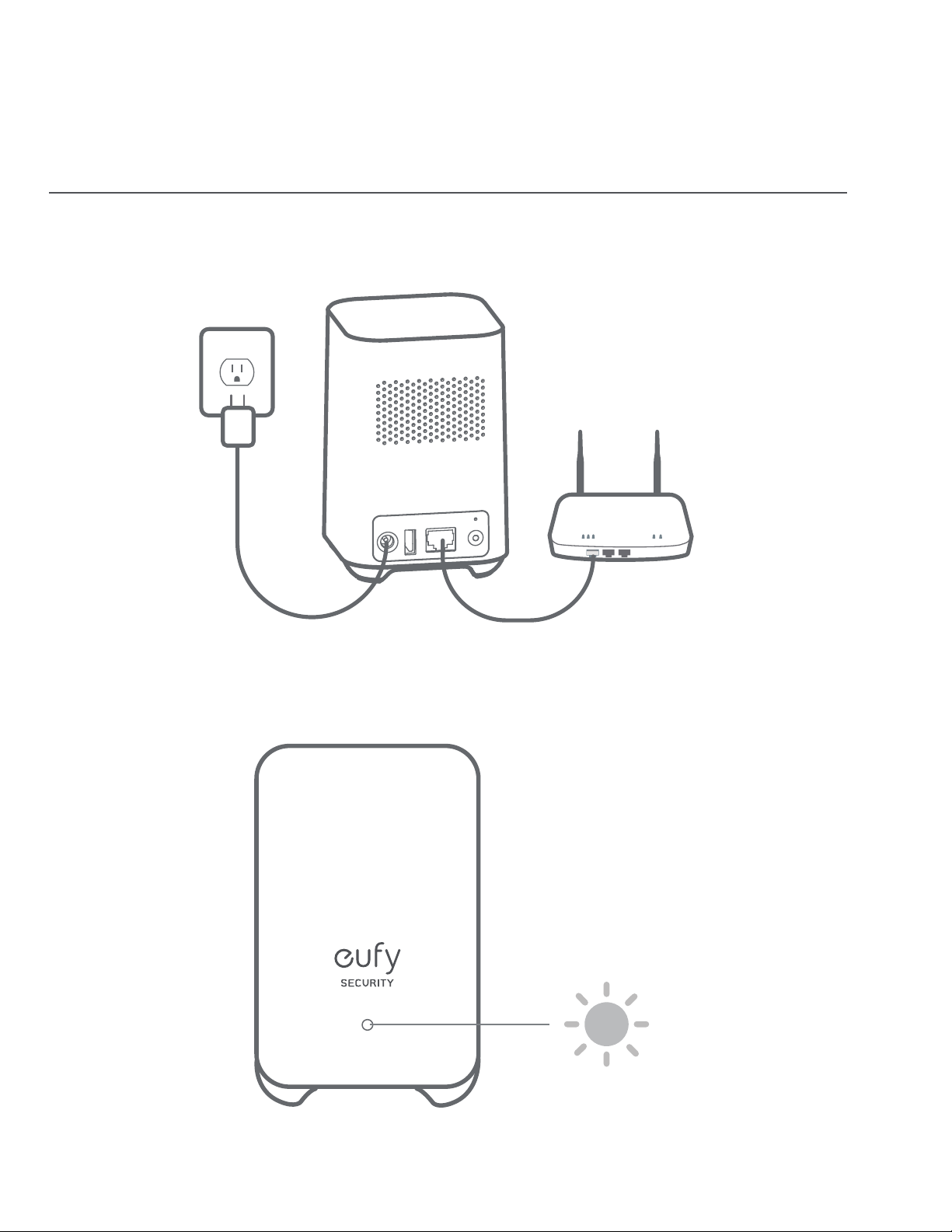

STEP 1 CONNECTING THE HOMEBASE
Connect the HomeBase 2 to the Internet
1. Power on the HomeBase 2, then use the ethernet cable provided to connect the
HomeBase 2 to your home router.
2. The LED indicator turns blue (this may take up to 1min) when HomeBase 2 is
ready for setup.

English 06
STEP 2 SETTING UP THE SYSTEM
Download the App and Set up the System
Download the eufy Security app from the App Store (iOS devices) or Google Play
(Android devices).
Sign up for a eufy Security account and follow on-screen instructions to complete the
setup.
Tap Add Device to add the following devices:
1. Add the HomeBase 2.
2. Add the doorbell.

07 English
STEP 3 CHARGING YOUR
DOORBELL
The doorbell comes with an 80% battery level for safe transportation. Fully charge it
before mounting the doorbell at your front door.
Note: The battery life varies depending on usage. In most common cases, a
doorbell may have up to 15 events per day and each recording lasts 20 seconds on
average. Under this scenario, the doorbell battery life can last up to 4 months.

English 08
STEP 4 FINDING A MOUNTING SPOT
Find a Mounting Spot
Take the Video Doorbell to your front door and check the live view on the eufy
Security app at the same time. Find a position where you can get the desired field of
view.
Consider the below factors:
1. Check if you can reuse the existing holes and anchors on the wall or door frame.
2. If you want to place the doorbell close to a side wall, make sure the wall doesn’t
show up in the field of view. Otherwise IR light will be reflected and night vision
will become blurry.
3. If you are drilling the mounting holes for the first time the recommended
mounting height is 48" / 1.2m from the ground.
4. Use the 15° mounting wedge as a supplementary mounting bracket if you wish to
see more on a specific side.
1.76m(5’9”)
1.2m (48")
0.3m
(12")
1m
(40")
Video Doorbell
Without 15° Mounting wedge
Door Video Doorbell
With 15° Mounting wedge
Door
15°

09 English
Place the Screw Hole Positioning Card against the wall to mark the position.

English 10
STEP 5 MOUNTING THE BRACKET

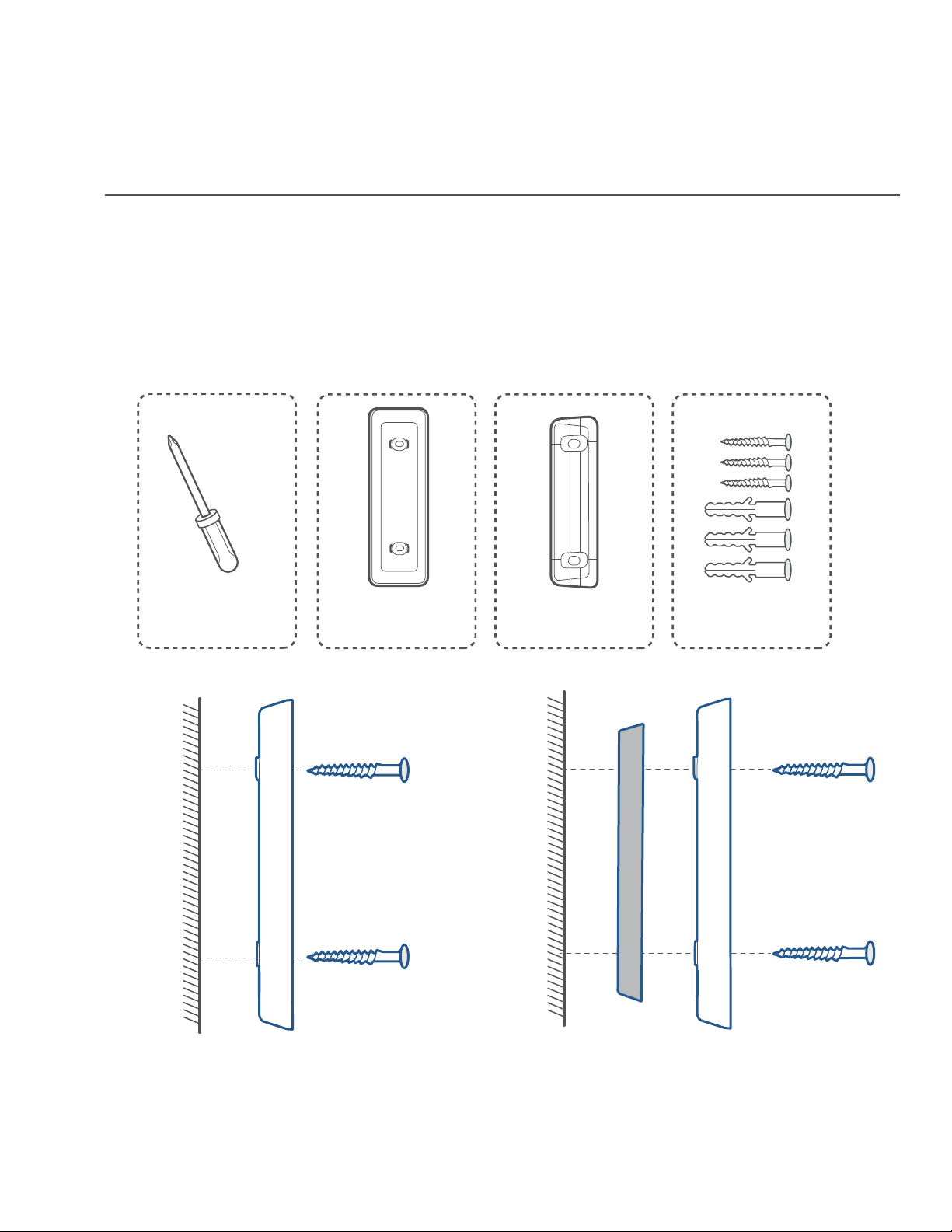

Mount the Doorbell on a Wooden Surface
If you’re mounting the doorbell on a wooden surface, you don’t need to pre-drill
pilot holes. Use the provided screws to secure the Mounting Bracket on the wall. The
Screw Hole Positioning Card indicates the position of the screw holes.
What is required: Power Drill, Mounting Bracket, 15° Mounting Wedge
(Optional), Screw Packs
Phillips-Head Screwdriver
(User provides it.)
15° Mounting
Wedge (Optional)
Screw Packs (Spare screws
and anchors are included.)
Mounting Bracket
(Attached to 15° Mounting Wedge)
Without 15° Mounting Wedge With 15° Mounting Wedge
Mounting
Bracket
Wall Mounting
Wedge
Mounting
Bracket
Wall

11 English

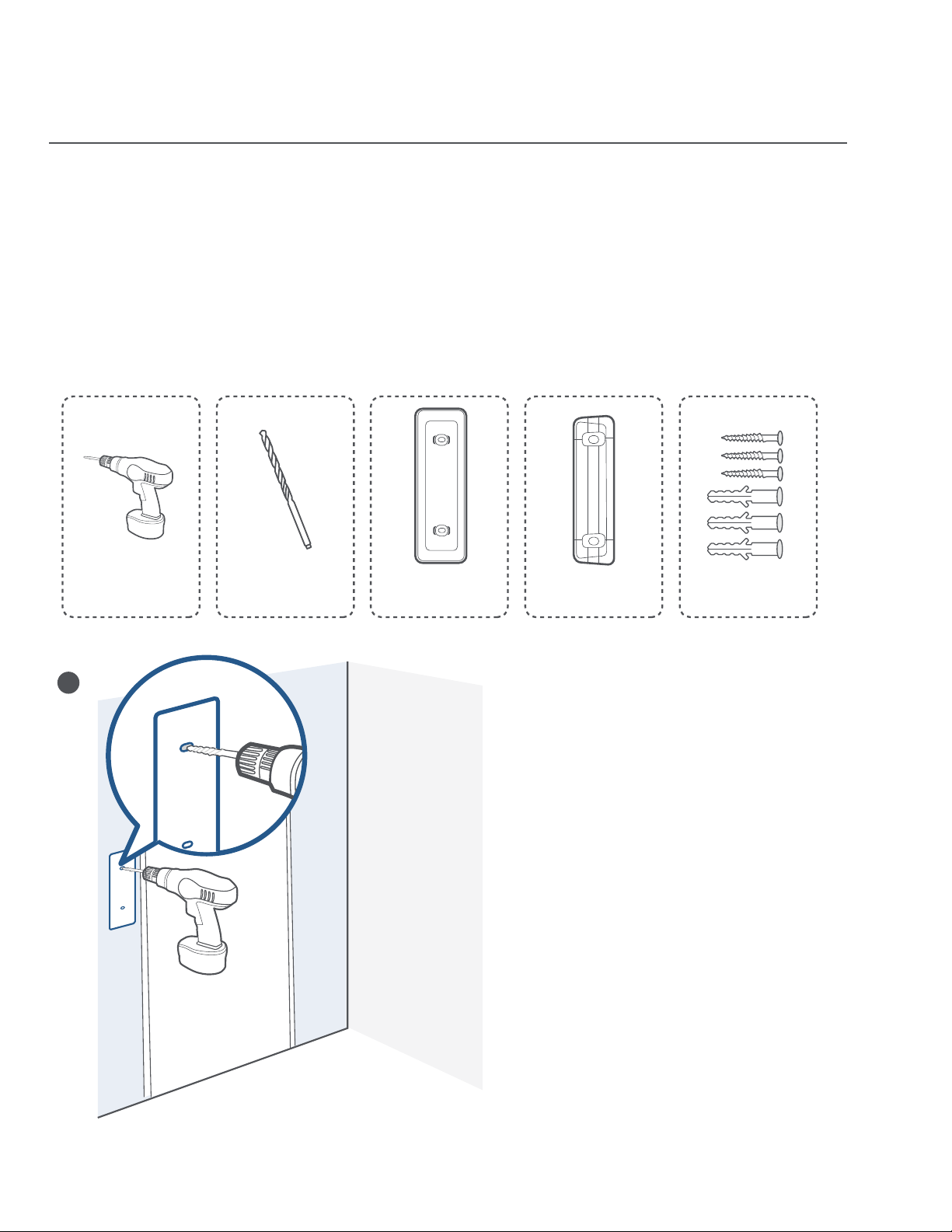

Mount the Video Doorbell on Surfaces Made Out of
Hard Materials
1. If you’re mounting the doorbell on a surface made out of hard materials, like brick,
concrete, stucco, drill 2 holes through the Screw Hole Positioning Card with
15/64”(6mm) drill bit.
2. Insert the provided anchors, and then use the provided long screws to secure the
Mounting Bracket on the wall.
What is required: Power Drill, 15/64”(6mm) Drill Bit, Mounting Bracket, 15°
Mounting Wedge (Optional), Screw Packs
15° Mounting
Wedge (Optional)
Mounting Bracket
(Attached to 15° Mounting Wedge)
Power Drill with
1/4" (6.35mm) Drill Bit
(User provides it.)
Screw Packs (Spare screws
and anchors are included.)
15/64”(6 mm) Drill Bit
1

English 12
2

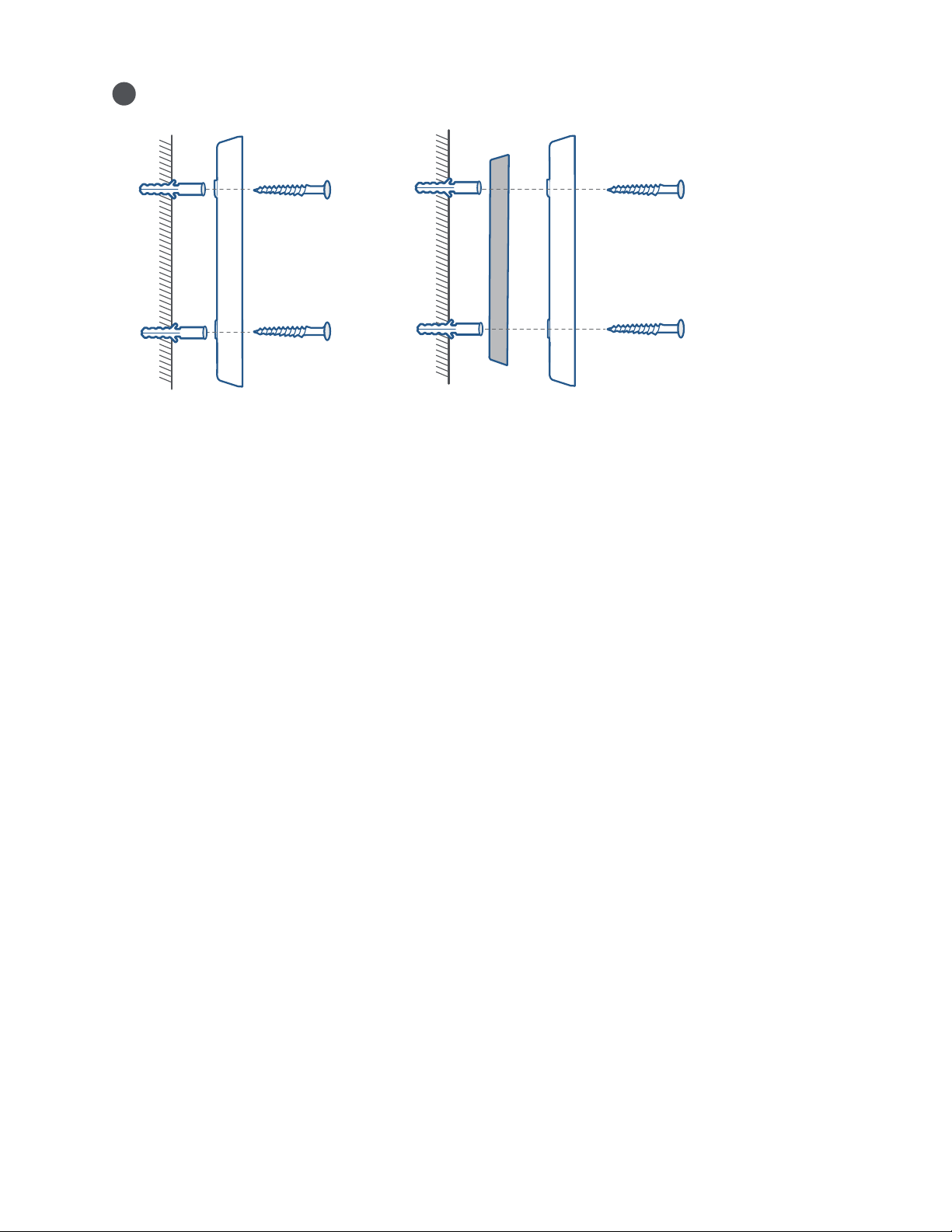

Without 15° Mounting Wedge With 15° Mounting Wedge
Mounting
Bracket
Wall Mounting
Wedge
Mounting
Bracket
Wall

13 English
STEP 6 MOUNTING THE DOORBELL
Mount the Doorbell
Align the doorbell with the top of the mount and then snap the bottom into place.
You’re all set!
If you want to detach the doorbell or recharge it, please refer to the following
sections.

English 14
APPENDIX 1 DETACHING THE DOORBELL
Detach the Doorbell
1. Use the doorbell detaching pin provided if you wish to detach the doorbell from
the Mounting Bracket.
2. Insert and press the detaching pin into the hole on the bottom of the doorbell
and then lift to take the bottom of the doorbell off.
What is required: Doorbell Detaching Pin
Doorbell
Detaching Pin

15 English
APPENDIX 2 RECHARGING THE
DOORBELL
Recharge the Doorbell
Charge the doorbell with universal USB chargers that deliver 5V 1A output.
LED indication Charging: Solid orange
Fully charged: Solid blue
Charging time 6 hours from 0% to 100%

English 16
NOTICE
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of
the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the
separation between the equipment and receiver. (3) Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. (4) Consult
the dealer or an experienced radio / TV technician for help.
FCC Radio Frequency Exposure Statement
The device has been evaluated to meet general RF exposure requirements. The device
can be used in fixed/mobile exposure condition. The min separation distance is 20cm.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to
maintain compliance with FCC regulations.
The following importer is the responsible party:
Company Name: POWER MOBILE LIFE, LLC
Address: 10900 NE 8TH ST, STE 501, BELLEVUE, WA 98004
Telephone: [phone]

17 English
IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device."
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC RF Statement:
When using the product, maintain a distance of 20cm from the body to ensure
compliance with RF exposure requirements.
Lors de l'utilisation du produit, maintenez une distance de 20 cm du corps afin de
vous conformer aux exigences en matière d'exposition RF.

CUSTOMER SERVICE
Warranty
12-month limited warranty
(US) [phone] Mon-Fri 9:00-17:00 (PT)
(UK) + 44 (0) 1604 936 200 Mon-Fri 6:00-11:00 (GMT)
(DE) [phone] Mon-Fri 6:00-11:00
Customer Support: [email protected]
Anker Innovations Limited
Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon,
Hong Kong
