Euroboor ADG.2E User manual

Air Die Grinder
ADG.2E
User manual
V2.0 EN | May 2022

www.euroboor.com
1
Congratulations on purchasing this Air Die Grinder. At EUROBOOR we strive to exceed our
customers’ expectations by developing and providing premium and innovative portable
drilling and cutting solutions. We believe that a professional like you must be able to rely
on a professional supplier. Which has led us to become a major player in the industrial
world, with our own factory and several offices worldwide. All because we have always
listened to our customers and to the demands from the market.
Our vision is focused on developing innovative portable tools that add value for our
customers and facilitate them in their daily work. We never lose sight of sustainability,
time savings and cost savings.
Enjoy your new machine!
Before operating your new Air Die Grinder, please first read all instructions. You find the
instructions in this manual and on the warning label on your machine. With proper use,
care and maintenance your machine will provide you with years of premium grinding
performance.
TO REDUCE THE RISK OF INJURY USER MUST READ AND UNDERSTAND ALL
INSTRUCTIONS
To view all our offices and their contact information please visit: www.euroboor.com
The original manual has been produced in the English language. If any discrepancies
should occur in translations, reference must be made to the original version for
clarification.

www.euroboor.com
2
Table of contents
1. Safety ........................................................................................................................... 3
1.1 General safety instructions ............................................................................................ 3
1.2 Specific safety instructions ............................................................................................. 7
1.3 Kickback and related warnings ....................................................................................... 12
2. Description ..................................................................................................................14
2.1 Description and features ................................................................................................ 14
2.2 Box content..................................................................................................................... 15
2.3 Serial number.................................................................................................................. 15
2.4 Technical data................................................................................................................. 16
2.5 Symbols........................................................................................................................... 17
2.6 Environmental ................................................................................................................ 18
3. Assembly .....................................................................................................................19
3.1 Fitting the collet and grinding burr................................................................................. 19
4. Using the Air Die Grinder..............................................................................................20
4.1 Air supply system............................................................................................................ 20
4.2 Operating instructions.................................................................................................... 21
5. Maintenance................................................................................................................23
5.1 Oil daily ........................................................................................................................... 23
6. Troubleshooting...........................................................................................................24
7. Exploded view & Parts list ............................................................................................25
7.1 exploded view................................................................................................................. 25
7.2 Parts list .......................................................................................................................... 25
8. Warranty and service ...................................................................................................26
8.1 Warranty......................................................................................................................... 26
8.2 Service............................................................................................................................. 26
9. CE declaration of conformity ........................................................................................27

www.euroboor.com
3
1. Safety
1.1 General safety instructions
Do not use this Air Die Grinder before you have thoroughly read and completely
understood this manual, specifically the “General safety instructions” and ‘’Specific safety
information”, including the figures, specifications, safety regulations and the signs
indicating DANGER, WARNING and CAUTION.
WARNING: When using the Air Die Grinder, basic safety precautions should
always be followed to reduce the risk of electrical shock, fire and personal injury.
Please also observe the relevant national industrial safety regulations. Non-observance of
the safety instructions can lead to an electric shock, burns and/or severe injuries.
This manual should be kept for later use and enclosed with the Air Die Grinder, should it
be passed on or sold.
Work area
1. Keep your work area clean and well lit. Cluttered and dark work areas increase the
chance of accidents;
2. Do not operate Air Die Grinder in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Sparks could come off the workpiece which
could ignite the dust or fumes.
3. Keep bystanders, children and visitors away while operating an Air Die Grinder.
Distractions can cause you to lose control.

www.euroboor.com
4
Personal safety
1. Stay alert, watch what you are doing and use common sense when using the Air
Die Grinder. Do not use it while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating the Air Die Grinder may
result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught
in moving parts.
3. Avoid accidental starting. Be sure that the on-/off- trigger is not pressed when
plugging in the Air Die Grinder to the air supply. Carrying or plugging in the Air Die
Grinder with your hands on the trigger increases the chance of accidents.
4. Never place hands, fingers, gloves or clothing near rotating tool parts.
5. Remove adjusting keys or wrench before starting the Air Die Grinder. A wrench or
a key that is left attached to a rotating part of the Air Die Grinder may result in
personal injury.
6. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the Air Die Grinder in unexpected situations.
7. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat and hearing protection must be used for optimal safety.
8. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
WARNING: Wear ear and eye protection when using this power tool.

www.euroboor.com
5
Air Die Grinder use and care
1. Do not force the Air Die Grinder. Use the correct tool for your application. The
correct tool will do the job better and safer at the rate for which it is designed.
2. Do not use the Air Die Grinder when the trigger does not turn it on or off. Any tool
that cannot be controlled is dangerous and must be repaired.
3. Disconnect the air supply before making any adjustments, changing accessories, or
storing the Air Die Grinder. Such preventive safety measures reduce the risk of
starting the tool accidentally.
4. Store your Air Die Grinder out of reach for children and other untrained persons.
Air Die Grinders are dangerous in the hands of untrained users.
5. Maintain the Air Die Grinder with care. Check for misalignment of moving parts,
breakage of parts and any other condition that may affect the Air Die Grinder’s
operation. If you detect damage, have the Air Die Grinder serviced before use.
Many accidents are caused by poorly maintained tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
7. Only use accessories that are recommended by EUROBOOR for your Air Die
Grinder. Accessories that are suitable for one tool may become hazardous when
used on another tool.
8. Use the Air Die Grinder, accessories and tool bits etc. in accordance with these
instructions and in the manner intended for the particular type of tool, taking into
account the working conditions and the work to be performed. Use of the tool for
operations different from intended could result in a hazardous situation.

www.euroboor.com
6
Service
1. Service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instructions in
the maintenance section of this manual. Use of unauthorised parts or failure to
follow maintenance instructions may create a risk of injury.
WARNING: Remove the air supply from the machine before carrying out any
installation, adjustment, servicing or maintenance.
Residual risk
In spite of following the relevant safety regulations and their implementation, every tool
involves a certain residual risk which cannot be completely excluded by safety
mechanisms. Power tools must therefore always be operated with caution!

www.euroboor.com
7
1.2 Specific safety instructions
WARNING: This tool is intended to function as a grinder. Read all safety warnings,
instructions, illustrations and specifications provided with this tool. Failure to follow all
instructions listed below may result in electrical shock, fire and serious injury.
RISKOFEYE OR HEADINJURY
WHAT COULD HAPPEN
HOW TO PREVENT IT
-Airpoweredequipmentandpowertools
arecapable of propelling materials such
asfasteners, metal chips,sawdust and
otherdebrisathighspeed which could
result in serious eye injury.
-Alwayswearsafety glasses
- Never leave operating tool unattached.
Disconnect air hose when tool is not in
use.
-Compressed air canbe hazardous. Theair
system can causeinjury tosoft tissue areas
suchaseyes, ears, etc. Particles or objects
propelled by the stream can cause injury.
-Foradditionalprotectionuseanapproved
faceshield in addition to safety glasses.
-Tool attachments canbecome looseor
breakandfly apart propelling articles at
the operator and others in the work area.
-Make sure that any attachments are
securely assembled.
RISK OF FIRE OR EXPLOSION
WHAT COULD HAPPEN
HOW TO PREVENT IT
-Abrasive toolssuch as sanders and
grinders,rotatingtools suchas drills, and
impacttoolssuch as nailers, staplers,
wrenches, hammers and reciprocating
saws are capable of generating sparks,
whichcouldresultinignitionofflammable
materials.
-Never operate tools near flammable
substances such as gasoline, naphtha,
cleaning solvents, etc.
-Work inaclean, well-ventilated
areafreeof combustible
materials.
-Never use oxygen, carbon dioxide orother
bottled gases as a power source for air
tools.

www.euroboor.com
8
-Exceeding the maximum pressure rating of
toolsor accessoriescouldcausean
explosionresultingin serious injury.
-Use compressed air regulated to a
maximum pressure atorbelowthe
ratedpressure ofany attachments.
-Neverconnect to anair source thatis
capable of exceeding 200 psi.
-Always verify prior tousing the tools that
the air sourcehasbeenadjustedtothe
ratedairpressure range.
RISK OFLOSS OF HEARING
WHAT COULD HAPPEN
HOW TO PREVENT IT
-Long term exposure to noise produced
from the operationofair toolscanlead to
permanent hearing
-Always wear earprotection.
INHALATION HAZARD
WHAT COULD HAPPEN
HOW TO PREVENT IT
-Abrasive tools,suchas grinders,sanders
andcut-off toolsgeneratedustandabrasive
materials,which can be harmful to human
lungs and respiratory system.
-Always wearproperly fittingfacemask or
respirator when using such tools.
-° Some materials such as adhesives and
tar contain chemicalswhosevapourscould
causeseriousinjury with prolonged
exposure.
-Always work in aclean, dry, well-ventilated
area.
RISK OFINJURY
WHAT COULD HAPPEN
HOWTO PREVENTIT
-Atoolleftunattended, orwiththeairhose
attached, canbe activatedbyunauthorized
personsleadingto their injury orinjury to
others.
-Remove airhose when toolisnotinuseand
store toolin secure location away fromreach
ofchildren. and untrained users.
- Airtoolscanpropelfasteners or
othermaterials throughout the
workarea.
- Use only parts, fasteners and
accessories recommended
by the manufacturer.
- Keep work areacleanandfreeofclutter.
Keepchildren andothersawayfromtool
whileitisinoperation.
-Keep work area wellIit.
- Awrench ora key that isleft attached
to arotating part of the tooI
increases the risk of personal injury.
- Remove adjustingkeys and wrenches before
turning the tool on.

www.euroboor.com
9
- Using inflator nozzles forduster
applicationscan cause serious
injury.
-DO NOT use inflator nozzles for duster
applications.
- Air tooIs canbecome activatedby
accidentduring maintenance or
tooIchanges.
-Remove air hose to lubricate or
add grinding attachments, sanding
discs, drills,etc.to the tool.
-Never carry the tool by hose.
- Avoid unintentional . starting. Don't
carry hook-up tool with finger . on
trigger.
- Only an authorized service
representativeshoulddo repair
servicing.
- Air tools can cause the workpiece to move
upon contact: leading to injury.
- Use damps or other devices . to prevent
movement.
-Lossofcontrolof thetoolcanleadto injury
toself or others.
-Never use tool while using drugs oralcohol.
-Don’t overreach.Keepproperfooting and
balance.
-Keep handles dry, clean and free from
oiI/grease.
- Stayalert.Watchwhatyouaredoing,
Use common sense.Donotoperate
toolwhenyouare tired.
-Poorquality,improper ordamaged tools
suchas grinding wheels, . chisels , sockets, drills,
nailers, staplers, etc., can fly apart during
operation, propelling particles throughout the
work area causing serious injury.
-Always usetool attachment ratedfor the
speedof the power tool.
- Never use tools, which have been
dropped, impacted o r damaged byuse.
- Use onlyimpact grade sockets onanImpact
wrench.
- Donotapply excessive force tothetools;
letthetool perform thework.
- Fastenerscouldricochetorbe
propelledcausing serious injury or
property . damage:
-Neverpointdischarge oftool atselfor
others.
- Donotpull trigger unlesstoolcontact
safety deviceis against work surface.
- Never attempttodrivefastenersinto
hardsurfaces such as steel, concrete,
or tile.
- Avoiddrivinga fastenerontopof
another fastener.
-Positiontool carefullysothat
fasteners willbe delivered to the
proper location.
- Improperly maintained toolsand
accessories can cause serious injury.
-Maintain the tool withcare.
-Keep a cutting tool sharp and clean. A
properly maintained tool, with sharp
cutting edges, reduces the risk of
binding and is easier to control.

www.euroboor.com
10
-There is a risk: of bursting if the tool is
damaged.
-Check for misalignment or binding of
moving parts, breakage of parts and any
other condition that affects the tool’s
operation. If damaged, have the tool
serviced before using.
-Useonlyaccessories.identified bythe
manufacturer to be used with specific
tools.
-Useofanaccessory notintended for
usewiththe specific tools increase
the risk of injury to persons.
RISK OF ELECTRIC SHOCK
WHAT COULD HAPPEN
HOW TO PREVENT IT
-Using air tools to attach electrical wiring
can result in electrocution or death.
-Never use nail/staplers to attachelectrical
wiring while energized.
-This tool is not provided with an
insulated gripping surface. Contact
with a "live" wire will also make
exposed metal parts of the tool "live"
and can result in electrocution or
death.
-Avoid body contact with grounded
surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased
risk of electric shock if your body is
grounded.
-Fasteners coming in contact with hidden
electrical wiring could cause electrocution
or death.
-Thoroughly investigate the workpiece for
possible hidden wiring before performing
work.
RISK OF ENTANGLEMENT
WHAT COULD HAPPEN
HOW TO PREVENT IT
-TooIs which contain moving elements, or
drive other moving parts, such as grinding
wheels, sockets, sanding discs, etc., can
become entangled in hair, clothing,
jewelry andotherloose objects, resulting
in severe injury.
-Never wear loose fitting clothes or
apparelthat contains loose straps
or ties, etc., which could become
entangled inmoving parts ofthe
tools.
-Remove any jewelry, watches,
identifications, bracelets,necklaces,
etc.,whichmightbecome caught by
the tool.
-Keep hands away from moving parts. Tie
up orcover long hair.
-Always wear proper fitting clothingand
other safety equipment when using the
tool.

www.euroboor.com
11
RISK OF CUT OR BURNS
WHAT COULD HAPPEN
HOW TO PREVENT IT
-TooIs that cut, shear, drill, staple, punch,
chisel, etc. are capable of causing serious
injury.
-Keep the working part of the tool away
from hands and body.
Other specific safety instructions
-Replace warning labels if they become obscured or removed.
-Do not use this tool for other than its intended use.
-Excessive air pressure or too much free rotation will decrease the life of the tool and
may cause a hazardous situation.
-Check air hose for wear, and keep them away from heat and sharp edges. Do not carry
the tool by the air hose.
-Slip / trip / fall is a major cause of serious injury or even death. Be aware of excess hose
left on your walking way or on the working surface and be aware of the whipping air
hose too.
-Continuous operation and bad working condition will injure hands. Once hand numbs
or aches, operator shall stop the tool for a while for relaxing and re-start the work after
recovery. Operator shall immediately see a doctor if such a serious symptom occurs.
- Keep visitors a safe distance from the work area. keep children away.
- This product may contain one or more chemicals known to cause cancer and birth
defects or other reproductive harm. Wash hands after handling.

www.euroboor.com
12
1.3 Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged grinding accessory. Pinching or snagging
causes rapid stalling of the grinding accessory which in turn causes the uncontrolled grinding
tool to be forced in the direction opposite of the accessory’s rotation at the point of the
binding.
For example, if a rotary burr is snagged or pinched by the workpiece, the edge of it that is
entering into the pinch point can dig into the surface of the material causing the rotary burr
to climb out or kick out .The rotary burr may either jump toward or away from the operator,
depending on direction of its movement at the point of pinching.
Kickback is the result of grinding tool misuse and/or incorrect operating procedures or
conditions and can be avoided by taking proper precautions as given below:
1. Maintain a firm grip on the grinding tool and position your body and arm to allow you
to resist kickback forces.
2. Always operate the machine using two hands, for maximum control over kickback or
torque reaction during start-up. The operator can control torque reactions or kickback
forces, if proper precautions are taken.
3. When using rotary burrs or other grinding accessories, always have the workpiece
securely clamped. These grinding accessories will grab if they become slightly canted
in the groove, and can kickback. When a rotary burr grabs, it may jump from the groove
and you could lose control of the grinder.
4. Never place your hand near the grinding accessory. Accessory may kickback over your
hand.

www.euroboor.com
13
5. Do not position your body in the area where power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite to the accessory’s movement at the
point of snagging.
6. Use special care when working corners, sharp edges etc. Avoid bouncing and snagging
the grinding accessory. Corners, sharp edges or bouncing have a tendency to snag the
grinding accessory and cause loss of control or kickback.
7. Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create
frequent kickback and loss of control.

www.euroboor.com
14
2. Description
2.1 Description and features
[Image 2-1]
1. Collet nut
2. Spindle
3. Shaft (150 mm)
4. On- / off- trigger
5. Air regulator
6. Exhaust deflector

www.euroboor.com
15
2.2 Box content
Note: When unpacking, make sure the parts listed below are included. If missing or broken,
please contact distributors as soon as possible.
1 x ADG.2E Air Die Grinder Extended
1 x Collet 6 mm (or 1/4'’)
1 x Air connector type EURO 1/4”
1 x Air connector type ORION 1/4"
1 x Air connector type ISO B 1/4”
1 x Wrench 16 mm
1 x Wrench 19 mm
1 x User manual
2.3 Serial number
The serial number is mentioned on the power tool two times: on the serial no. sticker on the
Air Die Grinder shell and box. The serial number will help you, your dealer and EUROBOOR to
validate and identify the power tool.
For example:
210701001
Breaks down to:
21 07 01 001
Year month- date- Identification-
of manufacture of manufacture number

www.euroboor.com
16
2.4 Technical data
ADG.2E
Metric
Imperial
Collets
6 mm
1/4”
Air inlet
Ø 6.35 mm
1/4”
Air hose
Ø 9.525 mm
3/8”
Connector type
Euro, Orion, ISO B
Avg. Air consumption
5 SCFM
Working pressure
6.3 bar
90 PSI
No-load speed
Max. 22000 rpm
Weight
1.31 kg
2.89 Lbs
Length
338 mm
13 5/16”
Height
70 mm
2 3/4”

www.euroboor.com
17
2.5 Symbols
Symbol
Term, meaning
Explanation
Read documentation
Be sure to read the documentation in this user
manual and specifically the “General safety
instructions” and ‘’Specific safety information’’.
Wear ear protection
Use ear protection during operation.
Wear eye protection
Use eye protection during operation.
Danger/Warning/Caution
Read and apply the information in the adjacent
text!
European conformity
symbol
Confirms the conformity of the machine with the
directives of the European Community.
ISO9001
Certified in accordance with ISO9001:2015 quality
management system.
mm
Milimetre
Unit of measure for the dimensions.
“
Inch
Unit of measure for the dimensions.
Kg
Kilogram
Unit of measure for the mass.
Lbs
Pounds
Unit of measure for the mass.
Rpm
Revolutions per minute
Unit of measure for the revolutions.
SCFM
Standard cubic feet per
minute
Unit of measure for air consumption.

www.euroboor.com
18
2.6 Environmental
Separate collection. This product must not be disposed of with normal household
waste.
Separate collection of used products and packaging allows materials to be recycled
and used again. Re-use of recycled materials helps prevent environmental
pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the
household, at municipal waste sites or at the retailer when you purchase a new product.

www.euroboor.com
19
3. Assembly
WARNING: Switch off and unplug the Air Die Grinder from the air supply before
assembling or adjusting the tool.

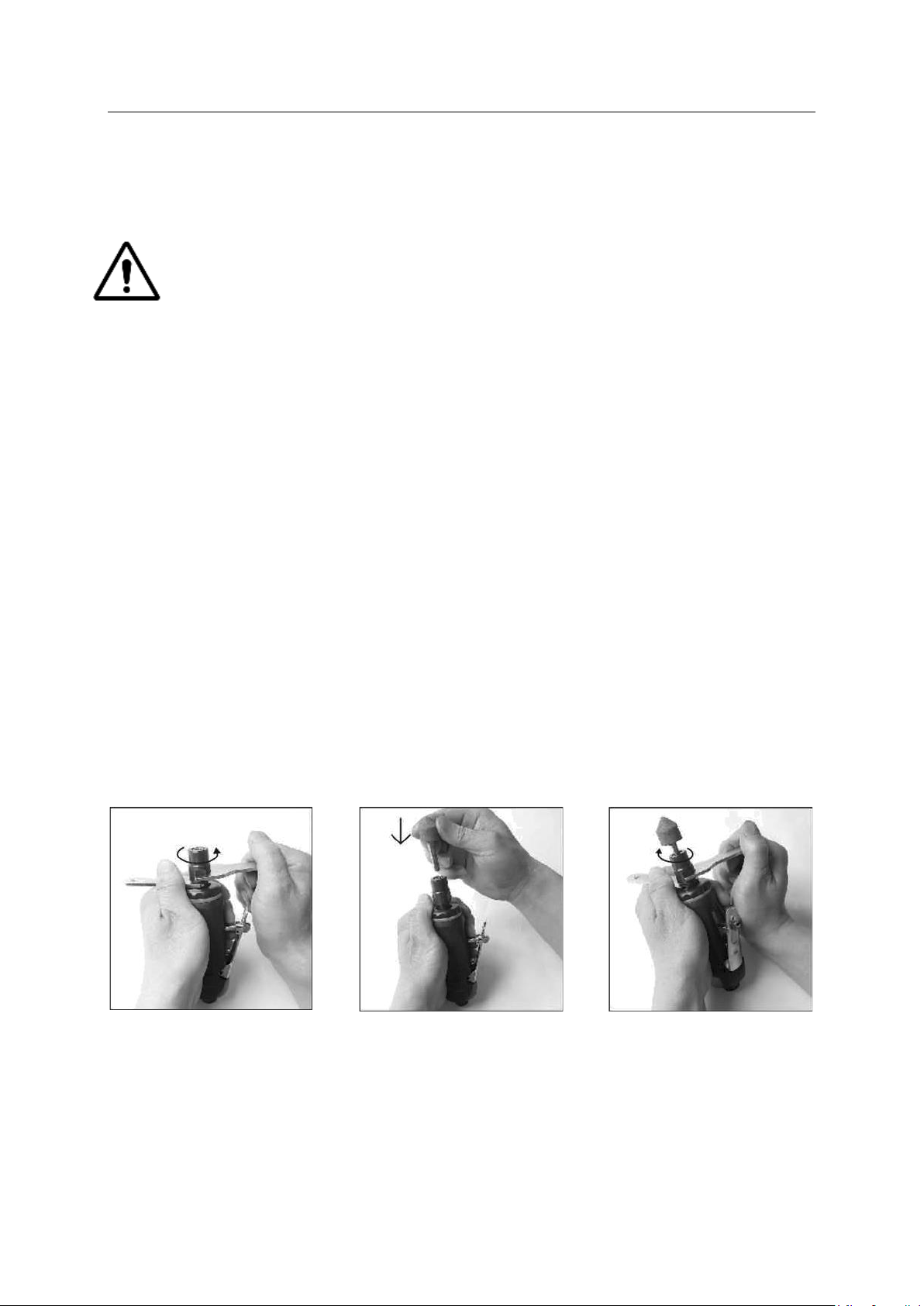

3.1 Fitting the collet and grinding burr
1. A. Loosen the collet nut by using the supplied wrenches.
B. After loosening the collet nut, place the collet (6mm or 1/4") inside.
C. Put the collet nut back in place, but do not tighten it yet.
2. Insert the grinding burr into the collet. Make sure to insert at least 25% of the
grinding burr’s shank into the collet.
3. Tighten the collet nut using the supplied wrenches. Make sure the collet nut is
tightened well and the grinding burr is stuck in place.
Step 1
(A, B and C)
Step 2
Step 3
