USER MANUAL
TS-3 DMX-Scanner
For your own safety, please read this user manual carefully before you initial start-up.
Every person involved with the installation, operation and maintenance of this device have to:
- be qualilfied
- follow the instructions of this manual
INTRODUCTION
Thank you for having chosen a EUROLITE TS-3. You will see you have acquired a powerful and versatile
device.
Unpack your TS-3.
Before you initial start-up, please make sure that there is no damage caused by transportation. Should there
be any, consult your dealer and do not use the device.
SAFETY INSTRUCTIONS
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous
electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it
on immediately. The arising condensation water might damage your device. Leave the device switched off
until it has reached room temperature.
Never let the power-cord come into contact with other cables! Handle the power-cord and all connections
with the mains with particular caution!

15
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the
power-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.
Caution: During the operation, the housing becomes very hot.
Do not switch the device on and off in short intervals as this would reduce the lamp’s life.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Keep away children and amateurs!
OPERATING DETERMINATIONS
This device is a lighting effect for creating decorative effects. This product is only allowed to be operated with
an alternating voltage of 230 V, 50 Hz and was designed for indoor use only.
Do not shake the device. Avoid brute force when installing or operating the device.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. There should not be any cables lying around. You endanger your own and the safety of
others!
The minimum distance between light-output and the illuminated surface must be more than 0.5 meters.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the
fixture.
Always fix the fixture with an appropriate safety-rope.
The maximum ambient temperature ta= 45° C must never be exceeded.
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
Never remove the serial barcode from the device as this would make the guarantee void.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, lamp explosion, crash etc.

16
DESCRIPTION OF THE DEVICE
Features
Inexpensive, compact scanner
1 colour-wheel with 7 dichroic colour-filtres and white • 1 Gobo-wheel with 9 gobos, 1 bicolor-gobo and open
• Manual focus • Strobe-effect with adjustable speed (1-5 flashes/sec.) • DMX-control via every standard
DMX-controller • 4 DMX-control-channels required • Sound-controlled via built-in microphone • Microphone-
sensitivity adjustable via rotary-control • Master/Slave-function • 4 high-quality stepping-motors • Automatic
lamp off during blackout or when sound-signal is missing • EFR 15 V/150 W lamp included in the delivery
Overview
eurolite
®
1 2 3 4 5 6
7 8 9
(1) Housing cover
(2) Housing screws
(3) Ventilation fan
(4) Mounting bracket
(5) Hole for safety-rope
(6) Fixation screw
(7) Service-lid
(8) Focus-screw
(9) Mirror

17

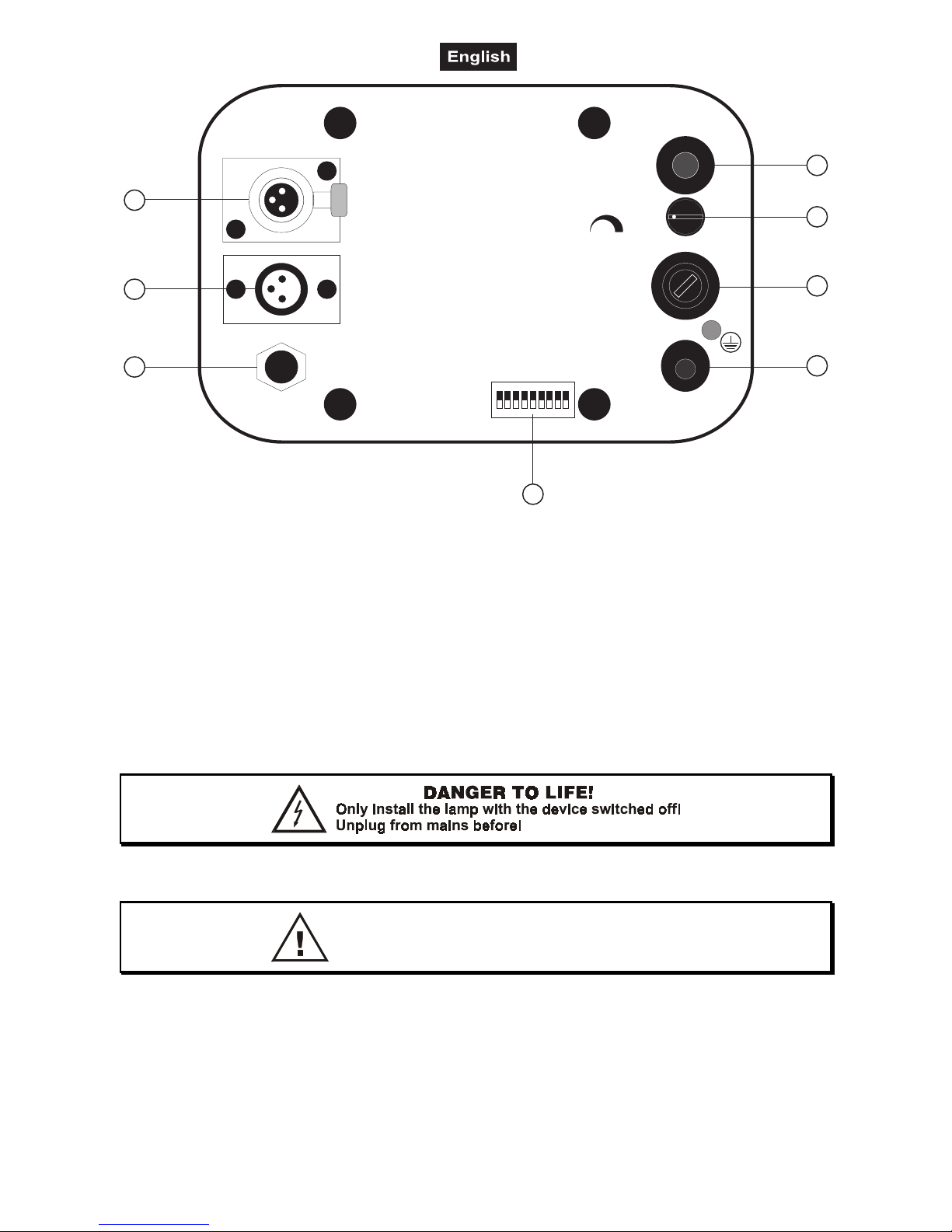

1 234 56 789
ON
Power supply:
230 V AC, 50 Hz ~
Fuse:
T2A,250V
Microphone
DMX In
DMX Out Sensitivity
Blackout
LIGHTING CONTROL
PROTOCOL DMX-512
1: Ground
2: Signal (–)
3: Signal (+)
XLR occupation:
For setting the DMX
starting address see
projector head.
12
3
1
23
11
12
13
14
15
16
17
10
(10) DMX-Out socket
(11) DMX-In socket
(12) Blackout-socket
(13) Microphone
(14) Sensitivity-control
(15) Fuseholder
(16) Power supply
(17) DIP-switches
INSTALLATION
Installing/Replacing the lamp
For the installation, you need one EFR 15 V/150 W GZ-6,35 lamp.
The lamp has to be replaced when it is dama
g
ed
CAUTION!
During the operation, the lamp reaches temperatures of up to 600° C.
Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 5 minutes).
During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturer's
notes!

18
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device
was not designed for. Damages caused by non-observance are not subject to warranty.
Procedure:
Step 1: Unscrew the fixation screw(s) of the service lid.
Step 2: Remove the service lid.
Step 3: If replacing the lamp, remove the old lamp from the socket.
Step 4: Insert the EFR 15 V/150 W GZ-6,35 lamp into the lamp-socket.
Step 5: Replace the service lid and tighten the screw(s).
Do not operate this device with opened service lid!
Rigging
Mount the projector with the mounting-bracket to your trussing system using an appropriate clamp. The hole
in the mounting bracket has a diameter of 10 mm.
For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture. Install
the safety-rope at the whole in the mounting-bracket.
Adjust the desired inclination-angle via the mounting-bracket and fix the bracket-screws tightly.
Master/Slave-operation
The master/slave-operation enables that several devices can be synchronized and controlled by one master-
device.
On the rear panel of the TS-3 you can find an XLR-jack (DMX Out) and an XLR-plug (DMX In), which can be
used for connecting several devices.
Choose the device which is to control the effects. This device then works as master-device and controls all
other slave-devices, which are to be connected to the master-device via a balanced microphone lead.
Connect the DMX OUT-jack with the DMX IN-plug of the next device.

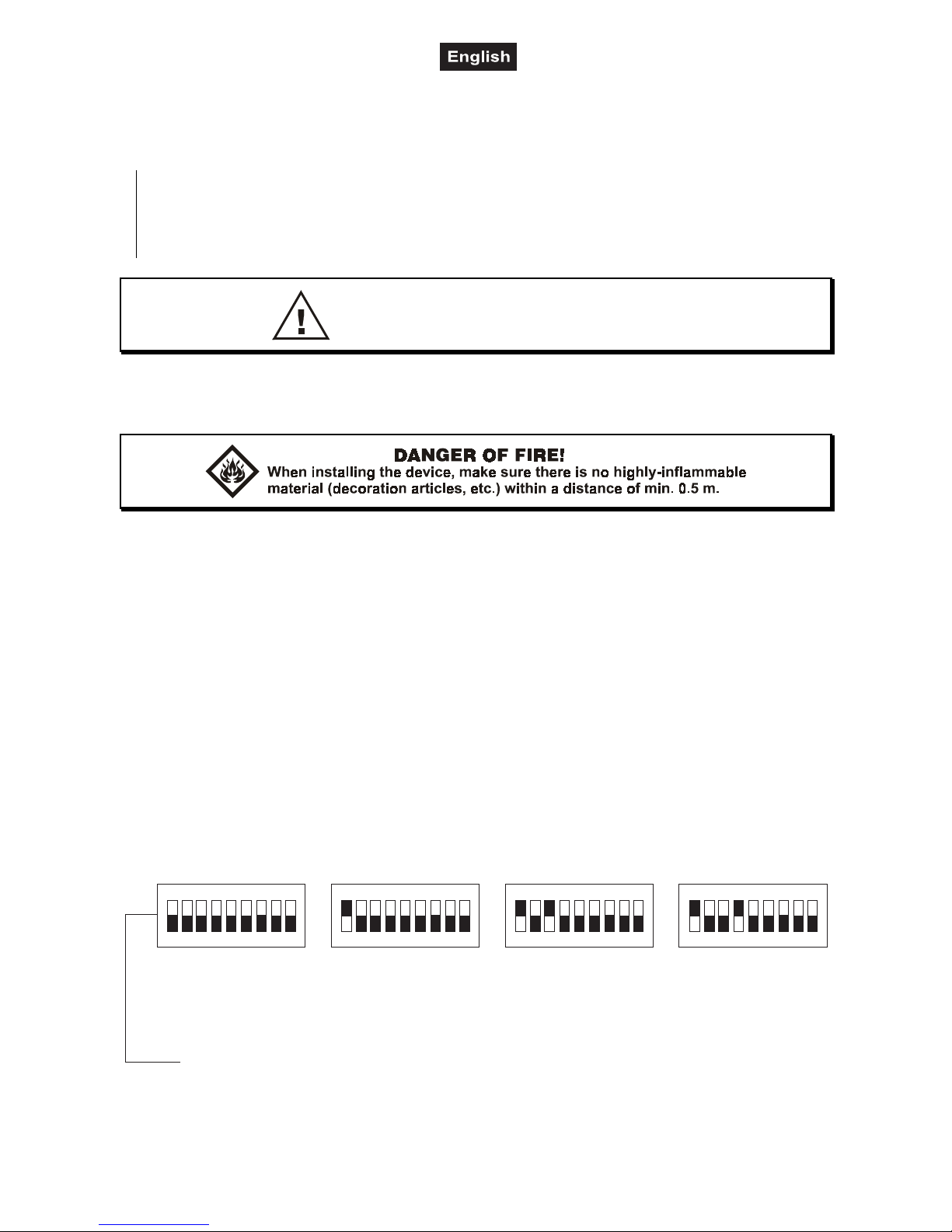

Occupation of the DIP-switches:
1234 56 789
ON
1234 56 789
ON
1234 56 789
ON
1234 56 789
ON
Projector 1
MASTER
Projector 2
Slave 1
Projector 3
Slave 2
Projector 4
Slave 3
Blackout control
If you wish to lock the light output - e.g. via an optional footswitch (Blackout-mode), connect your footswitch
via a mono-jack plug to the Blackout-socket.

19

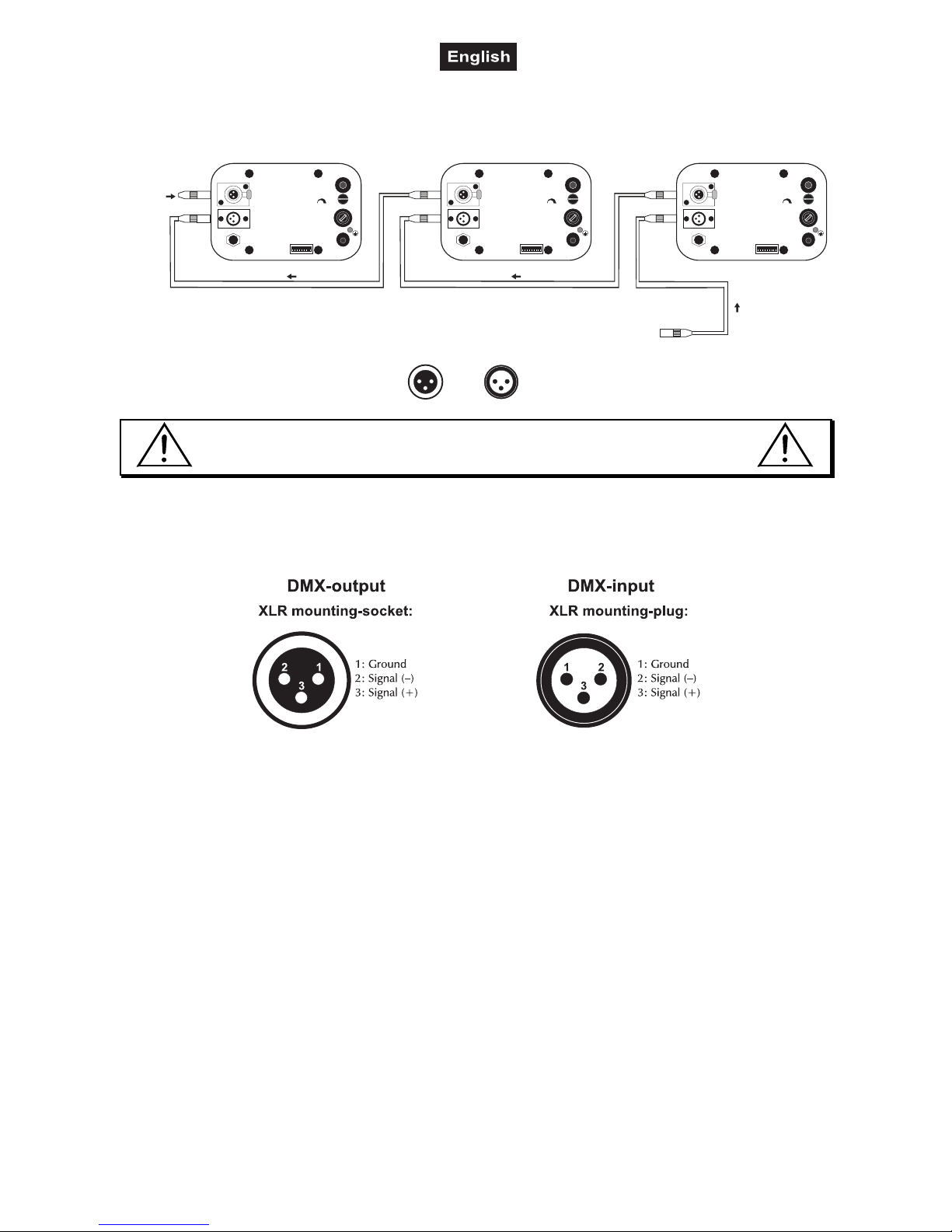

DMX-512 connection / connection between fixtures
DMX-output
XLR mounting-socket:
1: Ground
2: Signal (–)
3: Signal (+)
12
3
DMX-input
XLR mounting-plug:
1: Ground
2: Signal (–)
3: Signal (+)
21
3
XLR-occupation:
Projector 1
Starting address 1
Projector 2
Starting address 5
Projector 3
Starting address 9
120 Ohms
1 234 567 89
ON
12
3
1
23
Power supply:
230 V AC, 50 Hz ~
Fuse:
T2A,250V
Microphone
DMX In
DMX Out Sensitivity
Blackout
LIGHTING CONTROL
PROTOCOL DMX-512
1: Ground
2: Signal (–)
3: Signal (+)
XLR occupation:
For setting the DMX
starting address see
projector head.
1 234 567 89
ON
12
3
1
23
Power supply:
230 V AC, 50 Hz ~
Fuse:
T2A,250V
Microphone
DMX In
DMX Out Sensitivity
Blackout
LIGHTING CONTROL
PROTOCOL DMX-512
1: Ground
2: Signal (–)
3: Signal (+)
XLR occupation:
For setting the DMX
starting address see
projector head.
1 234 567 89
ON
12
3
1
23
Power supply:
230 V AC, 50 Hz ~
Fuse:
T2A,250V
Microphone
DMX In
DMX Out Sensitivity
Blackout
LIGHTING CONTROL
PROTOCOL DMX-512
1: Ground
2: Signal (–)
3: Signal (+)
XLR occupation:
For setting the DMX
starting address see
projector head.
DMX-512 Controller
The wires must not come into contact with each other, otherwise
the fixtures will not work at all, or will not work properly.
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with
the fixture or one fixture with another.
Occupation of the XLR-connection:
If you are using controllers with this occupation, you can connect the DMX-output of the controller directly
with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always
connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ωresistor
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
Addressing
Each projector occupies 4 channels. To ensure that the control signals are properly directed to each
projector, the projector requires adressing. This is to be done for every single projector by changing the DIP
switches as set out in this table.
The starting address is defined as the first channel from which the TS-3 will respond to the controller. If you
set, for example, the address to channel 5, the TS-3 will use the channel 5 to 8 for control.
Please make sure that you don’t have any overlapping channels in order to control each TS-3 correctly and
independently from any other fixture on the DMX data link. If two, three or more TS-3 are addressed
similarly, they will work similarly.

20

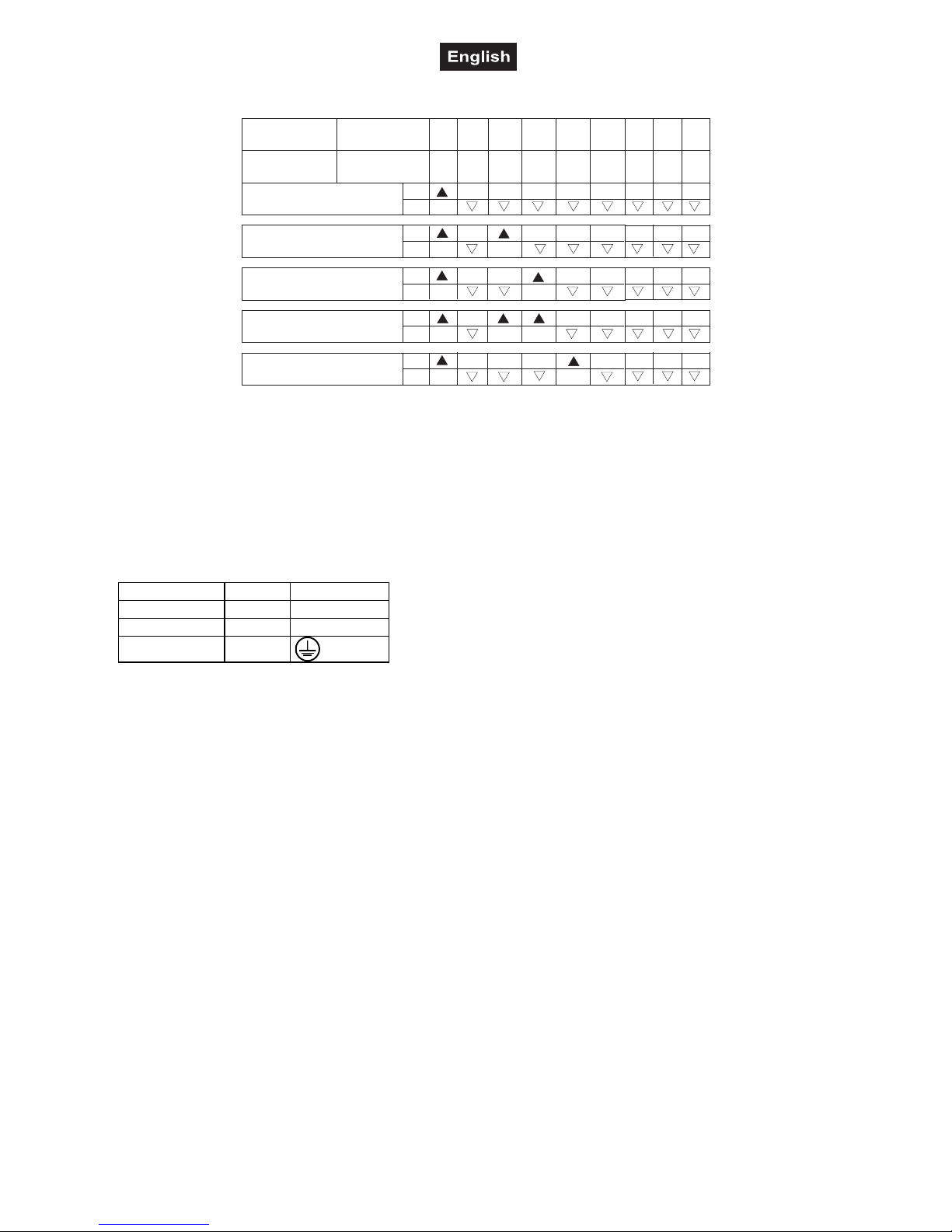

Occupation of the DIP-switches:
Projector 1 - channels 1-4 On
Off
Starting address
Projector number
& channels
Off
Projector 2 - channels 5-8 On
Off
Projector 3 - channels 9-12 On
Off
Projector 4 - channels 13-16 On
Off
Projector 5 - channels 17-20 On
Off
12 4816 32 64 128 256
DIP-switch no. 12 3456789
Setting the DMX-
starting address:
Connection with the mains
This device falls under protection-class I. The electric connection must be carried out by a qualified
employee.
Connect the fixture to the mains with the power-plug.
The occupation of the connection-cables is as follows:
Cable Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth has to be connected!
In general, lighting effects should not be connected to dimming-packs.
OPERATION
After you connected the effect to the mains, the TS-3 starts running. During the Reset, the motors are
trimmed and the device is ready for use within approximately 20 seconds.
Sound-control/Master/Slave-operation
The lamp is automatically ignited as soon as the condensor microphone receives music signals. If the
projector does not react to the music signals, the microphone sensitivity is too low. You can adjust the
sensitivity with the rotary-control on the rearpanel.
You can do without a controller as the TS-3 features a built-in microphone, which provides automatic sound
control.
If you have connected a footswitch to the Blackout-socket, you can lock the light output (Blackout-mode) and
turn it on again.
Please note: If you wish to change from one operating mode into another, you either have to switch off the
lamp/activate Blackout-mode or unplug the projector from the mains and plug it again.

21
Gobo 1 Gobo 2 Gobo 3
Gobo 4 Gobo 5 Gobo 6
Gobo 7 Gobo 8 Gobo 9
Gobo 10
Gobo-selection:
DMX-controlled operation
You can control the projectors individually via your DMX-controller. Every DMX-channel has a different
occupation with different features. In order to call up the different features, you first have to ignite the lamp
(control channel 4, DMX-value 6-63).
DMX-protocol
Control channel 1 - Horizontal mirror movement (Pan) (within 130°)
Push slider up in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center). The mirror can be
stopped at any position you wish.
Control channel 2 - Vertical mirror movement (Tilt) (within 90°)
Push slider up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center). The mirror can be
stopped at any position you wish.
Control channel 3 - Colour-wheel
Linear colour change following the movement of the slider. In this way you can stop the colour-wheel in any
position.
DMX-value Feature
0-15 White
16-31 Purple
32-47 Green
48-63 Yellow
64-79 Red
80-95 Pink
96-111 Orange
112-127 Dark blue
128-255 White
Control channel 4 - Gobo-wheel
DMX-value Feature
0-5 Lamp off
6-63 Open
64-127 Strobe-effect from slow to fast
(max. 5 flashes/second)
128-132 Closed
133-135 Reset
136-143 Open
144-141 Closed
152-159 Gobo 1
160-167 Gobo 2
168-175 Gobo 3
176-183 Gobo 4
184-191 Gobo 5
192-199 Gobo 6
200-207 Gobo 7
208-215 Gobo 8
216-231 Gobo 9
232-255 Gobo 10 (Multicolour yellow/magenta)

22
CLEANING AND MAINTENANCE
Disconnect from mains before starting maintenance operation!
DANGER TO LIFE!
We recommend a frequent cleaning of the device. Please use a soft lint-free cloth moistened with any good
glass cleaning fluid. Never use alcohol or solvents!
There are no servicable parts inside the device except for the lamp and the fuse. Maintenance and service
operations are only to be carried out by authorized dealers.
Please refer to the instructions under "Installing/Replacing the lamps".
Replacing the fuse
If the lamp burns out, the fine-wire fuse of the device might fuse, too. Only replace the fuse by a fuse of
same type and rating (T 2 A, 250 V).
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuseholder on the rearpanel with a fitting screwdriver from the housing (anti-
clockwise).
Step 2: Remove the old fuse from the fuseholder.
Step 3: Install the new fuse in the fuseholder.
Step 4: Replace the fuseholder in the housing and fix it.
The lens has to be replaced when it is obviously damaged,
so that its function is impaired, e. g. due to cracks or deep scratches!
CAUTION!
Should you need any spare parts, please use genuine parts.
Should you have further questions, please contact your dealer.
TECHNICAL SPECIFICATIONS
Power supply: 230 V/50 Hz
Power consumption: 200 W
DMX-control-channels: 16/14
DMX-512-connection: 3-pin XLR
Blackout-connection: ¼" mono jack
Sound-control: via built-in microphone
Radiation angle: 18°
Range of action: 3 - 6 m
PAN-movement: within 130°
TILT-movement: within 90°
Flash-rate: 1-5 Hz
Number of colours: 7 dichroic + white
Number of gobos: 9 gobos, 1 bicolor-gobo and open
Dimensions (LxWxH): 445 x 225 x 140 mm
Weight: 6 kg
Fitting lamps: EFR 15 V/150 W GZ-6,35
Maximum ambient temperature ta: 45° C
Maximum housing temperature tB(steady state): 70° C
Fuse: T 2 A, 250 V
Please note: errors and omissions for every information given in this manual excepted. Every
information is subject to change without prior notice. 3/00 ©
