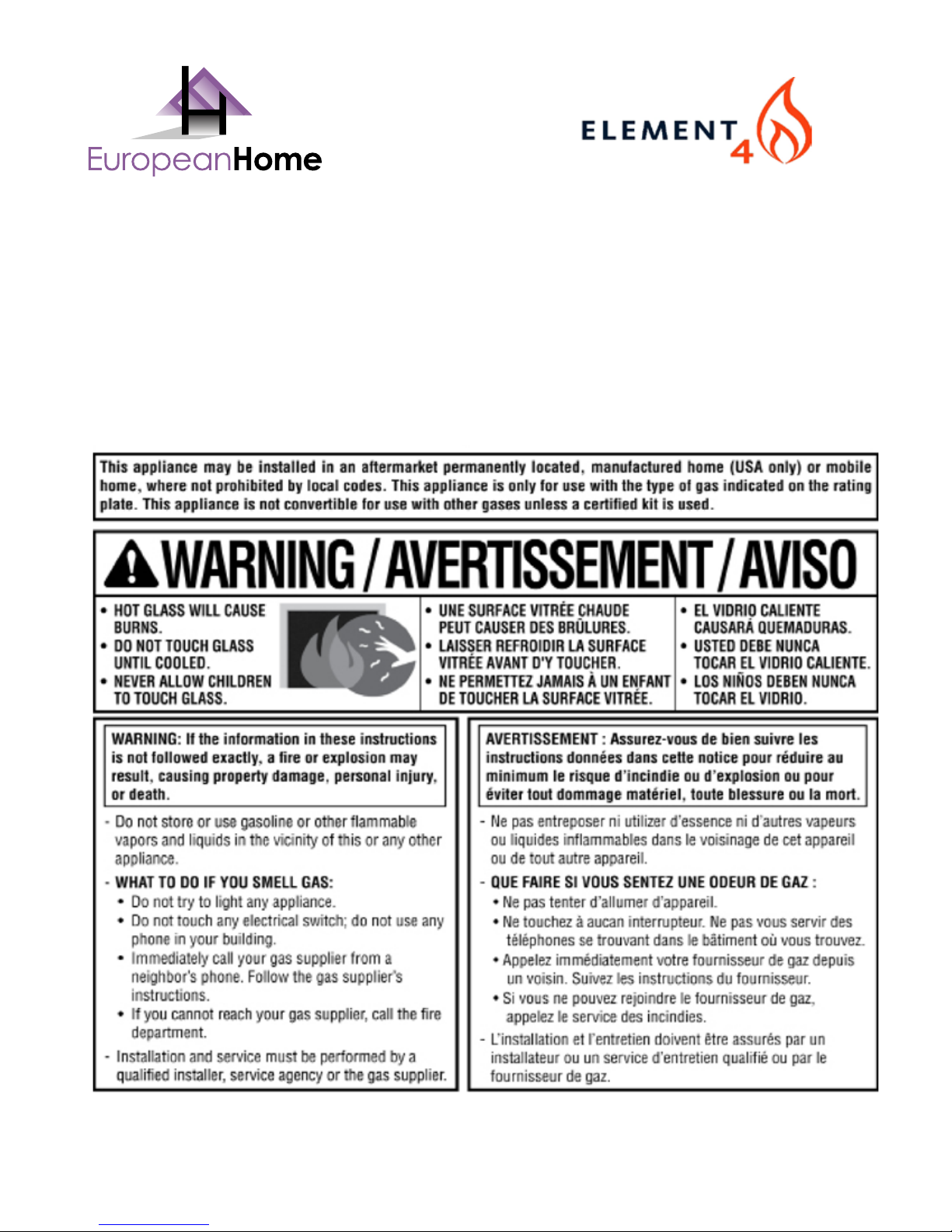

European Home Sky T User manual

1
Element4 Gas Fireplaces EuropeanHome.com
Direct Vent Gas Fireplace
Installation Manual
Aug 2014
Models:
Sky
Sky T

TABLE OF CONTENTS
Important Safety Information 3
Specications and Dimensions 8
Clearances 27
Gas and Electric 33
Venting 34
Enclosing the Fireplace 46
Fire Media 53
Operating the Fireplace 58
Maintenance 61
Warranty 65
Venting System Installation Instructions Appendix One
Massachusetts Certication Appendix Two
Troubleshooting Flowchart Appendix Three

3
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces EuropeanHome.com
CAUTION - HOT! HOT! HOT!
This appliance is a HEATING appliance and it does become very hot in operation.
UNDER ANY CIRCUMSTANCES, DO NOT PLACE any furnishings, furniture, draperies or other item LESS THAN 36”/90 cm) IN
FRONT OF THE GLASS OF THE FIREPLACE.
CHILDREN AND PETS
Radiant heat can heat surfaces such as
the surround and trims of the replace to
temperatures that, although approved
safe, can be quite uncomfortable to touch -
particularly for children and pets. Children
and pets should always be supervised when
in the room where the appliance is located.
Remote control handset should be kept out of
reach of children. In the presence of children,
we STRONGLY RECOMMEND that you install in
front of the replace: a re screen or, to protect
young toddlers, a “hearth gate”.
HOT SURFACES
Be aware that, although safe, some
combustible materials and nishes, even
though installed at listed clearances may, over
time, discolor, warp or show cracks.
Convective heat will exit the unit and travel
up the wall surface if not impeded. Protruding
mantels and projections can help direct the heat away from the wall. AVOID placing heat sensitive items such as
televisions, paintings, decorations, etc. above replaces or near the edge of protrusions unless appropriate.
A A
36"
90cm
36"
90cm
36"
90cm
36"
90cm
36"
90cm
36"
90cm
Do not put furniture or
other objects in this space
in front of the fireplace.
SAVE THESE INSTRUCTIONS
Make yourself fully aware of all the following instructions and the many features of the Element4
direct vent gas replace appliance.
INSTALLER: Leave this manual with the appliance.
OWNER: Keep this manual for future reference.

4
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces EuropeanHome.com
WARNING
Children and adults should be alerted to the hazards of
high surface temperature and should stay away to avoid
burns or clothing ignition.
WARNING
This direct vent system appliance must be installed as an
OEM installation in manufactured homes (USA only) or
an aftermarket permanently located, or a mobile home,
where not prohibited by local codes and must be
installed in accordance with Manufacturer’s instructions
and the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280, in the United States, or
the Standard for Installation in Mobile Homes, CAN/CSA
Z240 MH Series, in Canada.
If the information in these instructions is not followed
exactly a re or explosion may result causing property
damage, personal injury or death.
Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this appliance.
WARNING: Installation and Service
Installation and Service must be performed by an
authorized qualied installer, service agency or gas
supplier.
Any alteration to the product that causes soot or carbon to
form and results in damage is not the responsibility of the
manufacturer.
ONLY an authorized qualied installer may open the door/
remove the glass. The end user must NOT open the door/
remove the glass, as this may be unsafe and may result in
voiding the manufacturer’s warranty.
WARNING: Glass Handling
The glass must only be removed by an authorized and/or
qualied installer. The authorized technician should only
remove the glass by the use of glass vacuum holders.
WARNING: Electrical Grounding
These direct vent appliances must be electrically
grounded in accordance with the local codes or, in the
absence of local codes, with National Electric code, ANSI/
NFPA 70, or the Canadian Electric Code, CSA C22.1
WARNING: Gas Appliance
This appliance is only for use with the type of gas
indicated on the rating plate. These appliances are not
convertible for use with other gases, unless a certied kit
is used and the conversion is performed by an authorized
qualied technician.
Applicable standards are ANSI Z21.50/CSA 2.22 (Vented
Gas Fireplaces) and CAN/CGA 2.17-M91 (Gas-red
Appliances for Use at High Altitudes.) If your installation
is at an elevation greater than 2000’ in the US or 4500’
in Canada, consult with the local authority having
jurisdiction for gas product installations to determine their
specic requirements for high altitude installations.

5
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces EuropeanHome.com
This gas replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached to a
chimney serving a separate solid fuel burning appliance.
Each gas appliance MUST BE a separate vent system.
Common vent systems are prohibited.
This unit MUST be used with a vent system as described
in this installation manual. NO OTHER VENT SYSTEM OR
COMPONENTS MAY BE USED.
INSPECT the external vent cap on a regular basis to make
sure that no debris, plants, trees, shrubs are interfering
with the air ow.
NEVER OBSTRUCT the ow of ventilation air. Keep the
front of the appliance CLEAR of all obstacles and materials
for servicing and proper operation.
The glass panels MUST be in place and sealed before the
unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass panels
removed, cracked or broken. Replacement of the glass
panels should be performed by a licensed or qualied
service person. DO NOT strike or slam the glass panels.
The glass panels SHALL ONLY be replaced by units
supplied by the manufacturer. NO SUBSTITUTE panels
shall be used.
DO NOT USE abrasive cleaners on the panels. DO NOT
ATTEMPT to clean the glass panels when they are hot.
TURN OFF the gas before servicing the appliance. It is
recommended that a qualied service technician perform
an appliance check-up/service once a year.
Any safety screen or guard removed for servicing MUST BE
REPLACED before operating this appliance.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL, and must
only be used with gas supply conditions as indicated on
the data label.
DO NOT USE this appliance if any part has been under
water. Immediately call a qualied service technician to
inspect the unit and to replace any part of the control
system and any gas control that has been under water.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM HEATING APPLIANCE.
It must not be used for any other purposes such as drying
clothes, etc.
If the pilot ame is extinguished either intentionally or
unintentionally, no attempt should be made to re-light the
gas until at least 3 minutes have elapsed.
Dimensions will appear as
INCHES”/metric throughout this manual. For convenience,
the inches are rounded to the nearest 1/16” when
converted. If greater accuracy is required, use the metric
dimensions.

6
IMPORTANT SAFETY INFORMATION
Element4 Gas Fireplaces EuropeanHome.com
When enclosing your Element4 replace the use of non-combustible building materials is REQUIRED.
Please read and understand the following.
COMBUSTIBLE MATERIALS
Materials that can catch re and burn are considered combustible. Any material that is made of, or faced with, wood, wood pulp,
paper, plastic or any other material that can catch re and burn is considered combustible. Even though these materials may have
been 'ame-proofed', made 're-resistant' or are 're-rated' they are considered combustible. Standard and Type X drywall are
both combustible.
NON-COMBUSTIBLE MATERIALS
A given material is said to be non-combustible when it cannot catch re and burn. For example, materials made entirely, or in
combinations, of, stone, brick, concrete, tile, steel, plaster or glass are considered non-combustible.
Table 1 shows a list of materials which, as of this writing, are reported by their manufacturers to be non-combustible (in
accordance with the ASTM E136 standard) AND approved for use around replaces. Products which have a YES in BOTH the Non-
combustible and Manufacturer Approved columns can be used with this replace.
Product* Non-combustible Manufacturer Approved
James Hardie Building Products HardieBacker® ¼” Cement Board YES YES
James Hardie Building Products HardieBacker® 500 Cement Board YES YES
Promat PROMATECT®-L Insulating Boards YES YES
Skamol Skamotec® 225 Fireplace Building Board YES YES
U.S. Architectural Products Versaroc® Cement Bonded Particle Board YES YES
U.S. Architectural Products Cem-Clad® Cement Panel YES YES
National Gypsum PermaBase® Cement Board NO NO
USG DUROCK® Cement Board Next Gen YES NO
CertainTeed Fiber Cement BackerBoard NO NO
Custom Building Products WonderBoard® Backerboard NO NO
Georgia-Pacic Gypsum DensGlass® Sheathing YES NO
Ameriform ARMOROC® Cement Bonded Particle Board YES NO
* The listed brand names are trademarks of their respective companies
Table 1

7

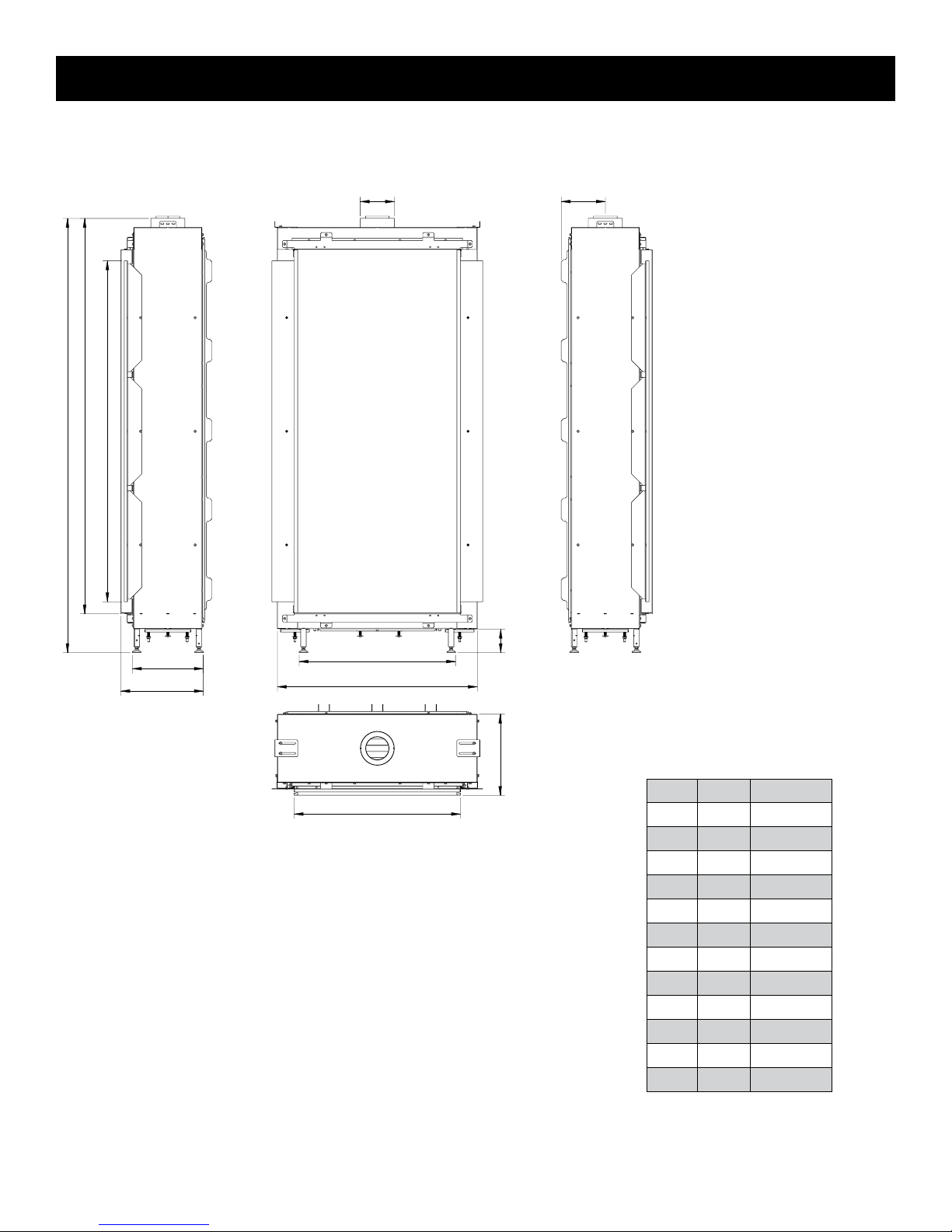

SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
APPLIANCE RATINGS
Model Sky
Sky T
Gas Natural
Gas Propane
Input Maximum Btu/hr 44,500 37,380
Input Minimum Btu/hr 17,500 13,250
Maximum Supply
Pressure
in. w.c. 7 11
kpa 1.74 2.74
Minimum Supply
Pressure
in. w.c. 4 8
kpa 1 2
Manifold Pressure
Maximum
in. w.c. 4.0 10.8
kpa 0.99 2.68
Manifold Pressure
Minimum
in. w.c. 0.4 1.5
kpa 0.1 0.38
Main Burner Injector Marking 1200 (x2) 220 (x2)
Pilot Injector Marking 31.2 27.1
Figure 1 Wall Adapter Connection (arrow)
WALL ADAPTER SPECIFICATIONS
Input Voltage 120V AC
Input Power 9 W
Output Voltage 6V DC
Output Current 500 mA
Size 3.1”H x 2”W x 1.7”D
Output Cord Length 6 Feet
Agency Approvals UL, CSA

8
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
Front Elevation
Plan View
Left Elevation
Right Elevation
Letter Inches Millimeters
A 6 150
B 27⁄ 688
C 34⁄ 880
D 4⁄ 103
E 28⁄ 732
F 14⁄ 357
G 75¼ 1911
H 68½ 1740
I 59⁄ 1500
J 12⁄ 312
K 14⁄ 363
L 7⁄ 194












SKY

9
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
SKY T
Front Elevation
Plan View
Left Elevation
Right Elevation
Letter Inches Millimeters
A 6 150
B 27⁄ 688
C 34⁄ 880
D 4⁄ 103
E 28⁄ 732
F 16⁄ 414
G 75¼ 1911
H 68½ 1740
I 59⁄ 1500
J 12⁄ 312
K 16⁄ 411
L 8⁄ 205













10
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
DO NOT REMOVE
DIRECT VENT GAS FIREPLACE - Not for
use with solid fuel.
This appliance is only for use with the type of gas indicated on the
rating plate and may be installed in an aftermarket, permanently
located, manufactured home (USA only) or mobile home where
not prohibited by local codes. See owner’s manual for details. This
appliance is not convertible for use with other gases, unless a
certied kit is used.
For use only with Vent, Glass Panels and Ceramic Logs (or
stones) certied and approved for use with this appliance.
This appliance must be installed in accordance with local codes,
if any; if none, follow ANSI Z223.1/NFPA 54, or CSA B149.1. The
appliance must be properly connected to a venting system in ac-
cordance with the manufacturer’s installation instructions.
The system must be installed by ba qualied installing agency.
NE PAS RETIRER
FOYER GAZ À AÉRATION DIRECTE - Ne pas
utiliser avec un combustible solide
Cet appareil est destiné uniquement avec le type de gaz indiqué sur
la plaque signalétique et peut être installé dans une habitation en dur,
à emplacement xe (USA uniquement) ou dans une résidence mobile
si la législation locale l’autorise. Consultez le manuel du propriétaire
pour les détails. Cet appareil ne doit pas être modié pour une utilisa-
tion avec d’autres gaz, sauf à l’aide d’un kit certié.
À utiliser uniquement avec des ventilations, panneaux en verre et
poutres (ou pierres) en céramique dont l’utilisation est autorisée avec
cet appareil.
Cet appareil doit être installé conformément à la législation locale. À
défaut d’une telle législation, suivre ANSI Z223.1/NFPA 54, ou CSA
B149.1. L’appareil doit être proprement raccordé à un système de
ventilation, conformément aux instructions d’installation du fabricant.
Le système doit être installé par un installateur qualié.
Manufacturer/ Fabricant:
Element4 B.V.
Paxtonstraar 23
NL-8013 RP Zwolle
The Netherlands / Pays-Bas
Tel / Tél : [phone]
Fax:[phone]
Approved By / Approuvé par:
Control No. : 4006611
Conforms to std. ANS Z21.50a-2008
Certied to std. CSA 2.22a-2008 - Vented Gas Fireplaces
Product name: (check one) / Nom du produit : (cochez …)
Trisore 140 [ ] Bidore 140 [ ]
Modore 140 [ ]
Serial No. / N° de série: _____________
This appliance equipped only for altitudes /
Cet appareil est équipé uniquement pour les altitudes : 0-2000 ft / 0-0610 m
Fuel Type / Type de combustible Natural Gas / Propane Gas /
Gaz naturel Gaz propane
(check one) / (cochez…) [ ] [ ]
Max. Input / Capacité d’entrée maxi (BTU/HR) 38200 34100
Min. Input / Capacité d’entrée mini (BTU/HR) 13650 11950
Gas Inlet Pressure (in w.c.) / Pression d’entrée du gaz (en w.c.) 7 11
Manifold Pressure (in w.c.) / Pression d’admission (en w.c.) 2.5 10.8
Orice Size / Taille de l’ouverture 1200 320
Clearances to combustible / Dégagement jusqu’au combustible :
Back / Arrière : 11” (28cm) Sides / Côtés : 11” (28cm)
Top / Haut : 26” (66cm) Floor / Sol : 4” (10cm)
Mantel / Linteau: 2” (5cm)
Figure 2. Typical Rating Label
A typical rating label is shown in Figure 3. It is attached to every Element4 replace and contains important certication
information. It must not be removed from the replace.
SAMPLE

11
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
Figure 3
PARTS OF THE FIREPLACE
1
2
3
3
4
6
7
911

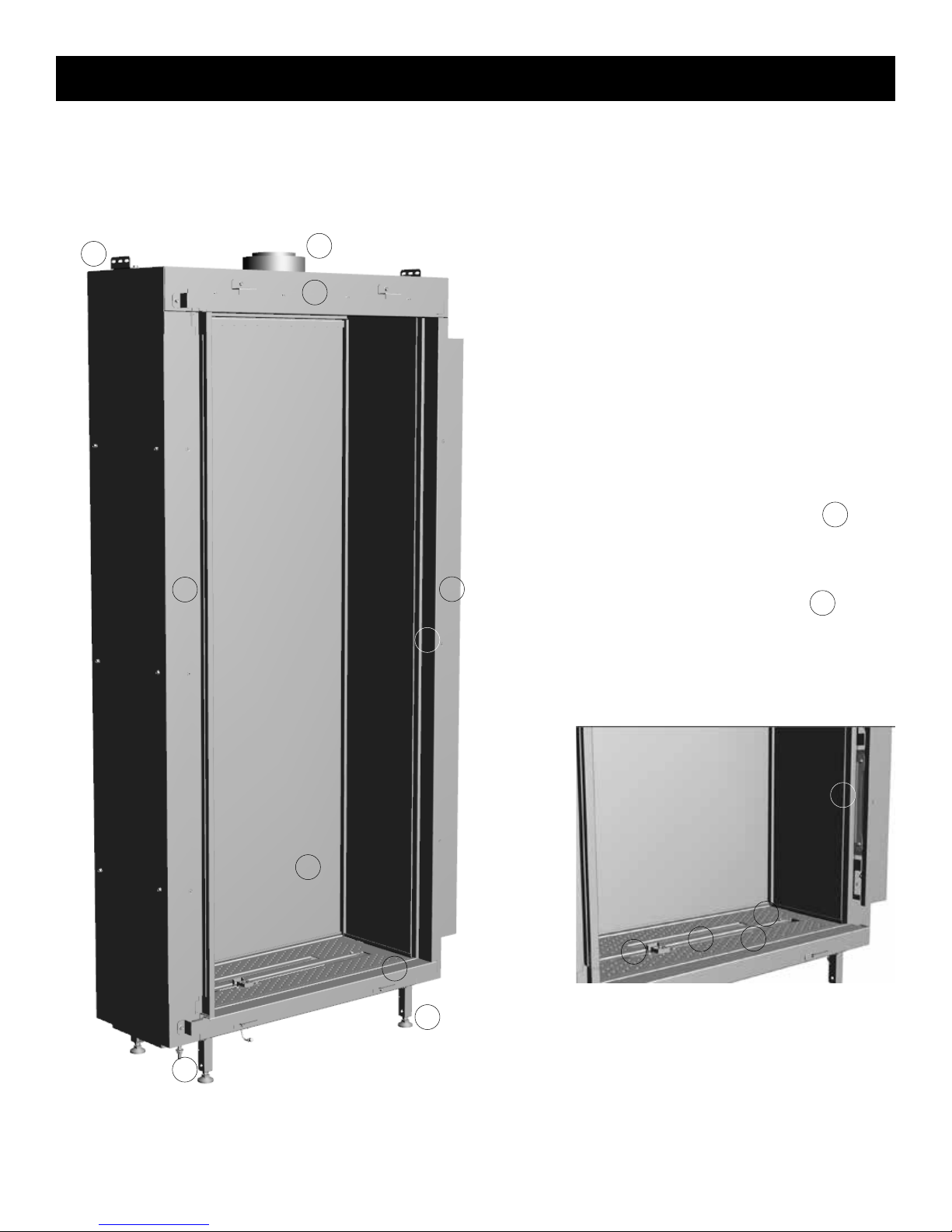

The various parts of the replace are shown in Figures 4, 5 and 6. The Trisore 140 is shown, other models are similar.
10
5
Figure 4
8
8
11
3
8

12
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com
Table of Fireplace Parts
Stando Frame - surrounds the glass panels and limits the non-combustible wall board
Glass Panel - one, two or three, depending on model
Adjustable Foot - four adjustable feet allow the replace to be levelled
Hearth Panel - supports various Fire Media
Main Burner - produces the ame
Pilot Burner - the part of the safety circuit which lights the Main Burner
2nd Thermocouple - the part of the safety circuit which monitors the Main Burner
Finish Trim - hides the Glass Clamps, the quantity varies by model
Fixing Bracket - attaches the replace to the building
Glass Clamp - holds the Glass Panel in place. Sky - 6 ea., Sky T - 12 ea.
Vent Collar - accepts the 4”/6⁄” venting adapter (included)
Relief Door - part of the safety system, do not change or adjust, the quantity varies by model
Gas Control - is at the end of the Line Set and controls the ow of gas. See Figure 57.
Line Set - approximately 51”/1.3 m long and is to be unwrapped to allow remote mounting of
Gas Control
11
10
9
8
7
6
5
4
3
2
1
Figure 5

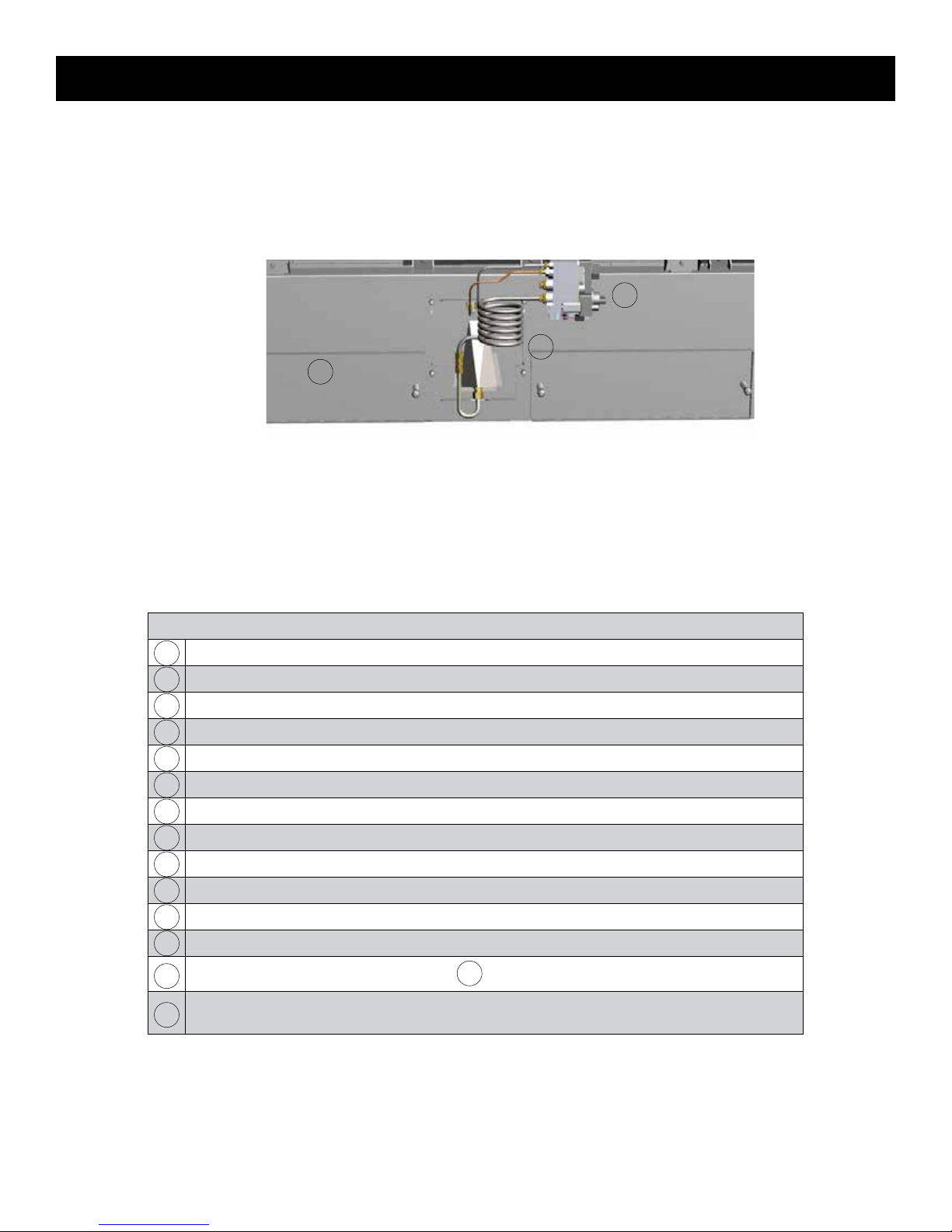

Figure 5 shows a bottom view. The Tenore and Modore are similar.
12
13
13
12
14
14
14
Table 2.

13
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
The beauty of the Element4 replaces is due largely to the
fact that they are NOT zero-clearance replaces. All clearances
to combustible AND non-combustible materials MUST be
maintained as described in this manual.
LOCATION
When selecting a location for the replace:
• Ensure that all minimum clearances to combustible
materials are met.
• Provide adequate clearances for servicing.
• The allowed venting dimensions (rise, run and number
of bends, etc.) must be considered during the location
selection for your replace.
• Due to high temperatures, the appliance should be located
out of trac and away from furniture and draperies.
• The location should also be free of electrical, plumbing or
other heating/air conditioning ducting.
These appliances are intended to be built into a place for re.
The base upon which the appliance rests must be sturdy, level
and built to safely support at least 500 pounds/230 kilograms.
The base may be the oor or a purpose built raised platform
(e.g. wood,metal). The base upon which the replace is
installed must have a 3”/76 mm x 24”/610 mm opening centered
in it to allow the free ow of air to the replace above.
The feet on the appliance are designed to sit on a at
platform, however the appliance must not be installed on any
combustible material other than wood. For example, carpet or
linoleum bases are not permitted.
MINIMUM CLEARANCE TO COMBUSTIBLES
• The appliance is approved with a minimum clearance to
combustible materials on all sides of 11”/280 mm. Any spacer
or framing used closer than this dimension must be non-
combustible (e.g. metal). The minimum clearance to non-
combustible material is 2”/50 mm.
• The minimum distance from the bottom of the appliance to
the room ceiling is 72”/1830 mm.
• When installing the venting the following clearances to
combustible materials MUST be maintained:
a. 3”/76 mm above any horizontal venting
b. 1”/25 mm to venting sides or below any horizontal
venting
• Non-combustible materials may be installed to a zero
clearance to the outer faces of the appliance outer frame.
However, they must not cover (or prevent the removal of)
the glass panels or the control equipment.
• Do not block or restrict the convection gap between the
appliance rebox and the appliance outer frame (top of
glass panels).
The minimum clearances (air spaces) to combustible
materials must be maintained. It is of the greatest
importance that the replace and vent system be installed
only in accordance with these instructions.
Clearance to combustibles summary:
Back: 11”/280 mm
Sides: 11”/280 mm
Top: 26”/660 mm
Floor: 4”/100 mm
The Floor dimension (above) is measured from the bottom
of the rebox thus the feet can sit on the oor and give this
clearance in their lowest position.

14
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
MANTELS
The graph in Figure 7 shows a range of allowable
depths and heights for a combustible mantel
installation.
As shown, the minimum allowable mantel height
above the replace opening is 2”/50 mm with a
1”/25 mm deep mantel.
The maximum mantel depth is 12”/300 mm at a
minimum height above the replace opening of
13”/330 mm.
All of the mantel height/depth combinations fall in
between these extremes in accordance with Figure
12.
Mantels made of non-combustible material are
allowed inside these dimensions but they will be
subjected to elevated temperatures and may be
too hot to touch.

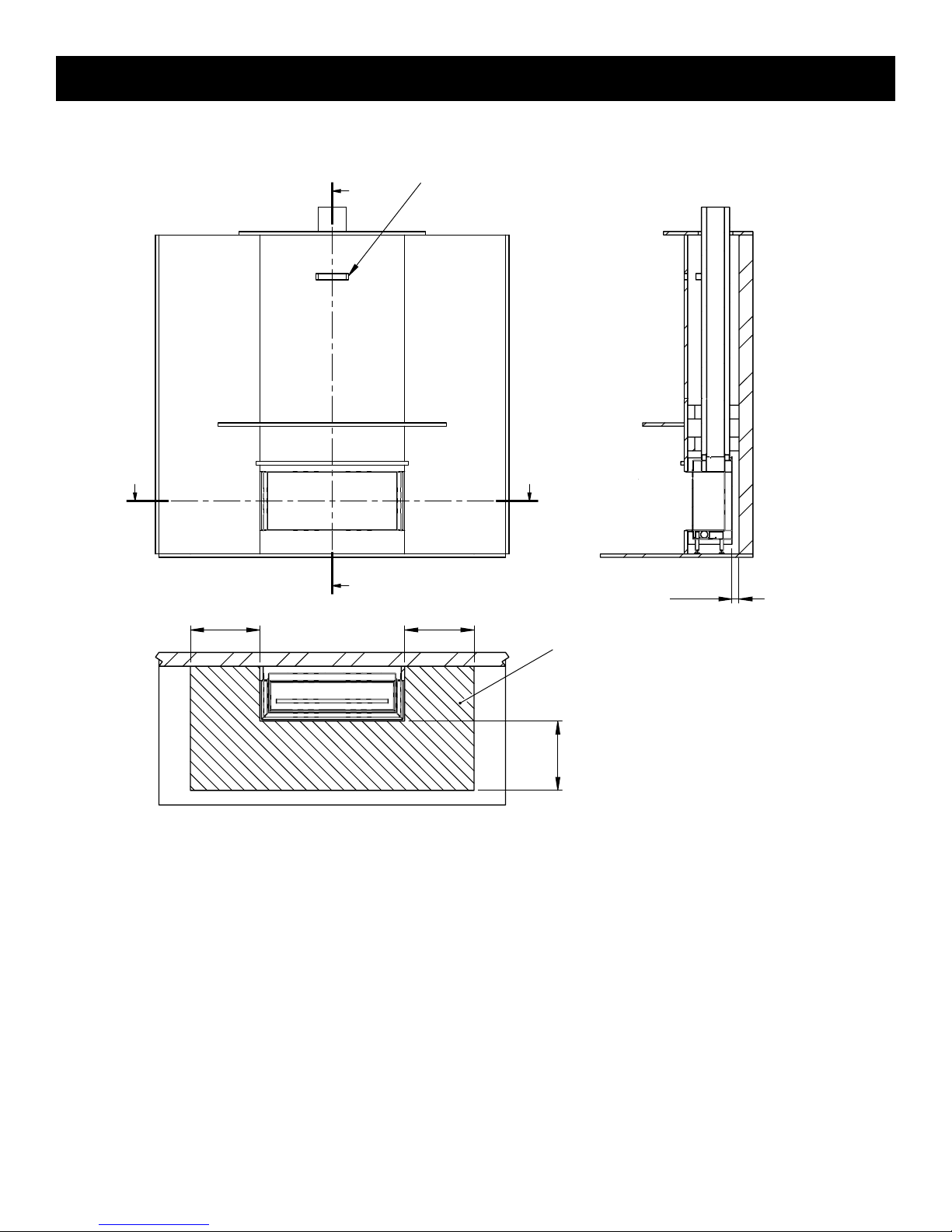

A typical completed installation with mantel is
shown in Figure 7.
A
A
BB
VENT OPENING
800cm² (124In²)
TOTAL MINIMUM
(2") 50
C
SECTION A-A
(36")
900
(36")
900
(36")
900
SECTION B-B
COMBUSTIBLE MATERIALS
NOT PERMITTED IN FRONT
OF GLASS
(2")
50
(11")
280
DETAIL C
SCALE 1 : 10
CONSTRUCTION
BEAMS NON-
COMBUSTIBLE
(TYPICAL)
TOP OF FIREPLACE
OPENING
GLASS
NON COMBUSTIBLE
MATERIAL
DETAIL C
CONVECTION GAP
CONSTRUCTION
BEAMS COMBUSTIBLE
(TYPICAL)
Figure 7
A
A
C
SECTION A-A
(2) 50
Mantel Height
(13) 330
Mantel Depth
(12) 300
(1) 25
0
TOP OF
FIREPLACE
OPENING
GLASS
2468101214161820
2
4
6
8
10
12
14
16
18
20
0
Figure 6
1”/25 mm
12”/300 mm
13”/330 mm
2”/50 mm
INCHES
Mantel Height
Mantel Depth

15
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
2" (50)
1" (25)
2" (50) 1" (25)
2" (50)
1" (25)
APPLIANCE
GLASS
COMBUSTIBLE MATERIAL
NON-COMBUSTIBLE LINING
Combustible Material
with a Non-Combustible
Lining
11"
(280)
11"
(280)
11"
(280)
APPLIANCE
GLASS
COMBUSTIBLE MATERIAL
Combustible Material
2" (50)
2" (50)
2" (50)
APPLIANCE
GLASS
NON-COMBUSTIBLE MATERIAL
Non-Combustible
Material
WITHIN COMBUSTIBLE AND
NONCOMBUSTIBLE WALLS

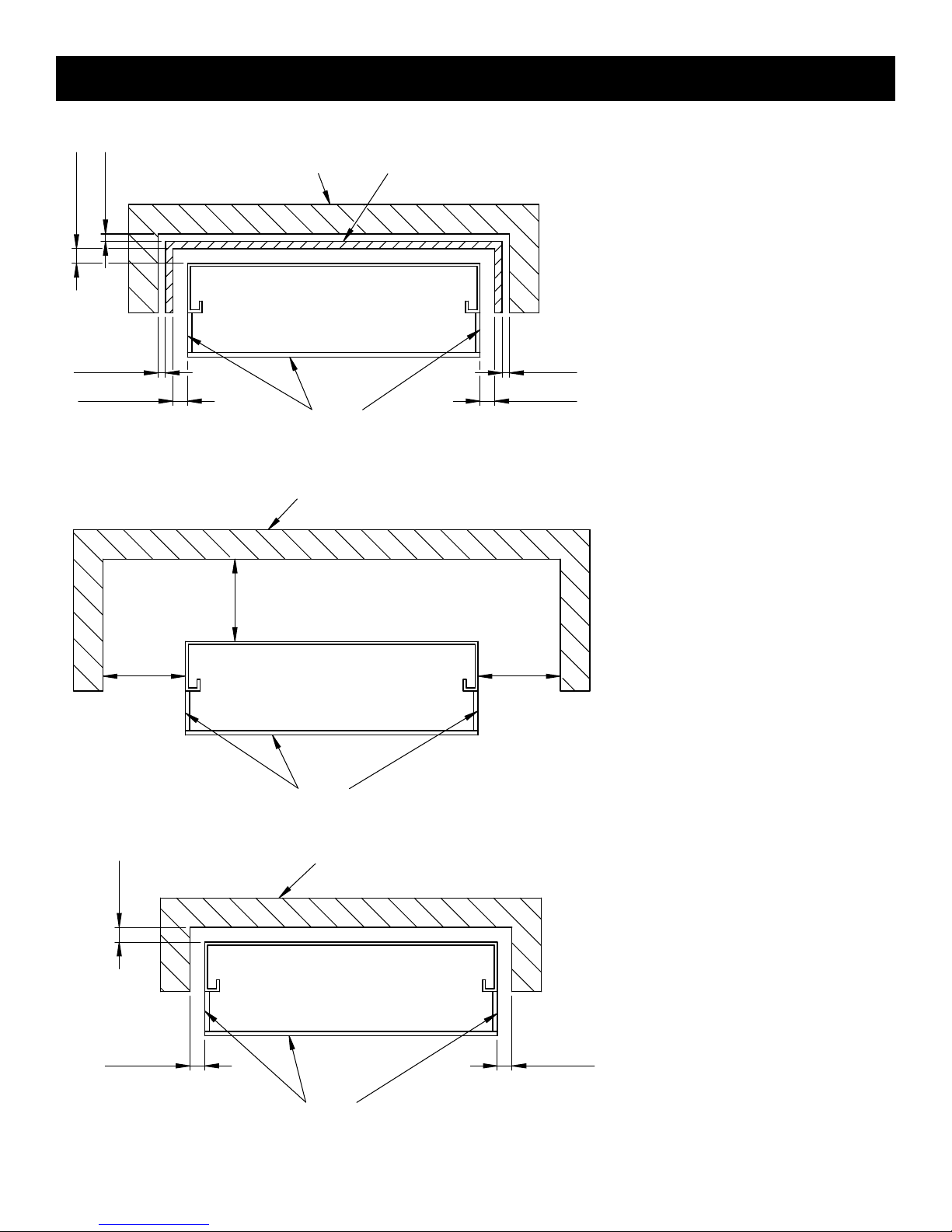

Figures 8 through 10 show clearances to
combustible and non-combustible walls.
Figure 8 shows a typical method for
protecting combustible walls while
maintaining close installation dimensions.
The non-combustible lining MUST extend
more than 26”/660 mm above the top of
the replace. The lining shall be place no
closer than 1”/25 mm to the oor or any
intersecting walls. Air MUST be allowed to
continually circulate around the lining.
Note: The 1”/25 mm and the 2”/50 mm air
gaps MUST be maintained.
Figure 9 shows the minimum distance to
combustible materials.
Figure 10 shows the minimum distance to
non-combustible materials.
2”/50 mm
Figure 8
Figure 9
Figure 10
1”/25 mm
2”/50 mm
1”/25 mm
2”/50 mm 2”/50 mm
11”
280 mm
2”
50 mm
11”
280 mm
11”
280 mm
2”
50 mm
1”
25 mm

16
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
A
A
BB
VENT OPENING
800cm² (124In²)
TOTAL MINIMUM
(2") 50
C
SECTION A-A
(36")
900
(36")
900
(36")
900
SECTION B-B
COMBUSTIBLE MATERIALS
NOT PERMITTED IN FRONT
OF GLASS
(2")
50
(11")
280
DETAIL C
SCALE 1 : 10
CONSTRUCTION
BEAMS NON-
COMBUSTIBLE
(TYPICAL)
TOP OF FIREPLACE
OPENING
GLASS
NON COMBUSTIBLE
MATERIAL
DETAIL C
CONVECTION GAP
CONSTRUCTION
BEAMS COMBUSTIBLE
(TYPICAL)

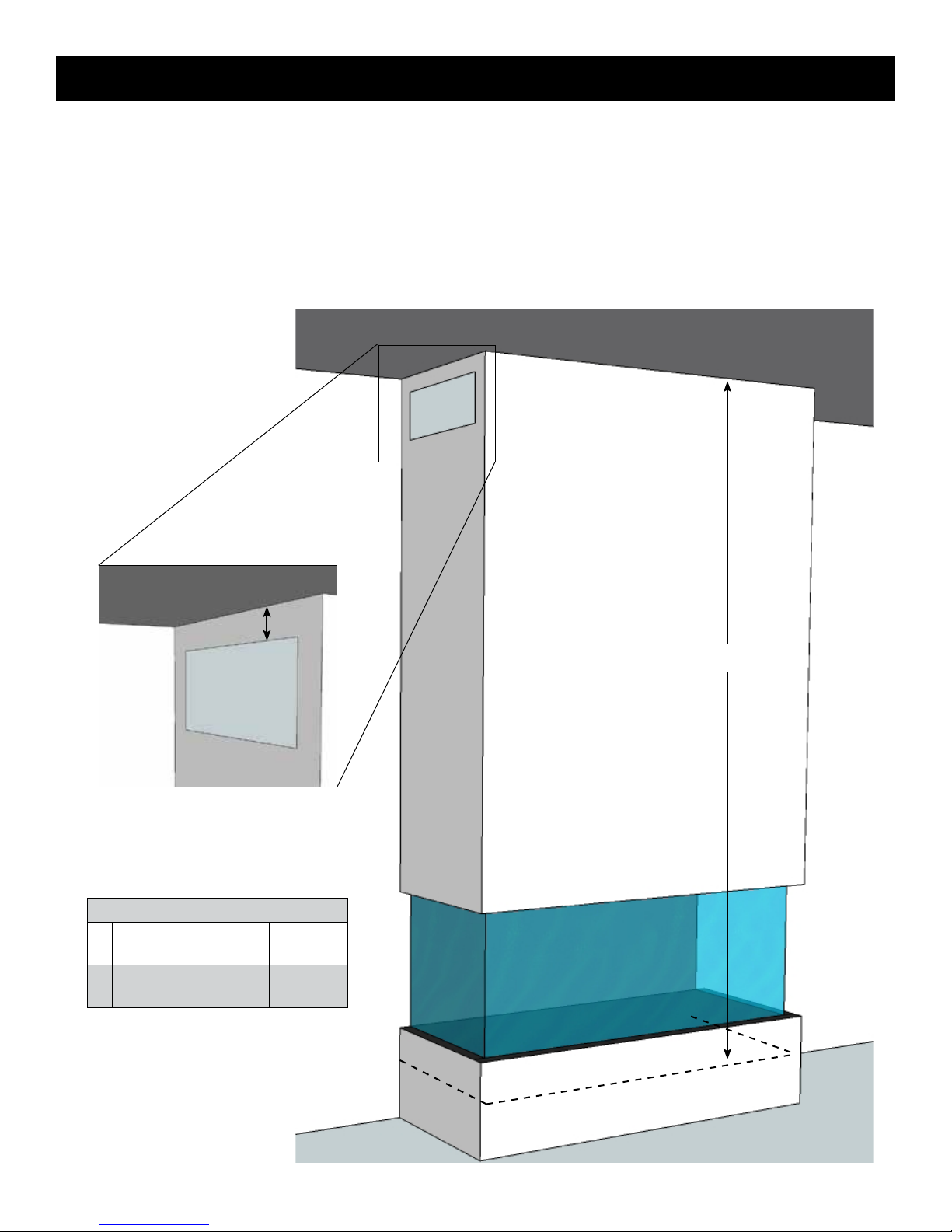

A typical chase enclosing a Trisore replace (as an example) is shown in Figure 11. Section B-B (plan view) shows the area around
the replace in which combustible furnishings are not permitted. Section A-A shows the clearance to NON-combustible materials.
See ENCLOSING the FIREPLACE for the dimensions required for the Convection Air Outlet.
KEEP THIS AREA FREE OF
COMBUSTIBLE FURNISHINGS
36”
900 mm
36”
900 mm
36”
900 mm
2”/50 mm
Fig ure 11
WARM AIR OUTLET
REQUIRED

17
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
A
A
BB
2"/50 mm
C
36"
900 mm
36"
900 mm
36"
900 mm
SECTION B-B
2"
50 mm
11"
280 mm
C
M
Y
CM
MY
CY
CMY
K
A
A
BB
2"/50 mm
C
36"
900 mm
36"
900 mm
36"
900 mm
SECTION B-B
2"
50 mm
NON-COMBUSTIBLE
FRAMING
(REQUIRED)
DETAIL “C”
NON-COMBUSTIBLE WALL
(TYPICAL)

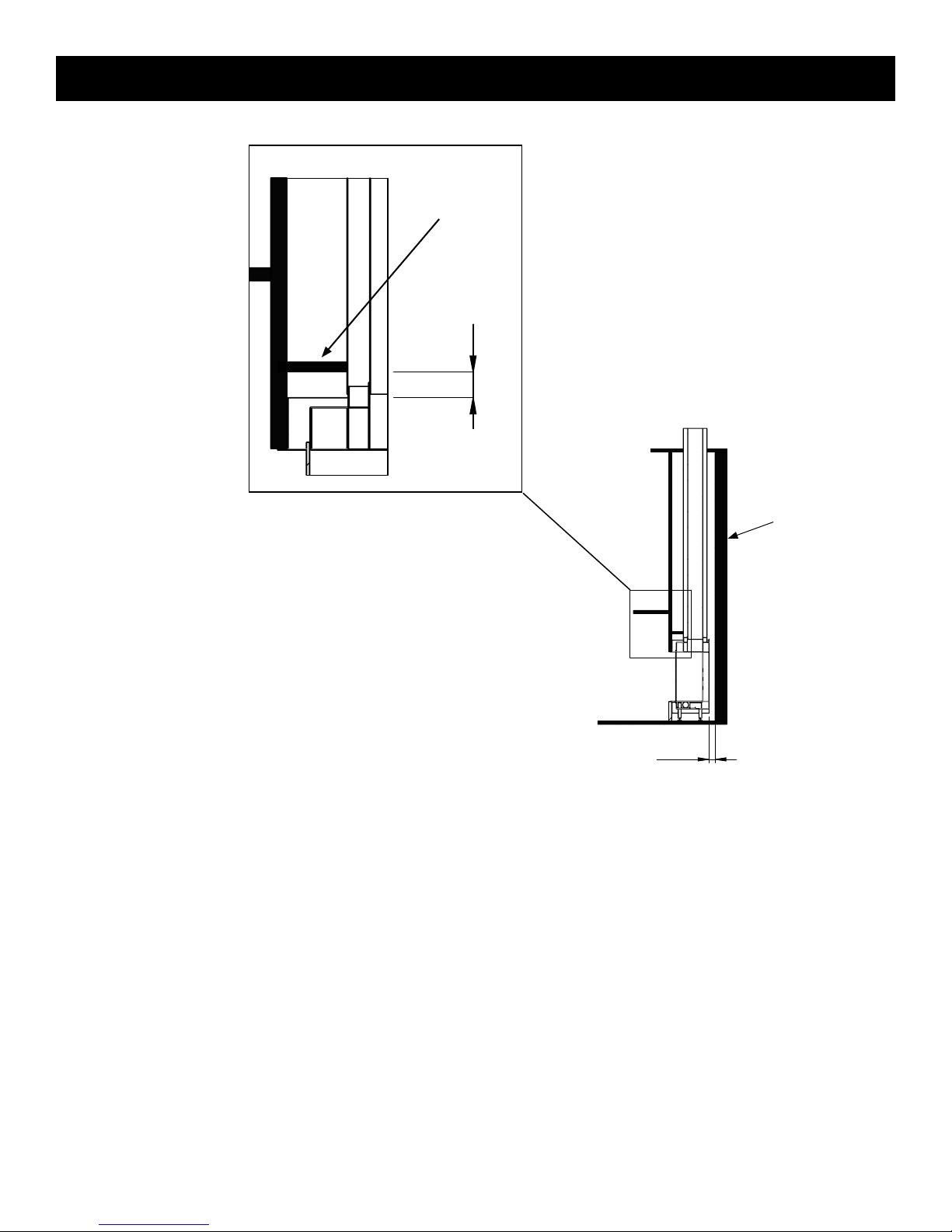

Detail C shows how the non-combustible framing above the
replace maintains a minimum clearance of 2”/50 mm. This
clearance MUST be maintained to ensure safe operation of the
replace.
Figure 12

18
CLEARANCES
Element4 Gas Fireplaces EuropeanHome.com
B
The total area of the convection air outlet(s) depends on the replace model. (See Table 7 on page 47.) The location of the outlet(s)
must allow for the free movement of air and must not allow excessive convection air to build up within the chase. The top of the
outlet(s) must be at least 1”/25 mm down from the ceiling and we recommend no more than 6”/152 mm down.
The minimum distance from the bottom of the appliance to the room ceiling is 72”/1830 mm. See Table 3.
A
TYPICAL CLEARANCE DIAGRAMS
Figure 13.
Minimum Distances
ARoom ceiling to
appliance bottom
72”
1830 mm
BRoom ceiling to top of
Convection Air Outlet
1”
25 mm
Convection
Air Outlet
Table 3

19
GAS and ELECTRIC
Element4 Gas Fireplaces EuropeanHome.com
INSTALLING THE GAS LINE
Correctly size and route the gas supply line from the supply regulator to the area where the appliance is to be installed as per
requirements outlined in the latest edition of the National Fuel Gas Code, NFPA 54 (USA) or CAN/CSA-B149.1 (Canada).
Never use galvanized or plastic pipe unless specied specically for use with gas. Refer to the table below for proper sizing of the
supply gas line. Gas lines must be routed, constructed and made of materials that are in strict accordance with local codes and
regulations. A qualied plumber or gas tter should be hired to correctly size and route the gas supply line to the appliance.
Installing a gas supply line from the fuel supply to the appliance involves numerous considerations of materials, protection, sizing,
locations, controls, pressure, sediment trap, and other criteria. The sizing and/or installing of gas piping should only be performed
by a qualied plumber or gastter.
The gas control inlet accepts a ⁄” NPT tting.
Schedule 40 Black Iron Pipe
Natural
Gas
Propane
Gas
Length (feet) Inside Diameter (Inches)
0 - 10 ½ ⁄
10 - 40 ½ ½
40 - 100 ½ ½
100 - 150 ¾ ½
150 - 200 ¾ ½
Table 4
ELECTRICAL REQUIREMENTS
The Element4 replaces use a receiver and remote control for their burner operation. The remote control comes with a 9V
battery and the receiver is powered by a 120V AC wall adapter, included.
This installation must provide an approved 120V AC wall receptacle to be placed within the six foot cord limit of the wall
adapter.
The receiver should be powered by either the wall adapter or 4AA batteries - not both. Batteries do not provide an electrical
backup for the wall adapter. Using batteries in combination with the wall adapter can damage the receiver.
Electrical work must be performed by a qualied, licensed electrician.
All wiring shall be in compliance with all local, city, and state codes.
WARNING

20
GAS and ELECTRIC
Element4 Gas Fireplaces EuropeanHome.com
LOCATING THE CONTROLS
The control system for the Element4 replaces consist of three major components; the receiver, the transmitter and the gas
control. The transmitter is the remote control by which you operate the replace. The receiver and the gas control are at one end
of a 50”/1270 mm line set. The other end of the line set is connected to the approximate center of the rebox. As shipped, the line
set is wrapped together and xed beneath the replace. See Figure 14.
When locating the BDLE4 Access Door you must consider four types of access:
1. Air access. Room air must be allowed to ow freely through the door perforations, up through the site-built
platform and up into the enclosing replace chase.
2. Line set access. The line set is to be unwrapped which allows the controls to be placed within a radius of
approximately 50”/1270 mm from the center of the replace, as the cable runs. Do not place the controls above the
level of the burner.
3. Physical access. Is the gas valve/receiver accessible for maintenance, etc.?
4. Wireless access. Can the signals from the transmitter (handheld, remote control) get to the receiver, inside the
access door?
MOUNTING THE CONTROLS
The BDLE4 Access Door requires a rough opening of 9⁄”/250 mm high by 6⁄”/175 mm wide. The door should be mounted with
the hinge on the left side. The door can also be mounted with the hinge side down.
- Carefully cut the black tie wraps which hold the line set to the bottom of the replace then carefully unwrap the line set. Lay
the line set out towards the location of the BDLE4 while avoiding kinks and bends with a radius of less than 2”/50 mm. See Figure
14.
- Remove the four bolts holding the white door/frame cover to the frame, separate the frame and cover then mount the BDLE4
frame to the rough opening as shown in Figure 15.
- Replace the white door/frame cover onto the frame and secure it with the four bolts
- Fit the gas control tab into the bracket on the BDLE4 frame then tighten the bolt through the mounting bosses . See Figures 16
and 17
- Set the receiver into the BDLE4 bracket as shown in Figure 38 and connect the wall adapter.
When mounted, the BDLE4 should look like that shown in Figure 19.
