European Home GVF-42 User manual

1
G Series Linear Hearth Burner EuropeanHome.com
-- Do not store or use gasoline or other
ammable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
-- Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or loss of life. This is an unvented gas-red heater. It
uses air (oxygen) from the room in which
it is installed. Provisions for adequate
combustion and ventilating air must be
provided. Refer to page 6.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
This appliance may be installed in an
aftermarket, permanently located,
manufactured (mobile) home, where not
prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases.
G SERIES
Linear · Hearth · Burner
Installation,
Operation
and
Owner’s Manual
Models:
GVF-42
GVF-60
GVF-72
Nov. 2014Report #284-F-08-4

2
G Series Linear Hearth Burner EuropeanHome.com
TABLE OF CONTENTS
Important Safety Information 3
Room Volume for Vent Free 6
Specications and Dimensions 8
Pre-installation Planning 12
Electric Installation 15
Gas Installation 17
Installing the Burner 18
Operating the Burner 20
Maintenance 22
Parts List 23
Warranty Appendix A
Product Installation Record Appendix B
Troubleshooting Appendix C

3
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.
G Series Linear Hearth Burner EuropeanHome.com
• Any change to this heater or its controls can be dangerous.
• Improper installation or use of the heater can cause serious injury or death
from re, burns, explosion or carbon monoxide poisoning.
• Do not allow fans to blow directly into the replace. Avoid any drafts that alter
burner ame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory, not
approved for use with this heater.
WARNING
1. Due to high temperatures, the heater should be located out of trac and away from furniture and
draperies.
2. Children and adults should be alerted to the hazard of high surface temperature and should stay
away to avoid burns or clothing ignition.
3. Young children should be carefully supervised when they are in the same room with the heater.
4. Do not place clothing or other ammable material on or near the heater.
5. Any safety screen or guard removed for servicing a heater, must be replaced prior to operating the
heater.
6. Installation and repair should be done by a qualied service person.
7. To prevent malfunction and/or sooting, an unvented gas heater should be cleaned before use and
at least annually by a professional service person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,
burners and circulating air passageways be kept clean.
8. CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning are similar to the u
with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immediately. Have
the heater serviced as it may not be operating properly.
9. The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.l/NFPA54.
10. This unit complies with ANSI Z21.11.2b-2011 Unvented Heaters and ANSI Z.21.60-2012/CSA 2.26-
2012 Decorative Appliances for Installation in Solid-Fuel Burning Fireplaces.Do not install the heater in a
bathroom or bedroom.

4
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.
G Series Linear Hearth Burner EuropeanHome.com
11. Correct installation of the re media, proper location of the heater, and annual cleaning are
necessary to avoid potential problems with sooting. Sooting, resulting from improper installation
or operation, can settle on surfaces outside the replace. See re media placement instructions for
proper installation.
12. WARNING: Avoid any drafts that alter burner ame patterns. Do not allow fans to blow directly into
replace. Do not place a blower inside burn area of rebox. Ceiling fans may create drafts that alter
burner ame patterns. Sooting and improper burning will occur.
13. Caution: Candles, incense, oil lamps, etc. produce combustion by-products including soot. Vent
free heaters will not lter or clean soot produced by these types of products. In addition, the smoke
and/or aromatics (scents) may be reburned in the vent free heater which can produce odors. It is
recommended to minimize the use of candles, incense, etc. while the vent free heater is in operation.
14. Keep room area clear and free from combustible materials, gasoline and other ammable vapors and
liquids.
15. Unvented gas heaters are a supplemental zone heater. They are not intended to be the primary
heating appliance.
16. Unvented gas heaters emit moisture into the living area. In most homes of average construction,
this does not pose a problem. In houses of extremely tight construction, additional mechanical
ventilation is recommended.
17. During manufacturing, fabricating and shipping, various components of this appliance are treated
with certain oils, lms or bonding agents. These chemicals are not harmful but may produce
annoying smoke and smells as they are burned o during the initial operation of the heater; possibly
causing headaches or eye or lung irritation. This is a normal and temporary occurrence. The initial
break-in operation should last two to three hours with the burner at the highest setting. Provide
maximum ventilation by opening windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in period will be slight and will disappear with continued use.
18. Input ratings are shown in BTU per hour and are for elevations up to 2,000 feet. For elevations above
2,000 feet, input ratings should be reduced 4 percent for each 1,000 feet above sea level. Refer to the
National Fuel Gas Code.
19. The heater and its main gas valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of ½ psig (3.5 kPa).

5
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.
G Series Linear Hearth Burner EuropeanHome.com
20. The appliance must be isolated from the gas supply piping system by closing its equipment shuto
valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than ½ psi (3.5 kPa).
21. Do not use this room heater if any part has been under water. Immediately call a qualied service
technician to inspect the room heater and to replace any part of the control system and any gas
control which has been under water.
22. This heater must not be used with glass doors in the closed position. This can lead to pilot outages
and severe sooting outside the replace.
23. Never burn solid fuels in a replace where an unvented room heater is installed.
24. Always have a replace screen in place when the appliance is in operation and, unless other
provisions for combustion air are provided, the screen must have an opening(s) for introduction of
combustion air.
25. All outside air ducts and/or ash dumps in the replace must be permanently closed prior to the
installation of the heater.
26. This appliance has been certied by OMNI-Test Laboratories, Inc. to ANSI Z21.11.2b-2011, Unvented
Room Heaters and ANSI Z.21.60-2012/CSA 2.26-2012 Decorative Appliances for Installation in Solid-
Fuel Burning Fireplaces.

ROOM VOLUME for VENT FREE
6G Series Linear Hearth Burner EuropeanHome.com
CODES
Adhere to all local codes or, in their absence, the latest edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1 or NFPA54 which
can be obtained from…
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
or
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
ADEQUATE COMBUSTION AND VENTILATION AIR
This heater shall not be installed in a conned space or unusually tight construction unless provisions are provided for adequate
combustion and ventilation air.
The National Fuel Gas Code, (ANSI Z223.1/NFPA 54), denes a conned space as a space whose volume is less than 50 cubic feet
per 1,000 BTU per hour (4.8 m3per kw) of the aggregate input rating of all appliances installed in that space. An unconned space
is dened as a space whose volume is not less than 50 cubic feet per 1,000 BTU per hour (4.8 m3per kw) of the aggregate input
rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed,
through openings not furnished with doors, are considered a part of the unconned space.
UNUSUALLY TIGHT CONSTRUCTION IS DEFINED AS CONSTRUCTION WHERE…
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of 1 perm (6 x 10
kg per Pa-sec-m²) or less with openings gasketed or sealed;
b) weather stripping has been added on operable windows and doors, and
c) caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and oors, be-
tween wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.
This appliance is equipped for natural gas. Field conversion is not permitted.
WARNING
If the area in which the heater may be operated does not meet the required
volume for indoor combustion air, combustion and ventilation air shall be
provided by one of the methods described in the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, the International Fuel Gas Code or applicable local codes.
WARNING

ROOM VOLUME for VENT FREE
7G Series Linear Hearth Burner EuropeanHome.com
The following formula can be used to determine the maximum heater rating (per the denition of unconned space) that is al-
lowed in your space:
Maximum BTU/Hr. = x 1000
Example A: Consider two connecting rooms with an open area between, with the following dimensions: L1 = 15½ ft., L2 = 12 ft., W
= 12 ft., H = 8 ft.
x 1000 = 52,800 BTU/Hr.
Example B: If there were a door between the two rooms the calculation would be based only on the room with the heater.
x 1000 = 29,760 BTU/Hr.
Will my space support a G Series Linear Hearth Burner?
Maximum BTU/hr. my space will support (use formula above) a) __________________
BTU/hr. of European Home G Series Linear Hearth Burner b) ____37,500________
If the answer to a) is greater than b) then your space will support the installation of the G Series Linear Hearth Burner; if a) is less
than b) then your space will not support an G Series Linear Hearth Burner.
(L1 + L2)ft. x (W)ft. x (H)ft.
50
(15½ + 12)ft. x (12)ft. x (8)ft.
50
(15½)ft. x (12)ft. x (8)ft.
50
This appliance is for installation in a solid-fuel burning replace or UL 127 factory-
built replace or in a listed ventless rebox enclosure.
Exception: DO NOT install this appliance in a factory-built replace that includes
instructions stating that it has not been tested or should not be used with
unvented gas logs.
WARNING

SPECIFICATIONS and DIMENSIONS
8G Series Linear Hearth Burner EuropeanHome.com
G Series Linear Hearth Burner
Fuel Natural Gas ONLY
Manifold Pressure 3.5”(0.87 kPa)
Minimum Supply
Pressure 4.0”(1.0 kPa)
Maximum Supply
Pressure 7.0”(1.7 kPa)
Orice Size #47 DMS
Input (High, BTU/hr.) 37,500
Input (Low, BTU/hr.) 25,000
Electrical 6V DC 500mA
SPECIFICATIONS
The G Series Linear Hearth Burner has been certied to two standards:
- ANSI Z21.11.2b-2011, for unvented room heaters
- ANSI Z.21.60-2012/CSA 2.26-2012, for vented decorative appliances
Check the local/state codes to determine if unvented heaters are permitted at your location before installing
this product as a vent-free appliance. If unvented heaters are not permitted you may install and operate this
product as a vented appliance.
Table 1. Burner Specications

SPECIFICATIONS and DIMENSIONS
G Series Linear Hearth Burner EuropeanHome.com
9
A
B
C
Dimension GVF-42 GVF-60 GVF-72
A 47.2” 60” 77”
B 16.23” 16.23” 16.23”
C 5.28” 5.28” 5.28”
D 38.43” 49.24” 59.27”
E 5.10” 5.10” 5.10”
F 43.38” 43.38” 43.38”
G 6.5” 6.5” 6.5”
Figure 1. Burner Cover Dimensions
E
Table 2. Dimensions by Model
Figure 2. Burner Base Dimensions
G
F
D

SPECIFICATIONS and DIMENSIONS
10G Series Linear Hearth Burner EuropeanHome.com
CERTIFICATION
OMNI-Test Laboratories, Inc. has certied that the G Series Linear Hearth Burners meet the ANSI
Z21.11.2b-2011 and ANSI Z.21.60-2012/CSA 2.26-2012 standards.
Figure 3. G Series Linear Hearth Burner Listing Label
G Series LINEAR HEARTH BURNER
This product has been certied by OMNI-Test Laboratories to ANSI Z21.11.2b-2011
Unvented Heaters and ANSI Z.21.60-2012/CSA 2.26-2012 Decorative Appliances for Instal-
lation in Solid-Fuel Burning Fireplaces. This appliance must be installed in accordance
with local codes, if any; if none, follow the ANSI Z223.1. Installation and service must be
must be performed by a qualied installer, service agency or the gas supplier.
This appliance shall not be eld converted.
WARNING: Do not use a blower insert, heat exchanger insert or other accessory not
approved for use with this heater.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, personal injury or loss of life. Refer to the owner’s information
manual provided with this appliance. Installation and service must be performed by a
qualied installer, service agency or the gas supplier.
This heater shall not be installed in a bedroom or bathroom.
This appliance is intended for supplemental heating.
Failure to use only parts specically approved with this heater may result in property
damage or personal injury. See instruction manual for further information.
Apply loose material per instruction manual. DO NOT apply extra material or material
not supplied with the heater. Replace only with European Home Fire Media approved
for G Series Linear Hearth Burners.
WARNING: All previously applied loose material must be removed prior to reapplication.
manufactured by:
EUROPEAN HOME
376 Washington Street
Malden, MA 02148
tel: [phone]
www.europeanhome.com
Max. Input BTU/hr.: 37,500
Min. Input BTU/hr.: 25,000
Max. Supply Pressure: 7 inches w.c.
Min. Supply Pressure: 4 inches w.c.
Max. Manifold Pressure: 3.5 inch w.c.
Report Number: 284-F-08-4
DO NOT INSTALL HEATER UNTIL ALL NECESSARY PROVISIONS ARE MADE FOR
COMBUSTION AND VENTILATION AIR. CONSULT THE WRITTEN INSTRUCTIONS
PROVIDED WITH THE HEATER FOR INFORMATION CONCERNING COMBUSTION
AND VENTILATION AIR. IN THE ABSENCE OF INSTRUCTIONS, REFER TO THE
NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, AIR FOR COMBUSTION AND
VENTILATION, OR APPLICABLE LOCAL CODES.
This heater is equipped with a PILOT LIGHT SAFETY SYSTEM designed to turn o
the heater if not enough fresh air is available.
CAUTION: Hot while in operation. Do not touch.
Severe burns may result. Keep children, clothing, furniture,
gasoline and other liquids having ammable vapors away.
WARNING: When used without adequate combustion
and ventilation air, heater may give o excessive CARBON
MONOXIDE, an odorless, poisonous gas.
This appliance is equipped for Natural Gas only.
Serial Number: GVF-
DO NOT TAMPER WITH THE PILOT LIGHT SAFETY SYSTEM!
CARBON MONOXIDE POISONING MAY LEAD TO DEATH.
Orice Size: #47 DMS
Gas Control: Maxitrol
Electrical Rating: 6V DC 500mA
Early signs of carbon monoxide poisoning resemble the ue, with headache, dizzi-
ness and/or nausea. If you have these signs, heater may not be working properly.
Get fresh air at once! Have heater serviced.
Some people – pregnant women, persons with heart or lung disease, anemia,
those under the inuence of alcohol, those at high altitudes – are more aected
by carbon monoxide than others.
If heater shuts o, do not relight until you provide fresh air. If heater keeps
shutting o, have it serviced. Keep burner and control compartment clean.
Removal of this marking will void compliance of this heater with ANSI Z21.11.2.
Mantel to replace opening: 11.0”
Maximum horizontal mantel extension: 12.0”
GVFLL130827
Model: GVF-72GVF-60GVF-42
FOR YOUR SAFETY
Do not store or use gasoline or other ammable vapors and liquids
in the vicinity of this or any other appliance.
MINIMUM SIZE FIREPLACE INTO WHICH THIS APPLIANCE MAY BE INSTALLED
Opening Height: 18” Fireplace Depth: 15¾” Flue Area: 50 sq. in.
Opening Width - GVF-42: 43⁄” without cover, 47” with cover
Opening Width - GVF-60: 49⁄” without cover, 65” with cover
Opening Width - GVF-72: 59¼” without cover, 77” with cover

SPECIFICATIONS and DIMENSIONS
G Series Linear Hearth Burner EuropeanHome.com
11
HIGH ALTITUDE INSTALLATIONS
These appliances are tested and approved without requiring changes when installed at elevations from 0 to
2,000 feet.
When installing these replaces at altitudes above 2,000 feet reduce the input rate by 4% for each 1,000
above 2,000 feet. Consult with your local gas supplier to determine the proper orice size.
B
GVF-42 GVF-60 GVF-72
A (Opening Width) 47” 65” 77”
A (Opening Width without Cover) 43⁄” 49⁄” 59¼”
B (Distance to Lintel) 18” 18” 18”
C (Fireplace Depth) 15¾” 15¾” 15¾”
D (Flue Opening) 50 sq. in. 50 sq. in. 50 sq. in.
A
C
D
Table 3. Minimum Fireplace Dimensions (with Cover) Required by Model

12
PRE-INSTALLATION PLANNING
G Series Linear Hearth Burner EuropeanHome.com
Before you begin the installation you should have the following tools and supplies:
• Pipe wrenches
• Safety glasses and gloves
• Approved pipe joint sealant
• Manometer
• Leak detection uid (non-corrosive) or electronic gas detector
• Appropriate gas supply line parts
BEFORE YOU BEGIN
Thank you for purchasing an G Series Linear Hearth Burner by European Home. This product has been de-
signed to provide you with safe, trouble-free operation.
Please read this manual thoroughly before beginning the installation. It has information which is important
for safe installation and operation.
Please inspect your shipment for completeness and any damage. Contact your retailer if any damage is
found. Do not install your appliance with any damaged or substituted parts.
The installation of your G Series Linear Hearth Burner will follow the steps below and this manual is laid out
accordingly.
• Pre-Installation Planning
• Electric Installation
• Gas Installation
• Installing the Burner

13
PRE-INSTALLATION PLANNING
G Series Linear Hearth Burner EuropeanHome.com
APPROVED INSTALLATIONS
The G Series Linear Hearth Burner has been certied to two standards:
- ANSI Z21.11.2b-2011, for unvented room heaters
- ANSI Z.21.60-2012/CSA 2.26-2012, for vented decorative appliances
Check the local/state codes to determine if unvented heaters are permitted at your location before installing
this product as a vent-free appliance. If unvented heaters are not permitted you may install and operate this
product as a vented appliance.
Your G Series Linear Hearth Burner is to be installed in a solid-fuel burning replace or a prefabricated re-
place listed to UL-127 or in a listed ventless rebox enclosure.
Exception: DO NOT install this appliance in a factory-built replace that includes instructions stating that it
has not been tested or should not be used with unvented gas logs.
When installed in a vented replace your Linear Hearth Burner must sit fully inside the replace so that it
properly drafts up the chimney ue.
In all cases, be certain that your Linear Hearth Burner is behind the replace lintel. (see Figure 3)
WARNING: Before installing in a solid-fuel burning replace, the chimney ue and rebox must be cleaned of
soot, creosote, ashes and loose paint by a qualied chimney cleaner.
Lintel
Figure 4. Mantel Location

14
PRE-INSTALLATION PLANNING
G Series Linear Hearth Burner EuropeanHome.com
MANTEL CLEARANCES
11.0”minimum
12.0”maximum
Existing replace
opening
Top of existing
replace opening
Combustible mantels may be no closer to the replace opening than 11.0”or deeper than 12.0”.
See Figure 4 (side view,) above.
Figure 5. Combustible Mantel Clearances
Combustible mantel

ELECTRIC INSTALLATION
G Series Linear Hearth Burner EuropeanHome.com15
When servicing controls label all wires prior to disconnection. Wiring errors can cause improper and dangerous operation.
This appliance must be electrically grounded in accordance with local codes, or, in the absence of local codes, with either the
National Electrical Code ANSI/NFPA 70.
Electrical work should only be performed by a qualied, licensed electrician. Electric power must be o when making
connections at the junction box or performing any service.
All wiring shall be in compliance with all local, city, and state codes.
WARNING
ELECTRICAL ASSEMBLY
The G Series Linear Hearth Burner is powered by four AA batteries which are to be installed in the battery
case, provided. Figure 5 shows the battery case with cover slightly open and plugged into the receiver.
Batteries can be placed into the receiver OR the battery case, NOT BOTH. The use of the battery case is
recommended as it can slide beneath the burner cover then easily slide out for battery replacement.
Figure 6. Battery Case

ELECTRIC INSTALLATION
G Series Linear Hearth Burner EuropeanHome.com16

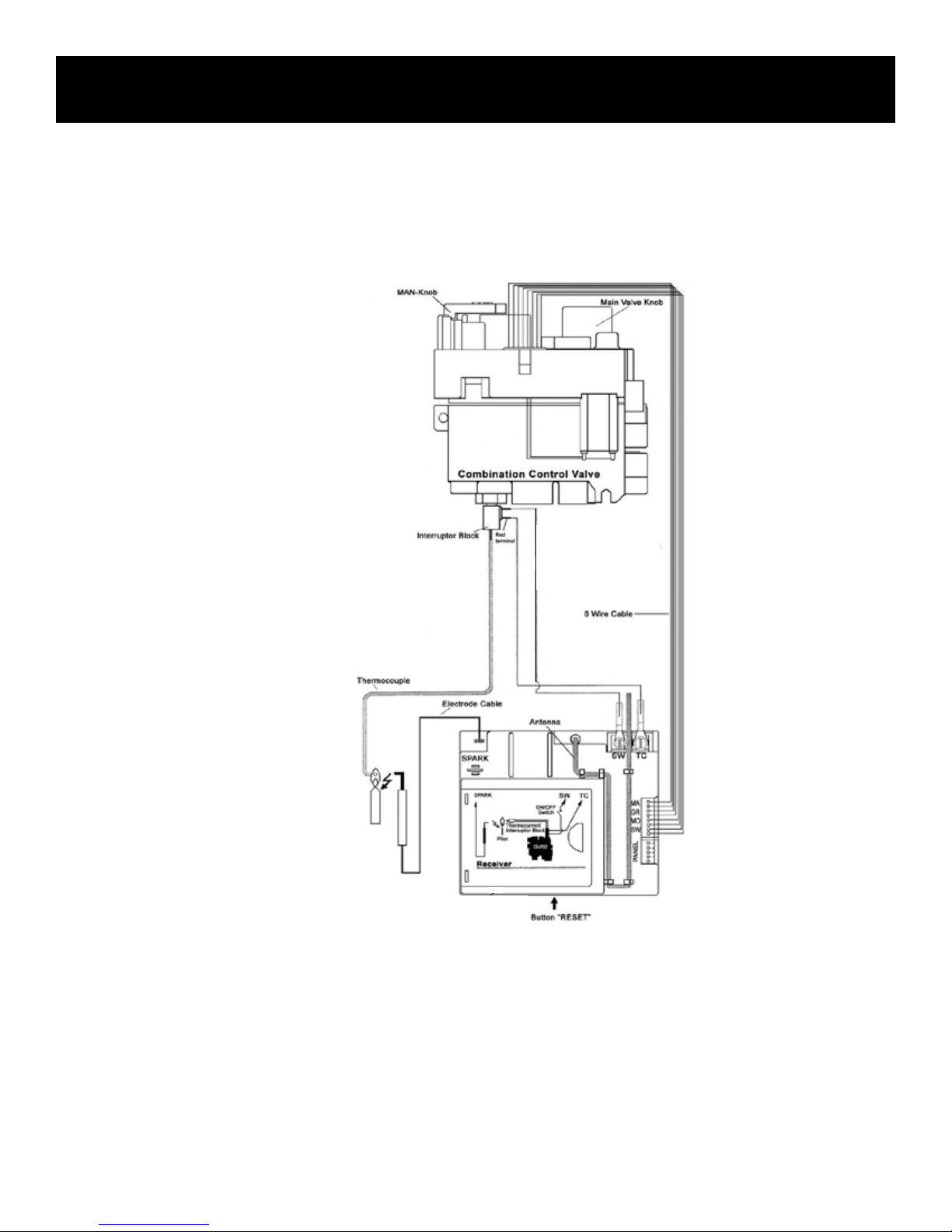

Figure 7. Electrical Schematic for G Series Burner
Battery
Case Jack
È

GAS INSTALLATION
G Series Linear Hearth Burner EuropeanHome.com17
Figure 8. Top View of Burner Module Showing Gas Supply Area at the Rear
INSTALL THE GAS SUPPLY
Table 4 shows the dimensions, by model, of the area to the rear of the burner module which is concealed by
the optional burner cover. Route the gas supply so that it terminates inside this area (shown in Figure 7.) The
gas supply piping should have a separate gas shuto valve and a capped, 1/8”pipe tapping upstream of the
valve for the purpose of reading pressure. The gas supply line must terminate with a 3/8”male are tting.
The Hearth Burner must be isolated from the gas supply system by closing the service valve during any
pressure testing of the gas supply system at test pressures equal to or less than ½psi (3.5 kPa).
Verify the gas pressure using the upstream 1/8”pipe tap.
The installation of this product must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1
This product is shipped from the factory for use with natural gas ONLY. Conversion to another fuel is NOT permitted.
This product must be installed by a licensed plumber or gastter when installed within the Commonwealth of Massachusetts.
Note
All Models
A 43”
B 7”
B
A
Install Gas Supply in This Space
Table 4. Area for Gas Supply (hidden by cover)
Burner Module

INSTALLING the BURNER
18G Series Linear Hearth Burner EuropeanHome.com
Place the burner in the center of the replace and
connect the gas supply to the exible connector
attached to the burner.
Figure 9. Burner Base
After the gas supply has been connected, open
the main supply and check all of the ttings for
gas leaks. Never use a ame to test for leaks.
Place the cover over the burner so the burner is
centered in the cover opening as in Figure 9.
WARNING: Failure to position the parts in
accordance with these diagrams or failure to use
only parts specically approved with this product
may result in property damage or personal injury.
Figure 10. CoverinPlace

INSTALLING the BURNER
19G Series Linear Hearth Burner EuropeanHome.com
INSTALLING THE FIRE MEDIA
Your G Series Linear Hearth Burner comes with two types of re media; crushed glass, Carrara pebbles and
Embaglow. First install the re media then the Embaglow.
The Fire Media
The contents of the bag of burner media should be spread to an even depth across the entire burner top.
The pilot ame should be clear of the re media by ¼”
Embaglow (Optional)
Note: Embaglow contains loose metal bers which may be sharp. You are advised to wear gloves while
installing it.
1. Remove the bunch of Embaglow from the package and tease out the bers until they form a very loose,
very light network. Try to ensure that clumps of bers are not formed. A loose network will allow gas to
pass through the bers and ensure the maximum eect.
2. Once the bers are prepared, place them where a glow is required. By raising the height of the bers
above the level of the burner you’ll create a shimmering glow. Ensure that the metal bers are kept away
from the pilot light area as they can prevent ignition of the pilot light.
Although the bers have a long life, they will eventually deteriorate. If this becomes apparent, replacement
Embaglow can be purchased from your local replace retailer or European Home.
BEFORE THE FIRST FIRE
1. Make sure all ammable materials have been removed from inside and around the replace.
2. Conrm that the wiring is secure.
3. Check the gas supply for leaks.
4. Conrm the proper placement of the burner media.

OPERATING the BURNER
G Series Linear Hearth Burner EuropeanHome.com20
THE FIRST FIRE
The rst time you light your G Series Linear Hearth Burner an odor may be given o by the unit. This
is normal and is a result of the‘burn o’of the lubricants and sealants used when manufacturing the
appliance. We recommend that you open the nearby windows for extra ventilation and operate the
appliance for at least an hour.
During this rst re, examine the ame for appearance and quality. Examine the burner media for sooting.
The ames should look like those in Figure 14.
RESETTING THE SYSTEM (Pairing the Remote and Receiver)
The G Series Linear Hearth Burner should need to be reset only once, prior to initial use. This is done as
follows:
1. Press and hold the receiver reset button (Figure 10) until you hear the second of two beeps.
2. After the second beep release the reset button and, within twenty seconds, press the SMALL FLAME
button on the remote until you hear the second of two beeps.
RESET BUTTON
Figure 11. Receiver
