European Home J series User manual

1
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
-- Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
--An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Read the
installation, operating, and maintenance
instructions thoroughly before installing or
servicing this equipment.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
J SERIES
Outdoor · Gas · Fireplace
Installation,
Operation,
and
Owner’s Manual
January 2019
WARNING: FOR OUTDOOR USE ONLY
Solid fuels shall not be burned in this appliance.
JVF-60-M2-S
JVF-60-M2-ST
Gas Fireplaces
Report # 0284GF009S
This manual is available in Canadian French
upon request.

2
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
TABLE OF CONTENTS
Important Safety Information 3
Important Safety Information About Propane 4
Specications and Dimensions 5
Clearances 9
Installation 10
Electric Installation 11
Gas Installation 13
Enclosing the Fireplace 15
Framing 16
Trim and Finish 17
Operating the Fireplace 20
Maintenance 22
Installation Record 24
Warranty 25
Appendix A: LP Installation 26

3
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this gas appliance.
SOLID FUELS SHALL NOT BE BURNED IN THIS APPLIANCE
Keep the appliance area clear and free from combustible materials, gasoline, and other ammable vapors and
liquids.
Do not use this appliance if any part has been under water. Immediately call a qualied service technician to
inspect the appliance and to replace any part of the control system and any gas control that has been under
water.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the appliance.
Clothing or other ammable materials should not be hung from the appliance or placed on or near the
appliance.
Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating
the appliance. Installation and repair should be done by a qualied service person.
The appliance should be inspected before use and at least annually by a qualied service person. More
frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners, and circulating air passageways of the appliance are
kept clean.
Thank you for purchasing a J-M2 Series Outdoor Gas Fireplace by European Home. This replace has been
designed to provide you with safe, trouble-free operation.
Please read this manual thoroughly before beginning the installation of your replace. It has information which
is important for safe installation and operation.
Please inspect your shipment for completeness and any damage. Contact your retailer if any damage is found.
Do not install your appliance with any damaged or substituted parts.

4
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS
This gas replace is equipped at the factory for use with natural gas. If conversion to propane (LP) is desired,
the optional factory-supplied conversion kit must be used.
When using propane (LP), the gas supply cylinder to be used must be:
1) constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable,
2) provided with a listed overlling prevention device, and
3) provided with a cylinder connection device compatible with the connection for the appliance.
4) If LP is hard plumbed to the replace, the propane storage tank must have a pressure regulator
set for 11”w.c. (2.74 kPa).
If a propane hose is used to connect a propane cylinder to the replace, the following is required:
Inspect the hose before each use of the replace.
The hose assembly must be replaced prior to the replace being put into operation if there is evidence
of excessive abrasion or wear or if the hose is damaged. The replacement hose assembly must be a
regulator hose with a QCC-1 connection and an outlet pressure set for 11”w.c. (2.74 kPa).
Locate the hose out of pathways where people may trip over it or in areas where the hose may be
subject to accidental damage.
Note

5
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
SPECIFICATIONS AND DIMENSIONS
SPECIFICATIONS
ModelJVF-60-M2-S
JVF-60-M2-ST
Gas Natural
Gas
LP
(Propane)
Input Maximum Btu/hr 65,678 64,211
Input Minimum Btu/hr 49,901 48,308
Maximum Supply
Pressure
in. w.c. 7.0 11.0
kPa 1.74 2.74
Manifold Pressure
Maximum
in. w.c. 5.5 10.25
kPa 1.37 2.55
Manifold Pressure
Minimum
in. w.c. 3.5 6.0
kPa 0.87 1.5
Electrical Rating V AC 120
Frosted Glass
Stainless Steel
Wall Panels x2
Glass Capture
Panel x2
8-32 Pan Head
Screw x2
Wind Guard (Single Sided Only)
Left
Bracket
Right
Bracket
FIGURE 1
Clear Glass x2
x1 Single Side
x2 See-Through

6
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
SPECIFICATIONS AND DIMENSIONS
JVF-60-M2-S
JVF-60-M2-ST
A(overall width*)69⁄” 1769 mm
B(viewable width) 60” 1524 mm
C(burner length) 49¼” 1251 mm
D(viewable height) 17½” 444 mm
E(base to opening) 7½” 190 mm
F(overall depth) 18” 457 mm
G(overall height) 28” 711 mm
*overall width does NOT include the nailing anges
B
A
C
D
E
F
G

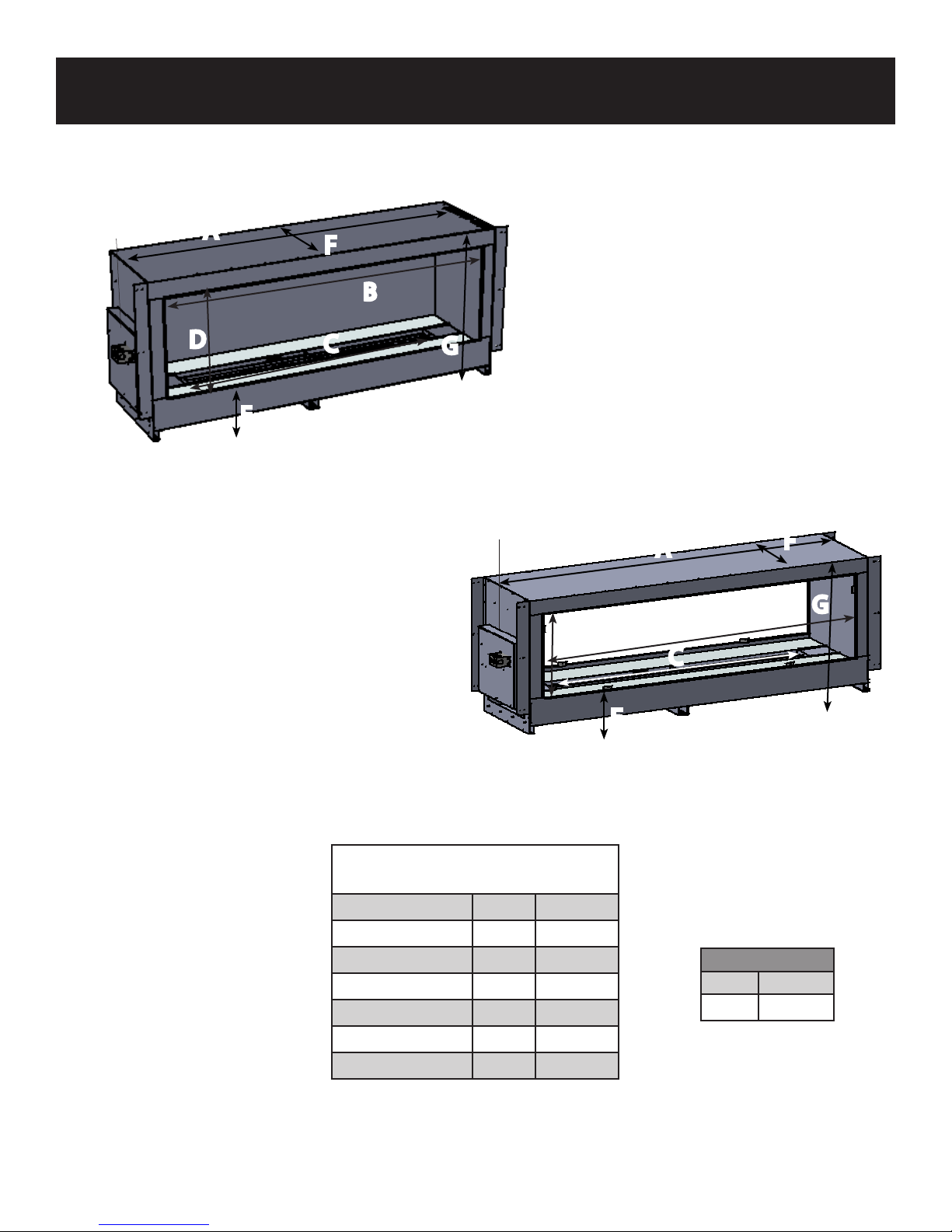

FIGURE 2: JVF-M2-60-S
FIGURE 3: JVF-M2-60-ST
AF
B
C
D
E
G
UNIT WEIGHT
Pounds Kilograms
180 81.6

7
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
SPECIFICATIONS AND DIMENSIONS
CERTIFICATION
OMNI-TestLaboratories,Inc.has certied thatthe J Series OutdoorGasFireplace meets the followingstandards:
• ANSI Z21.97-2014“Standard for Outdoor Decorative Gas Appliances”
• CSA 2.41-2014“Standard for Outdoor Decorative Gas Appliances”
• CGA 2.17-M91 (R2014), “Gas-Fired Appliances for Use at High Altitudes”
FIGURE 4: Sample Listing Label (axed beneath the Light Panel)
SAMPLE
J Series Outdoor Gas Fireplace
This producthasbeen certiedbyOMNI-TestLaboratories to ANSIZ21.97-2014/CSA2.41-
2014 Outdoor Decorative Gas Appliances. This appliance must be installed in accordance
with local codes, if any; if none, follow the ANSI Z223.1 standard. Installation and service
must be performed by a qualied installer, service agency or the gas supplier.
EUROPEAN HOME
30 Log Bridge Road
Building 300 Suite 303
Middleton, MA 01949
tel: [phone]
europeanhome.com
Input BTU/hr. (NG/LP): 65,000
Max. Supply Pressure (NG): 7 inches w.c.
Manifold Pressure (NG): 5.5 inches w.c.
Max. Supply Pressure (LP): 11 inches w.c.
Manifold Pressure (LP): 10.25 inches w.c.
Electrical Rating: 120V AC, less than 2A
Report Number: 0284GF009S
This appliance is equipped for: Natural Gas Propane.
Serial Number:
CLEARANCES
Top of replace to combustibles: 4.0”
Top of replace opening to combustibles: 6.0”
Back of replace to back combustible wall: 0.0”
Side of replace to side wall: 0.0”
Side of replace opening to combustible trim: 4.5”
Fireplace opening to side wall in front of replace: 5.5”
Top of replace opening to combustible mantel: 17.0”
Front of replace to back combustible wall: 18.0”
Maximum depth of mantel: 12.0”
JM2LL01180913
Model: JVF-60-M2-STJVF-60-M2-S
Orice Size (NG): 2x#39 DMS
Orice Size (LP): 2x 0.064
Gas Control: Copreci
For Outdoor Use Only.
For installation on (or over) Non-Combustible Floors Only
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of
this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any
other appliance.
Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to the owner’s information manual
provided with this appliance. For assistance, or additional information, consult a
qualied installer, service agency, or the gas supplier.
WARNING
WARNING
LIGHTING INSTRUCTIONS
1. On the remote control, press the“ON”button.
2. When the ames are at the high setting, press the “LOW”
button to set the ames to low
3. When the ames are at the low setting, press the“HIGH”
button to set the ames to high
TO TURN OFF GAS
1. On the remote control, press the“OFF”button.
20180912_J_M2_Listing_Label_1-ST.indd 1 9/20/2018 9:45:13 AM
A sample listing label image is shown above. A metal listing label is attached to every European Home replace and contains important
certication information. The listing label must not be removed from the replace.

8
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
SPECIFICATIONS AND DIMENSIONS
WHEN ENCLOSINGYOUR FIREPLACETHE USE OF NON-COMBUSTIBLE BUILDING
MATERIALS IS REQUIRED. PLEASE READ AND UNDERSTAND THE FOLLOWING.
COMBUSTIBLE MATERIALS
Materials that can catch re and burn are considered combustible. Any material that is made of, or faced with;
wood, wood pulp, paper, plastic or any other material that can catch re and burn is considered combustible.
Even though these materials may have been ‘ame-proofed’, made ‘re-resistant’ or are ‘re-rated’ they are
considered combustible. Standard and Type X drywall are both combustible.
NON-COMBUSTIBLE MATERIALS
A material is non-combustible when it cannot catch re and burn. For example, materials made of stone, brick,
concrete, tile, steel, plaster or glass are non-combustible.
Since this replace may be installed only outdoors, it is important to select materials that are suited for outdoor
conditions.

9
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
CLEARANCES
A Top of replace to ceiling of enclosure 4” 102 mm
B Back of replace to back combustible wall 0” 0 mm
C Side of replace opening to combustible trim 4.5” 114 mm
D Fireplace opening to side wall in front of replace 5.5” 140 mm
E Side of replace to combustible side wall 0” 0 mm
F Top of replace opening to combustibles 6” 153 mm
G Top of replace opening to combustible mantel 17” 432 mm
-Maximum depth of mantel 12” 305 mm
CLEARANCES TO COMBUSTIBLES
FIGURE 5: Clearances (Front Elevation View)
MANTEL
SIDEWALL
TRIM
A
B
C
D
E
F
G
FIGURE 6: Clearances (Plan / Top View)
E
E

10
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
INSTALLATION
LOCATING THE FIREPLACE

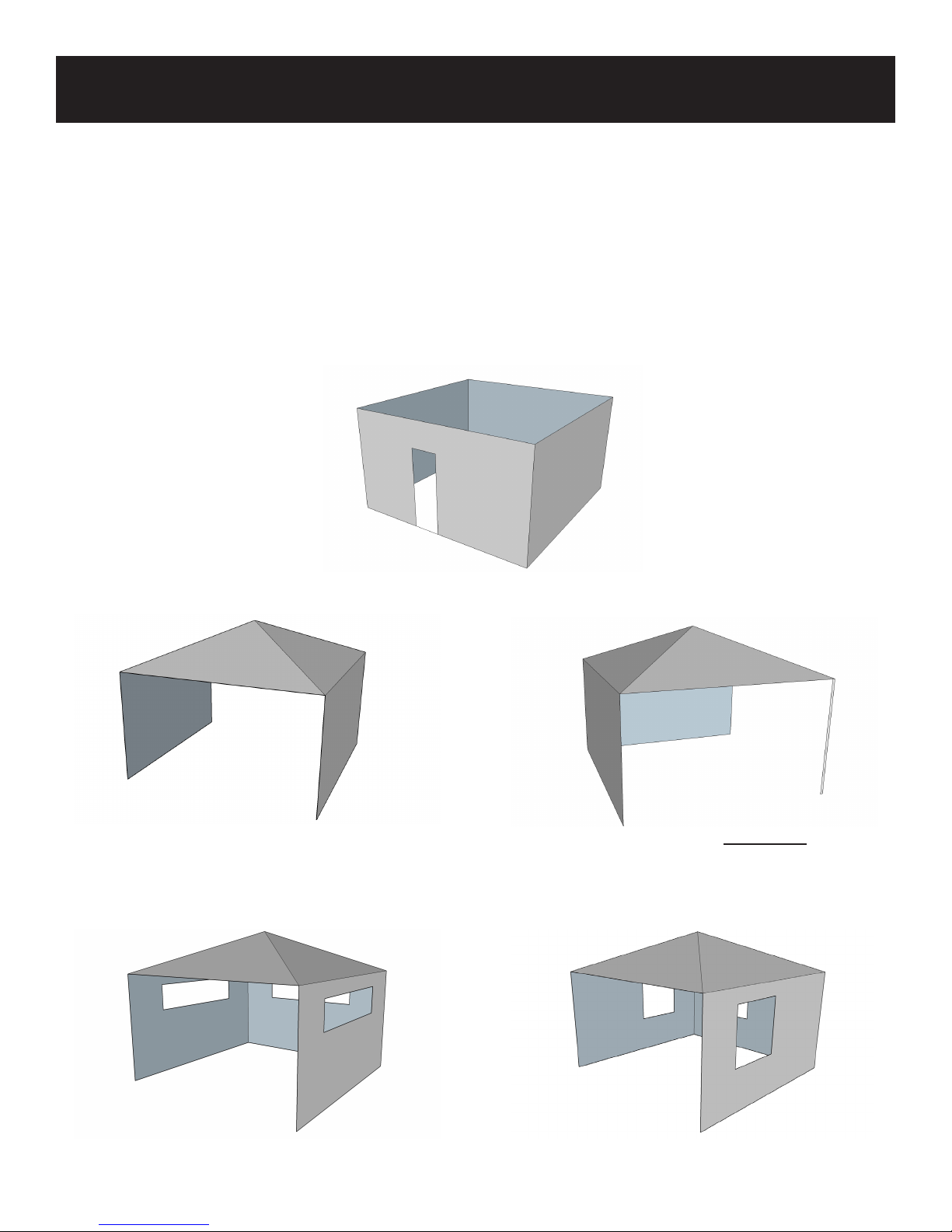

When locating your J Series Outdoor Gas Fireplace, you must ensure that the proper clearances to
combustible materials are maintained and your replace must be installed outdoors, NOT indoors. The
replace may be installed unsheltered but wind may cause a ame outage and/or excessive sooting.
If enclosed, or sheltered, the enclosure must be:
a. an enclosure with walls on all sides but NO overhead cover; or
b. a partial enclosure that includes an overhead cover but NO MORE THAN TWO side walls; or
c. a partial enclosure that includes an overhead cover and three side walls, as long as 30 percent or more of
the horizontal periphery of the enclosure is permanently open.
- 25% total area completely open.
- 30% of remaining wall area is open and unrestricted.
FIGURE 7
FIGURE 8
FIGURE 9

11
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
ELECTRIC INSTALLATION
The J-M2 replace must be wired to a GFCI protected 120V AC circuit using a waterproof connector. The
weatherproof control box is attached to a 65 inch long power cable on the left side of the replace.

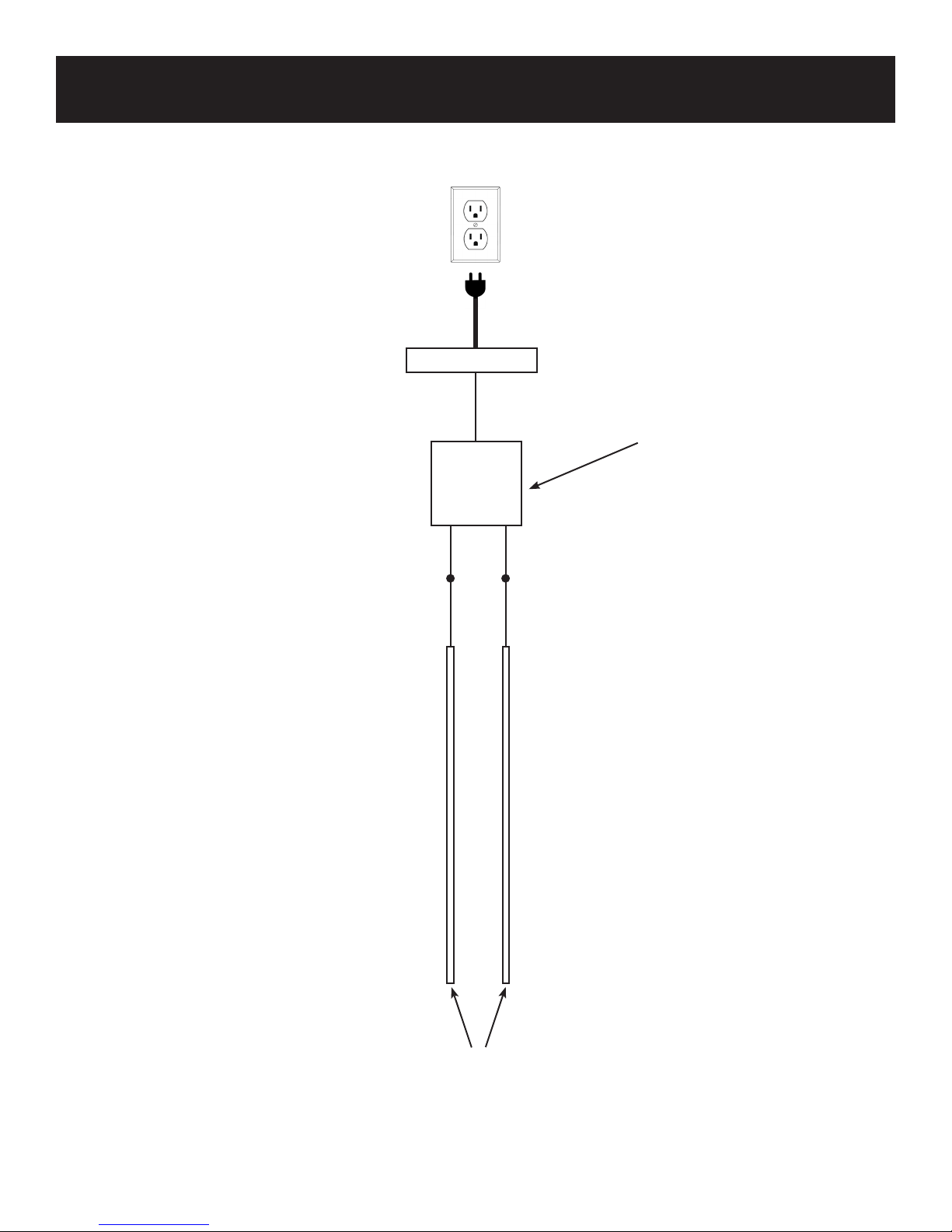

FIGURE 10: J-M2 Gas Control Schematic Diagram
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper
and dangerous operation.
This appliance must be electrically grounded in accordance with local codes, or, in the absence of local
codes, with either the National Electrical Code ANSI/NFPA 70, for installations in the U.S. or the Canadian
Electrical Code, CSA C22. 1 for installations in Canada.
Electrical work should only be performed by a qualied, licensed electrician. Electric power must be o
when making connections or performing any service.
All wiring shall be in compliance with all local, city, and state codes.
Verify proper operation after servicing.
SWITCHES POWER
MOTOR CONN.

12
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
ELECTRIC INSTALLATION
Power Supply
Control
Module
LED Strip
Antenna
120V AC Outlet
LED LIGHT SCHEMATIC
VLM60W-12
FIGURE 11: J-M2 LED Lighting Schematic Diagram
ELECTRIC INSTALLATION

13
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
GAS INSTALLATION
The J Series Outdoor Gas Fireplace is shipped from the factory for use with natural gas.
A kit to convert the replace to propane (LP) is available. The conversion must be performed by a qualied
service person. Contact your local gas supplier. Installation guide located in Appendix A
This product must be installed by a licensed plumber or gastter.
The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 /NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1;
or Propane Storage and Handling Code, CSA B149.2, as applicable.
The replace and its individual shuto valve must be isolated from the gas supply piping system by closing its
individual manual shuto valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than ½ psi (3.5 kPa).
Note
INSTALL THE NATURAL GAS SUPPLY
The natural gas supply piping must have a separate gas shuto valve and a capped, ⁄”pipe tapping upstream
of the valve for the purpose of reading pressure. A service shuto valve must be placed within six feet of the
replace gas control valve. Verify the gas pressure using the upstream ⁄”pipe tap.
The lower side of the control box is open 2”x 14”(50 mm x 355 mm) and allows for an easy gas supply connection
to the gas valve. The gas valve provides a ½”male are tting. This is located on the left face of the single sided
unit and either side on the see-through unit.

14
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
GAS INSTALLATION
A
B
C
PROPANE (LP) CYLINDER ENCLOSURE
If you are planning to operate your J Series Outdoor Gas Fireplace using a portable propane cylinder, it must
be placed in an enclosure that meets the following specications:
A) One side of the enclosure must be left open and a chain located 12“ (30.5 cm)above the oor of the enclosure
must span the opening to prevent the tank from tipping. One end of the chain should be attached with a
hook for easy removal of the tank.
B) Two ventilation openings must be provided in the sidewalls of the enclosure (Figure 12), located within
5 “ (127 mm) of the top of the enclosure, equally sized, spaced at a minimum of 90 degrees (1.57 rad), and
unobstructed. The opening(s) must have a total free area of not less than 1 square inch per lb. (14.2 cm2/kg) of
stored fuel capacity.
The oor of the enclosure must be located 2 “ (50 mm) above the ground and must be non-combustible.
The minimum width and the depth of the enclosure must be 13“x 13”(330mm x 330mm)
Ventilation openings must be provided at oor level of the enclosure and must have a total free area of not
less than ½in2/lb. (7.1 cm2/kg) of stored fuel capacity. If ventilation openings at oor level are in a sidewall,
there must be at least two openings. The bottom of the openings must be 1“ (25.4 mm) or less from the oor
level and the upper edge no more than 5 “ (127 mm) above the oor level. The openings must be equally
sized, spaced at a minimum of 90 degrees (1.57 rad) and unobstructed. Every opening must have minimum
dimensions so as to permit the entrance of a ⁄“ (3.2 mm) diameter rod. Ventilation openings in sidewalls must
not communicate directly with other enclosures of the replace. The propane cylinder enclosure MUST be
isolated from the replace but can be part of the replace enclosure. See the example below.
A regulator hose with a QCC-1 connection and
an outlet pressure set for 11” w.c. (2.74 kpa) can
be purchased at any retail outlet that oers gas
grill replacement parts. All parts of the hose must
remain inside the enclosure.
PROPANE CYLINDER
ENCLOSURE REQUIREMENTS
A
(Tank Size)
B
(Upper Openings)
Total in for 2
openings
C
(Lower Openings)
Total in for 2
openings
20 lb. tank (9.1 kg) 20 in (130 cm) 10 in (65 cm)
30 lb. tank (13.6 kg) 30 in (195 cm) 15 in (100 cm)
FIGURE 12

15
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
INSTALLATION
ENCLOSING THE FIREPLACE/FRAMING
All enclosures for the J-M2 replace require an air inlet and an air outlet. These openings in the enclosure
must allow for the free ow of air through the unit.
The air inlet opening must be located on the same side of the replace as the gas control and should be
located near the bottom of the replace. This is the left side when facing the single sided model and either
side on the see-through. The air outlet can be on any vertical surface above the unit.
The air inlet opening and the air outlet opening must be covered with a grill that has a free area of at least 36 in
(233 cm). The grill opening should be small enough to prevent bugs, mice and other pests from accessing the
enclosure. When choosing a grill, give consideration to its rain and/or weather resistance to ensure that as
little weather gets inside the enclosure as possible. A small hood at the top of the grill is recommended for
improved weather resistance. Make sure these hoods and grills do not effect the air intake.
IMPORTANT

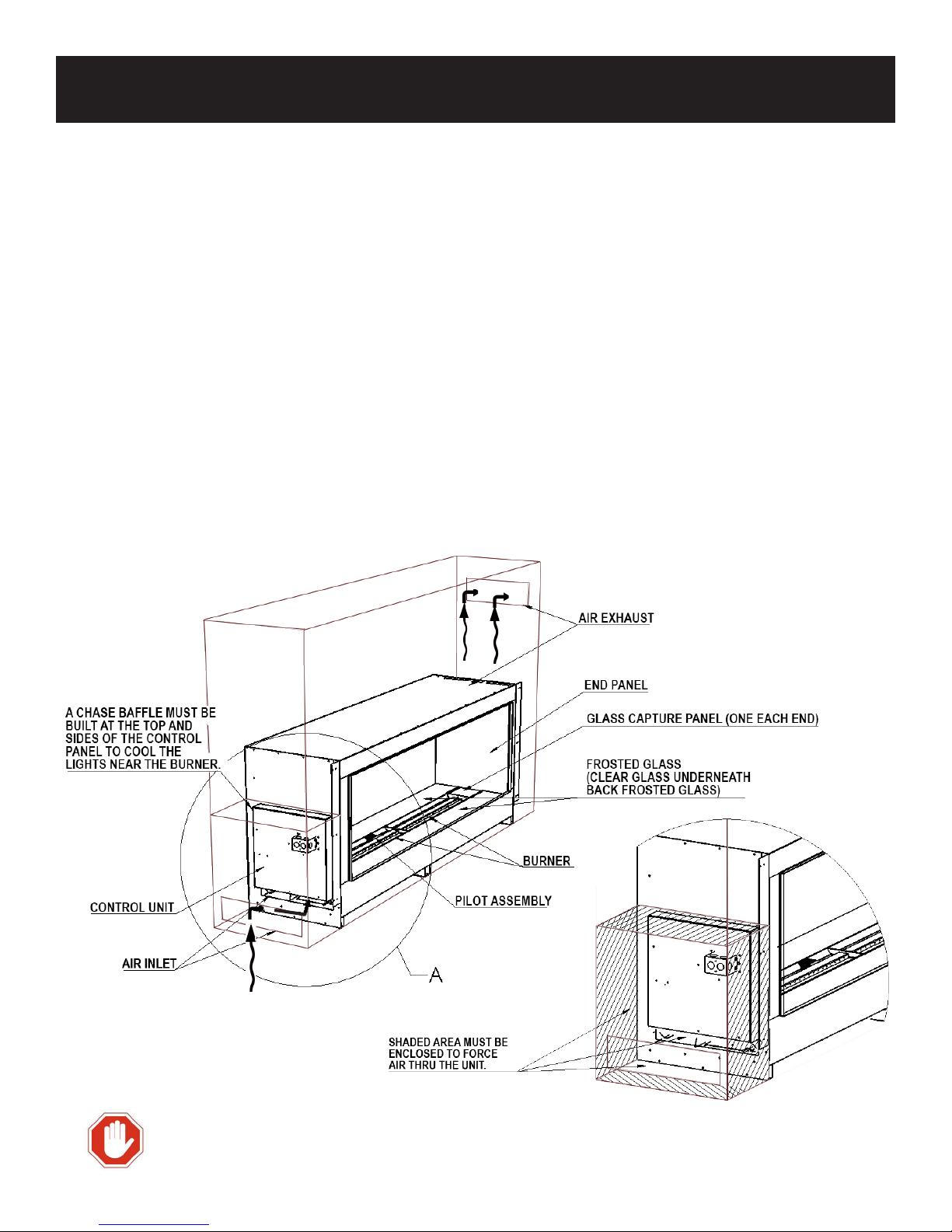

From the air inlet to the controls side of the unit, there must be a chase baffle must be built to prevent air from
passing around the back or top of the unit: Figure 13 below.
DO NOT PASS THIS PAGE UNLESS YOU HAVE UNDERSTANDING OF THE CHASE BAFFLE
FIGURE 13
FIGURE 14: DETAIL A

16
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
INSTALLATION

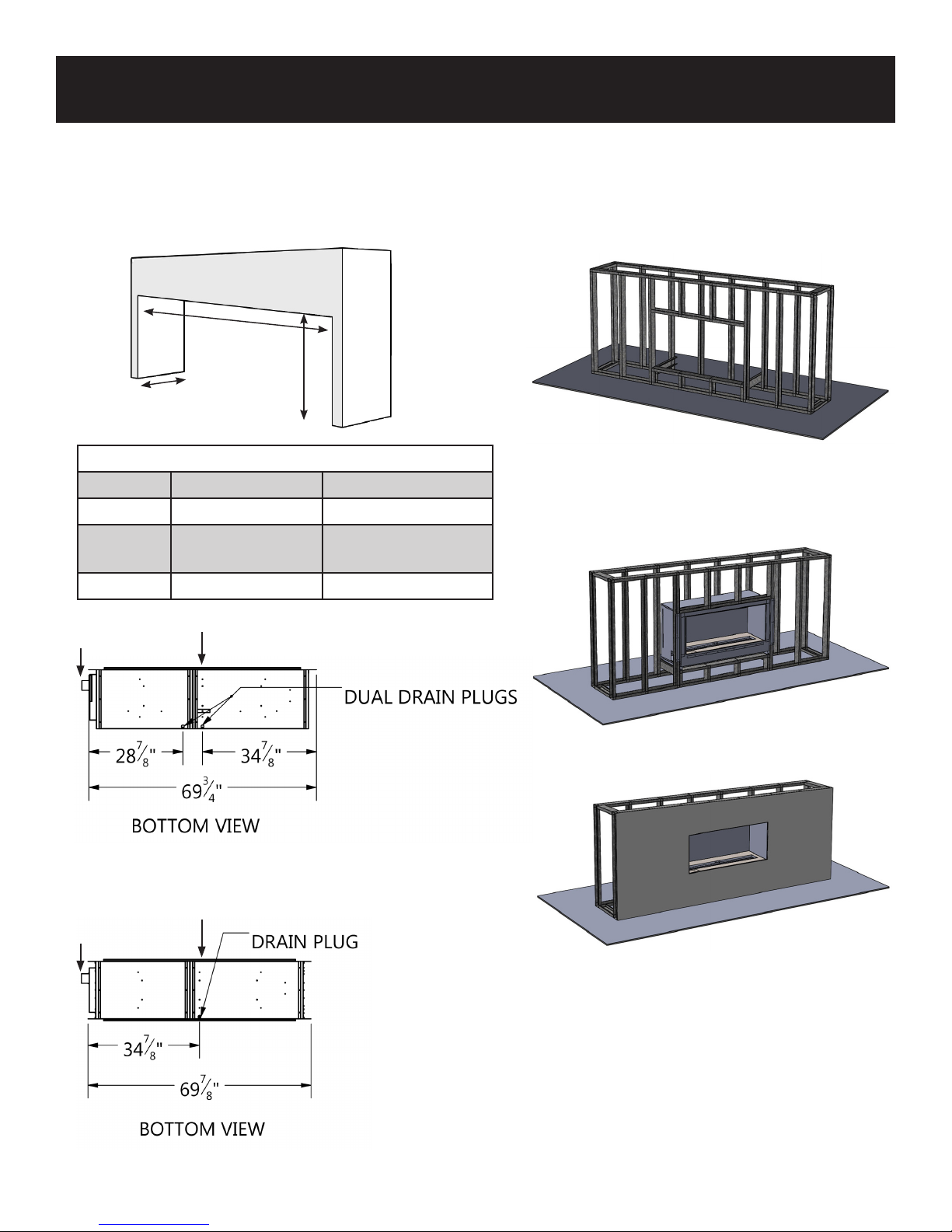

ROUGH OPENING / FRAMING
A wall switch is included in a water-tight control box. Installation of the control box must be where children
cannot reach for safety reasons.
While combustible framing is permitted, metal
framing is more appropriate for an outdoor
enclosure. A typical installation is shown.
The replace is then placed in the framing.
The facing is applied to the framing.
B
C
A
ROUGH OPENING DIMENSIONS
Dimension JVF-60-M2-S JVF-60-M2-ST
A (Width) 69¾” (1772 mm) 69¾” (1772 mm)
B (Height) 32”(813 mm) 32” (813 mm)
C (Depth) 18”(457 mm) 18” (457 mm)
Accumulated rain water will drain from a ⁄” (22.3mm) opening in the
center rear of the replace bottom. This opening must not be blocked
see Figures 19 & 20 for drain placement. The water which runs through
this opening will accumulate in the base of your enclosure and must be
allowed to drain away from the enclosure. An appropriate length of 1½”
- 2”PVC pipe installed at the base of the enclosure which runs down and
out, is recommended. These openings must be checked for blockage
periodically.
FRONT
FIGURE 19: JM2 SINGLE SIDED
FIGURE 15 FIGURE 16
FIGURE 17
FIGURE 18
FIGURE 20: JM2 SEETHROUGH
FRONT
Control
Control

17
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
TRIM and FINISH
INSTALLING THE WALL PANELS
The J Series Outdoor Gas Fireplace is shipped with two stainless steel wall panels. One to cover the
replace controls and one decorative. These panels have a metal stud protruding from the top end of the
panel. This stud should be inserted into the locator holes located on the ceiling of the replace at either end.
INSTALLING THE LIGHT COVERS
On the single sided models, install the clear glass in the back light area by laying it on the two angle brackets
to cover the back light only, centered on the LED lights.
On the see through models, install the clear glass in both light areas by laying it on the protruding studs
located on the reector panels to cover light. Make sure the clear glass is centered on the LED lights. Clear
glass must be used.
After the clear glass has been laid down, install the frosted glass which should lie parallel to the burners,
covering the lights to hide them.
INSTALLING THE GLASS CAPTURE PANELS
After the installation of the frosted glass panels, install the glass capture panels between the end of the
burner and wall panels. The lip of the glass capture panel should be installed under the lip of the burner.
Secure using (2) supplied pan head screws
INSTALLING OPTIONAL WIND GUARD
A wind guard is standard for single sided models. See through models do not have a wind guard.
1. Install wind guard bracket to glass capture panel at each end of the burner, using the supplied
phillips head screws.
2. Slide wind guard glass into channel carefully, making sure to fully seat the glass into the bottom of
the channels to make sure there is a secure and tight t.

18
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
TRIM and FINISH
INSTALLING THE FIRE MEDIA
The J Series Outdoor Gas Fireplace is shipped with re media which is to be installed on top of the burner.
Be certain that the re media does not cover the pilot burner as well as no media is between the glass panels and
burners to prevent glass breakage. Extra re media can be ordered to cover the frosted glass.
The Fire Media
The re media should be distributed evenly across the entire burner top.
These re media are available for the J Series Outdoor Gas Fireplace: (continued on next page)
The re media must be installed according to these instructions. This replace must use only the type and
amount re media specied by European Home. An excessive amount of re media may adversely aect
the performance of the replace.
WARNING: All previously applied loose material must be removed prior to reapplication.
Pacic Fireglass
Clear FireglassBlack Fireglass
Amber Fireglass

19
JVF-M2 Series Outdoor Gas Fireplace
IGM2S190417
TRIM and FINISH
Colbalt Fireglass Carrara Pebbles
Beach Stones with Driftwood Beach Stones

20
JVF-M2 Series Outdoor Gas Fireplace IGM2S190417
OPERATING the FIREPLACE
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
BEFORE LIGHTING, smell all around the heater area for gas. Be sure to smell next to the oor because some gas
is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the re department.
OPERATING INSTRUCTIONS USING REMOTE CONTROL
SAFETY FEATURE- When operating the replace with the wall switch, remote is inoperable and ame
height will be same level of last setting.
1. On the remote control, press and release the“ON”button. Sparking will occur 8 seconds after “ON:
button is pressed
2. Flames are automatically set to high. Press the“LOW” button on the remote control to set the-
ames to low.
3. When the ames are at the low setting, press the “HI”button on the remote control to set the
ames to high.
OPERATING INSTRUCTIONS USING THE WALL SWITCH
1. Press the middle button of the wall switch
2. Flames will be same level of last setting. To adjust ame height, press bottom button of wall
switch.
TO TURN OFF FIREPLACE
1. When using the remote control, press the“OFF”button.
2. When using the wall switch, press the top button to the o position.
PAIRING THE REMOTE TO THE RECEIVER
Insert A23 12 volt battery (not supplied) into the remote control.
Press and release the top button of external control box. This is the“Learn”button. A single long beep will
be heard. Learn window will remain open for 60 seconds.
Press “ON”button on remote. You will hear three short beeps conrming pairing.
