EverFocus ELUX16x2 User manual

ELUX16x2
16CH, H.264, 1080p FHD Hybrid DVR
Quick Installation Guide
Copyright © EverFocus Electronics Corp.
Release Date: March, 2017
All the images including product pictures or screen shots in this document are for example only.
The images may vary depending on the product and software version. Information contained in
this document is subject to change without notice.

ELUX16x2 FHD Hybrid DVR
1
1. Overview
1.1 Front Panel
16
24578
9 15 16
10 11 12 13 14
3
No. Name Description
1 USB2.0 Port The USB2.0 port for connecting to a mouse, external storage device or
EKB200 keyboard.
2 Control Buttons
: In Playback mode, press to play in fast reverse.
: In Playback mode, press to pause / play in reverse.
: In Playback mode, press to exit playback mode.
: Press to enter Playback mode. In Playback mode, press to
pause / resume playback.
: In Playback mode, press to play in fast forward.
3 DVD Burner
(optional)
Use the DVD Burner for archiving the recordings from the DVR. It’s
highly recommended to use a DVD+R with 4x or higher speed disc for
recording. To open the DVD tray, please refer to 4.7 Archiving the
Recordings or Log Data to the USB or DVD in the User’s Manual. To
close the tray, just gently push it and it will be automatically closed.
4 Arrow Buttons Use these arrow buttons to change the Menu settings.
5 Enter Press to enter.
6 Menu / ESC In Live mode, press to enter the Main OSD Setup Menu. In Setup
mode, press to exit or return to the previous setup menu.
7 Search Press to enter the Search Setup menu.
8 LED Indicator
Power: Indicates the power is on.
HDD: Indicates the internal Hard Disk is activating.
Alarm: Indicates an alarm input is triggered.
Network: Indicates the network is connected.
Record: Indicates the DVR is recording.
9 IR Receiver Receive signals from IR remote control.

ELUX16x2 FHD Hybrid DVR
2
10 View In Live mode, press to switch to the layout type for displaying the
channel feeds.
11 SEQ Press to enter the automatic sequence mode. This will show each
channel feed in sequence. Press again to exit sequence mode.
12 Display Press to cycle between the info display types (channel and status bar
info).
13 Monitor In Live mode, press to switch between Main and Call Monitor.
14 Zoom In Live mode, press to zoom the display of a channel. Press the
Menu/ESC button to exit Zoom mode.
15 Channel
Buttons
Select the full screen channel in live mode.
Select the full screen channel in playback.
16 Copy Press to enter the Copy Menu.

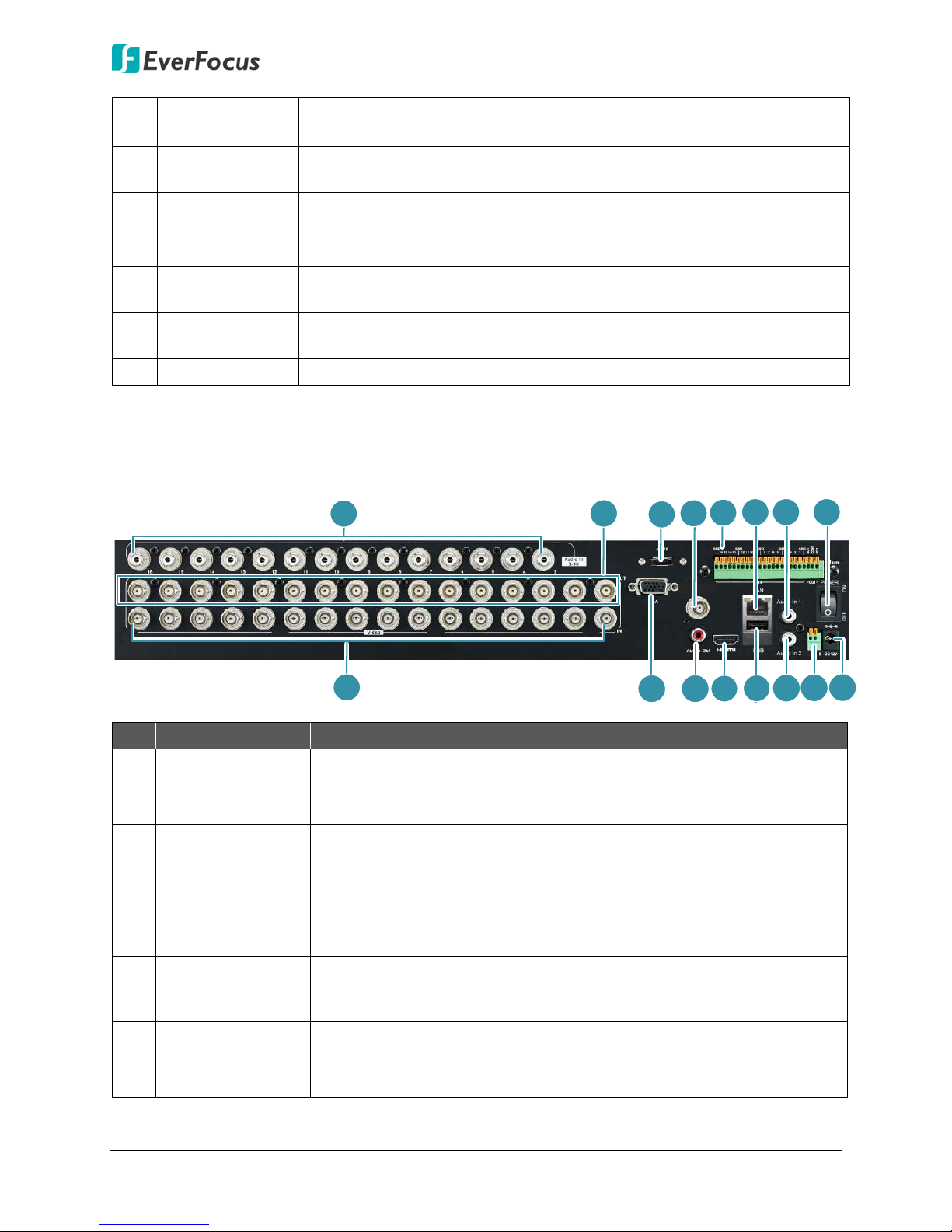

1.2 Rear Panel
CVBS
1
8
2357
11 114
12
61
10
9
4
RS485
+ -
13
No. Name Description
1 Audio Input 1~16
(RCA)
Connects to the audio input devices such as microphones. Note that
the microphone with a (built-in) amplifier and external power supply
is required.
2 Loop Video
Output 1~16
You can also optionally connect the monitors to each Loop Video
Output to display the video of the corresponding channel. Please
refer to 3.1 Monitor Connection.
3 eSATA Port Connects to an external eSATA storage device, please set up an RAID
array of the eSATA device before using.
4 CVBS Port (BNC) This can be used as a Call monitor output. Connects to the monitor
using a BNC cable (see 2.3.1 Monitor Connection).
5 Alarm Input /Out
Connects up to 16 alarm inputs and 1 alarm output devices. You can
also connect to the radio-controlled clock for time synchronization.
Please refer to 2.3.2 Alarm I/O.

ELUX16x2 FHD Hybrid DVR
3
6 Ethernet (LAN) Connects to the Network.
7 Power Switch Press to turn on or off the power.
8 Video Input 1~16
Connects to analog HD / SD cameras using coaxial cables.
Note:
1. The DVR can automatically configure itself as NTSC or PAL. To
do this, connect a camera to any channel of the DVR. The DVR
will detect the first connected camera format (NTSC or PAL)
and then automatically configure itself to the detected format
from the first connected camera. For example, if the format of
the first connected camera is NTSC, the DVR will configure
itself to NTSC format.
2. All video inputs are compatible with all resolution types of
cameras, such as 1080p, 720p, 960H and D1 cameras (HD-CVI /
HD-SDI cameras are not supported).
9 VGA Port This can be used as a Main monitor output. Connects to the monitor
using a VGA cable (see 2.3.1 Monitor Connection).
10 Audio Output
(RCA)
Connects to the audio output devices, such as speakers. Note that
the speaker with a (built-in) amplifier and external power supply are
required.
11 HDMI Port This can be used as a Main monitor output. Connects to the monitor
using a HDMI cable (see 2.3.1 Monitor Connection).
12 USB2.0 Port The USB2.0 port for connecting to a mouse, external storage device
or EKB200 keyboard.
13 RS-485 Port Connects to the RS-485 device (EKB500) or PTZ camera.
14 Power Port Connects to the 12VDC 8A power using the supplied Power Adaptor.

ELUX16x2 FHD Hybrid DVR
4

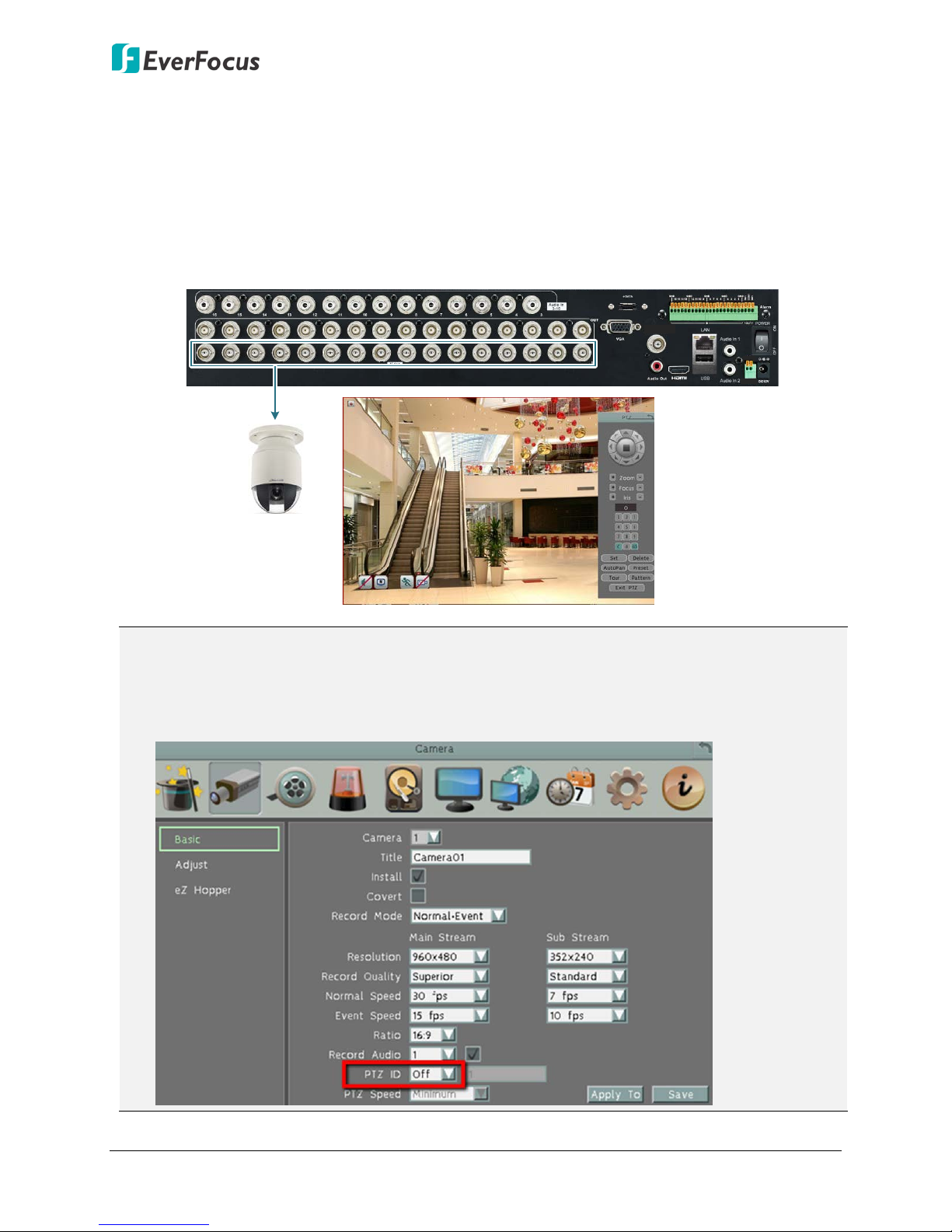

1.3 eZ. Controller Function Description
eZ.Controller: Easily control PTZ camera from DVR using only coaxial cable.
eZ.Controller allows users to control PTZ camera from DVR using only a coaxial cable without
the need of a RS-485 cable between the PTZ camera and the DVR. Users can easily operate
Zoom, Focus, Iris, Direction, Auto Pan, Preset, Tour and Pattern functions to the PTZ camera
through DVR.
PTZ Cameras
Tip: You can also bring
up the camera OSD
through Preset 95.
CVBS
RS485
+ -
Note:
1. The eZ.Controller function for PTZ control is only supported for EverFocus AHD (1080p,
720p) PTZ cameras.
2. After connecting the PTZ camera to the DVR through the coaxial cable, you will have to go
to the OSD Menu to turn the PTZ ID function off (System < Camera < Basic).

ELUX16x2 FHD Hybrid DVR
5
eZ.Controller: Easily control eZ.HD camera’s OSD at the DVR end.
Traditionally, the CCTV installer needs to take a portable monitor to connect to the
camera for controlling the camera OSD at the camera installation site as the Diagram A
below. It will take extra effort, time and people to adjust the camera.
Now, EverFocus’ eZ.Controller allows users to control the camera OSD simply on the
monitor at the DVR end as illustrated in Diagram B.
Traditional Way to Control Camera OSD
Control Camera OSD at Camera End
A
Camera EndDVR End
Use eZ.Controller to Control Camera OSD
Camera OSD Control Directly at DVR End
DVR End Camera End
B
How to Control eZ.HD Camera’s OSD at the DVR End?
3. To display the OSD menu, click the
Enter button on the Coaxial Panel.
4. You can use the direction buttons on
the Coaxial Panel to control the
camera’s OSD setting menu.
5. To exit the camera OSD setting, click
Exit to return to the Adjust setting
page.
1. On the DVR’s OSD setting menu, go
to System > Camera > Adjust. Select
a camera you want to adjust.
2. Click the Advanced button, and the
camera live view with the Coaxial
Panel will be displayed.

ELUX16x2 FHD Hybrid DVR
6
1.4 Packing List
• DVR x 1 • QIG x 1
•12VDC 8A Power Adaptor x 1 •Mouse x 1
•HDD Bracket x 4 •SATA Cable x 4
•IR Remote Control x 1 •AAA Battery x 2 (Please see Note 4.)
•Sliver Screw x 24, Washer Head Screw x 12,
M3 (φ6.8) Screw x 4
•Rack Ear x 2
•CD x 1 (Please see Note 3.)
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult your
local EverFocus office or agents for more information. Please also keep the shipping carton
for possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.
3. The CD contains the IP Utility software, EFPlayer, User Manual and Quick Installation Guide.
4. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
a. Use only two AAA dry cell batteries.
b. Do not dispose of the batteries in a fire as it may explode.

ELUX16x2 FHD Hybrid DVR
7

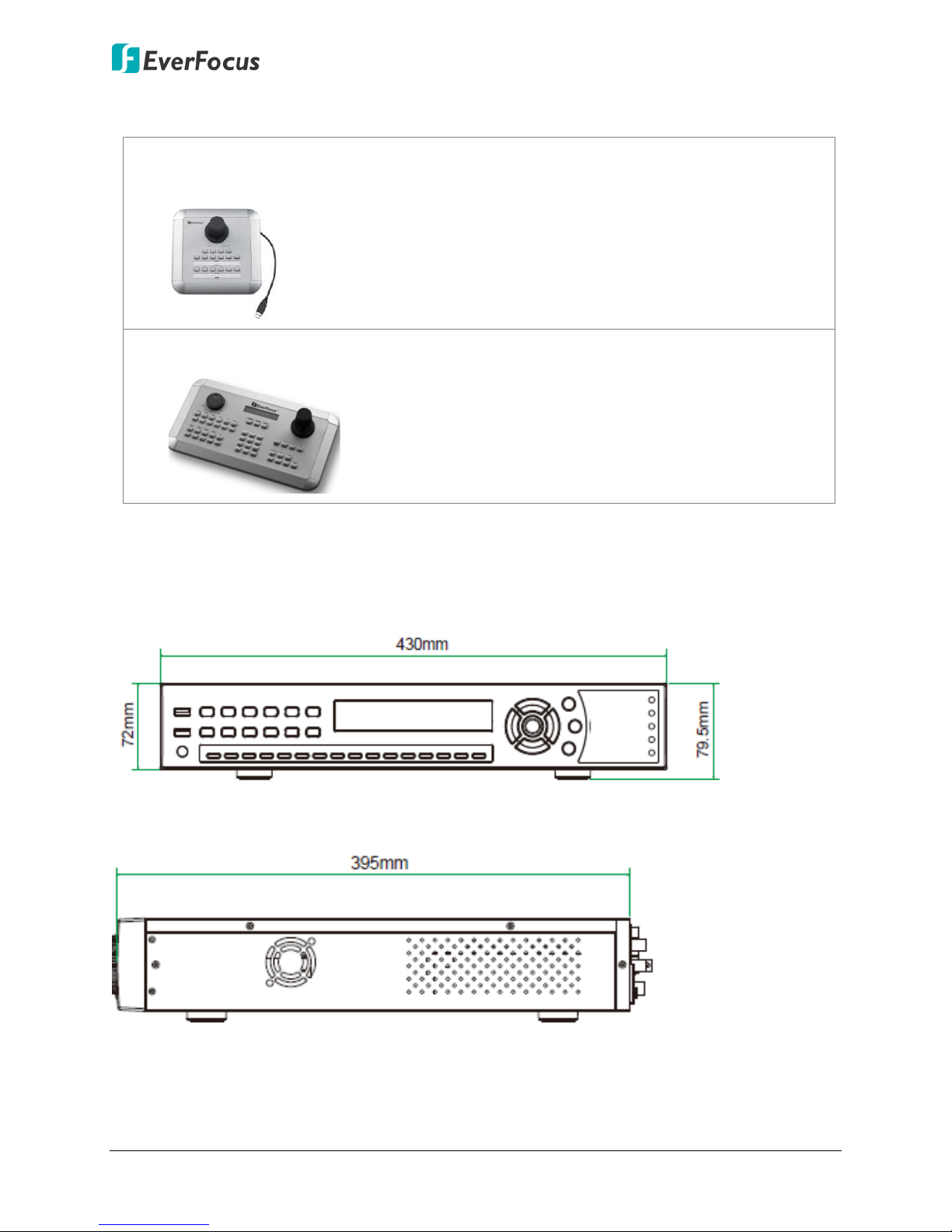

1.5 Optional Accessories
•EKB200 (USB controller keyboard: connect to the PC or DVR to control the PTZ cameras
connected to the DVR). Please refer to 6.9.6 EKB200 Setting in the User Manual of the
EKB200 Keyboard.
•EKB500 (RS-485 keyboard: connect to the RS-485 port to control the PTZ cameras
connected to the DVR). Please refer to User Manual of the EKB500 Keyboard.
1.6 Dimensions
Front View
Side View

ELUX16x2 FHD Hybrid DVR
8
2. Basic Installation
2.1 Hard Disk Installation
You can optionally install four 3.5” HDDs inside the DVR for recording videos.
1. Make sure the DVR is power-off.
2. Unscrew the ten housing screws of the DVR and remove the housing cover.
3. Screw two HDD brackets on both sides of the HDDs using the Sliver Screws.
Silver Screw
HDD Bracket
4. Use the SATA Cable, and connect one end to either one of the four SATA ports on the
PCB inside the DVR, and the other end to the SATA port on the HDD.

ELUX16x2 FHD Hybrid DVR
9

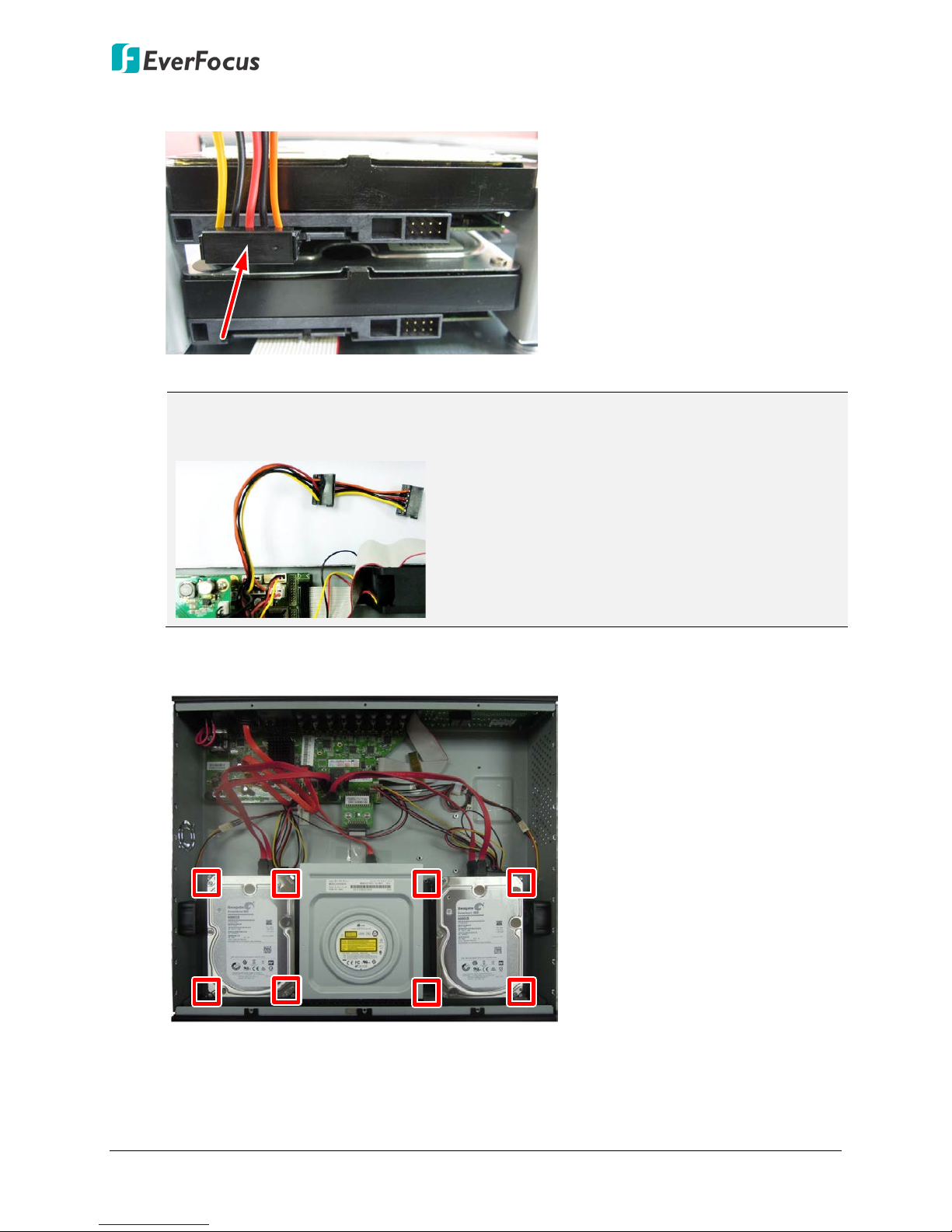

5. Connect the internal power cable to the HDD.
Note: The internal power cable is connected to the Main board inside the DVR. The
power cable features two/three connectors, which can be used to connect to
two/three HDDs.
6. Screw the HDDs with the brackets inside the DVR using the Washer Head Screws.
7. Screw back the housing cover to the DVR.

ELUX16x2 FHD Hybrid DVR
10
2.2 Hard Disk Compatibility List
Please go to the ELUX16x2 Web page on EverFocus’ website http://www.everfocus.com.tw to
see the latest Hard Disk Compatibility List.
Note: If using two or more hard disks, please choose the hard disks with the same capacity.
2.3 Rack Mount Installation
To install rack ears on the DVR:
1. Unscrew the four M3 (φ6.8) screws on both side of the DVR.
2. Use the supplied two rack ears and the above screws for rack mount installation on both
side.

ELUX16x2 FHD Hybrid DVR
11
3. Basic Connection
The instructions below the figure describe the basic connection for the ELUX16x2.
6
Camera 1~
16
3
Line Level
Audio In 1~16
1
Power Supply
2
Mouse
7
Web Remote
Client
CMS:
Genie XMS
Network
Main Monitor
(HDMI)
5
Line Level
Audio Out
4
CVBS
RS485
+ -
1. Connect the line level audio input devices to the DVR. Note that the audio input devices,
such as microphones, are required to have a (built-in) amplifier and external power supply.
2. Using the supplied Power Adaptor, connect one end to the DC 12V port on the DVR and
the other end to the power outlet.
Note: Please ensure to connect the internal power cables to the internal HDDs before
powering on the DVR.
3. Connect the cameras to the DVR using the coaxial cables. EverFocus eZ.HD cameras are
recommended. (HD-CVI / HD-SDI cameras are not supported)
4. To listen to audio of video source, connect speakers to the Audio Out port. Note that
speaker with a (built-in) amplifier and external power are required.
5. To view videos, connect a monitor to the HDMI port using the HDMI cable supplied by the
monitor manufacturer.
6. Use a standard RJ-45 cable to connect the DVR to the network for remote viewing or using
EverFocus surveillance system (Genie XMS).
7. Optionally connect a mouse to the DVR to control the system. You can also control the
system using the supplied IR Remote Control or the control buttons on the front panel.

ELUX16x2 FHD Hybrid DVR
12

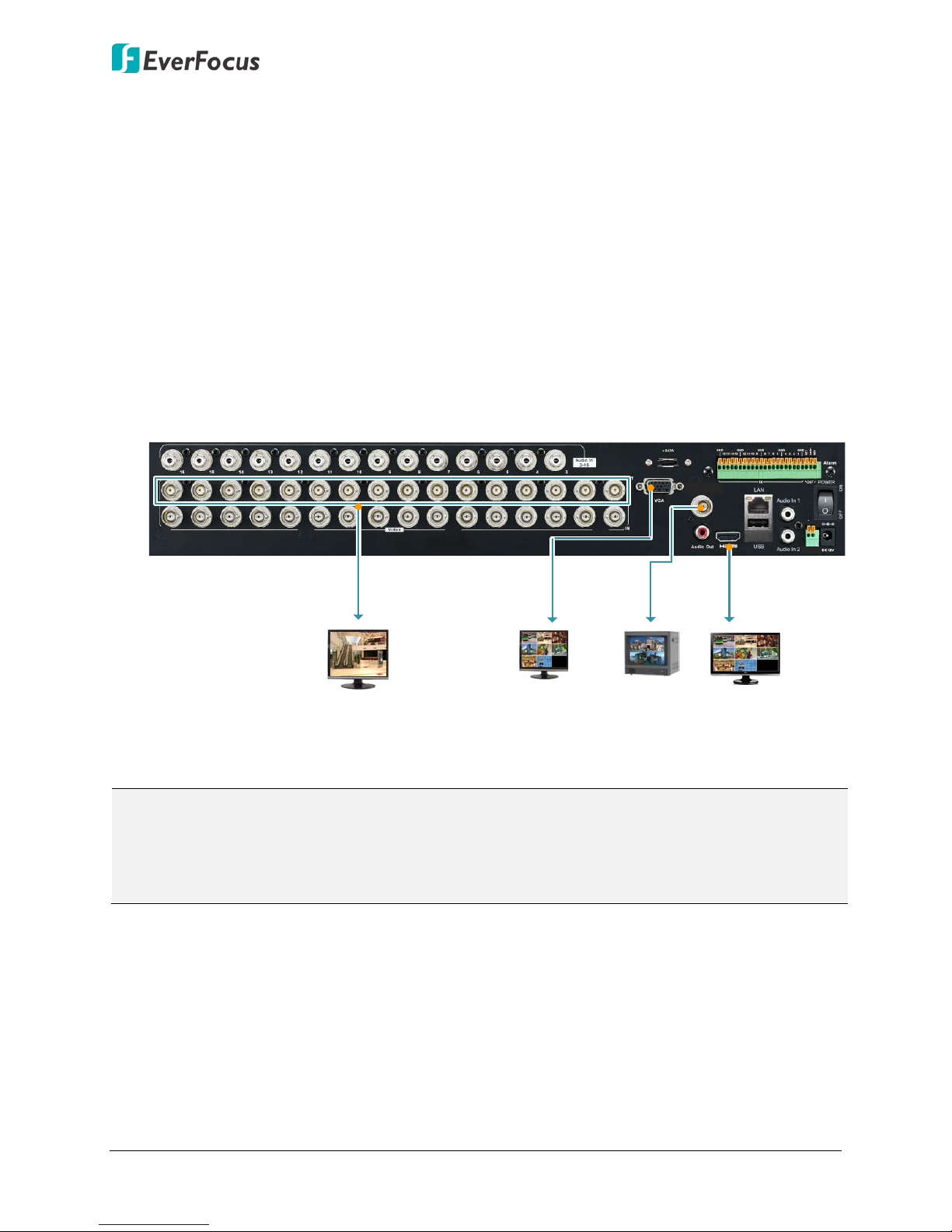

3.1 Monitor Connection
Connect the monitor to the CVBS, HDMI or VGA port on the rear panel of the DVR. The
ELUX16x2 DVR provides 2 main monitor outputs (HDMI and VGA); and 1 call monitor output
(BNC) with identical functionality.
The main monitor outputs can deliver full HD output resolution (1920x1080, progressive, 60 Hz.
vert., 68 KHz hor.). The call monitor can display camera streams or perform sequence display
mode. Both of the 2 main monitor outputs provide the identical functionality and can be
operated simultaneously. Make sure that the connected monitor's specifications comply with
the resolution requirements. To configure the monitor setting, please refer to 6.6 Display
Setting in the User’s Manual.
You can also optionally connect the monitors to each Loop Video Output to display the video of
the corresponding channel.
Rear View
Main Monitor
(VGA) Main Monitor
(HDMI)
HDMI
Cable
VGA
Cable
CVBS
Cable
Call Monitor
(CVBS)
BNC
Cable
Loop Video Output
1~16 (BNC)
CVBS
RS485
+ -
Note:
1. The connected monitors’ specifications must comply with the resolution requirements.
2. Do not exceed the max. HDMI cable length of 15 meters. The standard HDMI cables can
support cable length up to 3 meters. For longer distances, such as 15 meters, it is highly
recommended to use high quality HDMI cables.

ELUX16x2 FHD Hybrid DVR
13
3.2 Alarm I / O
The DVR provides 16 alarm inputs and 1 alarm output. You can also connect the
radio-controlled clock to the alarm input of the DVR for the time synchronization. The DVR
supports the radio-controlled clock which will automatically synchronize to the time standard
so that you won’t need to reset the time manually. For radio-controlled clock connection,
connect the positive (+) wire to either port of Alarm Input 1~16 and negative (-) wire to the
GND port.
Alarm In 1~16
Alarm
Radio-controlled Clock
Alarm Out 1
Alarm Input Contacts
This DVR provides one alarm input per camera. All inputs are programmable N.O. (Normal Open)
or N.C. (Normal Closed). All settings are programmed in the ALARM / Event menu.
ALMIN
GND
ALMIN
GND
Alarm Input with N.O. contact in idle state Alarm Input with N.C. contact in idle state
Alarm Output Contacts
The relay output provides either Normally Open or Normally Closed dry contacts.
ALMOUT +
ALMOUT -
ALMOUT +
ALMOUT -
Alarm Output with N.O. contact Alarm Output with N.C. contact

ELUX16x2 FHD Hybrid DVR
14

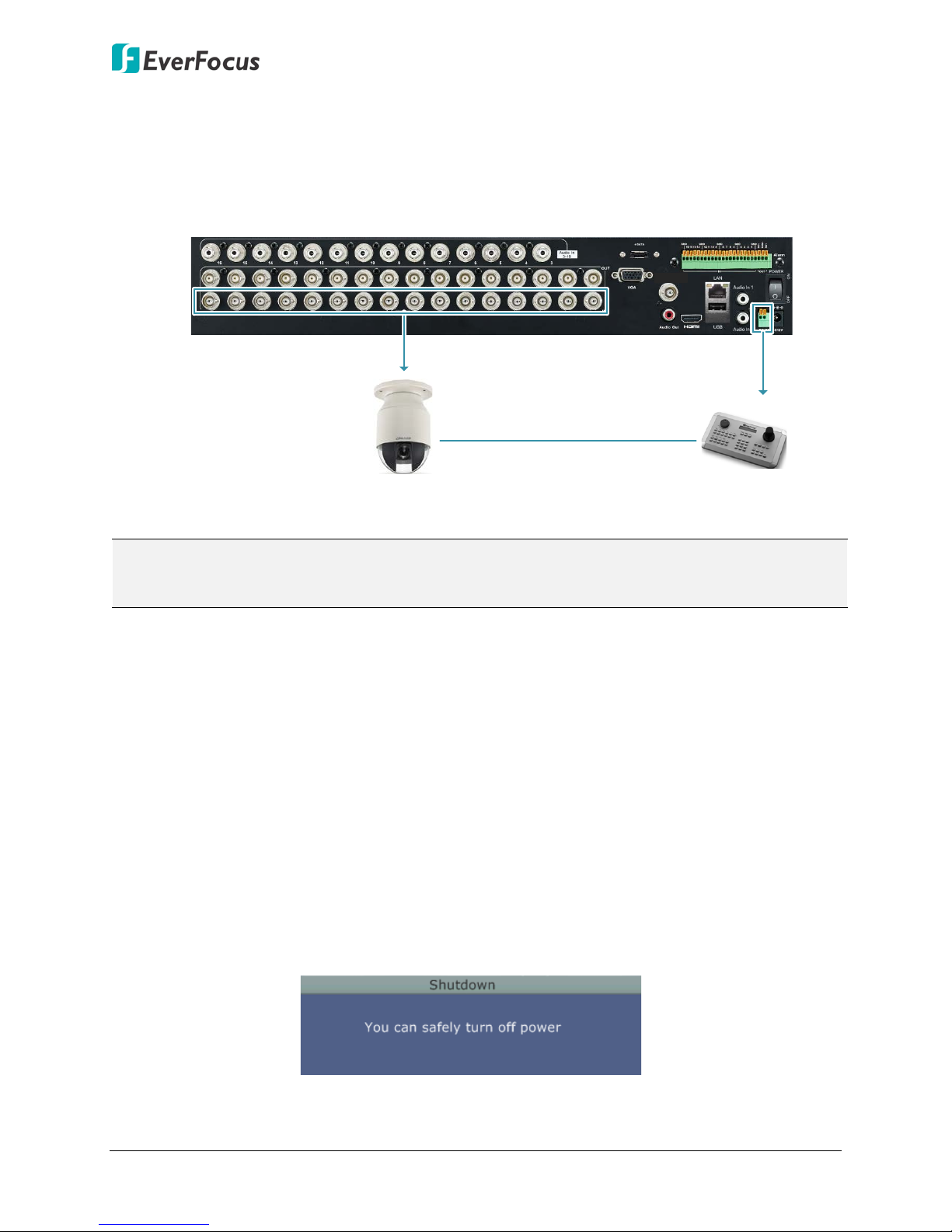

3.3 RS-485 Port
The RS-485 port, located on the rear panel of the DVR, can be used to connect to an RS-485
keyboard for controlling PTZ cameras or simply connect to a PTZ camera or connect to a POS
device.
Rear View
RS-485 Port
Analog PTZ Camera EKB500 Keyboard
RS-485 Cable
Coaxial Cable
CVBS
Note: EverFocus FHD series DVR supports the eZ.Controller function, which enables users to
control PTZ camera from DVR using only a coaxial cable without the need of a RS-485 cable
between the PTZ camera and the DVR (see 1.3 eZ.Controller Function Description).
4. Turning On / Off the Power
Before powering on the DVR, please make sure the internal HDDs have been installed properly.
Once you have completed the basic cable connections, you are ready to turn on the DVR.
To turn on the power, connect the supplied Power Cord to the power outlet and turn on the
Power Switch. All of the LED indicators on the front panel will light up. The DVR will
automatically run an internal process, when the process is complete, the LED indicators will
turn off, and the POWER LED will remain light up in green. And then you can start operating the
DVR.
To turn off the power, please go to OSD Root Menu > System Setting > Miscellaneous setting
page, and click Shutdown (refer to 6.9.7 Miscellaneous in the User’s Manual). After the
message pops up as below, you can now turn the Power Switch to the "Off" position.

ELUX16x2 FHD Hybrid DVR
15
5. Checking the Dynamic IP Address
You can look up the IP address and access the Web interface of the DVR using the IP Utility (IPU)
program, which can be downloaded from EverFocus’ Website:
http://www.everfocus.com/HQ/Support/DownloadCenter_p1.aspx. Please connect the DVR in
the same LAN of your computer.

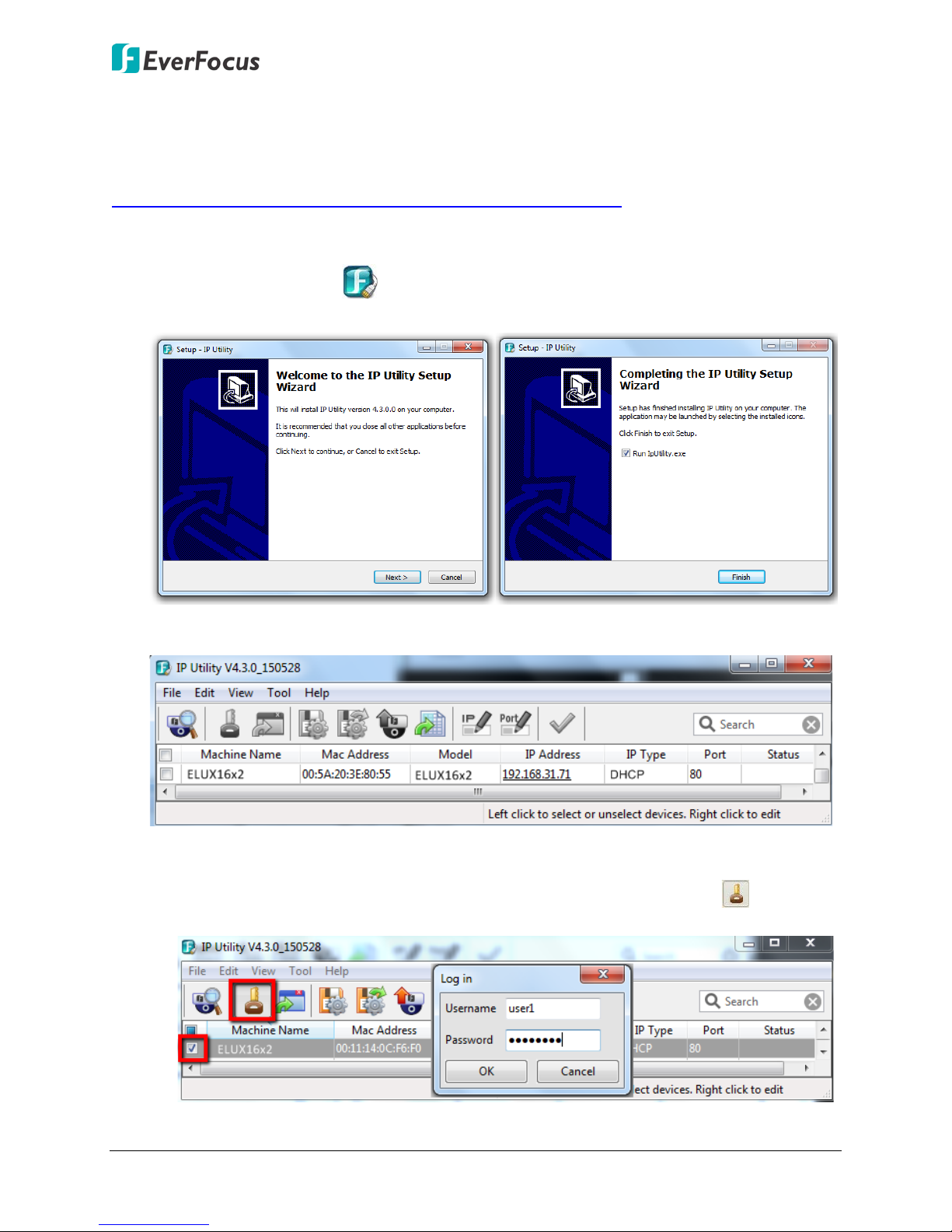

1. Save IP Utility Setup.exe in your computer. Double click the .exe file and follow the
on-screen instructions to install the IP Utility.
2. Click the Finish button, the IP Utility will be automatically launched to search the IP devices
connected on the same LAN.
3. To optionally configure the Machine Name, IP Address, IP Type or Port Number using the
IPU:
a. Log in the DVR by checking the desired model and then click the Log in icon. The
Log in dialog box appears.

ELUX16x2 FHD Hybrid DVR
16
b. Type the Username and Password. Click the OK button, the status of the selected
camera will display Login.
Note:
1. The default user ID is admin and the default password is 11111111.
2. If you select more than one DVRs that have the same user ID / password, you will
be able to log in several DVRs at once.
c. Right click the columns (such as Machine Name, IP Address, IP Type or Port) to
configure the setting. Click Apply Changes button to apply and save the settings.
Note: Most networks uses DHCP to assign IP address, if you are unsure of your
network settings, please consult your network administrators for configuration
details.
4. To access the Live View window, double click the IP address of the desired device, the login
window pops up. Type the user ID and password to log in. By default, the user ID is admin
and the password is 11111111.

ELUX16x2 FHD Hybrid DVR
17

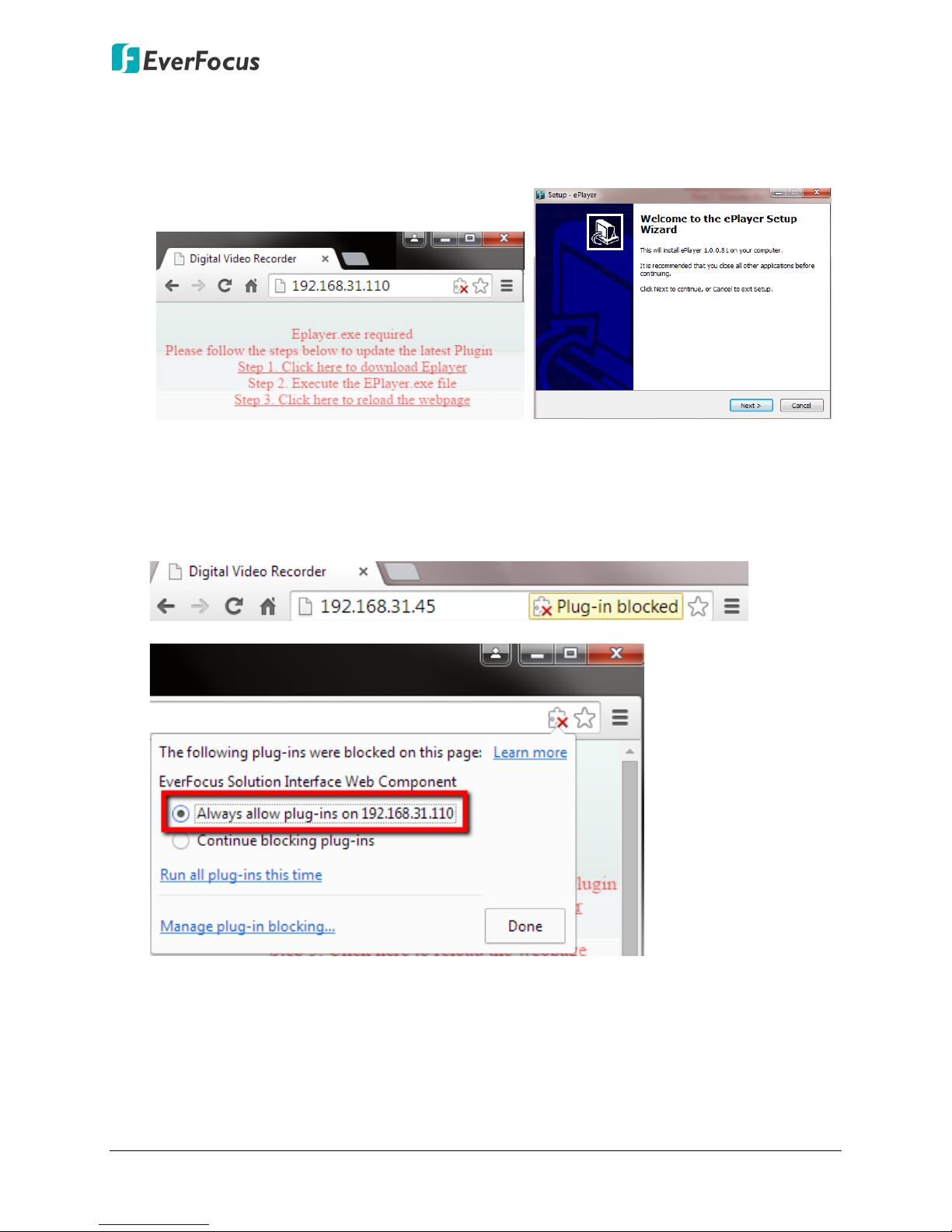

5. If you log in for the first time, follow the instruction steps on the interface to update the
latest Plugin version (ePlayer). After reloading the webpage, the login window pops up
again. Type the user ID and password to log in again. By default, the user ID is admin and
the password is 11111111.
Note for the first time login:
The “Download ePlayer Instruction” page will only be prompted for the first time login in
order to update the system to the latest plugin version.
When the Plug-in blocked appears on the browser, select Always allow plug-ins on xxx,
click Done and then reload the webpage.
6. Now you will be able to see the remote live page.

ELUX16x2 FHD Hybrid DVR
18
If you encounter the following problem or still can’t access the remote Web interface,
please see below:
If the Error window appears, please be sure to close ALL the Web browser windows first
and then click Retry. When the Completing the ePlayer Setup Wizard window shows up,
click Finish. Then, you can open a new browser again to access the DVR’s remote Web
interface.

ELUX16x2 FHD Hybrid DVR
19

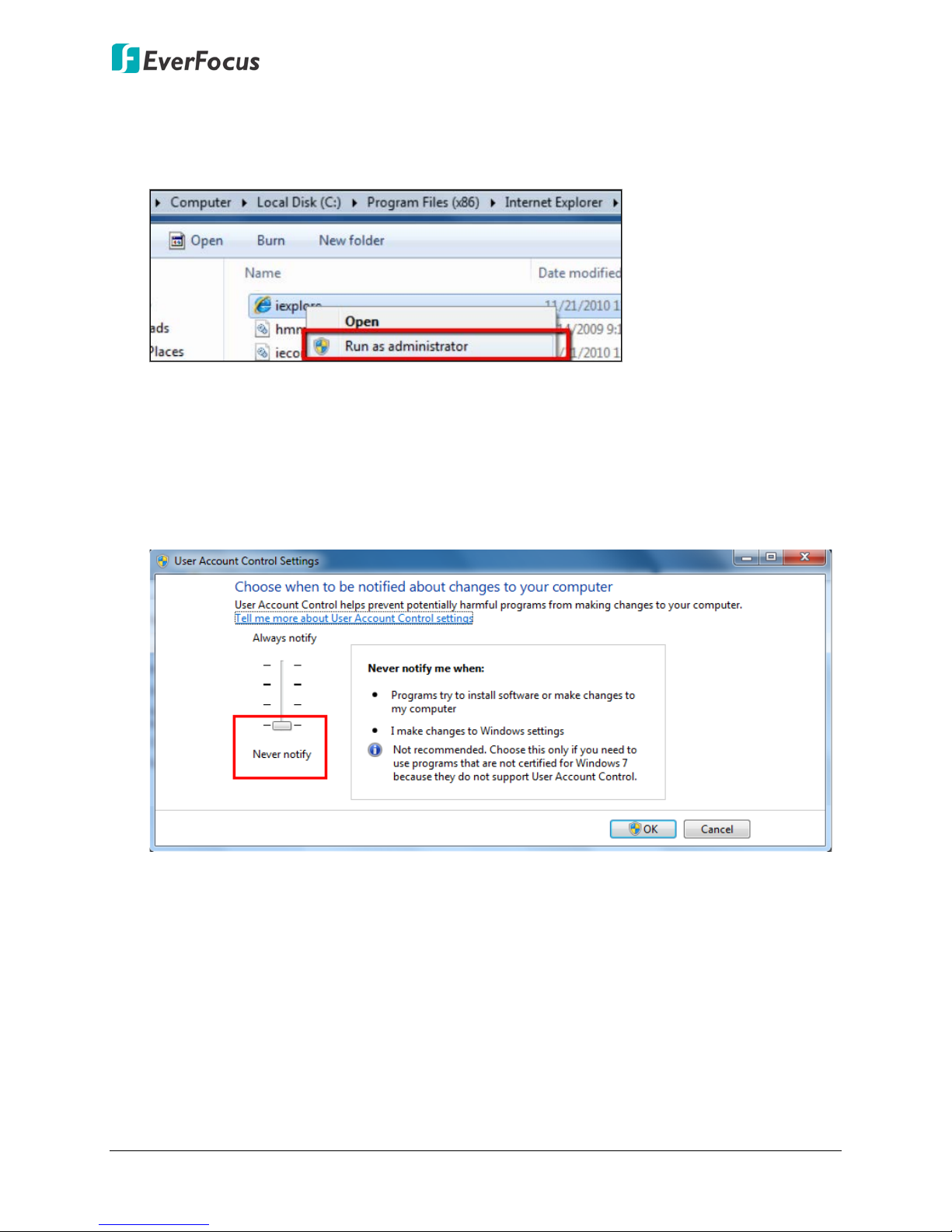

If your PC or laptop is running with Windows, it’s required to run the browser as
administrator when first entering the remote web page of the device. Go to C:\Program
Files (x86)\Internet Explorer, right-click the browser and then click Run as administrator.
You may need to turn off the firewall and turn User Account Control off if you still can’t
see the Remote Live View.
To turn User Account Control off, on the computer, clickStart > Control Panel > System
and Security > Action Center (click Change User Account Control Settings), the User
Account Control Settings window appears. Adjust the slide bar to Never Notify and then
click OK. Restart your computer if requested.
