EverFocus EQ-2250 User manual

EQ-2250
High Resolution WDR - Color Camera
with 22 x Optical and 10 x Digital - Zoom Lens
Installation / Operation Manual
EF004-EQ2250-E001

SAFETY WARNING
Handle the camera with care. Do not expose the camera to
shock or vibration. Install the camera on a solid ground.
Install the camera away from electromagnetic elds
(transformers, electrical motors, TV, audio speakers etc.), as the
magnetic elds may distort the video image.
Install the camera only in surroundings within the specied
ambient temperature.
The maximum ambient temperature range for this camera is
-20°C ~ +50°C.
The recommended temperature range is 0°C ~ +40°C. Avoid
severe changes in temperature to prevent condensation.
Never face the camera’s CCD chip toward the sun or similar
powerful light sources.
Operate the camera only with stabilized power supply 12 VDC
+/- 0,5V /600 mA (or above).
The camera may be opened by authorized service personnel
only.
SAFETY WARNING
2

ATTENTION! This is a class A product which may cause
radio interference in a domestic environment; in this case, the
user may be urged to take adequate measures.
Your EverFocus product is designed and manufactured with
high quality materials and components which can be recycled
and reused. This symbol means that electrical and electronic
equipment should be disposed of separately from your
household waste at their end-of-life.
Please dispose of this equipment at your local community
waste collection / recycling centre. In the European Union,
there are separate collection systems for used electrical and
electronic products.
Please help us to conserve the environment we live in!
This product is RoHS compliant.
The information in this manual was current upon publication. The
manufacturer reserves the right to revise and improve his products.
Therefore, all specications are subject to change without prior notice.
Misprints reserved.
Please read this manual carefully before installing and using this unit. Be
sure to keep it handy for later reference.
ⓒ2011 EverFocus Electronics GmbH
SAFETY WARNING
3

SAFETY WARNING······································2
1 General ··························································5
1.1 Product Overview··········································· 5
1.2 Features····················································· 5
1.3 Specications··············································· 5
1.4 Dimensions·················································· 6
1.5 Back panel controls and connectors······················ 7
2 Installation························································ 8
2.1 Power························································ 8
2.2 Video························································· 8
2.3 Remote Control············································· 9
2.3.1 RS-485················································· 9
2.3.2 DC-Lens control······································ 10
2.3.3 Day- / Night switching······························· 10
3 Camera setup··················································· 11
3.1 Zoom························································ 11
3.2 Focus······················································· 11
3.3 OSD setup menu·········································· 12
3.3.1 OSD display··········································· 12
3.3.2 Menu Structure········································ 13
3.3.3 Setup - Menu Operation······························15
3.3.3.1 FOCUS········································ 16
3.3.3.2 EXPOSURE·································· 17
3.3.3.3 White Balance································ 18
3.3.3.4 D-WDR/BLC·································· 19
3.3.3.5 DAY& NIGHT································· 21
3.3.3.6 IMAGE········································· 22
3.3.3.7 SPECIAL······································ 23
3.3.4 RESET······················································ 25
Contents
4

1.1 PRODUCT OVERVIEW
The EQ2250 is a high resolution color camera equipped with a
22x auto-focus zoom lens and 10 x optical zoom.
Many advanced features allow utilizing the EQ2250 in a wide
range of CCTV - applications.
1.2 FEATURES
• 22 x optical and 10 x digital zoom
• 600 TVL horizontal resolution
• 3DNR noise reduction
• Enhanced sensitivity with 256 x DSS(Digital Slow Shutter)
• Extended wide dynamic with D-WDR
• HSBLC : Highlight Suppression BLC
• 8 privacy zones
• Day- / Night mode
• Remote control by RS-485 and DC lens control
1.3 SPECIFICATIONS
Image sensor 4,5mm / 1/4” CCD
Effective pixel 752 x 582 (PAL)
Light sensitivity 0,6 Lux ( F = 1,6, AGC high, DSS off, 30 IRE)
Lens Autofocus zoom lens 3,9 ~ 85,8 mm, DC-iris
22x optical zoom
Video output BNC socket, composite 1 Vs-s / 75 Ohm
Video resolution 600 TV lines horizontal
Signal/noise ratio > 50 dB (AGC off)
Min. object distance 1 cm (wide) up to 1m (tele)
DSS Digital Slow Shutter auto, manual, off (2x to 256x)
Remote control RS-485 (Pelco-D/P), DC lens control(+/- 5VDC)
Back light compensation HSBLC on/off, BLC on/off
Camera title max. 20 character, 16 colors
Power 12 VDC +/- 10%
Power consumption 3 W max.
Environmental temp. 0°C ~ +50°C
Humidity 20 ~ 85%
Dimensions (WxHxD) 48 x 51,6 x 88,5 mm
Weight 210 g
1 GENERAL
5

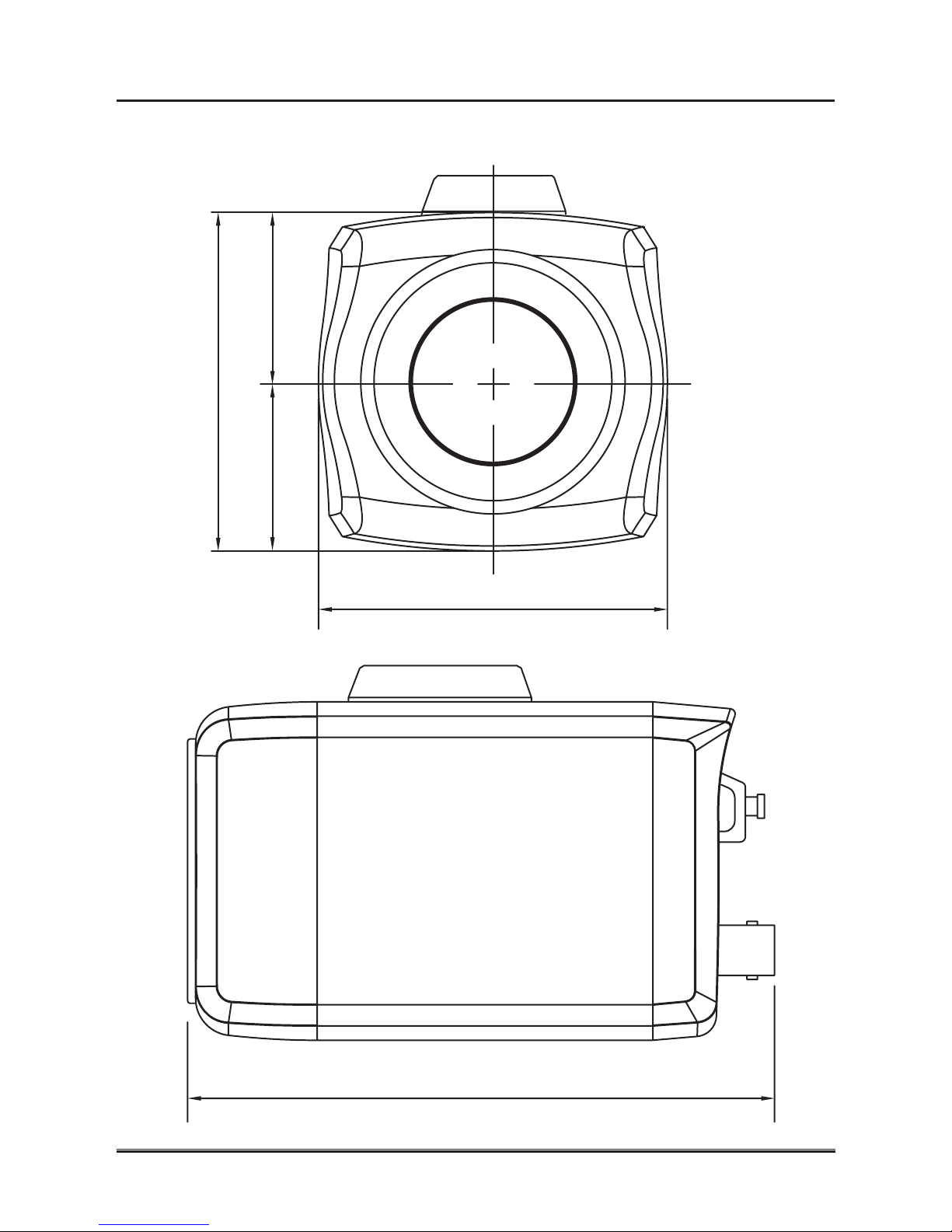

1.4 DIMENSIONS
1 GENERAL
6
110.8
64.0
66.0
38.232.0

1.5 BACK PANEL CONTROLS AND CONNECTORS
Arrow keys T / W Buttons for zoom control, in OSD menu row
selection up/down
Arrow keys N / F Buttons for focus control, in OSD menu change of
parameters
MENU key Open/close OSD setup menu
Video output BNC Video output BNC, composite 1 Vs-s / 75 Ohm
LED LED on indicates power on.
Control inputs 485+ / 485-: Remote control input RS485
ZOOM/COM/FOCUS:
input for zoom/focus control with +/- 5VDC
D/N / GND:
contact input for external day/night - switching
12V / GND Power input terminal for 12 VDC stabilized (+/- 10%)
1 GENERAL
7
485+
485-
ZOOM
COM
FOCUS
D/N
GND
Arrow keys
T / W(N / F)
Video output BNC
12V / GND
Control inputs
LED
MENU key

2.1 POWER
Connect a stabilized 12 VDC power supply (500mA or higher)
to the power terminal.
2.2 VIDEO
Connect the video output (BNC) with 75 Ohm video coax cable
with DVR, monitor or other equipment with video input. Please
take care for correct 75 Ohm termination.
2 INSTALLATION
8
INTERMEDIATE END MONITOR
VIDEO VIDEO

2.3 REMOTE CONTROL
The EQ2250 camera provides an input for RS-485 control with
Pelco-D/P protocol.
Further on the lens can be controlled by control devices with 5
VDC voltage (PTZ-receiver, control keyboards with DC output).
The day / Night mode can be switched by an external contact.
2.3.1 RS-485
Connect the RS-485 input with twisted pair cable to the control
device.
For details of RS-485 wiring please consult the related chapters
in user manuals of EverFocus DVRs or control keyboards.
The RS-485 parameter (baud rate / address) need to be
adjusted in the OSD menu SPECIAL.

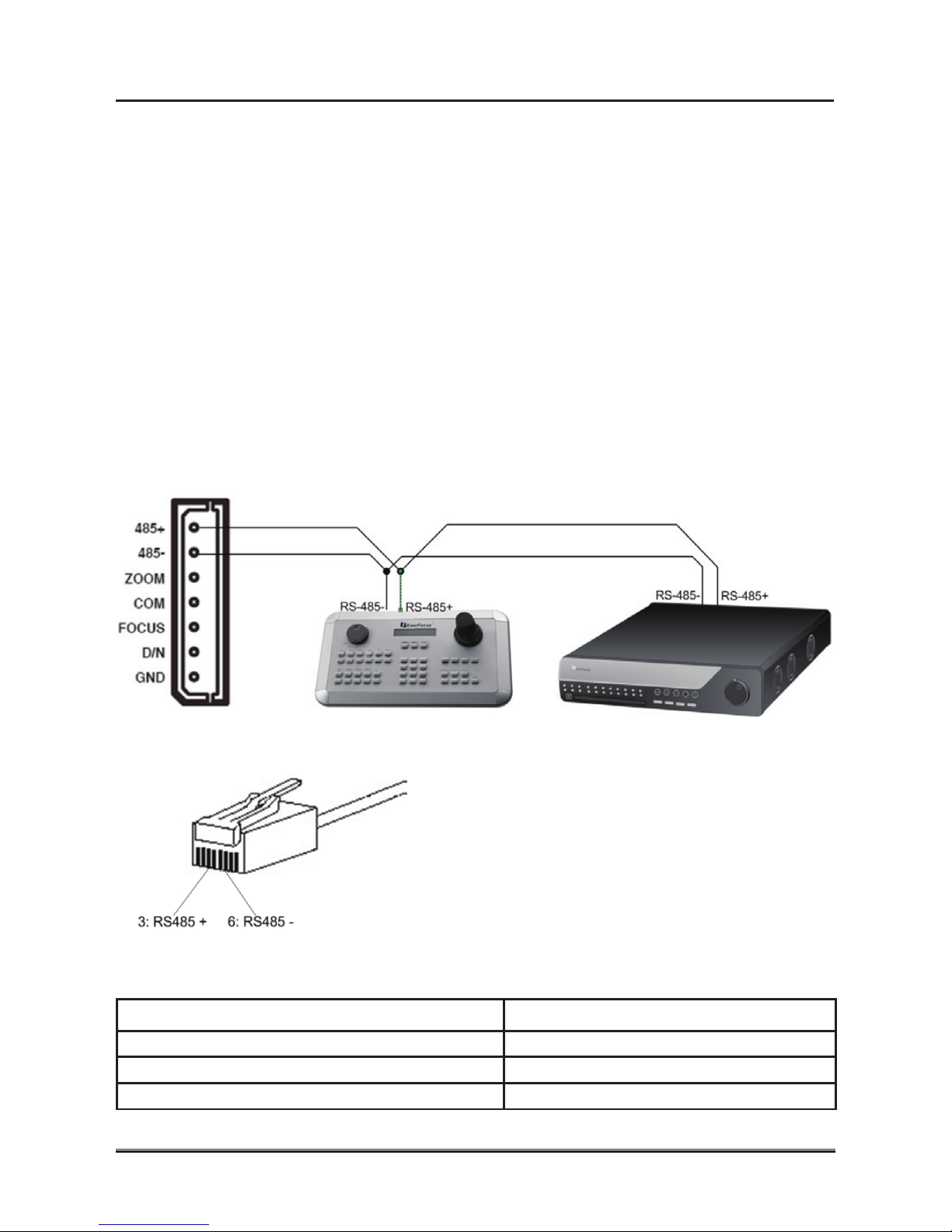

RS-485 pin assignment EKB-500, EverFocus DVR
Control commands for OSD - menu (Pelco-D/P protocol)
(Go to) Preset 95 (or Preset 96) OSD setup menu open / close
Joystick/arrow keys up / down or zoom +/- switch between menu lines
Joystick/arrow keys left / right or focus +/- change of values / parameters
Joystick/arrow key right or focus + Enter
2 INSTALLATION
9

2.3.2 DC-Lens control
The lens can be controlled by control devices with 5 VDC
voltage (PTZ-receiver, control keyboards with DC output).
Please check the control device to correct output voltage
(+/- 5VDC max).
2.3.3 Day- / Night switching
The day/night switching can be controlled by an external dry
contact. Closing the contact (to GND) will turn the camera in
night mode. In OSD menu DAY&NIGHT the item MODE needs
to be set to EXTERNAL.
ATTENTION: This camera is equipped with a xed IR-cut lter.
For this reason the camera is not applicable for installation wit
IR illumination.
2 INSTALLATION
10

3.1 ZOOM
The key T is used for zoom in, W for zoom out.
3.2 FOCUS
The key N focuses the lens in near distance, F key focuses in
far distance.
ATTENTION: The FOCUS keys are deactivated in the mode
FOCUS: AUTO
3 CAMERA SETUP
11
Focus near Focus far
MENU
Zoom tele
Zoom wide

3.3 OSD SETUP MENU

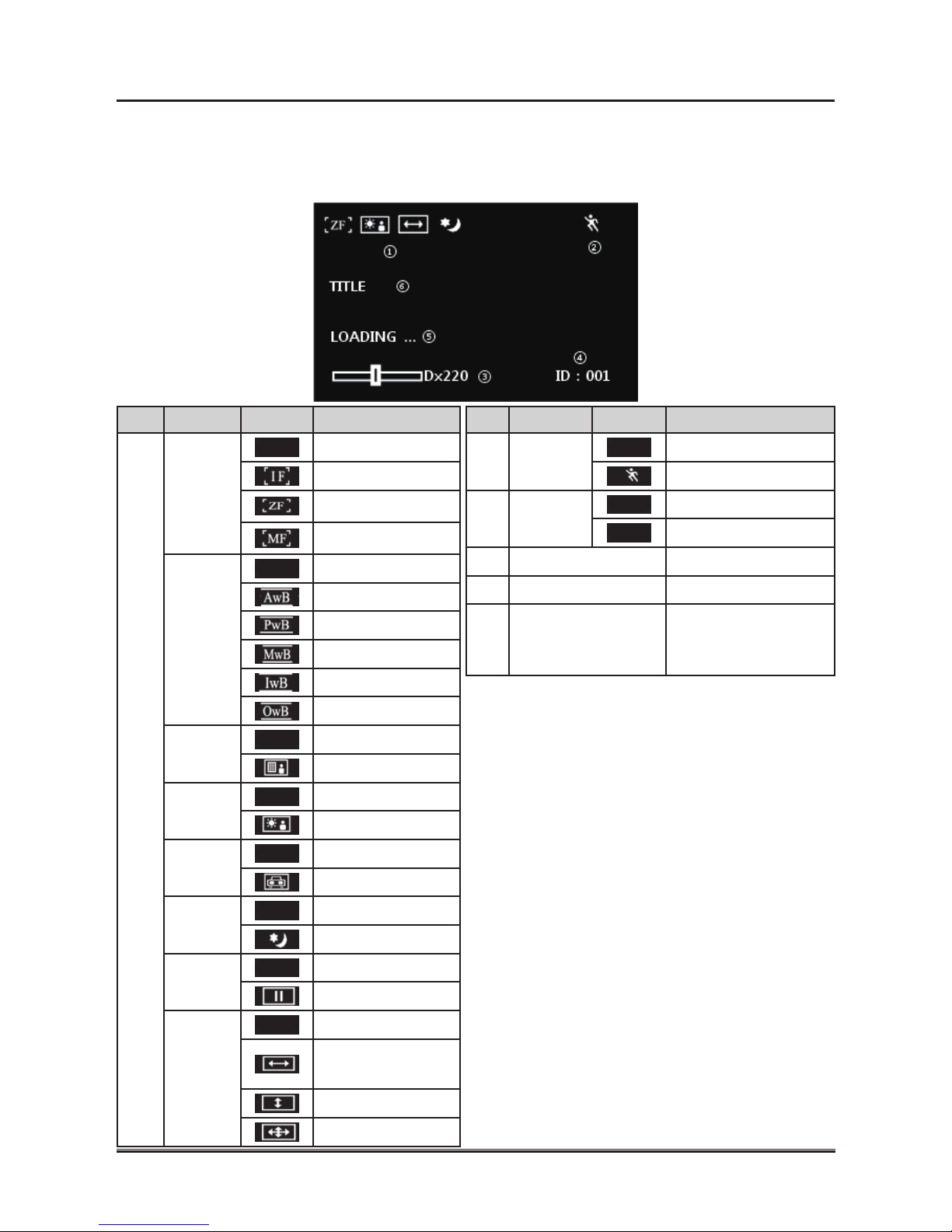

3.3.1 OSD display
3 CAMERA SETUP
12
NO Function Format Description
①
Focus
Auto Focus
Interval AF
Zoom Trigger AF
Manual Focus
WB
Auto
AWB
Push Auto WB
Manual WB
Indoor WB
Outdoor WB
WDR WDR Off
WDR On
BLC BLC Off
BLC On
HSBLC HSBLC Off
HSBLC On
Night Day
Night
Freeze Normal
Freeze On
Filp
Normal
Horizontal Filp
(Mirror)
Vertical Filp
HV(180˚) Fiilp
NO Function Format Description
②Motion Normal
Motion Detected
③Zoom
Ration
Optical Zoom
Digital Zoom
④ID:000 ~ ID:255 Camera ID
⑤LOADING... Standby message
⑥Title
Max.20
characters /
Position Selectable

3.3.2 Menu Structure
3 CAMERA SETUP
13
SETUP
1. FOCUS ┛
2. EXPOSURE ┛
3. WHITE BAL ATW
4. D-WDR/BLC OFF
5. DAY&NIGHT AUTO
6. IMAGE ┛
7. SPECIAL ┛
8. RESET OFF
9. EXIT ┛
FOCUS
FOCUS MODE ZOOM TRIG
ZOOM START .|...... 1
ZOOM STOP ….. | 220
ZOOM SPEED FAST
D-ZOOM ON
MIN. DIST 50CM
RETURN ┛
AF INTERVAL
RUN TIME ..| … 10
INTERVAL ..| …… 60
RETURN ┛
IRIS MANUAL
LEVEL ..|…….. 100
RETURN ┛
AGC MANUAL
GAIN |……. -3DB
RETURN ┛
WB MANUAL
RED ....|…… 50
BLUE .…|…… 50
RETURN ┛
D-WDR
LEVEL LOW …..|…… 6
LEVEL HIGH ….|…… 9
RETURN ┛
BLC
LEVEL MIDDLE
AREA ┛
RETURN ┛
BLC AREA
H. START 2
V. START 2
WIDTH 4
HEIGHT 4
RETURN ┛
HSBLC AREA
H. START 0
V. START 3
WIDTH 8
HEIGHT 4
RETURN ┛
HSBLC
MODE ALL DAY
LEVEL ….. | ….. 4
AREA ┛
RETURN ┛
EXPOSURE
SHUTTER OFF
IRIS AUTO
AGC AUTO
BRIGHT …….. |…. 50
MAX. AGC MIDDLE
MAX. FIELD OFF
RETURN ┛
WHITE BAL
D-WDR / BLC

3 CAMERA SETUP
14
DAY & NIGHT
SMART IR OFF
3DNR OFF
FREEZE OFF
ROTATE OFF
SHARPNESS ..|… 15
NEGATIVE OFF
RETURN ┛
SPECIAL
CAM ID 001
BAUDRATE 9600
LANGUAGE ENG
TITLE OFF
PRIVACY OFF
MOTION OFF
OSD SET ┛
RETURN ┛
D&N AUTO
DETECT MODE VIDEO ┛
DWELL TIME ..|…… 5
BURST ON
RETURN ┛
SMART IR
GAIN ….|.... 8
AREA ┛
RETURN ┛
3DNR
LEVEL ….. |…. 50
RETURN ┛
PRIVACY
MASK NO 1
DISP MODE OFF
COLOR C0
TRANSPARENT OFF
RETURN ┛
OSD SET
CAM ID OFF
ZOOM MAG OFF
FUNC OSD OFF
RETURN ┛
MOTION
AREA NO 1
DETECT MODE OFF
H. START ..|… 31
V. START .|…. 18
WIDTH …|… 53
HEIGHT …|… 37
SENSE …|… 10
ALARM TIME |…… 1
DISP. MODE OFF
RETURN ┛
TITLE
------------------------
ABCDEFGHIJKLM (LEFT)
NOPQRSTUVWXYZ (RIGHT)
0123456789►→← (SPACE)
↑↓ ( ) -■/=& : ~,. (BACK)
POSITION ┛
CLEAR ON ┛
SAVE ON ┛
RETURN ┛
D&N VIDEO
D->N LEVEL ….|.... 176
D<- N LEVEL ….|.... 76
RETURN ┛
SMART IR AREA
H. START 3
V. START 2
WIDTH 2
HEIGHT 3
RETURN ┛
TITLE POSITION
CURRENT TITLE
RETURN ┛
NON. LOCK MASK
WIDTH . .|…. 10
HEIGHT ..|…. 10
PAN POSI ∙∙∙∙|∙∙∙∙ 0
TILT POSI ∙∙∙∙|∙∙∙∙ 0
ZOOM POSI ←W T →
MASK RESET OFF
RETURN 」
INT.LOCK MASK
WIDTH .|…… 10
HEIGHT ..|…… 10
ZOOM POSI ←W T →
MASK RESET OFF
RETURN 」

3 CAMERA SETUP
3.3.3 Setup - Menu Operation
Press the key MENU for opening the OSD setup menu.
The screen shows the main setup menu.
SETUP
1. FOCUS 」
2. EXPOSURE 」
3. WHITE BAL ATW / AWB / PWB」/ MWB」 / IWB / OWB
4. D-WDR/BLC OFF / D-WDR」 / BLC」 / HSBLC」
5. DAY&NIGHT AUTO」 / COLOR / BW / EXTERNAL
6. IMAGE 」
7. SPECIAL 」
8. RESET OFF / ON」
9. EXIT 」
NEAR / FAR
TELE / WIDE
The keys T / W move the cursor vertical between the rows, changing
parameters and values is done by the FOCUS - keys N / F.
The character 」indicates a sub-menu.
The F key is used for conrming settings (ENTER) and for opening sub-
menus.
In sub-menus the line RETURN is used for exit and return to main menu.
The OSD menu can be closed in any position by MENU key.
Attention: If MENU key is used for exit of a menu page, all changes in
settings are cancelled.
For saving the changes go to the last row and conrm
with F (right) - key.
15
MENU

3 CAMERA SETUP
3.3.3.1 FOCUS
FOCUS
FOCUS MODE
ZOOM START
ZOOM STOP
ZOOM SPEED
D-ZOOM
MIN. DIST
RETURN
AUTO/INTERVAL」/ZOOM TRIG/MANUAL
...l... 1 ~ 22
...l... 1 ~ 264
SLOW / NORMAL / FAST / V.FAST
OFF / ON
1CM/10CM/50CM/1M/2M/3M/5M/10M/INF
」
FOCUS MODE Focus operation mode
AUTO Auto focus permanent on.
INTERVAL The focus will be checked in intervals in the range 3~255 s
(setup in line INTERVAL) for a dened duration (3 ~255s,
setup in line RUN TIME).
ZOOM TRIG The auto focus function is active at each change of zoom
position. After focussing the auto focus function is switched
off.
MANUAL Manual focus adjustment.
ZOOM START Start position of zoom lens, adjustable 1~22
ZOOM STOP End position of zoom lens, adjustable 1~22
ZOOM SPEED Zoom speed, adjustable in 4 steps
D-ZOOM Digital zoom on / off
MIN. DIST Minimum object distance, adjustable in range 1cm to
endless (INF)
AF RUN TIME see FOCUS MODE: INTERVAL
INTERVAL see FOCUS MODE: INTERVAL
16

3 CAMERA SETUP
3.3.3.2 EXPOSURE
EXPOSURE
SHUTTER
IRIS
AGC
BRIGHTE
MAX. AGC
MAX. FIELD
RETURN
256FLD / ... / 2FLD / AUTO / OFF / FLK / ... / 1 / 100000
AUTO / MANUAL」
AUTO / MANUAL」
···l··· 1 ~ 100
OFF / LOW / MIDDLE / HIGH / SUTTER
OFF / 2FLD / 4FLD / ... / 256FLD
」
SHUTTER AUTO: Automatic shutter
FLK: Flickerless mode
1:160~1/100.000: Manual shutter speed
2~256FLD: Fixed value for Digital Slow Shutter
IRIS AUTO: Automatic lens control
MANUAL: Manual lens control (setup in line IRIS LEVEL)
AGC AUTO: Automatic gain control
MANUAL: Manual gain control (setup in line AGC LEVEL)
IRIS LEVEL Adjustment of lens level in lens mode MANUAL
AGC LEVEL Gain adjustment in AGC mode MANUAL
BRIGHT Adjustment of image brightness
MAX AGC Max. gain value of AGC in AGC mode AUTO
MAX FIELD Adjustment of max. value of DSS (Digital Slow Shutter)
2~256FLD (Field)
17

3 CAMERA SETUP
3.3.3.3 White Balance
WHITE BAL
MODE ATW
PUSH -
RED -
BLUE -
RETURN 」
MODE Operation mode of white balance
ATW: Automatic White Balance in temperature range
5500°K to 6000°K
AWB: Automatic White Balance in temperature range
2500°K to 10000°K
INDOOR: Preset setting for indoor applications
OUTDOOR: Preset setting for outdoor applications
PUSH: One-time, manual started white adjustment, start in
line PUSH
MANUAL: Manual white balance
PUSH ON: Start of white adjustment in mode PUSH
RED In WB - mode "MANUAL" adjustment of RED - level
BLUE In WB - mode "MANUAL" adjustment of BLUE - level
18

3 CAMERA SETUP
3.3.3.4 D-WDR/BLC
D-WDR / BLC
MODE D-WDR
LEVEL ···l··· 9
AREA -
DISP. MODE -
RETURN 」
Mode: D-WDR Digital Wide Dynamic Range for balancing strong light
differences in scenery
Level Adjustment of WDR level
D-WDR / BLC
MODE BLC
LEVEL MIDDLE
AREA 」
DISP. MODE -
RETURN 」
BLC AREA
H. START 3
V. START 2
WIDTH 2
HEIGHT 3
RETURN 」
Mode: BLC Back Light Compensation, dark objects enclosed with
backlight will be brightened.
Level Compensation level in 3 steps
Area Adjustment of area for BLC
H.START: Position of 1. eld of area from left (0~7)
V.START: Position of 1. eld of area from top (0~7)
WIDTH: horizontal size of the area in elds (0~7)
HEIGHT: vertical size of the area in elds (0~7)
19

3 CAMERA SETUP
D-WDR / BLC
MODE HSBLC
LEVEL ···l··· 4
AREA 」
DISP. MODE ALL DAY
RETURN 」
Mode: HSBLC Highlight suppression, strong light sources (e.g. car lamps)
will be blacked out in image
Level Sensitivity trigger level in 10 steps
Area Adjustment of monitored area for HSBLC in a grid 8x8
H.START: Position of 1. eld of area from left (0~7)
V.START: Position of 1. eld of area from top (0~7)
WIDTH: horizontal size of the area in elds (0~7)
HEIGHT: vertical size of the area in elds (0~7)
DISP.MODE ALL DAY: HSBLC is always on
NIGHT: HSBLC only active in night mode
20
