evertz 7700 Series User manual

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0
TABLE OF CONTENTS
1. OVERVIEW.......................................................................................................................................... 1
2. INSTALLATION................................................................................................................................... 4
2.1. AES AUDIO AND AUXILLIARY I/O............................................................................................ 5
2.1.1. Connecting the AES Outputs.......................................................................................... 6
2.1.2. Connecting the RS232/422 Serial Data Port................................................................... 6
2.1.3. Connecting the GPI Inputs and GPO Outputs................................................................. 6
2.2. INSTALLING THE BULKHEAD BREAKOUT PANEL ............................................................... 7
2.2.1. Connecting the Breakout Panel AES Outputs................................................................. 8
2.2.2. Connecting the Breakout Panel RS232/422 Serial Data Port......................................... 8
2.2.3. Connecting the Breakout Panel GPI Inputs and GPO Outputs....................................... 9
2.3. CARE AND HANDLING OF OPTICAL FIBER............................................................................ 9
2.3.1. Safety.............................................................................................................................. 9
2.3.2. Assembly......................................................................................................................... 9
2.3.3. Labeling......................................................................................................................... 10
2.3.4. Handling and Connecting Fibers................................................................................... 10
3. SPECIFICATIONS............................................................................................................................. 11
3.1. OPTICAL INPUT/OUTPUT....................................................................................................... 11
3.2. SERIAL VIDEO OUTPUTS....................................................................................................... 11
3.3. AES AUDIO OUTPUTS ............................................................................................................ 12
3.4. SERIAL DATA PORT ............................................................................................................... 12
3.5. GENERAL PURPOSE INPUTS................................................................................................ 12
3.6. GENERAL PURPOSE OUTPUTS............................................................................................ 12
3.7. SYSTEM PERFORMANCE ...................................................................................................... 12
3.8. ELECTRICAL ........................................................................................................................... 13
3.9. PHYSICAL................................................................................................................................ 13
3.10. COMPLIANCE:............................................................................................................................. 13
4. STATUS INDICATORS AND DISPLAYS ......................................................................................... 14
4.1. STATUS INDICATOR LEDS..................................................................................................... 14
4.2. DOT-MATRIX DISPLAY........................................................................................................... 14

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0
4.2.1. Displaying the Link Activity............................................................................................ 15
4.2.2. Setting the Headphone Jack Channel........................................................................... 15
4.2.3. Displaying the Optical power......................................................................................... 15
4.2.4. Displaying the Video Standard...................................................................................... 16
4.2.5. Displaying the Audio Sample Rate................................................................................ 16
4.2.6. Displaying the Serial Data Activity................................................................................. 16
4.2.7. Displaying the State of the General Purpose Outputs................................................... 17
4.2.8. Displaying the State of the General Purpose Inputs ..................................................... 17
4.2.9. Setting the Orientation of the LED Display.................................................................... 17
4.2.10. Displaying the Firmware Version................................................................................... 17
5. CARD EDGE CONTROLS ................................................................................................................ 18
5.1. MONITORING THE AES AUDIO .............................................................................................. 18
5.2. DIP SWITCHES ........................................................................................................................18
5.2.1. Controlling the Action on Loss of Video Signal ............................................................. 18
5.2.2. Setting the AES Sample Rate....................................................................................... 19
5.2.3. Disabling the Audio SoftSwitch™ Feature .................................................................... 19
6. JUMPERS.......................................................................................................................................... 20
6.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED
BY THE GLOBAL FRAME STATUS ........................................................................................ 21
6.2. SELECTING WHETHER MODULE WILL BE CONTROLLED FROM THE
LOCAL CONTROLS OR THROUGH THE VISTALINK
®
INTERFACE ...................................... 21
6.3. SELECTING THE DATA COMMUNICATIONS STANDARD (RS-232 OR RS-422)................. 21
6.3.1. Configuring RS422 Device Communication between a Controller and Tributary.......... 21
6.4. SELECTING THE DEFAULT BEHAVIOUR OF THE INPUTS WHEN THERE IS NO SIGNAL
CONNECTED ........................................................................................................................... 22
6.5. SELECTING THE OUTPUT VIDEO STANDARD ON LOSS OF VIDEO SIGNAL.................... 22
6.6. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES.............................................. 23
6.7. SELECTING THE AES OUTPUT IMPEDANCE ....................................................................... 23
6.8. SETTING THE AES OUTPUT LEVEL ...................................................................................... 23
6.9. SELECTING THE GPI PULLUP VOLTAGE ............................................................................. 23
6.10. SELECTING NORMALLY OPEN OR CLOSED GPOS ............................................................ 24
7. VISTALINK
®
REMOTE MONITORING/CONTROL........................................................................... 25
7.1. WHAT IS VISTALINK
®
?............................................................................................................... 25
7.2. VISTALINK
®
MONITORED PARAMETERS .............................................................................. 26

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0
7.3. VISTALINK
®
CONTROLLED PARAMETERS ........................................................................... 27
Figures
Figure 1-1: 7707MR (-F2) Block Diagram.............................................................................................................3
Figure 2-1: 7707MR Rear Panels..........................................................................................................................4

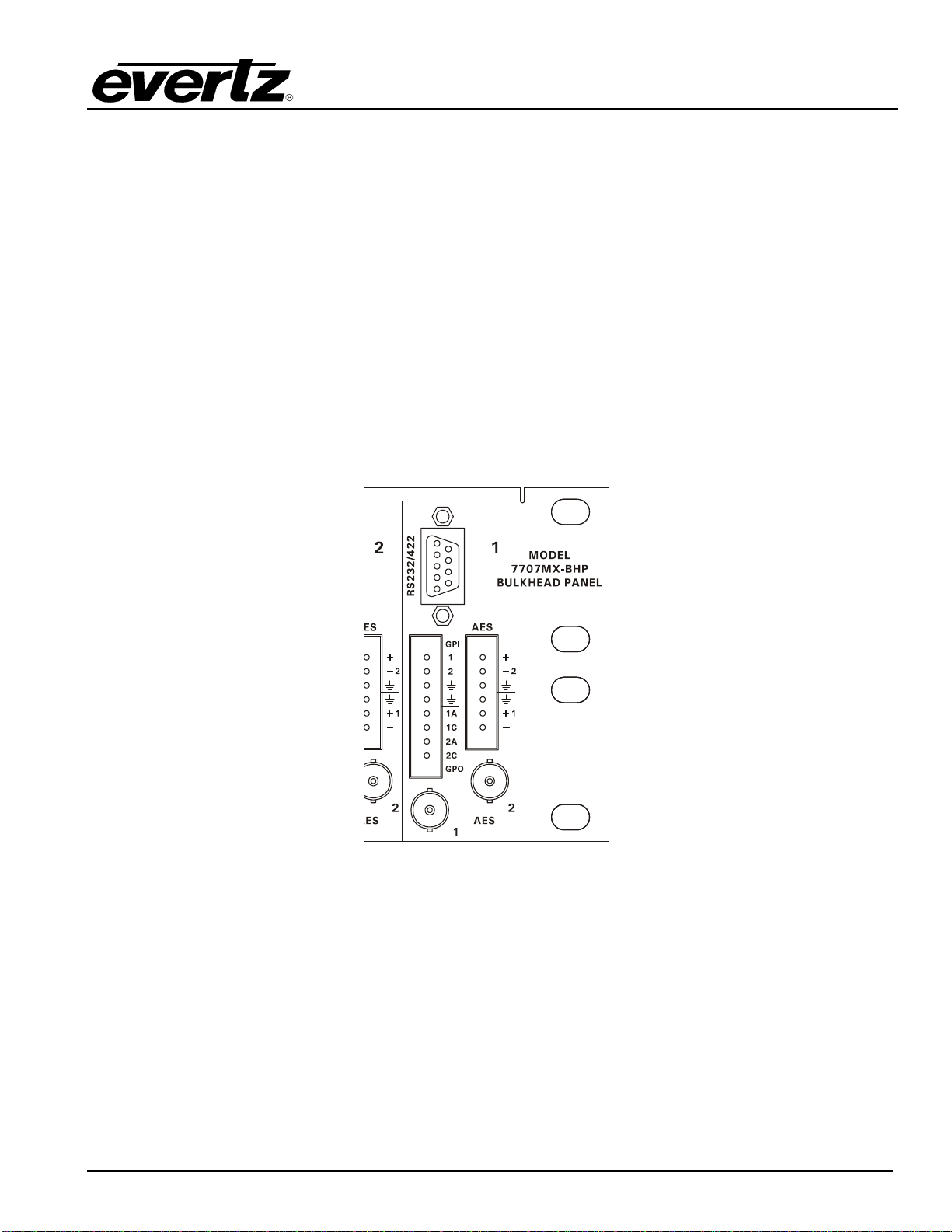

Figure 2-2: Breakout Panel for Wiring Connections..............................................................................................7

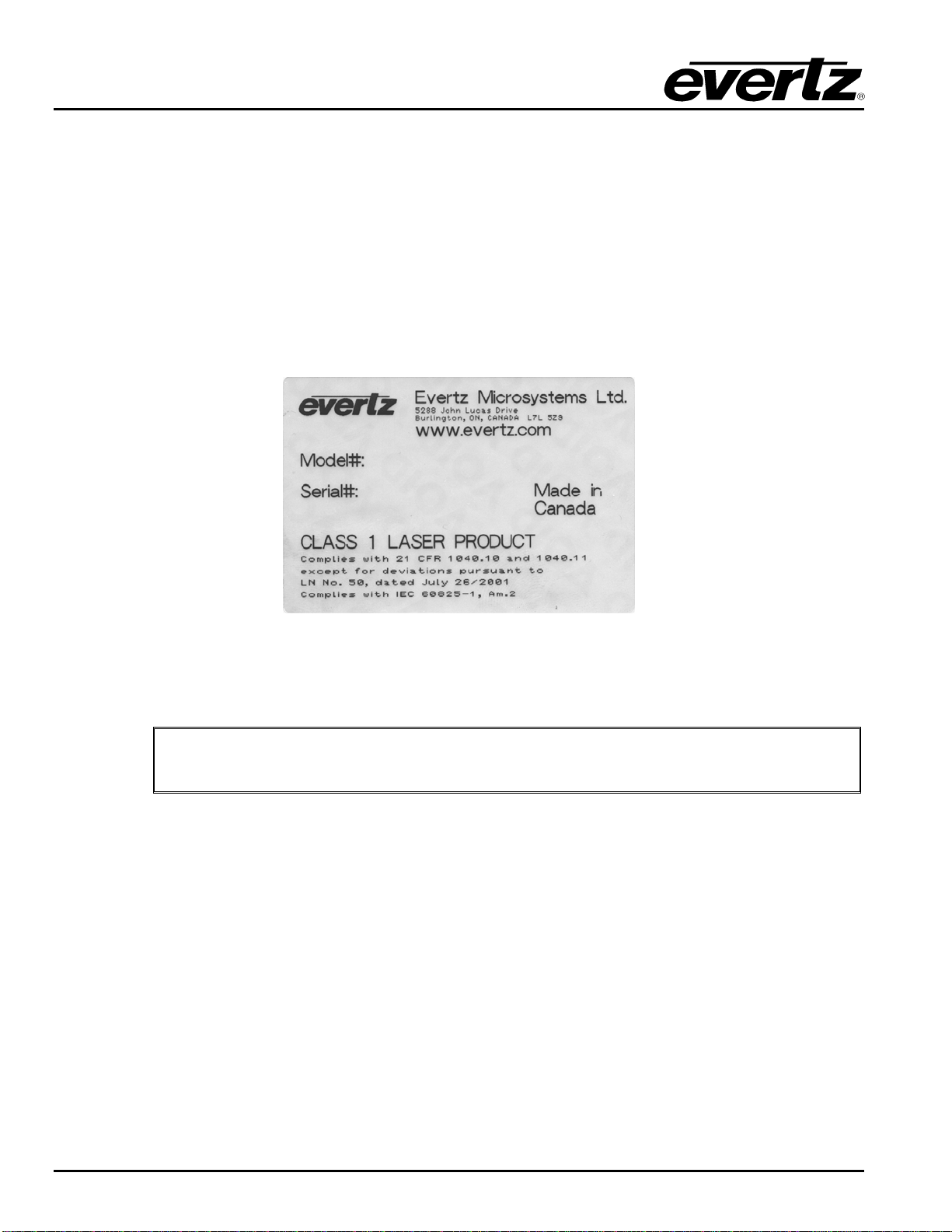

Figure 2-3: Reproduction of Laser Certification and Identification Label............................................................10
Figure 6-1: Location of Jumpers – I/O Module....................................................................................................20
Figure 6-2: Location of Jumpers – Main Module.................................................................................................20
Figure 6-3: Receiver Input Pull-up Configuration................................................................................................22
Figure 6-4: GPI Input Circuitry.............................................................................................................................24
Figure 6-5: Selecting Normally Open or Closed GPO Configuration..................................................................24
Figure 6-6: I/O Jumper Settings..........................................................................................................................24
Tables
Table 1-1: Typical Application Configurations.......................................................................................................2
Table 2-1: AUDIO and AUX I/O Connector Pin Definitions...................................................................................5
Table 2-2: Breakout Panel RS232/422 Connector Pin Definitions........................................................................8
Table 5-1: DIP Switch Functions.........................................................................................................................18
Table 5-2: Loss of Video Switch Settings............................................................................................................18
Table 5-3: AES Sample Rate Switch Settings ....................................................................................................19
Table 5-4: SoftSwitch™ Settings.........................................................................................................................19
Table 7-1: VistaLINK
®
Monitored Parameters.....................................................................................................26
Table 7-2: VistaLINK
®
Controlled Parameters ....................................................................................................27

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 Preliminary Version Sep 01
1.1 First Release Oct 01
1.2 Rear panel changed, Jumper numbers updated, general cleanup Mar 02
1.3 Added sections on Breakout Panel, updated Jumper information Apr 02
Corrected pin designations on DB15
1.4 Support for separate monitoring of AES1 and AES2 Jun 02
1.4.1 Added section on configuring RS422 communications as Controller/Tributary Dec 02
Added 8 new CWDM wavelengths
1.5 Corrected Jumper designations on Figure 4 Jan 03
1.6 Added Applications Configuration Table Aug 03
1.7 Added –W version. Fixed errors in Application Config Chart Jun 04
1.8 Updated safety section and added assembly and labeling sections July 05
1.9 Updated VistaLINK
®
description and fixed format Jun 08
2.0 Updated features & specs. General format cleanup. Nov 08
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The only warranty offered
by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0
WARNING
Never look directly into an optical fiber. Non-reversible damage to the eye can
occur in a matter of milliseconds.
"
Do not hook up the 7707MR DWDM cards directly with a short fiber optic
cable. The 7707MR DWDM cards produce +7dBm of power which will
damage the receiver if connected directly.

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0
This page left intentionally blank

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0 7707MR-1
1. OVERVIEW
The 7707MR Multi-Signal Fiber Receiver is a VistaLINK
®
enabled fiber optic receiver for SDI Video, AES
Audio, RS422 control, and GPIO. This single card module demultiplexes one uni-directional SDI Video
plus two uni-directional AES Audio plus one bi-directional RS422 plus two bi-directional GPI’s and GPO’s
that have been Time Domain Multiplexed (TDM) by the companion 7707MT Multi-Signal Fiber Transmitter
module. Evertz’s patent pending SoftSwitch™ technology is applied to the received signal to ensure
virtually glitch free AES Audio output signals when upstream SDI or AES feeds are switched.
The 7707MR and companion 7707MT will transparently pass incoming SDI video feeds with embedded
AES audio or any other data in the horizontal or vertical ancillary data space. Minimal Audio to Video
latency over the transport interface is also achieved.
The 7707MR occupies one card slot and can be housed in either a 1RU frame, which will hold up to three
modules, or a 3 RU frame, which will hold up to 15 modules.
Features:
•SDI Video, 2 AES Audio, 1 bi-directional RS-232/422 and 2 GPI/O fiber optic receiver
•Supports 525 or 625 line 4:2:2 component SDI signals
•Supports SDTi signals
•Supports 32, 44.1, 48kHz AES audio
•Dolby-E™ compatible
•Supports bi-directional RS-422 rates up to 3Mb/s
•Incorporates Evertz SoftSwitch™ (Patent Pending) technology for virtually glitch-free AES Audio
outputs when upstream SDI or AES feeds are switched
•User selectable SoftSwitch™ bypass
•Minimal Audio to Video latency
•Output AES "Mute" on loss of fiber optic input signal or AES feed to upstream 7707MT multiplexer
•Output Video "Black" or "Blue" (selectable) on loss of video input signal
•Signal transport over fiber uninterrupted by loss of input SDI, AES, Serial Data or GPIO feeds
•SDI video regeneration for jitter removal
•Comprehensive signal and card status monitoring via four digit card edge display or remotely through
SNMP and VistaLINK
®
•VistaLINK
®
capability is available when modules are used with the 3RU 7700FR-C or 350FR portable
frame and a 7700FC VistaLINK
®
Frame Controller module in slot1 of the frame
•Local display of optical signal strength, video, audio and data presence, video and AES formats, EDH
errors, GPI and GPO status
•Fully hot-swappable from front of frame with no fiber disconnect/reconnect required
•Bi-directional optical input/output
•Accepts any wavelength in the 1270nm to 1610nm range
•Optical output wavelengths of 1310nm, 1550nm, and up to sixteen CWDM wavelengths (ITU-T
G.694.2 compliant)
•DWDM wavelengths (ITU-T G.694.1 compliant) also available
• Supports single-mode and multi mode fiber optic cable

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
7707MR-2 Revision 2.0
Different versions of the 7707MR allow the user to choose the optimal function / price / performance ratio
to suit a particular application. Versions with no suffix are the lowest cost, but have higher insertion losses
as they receive and transmit on the same wavelength (1310nm) over a single fiber. The W versions are
designed to receive (15500nm) and transmit on different wavelengths (1310nm) over a single fiber and
have a lower insertion loss. The F2 versions have the lowest insertion loss and are designed to receive
and transmit over separate fibers.
The following chart shows some typical applications and power budget calculations for the 7707MR:
Transmit Side Receive Side
Fiber
Type Fibers
Optical/Link
Budget Ordering
Product Info TX Power Ordering Product Info RX Sensitivity Description
Multi-Mode 2 < 3km 7707MR13-F2 -7dBm 7707MT13-F2 -28dBm 1310nm on Tx & Rx fibers
Single-
Mode 2 21dB/60km 7707MR13-F2 -7dBm 7707MT13-F2 -28dBm 1310nm on Tx & Rx fibers
Single-
Mode 1 14dB/40km* 7707MR13 -10dBm 7707MT13 -24dBm
1310nm, bi-directional, one
fiber
Single-
Mode 1(WDM) 25dB/71km 7707MR13M-W -1dBm 7707MT15-W -26dBm 1310nm/1550nm, WDM,
bi-directional on one fiber
Single-
Mode 1(CWDM) 24dB/96km** 7707MRyy-F2 0dBm 7707MTxx-F2 -28dBm
Different CWDM
wavlenghts on Tx & Rx,
with 8 channel CWDM
Mux/Demux**
Single-
Mode 1(DWDM) 30dB/105km** 7707MRDyyy-F2 +7dBm 7707MTDxxx-F2 -28dBm
Different DWDM
wavlenghts on Tx & Rx,
with 8 channel DWDM
Mux/Demux**
*With >20dB return loss on fiber Interface Tx Power/Rx Sensitivity are nominal values ±1dBm
**Assume 8 Ch CWDM Mux/Demux loss of 3.5dB Fiber Loss = 0.35/0.25dB per km @1310nm/1550nm
*** Assume 8 Ch DWDM Mux/Demux loss of 5dB
Table 1-1: Typical Application Configurations

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0 7707MR-3
Data
Clock
Data
Alignment
Input
Receivers
Output
Drivers
AES Audio
Reclocker
RS422
GPO 1
GPO 2
AES 1
AES 2
RS422
GPI 1
GPI 2
De-
mux
MUX
TDM
Demux
TX/RX
Interface
CONTROL/
INDICATION
Vista LINK®
Interface
LOCAL
CONTROL
LOCAL
INDICATION
SDI Video
Output
SDI Video
Output
(Dual Fiber -F2 Version)
Fiber
Input/
Output
Fiber
Input
Fiber
Output
(Dual Fiber -F2Version)
Optical
Transmitter
Optical
Receiver
(Single Fiber Version)
Optical
Combiner
Figure 1-1: 7707MR (-F2) Block Diagram

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
7707MR-4 Revision 2.0
2. INSTALLATION
The 7707MR comes with a companion rear plate that has two BNC connectors, one high-density female
DB15 connector and one SC/PC, SC/PC with cover (shown), ST/PC or FC/PC optical connector. For
information on mounting the rear plate and inserting the module into the frame see the 7700FR chapter
section 3.
Figure 2-1: 7707MR Rear Panels
SDI OUTPUT: Two BNC outputs for reclocked serial digital component video signals, compatible
with the SMPTE 259M standard.
Single Fiber Version
OPTICAL I/O: There is one SC/PC, SC/PC with cover (shown), ST/PC or FC/PC female connector.
This wide range I/O accepts optical wavelengths of 1270nm to 1610nm,
accommodating standard or CWDM transmission schemes. This connector also
serves as the optical output for the bi-directional Serial Data and GPI/O signals.

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0 7707MR-5
Dual Fiber (-F2) Version
FIBER IN: There is one SC/PC (shown), ST/PC or FC/PC female connector with the optical input
to the module. This connector should be connected to the FIBER OUT connector of a
dual fiber 7707MT module at the destination end with a suitable fiber optic cable. The
dual fiber 7707MR versions receive on wavelengths in the 1270 to 1610nm range.
FIBER OUT: There is one SC/PC (shown), ST/PC or FC/PC female connector with the optical output
from the module. This connector should be connected to the FIBER IN connector of a
dual fiber 7707MT module at the destination end with a suitable fiber optic cable. The
dual fiber 7707MR versions transmit on the wavelength marked on the rear panel and
are designed to work with either single-mode or multi-mode fiber optic cable.
2.1. AES AUDIO AND AUXILLIARY I/O
A 15 pin High Density D connector labeled AES OUT/RS422/GPIO contains 2 AES Audio outputs, a bi-
directional Serial Data port, 2 GPI inputs and 2 GPO relay contact outputs.
Pin
# Name Description
1 GPO2A General Purpose Output 2 Contact
2 GPI2 General Purpose Input 2
3 GPO1A General Purpose Output 1 Contact
4 AES1- Balanced AES1 - Output
5 AES1+ Balanced AES1 + Output
6 GPI1 General Purpose Input 1
7 GPO2C General Purpose Output 2 Common
8 GPO1C General Purpose Output 1 Common
9 SOUT1(-) RS232 Port 1 Transmit out or RS422 Transmit - out
10 SOUT2(+) RS232 Port 2 Transmit out or RS422 Transmit + out
11 GND Signal Ground
12 SIN1(-) RS232 Port 1 Receive In or RS422 Receive – in
13 SIN2(+) RS232 Port 2 Receive In or RS422 Receive + in
14 AES2- Balanced AES2 - Output
15 AES2+ Balanced AES2 + Output
Table 2-1: AUDIO and AUX I/O Connector Pin Definitions

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
7707MR-6 Revision 2.0
2.1.1. Connecting the AES Outputs
AES OUTPUT: 4 Pins on DB15 connector are used to carry balanced AES audio outputs for channels
1&2 (AES 1) and 3&4 (AES 2) of an audio group. Each output occupies two pins (+, -)
on the DB15 with a shared GND pin. AES outputs are available with SoftSwitch™
technology to provide virtually glitch-free audio outputs when upstream AES audio
sources are switched.
For Balanced AES signals connect to the respective + and – pins and the shared GND
pin. The AES Term Jumpers J30 and J31 must be set to the 110 position for proper
source impedance of the balanced AES outputs. The AES LEVEL jumpers J28 and J29
must also be set to the HI position for balanced AES signal levels of 5 volts.
For Unbalanced AES signals connect to the AES+ output pin with the ground connected
to the AES- output pin. The AES Term Jumpers J30 and J31 must be set to the 75
position for proper source impedance of the unbalanced AES outputs. The AES LEVEL
jumpers J28 and J29 must also be set to the LO position for unbalanced AES signal
levels of 1 volt.
2.1.2. Connecting the RS232/422 Serial Data Port
RS232/422: 4 Pins on DB15 connector are used for a bi-directional serial data port conforming to
RS422 signal levels when the SERIAL jumper is set to the RS422 position. When the
SERIAL Jumper is set to the RS232 position these pins are configured as two RS-232
bi-directional serial data ports. See section 6.3 and 6.3.1 for information on configuring
the serial data port.
2.1.3. Connecting the GPI Inputs and GPO Outputs
GPI’s: 2 pins on the DB 15 connector are used for two General Purpose inputs (GPI). The
GPIs are active low with an internal pull-up resistor to +5V or +12V. The user can
activate GPIs simply by connecting the GPI input pins to Ground. This can be done
with a button, switch, relay or an open collector transistor. See section 6.9 for
information on selecting the pull-up voltage.
GPO’s: 4 pins on the DB15 connector are used for two General Purpose Outputs (GPO). Each
GPO output can be configured as a normally open or normally closed relay contact pair.
They can be used to pass simple contact closure information along with the video
signal. See section 6.10 for information on setting the jumpers for normally open or
closed contacts.

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0 7707MR-7
2.2. INSTALLING THE BULKHEAD BREAKOUT PANEL
The 7707MX-BHP Bulkhead breakout panel is an accessory that provides the user with a convenient way
of connecting the audio, RS232/422 and GPIO signals into the HD DB-15 connectors on the rear of the
modules. This panel occupies 2 rack units of rack space and is designed for mounting at the rear of the
user’s rack panel. The breakout panel can be used to connect any combination of up to fifteen 7707MT or
7707MR modules. Each of the fifteen sets of connectors on the breakout panel is fitted with two BNCs for
unbalanced AES audio in or out (not on –B version of breakout panel), one six position terminal strip for
balanced AES audio in or out, one eight position terminal strip for the GPIO signals and one 9 pin female
D connector for the RS-232/422 signals. Figure 2-2 shows one section of the breakout panel. On the rear
of the breakout panels are fifteen male HD DB-15 connectors.
To connect the module to the breakout panel, connect the 15 pin extender cables supplied with the
breakout panel between the 15 pin female D connector on the rear of the module and the appropriate D
connector on the breakout panel. Make sure to secure the connectors with the screws supplied. The
balanced AES audio and GPIO cables can be secured into the removable portion of the terminal strips
using a small screwdriver. The removable part of the terminal strip is then inserted into the breakout panel
and secured using the two hold-down screws.
Figure 2-2: Breakout Panel for Wiring Connections

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
7707MR-8 Revision 2.0
2.2.1. Connecting the Breakout Panel AES Outputs
BALANCED AES OUTPUTS: For Balanced AES signals connect the + and – signals to the
respective output pins on the AES terminal strip. The AES Term
Jumpers J30 and J31 must be set to the 110 position for proper
source impedance of the balanced AES outputs. The AES LEVEL
jumpers J28 and J29 must also be set to the HI position for balanced
AES signal levels of 5 volts.
UNBALANCED AES OUTPUTS: The AES1 and AES 2 BNCs provide unbalanced AES outputs from
the 7707MR. The AES Term Jumpers J30 and J31 must be set to
the 75 position for proper source impedance of the unbalanced AES
outputs. The AES LEVEL jumpers J28 and J29 must also be set to
the LO position for unbalanced AES signal levels of 1 volt.
2.2.2. Connecting the Breakout Panel RS232/422 Serial Data Port
RS232/422: A 9 pin female D connector is used for a bi-directional serial data port
conforming to RS422 signal levels when the SERIAL jumper is set to
the RS422 position. When the SERIAL Jumper is set to the RS232
position this connector is configured as two RS-232 bi-directional
serial data ports. The pin descriptions of the RS232/422 connector
are shown for both RS-232 and RS-422 jumper settings. Please
refer to section 6.3 and 6.3.1 for information on configuring the serial
data port.
Pin # RS232 Pin Function RS422 Pin Function
1 Ground Ground
2 RS-232 Port 1 Tx Output RS-422 Tx-(a) Output
3 RS-232 Port 2 Rx Input RS-422 Rx+(b) Input
4 Ground Ground
5 n/c n/c
6 Ground Ground
7 RS-232 Port 2 Tx Output RS-422 Tx+(b) Output
8 RS-232 Port 1 Rx Input RS-422 Rx-(a) Input
9 Ground Ground
Table 2-2: Breakout Panel RS232/422 Connector Pin Definitions

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0 7707MR-9
2.2.3. Connecting the Breakout Panel GPI Inputs and GPO Outputs
GPI’s: The four top pins on the 8 pin terminal strip are used for two General Purpose inputs (GPI). The
GPIs are active low with an internal pull-up resistor to +5V or +12V. The user can activate
GPIs simply by connecting the GPI input pins to one of the ground pins provided. This can be
done with a button, switch, relay or an open collector transistor. Please refer to section 6.9 for
information on selecting the pull-up voltage.
GPO’s: The four bottom pins on the 8 pin terminal strip are used for two General Purpose Outputs
(GPO). Each GPO output can be configured as a normally open or normally closed relay
contact pair. They can be used to pass simple contact closure information along with the video
signal. Please refer to section 6.10 for information on setting the jumpers for normally open or
closed contacts.
2.3. CARE AND HANDLING OF OPTICAL FIBER
2.3.1. Safety
!
CLASS 1 LASER PRODUCT
Background colour: yellow
Triangular band: black
Symbol: black
2.3.2. Assembly
Assembly or repair of the laser sub-module is done only at Evertz facility and performed only by qualified
Evertz technical personnel.

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
7707MR-10 Revision 2.0
2.3.3. Labeling
Certification and Identification labels are combined into one label. As there is inadequate space on the
product to place the label, it is reproduced here in the manuals.
•There is no date of manufacture on this label as it can be traced by the bar code label placed on
the printed circuit board of each Evertz plug-in module
•The Model number is one of: 7707MR13, 7707MR13M-W, 7707MR13-F2
7707MRxx, (xx = 27, 29, 31, 33, 35, 37, 43, 45, 47, 49, 51, 53, 55, 57, 59, 61)
7707MRDyyy (Dyyy represents ITU Grid Channel: D200, D210, D220, D230, D240, D250, D260,
D270, D280, D290, D300, D310, D320, D330, D340, D350, D360, D370, D380, D390, D400,
D410, D420, D430, D440, D450, D460, D470, D480, D490, D500, D510, D520, D530, D540,
D550, D570, D580, D590, D600)
Figure 2-3: Reproduction of Laser Certification and Identification Label
2.3.4. Handling and Connecting Fibers
"
Never touch the end face of an optical fiber. Always keep dust caps on optical fiber
connectors when not connected and always remember to properly clean the optical
end face of a connector before making a connection.
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore
care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz
recommends that the user maintains a minimum bending radius of 5 cm to avoid fiber-bending loss that
will decrease the maximum attainable distance of the fiber cable. The Evertz fiber optic modules come
with cable lockout devices, to prevent the user from damaging the fiber by installing a module into a slot in
the frame that does not have a suitable I/O module. For further information about care and handling of
fiber optic cable see section 3 of the Fiber Optics System Design section of this manual binder.

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0 7707MR-11
3. SPECIFICATIONS
3.1. OPTICAL INPUT/OUTPUT
Number: 1 (Single fiber version)
2 (Dual fiber - F2 version)
Connector: Female SC/PC, ST/PC or FC/PC
Return Loss: > 20dB
Rise and Fall Time: 200ps nominal
Max. Input Power: 0 dBm
Input Wavelengths: 1270nm-1610nm
Input Optical Sensitivity:
WDM (-w version): -26dBm
Standard: -28dBm
Output Jitter: < 0.2 UI
Wavelengths:
Standard: 1310nm, 1550nm
CWDM: 1270nm - 1610nm
DWDM: C-Band (ITU-T G.694.1 compliant)
Output Power:
1310nm FP: -7dBm ±1dBm
1310nm (-W): -1dBm ±1dBm
1550nm, CDWM (DFB): 0dBm ± 1dBm
DWDM (DFB): +7dBm ± 1dBm
3.2. SERIAL VIDEO OUTPUTS
Number of Outputs: 2 regenerated (1 output on –F2 versions)
Standard: SMPTE 259M-C
Connector: 1 BNC per IEC 61169-8 Annex A
Signal Level: 800mV nominal
DC Offset: 0V ±0.5V
Rise and Fall Time: 900ps nominal
Overshoot: < 10% of amplitude
Return Loss: > 15 dB at 270 Mb/s
High Freq. Jitter: < 0.15UI

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
7707MR-12 Revision 2.0
3.3. AES AUDIO OUTPUTS
Standard
Unbalanced AES: SMPTE 276M
Balanced: AES3-1992
Other: Dolby-E™ compatible
Number of Outputs: 2 regenerated (Jumper selectable for balanced or unbalanced)
Connector: 4 pins on female high density DB-15
Signal Level: Unbalanced - 1V p-p, Balanced - 5V p-p
Resolution: Up to 24 bits
Sampling Rate: 32, 44.1, 48kHz
Intrinsic Jitter: < 20ns
Impedance: Unbalanced - 75Ω
Balanced - 110Ω
3.4. SERIAL DATA PORT
Number of Ports: 1 RS-422 or 2 RS-232 – Jumper Selectable
Connector: 4 pins (plus ground) on female high density DB-15
Baud Rate: Up to 3 Mb/s RS-422 (Determined by incoming data)
3.5. GENERAL PURPOSE INPUTS
Number of Inputs: 2
Type: Opto-isolated, active low with internal pull-ups to +5 or +12V (jumper selectable)
Connector: 2 pins (plus ground) on female high density DB-15
Signal Level:
+5V Pullup: Low: -5 to +2.5 VDC, High: 3.5 to 10 VDC
+12V Pullup: Low: -5 to +9.5 VDC, High: 10.5 to 15 VDC
Max Sink Current: (input shorted to ground) 15 mA
Max Leakage Curent for Input High: 200 µA
3.6. GENERAL PURPOSE OUTPUTS
Number of Outputs: 2
Type: “Dry Contact” relay closure
Connector: 2 pins per output on female high density DB-15
Signal Level: Normally closed or normally open (jumper settable)
3.7. SYSTEM PERFORMANCE
Video Input to Output Delay: < 1.5 µs
Audio to Video delay: < 1µs with SoftSwitch™ disabled
< 2ms with SoftSwitch™ enabled

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
Revision 2.0 7707MR-13
3.8. ELECTRICAL
Voltage: +12V DC
Power: 12 Watts (Non DWDM)
14 Watts (DWDM)
3.9. PHYSICAL
7700 or 7701 frame mounting:
Number of slots: 1
3.10. COMPLIANCE:
Electrical Safety: CSA Listed to UL 60065-03, IEC 60065
Complies with CE Low voltage Directive
Laser Safety: Class 1 laser product
Complies with 24 CFR 1040.10 and 1040.11
IEC 60825-1
EMI/RFI: Complies with FCC Part 15, Class A
EU EMC directive

7700 MultiFrame Manual
7707MR Multi-Signal SDTV Fiber Receiver
7707MR-14 Revision 2.0
4. STATUS INDICATORS AND DISPLAYS
The 7707MR has 6 LED Status indicators and a 4 digit alphanumeric display on the front card edge to
show operational status of the card at a glance. The card edge pushbutton is used to select various
displays on the alphanumeric display. Figure 6-2 shows the location of the LEDs and card edge controls.
4.1. STATUS INDICATOR LEDS
Two large LEDs on the front of the board indicate the general health of the module.
LOCAL FAULT: This Red LED indicates poor module health and will be On during the absence of a
valid optical input signal, if a laser fault exists, or if a local input power fault exists
(i.e. a blown fuse). The LOCAL FAULT indication can also be reported to the frame
through the FRAME STATUS jumper.
MODULE OK: This Green LED indicates good module health. It will be On when a valid optical
input signal is present, and the laser and board power are good.
There are four small LEDs on the back of the board that indicate the presence of video, audio and data in
the input signal.
VIDEO PRESENT: This Green LED indicates the presence of a valid input video signal on the optical
input.
AES1 PRESENT: This Green LED indicates the presence of a valid AES1 signal on the optical input.
AES2 PRESENT: This Green LED indicates the presence of a valid AES2 signal on the optical input.
DATA ACTIVITY: This Green LED indicates the presence of a Serial Data activity on the optical input.
4.2. DOT-MATRIX DISPLAY
Additional signal and status monitoring is provided via the 4-digit dot-matrix display located on the card
edge. The card edge toggle switch is used to select which data is being displayed in the alphanumeric
display. Each time the toggle switch is pressed up/down, the display advances to the next/previous
display. A message indicating what display mode is active is shown for one second. After one second
without the toggle switch being pressed, the selected display data is shown. The card edge pushbutton is
used to select sub-items where applicable.
