evertz 7700 Series User manual

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4
TABLE OF CONTENTS
1. OVERVIEW.......................................................................................................................................... 1
2. INSTALLATION................................................................................................................................... 4
2.1. OPTICAL CONNECTIONS......................................................................................................... 4
2.2. SIGNAL CONNECTIONS........................................................................................................... 5
2.3. BNC CONNECTIONS................................................................................................................. 6
2.4. CARE AND HANDLING OF OPTICAL FIBER............................................................................ 6
2.4.1. Safety.............................................................................................................................. 6
2.4.2. Assembly......................................................................................................................... 6
2.4.3. Labeling........................................................................................................................... 6
2.4.4. Handling and Connecting Fibers..................................................................................... 7
3. SPECIFICATIONS............................................................................................................................... 8
3.1. ANALOG VIDEO OUTPUTS....................................................................................................... 8
3.2. DIGITAL VIDEO OUTPUTS........................................................................................................ 8
3.3. DIGITAL VIDEO CONTROL....................................................................................................... 8
3.4. ANALOG AUDIO OUTPUTS (A2 &A2KM VERSIONS)................................................................ 8
3.5. KEYBOARD/MOUSE INPUT/OUTPUT (A2KM VERSIONS)......................................................... 9
3.6. SERIAL PORT (A2KM VERSIONS)............................................................................................... 9
3.7. USB PORT (USB VERSIONS)....................................................................................................... 9
3.8. OPTICAL INPUT......................................................................................................................... 9
3.9. COAXIAL INPUT (- C2, -C2 VERSIONS)....................................................................................... 9
3.10. OPTICAL OUTPUT..................................................................................................................... 9
3.11. COAXIAL OUTPUT (-C2 VERSIONS) ........................................................................................... 9
3.12. ELECTRICAL ........................................................................................................................... 10
3.13. PHYSICAL................................................................................................................................ 10
4. CARD-EDGE MONITORING AND CONTROL ................................................................................. 11
4.1. STATUS INDICATOR LEDS..................................................................................................... 12

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4
4.2. CARD-EDGE DISPLAY AND CONTROLS .............................................................................. 12
4.2.1. Card-Edge Display Warning Indications........................................................................ 14
4.2.2. Selecting the Output Sync Type (7707RGBR Models Only)......................................... 14
4.2.3. Adjusting the Headphone Jack Volume (A2 & A2KM Versions Only)........................... 14
4.2.4. Adjusting the Output Brightness (7707RGBR Models Only)......................................... 15
4.2.5. Selecting the Output Laser Enable Mode (A2KM Versions Only)................................. 15
4.2.6. Setting the Orientation of the Text on the Card Edge Display....................................... 16
4.2.7. Displaying the Video Resolution and Refresh............................................................... 16
4.2.8. Displaying the Connected Display Type (7707RGBR Models Only)............................. 16
4.2.9. Displaying the Input Video Sync Type (7707RGBR Models Only)................................ 17
4.2.10. Displaying the Input Optical Power ............................................................................... 17
4.2.11. Displaying the Firmware Version................................................................................... 17
5. JUMPER CONTROLS....................................................................................................................... 18
5.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED
BY THE GLOBAL FRAME STATUS ........................................................................................ 18
5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES.............................................. 18
6. VISTALINK
®
REMOTE MONITORING/CONTROL........................................................................... 19
6.1. WHAT IS VISTALINK
®
? ........................................................................................................... 19
6.2. VISTALINK
®
MONITORED PARAMETERS .............................................................................. 19
6.3. VISTALINK
®
CONTROLLED PARAMETERS ........................................................................... 20
Figures
Figure 1-1: 7707RGBR Block Diagram.................................................................................................................2
Figure 1-2: 7707DVIR Block Diagram...................................................................................................................3
Figure 2-1: 7707RGBR/DVIR Rear Panels...........................................................................................................4
Figure 2-2: Reproduction of Laser Certification and Identification Label..............................................................7

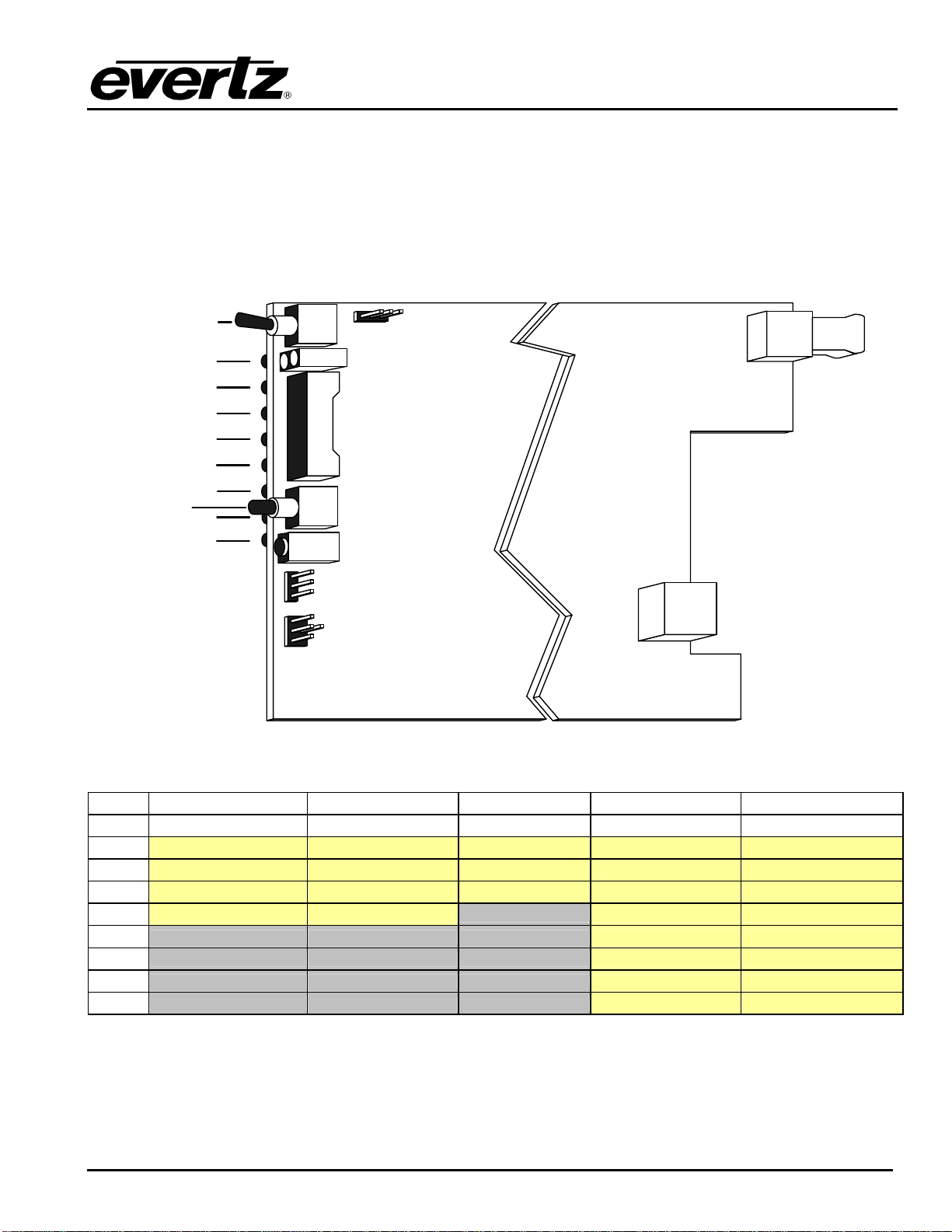

Figure 4-1: Location of Status Indicators and Jumpers ......................................................................................11
Figure 4-2: 7707RGBR/DVIR Card Edge Menu Flow Cart.................................................................................13
Tables
Table 1-1: Typical Application Configurations.......................................................................................................2
Table 4-1: LED Functionality...............................................................................................................................11
Table 6-1: VistaLINK
®
Monitored Parameters.....................................................................................................19
Table 6-2: VistaLINK
®
Controlled Parameters....................................................................................................20

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First Release Nov 04
1.1 Updated safety section and added assembly and labeling sections Aug 05
1.2 Change of 7707RGBR-A2KM-F2 part number to 7707RGBR-A2KM-USB-F2 Sept 05
1.3 Added DVIR; coaxial & G-Link options; other updates & corrections July 06
1.3.1 Added LED functionality table Mar 07
1.3.2 Fixed referencing and typos-1q April 07
1.4 Added 7707RGBR-A2-GC rear plate to Figure 2-1. Added
tables to section 4. Jan 09
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The only warranty offered
by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4
WARNING
Never look directly into an optical fiber. Non-reversible damage to the eye can
occur in a matter of milliseconds.
"
Do not hook up the 7707RGBR/DVIR DWDM cards directly with a short fiber
optic cable. The 7707RGBR/DVIR DWDM cards produce +7dBm of power
which will damage the receiver if connected directly.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4 7707RGBR/DVIR-1
1. OVERVIEW
The 7707RGBR RGB Fiber Receiver extends one digital (DVI) or analog (RGB) video display connection
over a single fiber optic link with display resolutions up to WUXGA (1920 x 1200). The DVI-I connector
combines analog and digital display technologies, promoting optimal compatibility with different display
types. Two optional analog audio outputs are also available, as well as optional serial data, USB,
keyboard, and mouse. These options facilitate complete remote computer control and display, including
the ability to connect USB peripherals. The 7707RGBR is designed to operate with a companion
7707RGBT transmitter.
The 7707DVIR provides the same features listed above, but only accepts a digital (DVI) input.
Instead of fiber optic cable connections, the -C and –C2 versions of the card provide an economical 3.125
Gb/s electrical coaxial link.
The –GF version provides a fiber optic link and the –GC version provides a coaxial link to receive an RGB
or DVI signal from Evertz MVP
TM
or VIP
TM
multi-display products using the G-Link protocol.
Monitoring and control of card status and card parameters are provided locally, at the card-edge, or
remotely via VistaLINK
®
capability. The 7707RGBR/DIVIR has a wide-band optical input and can accept
any wavelength between 1270nm and1610nm.
Features:
•Digital (DVI) and analog (RGB) display technologies are supported through one interface on the
7707RGBR.
•Available in a variety of fiber optic and coaxial versions
•VESA video resolutions supported up to WUXGA (1920x1200).
•Two optional analog audio channels
•Optional keyboard, mouse and serial
•Optional USB interface
•Optional G-Link support for use with Evertz VIP
TM
and MVP
TM
multi-display products
•Full 24 bits per pixel color resolution
•Convenient audio monitoring headphone jack with adjustable volume
•Full-bandwidth 3 Gb/s signal transport over fiber – no compression or sub-sampling
•Ideal for use with high resolution LCD, plasma or projection screens
•All configuration settings are controllable through the card-edge user interface, or VistaLINK
®
.
•Comprehensive signal and card status monitoring via four-digit card-edge display, or VistaLINK
®
.
•Wide-band optical input is compatible with standard, CWDM, or DWDM transmission schemes.
•Compatible with multi-mode and single-mode fiber.
•SC/PC, ST/PC, or FC/PC fiber connector options.
•Fully hot swappable from front of frame.
•VistaLINK
®
enabled for remote monitoring and control when installed in 7700FR-C frame with
7700FC Frame Controller.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
7707RGBR/DVIR-2 Revision 1.4
Transmit Side Receive Side
Fiber
Type Optical/Link Budget Ordering Product Info TX
Power Ordering Product Info RX Sensitivity Description
Multi-Mode < 500m 7707RGBT13-A2KM-USB-
F2 -7dBm 7707RGBR13-A2KM - USB-F2 -21dBm 1310nm on Tx and Rx fibers
Single-
Mode 14dB/40km 7707RGBT13-A2KM - USB-F2 -7dBm 7707RGBR13-A2KM - USB-F2 -21dBm 1310nm on Tx and Rx fibers
Single-
Mode 17dB/48km* 7707RGBT15-A2KM -W -2dBm 7707RGBR13L-A2KM -W -19dBm 1310nm/1550nm WDM bi- directional, one fiber
Single-
Mode 17.5dB/70km** 7707RGBTxx-A2KM - USB-F2 0dBm 7707RGBRyy-A2KM - USB-F2 -21dBm Different CWDM Wavelengths
for Tx & Rx, with 8Ch CWDM
Mux/Demux**
Single-
Mode 23dB/92km*** 7707RGBTDxxx-A2KM -
USB-F2 +7dBm 7707RGBRDyyy-A2KM -
USB-F2 -21dBm Different DWDM Wavelengths
for Tx & Rx, with 8Ch DWDM
Mux/Demux***
* With >20dB return loss on fiber interfaces Tx Power/Rx Sensitivity are nominal values of ±1dBm
** Assumes 8Ch CWDM Mux/Demux loss of 3.5dB Fiber loss =0.35/0.25dB per km @ 1310nm/1550nm
*** Assumes 8Ch DWDM Mux/Demux loss of 5dB
Table 1-1: Typical Application Configurations
DVI/RGB out
+A2KM-USB version
Optical I/O
(Single fiber
version) TX/RX
Interface
Control / Indication
DEMUX MUX
VistaLINK
2 Stereo Pair
Analog Audio
+A2 version
Keyboard
Mouse
OPTICAL
RECEIVER
OPTICAL
TRANSMITTER
OPTICAL
COMBINER
Optical
Output
Optical
Input
USB
DB-9
+A2KM version
Serial
BNC Coax
Input
(-C, -C2 & -GC
versions)
BNC Coax
Output
(-C2 versions)
Figure 1-1: 7707RGBR Block Diagram

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4 7707RGBR/DVIR-3
DVI out
+A2KM-USB version
Optical I/O
(Single fiber
version)
TX/RX
Interface
Control / Indication
DEMUX MUX
VistaLINK
2 Stereo Pair
Analog Audio
+A2 version
Keyboard
Mouse
OPTICAL
RECEIVER
OPTICAL
TRANSMITTER
OPTICAL
COMBINER
Optical
Output
Optical
Input
USB
DB-9
+A2KM version
Serial
BNC Coax
Input
(-C, -C2 & -GC
versions)
BNC Coax
Output
(-C2 versions)
Figure 1-2: 7707DVIR Block Diagram

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
7707RGBR/DVIR-4 Revision 1.4
2. INSTALLATION
Each 7707RGBR/DVIR module comes with a companion rear plate that has one DVI-I video connector
and (depending on the options ordered) may also have analog audio terminals, PS2 keyboard and mouse
connectors, a DB9 serial connector, and three type-A USB connectors. In addition, there will be SC/PC
(shown), ST/PC, or FC/PC optical connector(s) and/or a BNC connector for link connections. On
7707RGBR models only, the DVI-I connector supports combined analog and digital video through a single
interface. An industry-standard DB-15 connector adapter may be used for RGB. For information on
mounting the rear plate and inserting the module into the frame, see section 3 of the 7700FR chapter. The
following diagrams show some sample rear plate options for the 7707RGBR and 7707DVIR.
7707DVIR-C
DVI OUT
INPUT
7707DVIR
-A2-C
DVI OUT ANALOG AUDIO OUT
INPUT
7707DVIR-A2KM-USB-F2
DVI OUT 21
Figure 2-1: 7707RGBR/DVIR Rear Panels
2.1. OPTICAL CONNECTIONS
FIBER INPUT: There is one SC/PC (shown), ST/PC or FC/PC female connector for the optical input to
the 7707RGBR/DVIR. This wide band optical input accepts optical wavelengths of
1270nm to 1610nm, accommodating standard or CWDM transmission schemes. This
input is compatible with multimode fiber when connected directly to a companion
7707RGBT/DVIT transmitter. On the 7707RGBR/DVIR-GF versions, this connector will
accept an input signal in the G-Link format for connection to Evertz MVP
TM
multi-display
products.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4 7707RGBR/DVIR-5
FIBER OUTPUT (F2 Versions): There is one SC/PC (shown), ST/PC, or FC/PC female connector
when the 7707RGBT/DVIT is equipped with an optical output. The optical output is
available in 1310nm, 1550nm, CWDM (ITU-T G.694.2 compliant) and DWDM (ITU G.694.1
compliant) wavelengths. This connector is compatible with multimode fiber when connected
directly to a companion 7707RGBT/DVIT transmitter.
FIBER I/O (A2KM-W Version Only): There is one SC/PC (shown), ST/PC or FC/PC female
connector with the optical input/output for the 7707RGBT/DVIT15-W version. This
connector should be mated to a companion 7707RGBR13L-W version card using single-
mode fiber optic cable.
All single fiber versions of the 7707RGBR13L-W are designed to work only with single-
mode fiber optic cable.
2.2. SIGNAL CONNECTIONS
VIDEO OUTPUT: The 7707DVIR accommodates display devices with digital DVI connections only.
The 7707RGBR DVI-I connector accommodates analog and digital display technologies,
promoting optimal compatibility with different display types. Display devices with DVI
connectors may be connected directly to this port. A DB-15 RGB connection may also be
accommodated using an industry standard DB-15 to DVI-I adapter such as the Belkin
F2E4162, or appropriately terminated cable assembly such as the Amp 16539332-1.
Note: When making digital DVI connections, Evertz recommends using only high quality
DVI cables, no longer than 6 feet (1.8m).
AUDIO OUTPUTS (A2 & A2KM Versions): The 7707RGBR/DVIR-A2 and 7707RGBR/DVIR-
A2KM modules provide a terminal block for output connections compatible with either
balanced or unbalanced analog audio. Balanced audio signals should be connected to the
positive (+) and negative (-) output terminals. Unbalanced audio signals should be
connected to the positive (+) input terminal, and a jumper connection should be installed
between the negative (-) input terminal and the ground terminal ( ).
KEYBOARD (A2KM Versions): The 7707RGBR/DVIR-A2KM provides a PS2 port for a keyboard
connection. Connect this port to a standard PS2 keyboard.
MOUSE (A2KM Versions): The 7707RGBR/DVIR-A2KM provides a PS2 port for a mouse connection.
Connect this port to a standard PS2 mouse.
SERIAL (A2KM Versions): Female DB9 RS232 serial port with standard PC style layout. This port may
be connected to serial peripherals. This port may also operate in RS422 mode by changing
a user-selectable menu item (see section 4.2.7).
USB PORTS (USB Versions): When equipped with the USB option, the 7707RGBR/DVIR provides
three type-A USB ports. These ports may be used to connect USB peripherals.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
7707RGBR/DVIR-6 Revision 1.4
2.3. BNC CONNECTIONS
INPUT (-C, -C2, -GC versions): BNC connector for the electrical link input of the 7707RGBR/DVIR.
This signal should be connected to the Tx port of a companion 7707RGBT/DVIT. –GC
versions will accept a G-Link formatted signal for connection to Evertz MVP
TM
multi-display
products.
OUTPUT (-A2KM-C2 versions): BNC connector for the electrical link output of the 7707RGBR/DVIR.
This signal should be connected to the Rx port of a companion 7707RGBT/DVIT. This
connection may be extended using Belden 1694 or equivalent cable.
2.4. CARE AND HANDLING OF OPTICAL FIBER
2.4.1. Safety
!
CLASS 1 LASER PRODUCT
Background colour: yellow
Triangular band: black
Symbol: black
2.4.2. Assembly
Assembly or repair of the laser sub-module is done only at the Evertz facility and performed only by
qualified Evertz technical personnel.
2.4.3. Labeling
Certification and Identification labels are combined into one label. As there is not enough room on the
product to place the label it is reproduced here in the manuals.
•There is no date of manufacture on this label as it can be traced by bar code label placed on the
Printed circuit board of each Evertz plug-in module
•The Model number is one of: 7707RGBR, 7707RGBR-A2, 7707RGBR13-A2KM- F2,
7707RGBR13-A2KM-USB-F2, 7707RGBR13M-A2KM-W
7707 RGBR xx, (xx = 27, 29, 31, 33, 35, 37, 43, 45, 47, 49, 51, 53, 55, 57, 59, 61)
7707 RGBR Dyyy (Dyyy represents ITU Grid Channel: D200, D210, D220, D230, D240, D250,
D260, D270, D280, D290, D300, D310, D320, D330, D340, D350, D360, D370, D380, D390,
D400, D410, D420, D430, D440, D450, D460, D470, D480, D490, D500, D510, D520, D530,
D540, D550, D570, D580, D590, D600). 7707DVIR part numbers are similar, replacing “RGBR”
with “DVIR”.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4 7707RGBR/DVIR-7
Figure 2-2: Reproduction of Laser Certification and Identification Label
2.4.4. Handling and Connecting Fibers
"
Never touch the end face of an optical fiber. Always keep dust caps on optical fiber
connectors when not connected and always remember to properly clean the optical
end face of a connector before making a connection.
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore
care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz
recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will
decrease the maximum attainable distance of the fiber cable. The Evertz fiber optic modules come with
cable lockout devices, to prevent the user from damaging the fiber by installing a module into a slot in the
frame that does not have a suitable I/O module. For further information about care and handling of fiber
optic cable see section 3 of the Fiber Optics System Design section of this manual binder.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
7707RGBR/DVIR-8 Revision 1.4
3. SPECIFICATIONS
3.1. ANALOG VIDEO OUTPUTS
Number of Signals: 1
Signal Type: RGB
Sync Type: H and V, or Sync on Green
Connector: DVI-1 with Analog, or 15-pin HD-15 VGA Analog (with adapter)
Display Resolution:
Non-A2KM versions: Up to WUXGA, 1920x1200 @ 75Hz
-A2KM versions: Up to WUXGA, 1920x1200 @ 60Hz
Colour Depth: 24 Bit
Analog Bandwidth: 300MHz (min)
Impedance: 75Ohm
Analog Output Level: 1.4Vp-p (max)
SNR: >55dB
Linear Distortion: 2% (max)
Intensity Distortion: 2% (max)
3.2. DIGITAL VIDEO OUTPUTS
Number of Signals: 1
Signal Type: TMDS, per DVI specification
Connector: DVI-I
Display Resolution:
Non-A2KM versions: Up to WUXGA, 1920x1200 @ 75Hz
-A2KM versions: Up to WUXGA, 1920x1200 @ 60Hz
Colour Depth: 24-Bit
3.3. DIGITAL VIDEO CONTROL
Number of Signals: 1
Signal Type: DDC2B, per DVI specification
Connector: DVI-I
3.4. ANALOG AUDIO OUTPUTS (A2 & A2KM VERSIONS)
Number of Signals: 2
Type: Balanced or unbalanced analog audio
Connector: 12-pin Removable Terminal Block
Output Level:
Into High Impedance: +24dBu (max)
Into 600Ω:+23dBu (max)
Level: -20dB to +3dB
Frequency Response: ±0.1dB (max, 20Hz to 20KHz)
THD + Noise: 0.005% (max, 20Hz to 20KHz)
S/N Ratio: >85dB (min)
Channel Phase: ±1° (max, 20Hz to 20KHz)
Output Impedance: >20kΩ(nom, differential)

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4 7707RGBR/DVIR-9
3.5. KEYBOARD/MOUSE INPUT/OUTPUT (A2KM VERSIONS)
Number: 2
Connector: 1 PS2 each for keyboard and mouse
3.6. SERIAL PORT (A2KM VERSIONS)
Standard: RS232 or RS422 (user selectable)
Number: 1
Connector: DB9M
3.7. USB PORT (USB VERSIONS)
Standard: USB 1.1
Number: 3
Connector: USB type-A
3.8. OPTICAL INPUT
Connector: SC/PC, ST/PC, FC/PC female housing
Input Wavelength: 1270 to 1610nm (min)
Input Power: 0dBm (max)
Input Optical Sensitivity: -19dBm
3.9. COAXIAL INPUT (- C2, -C2 VERSIONS)
Number: 1
Connector: BNC per IEC 61169-8 Annex A
3.10. OPTICAL OUTPUT
Connector: SC/PC, ST/PC, FC/PC female housing
Fiber Size and Type: Single Fiber versions:9 µm core / single mode
Output Wavelengths:
Standard: 1310nm, 1550nm (nominal)
CWDM: 1270nm to 1610nm (ITU-T G.694.2 compliant)
DWDM: 1530nm to 1560nm (ITU-T G.694.1 compliant)
Output Power:
1310nm FP (Standard): -7 dBm ±1dBm
-W Version: -1 dBm ±1dBm
CWDM DFB: 0 dBm ±1dBm
DWDM DFB: +7 dBm ±1dBm
3.11. COAXIAL OUTPUT (-C2 VERSIONS)
Number: 1
Connector: BNC per IEC 61169-8 Annex A
Cable Equalization: Automatic

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
7707RGBR/DVIR-10 Revision 1.4
3.12. ELECTRICAL
Voltage: 12V DC (nom)
Power:
Non DWDM Laser: 11 Watts (max)
DWDM Laser: 14 Watts (max)
3.13. PHYSICAL
7700 or 7701 frame mounting:
Number of Slots:
Standard and A2 Versions: 1 slot
A2KM Versions: 2 slots

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4 7707RGBR/DVIR-11
4. CARD-EDGE MONITORING AND CONTROL
The 7707RGBR/DVIR has up to nine LED status indicators and a 4-digit dot-matrix display on the front
card-edge to show operational status of the card at a glance. The card-edge pushbutton and toggle switch
are used to select various control and status indications to the dot-matrix display. Additionally, an optional
audio monitoring headphone jack is provided at the card-edge, for verification of signal presence and
content. Figure 4-1 shows the locations of the indicators and controls. Refer to Table 4-1 for LED
functionality on different cards.
FRAME STATUS
ON/OFF
/ MODULE OK
LOCAL FAULT
SERIAL
RUN/UPGRADE
SERIAL PORT
PUSH BUTTON
MENU NAVIGATION
TOGGLE SWITCH
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
LED 8
Figure 4-1: Location of Status Indicators and Jumpers
7707 RGBR 7707 RGBR-A2 7707 RGBR-A2-GF 7707 RGBR-A2KM 7707 RGBR-A2KM-USB
LED 1 VIDEO PRESENT VIDEO PRESENT VIDEO PRESENT VIDEO PRESENT VIDEO PRESENT
LED 2 DISPLAY PRESENT DISPLAY PRESENT AUDIO 1 DISPLAY PRESENT DISPLAY PRESENT
LED 3 (RESERVED) AUDIO 1 AUDIO 2 AUDIO 1 PRESENT AUDIO 1 PRESENT
LED 4 (RESERVED) AUDIO 2 AUDIO 2 PRESENT AUDIO 2 PRESENT
LED 5 (RESERVED) USB 1 CONNECTED
LED 6 (RESERVED) USB 2 CONNECTED
LED 7 (RESERVED) USB 3 CONNECTED
LED 8 (RESERVED) (RESERVED)
Table 4-1: LED Functionality

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
7707RGBR/DVIR-12 Revision 1.4
4.1. STATUS INDICATOR LEDS
LOCAL FAULT: This red LED indicates poor module health. Several conditions could cause this fault
indication to be active:
oA link with a companion 7707RGBT/DVIT has not been achieved
oA card power fault exists (i.e. a blown fuse)
oNo input video
oLaser fault (-A2KM versions)
The LOCAL FAULT indication can also be reported to the frame by setting the
FRAME STATUS jumper.
MODULE OK: This green LED indicates good module health. It will be On while a link is
maintained with a companion 7707RGBT/DVIT, and the card power is good.
VIDEO PRESENT: When active, this green LED indicates that a video signal is present at the optical
input, and is compatible with the connected video display. Video format compatibility
is determined using DDC (Display Data Channel) information detected from the
video display. If no DDC information is detected from the video display (Display
Present LED is off), then any received video format will be considered valid.
DISPLAY PRESENT:This green LED indicates that DDC (Display Data Channel) control data is detected
from the connected video display. If no DDC data is detected, then any received
video signal will appear at the outputs without qualification of display compatibility.
AUDIO PRESENT (A2 & A2KM Versions): These two green LED’s indicate the signal presence of the
two respective audio input channels. Signal presence indication considers the audio
detection threshold set by the user on the transmitter card (Refer to
7707RGBT/DVIT manual for more information).
USB CONNECTED (USB Versions): These three green LED’s indicate that a USB connection is
established on the respective port.
4.2. CARD-EDGE DISPLAY AND CONTROLS
Additional signal and status monitoring is provided via the 4-digit dot-matrix display located at the card-
edge. The card-edge pushbutton and toggle-switch are used to navigate through the display menu. Figure
4-2 provides a quick reference of the display menu structure.
Pressing the pushbutton advances the display to the next menu level. The toggle-switch may then be used
to move up or down through selections of that menu level. Select BACK to return to the top menu level.
CTRL menu items have user-adjustable configuration values associated with them. STAT menu items
display operating conditions or configuration values, but do not allow adjustments.
If a specific menu selection has a configuration value associated with it, then this may be changed using
the toggle switch. Pressing the pushbutton will apply the displayed value and return you to the previous
menu level.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4 7707RGBR/DVIR-13
The most recent user selection will be maintained in non-volatile memory in the event of power loss to the
module.
RES (Display Resolution)
BACK (Abort)
Menu Level 1 Menu Level 2 Menu Level 3
Indications
VOL (Audio Jack Volume) 0 thru 64 (Arbitrary Range)
Selections
CTRL (Control)
Selections
BACK (Abort)
Res – Freq (Resolution and
Refresh Rate)
Indications
BACK (Abort)
STAT (Status)
?
Toggle
Switch
?
Pushbutton ?
OSNC (Ouput Sync Type)
BACK (Abort)
SOG (Sync on green)
Selections
HV (RGBHV)
AUTO (Same as input to
RGBT/DVIT)
BACK (Abort)
BRT (Brightness) 0 thru 64 (Arbitrary Range)
Selections
BACK (Abort)
LASR (Laser Control) DISC (Discontinuous)
CONT (Continuous)
Selections
BACK (Abort)
DISP (Display Orientation) HORZ or VERT
Selections
TYPE (Connected Display
Type) DVI or RGB
Indications
ISNC (Input Sync Type) SOG (Sync on Green)
HV (RGBHV)
Indications
Selections Indications
< -40 (Less than -40dBm)
-40 to 0 (dBm)
>0 (Geater than 0dBm)
PWR (Optical Power)
Selections
Selections
Selections
Selections
Selections
Selections
Selections
Selections
Selections
VER (Firmware Version) Firmware Version
Indications
Selections
LASR...ERR (Laser Error)
Supersedes
LINK...LOSS (No optical Link)
Supersedes
OK (Ay-okay)
Figure 4-2: 7707RGBR/DVIR Card Edge Menu Flow Cart

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
7707RGBR/DVIR-14 Revision 1.4
4.2.1. Card-Edge Display Warning Indications
There are flashing warning indicators that may appear on the display of the 7707RGBR/DVIR. These
warning indications can overwrite other display text, and supersede each other by order of priority. By
pressing the pushbutton, a warning indication can be cleared from the display, and access to other menu
items is maintained. Possible warning indications are:
LASR…ERR Laser error - warns of laser (if equipped) end-of-life condition.
LINK…LOSS Optical link not established.
OK Optical link established, no video input or laser (if equipped) problems.
4.2.2. Selecting the Output Sync Type (7707RGBR Models Only)
The 7707RGBR is capable of producing different sync signals, depending on the requirements of the
connected display equipment. The available sync types are sync on green and RGBHV. The 7707RGBR
will choose an output sync type based on the sync type detected at the 7707RGBT (AUTO mode) or it
may be forced to produce sync on green or RGBHV regardless of the sync type detected at the
7707RGBT.
CTRL
OSNC
SOG
HV
AUTO
To change the output sync type, select the CTRL menu item in menu level 1.
Use the toggle switch to select the OSNC menu item and press the
pushbutton. Select from the following options:
SOG: Sync On Green
HV: RGBHV
AUTO: Output same sync type as detected at the input of the 7707RGBT
4.2.3. Adjusting the Headphone Jack Volume (A2 & A2KM Versions Only)
The 7707RGBR/DVIR provides a convenient audio monitoring headphone jack at the card-edge. This jack
can be used to verify signal presence or content for each audio channel. The headphone jack volume can
be adjusted via the card-edge interface.
CTRL
VOL
0 - 64
To configure the headphone jack, select the CTRL menu item in the first
menu level. The 7707RGBR/DVIR allows the user to control the headphone
monitoring jack volume. Use the toggle switch to select the VOL menu item
and press the pushbutton. The toggle switch may then be used to change
the volume. Press the pushbutton to apply the displayed value and return to
the first menu level. The following selections are available for this menu
item:
0 to 64: Range of volume selection for the headphone monitoring jack.
The factory default configuration applies an audio volume value of 20.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
Revision 1.4 7707RGBR/DVIR-15
4.2.4. Adjusting the Output Brightness (7707RGBR Models Only)
The 7707RGBR allows adjustment of the output signal brightness to accommodate display devices with
varying input sensitivities.
CTRL
BRT
0 - 64
To adjust the brightness, select the CTRL menu item in the first menu level.
Use the toggle switch to select the BRT menu item and press the
pushbutton. The toggle switch may then be used to change the level. Press
the pushbutton to apply the displayed value and return to the first menu
level. The following selections are available for this menu item:
0 to 64: Range of brightness selection
The factory default configuration applies a brightness value of 0, which will
output a signal equivalent in brightness to that received at the 7707RGBT.
4.2.5. Selecting the Output Laser Enable Mode (A2KM Versions Only)
In some applications, it is beneficial to disable the laser output with no input signal present. Alternatively, it
may be preferable to maintain an optical output signal, even with no input. The 7707RGBR/DVIR supports
both modes of operation.
CTRL
LASR
CONT
DISC
To configure the mode laser enable, select the CTRL menu item in the first
menu level. Use the toggle switch to select the LASR menu item and press
the pushbutton. The toggle switch can then be used to change the mode of
operation. Press the pushbutton to apply the displayed selection and return
to the first menu level. The following selections are available for this menu
item:
CONT: Continuous operation. Laser is always enabled, even without an
active input signal.
DISC: Discontinuous operation. Laser is disabled when no active input
signal is detected.
The factory default configuration applies the CONT mode of laser enable.

7700 Multi-Frame Manual
7707RGBR/DVIR DVI and RGB Video/Audio Fiber Receiver
7707RGBR/DVIR-16 Revision 1.4
4.2.6. Setting the Orientation of the Text on the Card Edge Display
The DISP option allows the user to set a horizontal or vertical orientation for the card edge display.
CTRL
DISP
HORZ
VERT
To set the display orientation, select the CTRL menu item in the first menu
level, then use the toggle switch to show the DISP menu selection and use
the pushbutton to select it. Use the toggle switch to change between HORZ
and VERT. Press the pushbutton to make your selection.
HORZ: Horizontal display used when the module is housed in the one-
rack unit 7701FR frame or the stand-alone enclosure.
VERT: Vertical display used when the module is housed in the three-
rack unit 7700FR frame.
4.2.7. Displaying the Video Resolution and Refresh
The 7707RGBR/DVIR will detect and indicate the video format present at the optical input. It should be
ensured that this format is compatible with the connected video display. Most video displays will return
DDC (Display Data Channel) control data to the 7707RGBR/DVIR. This DDC data contains information
describing video formats compatible with the connected display. If the format of the received video signal
is not compatible with the connected display, then the output is switched off and a TYPE… ERR warning is
indicated in the display. If no DDC information is detected from the video display (Display Present LED is
off), then any received video format will be considered valid.
STAT
RES
RES - FREQ
To display the video format indication, select the STAT menu item in menu
level 1. Use the toggle switch to select the RES menu item and press the
pushbutton. Following this selection, a scrolling indication of the video
format will appear on the card-edge display, including resolution and refresh
rate. If no video signal is detected, the display will indicate NONE. To
exit the resolution display, press the pushbutton to return to the previous
menu level.
4.2.8. Displaying the Connected Display Type (7707RGBR Models Only)
The 7707RGBR will display the video source type connected to the 7707RGBT.
STAT
TYPE
DVI
RGB
To indicate the video source type, select the STAT menu item in menu level
1. Use the toggle switch to select the TYPE menu item and press the
pushbutton. One of the following will be indicated:
CRT: RGBT input video is RGB.
LCD: RGBT input video is DVI.
To exit the Display Type display, press the pushbutton to return to the
previous menu level.
