Evikon PluraSens E2658-ETO User manual


PluraSens®




Ethylene Oxide Detector-Transmitter
E2658-ETO


User Manual








E2658-ETO Rev 16.12.2020
Table of contents
Ethylene oxide 3
Specifications 4
Product description 6
Safety requirements 6
Operating conditions 7
Installation guidelines 7
Mounting dimensions 9
Sensor probe handling 10
Gas sensor replacement procedures 10
Electrical connections 11
Operation 13
Maintenance 13
Calibration 13
Delivery set 14
Order code for E2658-ETO options 14
Configuring 15
Return to default settings 15
Modbus RTU Communication 16
RS485 communication interface 16
Communication parameters 16
Modbus holding registers 16
Warranty 21
Manufacturer contacts 21
2

E2658-ETO Rev 16.12.2020

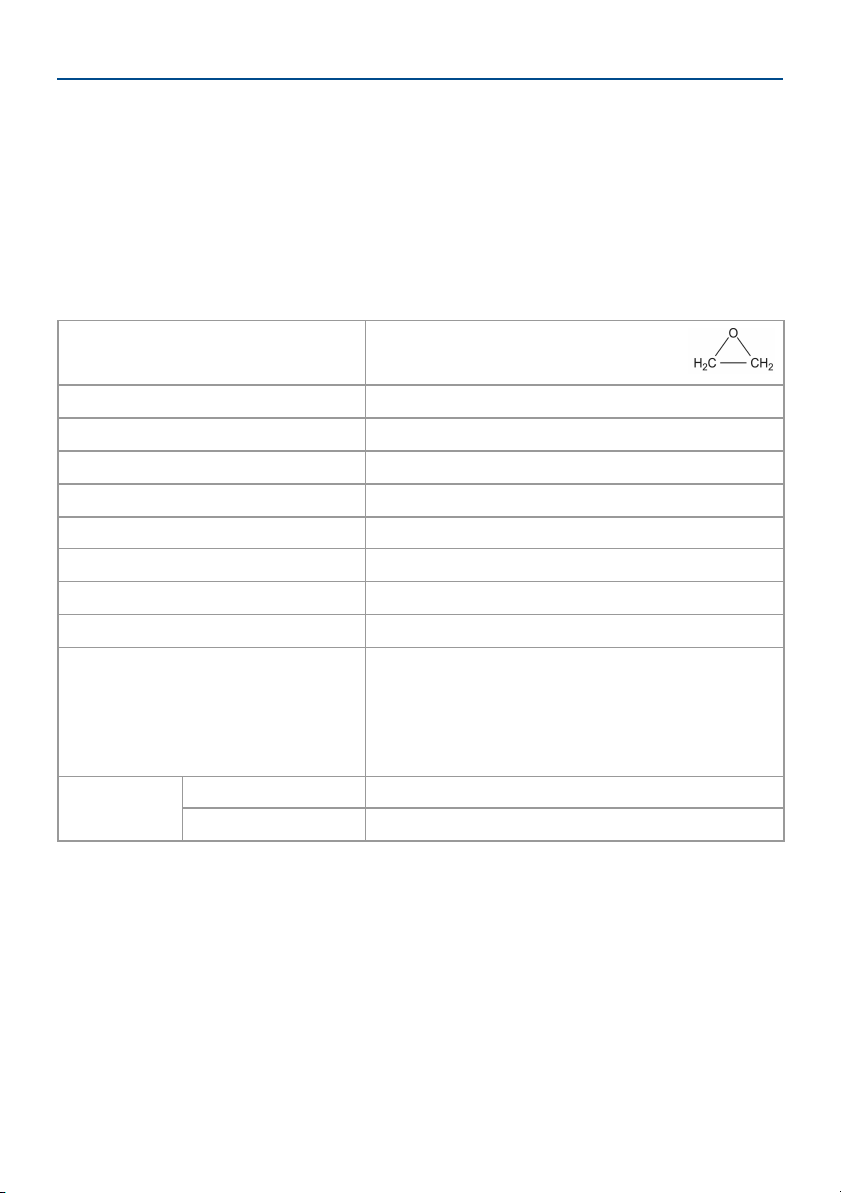

Ethylene oxide
Ethylene oxide is a highly reactive, toxic, and flammable colorless gas and one of the most               
important raw materials used in large-scale chemical production. It is used also as a             
sterilant and fungicide.
Other names: epoxyethane, ethylene oxide, dimethylene oxide, oxacyclopropane, 1,2-Epoxy        
ethane. Proper IUPAC name: oxirane.

Conversion of ppm to mg/m3 is calculated for 25°C and 1 atm.



 
3
Chemical formula
C2H4O 
Molar weight
44
Relative gas density (to air)
1.52
Conversion
1 ppm = 1.80 mg/m3
Boiling point
10.7 °C
Low explosive limit (LEL), % vol. in air
3
Upper explosive limit (UEL), % vol. in air
100
Odor
Pungent, ether-like
Odor threshold
430 ppm
Hazards
Flammable.
Gas/air mixtures are explosive. Ethylene oxide is a slow
poison with carcinogenic, mutagenic, irritating, and
anesthetic effect
Exposure routes are inhalation, ingestion, (liquid), skin,
and/or eye contact.
Exposure limits 
(OSHA)
TWA
1 ppm
STEL
5 ppm

E2658-ETO Rev 16.12.2020
Specifications
4
Sensor type
Electrochemical cell
Sampling method
Diffusion
Typical detection range
0...20 ppm
0...100 ppm
Maximum overload
100 ppm
200 ppm
Resolution / digital unit
0.1 ppm
1 ppm
Response time T90
< 120 s
< 140 s
Sensor lifetime
>2 years
Calibration interval
6 months
Signal update
Every 1 second
Power supply
11...30 VDC (default),
24 VAC or 90...265 VAC as options
Power consumption
< 2 VA
Analog outputs
2 × 4-20 mA / 0-10 V, user settable
Outputs assignment
OUT1 2 gas; OUT2 2 gas
Output scale width
> 10 × resolution
Recommended: 20-100% of the detection range
Load resistance
RL < (Us - 2 V) / 22 mA for 4-20 mA
RL > 250 kOhm for 0-10 V mode
Digital interface
RS485, Modbus RTU protocol
No galvanic isolation
Cable connections
Screwless spring-loaded terminals
Enclosure
Grey die-cast aluminium, wall mount, IP66
Cable gland
M25 for SWA cable or steel conduit Ø10...17 mm
Dimensions
H80 × W125 × D57 / H80 × W175 × D80 mm
Protection
Flameproof, ATEX: II 2 GD, Ex d IIC T4 Gb
ATEX Approvals
Enclosure:
ATEX / IECEx DEMKO 13 ATEX 1327771U
II 2 G Ex c IIC Gb II 2 D Ex tb IIIC Db IP66
Glands:
ATEX / IECEx II2G Ex e II IP68
IBExU08ATEX 1063 X Ex II 1D Ex tD A20 IP 6x Ex

E2658-ETO Rev 16.12.2020


5
CE marking
According to 2014/30/EU and 2014/34/EU,
EN 61000-6-3:2020, EN 61326-1:2013 (EMC, Emissions)
EN 61000-6-1:2019, EN 61000-6-2:2019, EN 61326-2-1:2013 (EMC,
Immunity)
EN 60079-0:2018, EN 60079-1:2014, EN 60079-31:2014,
EN 60079-29-1:2016, EN 60079-29-2:2015, EN 60079-29-3:2014
Operating conditions
-20...+50 °C, 15...90% RH non-condensing, 0,9...1,1 atm
Explosion-safe zones and ATEX Zones 2 and 22,
Non-aggressive atmosphere
NOTE! The sensor may exhibit sensitivity to carbon monoxide, toluene
and other organic compounds
Relay option
Output relays
2 × SPST relays (closing contact),
250 VAC / 30 VDC, 5 A max
Default alarm setpoints
(set/release)
LOW: 2ppm/ 1.6 ppm
HIGH 5ppm/ 4 ppm
defined by user
within 5-95% of the detection range

E2658-ETO Rev 16.12.2020
Product description
E2658 is a series of flameproof gas detectors-transmitters intended for operation in safe            
zones and ATEX Zones 2 and 22. E2658 series devices are based on PluraSens®             
multifunctional platform and provide all its features. The instruments utilize gas sensors of            
various types with excellent repeatability, stability, and long lifetime.
E2658 series provides two independent analog outputs OUT1 and OUT2, user-selectable to           
4-20 mA or 0-10 V, proportional to gas concentrations. RS485 Modbus RTU digital            
communication interface allows easy instrument configuration and integration into various         
automation systems.
The following features are available as an option:
●Two relays RE1 and RE2 with closing contacts. Relay outputs can be used to             
switch alarm sirens, ventilation fans, shut-off valves, or other actuators,
●24 VAC or 230 VAC as options for power supply.
The version of your detector is marked on the package. If the symbol ⚠ is marked on the                 
equipment, consult the documentation for further information.
Safety requirements
Misuse will impair the protection of the product. Always adhere to the safety provisions             
applicable in the country of use.
Do not perform any maintenance operation with the power on. Do not let water or foreign               
objects inside the device.
Removal of the PCB from the enclosure voids the warranty. Do not touch the electronic              
components directly, as they are sensitive to static electricity.
Connection diagrams can be found in the electrical connections section. The device might            
not perform correctly or be damaged if the wrong power supply is connected.
It is crucial to tighten properly all the thread connections (screws, cable glands). Use ATEX              
certified armored cables or cable conduits that are rated for use in the desired             
environment.
A disconnecting device that is marked as such and easily accessible should be included in              
the installation of this product.
The device should be properly earthed.



6

E2658-ETO Rev 16.12.2020
Operating conditions
The device should be used in a basic electromagnetic environment, where the latter is             
defined in EN 61326-1. Avoid strong mechanical shock and vibrations. Although E2658           
series devices are suitable for use in the presence of flammable dust, special precautions             
should be taken when operating in a dusty environment. Dust may block the porous filter of               
the sensor and compromise the results of the measurement. The detector should be            
inspected regularly if used in a dusty atmosphere. Keep the instrument away from direct             
sunlight. A sudden temperature or humidity change might affect the sensitivity of the            
sensor. Make sure that installation and maintenance are performed in an explosion safe            
atmosphere.
Installation guidelines
Before proceeding with the installation it is mandatory to read the Safety requirements            
section and make sure to comply with all listed instructions. Installation standards EN            
60079-29-2 and EN 45544-4 are also recommended for further instructions and related           
information about the installation. During the installation of the detector-transmitter the          
following points must be considered:
●Application (air quality control or leakage detection.)
●Properties of the space under investigation (room geometry, direction, and         
velocity of airflows, etc.),
●Ethylene oxide is 1.5 times heavier than air. It is recommended to locate the             
sensor not higher than the potential leakage.
●The device should be accessible for maintenance and repair.
The aforementioned conditions above will affect the coverage area of the device. however,            
the coverage area for a detector-transmitter is usually between 2.5 to 5 meters radius.
For early leakage detection install the sensor as close as possible to the potential leakage              
sources (flanges, valves, pressure reducers, pumps, etc.), taking into consideration other          
points listed above.
For general area monitoring without definite leakage sources, the detectors should be           
distributed evenly in the room.
For personal safety control, the detectors are installed in the breathing zone (at the height              
of the head of people or animals). The recommended sensor position is vertical, pointing             
downwards.
7

E2658-ETO Rev 16.12.2020
The device is fixed on the wall using two fixing holes located outside the sealed area of the                 
device (see dimensional drawing). Unscrew four lid screws and detach the lid from the             
detector. Fix the detector on the wall and earth the enclosure using an earthing terminal on               
the side of the device.
NOTE! Never perform installation or maintenance in an explosive atmosphere!

 
8

E2658-ETO Rev 16.12.2020
Mounting dimensions



9

E2658-ETO Rev 16.12.2020
Sensor probe handling
The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to              
protect the sensor from dust, dirt, and water drops. The filter should be replaced if it gets                
strongly contaminated. To replace the PTFE filter, unscrew the M25 nut and remove the old              
filter. Place a new filter into the nut and tighten it again.
NOTE! Never stab or press the filter near its center where the sensor is located since this                
may damage the sensor. Do not remove the filter as it may cause the device to show                
incorrect values.
The recommended orientation of the sensor probe is vertical with the sensor tip pointing             
downwards. This prevents the possible accumulation of condensed water on the sensor           
protection filter.
Gas sensor replacement procedures
1. Remove the sensor head cap from the device,
2. Remove the PTFE filter (if it is not removed within the cap),
3. Remove the O-ring rubber,
4. Detach the electrochemical sensor from the device,
5. Insert the new electrochemical sensor inside,
6. Put back the O-ring rubber, PTFE filter, and the head cap, respectively.
10

E2658-ETO Rev 16.12.2020
Electrical connections
Unscrew four lid screws and detach the lid from the device. Use the M25 cable gland to let                 
in the cables of the power supply and of the external devices. Without turning on the power,                
plug the power cable, and connect the analog/relay outputs and/or digital interface           
terminals to the necessary devices according to the relevant connection diagram.

Version with PSU and relays Version with PSU and without relays




 
Version without PSU and with relays Version without PSU and relays
11

E2658-ETO Rev 16.12.2020
The screwless quick connect spring terminals on the E2658 series devices are suitable for             
a wide range of wires with cross-section 0,5...1,5 mm2. We recommend to strip the wire              
end by 8...9 mm and use the wire end sleeves.
To connect the wire, insert the wire end into the terminal hole. To disconnect, push the               
spring-loaded terminal lever, pull the wire out, and release the lever.
Use a twisted-pair cable, e.g. LiYY TP 2×2×0.5 mm2or CAT 5, to connect the device to the                 
RS485 network. A and B on the device represent data+ and data- respectively, polarity must              
be respected when connecting to an external RS485 network.
Both analog outputs can be independently changed between 4-20 mA and 0-10 V type             
using jumpers J1 (OUT1) and J2 (OUT2). By closing pins on a specific jumper the related               
output is 0-10 V, with an open jumper the output is 4-20 mA. Power restart is required after                 
changing the position of the jumpers.
NOTE! The outputs are not galvanically isolated from the 24 V power supply and share a               
common 0V. Allowed load resistance limits are stated in the Specifications table. To power             
the instrument from an external 24 VDC source, connect terminals 0V and +U to the              
source. If the integrated mains power supply module is used, connect terminals L and N to               
the mains.
NOTE! Actuator short-circuits should be avoided, to protect the instrument relays using           
external fuses or safety switches.
 
12

E2658-ETO Rev 16.12.2020
Operation
Turn on the power. The instrument warm-up time takes about 1 minute after switching on              
and the final sensor stabilization time to maximum accuracy takes about 5 minutes. The             
operating status is indicated by the LED on the PCB of the device. The control LED (red)                
response to different processes is presented in the following table:

Make sure that the detector-transmitter is properly mounted, the external devices          
connected, the power LED (green) on, and the control LED (red) is constantly lit. Place the               
lid back and fix it with the screws. Make certain that the cable gland and the screws fixing                 
the front lid are properly tightened to ensure the conformity to IP66 protection class and              
ATEX requirements. Make certain that the device is properly earthed. The device is ready to              
use.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with a soft damp cloth. Do not use any abrasive cleaning agents. Do not                
immerse the device in water or any cleaning media.
Calibration
E2658-ETO detector-transmitters have been calibrated by the Manufacturer with standard         
gas mixtures before delivery. Provided that the sensor is used under moderate conditions,            
field recalibration is recommended every 6 months. Please contact your dealer for more            
information.

13
Mode
LED mode
During calibration mode or sensor heating
period (if activated)
0.5 Hz (50% on, 50% off)
Relay 1 turned on
Blinking 1 Hz (50% on, 50% off)
Relay 2 turned on
Blinking 2 Hz (50% on, 50% off)
During the Modbus communication cycle
Short on-off pulses
Normal operating/measurement
Continuously on or off

E2658-ETO Rev 16.12.2020
Delivery set
●Detector-transmitter E2658
●Mounting accessories:
○2 screws with plastic dowels


Order code for E2658-ETO options


 
14
E2658 options
Order code
Integrated 90...265 V mains power supply module
E2658-ETO-230
Integrated 24 VAC power supply module 
E2658-ETO-24VAC
Two SPST relays
E2658-ETO-R

E2658-ETO Rev 16.12.2020
Configuring
A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas           
tubing with applicators, and a software pack. Please contact your Seller for more            
information.
Detectors- transmitters E2658 share all functionalities of the PluraSens® multifunctional         
platform. The features and options include:
●Digital output change rate-limiting filter
●Digital integrating (averaging) filter
●Free assignment of each analog output to the chosen parameter
●Flexible setting of analog output scales for each output
●Output zero and slope adjustment for calibration
●Free assignment of each of two relays to the chosen parameter
●Several relay control logic modes
●Switch delays and minimum on/off state durations for each relay

The output scales can be changed by Modbus commands by using the configuration            
software and the standard kit (see Modbus RTU Communication).
Return to default settings
To reset the device’s Slave ID, baud rate, and stop bit numbers to factory settings, proceed               
as follows:
1. De-energize the device 
2. Connect the X6 jumper
3. Turn on the device 
4. De-energize the device
5. Disconnect the X6 jumper 
6. Turn on the device
 
15

E2658-ETO Rev 16.12.2020
Modbus RTU Communication
RS485 communication interface

Communication parameters
Modbus holding registers
Register addresses are shown 0-based, Addr in hexadecimal, Reg in decimal format.
Modbus holding register numbers MHR are shown in the decimal 1-based format and may             
be addressed either from 00001 or 40001 base.
16
Databits: 8 
Parity: none / odd / even 
Stop bits: 1 or 2 
Protocol: Modbus RTU
Supported Modbus functions:
03 – Read multiple registers
06 – Write a single register
Parameter
Permitted values
Default
Supported baud rates
1200, 2400, 4800, 9600, 19200, 38400, 57600
9600
Data bits
8
8
Parity
none / odd / even
none
Stop bits
1, 2
1
Protocol
Modbus RTU

Modbus functions
03 - Read multiple registers
06 - Write a single register
Error codes
01 – Illegal function
02 – Illegal data address
03 – Illegal data value
04 – Slave device failure
(details of last error 04 can be read from register 0x0008)
Addr
Reg / MHR
RW
Description
Supported values (dec)
Default
0x0001
1 / 40002
R
Hardware version

-
0x0002
2 / 40003
R
Software version

-
0x0003
3 / 40004
R
Product serial number
1...65535
-
0x0004
4 / 40005
RW
Slave ID (net address) *
1...247 **
1
0x0005
5 / 40006
RW
Baud rate *
1200, 2400, 4800, 9600,
19200, 38400, 57600
9600

E2658-ETO Rev 16.12.2020

17
0x0006
6 / 40007
RW
Response delay, ms
1...255
10
0x0007
7 / 40008
RW
Stop bits, parity bit *
1 – No parity bit, 1 stop bit
(default after factory reset)
2 – No parity bit, 2 stop bits
3 – Odd parity, 1 stop bit
4 – Even parity, 1 stop bit
NOTE: 3 and 4 are available
starting from the Software
version 0x218 (dec. 536)
1
0x0008
8 /40009
R
Last error code
1...255
-
0x0011
17 / 40018
RW
Technological:
age of last data in seconds
(read) / restart (write)
0...65535 s (read),
writing 42330 restarts the
instrument
-
0x00A5
165 / 40166
RW
Zero adjustments for gas
data, ADC
-32000...+32000 ADC units
0
0x00A6
166 / 40167
RW
Slope adjustment for gas
data
1...65535
512
0x00A7
167 / 40168
RW
The change rate limit for
gas data / s
1...32000, 0 - no limit
0
0x00A8
168 / 40169
RW
Integrating filter time
constant, s
1...32000 (seconds),
0 - no filter
0
Addr
Reg / MHR
RW
Description
Supported values (dec)
Default
0x00C9
201 / 40202
RW
Parameter tied to analog
output 1
0 – None
2 – Gas concentration
9 – Forced Modbus control, 
value set in MHR / 40204
2
0x00CA
202 / 40203
RW
Parameter tied to analog
output 2
0 – None
2 – Gas concentration
9 – Forced Modbus control,
value set in MHR / 40205
2
0x00CB
203 / 40204
RW
Forced value for analog
output 1***
0...1000
(0.0%...100.0% of output
scale)
0
0x00CC
204 / 40205
RW
Forced value for analog
output 2***
0...1000
(0.0%...100.0% of output
scale)
0
0x00D3
211 / 40212
RW
Parameter tied to relay
RE1
0 –none
2 – gas concentration
9 – control by Modbus control,
2

E2658-ETO Rev 16.12.2020

18
state set in MHR / 40214
0x00D4
212 / 40213
RW
Parameter tied to relay
RE2
0 – none
2 – gas concentration
9- – control by Modbus
control, state set in MHR /
40215
2
0x00D5
213 / 40214
RW
Forced state for relay
RE1***
0 –off, 1 – on
0
0x00D6
214/ 40215
RW
Forced state for relay
RE2***
0 – off, 1 – on
0
0x00D7
215 / 40216
RW
Switching delay for relay
RE1
0...1000 (s)
0
0x00D8
216 / 40217
RW
Switching delay for relay
RE2
0...1000 (s)
0
0x00D9
217 / 40218
RW
Minimal on/off time for
relay RE1
0...1000 (s)
0
0x00DA
218 / 40219
RW
Minimal on/off time for
relay RE2
0...1000 (s)
0
Addr
Reg /
MHR
RW
Description
Supported values (dec)
Default
0x00DB
219 /
40220
RW
Control
logic for
relay RE1
0 – none
1 – relay on at high values
2 – relay on at low values
3 – relay on at values within the range
4 – relay on for the values out of the range
0
0x00DC
220 /
40221
RW
Control
logic for
relay RE2
0 – none
1 – relay on at high values
2 – relay on at low values
3 – relay on at values within the range
4 – relay on for the values out of the range
0
0x00DD
221 /
40222
RW
LOW
setpoint for
relay RE1
0...65535 (gas units)
see
Specifications

E2658-ETO Rev 16.12.2020

19
0x00DE
222 /
40223
RW
HIGH
setpoint for
relay RE1
0...65535 (gas units)
see
Specifications
0x00DF
223 /
40224
RW
LOW
setpoint for
relay RE2
0...65535 (gas units)
see
Specifications
0x00E0
224 /
40225
RW
HIGH
setpoint for
relay RE2
0...65535 (gas units)
see
Specifications
Addr
Reg /
MHR
RW
Description
Supported values (dec)
Default
0x00FF
255 /
40256
RW
Sensor, analog 
outputs, LED and  
buzzer status
bit[0]=0/1 – sensor  
present/absent, RO
bit[1]=0/1 – analog outputs   
deactivated/activated
bit[2]=0/1 – in case the sensor is      
absent, turn signaling off/on   
analog output1
bit[3]=0/1 – in case the sensor is      
absent, turn on signaling with low     
current/high current on analog   
output1; if bit[2]=0 this bit will be      
ignored
bit[4]=0/1 – in case of sensor     
absent, turn signaling off/on   
analog output2
bit[5]=0/1 – in case of sensor     
absent, turn on signaling with low     
current/high current on analog   
output2; if bit[4]==0 this bit will be      
ignored
bit[6]=0/1 – current/voltage  
output detected on output1, RO
bit[7]=0/1 – current/voltage  
output detected on output2, RO
bit[8]=0/1 – LED  
deactivated/activated
bit[9]=0/1 – buzzer  
deactivated/activated
bit[10]=0/1 - LED is on/off in     
normal condition
bit[11]=0/1 - 1 Hz (50% on, 50%      
off) LED signal off/on if relay1     
turned on
bit[12]=0/1 - 2 Hz (50% on, 50%      
off) LED signal off/on if relay2     
user
defined

E2658-ETO Rev 16.12.2020

* – The new value is applied after restart.
** – Broadcast slave ID 0 can be used to assign a new ID to the instrument with an                  
unknown ID. When addressing by ID 0 the device shall be the only Modbus instrument in               
the network. The device will not respond to the Master command when addressed by ID 0.
*** – This value is dynamic and not kept in EEPROM after a restart.


 
20
turned on
0x0101
257 /
40258
R
Raw gas sensor data
0...4095, ADC units

0x0103
259 /
40260
R
Gas concentration,
gas units
0...65535, gas units

0x0105
261 /
40262
RW
0% value
for analog output 1
-32000...+32000
(gas unit/°C)
User
defined
0x0106
262 /
40263
RW
100% value
for analog output 1
-32000...+32000
(gas unit/°C)
User
defined
0x0107
263 /
40264
RW
0% value
for analog output 2
-32000...+32000
(gas unit/°C)
User
defined
0x0108
264 /
40265
RW
100% value
for analog output 2
-32000...+32000
(gas unit/°C)
User
defined
