Evo EVO1 User manual

USER’S MANUAL
EVO1 MOTORIZED TREADMILL
MODEL NUMBER: EVO1
USER WEIGHT LIMITATION: 350lbs.(159kgs.)
TOLL FREE CUSTOMER SERVICE NUMBER: 1.888.800.1167
SERIAL NUMBER (found on frame):
V-04-20051005

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
2
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your Smooth
Fitness treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.
•Use the treadmill only as described in this manual.
•Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that
blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
•When choosing a location for the treadmill make sure that the location and position permit access to a plug.
•Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or
near water.
•Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the treadmill at all times.
•The treadmill should not be used by persons weighing more than 350lbs.(159kgs.)
•Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the
treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are
recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the
same circuit.
•Always straddle the belt and allow it to start moving before stepping onto the belt.
•Always examine your treadmill before using to ensure all parts are in working order.
•Allow the belt to fully stop before dismounting.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your treadmill.
•Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
•Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by
an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow
these instructions will void the treadmill warranty.
•Never leave the treadmill unattended while it is running.

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN ELECTRIC
SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE
PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT
FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges
and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the
possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector
with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less
and an electrical rating 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for
electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the drawing
below.

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the
boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this product to be
assembled properly. If you are missing any parts or have any assembly questions call your local Smooth Retailer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to
assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free
from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable
amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person
when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 350lbs.(159kgs.) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit shown
here. This product is not intended to support users whose weight exceeds this limit.

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
5
HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help
you identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
5 M6 X 20mm Screw 2
11 #8 x 12mm Screw 8
12 Plastic Fixing Insert 4
21 M8 x 80mm Allen Head Bolt 2
22 Metal Cap 2
23 Connection Plate 2
31 M6 x 12mm Screw 4
32 Plastic Cover 2
35 M8 x 15mm Allen Head Bolt 4
104 M8 x 50mm Allen Head Bolt 4
A Wrench 1
B Wrench 1
C 6mm Allen Wrench 1
MILLIMETERS

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
6
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
1 Computer 1 EVO1-01 30 Console Support Tube 1 EVO1-30
2 Safety Key 1 EVO1-02 31 M6 x 12mm Screw 4 EVO1-31
3 Console Support Tube 1 EVO1-03 32 Plastic Cover 2 EVO1-32
4 Wire Protect Key 1 EVO1-04 33 M6 x 55mm Bolt 2 EVO1-33
5 M6 X 20mm Screw 2 EVO1-05 34 6 x 13 mm Washer 15 EVO1-34
35 M8 x 15mm Allen Head Bolt 4 EVO1-35
7 Handlebar Rear End Cap –
Left # 1 1 EVO1-07 36 M5 x 10mm Allen Head Bolt 2 EVO1-36
8 Handlebar Rear End Cap –
Left # 2 1 EVO1-08 37 Power Switch 1 EVO1-37
9 Handlebar Rear End Cap – Right # 2 1 EVO1-09 38 M14 x 90mm Bolt 2 EVO1-38
10 Handlebar Rear End Cap –
Right # 1 1 EVO1-10 39 Base Frame End Cap 2 EVO1-39
11 #8 x 12mm Screw 8 EVO1-11 40 Fixed Tube 1 EVO1-40
12 Plastic Fixing Insert 4 EVO1-12 41 Pipe Shroud 2 EVO1-41
13 Front Handlebar 1 EVO1-13 42 Level Adjuster 2 EVO1-42
14 Motion Control Sensor 2 EVO1-14 43 Base Frame 1 EVO1-43
15 Hand Pulse sensor 2 EVO1-15 44 Cushion 4 EVO1-44
16 Handlebar - Left 1 EVO1-16 45 M8 Nylon Nut 4 EVO1-45
17 Handlebar - Right 1 EVO1-17 46 M10 Nylon Nut 4 EVO1-46
18 Handlebar Front End Cap 2 EVO1-18 47 Caster Bracket 2 EVO1-47
19 #1 Connect Handlebar Slices 2 EVO1-19 48 M10 x 60mm Bolt 2 EVO1-48
20 #8 x 100mm Bolt 2 EVO1-20 49 M8 x 40mm Bolt 2 EVO1-49
21 M8 x 80mm Allen Head Bolt 2 EVO1-21 50 Caster 2 EVO1-50
22 Metal Cap 2 EVO1-22 51 #8 x 15mm Screw 29 EVO1-51
23 Connection Plate 2 EVO1-23 52 Cushion 1 EVO1-52
24 M8 x 25mm Screw 1 EVO1-24 53 Motor Hood 1 EVO1-53
25 Cross Brace 1 EVO1-25 54 M10 x 35mm Bolt 2 EVO1-54
26 Left Upright 1 EVO1-26 55 Side Rail (R & L) 2 EVO1-55
27 Right Upright 1 EVO1-27 56 Deck End Cap - Left 1 EVO1-56
28 M5 x 12mm Screw 1 EVO1-28 57 Deck End Cap - Right 1 EVO1-57
29 Console Tray 1 EVO1-29 58 Running Belt 1 EVO1-58

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
7
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
59 Rail Guide 8 EVO1-59 87 Frame Side Cover - Left 1 EVO1-87
60 M8 x 25mm Screw 10 EVO1-60 88 Plastic Clamp - Top 2 EVO1-88
61 Running Deck 1 EVO1-61 89 Plastic Clamp - Bottom 2 EVO1-89
62 Deck Cushion 10 EVO1-62 90 Bracket 2 EVO1-90
63 M10 x 35mm Bolt 9 EVO1-63 91 M8 x 19mm Allen Head Bolt 4 EVO1-91
64 Elevation Motor 1 EVO1-64 92 Rear Roller 1 EVO1-92
65 Clip 2 EVO1-65 93 Rear Roller Shaft 1 EVO1-93
66 M5 x 12mm Screw 2 EVO1-66 94 M8 x 43mm Bolt 2 EVO1-94
67 M10 x 63mm Hex Head Bolt 1 EVO1-67 95 Deck Wheel 2 EVO1-95
68 M8 Nylon Nut 1 EVO1-68 96 Spring Washer 10 EVO1-96
69 Washer 2 EVO1-69 97 M8 Nut 10 EVO1-97
70 Rubber Cushion 1 EVO1-70 98
Elevation Support Tube
Cover - Left 1 EVO1-98
71 M8 x 135mm Bolt 1 EVO1-71 99
Elevation Support Tube
Cover - Right 1 EVO1-99
72 M8 x 15mm Screw 2 EVO1-72 100 Elevation Support 1 EVO1-100
73 Spring Washer 2 EVO1-73 101 #8 x 35mm Screw 3 EVO1-101
74 8 x 16nn Washer 2 EVO1-74 102 Motor Belly Pan 1 EVO1-102
75 M10 x 136mm Hex Head Bolt 1 EVO1-75 103 #8 x 65mm Bolt 2 EVO1-103
76 Motor Bracket 1 EVO1-76 104 M8 x 50mm Allen Bolt 6 EVO1-104
77 Driving Motor 1 EVO1-77 105
Upper Section Of Safety
Key Wire 1 EVO1-105
78 Motor Drive Belt 1 EVO1-78 106
Lower Section Of Safety
Key Wire 1 EVO1-106
79 Front Roller with Fly Wheel 1 EVO1-79 107
Upper Section Of 4
Pins Wire N/A EVO1-107
80 Front Roller Shaft 1 EVO1-80 108
Lower Section Of 4
Pins Wire N/A EVO1-108
81 Micro Switch 1 EVO1-81 109
Upper Section Of 7
Pins Computer Wire 1 EVO1-109
82 M6 x 70mm Bolt 3 EVO1-82 110 Lower Section Of 7
Pins Computer Wire 1 EVO1-110
83 Motor Hood Side Cover - Left 1 EVO1-83 111 Motor Control Board 1 EVO1-111
84 Motor Hood Side Cover - Left 1 EVO1-84 112 Transfer Board 2 EVO1-112
85 Deck Frame 1 EVO1-85
86 Frame Side Cover - Left 1 EVO1-86

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
8
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
2
3
4
11
14
9
8
11 7
16
18
20 21 22
13
17
10
11
21
22
27
26
25
15
30
32
31
39 38
33
35
36
37
31
32
33
35
38
45
50
47
49
48
45
50
47
49
46
39
42
44
34
51
34
51
34
51
34
51
43
44
45
42
14
44
12
31
1
104
18
104 29
31
12
24
40
41
41
5
28
34
34
23
19
19
23
103
103
20
109
110
106
105

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
9
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
10
ASSEMBLY
STEP 1:
Remove your treadmill from the carton and place it on the floor in an open area as shown in FIG-1.
First, remove the 6 x 13mm Washers (34) and M6 x 55mm Bolts (33) from the Base Frame (43), they have been pre-
assembled by the factory. Then make sure to connect the wires from the Left Upright (26) to the Base Frame (43). Next
insert the Left and Right Uprights (26 and 27) into the Base Frame (43) and secure with two M6 x 55mm Bolts (33), 6 x
13mm Washers (34) and four M8 x 15mm Allen Head Bolts (35).
35
35
27
26
FIG-1
33
34
34
33
43
CONNECT
WIRES

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
11
ASSEMBLY
STEP 2:
Rotate the Computer (1) up to the correct position as shown in FIG-2 and secure in place using two M6 X 20mm Screws (5).

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
12
ASSEMBLY
STEP 3:
Attach the Cross Brace (25) to the Left and Right Uprights (26 and 27) using two M8 x 80mm Allen Head Bolts (21) and Metal
Caps (22). Do not fully tighten the M8 x 80mm Allen Head Bolts (21). Insert the Console Support Tube (30) into the bottom
of the Console Tray (29). Attach the Console Support Tube (30) to the Cross Brace (25) using one M8 x 25mm Screw (24).
Do not fully tighten the M8 x 25mm Screw (24). Insert the Console Tray (29) into the back of the Computer (1) and secure
using one M5 x 12mm Screw (28). Now fully tighten the M8 x 25mm Screw (24) and M8 x 80mm Allen Head Bolts (21).

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
13
ASSEMBLY

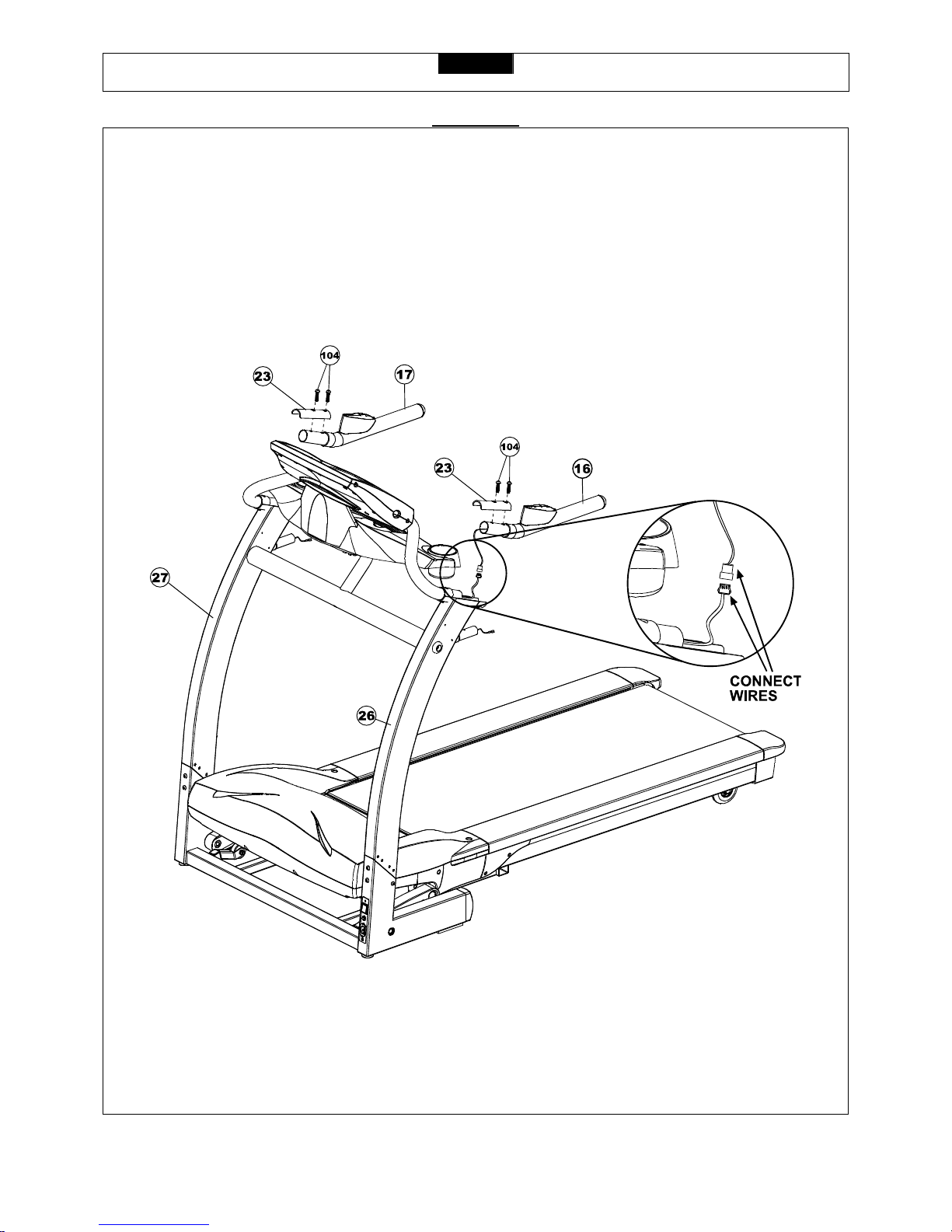

STEP 4:
Connect the wires from the Left Handlebar (16) and Left Upright (26). Attach the Left Handlebar (16) to the Left Upright (26)
using two M8 x 50mm Allen Bolts (104) and one Connection Plate (23).
Repeat this procedure to attach the Right Handlebar (17) to the Right Upright (27).

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
14
ASSEMBLY
STEP 5:
Connect the wires from the Front Handlebar (13) and Left Upright (26). Attach the Front Handlebar (13) to the Left and Right
Uprights (26 and 27) using two M6 x 12mm Screws (31).

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
15
ASSEMBLY

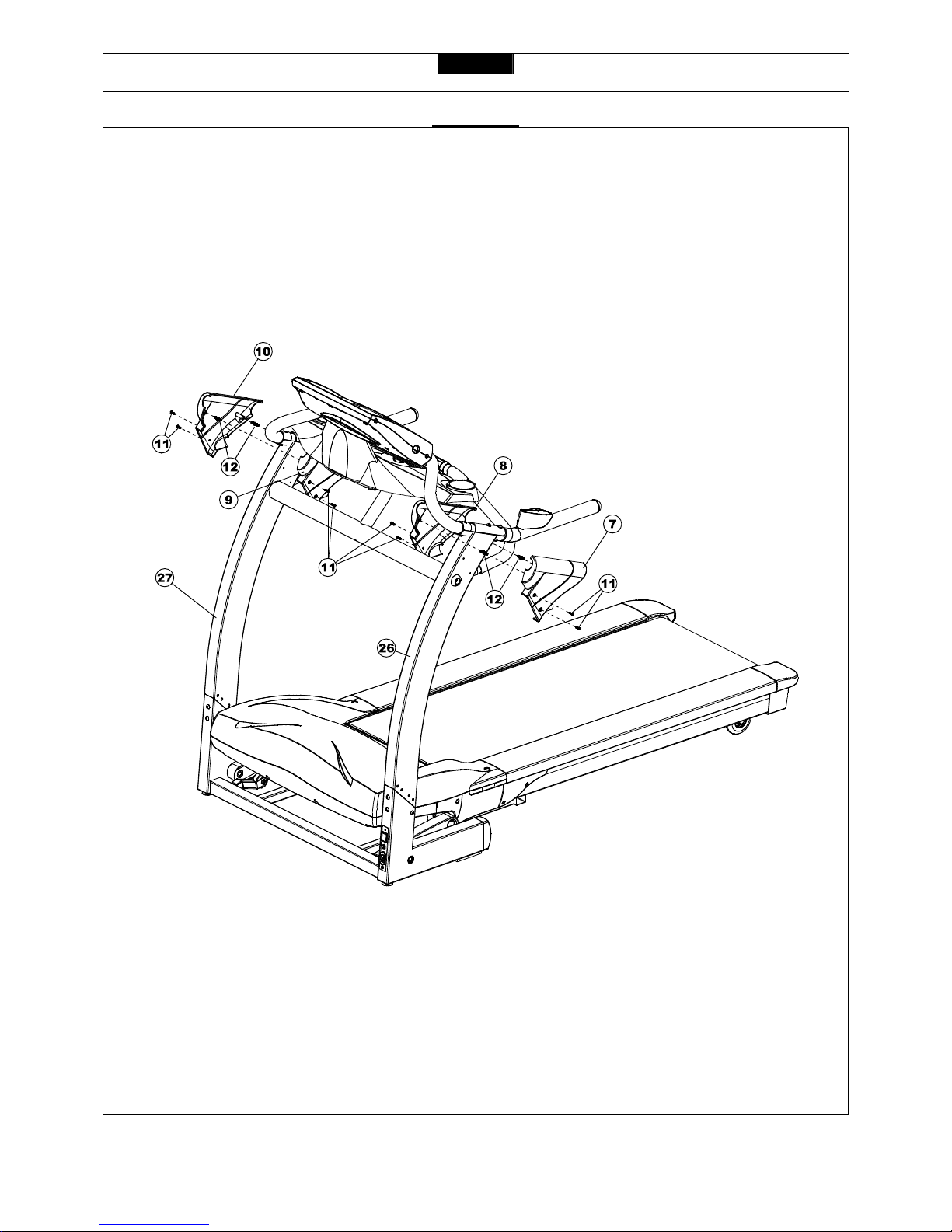

STEP 6:
Attach the Left # 1 Handlebar Rear End Cap (7) and Left # 2 Handlebar Rear End Cap (8) to the Left Upright (26) using two
Plastic Fixing Inserts (12) and four #8 x 12mm Screws (11).
Attach the Right # 2 Handlebar Rear End Cap (9) and Right # 1 Handlebar Rear End Cap (10) to the Right Upright (27) using
two Plastic Fixing Inserts (12) and four #8 x 12mm Screws (11).

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
16
ASSEMBLY

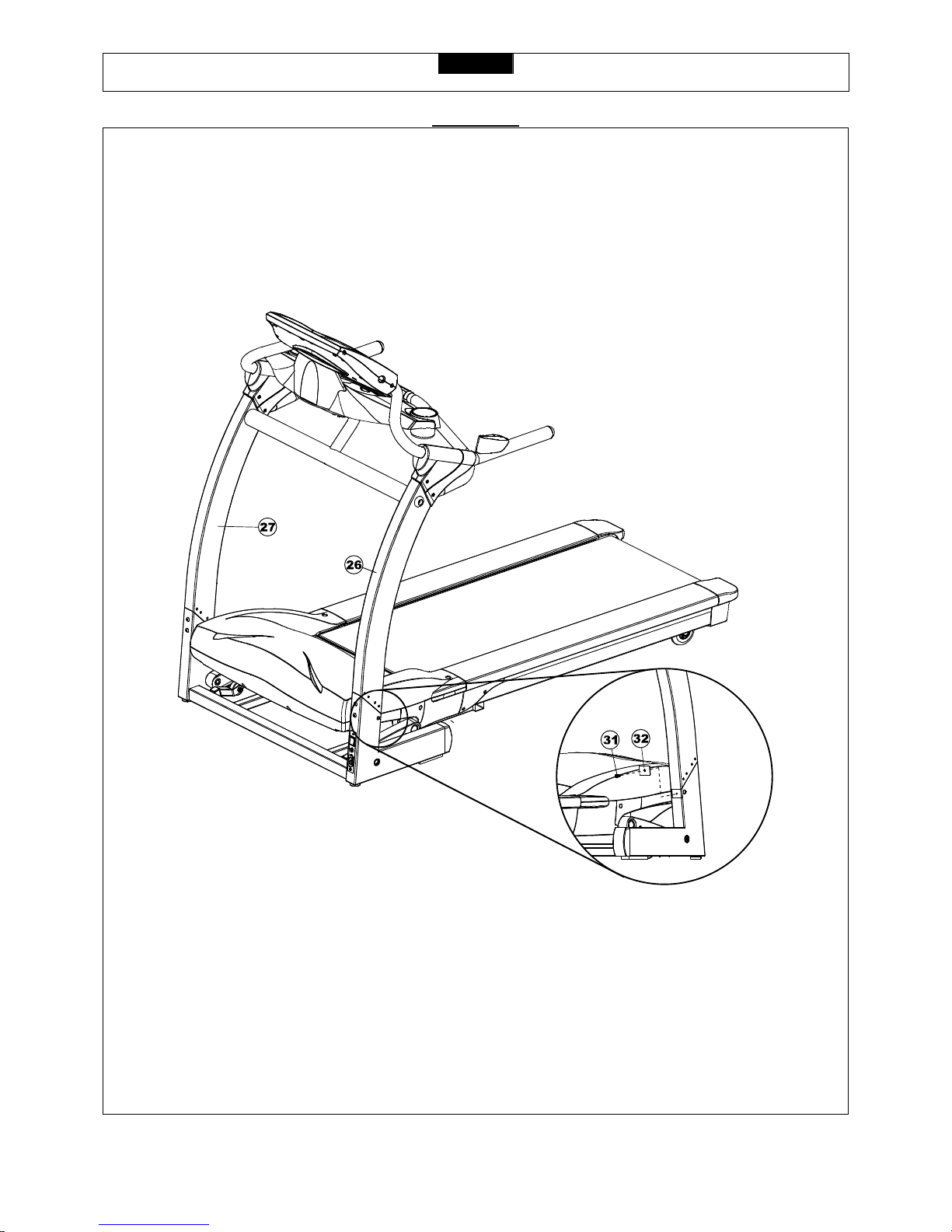

STEP 7:
Attach one Plastic Cover (32) to the Left Upright (26) using one M6 x 12mm Screw (31). Repeat this procedure for the Right
Upright (27).
Your EVO1 treadmill is fully assembled now.

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
17
TRANSPORT INSTRUCTIONS
How to transport the treadmill:
1. Tilt the treadmill to one side (you may need
the help of a friend), reach under the Base
Frame and pull down the Caster Bracket
(47). Repeat this procedure on the other
side.
2. To roll away for storage simply grab the rear
deck, lift slightly and roll to desired location.
3. After moving the treadmill to the desired
location, make sure to put the Caster
Brackets (47) back into their upright position
in order to stabilize the treadmill for use.

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
18
MAINTENANCE
HOW TO MAINTAIN THE EVO1 TREADMILL:
Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper maintenance
could cause damage or shorten the life of your treadmill and exceed the LIMITED WARRANTY coverage.
•Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep
liquids away and keep it out of direct sunlight.
•Inspect and tighten all parts of the treadmill regularly. Replace any worn parts immediately.
BELT ADJUSTMENT:
Belt adjustment and tension performs two functions: adjustment for tension and centering. The running belt has been
adjusted properly at the factory. However transportation, uneven flooring or other unpredicted reasons could cause the belt to
shift off center resulting in the belt rubbing with the plastic side rail or end caps and possibly causing damage. To adjust the
belt back to it’s proper position please follow the directions below:
•Walking belt has shifted to the left:First unplug the power cord from the surge protector. Using the hex key
provided, turn the left rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into
the surge protector and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set
walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer
below to the "Walking belt slipping" instructions.
•Walking belt has shifted to the right: First unplug the power cord from the surge protector. Using the hex key
provided, turn the right rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into
the surge protector and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set
walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer
below to the "Walking belt slipping" instructions.
•Walking belt is slipping:First unplug the power cord from the surge protector. Using the hex key provided, turn
both the left and right rear roller adjustment bolts the same distance, usually a 1/4 turn in the clockwise direction.
Plug the power cord back into the surge protector and run the treadmill at 2.5 mph. You should now walk on the belt
to determine if the belt is still slipping. Repeat the above procedure until the walking belt is not slipping. The tension
should be just tight enough not to slip.
WARNING! Do not over tighten rollers! This will cause premature roller bearing failure!
Right and left tension bolts are located at the rear of the treadmill.

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
19
MAINTENANCE
CLEANING:
Routine cleaning of your treadmill will extend the product's life.
•Warning: To prevent electrical shock, be sure the power to the treadmill is OFF and the power cord is unplugged
from the wall electrical outlet before attempting any cleaning or maintenance.
•Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep
liquids away and keep it out of direct sunlight.
•After each workout: Wipe off the console and other treadmill surfaces with a clean, water dampened soft cloth to
remove excess perspiration.
•Weekly: Use of a treadmill mat is recommended for ease of cleaning. Dirt from your shoes contacts the belt and
eventually makes it to underneath the treadmill. Vacuum underneath treadmill once a week.
DECK LUBRICATION:
The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be checked
periodically for lubrication to ensure optimal treadmill performance. Your treadmill should not have to be lubricated usually
within the first year or 500 hours of use. Call your local Smooth dealer for service or questions regarding EVO products.
Every 3 months of operation lift the sides of the walking belt and feel the top surface of the walking board as far as you can
reach. If you feel signs of silicone, no further lubrication is required. If it feels dry to the touch, follow the instructions below.
Please use Lube 'N Walk (can be purchased from your dealer or call the number on the front of the manual), or a non-
petroleum based silicone such as "Napa 8300" (available at most stores).
To apply lubricant to the walking belt:
1. Position the walking belt so that the seam is located on top and in center of the walking board.
2. Insert the spray nozzle into the spray head of the lubricant can.
3. While lifting the side of the walking belt, position the spray nozzle between the walking belt and the board
approximately 6" from the front of the treadmill. Apply the silicone spray to the walking board, moving from the
front of the treadmill to the rear. Repeat this on the other side of the belt. Spray approximately 4 seconds on each
side.
4. Allow the silicone to "set" for 1 minute before using the treadmill.
Spray lubricant from front to back.

EVO1 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
20
WARRANTY
Warranty Coverage: EVO Fitness and Smooth Fitness, Inc. ("Smooth Fitness") warrants to the original owner that each new product to be
free from defects in workmanship and material, under normal use and conditions.
Period of Coverage: The Warranty on this product runs from the date of original purchase using the following schedule:
Model Name Frame Motor Parts & Electronics Labor
FX20 Lifetime Lifetime 3 years 1 year
FX20HR Lifetime Lifetime 5 years 1 year
FX30 Lifetime Lifetime 5 years 1 year
FX40HR Lifetime Lifetime 5 years 1 year
FX60HRO Lifetime Lifetime 5 years 1 year
EVO1 Lifetime Lifetime Lifetime 1 year
EVO2 Lifetime Lifetime Lifetime 1 year
EVO3i Lifetime Lifetime Lifetime 1 year Home Use
EVO3i Lifetime 3 years 3 years 1 year Commercial Use
Labor: Smooth Fitness will reimburse for labor costs for One (1) year. Smooth Fitness reserves the right to either:
Hire and reimburse an independent service technician or local dealer service technician who will come into the home for the repair,
OR
In the event that there is not an available certified Smooth Fitness service technician, Smooth will send the part directly to the consumer and
will pay $75 US per occurrence for the labor costs of such repair. If multiple repair attempts must be made for one reported problem, Smooth
will only reimburse once per occurrence.
Smooth Fitness reserves the right to inspect damaged parts for misuse. Your Original Receipt is proof of purchase and should be kept with
the product manual. You may be required to show proof of purchase prior to warranty service being initiated.
Remedy Provided by Smooth Fitness: To obtain service on an EVO Fitness product, contact your local retailer. All labor for EVO Fitness
products purchased through your local retailer shall be performed by that retailer and the product must be located within the retailer’s service
area. In the instance that service is not available in an area, Smooth Fitness, at its discretion, can either 1) find a service technician in your
area to perform warranty service, 2) have a local dealer perform warranty service, or 3) send the warranty parts to you and reimburse as
described above. To help them assist you, please have the following information ready:
•Model name or number from the cover of the manual;
•Serial number located on the frame of the unit; and
•The part description and the order number.
Smooth Fitness will provide a replacement part free of charge if a defect is found during the Warranty period. Smooth Fitness may at its
discretion, choose to provide any of following parts or repair options. In the event that a part is determined in need of replacement, upon
receipt of the part by Smooth Fitness, Smooth Fitness may send out the part by UPS ground or another such carrier directly to the
customer’s home. The customer is responsible for the cost of sending the part to Smooth Fitness.
For the EVO1, EVO2, EVO3i Models Only: This warranty covers all parts including frame, electronics and wear parts for a lifetime for home
use only. If Smooth Fitness in its sole discretion determines that the treadmill cannot or should not be repaired, it may decide to purchase the
unit for the residual value in accordance with the following: 25% of retail purchase price after 5 years, 15% after 10 years, 5% after 15 years.
EVO3i Commercial Use: Warranty for commercial use is limited to 3 years on all parts and 1 year on labor.
Any redemption may be by repair or replacement of the affected parts and/or product at the sole discretion of Smooth Fitness, by personnel
approved by Smooth Fitness. Parts repaired or replaced pursuant to this Warranty shall be warranted for the unexpired portion of the
Warranty applying to the original product. Any technical advice furnished before or after delivery in regard to the use or application of Smooth
Fitness products is furnished without charge and on the basis that it represents Smooth Fitness' best judgment under the circumstances but
that the advice is used at your sole risk.
Procedure for Obtaining Your Remedy Under This Warranty: To obtain service on a EVO Fitness product, call your local EVO retailer. In
the instance that service is not available in an area, Smooth Fitness, at its discretion, can either 1) find a service technician in your area to
perform warranty service, 2) have a local dealer perform warranty service, or 3) send the warranty parts to you and reimburse as described
above. To help the technician assist you, please have the following information ready:
•Model name or number from the cover of the manual;
•Serial number located on the frame of the unit; and
•The part description and the order number.
Limitations on Warranty: This Warranty will only apply to the original end user. This Warranty does not cover wear and tear (except the EVO1, EVO2 and
EVO3i treadmills used in a home), any problems, damages or failures that are caused by accident, improper assembly, failure to observe cautionary labels on
the product, failure to operate the product correctly, power grid failures or spikes from your local electricity provider, abuse or freight damage. Smooth Fitness
does not warrant against any damage or defects that may result from repair or alterations made to the product by an unauthorized repair facility.
This Warranty shall terminate if you sell or otherwise transfer this product. This Warranty does not apply to any product shipped or handled outside of the United
States or Canada. This Warranty does not apply if the product is used as a rental product or in commercial use, with the exception of an EVO3i used in
commercial use. Consequential and incidental damages are not recoverable under this Warranty. (Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.)
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE (1) YEAR FROM THE EFFECTIVE DATE OF
THIS WARRANTY. SMOOTH FITNESS IS NOT LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN PARTS
NOR FOR ANY BREACH OF EXPRESS OR IMPLIED WARRANTIES. SMOOTH FITNESS' SOLE LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE
TERMS DESCRIBED IN THIS FORM. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE. FORM WE-3 (rev. 08/2005)
