Ewbank MOTION EW3015 User manual

INSTRUCTION MANUAL

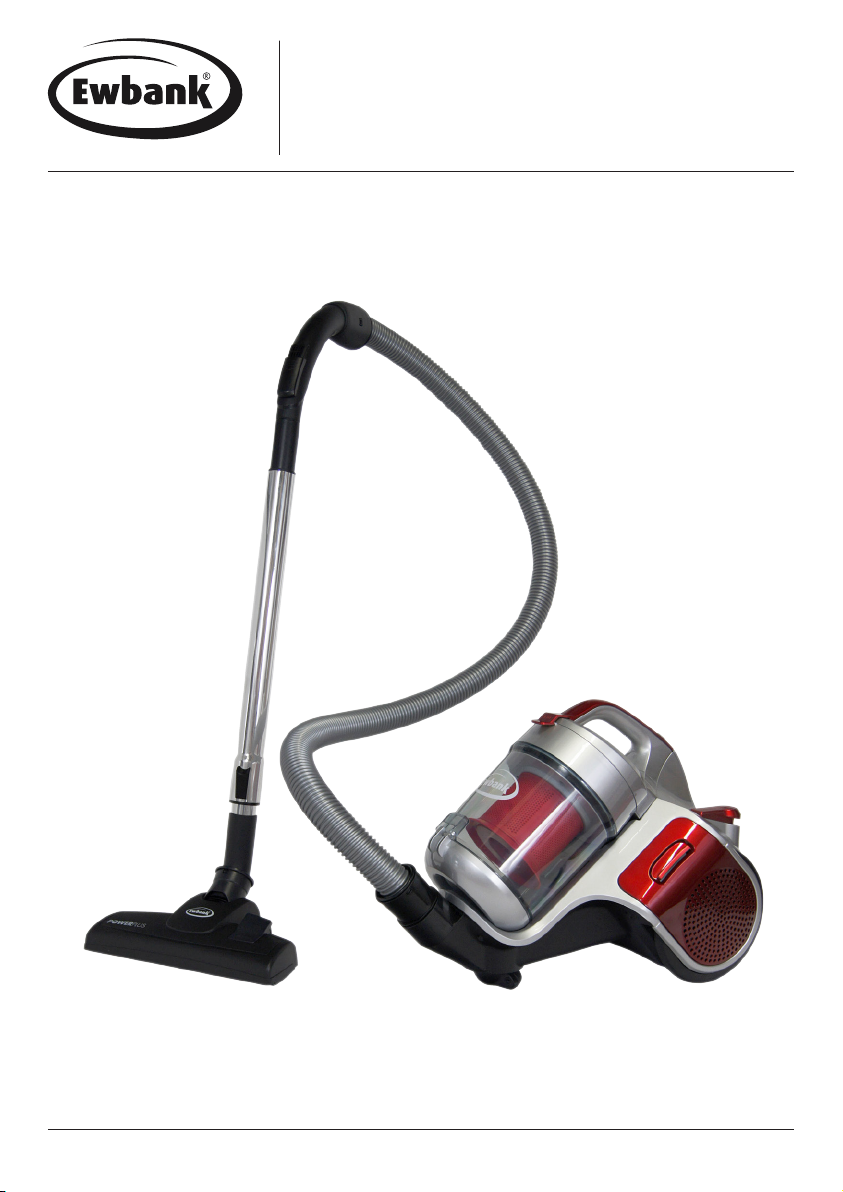

MOTION Bagless Cylinder Vacuum Cleaner
with Large 2.5 Litre Dust Container
EW3015
Ewbank has a British heritage to be proud of. It’s a household favourite and much loved brand that has been providing innovative cleaning solutions for over 135 years.

2
CONTENTS
Safety Instructions.............................................................................................3-5
Appliance Overview ........................................................................................6-7
Product Assembly................................................................................................8
Operating Instructions..........................................................................................9
Damage Prevention ...........................................................................................10
Using Your Vacuum Cleaner ...............................................................................11
Cleaning & Maintenance ..............................................................................12-13
Trouble Shooting...............................................................................................14
Fuse Replacement..............................................................................................15
Disposal of the Appliance ..................................................................................15
Warranty Terms & Conditions .............................................................................16

3
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
SAFETY INSTRUCTIONS
PLEASE READ ALL THE INSTRUCTIONS BEFORE
USE AND WHEN USING THE APPLIANCE, THE
FOLLOWING PRECAUTIONS MUST BE TAKEN:
WARNING! TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY:
1. Do not leave the vacuum cleaner plugged in when not in
use. Unplug from the socket before servicing.
2. To reduce the risk of electric shock, do not use outdoors
or on wet surfaces.
3. Only use as described in this manual, including
attachments. Attachments used should only be that of the
manufacturers.
4. Do not use when the cord or plug are damaged. If
the vacuum cleaner is not working as it should be or
has been dropped, damaged, left outdoors, or fallen
into water, the vacuum cleaner must be serviced by an
engineer.
5. Do not pull or carry by the cord, use the cord as a
handle, trap the cord, or pull the cord around sharp
edges and corners. Do not run the vacuum cleaner over
the cord and keep the cord away from heated surfaces.
6. Do not unplug the vacuum cleaner by pulling on the
cord. To unplug, grasp the plug.
7. Do not handle the plug or the vacuum cleaner with wet
hands.
8. Do not actively put any objects into any of the vacuum
cleaners openings. Do not use with any of the opening
blocked. Keep free of dust, lint, hair and anything that
may reduce airflow.
9. Keep hair, loose clothing, fingers and all parts of the
body away from any openings and/or moving parts.

4
10. Turn all controls off before unplugging.
11. Take extra care when cleaning the stairs.
12. Do not use to pick up flammable or combustible liquids
such as gasoline. Do not use in areas where this may be
present.
13. Hold the plug when rewinding the cord. If this is not
done, the plug may whip.
14. Unplug before connecting the hose.
15. Do not pick anything up that is burning or smoking such
as cigarettes, matches or hot ashes.
16. Do not use without filter in place.
17. If the cord is damaged, it must be replaced by the
manufacturer, or a service engineer.
18. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge. Only when they have been given supervision
or instruction to use the appliance by a person
responsible for their safety, can they then use it.
19. Children should be supervised to ensure that they do not
play with the appliance.
20. The mains power supply should comply with the
information on the appliance’s rating plate.
21. Do not vacuum water or other liquids.
22. Do not use or store the vacuum cleaner in humid
environments.
23. Do not use with an extension cable.
24. Never dismantle any part of the appliance.
25. When cleaning the stairs, ensure the vacuum cleaner is
located below the user. Keep on the floor when possible.
26. When retaining the packaging, store out of the reach of
children.
27. Do not store outdoors. Store out of the way with the
power cord neatly wrapped up, to prevent accidents.
SAFETY INSTRUCTIONS

5
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
Read the safety and operating instructions through carefully
before using the vacuum cleaner. This is the only way to
ensure safe and reliable use of the device. If the appliance is
sold or passed on, ensure it is equipped with this instruction
manual. You will also need these operating instructions
for ordering spare parts and accessories. Please keep this
booklet in a safe place.
SAFETY INSTRUCTIONS
28. When vacuum cleaning static electricity may be created.
To prevent shocks, do not access any parts with your
hand until the area is clear.
29. Check the recommended cleaning instructions of your
flooring before vacuum cleaning.
30. Do not use the vacuum cleaner to vacuum powders such
as flour and cement. It can damage, block or break the
motor.
31. Do not use or store the vacuum cleaner in excessively
high or low temperatures, outside of 0-40°c. Avoid
the vacuum cleaner being in direct sunshine for a long
period.
32. If the vacuum cleaner is broken do not disassemble it.
This must be done by a qualified technician.
READ AND SAVE THESE INSTRUCTIONS
This vacuum cleaner is intended for household use only.

6
POWERPLUS
Floor Head
Telescopic Tube
Airflow Adjuster
Hose Handle
Flexible Hose
Dust Container
Dust Container Release Button
Cord Rewind
ON/OFF Switch
Power Cord
Exhaust Cover
2-in-1 Crevice ToolUpholstery Brush Turbo Brush
Additional PROGLIDE
Floor Head
APPLIANCE OVERVIEW

7
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
ACCESSORIES
This vacuum cleaner comes with two floor heads and three attachments designed for
differing applications.
Each individual attachment can be attached to the telescopic tube or directly onto the
handle of the suction hose.
Floor Head
This is suitable for cleaning large areas. The floor head is fitted
with an easy-to-use connector so that cleaning is smooth and
simple.
For use on carpets, place the floor head switch on carpet mode
(as shown). For use on hard floors including PVC, parquet or
tiles, place the floor head switch on hard floor mode.
For carpet floors
For smooth floors
This floor head has
increased clearance
making it easier to pick
up larger debris on
hard floors
POWERPLUS PROGLIDE
This floor head
improves suction
power, ideal for
cleaning carpets
Upholstery Brush
This tool is for cleaning furniture. It is great at collecting dust and
fine particles.
2-in-1 Crevice Tool
Use to access material stuck in hard-to-get place. Use without the
bristles for soft surfaces, use with bristles for hard surfaces.
Turbo Brush
An air driven attachment which allows for a more intense vacuum.
Use when vacuuming hair and other stubborn material.
APPLIANCE OVERVIEW

8
PRODUCT ASSEMBLY
Before assembling and disassembling accessories, always ensure that
the vacuum cleaner has been unplugged from the mains socket.
ASSEMBLING THE TUBE
Insert the telescopic tube to the hose handle
To set the telescopic tube to the correct length, push
the switch on the tube forwards and pull out the lower
part of the tube. Release the switch when the tube is
adjusted to the length required.
Attach the floor head to the telescopic tube.
ATTACHING THE TUBE
Insert the tube in the air intake opening.
Push the tube in until it locks in place.
To disassemble, press the tube release
button and pull out the tube.

9
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
OPERATING INSTRUCTIONS
Danger!
This device uses a high electrical voltage which can be dangerous. Do not use
the appliance when the cable is defective or if the device has visible damage.
Never open the casing; this should only be done by the service engineer. Do not
vacuum hot ashes, live cigarette ends, matches, sharp objects, splinters, water or any
other liquids. This can damage the vacuum cleaner and can put you in serious danger.
Hot ashes, live cigarette ends etc. can set the filter on fire and liquids can lead to short
circuits. Sharp objects can damage the filter. Do not allow children to play with any
plastic packaging as it may result in suffocation.
Danger!
Never expose the vacuum cleaner to outdoor elements such as rain or snow.
Always unplug the vacuum cleaner from the mains before cleaning or removing
the filter. Children maybe unaware of the dangers of electrical products so should not
use the vacuum cleaner without supervision.
Caution!
Hold the plug firmly when rewinding the cable. The powerful rewind mechanism
can result in the cable whipping. Despite having a filter, it is possible that a
small quantity of dirt is present in the air emitted by the exhaust. This can be inhaled
and result in allergic reactions. For this reason, do not vacuum when someone who
may have a reaction is present.
Important!
Never pull the plug out of the socket by tugging on the cable, always grip the
plug itself. Never sit on or place objects on the vacuum cleaner. Only use the
vacuum cleaner when the filters are fitted. The filters must not be damaged.
Important!
Before vacuum cleaning a shampooed carpet, wait until it is completely dry. Never
leave the vacuum cleaner close to a heater or an oven.
In the event of the device being damaged, or if repairs are required, contact the
customer service department. Faults resulting from improper use, failure to follow the
instructions or damage caused by repairs done by a third party are not covered by the
guarantee. This also applies to the wear of component parts such as the filter.
Danger! High risk – ignoring the warning can result in loss of life or
serious injury.
Caution! Medium risk – ignoring the warning can cause injury.
Important! Low risk – ignoring the warning can cause damage to the
appliance.
You will find the following symbols in this instruction booklet:

10
Important!
If you have the available storage, we recommend that you keep the packaging
until the guarantee runs out. If the device must be sent to be repaired, the
original packaging will ensure that it is adequately protected.
If you wish to dispose of the packaging, please do so in a manner that will not cause
damage to the environment.
Used filters can be disposed of domestically.
Switch off the vacuum cleaner immediately if the air intake, floor head or the telescopic
tube becomes blocked. Remove any substance which appears to be causing the
blockage.
DAMAGE PREVENTION
Do not use the appliance if your hands are wet.
Remove all large objects from the floor before use to avoid
any possible damage to the vacuum.
Do not use the vacuum cleaner in the immediate vicinity of
hot bodies such as a radiator.

11
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
REGULATING SUCTION POWER
The airflow adjustment switch is situated on the handle. Sliding
this adjusts the suction power. The wider it is opened, the less
the suction power and vice-versa. Open the airflow adjustment
switch to prevent curtains and other fine material from getting
stuck.
WHEN VACUUM CLEANING
Before using the device first extend the
cable to a suitable length and plug it in
the socket. The cable has a yellow mark
on it which shows the maximum length it
can extend to.
To switch on the device press the ON/
OFF foot pedal switch .
It is advised to use the device so that it
trails behind you.
AFTER VACUUM CLEANING
Turn off the device when you have finished cleaning. To do this press the ON/OFF
foot pedal switch . To rewind the cable, press the cable rewind foot pedal and
hold it in position. The cable will rewind automatically, back into place. The floor head
should remain attached to the hose, for ease of storage after use.
In the event of a major blockage or that the dust container is too full, the vacuum
cleaner will automatically stop working to avoid over-heating. This will prolong the life
of motor.
Minimal suction power (switch fully open): curtains and fine materials.
Medium suction power: cushions and mattresses. Maximum suction power (switch
closed): tiled, wooden and robust floor that has been heavily soiled.
The cyclonic vacuum cleaner is bagless. The dirt is forced up into the vacuum cleaner
by the airflow created. The air is then filtered and cleaned by its internal structure.
USING THE VACUUM CLEANER

12
EMPTYING THE DUST CONTAINER
Because of the transparent design, it is easy to see when the
appliance needs to be cleaned or emptied. Switch off the vacuum
cleaner and disconnect the plug from the mains. When doing this
always pull using the plug and not the cable. Press the release
button on the top of the dust container to release it. Take the dust
container to a waste bin and release the clip at the base. Make
sure to be over the bin when doing this.
CLEANING THE FILTER SYSTEM
Important!
Ensure that the dust container has been disconnected from the body of
the vacuum cleaner before opening the lid to access the filter system.
The filter system should be cleaned regularly. It is advised to clean the
filter as often as emptying the dust container.
Important!
The filter material is soft and fine, so clean the filter gently. Only ever
wash the filter with clean water and do not use soap or detergent; this is
likely to destroy the filter.
CLEANING THE HEPA FILTER
The HEPA filter and the cover should be cleaned regularly. It is advised to clean the
HEPA filter as often as emptying the dust container. Switch off the vacuum cleaner and
disconnect the plug from the mains. When doing this always pull using the plug and
not the cable.
Turn the dust container lid carefully, until it unlocks. The filter will then be easy to
access.
CLEANING AND MAINTENANCE

13
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
CLEANING THE MICRO FILTER
Open the dust container lid and remove the Micro filter.
We suggest tapping the Micro filter to remove most of the
debris. It too can be cleaned with water but make sure
it is totally dry before placing it back into the appliance.
Secure the lid by clicking it back into place.
CLEANING THE EXHAUST FILTER
Switch off the vacuum cleaner and disconnect the plug from the socket. Press
the release button to release the exhaust grill. Turn the exhaust filter holder
anti-clockwise to access the filter. Take out the exhaust filter and holder to
then clean it. Please follow the cleaning method as described in the ‘Cleaning
the HEPA Filter’ section.
CLEANING THE BODY
Switch off the vacuum cleaner and disconnect the plug from the socket.
Important!
No parts can be washed in a dishwasher.
The body, the dust container and the filter chambers can be wiped with a damp cloth if
required. Avoid any liquid from entering any of the vacuum cleaners openings. Do not
use strong cleaning substances and do not use coarse objects like a scouring pad as
this will damage the plastic surface. Only plug in the appliance once all elements are
completely dry. Hair and fluff may gather on the wheels and on the base of the floor
head. Ensure to remove this so to avoid the either becoming jammed.
Important!
Oiling or lubricating any part of the vacuum cleaner is not recommended as this
will cause dirt and fluff to become stuck.
CLEANING AND MAINTENANCE

14
If you experience difficulties with the appliance, please check the suggestions below
before contacting customer services on 01473 271272:
PROBLEM POSSIBLE CAUSES SOLUTIONS/TIPS
The suction is poor. The airflow adjustment
switch is open.
Close the airflow
adjustment switch.
An object is blocked. Check the hose, the handle
and the floor head or
attachment for blockages.
Filters are not fitted
properly or are blocked.
Clean or replace the filter.
Device does not work. The appliance is not
properly plugged into
the socket.
Check that the plug has
been inserted properly.
The dust container
does not attach.
The parts of the dust
container have not been
secured correctly.
Check that the dust
container lid is correctly
attached. Also check if the
dust container base has
been clipped into place.
Danger!
Never try to repair a defective appliance yourself. You can put yourself and/
or future users in danger. Repairs must only be done by a service engineer.
TROUBLESHOOTING

15
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
Disposal Information
The European Directive 2012/19/EU on Waste Electrical and Electronic
Equipment (WEEE), requires that old household electrical appliances must
not be disposed of in normal unsorted municipal waste.
Old appliances must be collected separately in order to optimise the
recovery and recycling of the materials they contain and reduce the impact on human
health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation,
that when you dispose of the appliance it must be separately collected. Consumers
should contact their local authority or retailer for information concerning the correct
disposal of their old appliance.
Fuse Cover
Fuse Replacement (Class II)
Remove the fuse cover with a small flat head screw driver. Take
out the fuse and replace with a new fuse of the same Amp.
Replace the fuse cover and push back into place.
MAINS PLUG FUSE REPLACEMENT & DISPOSAL INFORMATION

16
Ewbank Warranty Terms & Conditions
This product is guaranteed for a period of 24 months as standard from the date of
purchase against mechanical and electrical defects.
To qualify for the warranty, the product must be used for domestic household use
only and in accordance with the instructions in the user manual. Any misuse of the
product will result in the warranty being void.
The warranty does not cover accidental damage, misuse, neglect, tampering or
incorrect adjustment or installation.
The warranty will be rendered invalid if the product is resold, has had its serial
number removed (or has an invalid serial number), or if an unauthorised person
has carried out any repairs or alterations.
The warranty does not cover accessories or consumable parts that require
replacement under normal use. This includes shelving, dials, filters, belts and trays
etc.
In the unlikely event of a breakdown please refer to the Troubleshooting guide in
your user manual and check all plugs, fuses and the electricity supply.
If you still require assistance please contact our Customer Service department on
01473 271 272 or write to us at the following address:
Customer Service Department
Ewbank, 38 Bluestem Road,
Ipswich, Suffolk, IP3 9RR
Please quote the Product Code and the PO Number on the front of the instruction
manual and give details of the exact fault. We will then decide whether to repair
or replace the item.
Before we arrange the repair or replacement you will be required to return a copy
of your proof of purchase. Please retain your original.
If an item is replaced within the agreed warranty period, the warranty for the
replacement item will be calculated from the purchase date of the original.
In the event that the product is inspected and no fault is found or the product is not
within the warranty period you will be charged for the repair and any carriage
costs.
WARRANTY TERMS & CONDITIONS

Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]

18

19
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]

Disclaimer: Ewbank operate a policy of continual improvement and development.
We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice.
All diagrams and images shown in this manual are for illustration purposes only.
Your Guarantee
This product is covered by a 2 year guarantee.
This does not cover normal wear and tear or abuse.
For guarantee purposes, please retain your original receipt as proof of purchase.
This guarantee does not affect your statuatory rights.
For spares, service and further information please contact;
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR
Tel: [phone]
