Ewbank EW4001 DV6 User manual

INSTRUCTION MANUAL
DV6 Commercial 6L Dry Drum Vacuum Cleaner
EW4001
Ewbank has a British heritage to be proud of. It’s a household favourite and much loved brand that has been providing innovative cleaning solutions for over 135 years.

2
CONTENTS
Safety Instructions...........................................................................................3 - 5
Appliance Overview ...........................................................................................6
Using Your Vacuum Cleaner ............................................................................7 - 9
Cleaning & Maintenance ............................................................................10 - 11
Trouble Shooting...............................................................................................12
Fuse Replacement..............................................................................................13
Disposal of the Appliance ..................................................................................13
Warranty Terms & Conditions .............................................................................14

3
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
SAFETY INSTRUCTIONS
PLEASE READ ALL THE INSTRUCTIONS BEFORE
USE AND WHEN USING THE APPLIANCE, THE
FOLLOWING PRECAUTIONS MUST BE TAKEN:
WARNING! TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY:
1. Do not leave the vacuum cleaner plugged in when not in
use. Unplug from the socket before servicing.
2. To reduce the risk of electric shock, do not use outdoors
or on wet surfaces.
3. Only use as described in this manual, including
attachments. Attachments used should only be that of the
manufacturers.
4. Do not use when the cord or plug are damaged. If
the vacuum cleaner is not working as it should be or
has been dropped, damaged, left outdoors, or fallen
into water, the vacuum cleaner must be serviced by an
engineer.
5. Do not pull or carry by the cord, use the cord as a
handle, trap the cord, or pull the cord around sharp
edges and corners. Do not run the vacuum cleaner over
the cord and keep the cord away from heated surfaces.
6. Do not unplug the vacuum cleaner by pulling on the
cord. To unplug, grasp the plug.
7. Do not handle the plug or the vacuum cleaner with wet
hands.
8. Do not actively put any objects into any of the vacuum
cleaners openings. Do not use with any of the opening
blocked. Keep free of dust, lint, hair and anything that
may reduce airflow.
9. Keep hair, loose clothing, fingers and all parts of the
body away from any openings and/or moving parts.

4
10. Turn all controls off before unplugging.
11. Take extra care when cleaning the stairs.
12. Do not use to pick up flammable or combustible liquids
such as gasoline. Do not use in areas where this may be
present.
13. Unplug before connecting the hose.
14. Do not pick anything up that is burning or smoking such
as cigarettes, matches or hot ashes.
15. Do not use without filter in place.
16. If the cord is damaged, it must be replaced by the
manufacturer, or a service engineer.
17. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge. Only when they have been given supervision
or instruction to use the appliance by a person
responsible for their safety, can they then use it.
18. Children should be supervised to ensure that they do not
play with the appliance.
19. The mains power supply should comply with the
information on the appliance’s rating plate.
20. Do not vacuum water or other liquids.
21. Do not use or store the vacuum cleaner in humid
environments.
22. Do not use with an extension cable.
23. Never dismantle any part of the appliance.
24. When cleaning the stairs, ensure the vacuum cleaner is
located below the user. Keep on the floor when possible.
25. When retaining the packaging, store out of the reach of
children.
26. Do not store outdoors. Store out of the way with the
power cord neatly wrapped up, to prevent accidents.
27. When vacuum cleaning static electricity may be created.
To prevent shocks, do not access any parts with your
SAFETY INSTRUCTIONS

5
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
SAFETY INSTRUCTIONS
hand until the area is clear.
28. Check the recommended cleaning instructions of your
flooring before vacuum cleaning.
29. Do not use the vacuum cleaner to vacuum powders such
as flour and cement. It can damage, block or break the
motor.
30. Do not use or store the vacuum cleaner in excessively
high or low temperatures, outside of 0-40°c. Avoid
the vacuum cleaner being in direct sunshine for a long
period.
31. If the vacuum cleaner is broken do not disassemble it.
This must be done by a qualified technician.

6
APPLIANCE OVERVIEW
Sliding block
Extension tube
Floor brush
Handle Hose
Switch
Carrying handle
Locking block
Hose connector
Dust barrel
Wheel
Power cord plug
Floor brush
for use on carpets and
hard floors
2-in-1 crevice tool
without bristle brush: corners, cracks, soft furnishings etc.
with bristle brush: bookshelves, furniture hard surfaces etc.
ACCESSORIES

7
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
USING THE VACUUM CLEANER

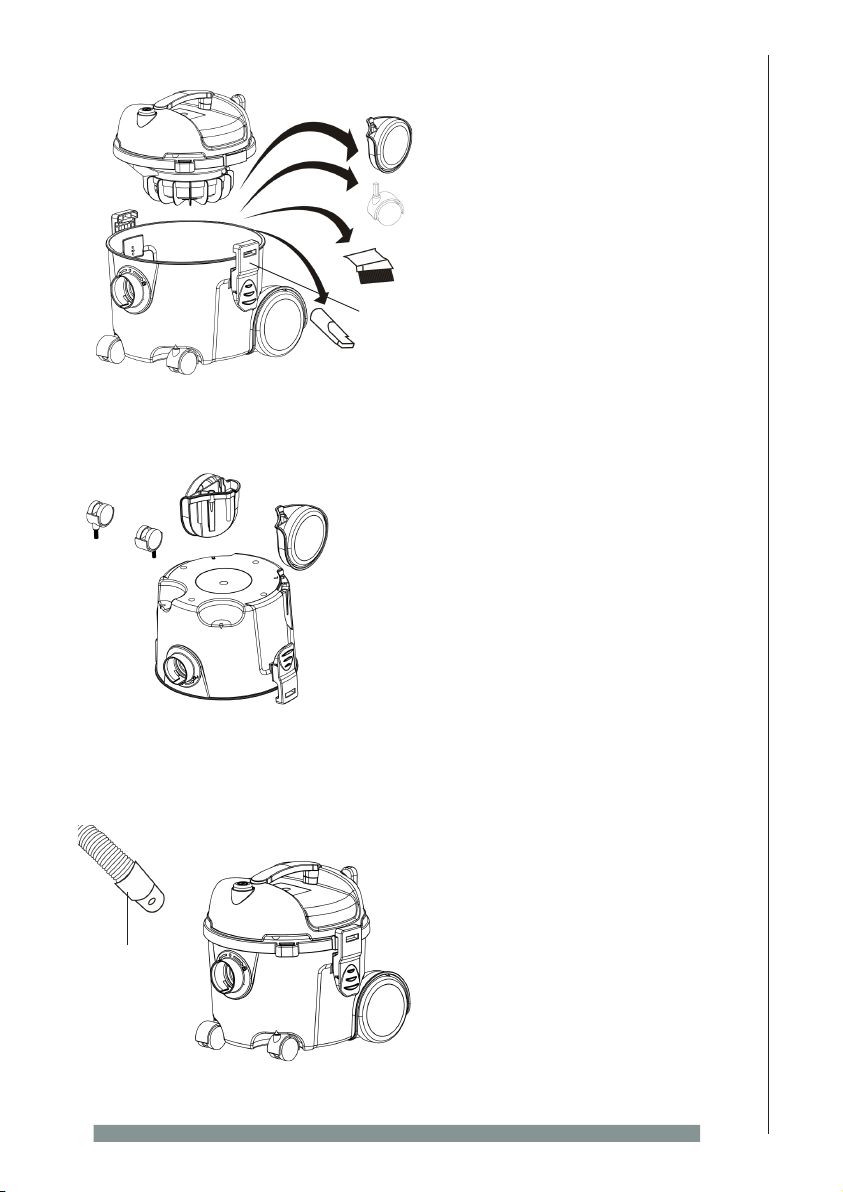

Locking clips
Release the locking clips to open the
housing, then take out wheels and
accessories.
Install castor wheels into the corresponding
hole on the base.
Install the large wheels into the relevant
positions on the base (ensure the “R” and “L”
markings line up for the left and right wheels)
and then fix the wheel in place with the
screws provided.
1
2
3
Insert the hose connector into the
hose socket at the front of the dust
barrel.
Hose connector

8
USING THE VACUUM CLEANER
Insert the telescopic tube to the hose handle
To set the telescopic tube to the correct length, push
the switch on the tube forwards and pull out the
lower part of the tube. Release the switch when the
tube is adjusted to the length required.
Attach the floor head to the telescopic tube.
4
5
6

9
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
USING THE VACUUM CLEANER
Hold the plug and insert into the
wall socket
7
Press the button on the top of the
vacuum cleaner to turn the power
on/off.
Note: Please replace the
waterproof switch cover if broken or
damaged
8
On/off switch
You can adjust the airflow by pushing the
sliding block on the tube handle up and
down.
Minimal suction power (switch fully open):
curtains and fine materials.
Medium suction power: cushions and
mattresses. Maximum suction power (switch
closed): tiled, wooden and robust floor that
has been heavily soiled.
9

10
CLEANING AND MAINTENANCE
EMPTYING THE DUST BARREL
Note: If the dust barrel is full, empty it as soon as possible
Locking clips
Release the locking clips to open the
housing.
1
Empty the dust barrel into a waste bin.
Note: wherever possible always empty the dust
barrel into a waste disposal bin outside to avoid
any re-emission of dust, debris and allergens inside.
IMPORTANT NOTE: Please note the DV6 has
been developed to be used as a Bagless cleaner
however if there is a preference for the collection
and disposal of dust to be carried out via a bag,
there are paper dust bags available. Go to the
Ewbank website www.ewbank.co.uk and search for
spare code EWS4000
2
Replace the upper housing and
fasten the locking clips.
3
IMPORTANT NOTE: In the event of a major blockage or that the dust container is
too full, the vacuum cleaner will automatically stop working to avoid over-heating. This
will prolong the life of motor.

11
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
CLEANING AND MAINTENANCE
Warning: When the filter is obviously covered with dust or the suction decreases
considerably, please clean promptly, as this will improve the working efficiency and
extend the life of the cleaner. NEVER use the machine without filters.
CLEANING THE FILTER
Twist the locking knob anti-clockwise and take
off the filter.
1
Carefully rinse the sponge filter and main
cloth filter with cold water. Then use a damp
cloth to remove any stubborn dirt on the
inside of the dust barrel.’
2
Once the sponge filter, main cloth filter and
dust barrel have been carefully cleaned,
ensure each part is left to dry fully (usually in
direct sunlight for 24hours) before reinstalling.
3

12
If you experience difficulties with the appliance, please check the suggestions below
before contacting customer services on 01473 271272:
PROBLEM POSSIBLE CAUSES SOLUTIONS/TIPS
The suction is poor. The airflow adjustment
switch is open.
Close the airflow
adjustment switch.
An object is blocked. Check the hose, the handle
and the floor head or
attachment for blockages.
Filters are not fitted
properly or are blocked.
Clean or replace the filter.
Device does not work. The appliance is not
properly plugged into
the socket.
Check that the plug has
been inserted properly.
Danger!
Never try to repair a defective appliance yourself. You can put yourself and/
or future users in danger. Repairs must only be done by a service engineer.
TROUBLESHOOTING

13
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]
Disposal Information
The European Directive 2012/19/EU on Waste Electrical and Electronic
Equipment (WEEE), requires that old household electrical appliances must
not be disposed of in normal unsorted municipal waste.
Old appliances must be collected separately in order to optimise the
recovery and recycling of the materials they contain and reduce the impact on human
health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation,
that when you dispose of the appliance it must be separately collected. Consumers
should contact their local authority or retailer for information concerning the correct
disposal of their old appliance.
Fuse Cover
Fuse Replacement (Class II)
Remove the fuse cover with a small flat head screw driver. Take
out the fuse and replace with a new fuse of the same Amp.
Replace the fuse cover and push back into place.
MAINS PLUG FUSE REPLACEMENT & DISPOSAL INFORMATION

14
Ewbank Warranty Terms & Conditions
This product is guaranteed for a period of 24 months as standard from the date of
purchase against mechanical and electrical defects.
To qualify for the warranty, the product must be used for domestic household use
only and in accordance with the instructions in the user manual. Any misuse of the
product will result in the warranty being void.
The warranty does not cover accidental damage, misuse, neglect, tampering or
incorrect adjustment or installation.
The warranty will be rendered invalid if the product is resold, has had its serial
number removed (or has an invalid serial number), or if an unauthorised person
has carried out any repairs or alterations.
The warranty does not cover accessories or consumable parts that require
replacement under normal use. This includes shelving, dials, filters, belts and trays
etc.
In the unlikely event of a breakdown please refer to the Troubleshooting guide in
your user manual and check all plugs, fuses and the electricity supply.
If you still require assistance please contact our Customer Service department on
01473 271 272 or write to us at the following address:
Customer Service Department
Ewbank, 38 Bluestem Road,
Ipswich, Suffolk, IP3 9RR
Please quote the Product Code and the PO Number on the front of the instruction
manual and give details of the exact fault. We will then decide whether to repair
or replace the item.
Before we arrange the repair or replacement you will be required to return a copy
of your proof of purchase. Please retain your original.
If an item is replaced within the agreed warranty period, the warranty for the
replacement item will be calculated from the purchase date of the original.
In the event that the product is inspected and no fault is found or the product is not
within the warranty period you will be charged for the repair and any carriage
costs.
WARRANTY TERMS & CONDITIONS

Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR Tel. [phone]

Disclaimer: Ewbank operate a policy of continual improvement and development.
We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice.
All diagrams and images shown in this manual are for illustration purposes only.
Your Guarantee
This product is covered by a 2 year guarantee.
This does not cover normal wear and tear or abuse.
For guarantee purposes, please retain your original receipt as proof of purchase.
This guarantee does not affect your statuatory rights.
For spares, service and further information please contact;
Ewbank, 38 Bluestem Road, Ipswich, Suffolk, IP3 9RR
Tel: [phone]
