ExpertDAQ 8051 Series User manual

TCP/IP Converter
EX-9132
Operation Manual
for
8051 Series
First Edition, March 2005

1
Table of Contents
1. Introduction ……………………………………………… 3
Overview ………………………………………………… 4
Package Checklist ………………………………………… 5
Block Diagram …………………………………………… 6
Features …………………………………………………… 7
Product Specifications …………………………………… 8
2. Converter Description & Installation ……………… 10
Product Panel Views ……………………………………… 10
Top Side …………………………………………………… 10
Left Side ………………………………………………… 11
Right Side …………………………………………………… 12
Rear Side ………………………………………………… 12
Reset ……………………………………………………… 13
LED Indicators …………………………………………… 13
Wiring Architecture ……………………………………… 14
RS-232 …………………………………………………… 14
RS-422/RS-485 …………………………………………… 14
3. Converter Configuration …………………………… 16
Initial IP Configuration ………………………………… 16
Device Management Utility of ExpertDAQETM ………… 17
Menu “Refresh” …………………………………………… 18
Menu “Config” …………………………………………… 18
Web Console Configuration …………………………… 20
Controller Status ………………………………………… 21

2
Controller Setup ………………………………………… 23
Controller Updated ……………………………………… 29
Factory Default Setting ………………………………… 30
4. Self-Testing ………………………………………………… 31
Hyper Terminal for TCP/IP WinSock ………………… 32
Hyper Terminal for COM Port ………………………… 35
Data Transmission ……………………………………… 36
Appendix A - FAQ ………………………………………… 37
Appendix B - Pin Outs and Cable Wiring ………… 38
DC Power Outlet ………………………………………… 38
RJ-45 Pin Assignment …………………………………… 38
RS-232 Pin Assignment ………………………………… 38
RS-232 Wiring Diagram ………………………………… 39
RS-422 Pin Assignment ………………………………… 39
RS-422 Wiring Diagram ………………………………… 39
RS-485 Wiring Diagram ………………………………… 39

3
1 1
Introduction
Tops CCC Products Co., Ltd. is providing new ways of connecting legacy serial devices to a
Local Area Network (LAN) or Wide Area Network (WAN). TCP/IP converters are
designed to operate serial ports over 10/100M Ethernet networks. The data is transmitted via
TCP/IP protocol. Therefore control is available via Ethernet, Intranet and Internet. TCP/IP
converters are packaged in a plastic case well suited for industrial environments. All serial
ports operate in common RS-232 mode , industrial RS-422 and RS-485 modes
configuration.
TCP/IP converter series is a low-cost, high performance design. By careful selecting high
quality with competitive prices components in the world, EX-9132 product made network
connectivity possible with affordable cost for virtually all kinds of devices.
The 8051 Series of TCP/IP converters consists of 2 models: EX-9132 (1 port for
RS-232/422/485) is a ready set product and the other EX-9132-M (1 port for
RS-232/422/485) is a module product for developing purpose by customers. This operation
manual will guide you step by step for the various functions of the TCP/IP converter.
The following topics are covered in this chapter:
□
□
□ Overview
□
□
□ Package Checklist
□
□
□ Block Diagram
□
□
□ Product Features
□
□
□ Product Specifications

4
Overview
TCP/IP converters are designed to make your serial devices Internet ready instantly.
8051 Series of TCP/IP converters makes them the ideal choice for connecting your
RS-232 or RS-422/485 serial devices—such as PLCs, meters, and sensors—to an
IP-based Ethernet LAN, making it possible for your software to access serial devices
anywhere and anytime over a local LAN or the Internet.
8051 Series converters ensure the compatibility of network software that uses a standard
network API (Winsock or BSD Sockets) by providing TCP Server Mode, TCP Client
Mode, and UDP Mode. 8051 Series’ Virtual COM driver, software that works with COM
port can be set up to work over a TCP/IP network in no time. This excellent feature
preserves your software investment and lets you enjoy the benefits of networking your
serial devices instantly.
8051 Series converters support manual configuration via the handy web browser console
and many protocols including TCP, IP, UDP, HTTP, DHCP, ICMP, and ARP. They are the
best solution to network your serial devices.

5
Package Checklist
8051 products are shipped with the following items:
□
□
□1 unit of EX-9132 TCP/IP converter
□
□
□Documentation & Software CD
□
□
□Quick Installation Guide
NOTE: Notify your sales representative if any of the above items is missing or damaged.

6
Block Diagram
Low-cost devices usually are equipped with low speed processors and limited memories. In
reality, they are neither having the capability nor practicality to manage complicated network
TCP/IP protocols. 8051 Series is a low cost while providing high performance network
solution by converting data stream between network TCP/IP and popular serial port signals.
In stead of processing TCP/IP packets directly, devices need only deal with those interface
signals, which greatly simplifies the complexity of TCP/IP network in linkage.

7
Product Features
□
□
□Data Conversion between RS-232/422/485 and Ethernet
Convert serial device (RS-232, RS-422, RS-485) data/signal into the TCP/IP package
data/signal and send them out with the Ethernet DataStream; or convert the TCP/IP
package data/signal into serial device data/signal.
□
□
□Digital I/O Activating (For OEM only)
Convert the sensors’ statuses into the TCP/IP package data and send them out with the
Ethernet DataStream; or use the TCP/IP package data to activate/deactivate the specified
digital outputs / inputs.
Note: This function is for OEM only. Please contact your sales representative for
further information.
□
□
□Dynamic IP Configuration
Support DHCP client mode, simplifying network address configuration and management.
□
□
□Dual LAN Speed
Support 10/100 Mbps Ethernet, auto-detected.
□
□
□Server / Client Dual Modes
8051 Series can be configured as network server or network client. In the client mode, it
can be installed in network which is protected by NAT router or firewall, without the
need of a real IP address.
□
□
□Web-based Setup
Parameters setup are based on HTTP protocol by using standard browsers (IE and
Netscape). No special software would be required.
□
□
□Built-in Security Control
Protected by both setup password and access password to prevent intruders.
□
□
□Firmware Remote Update
Firmware can be updated directly via Ethernet network to keep up with latest network
standards.

8
Product Specifications
CPU : 8-bits 8051 , 36.864 MHz
RAM : 32K Bytes SRAM
ROM : 64 K Bytes
Ethernet
●Port Type : RJ-45 Connector
●Speed : 10 /100 M bps ( Auto Detecting )
●Protocol : ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
●Mode : TCP Server/Client ; UDP
●Setup : HTTP Browser Setup (IE & Netscape), RS-232 Console
●Security : Setup Password & Connecting Password
●Protection : Built-in 1.5KV Magnetic Isolation
Serial Port
●No. of Ports : RS-232 / RS-422/RS-485 * 1 Port
●Port Type : DB9 male for RS-232 and Terminal Block for RS-422/485
●Speed : 300 bps∼115.2k bps
●Parity : None , Odd , Even
●Data Bit : 7 , 8
●Stop Bit : 1 , 2
●RS-232 Signals : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
●RS-422 Signals : Rx+ , Rx- , Tx+ , Tx- (Surge Protection)
●RS-485 Signals : Data+ , Data- (Surge Protection)
●Built-in RS422/RS485 Terminal Resistor
Digital I/O Port
TTL Digital I/O * 7
15KV ESD for all signal

9
Watch Dog Function
Firmware On-line Updated Via Ethernet
Power : DC 9 – 12 V , 500mA
LED Lamp : Model EX-9132
PWR (Green)
DATA (Red-Blink during data transferring and receiving)
LAN (Red)
SYS(Red-Blink)
Environment :
Operating Temperature : 0℃∼60℃
Storage Temperature : -10℃∼70℃
Dimensions : EX-9132 : 90 * 90 * 25 mm ( W * D * H )
WEIGHT : 110 gm
RoHS :Compliant with RoHS
Regulatory Approvals :
EMC : FCC Class A, CE Class A
WARRANTY : 1 year

10
2
2
Converter Description & Installation
Product Panel Views

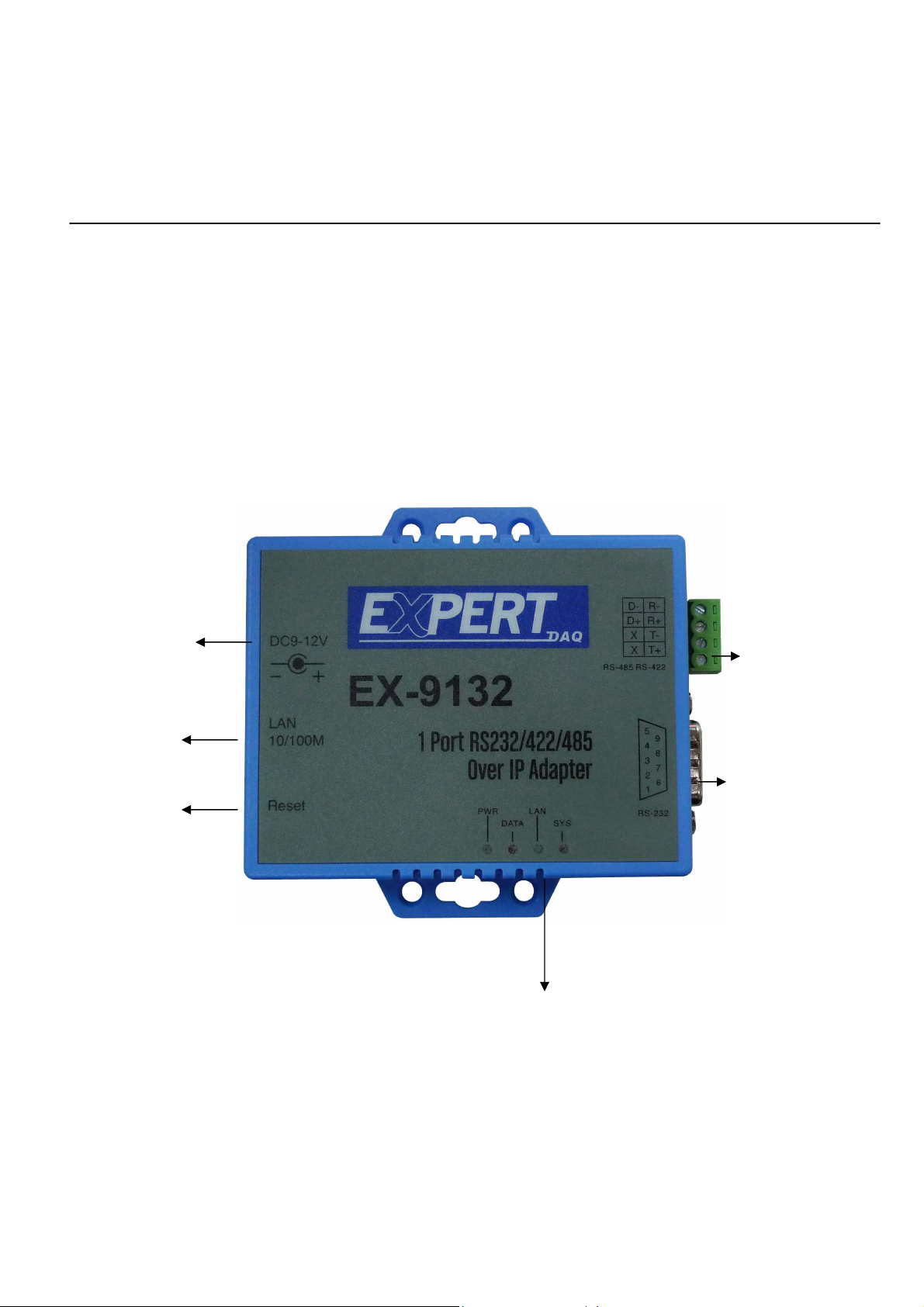

Top Side
LAN
DC-In
Power Outlet
LED Indicators
Serial I/O Port
RS-485/RS-422
Serial I/O Port
RS-232
Reset

11
Reset Button

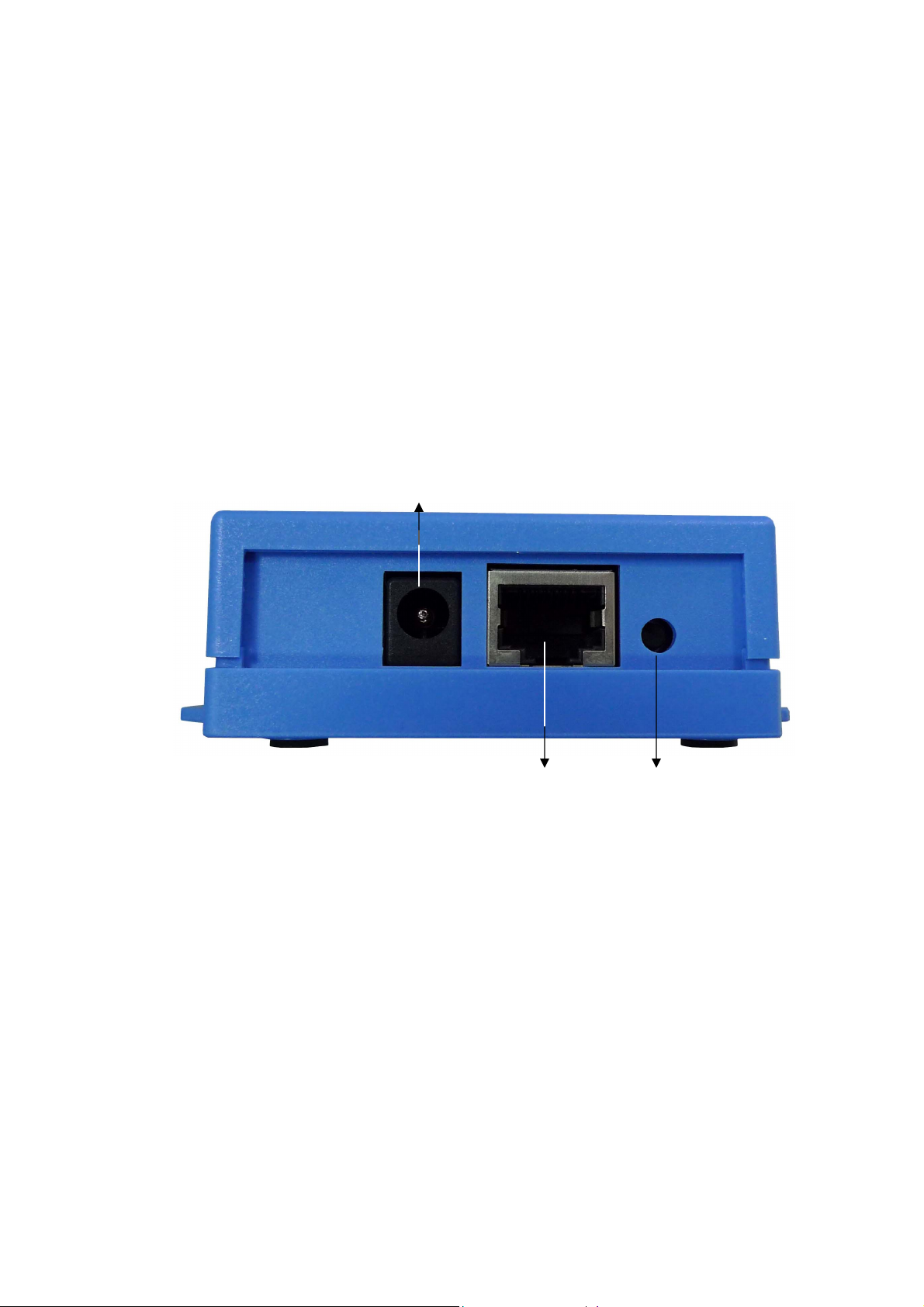

Left Side
Power Supply
EX-9132 TCP/IP supports 9 ~ 12V DC input voltage at a current of 500 mA.
Connect the power line into the power connector (inner terminal
positive/outer terminal negative) of EX-9132 TCP/IP converter and insert
the power adapter into the socket. If power is properly supplied, the
green LED labeled with “PWR” will be on.
LAN Port
The connector for network is the usual RJ45. Simply connect it to your network
switch or Hub. When the connection is made, the LAN LED indicator will light.
When data traffic occurs on the network, red DATA LED indicator will blink during
data transferring and receiving.
DC-In
Power Outlet
LAN

12
Reset Button
If by any chance, you forget the setup password, or have incorrect settings making
EX-9132 TCP/IP converter inoperable. First, turn off the power. Second, use any point
tip to push this button and hold it to turn on the power at the same time for 5 second.
All the parameters will be reset to the factory default.Reset Button

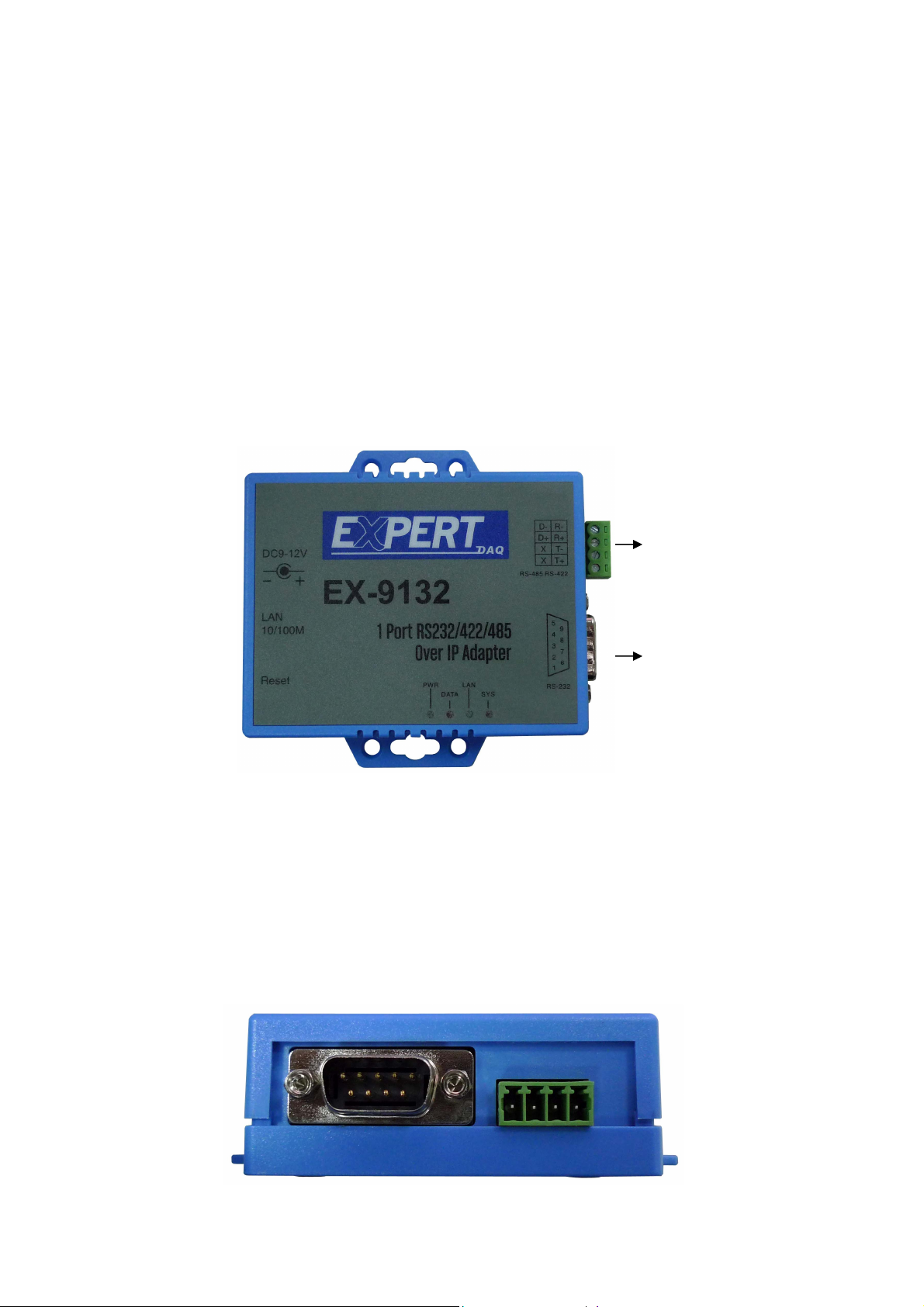

Right Side
Serial I/O Port of RS-232/RS-422/RS-485
Connect the serial data cable between the converter and the serial device. Follow the
parameter setup procedures to configure the converter (see the following chapters ).
RS-232
RS-485/RS-422

13
LED Indicators
PWR (Green)：
Power indicator (When the power is on, the LED will be on.)
DATA (Red)：
Data sent & received indicator (When data are sending and receiving to the network, the
LED will blink.)
10/100 (Green)：
Network signal indicator, when the LAN signal is detected and then, the LED will be on.
LAN (Red)：
Device statues indicator (When EX-9132 TCP/IP converter is operated in normal statues,
the LED will blink once per second.)

14
Wiring Architecture
RS-232 Wiring Architecture
RS-422/RS-485 Wiring Architecture

15
When you finish the steps mentioned above and the LED indicators are as shown,
the converter is installed correctly. You can use the Setup Tool
“ExpertDAQETM .exe” to setup the IP Address.
To proceed the advanced parameter setup, please use a web browser (IE or
Netscape) to continue the detailed settings.

16
3
3
Converter Configuration
Initial IP Configuration
When setting up your converter for the first time, the first thing you should do is configure
the IP address. This chapter introduces the method to configure the device server’s IP
address. For more details about network settings, see “Web Console Configuration”. in
next sub section.
For quick and easy start , We suggest you to reference “Quick Installation Guide” manual.
The following topics are covered in this chapter:
□
□
□
Device Management Utility
□
□
□
Refresh
□
□
□
Exit
□
□
□
ExpertDAQETM Config

17
Device Management Utility
On PC we provide a Device Management Utility named ExpertDAQETM which is an
executable program in Windows 32 bit environments. ExpertDAQETM Setup Tool is
used to detect and setup the installed converters. It uses UDP broadcast packets to
query and configure converters on the network.

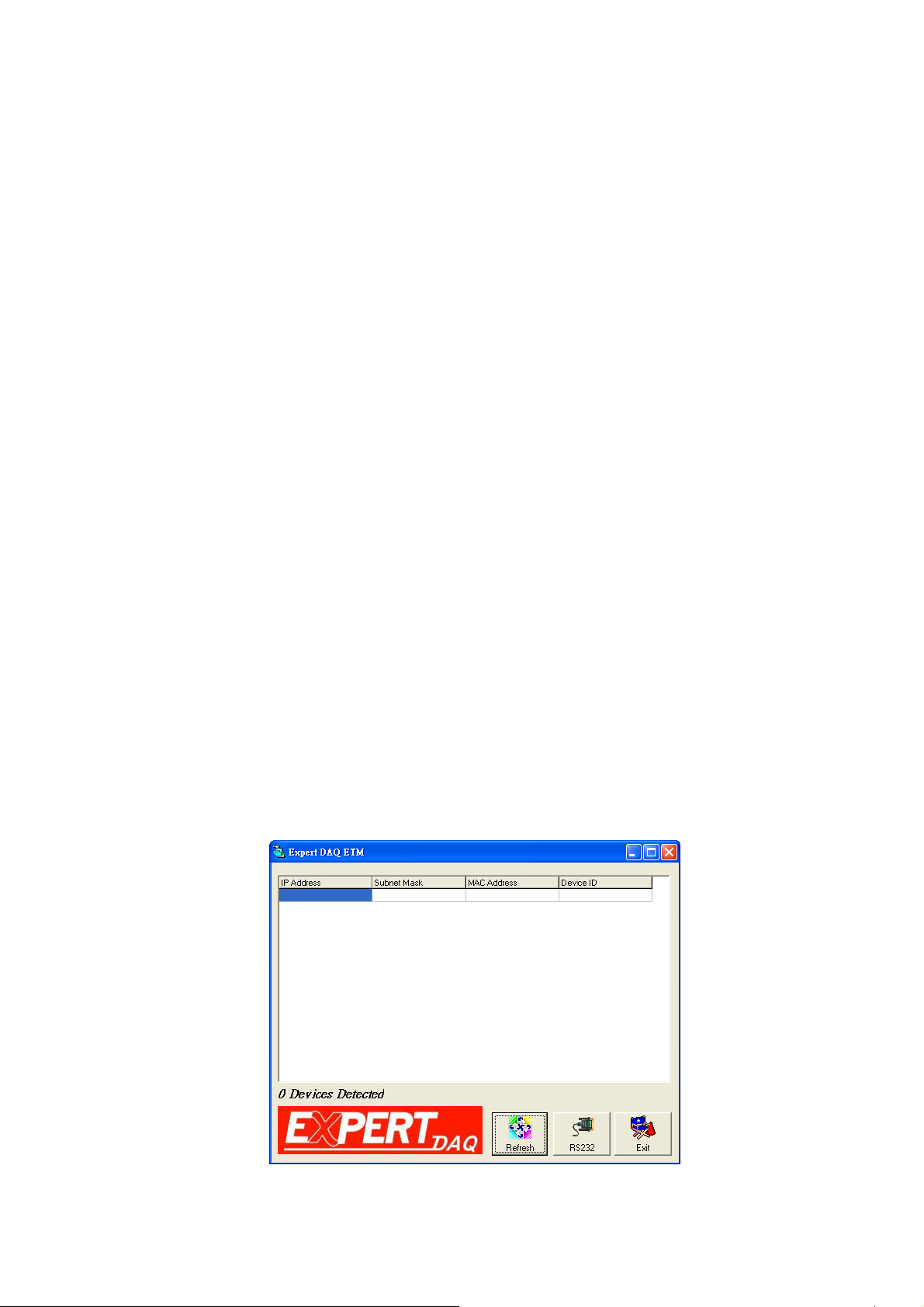

When you activate the tool, it will detect the existence of the installed converters and
depict the converters’ status such as IP address, Subnet Mask, MAC Address, and
Device ID (see Figure 3.1). The Setup Tool only can setup one converter at a time.
Thus if there are more than one converter on the network, please shut down or
disconnect other converters. Otherwise the ExpertDAQETM can not detect the converter.
Other similar issues, you may reference to Q&A in Appendix A.
Due to the nature of broadcast UDP packets, ExpertDAQETM has following
characteristics:
□
□
□Broadcast packets aren’t limited by subnet. Even if the IP address of the converters
and the computer running ExpertDAQETM do not belong to the same subnet, it
still works fine.
□
□
□Broadcast packets can not pass routers. ExpertDAQETM can only be used to
monitor devices with computer running ExpertDAQETM in the same segment of
local area network

18

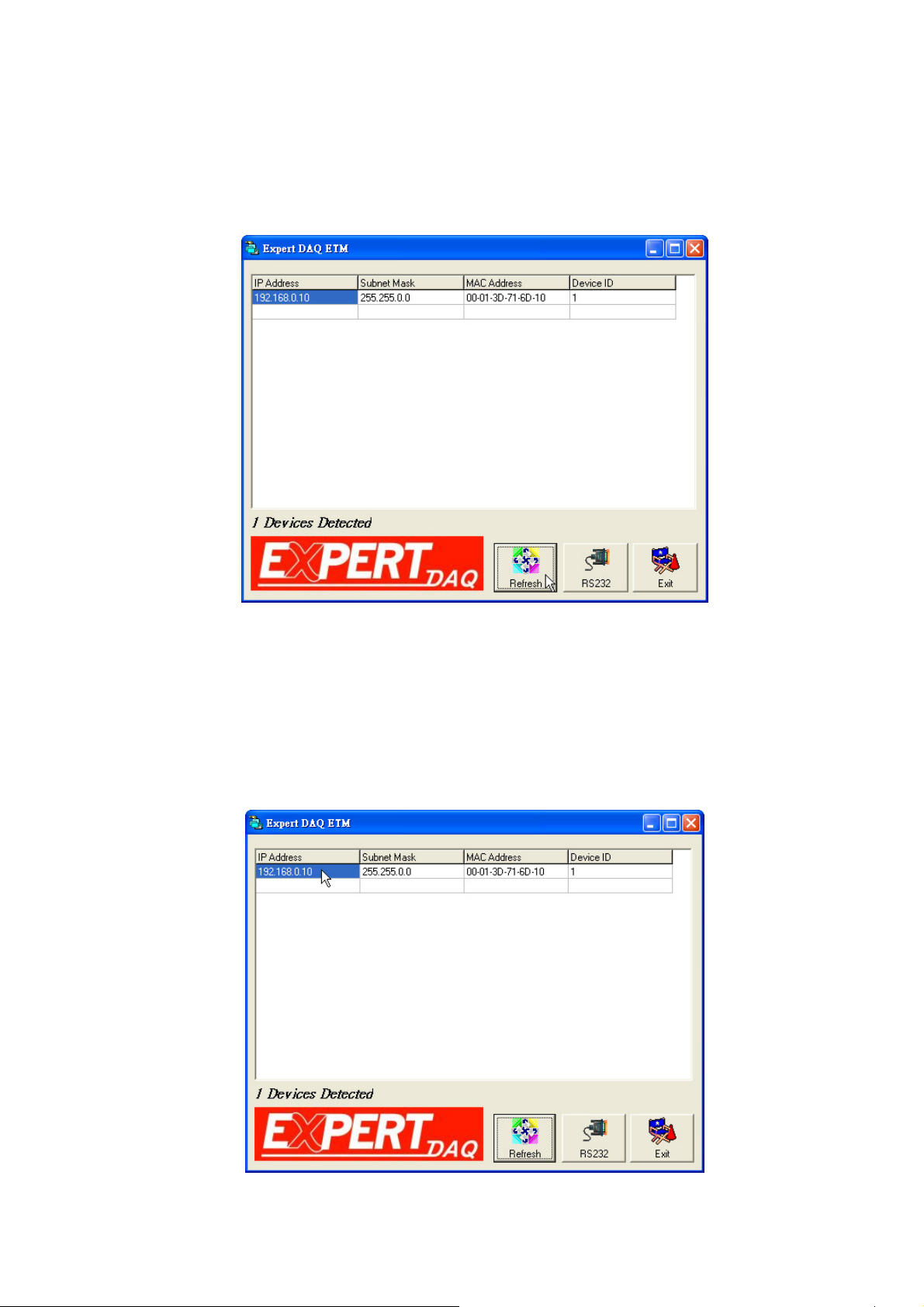

Refresh
Refresh the status. ExpertDAQETM will send another query to get updated
information.
Note: Always run the “View-> Refresh” after any data change.
Exit Exit from the program

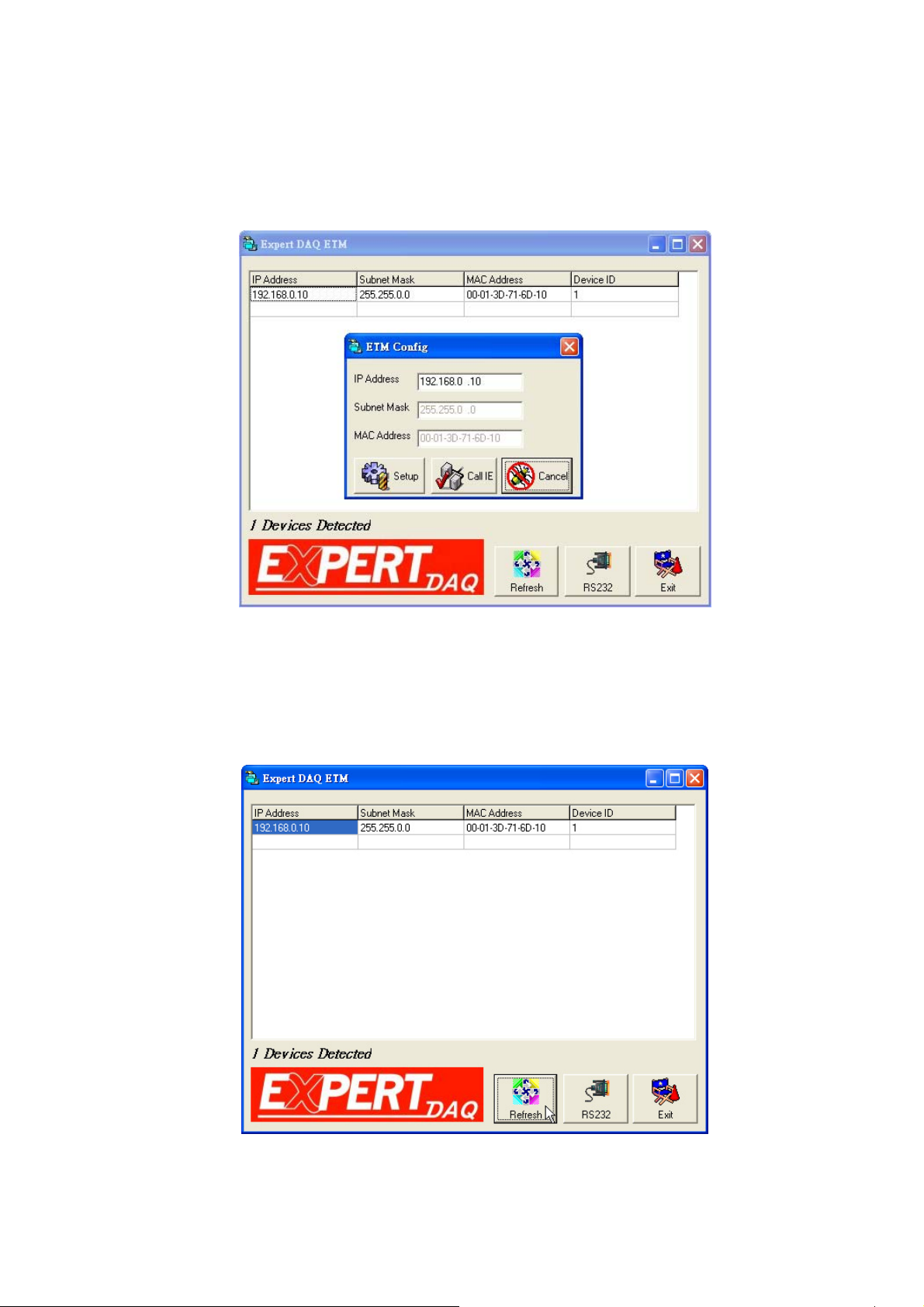

ExpertDAQETM Config
Moving the mouse cursor onto the desired device that displaying in information window
Clicking the left button of mouse to invoke the ExpertDAQETM Config.

19
Note : Because ExpertDAQETM uses broadcast UDP packets, for the sake of
security, it allows configuration only when device's setup password is
empty.
Assign an IP Address with the same Subnet Mask of your computer, avoiding any
IP conflict with other network devices.
When you press [Setup] button, the IP address will be refreshed in 2~3 seconds.
