ExpertDAQ EX-9132CST-DIO User manual

EX-9132CST-DIO(V20.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 0
Operation Manual of EX-9132CST-DIO(V2.0)
Serial to TCP/IP Converter
Version 2.0.1 1

EX-9132CST-DIO(V20.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 1
1 1
Introduction
We provide new ways of connecting legacy serial devices to a Local Area Network (LAN) or
Wide Area Network (WAN). TCP/IP converters are designed to operate serial ports over
100M bps Ethernet networks. The data is transmitted via TCP/IP protocol. Therefore, control
is available via Ethernet, Intranet and Internet. EX9132CST-DIO(V2.0) converter is
packaged in a PVC material case well suited for industrial environments. It provides two
serial ports with DIO, one is RS-232 and another one is RS422/485(Auto-Detect) . The serial
ports operate in common industrial configuration.
EX9132CST-DIO(V2.0) converter is a low-cost, high performance design. By carefully
selecting high quality with competitive prices components in the world, the products made
network connectivity possible with affordable cost for virtually all kinds of devices.
EX9132CST-DIO(V2.0) is a full set converter device with DIO, one serial ports RS-232 port
and another is a RS-422/485(Auto-Detect) and it provides one socket connection port. This
operation manual will guide you step by step to learn the various functions of the
EX9132CST-DIO(V2.0) converter.
The following topics are covered in this chapter:
The following topics are covered in this chapter:
□
□
□
Overview
□
□
□
Block Diagram
□
□
□
Product Features
□
□
□
Product Specifications

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 2
Overview
EX-9132CST-DIO(V2.0) converter is designed to make your industrial serial devices
Internet ready instantly. ARM Cortex-M4 CPU of EX-9132CST-DIO(V2.0) converters
makes them the ideal choice for connecting your RS-232 and RS-422 or RS-485 serial
device—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it
possible for your software to access serial devices anywhere and anytime over a local
LAN or the Internet.
ARM Cortex-M4 CPU Series converters ensure the compatibility of network software that
uses a standard network API (Winsock or BSD Sockets) by providing TCP Server Mode,
TCP Client Mode, and UDP Mode. Model EX-9132CST-DIO(V2.0) provides 1 socket
connection for remote management. ARM Cortex-M4 CPU Series’ Virtual COM driver and
software that works with COM port can be set up to work over a TCP/IP network in no
time. This excellent feature preserves your software investment and let you enjoy the
benefit of networking your serial devices instantly.
ARM-Cortex-M4 CPU series converter supports manual configuration via the handy web
browser console and many protocols including TCP, IP, UDP, HTTP, DHCP, ICMP, and
ARP. They are the best solution to network your serial devices.
Package Checklist
ARM-Cortex-M4 CPU products are shipped with the following items:
□
□
□
1 unit of EX-9132CST-DIO(V2.0) converter
□
□
□
1 unit of PowerAdaptor/Supply(9V/12V/24VDC, 500mA) : Optional
□
□
□
Din Rail Mounting Kit : Optional
□
□
□
Quick Installation Guide in Documentation & Software CD
NOTE: Please notify your sales representative if any of the above items is missing or
damaged.

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 3
Block Diagram
Low-cost devices usually are equipped with low speed processors and limited
memories. In reality, they have neither the capability nor practicality to manage
complicated network TCP/IP protocols. The ARM Cortex™-M4 32-bit processor has
been specifically developed to provide a high-performance, low-cost platform for a
broad range of applications including microcontrollers, automotive body systems, and
industrial control systems, networking by converting data stream between network
TCP/IP and popular serial port signals.
Instead of processing TCP/IP packets directly, devices need only deal with those
interface signals, which greatly simplifies the complexity of TCP/IP network in
linkage. The ARM Cortex-M4 processor provides outstanding computational
performance and exceptional system response to interrupt while meeting low cost
requirements through small core footprint, industry leading code density enabling
smaller memories, reducing pin count, and low power consumption.

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 4
The central core of ARM Cortex-M4 processor, based on a 3-stage pipeline
Harvard bus architecture, incorporates advanced features including single cycle
multiply and hardware divide to deliver an outstanding efficiency of 1.25
DMIPS/MHz. The ARM Cortex-M4 processor also implements the new Thumb® -2
instruction set architecture, which combined with features such as unaligned data
storage and atomic bit manipulation delivers 32-bit performance at a cost equivalent to
modern 8- and 16-bit devices.

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 5
Product Features
□
□
□
Data Conversion between RS-232 and RS-422/485 and Ethernet
EX-9132CST-DIO(V2.0) converter device (RS-232＊1 port , RS-422∕485＊1 port )
data/signal into the TCP/IP package data/signal and send them out with the Ethernet Data
Stream; or convert the TCP/IP package data/signal into serial device data/signal.
□
□
□
Socket Communication
EX-9132CST-DIO(V2.0) is provided one socket connection.
□
□
□
Digital I/O Activating (Optional)
EX-9132CST-DIO(V2.0) provides eight TTL of digital I/O.
Convert the sensors’ statuses (the sensors are connected to the converter) into the TCP/IP
package data and send them out with the Ethernet Data Stream; or use the TCP/IP
package data to activate/deactivate the specified digital outputs.
□
□
□
Dynamic IP Configuration
Support DHCP client mode, simplifying network address configuration and management.
□
□
□
Dual LAN Speed
Support 10/100 Mbps Ethernet, auto-detected.
□
□
□
Server / Client Dual Modes
EX-9132CST-DIO(V2.0) converter device can be configured as network server or
network client. In the client mode, it can be installed in network which is protected by
NAT router or firewall without a real IP address.
□
□
□
Web-based Setup
Parameters setup is based on HTTP protocol by using standard browsers (IE and
Netscape). No special software would be required.
□
□
□
Built-in Security Control
Security protect by login password to prevent intruders.
□
□
□
Remote Update
Firmware can be updated directly via Ethernet network to keep up with latest network
standards.

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 6
Product Specifications
CPU : ARM Cortex™-M4 32-bit processor , 120MHz
RAM : 128K Bytes SRAM
ROM : 512K Bytes Flash ROM
Ethernet
●Port Type : RJ-45 Connector
●Speed : 10 /100 M bps ( Auto Detect )
●Protocol : ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, ICMP
●Mode : TCP Server∕TCP Client∕UDP Client / Virtual COM / Pairing
●Setup : HTTP Browser Setup (IE & Netscape)
●Security : Login Password
●Protection : Built-in 1.5KV Magnetic Isolation
Serial Port
●No. of Ports : RS-232*1 Port and RS-422/485(Auto-Detect) * 1 Port
●Port Type：DB9 male * 1 and Terminal Block(4pin) * 1
●Speed：300 bps〜115.2K bps
●Parity：None , Odd , Even, Mark, Space
●Data Bit：5, 6, 7, 8
●Stop Bit：1 , 2
●Port 1：
One RS-232 Signals Port：Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
●Port 2：
One RS-422 /485 Port (Auto-Detect)
RS-422 Signals：Rx+ , Rx- , Tx+ , Tx- (Surge & Over Current Protect)
RS-485 Signals : Data+ , Data- (Surge & Over Current Protection)

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 7
Built-in RS422/RS485 Pull High-Low Resistor
Digital I/O Port : Output Screw Terminal Voltage 5V/ 12V(same as DC-in) Seletable
●Digital Relay Output : Channel * 2
Relay Coil Voltage: 5V
Contact Rating :24V@10A/ 120VAC@10A/240VAC@7A
LED Lamp : DO-1 ; DO-2
●Digital Input : Channel * 2
Active High/ Low Selectable
Isolation Voltage : 3750Vrms
Status Indictor : 2 Input LED display
Wet Contact : Logic 0 : 0~1V Max , Logic 1 : 3.3V ~ 30V Max.
LED Lamp : DI-1 ; DI-2
Socket Port Connection：1 Connection
15KV ESD for all signal
Watch Dog Function
Virtual Support Windows 2000 /2003 / XP / Vista / 7 / 8 / 10
Firmware On-line Updated Via Ethernet
Power：DC 9 –24V , 500mA (Terminal Block: Optional/ DC Jack: Default)
Environment：
Operating Temperature：0℃〜70℃
Storage Temperature：-10℃〜80℃
Dimensions：150 * 120 * 30 mm ( W * D * H )
WEIGHT：90 gm
RoHS：Compliant with RoHS
Regulatory Approvals：FCC, CE
WARRANTY：1 year

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 8
2
2
EX-9132CST-DIO(V2.0) Installation

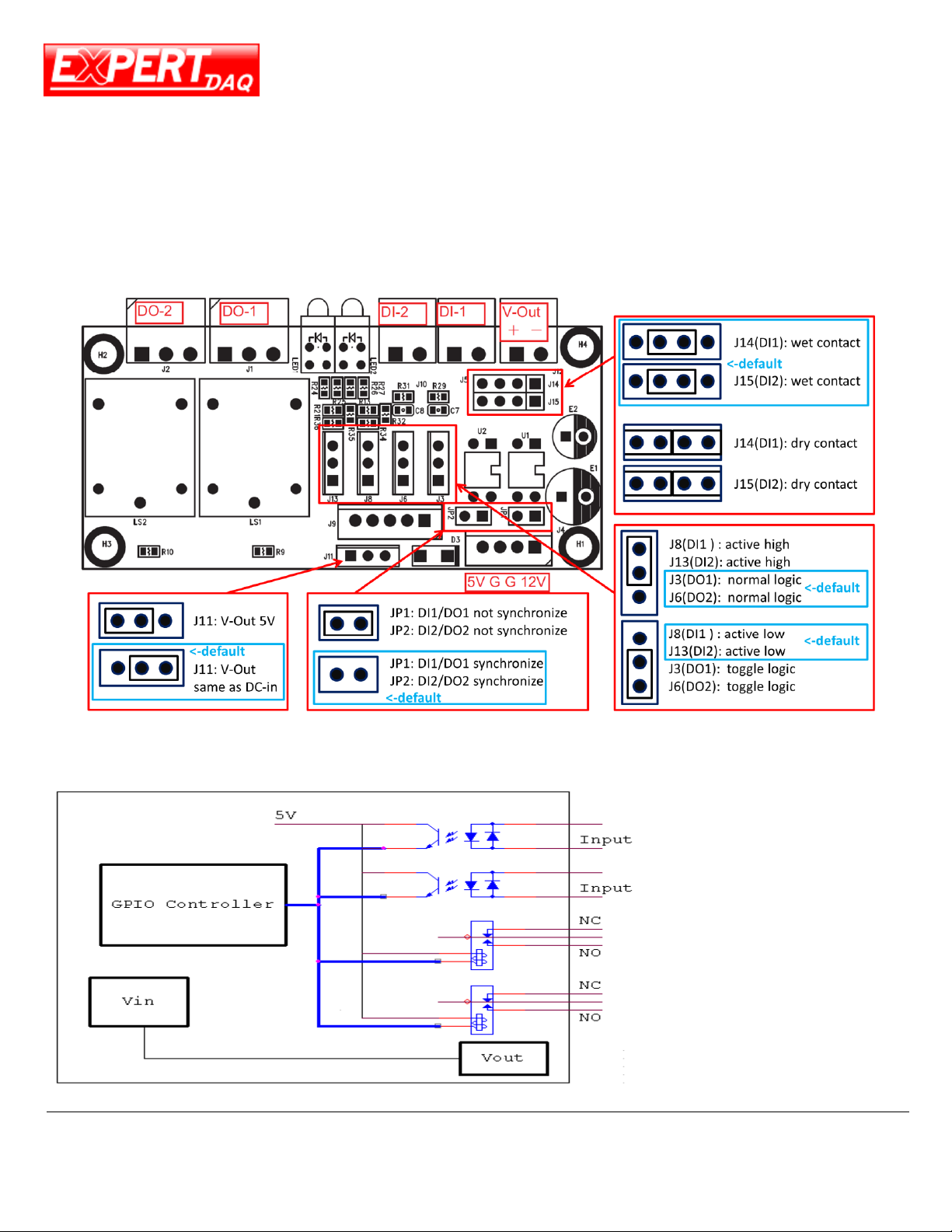

Block Diagram

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 9

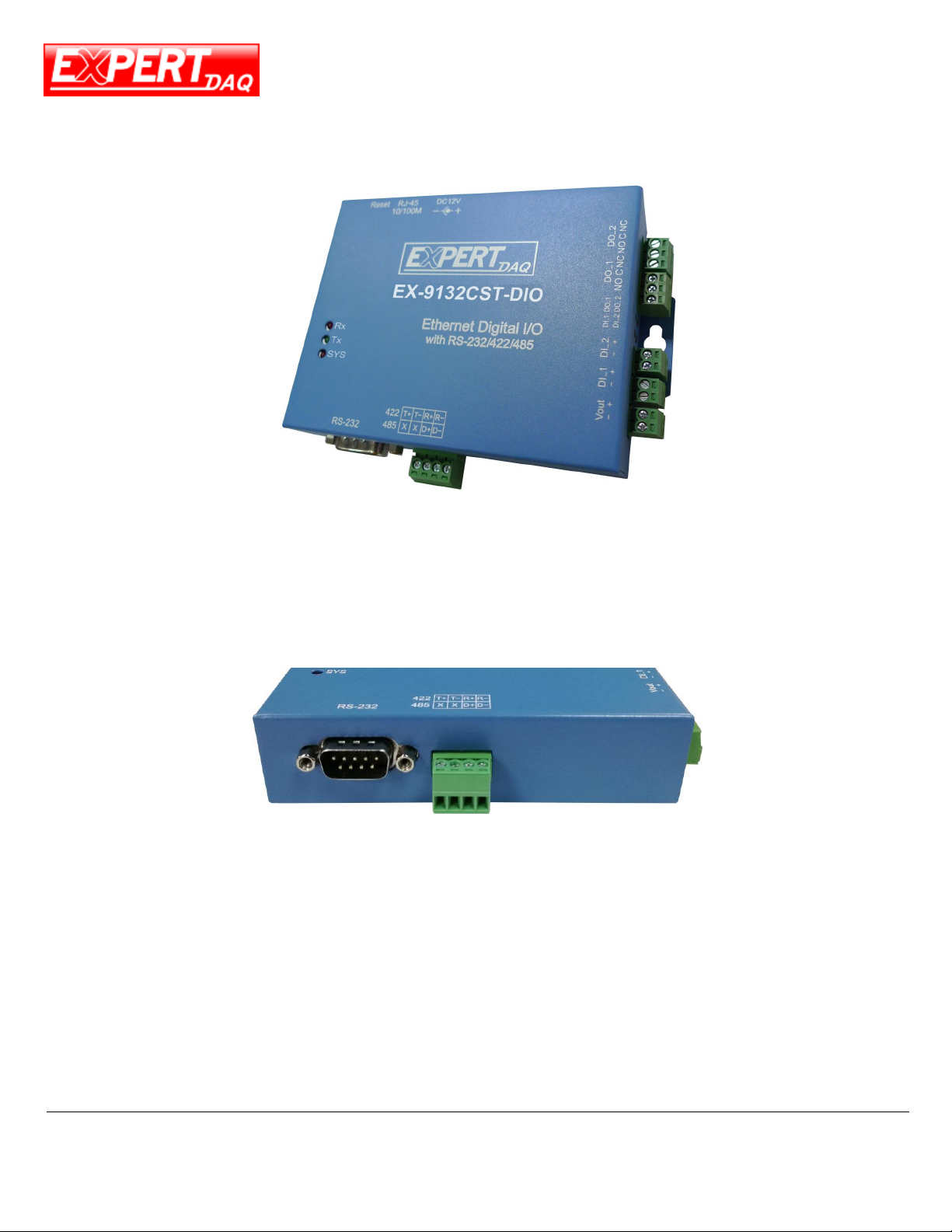

Top View
Down Side
Serial I/O Port of RS-232 & RS-422/485. Connect the serial data cable between the converter device and the serial
devices. Follow the parameter setup procedures to configure the converter (see the following chapters).
Right Side(Digital I/O (DO * 2/ DI*2))
Through EX9132CST-DIO(V2.0) , D I/O(DO-1/DO-2/DI-1/DI-2) can transform the status of sensor into the
TCP/IP package data and send out by Ethernet Data Stream (The EX9132CST-DIO(V2.0) must indicate the IP
address and COM Port) or activate the indicated Digital output (Remote WinSock must indicate the
EX9132CST-DIO(V2.0)). Connect the data wires between the EX9132CST-DIO(V2.0) and the RS-232/422/485
device. Follow the parameter setup procedures to configure the converter (see the following chapters).

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 10
Right Power Supply(Up Side)
EX9132CST-DIO(V2.0) TCP/IP converter device is powered by a single 9/12/24VDC (inner positive/outer
negative) power supply and 500mA of current. A suitable power supply adapter is part of the packaging. Connect
the power line to the power jack at the left side of EX9132CST-DIO(V2.0) TCP/IP converter device and put the
adapter into the socket.
Ethernet LAN Port
The connector for network is the usual RJ45. Simply connect it to your network switch or Hub. When the
connection is made, the LAN LED indicator will light up. When data traffic occurs on the network, red DATA
LED indicator will blink during data transferring and receiving.
Reset Button
If by any chance, you forget the setup password, or have incorrect settings making EX-9132CST-DIO(V2.0)/ PoE
converter inoperable. First, turn on the power. Second, use any point tip to push this button and hold it about 3
seconds All the parameters will be reset to the factory default. But do not over 5 seconds , it will enter update
mode

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 11

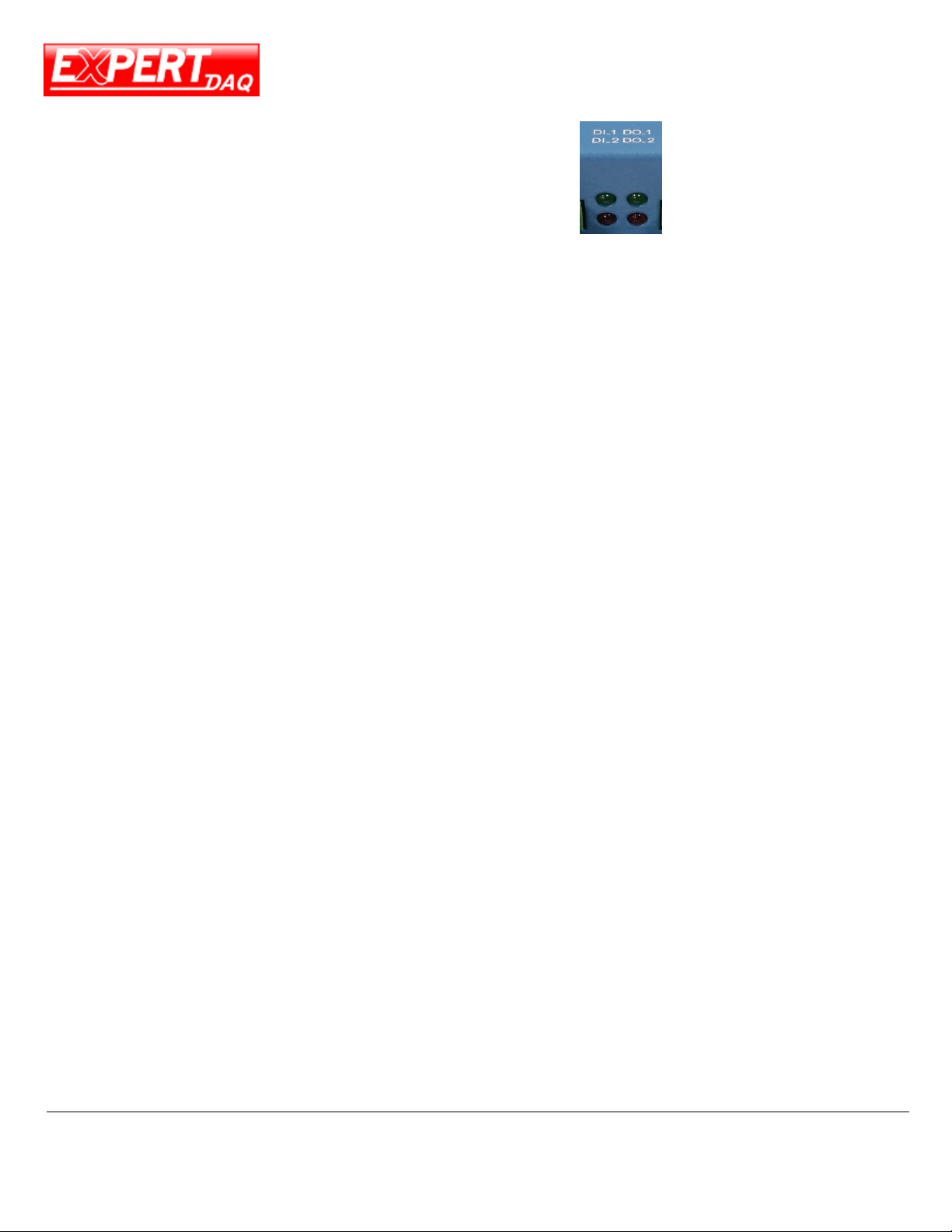

LED Indicators
SYS (Green):
It is a device statues indicatord
DI/DO (Red):
Data input/output indicator (When data are input/output
by the network, the LED will blink.)
PORT-2 (Green):
Port2 data transmitting indicator (When data are sending
to the network, the LED will blink.)
PORT-1 (Red):
Port1 data transmitting indicator (When data are sending
to the network, the LED will blink.)
DI_1(Green): status of Digital input
channel 1
DI_2(Red): status of Digital input
channel 2
DO_1(Green): status of Digital
output channel 1
DO_1(Red): status of Digital output
channel 2

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 12

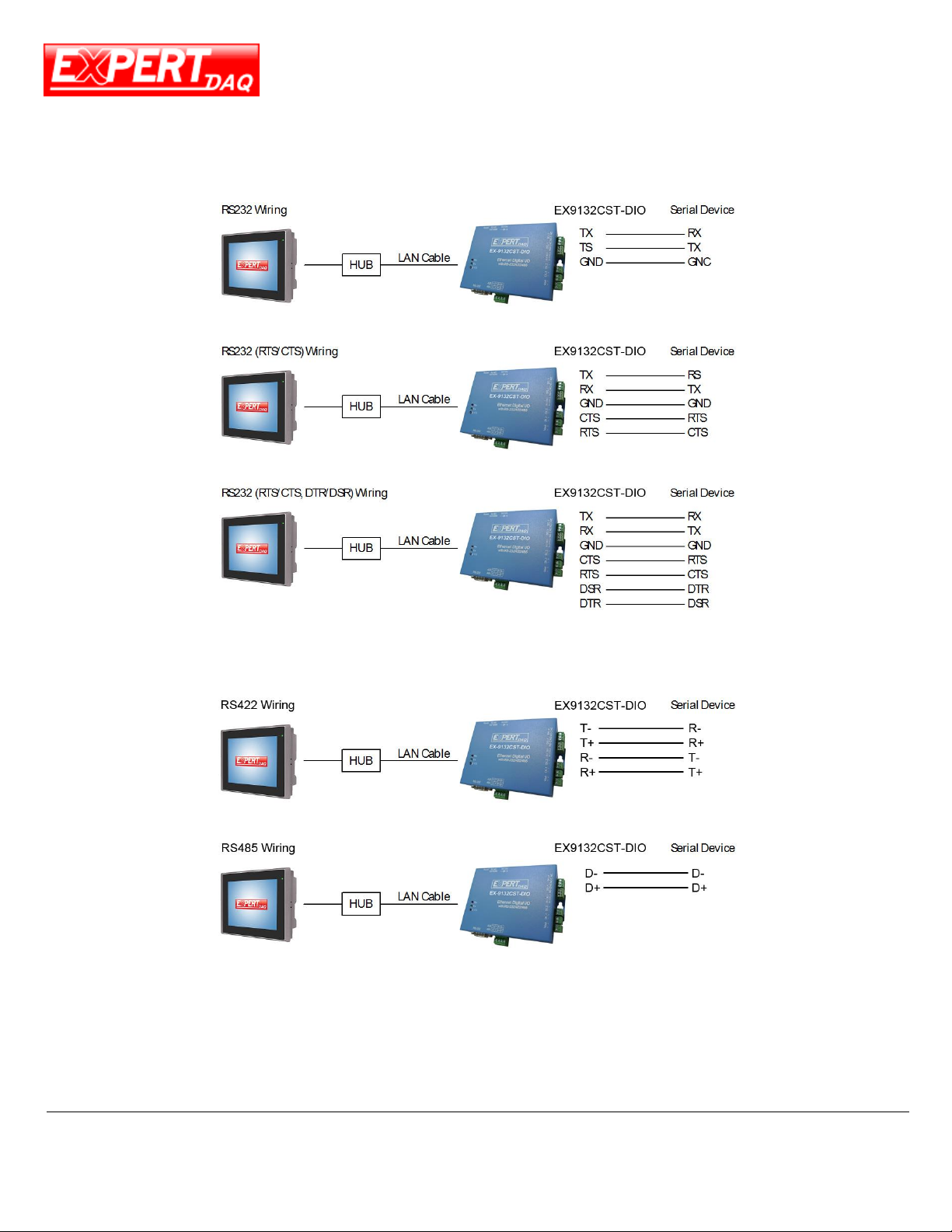

Wiring Architecture
RS-232 Wiring Architecture
RS-422/485 Wiring Architecture
When you finish the steps mentioned above and the LED indicators are as shown in above diagram, the converter

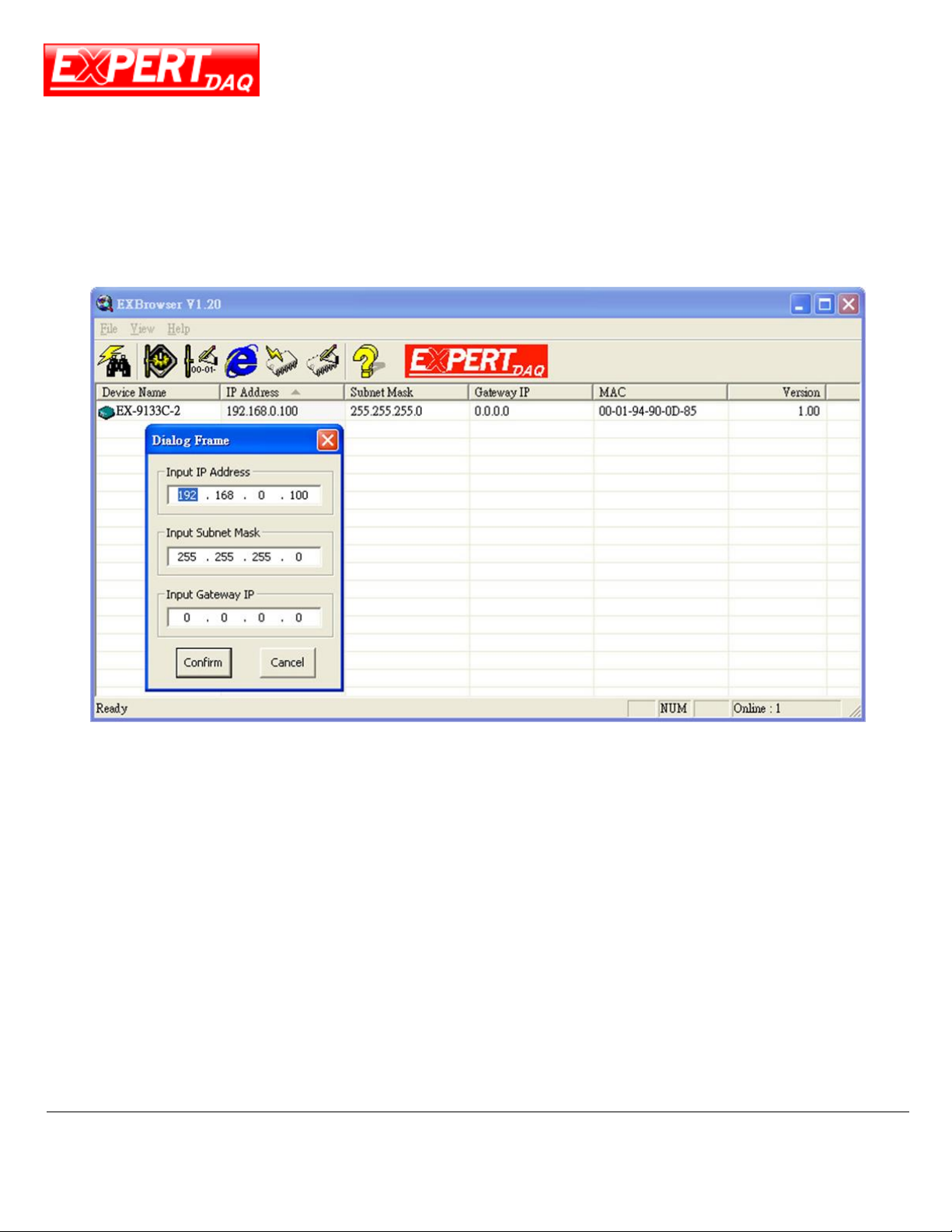

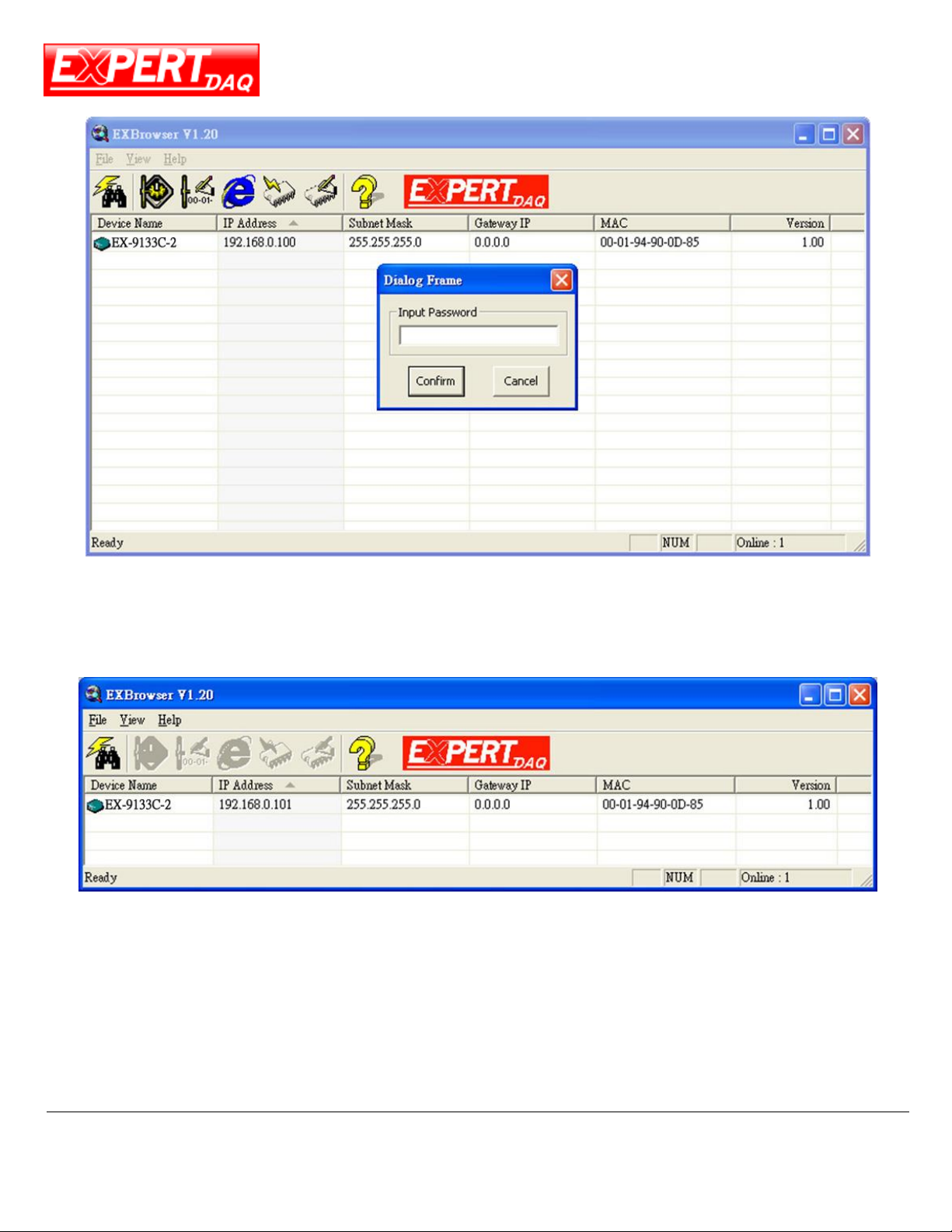

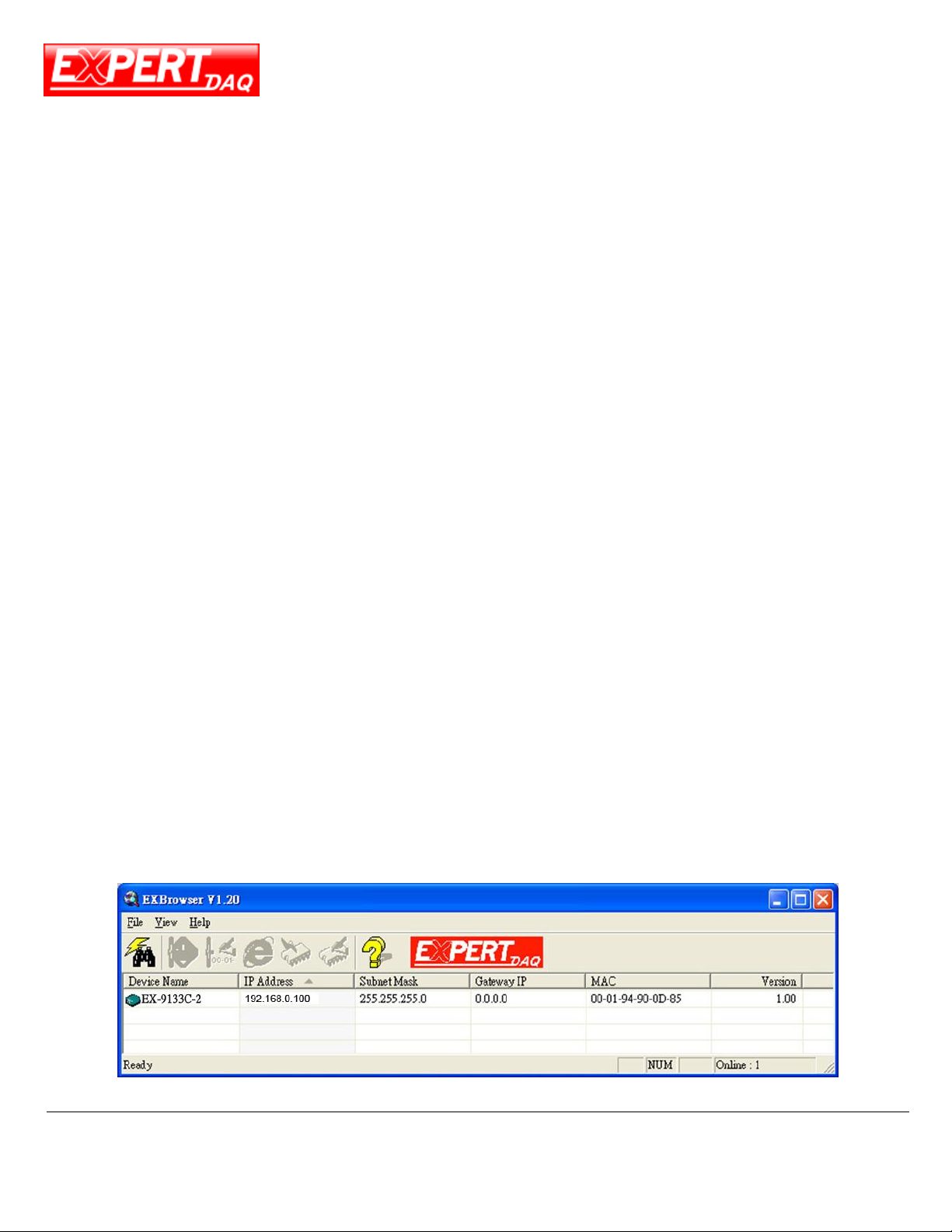

is installed correctly. You can use the Setup Tool ―EXBrowser.exe‖ to setup the IP Address.
To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to continue the detailed
settings.

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 13
Digital Output:

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 14
Digital Input:
Note: Default of Digital input is Wet Contact

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 15
4
4
EX-9132CST-DIO(V2.0) Converter Configuration
Initial IP Configuration
When sett up your converter for the first time, the first thing you should do is to configure the IP
address. This chapter introduces the method to configure the device server’s IP address. For
more details about network settings, please see the Network Settings section in Chapter 4, ―Web
Console Configuration‖.
The following topics are covered in this chapter:
□
□
□
Device Management Utility of EXBrowser
□
□
□
EXBrowser “View”
□
□
□
EXBrowser “Modify IP”
□
□
□
EXBrowser “Modify MAC”

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 16
Device Management Utility of EXBrowser
On PC we provide a Device Management Utility named “EXBrowser.exe” which is an
executable program in Windows 32-bit environments. EXBrowser setup tool is used to detect and
setup the installed converters. It uses UDP broadcast packets to query and configure converters
on the network.
When you activate the tool, it will detect the existence of the installed converters and depict the
converters’ status such as IP address, Subnet Mask, MAC Address, and Device ID (see Figure
4.1). The Setup Tool only can setup one converter at a time. Thus if there are more than one
converter on the network, please shut down or disconnect other converters. Otherwise the
EXBrowser.exe can not detect the converter.
Due to the nature of broadcast UDP packets, EXBrowser has following characteristics:
□
□
□
Broadcast packets are not limited by subnet. Even if the IP address of the converters and the
computer running EXBrowser that do not belong to the same subnet, it still works fine.
□
□
□
Broadcast packets can not pass routers. EXBrowser can only be used to monitor devices
with computer running EXBrowser in the same segment of local area network.
(Figure 4.1)

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 17
EXBrowser “View”
□
□
□
View -> Refresh
There are two ways for refreshing the status of existing devices. You may select the item
“View”to refresh the status of existing devices on LAN. Another is to click the icon as red
color remark as below. EXBrowser will send another query to get updated information. (see
Figure 4.2).
Note: Always run the “Refresh” after any data change.
(Figure 4.2)
□
□
□
File -> Exit Alt+F4
Exit from the program (see Figure 4.3).
(Figure 4.3)

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 18
EXBrowser “Modify IP”
□
□
□
Modify IP -> Dialog Frame
To click the device on the existing devices list in the EXBrowser table and then the
function bar will be enable. To press second icon of “Modify IP”on function bar and a
dialog frame table will be shown (see Figure 4.4).
(Figure 4.4)
Assign an IP Address with the same Subnet Mask of your computer, avoiding any IP
conflict with other network devices.
When you press ―Confirm” button, the IP address will be refreshed in 2~3 seconds.

EX-9132CST-DIO(V2.0) User Manual
EX-9132CST-DIO(V2.0) •Manual Version 2.0.1 •20240215 www.topsccc.com
Page 19
(Figure 4.5)
After click ―Confirm‖button and then “Input Password”request will be pop-up on screen (see
Figure 4.5). Please simply press “Confirm”button and the new device’s IP will be changed and
save in table, if you changed it.
(Figure 4.6)
