ExpertDAQ EX9212LoRa Series User manual

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
1
LoRa Interface Converter & DI/DO Controller

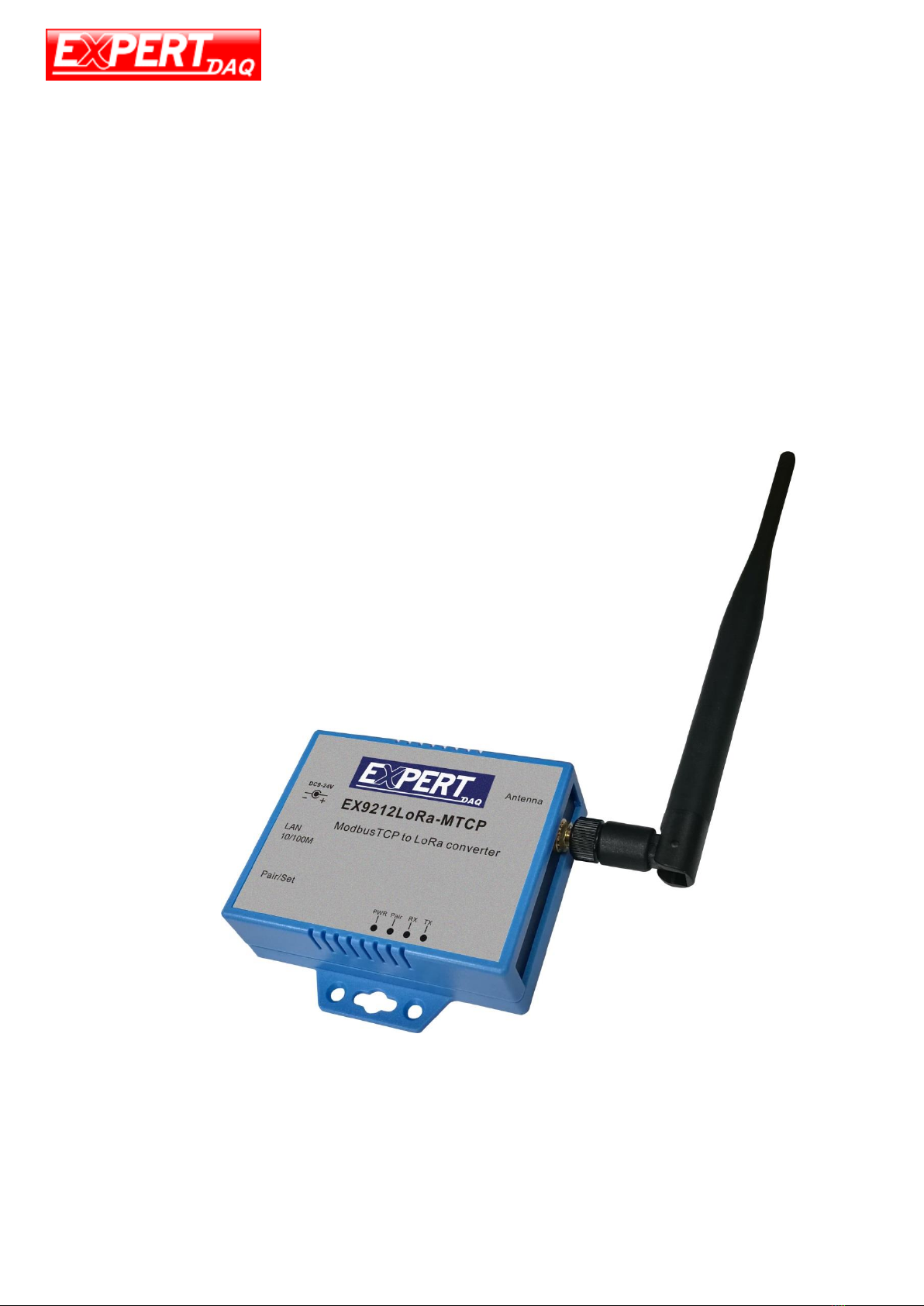

EX9212LoRa-E/MTCP
EX9212LoRa-S
EX9212LoRa-U
EX9212LoRa-DIO
User Manual
Edition: 201909v1.1

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
2
Table of Contents
Table Of Contents…………………………………………………………………………………………………………………………………….2
1. Introduction………………………………………………………………………………………………………………………………………..3
1.1 Applications…………………………………………………………………………………………………………………………………. 4
1.2 Packaging………………………………………………………………………………………………………………………………………4
2. Product Specifications……………………………………………………………………………………………………..…………………..5
2.1 EX9212LoRa-E/Mtcp : Ethernet To LoRa…………………………………………………………………………………………5
2.2 Ex9212 LoRa -S : Rs-232(Half-Duplex)/485 To Lora………………………………………………………………………...6
2.3 Ex9212 LoRa -U : Usb To Lora…………………………………………………………………………………………………………7
2.4 Ex9212 LoRa -Dio : LoRa Digital I/O Controller……………………………………………………………………………....8
3. Product Views………………………………………………………………………………………………………………………………………9
3.1 Ex9212 LoRa -E/Mtcp : Ethernet To LoRa………………………………………………………………………………………..9
3.2 Ex9212 LoRa -S : Rs-232(Half-Duplex)/485 To LoRa…………………………………………………………………………9
3.3 Ex9212 LoRa -U : Usb To LoRa…………………………………………………………………………………………………………9
3.4 Ex9212 LoRa -Dio : LoRa To Digital I/O Controller……………………………………………………………………......10
3.5 Outlined Components...……………………………………………………………………………………………………….........10
3.6 Led Indicators……………………......……………………………………………………………………………………………………11
4. Wiring Architecture……………………………………………………………………………………………………………………………12
5. LoRa Module Setting Utility………………………………………………………………………………………………………..……..14
5.1 LoRa Setting Tool Factory Default…………………………………………………………………………………………………14
5.2 Dip Switch At Top of Casing:…………………………………………………………………………………………………………15
6. LoRa Setting Process………………………………………………………………………………………………………………………….15
7. Ethernet To LoRa Settings………………………………………………………………………………………..………………………..17
7.1 Installation of Ip Search Tool……….……………………………………………………………………………………………….17
7.2 Hardware Connection…………………………………………………………………………………………………………..…....17
7.3 Web Configuration:…………………………………………………………………………………………………………………....18
7.4 Serial Port Setting……………………………………………………………………………………………………………………….19
8. Serial Interface To LORA Setting….……..………………………………………………..…………………………………………..20
9. Usb To LORA Setting……………………………………………………………………………………………………………………......20
10. LORA To Di/Do Setting: Modbus Codes……………………………………………………………………………………..…...20
10.1 Digital Output Port #1……………………………………………………………………………………………………………….20
10.2 Digital Output Port #2……………….…………………..………………………………………………………………...........20
10.3 Digital Input (Read Only)………………………………………………………………………………………….…….………...20
APPENDIX A…………………………………………………………………………………………………………………………………..……..21

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
3
1. Introduction
Thank you for using LoRa interface gateway in your system work. These
LoRa gateways provide the way of connecting IoT remote units to a Local
Area Network (LAN) or Host Computer from long distance. The data
transmission via LoRa gateways mainly intended for the ISM (Industrial,
Scientific, and Medical) frequency bands at 862-936 MHz.
The gateway has been built with the module integrated many RF functions
and PA to make the maximum output power up to +20dBm.
LoRa Interface Gateways are packaged in a plastic case well suited for
industrial environments. LoRa Interface devices have different models for
converting to Ethernet/Modbus TCP, USB, Serial ports
(RS-232(half-duplex)/485) and DI/DO controller. Configuration is easy to
set up via web page and utility tool.
The following topics are covered in this chapter:
Applications
Packaging
Specifications

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
4
1.1 Applications
●Automation and safety alarm in the community.
●Various automated smart meters, such as water meter, gas meter and
electricity meter.
●Long range communication data collection and integration.
●Outdoor information monitoring and collection, such as temperature,
humidity and air quality information.
●Electricity facilities measurement and management, such as smart
street lighting.
●Agriculture and animal husbandry monitoring and management.
1.2 Packaging
LoRa Interface Gateway attached with the following items:
1 unit of Gateway device.
1 unit of Power Adaptor, 9V ~ 24V DC, 500mA (option)
1 unit of Antenna
Documentation & Utility CD
NOTE: Inform your sales representative if any of the above items missing or damaged.

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
5
2. Product Specifications
2.1 EX9212LoRa-E/ MTCP : Ethernet To LoRa
CPU : 32 bits MCU ,40 MHz , 16KB SRAM, 128KB Flash ROM
Support: ModbusTCP(EX9212LoRa-MTCP) & Transparent(EX9212LoRa-E)
LoRa : Semtech SX1272
●Freq. : ISM band 862 ~ 936MHz
●Receiver Sensitivity : -137 dBm
●Transmit Output Power : 20 dBm
●Sleep Current : 3uA (at power down state)
●TX current < 140 mA@20 dbm , RX current < 10 mA
●Security processor ( 128/192/256 bits AES )
●Packet engine up to 256 bytes with CRC
●Antenna : SMAType , 2 dBi , changeable
●Distance : Up To 1500~7500 Meters in free space
●Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK)
●Application mode : Star
Ethernet Port
●Port Type：RJ-45 Connector
●Speed：10 / 100 Mbps ( Auto Detect )
●Protocol：ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
●Mode：TCP Server / TCP Client / UDP
●Setup：HTTP Browser Setup ( IE )
●Security：Login Password
●Protection：Built-in 1.5KV Magnetic Isolation
●Modbus TCP To RTU/ASCII Slave Mode
●Modbus RTU/ASCII To TCP Slave Mode
Setup Tool : Windows Utility
Power : DC 9 ~ 24V / 150mA@ 9V , 60mA@ 24V
Power consumption: 12VDC / 95mA, 9VDC / 120mA
Led Lamp : SYS (green) , Rx(red) , Tx(green)
Environment: Operating Temperature: -10℃〜70℃
Storage Temperature: -20℃〜80℃
Dimensions : 100 * 90 * 25 mm ( W * D * H )
Weight : 150 gm ( not include power )

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
6
2.2 EX9212LoRa-S : RS232(half-duplex)/485 To LoRa
CPU : 32 bits MCU ,40 MHz , 16KB SRAM, 128KB Flash ROM
Support: Modbus & Transparent
LoRa : Semtech SX1272
Freq. : ISM band 862 ~ 936MHz
Receiver Sensitivity : -137 dBm
Transmit Output Power : 20 dBm
Sleep Current : 3uA (at power down state)
TX current < 140 mA@20 dbm , RX current < 10 mA
Security processor ( 128/192/256 bits AES )
Packet engine up to 256 bytes with CRC
Antenna : SMAType , 2 dBi , changeable
Distance : Up To 5000 Meters in free space
Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK)
Application mode : Star
Serial Port
Port Type : RS-232/485 * 1 port
RS-232(half-duplex) : Rx , Tx , GND , RTS , CTS ( DB9 female)
RS-485 : Data+ , Data- (Surge Protect)
Built –in RS-485 Terminal Resistor
Speed : 9600 bps〜115.2K bps
Parity : None , Odd , Even
Data Bit : 7, 8 / Stop Bit : 1 , 2
Setup Tool : Windows Utility
Power : DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V
Power consumption: 12VDC / 20mA, 9V / 30mA.
Led Lamp : SYS (green) , Rx(red) , Tx(green)
Environment: Operating Temperature: -10℃〜70℃
Storage Temperature: -20℃〜80℃
Dimensions : 100 * 90 * 25 mm ( W * D * H )
Weight : 150 gm ( not include power )

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
7
2.3 EX9212LoRa-U : USB To LoRa
CPU : 32 bits MCU ,40 MHz , 16KB SRAM, 128KB Flash ROM
Support: only transparent
LoRa : Semtech SX1272
●Freq. : ISM band 862 ~ 936MHz
●Receiver Sensitivity : -137 dBm
●Transmit Output Power : 20 dBm
●Sleep Current : 3uA (at power down state)
●TX current < 140 mA@20 dbm , RX current < 10 mA
●Security processor ( 128/192/256 bits AES )
●Packet engine up to 256 bytes with CRC
●Antenna : SMAType , 2 dBi , changeable
●Distance : Up To 5000 Meters in free space
●Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK)
●Application mode : Star
USB Port
●Port of Type : USB * 1 port, Connector : USB type B
●Chipset : Silicon Laboratories CP2102
●Compliant : US1.0 , 1.1 , 2.0
●Baud Rates : Full speed 12 M bps
●Driver Support : Windows-98/ 2000/ XP/ 2003/ Vista /Win-7/Win-10
Mac Osx / Os9 / Linux2.4 / 2.6
Provide : USB driver
Setup Tool : Windows Utility
Power : DC 5V / 150mA@ 5V
Led Lamp : SYS (red) , Pairing (green) , Rx(red) , Tx(green)
Environment: Operating Temperature: -10℃〜70℃
Storage Temperature: -20℃〜80℃
Dimensions : 100 * 90 * 25 mm ( W * D * H )
Weight : 150 gm ( not include power )

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
8
2.4 EX9212LoRa-DIO : LoRa Digital I/O Controller
CPU : 32 bits MCU ,40 MHz , 16KB SRAM, 128KB Flash ROM
Support Modbus Protocol
LoRa : Semtech SX1272
Freq. : ISM band 862 ~ 936MHz
Receiver Sensitivity : -137 dBm
Transmit Output Power : 20 dBm
Sleep Current : 3uA (at power down state)
TX current < 140 mA@20 dbm , RX current < 10 mA
Security processor ( 128/192/256 bits AES )
Packet engine up to 256 bytes with CRC
Antenna : SMAType , 2 dBi , changeable
Distance : Up To 5000 Meters in free space
Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK)
Application mode : Star
Digital I/O
Digital Input * 2
3000VDC Isolation Protect ( Active High /Active Low Selectable )
Dry contact : Logic level 0 : close to GND , Logic level 1 : open
Wet contact : Logic level 0 : 0~3 V , Logic level 1 : 10 ~ 30 V
Digital Output * 2
Relay ( Active High /Active Low Selectable )
120V AC@10A , 240V AC@7A , 24V DC@10A
Setup Tool : Windows Utility
Power : DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V
Led Lamp : SYS (red) , Pairing (green) , Rx(red) , Tx(green)
Environment: Operating Temperature:-10℃〜70℃
Storage Temperature:-20℃〜85℃
Dimensions : 160 * 90 * 25 mm ( W * D * H )
Weight : 350 gm ( not include power )

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
9
3. Product Views
3.1 EX9212LoRa-E/MTCP : Ethernet To LoRa
3.2 EX9212LoRa-S : RS-485 To LoRa
3.3 EX9212LoRa-U : USB To LoRa
RS-485
LED Indicators
RS-232(half-duplex)
DC-IN Power Outlet
Antenna
Ethernet LAN port
Reset button
LED Indicators
DC-IN Power Outlet
Antenna
Reset button

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
10
3.4 EX9212LoRa-DIO : LoRa to Digital I/O Controller
3.5 Outlined Components
LED Indicators
LED Indicators
Reset button
Antenna
USB port
Reset button
Antenna
DC-IN Power Outlet
2 DI / 2 DO port

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
11
3.5.1 DC-IN Power Outlet
LoRa Gateways are powered by a 9~24V DC (Inner positive, outer negative) power supply and 1.0A
current. Connecting the AC plug to the AC power socket and put the DC Jack plug into the outlet of
device. The “SYS” (or “PWR”) red color LED will be ON when power properly supplied. Terminal
Block (2 wires) power supply is alternative.
3.5.2 Ethernet LAN Port
The connector for LAN connection is a general RJ45 socket. Simply connect it to network Switch
Hub. When the connection is made, the LAN LED indicator light on. When data start transmission,
Tx/Rx LED indicator will blink during data transferring or receiving.
3.5.3 Serial Port (RS-232:half-duplex/485)
Connecting the Serial Port Cable from the LoRa Gateway to the Serial Interface device. Follow the
parameter setup procedures to configure the converter (see the following chapters).
3.5.4 2DI / 2DO port
Please refer the specs sheet of EX9212LoRa-DIO.
3.5.5 Reset Button
In any case you forgot the password or have incorrect settings must to set Converter back to default,
use the Reset button. At first, power on the Converter, then press Reset button as per below list to
reboot or restore to the factory default.
1 Second –no action
2 ~ 4 Seconds -- reboot
5 Seconds up -- restore factory default
3.6 LED Indicators
PWR (Red):
Power indicator. When the power is on, the LED will be on.
Tx (Green):
Data sending indicator. When data sending to the network, this LED will blink.
Rx (Red):
Data received indicator. When data receiving from the network, this LED will blink.

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
12
4. Wiring Architecture
4.1 Ethernet + LoRa --- air ---- LoRa + Serial Interface ----- Machine
4.2 USB Interface + LoRa --- air ---- LoRa + Serial Interface ---- Machine
4.3 Ethernet + LoRa --- air ---- LoRa + Serial DI/DO Interface ----- DI/DO

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
13
4.4 Serial Interface + LoRa --- air ---- LoRa + Serial Interface ----- Machine
4.5 Star topology

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
14
5. LoRa module Setting Utility
5.1 LoRa Setting Tool factory default
**
Spreading Factory (for reference only, not exactly to real device):
Uart
Baud Rate [bps]
9600
Parity
None
Date Bit
8
Stop Bit
1
LoRa
Frequency [Hz]
915500000
Spreading Factor
9 **
Bandwidth [kHz]
125
Tx Power [dBm]
20
Encryption
30313233343536373839414243444546

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
15

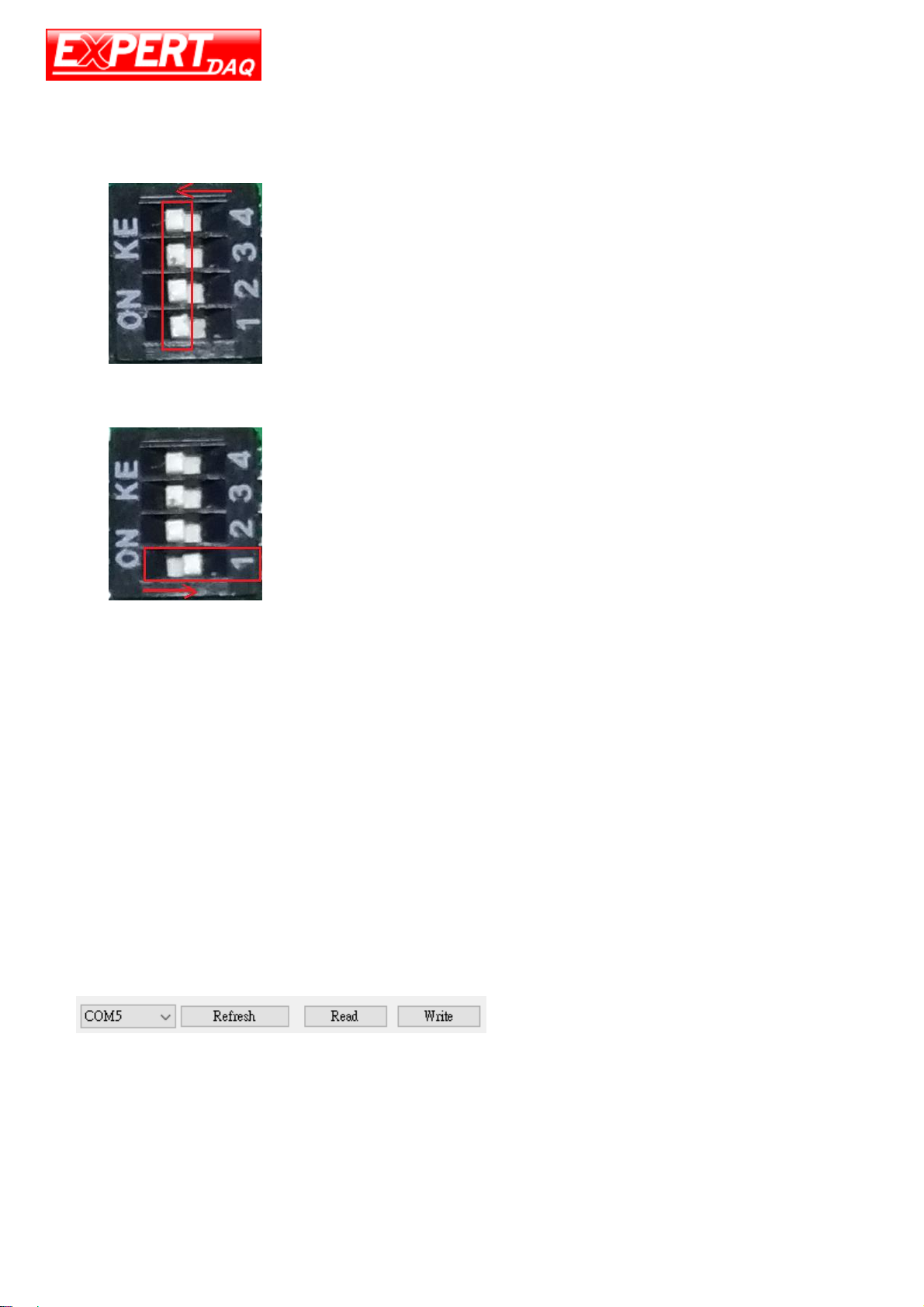

5.2 Dip Switch at top of casing:
1) Setting mode: #1~#4 pins all at up position to modify LoRa settings.
2) Operation mode: only #1 at down position to run data transmission.
6. LoRa setting process
6.1 Pull power off:
6.1.1 For Ethernet to LoRa model: pull off power plug.
6.1.2 For Serial to LoRa model: pull off power plug, use a USB to RS-232 Converter to connect with
the RS-232 port. A crosslink RS-232 adaptor is necessary.
6.1.3 For USB to LoRa model: pull off USB plug from NB/PC USB host.
6.1.4 For DI/DO to LoRa model: pull off power plug.
6.2 Poke Dip Switch #1 to down position as setting mode.
6.3 Plug in the power plug or USB plug to turn power ON.
6.4 Recognize LoRa device’s COM port
6.5 Running Setting Tool:
1) Press “Refresh” button, select right COM port number.
2) Press “Read” button to read existing parameters out.
3) Modify parameters as follows.

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
16

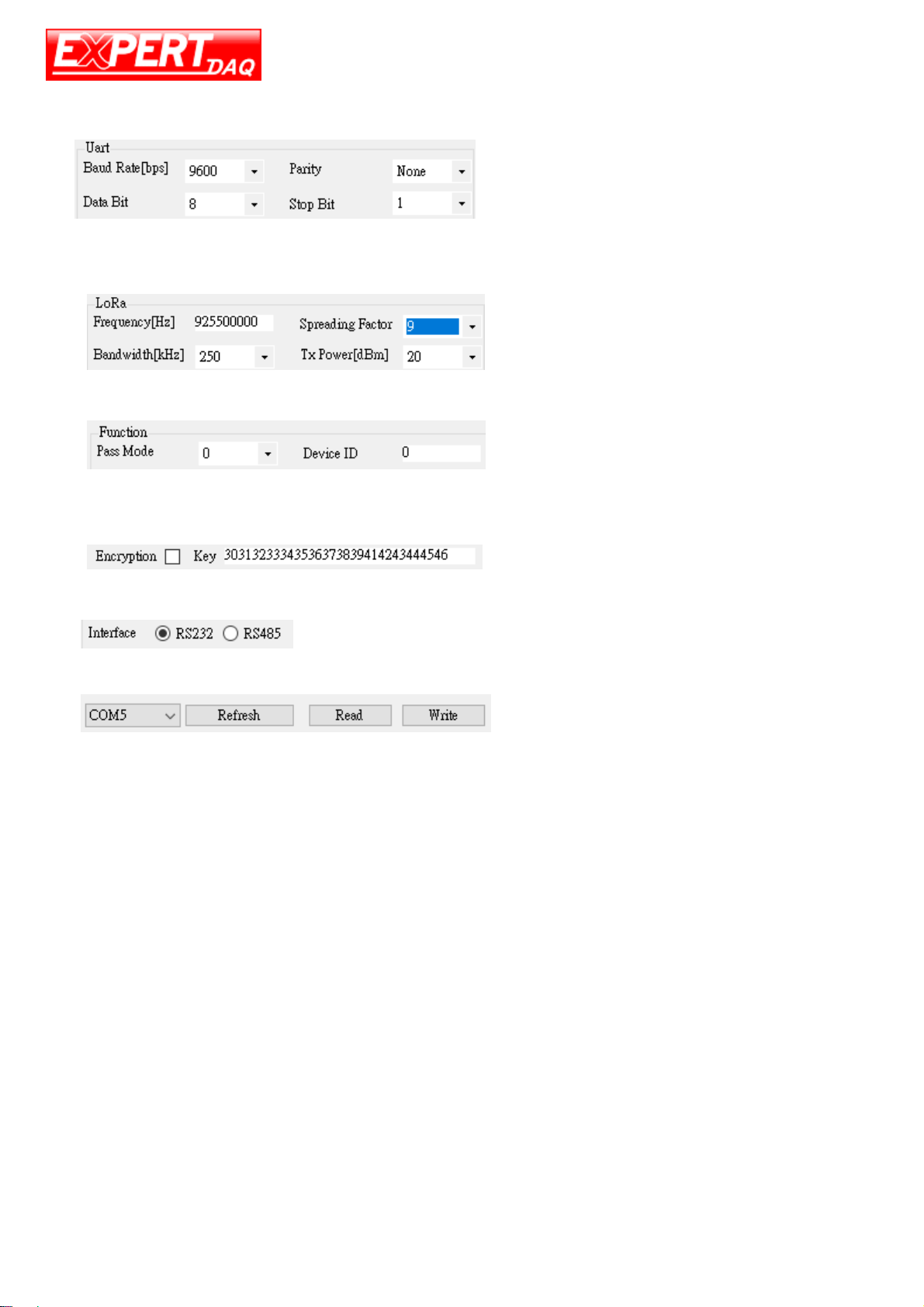

6.6 Setting UART parameters
6.7 Setting LoRa parameters
6.8 Function Pass Mode and Device ID: (pended)
6.9 Encryption value should be same on paring devices. Encryption is optional for
security purpose.
6.10 Interface: (pended)
6.11 Press “Write” button to write parameters back to device.
6.12 Pull off power plug or USB plug to turn power off.
6.13 Poke Dip Switch #1 back to down position enable operation mode.
6.14 Plug into the power plug or USB plug to turn power on.

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
17
7. Ethernet to LoRa settings
7.1 Installation of IP Search Tool
7.1.1 Find out “EXBrowser.EXE” in the CD ROM, copy the file to your host computer.
7.1.2 Double click to run “EXBrowser.EXE”, a window will pop up as below.
7.2 Hardware Connection
7.2.1 Connect host computer and EX9212LoRa-E/MTCP to Switch Hub with RJ45 Ethernet cable.
7.2.2 Power on EX9212LoRa-E/MTCP.

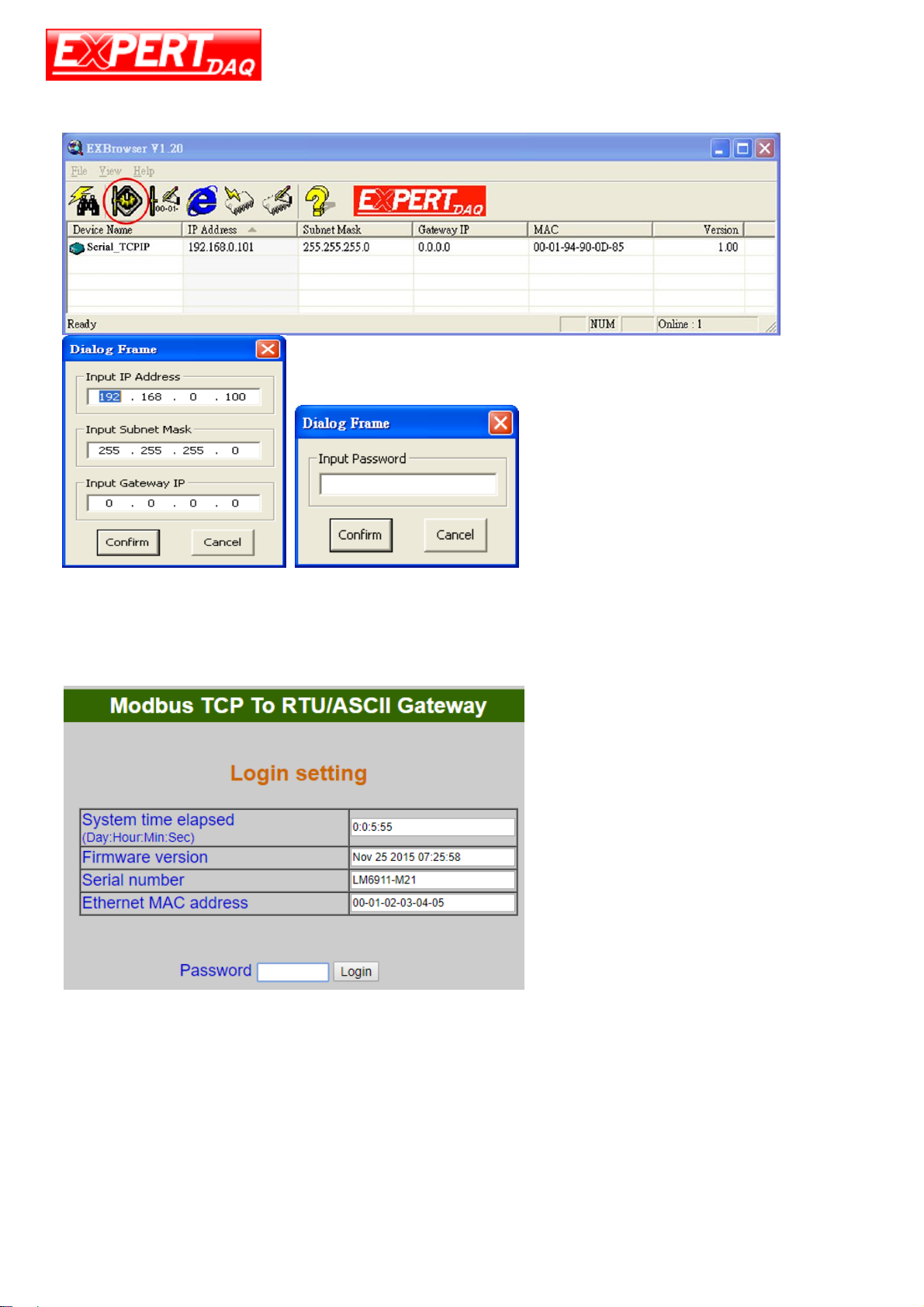

7.2.3 Click the icon of Binocular as “Refresh”, it will search and show up the IP of Converter (Default
IP: 192.168.0.100).
7.2.6 IP of Converter changing subnet to match with host PC/NB. Clicking “Serial_TCPIP” per below.

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
18
7.2.7 Click on the icon of “Modify IP”. Input IP and click “Confirm” twice. No need to input password.
7.3 Web configuration:
Input Converter’s IP to Web browser. Configuration pate will show up. Click
“Login” without password.

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
19
7.4 Serial port setting(Please don’t change the parameters inside the red square.)
EX9212LoRa-MTCP:
Only use port #1 with default socket 501, Port #2 is not used.
EX9212LoRa-E:
Press “Update”to save new parameters and reboot.

EX9212LoRa series User Manual
EX9212LoRa Series •Manual Version 1.1.0 •2019-09-19 www.topsccc.com
20
8. Serial Interface to LoRa setting
Just follow above LoRa setting procedure.
9. USB to LoRa setting
Just follow above LoRa setting procedure.
10.LoRa to DI/DO setting: Modbus codes
10.1 Digital Output port #1
10.1.1 port #1 ON : 01 06 00 00 00 01
10.1.2 port #1 OFF: 01 06 00 00 00 00
10.2 Digital Output port #2
10.2.1 port #2 ON : 02 06 00 00 00 01
10.2.2 port #2 OFF: 02 06 00 00 00 00
10.3 Digital Input (read only)
10.3.1 port #1 : 01 03 00 00 00 01
10.3.2 port #2 : 02 03 00 00 00 01
