ExpertDAQ EX9133C Series User manual

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 0
Operation Manual
EX-9133C-2-MTCP
Modbus TCP to Modbus RTU/ASCII Converter
Version 1.0.1 20th Oct. 2016

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 1
Table of Contents
1. Introduction ……………………………………………… 3
Overview ……………………………………………………… 4
Package Checklist ……………………………………………… 4
Block Diagram ………………………………………………… 5
Features ………………………………………………………… 7
Product Specifications ………………………………………… 8
2. EX-9133C-2-MTCP Description .........................…………… 10
Product Panel Views …………………………………………… 10
Top Side ………………………………………………………… 10
Right Side ……………………………………………………… 10
3. EX-9133C-2-MTCP Installation .....................…………............ 12
Power Supply(Left Side)…………………………………………… 12
Ethernet Port …………………………………………………… 12
Reset .........……………………………………………………… 12
LED Indicators ......…………………………………………… 13

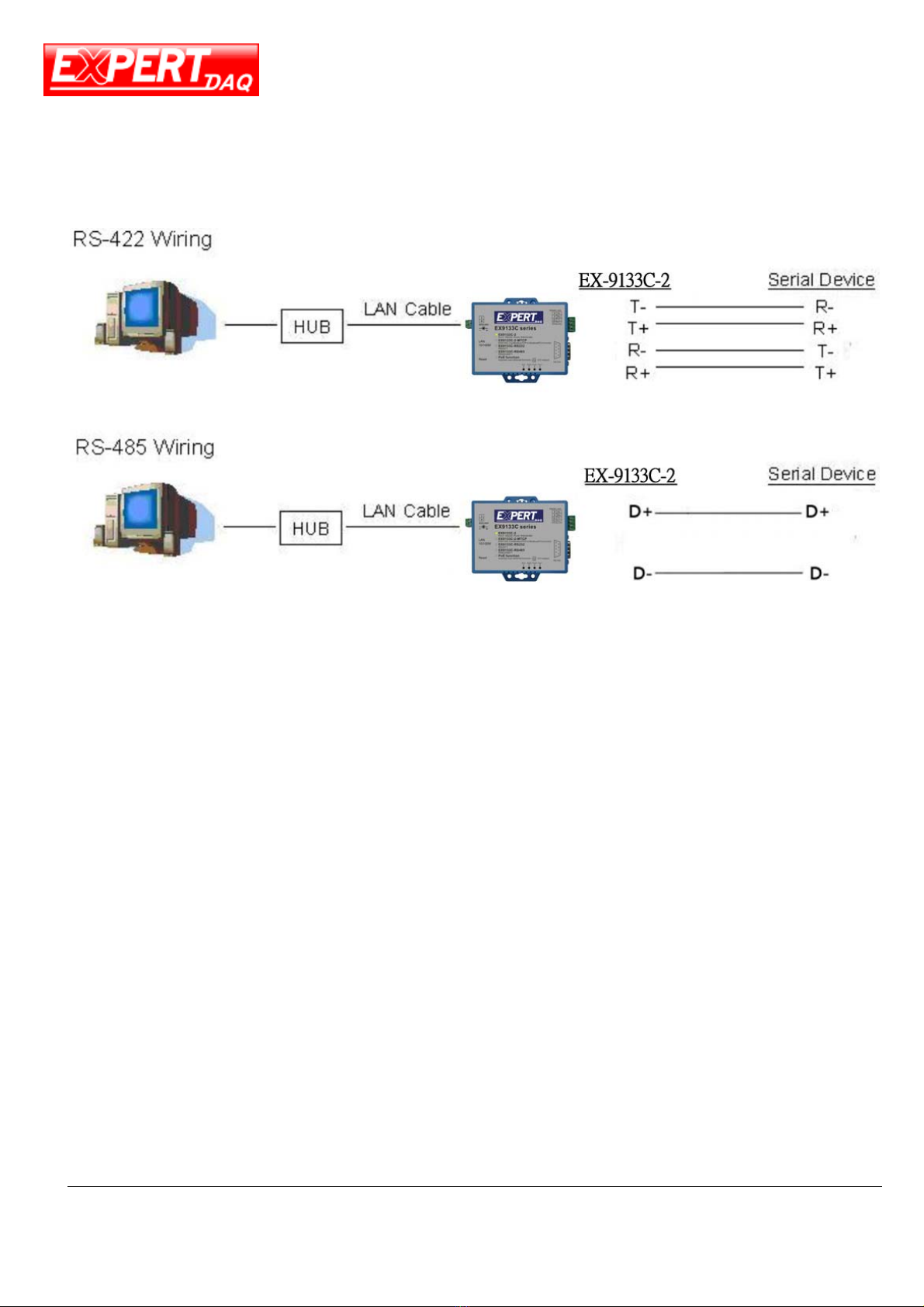

Wiring Architecture ……………………………………………… 14

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 2
4. EX-9133C-2-MTCP Configuration ......................……… 16
Initial IP Configuration ...……………………………………… 16
Device Management Utility of EXBrowser ...…………………… 16
EXBrowser “View”& “Modify IP”…………………………...… 18
EXBrowser “Modify MAC”…………………………….......... 20
Web Browser Configuration ………………………...……….. 21
Controller Setup & Status ……………………………………… 21
Controller Parameter Setup …………………………………… 24
Controller Updated ……………………..……………………… 29
Factory Default Setting …………………....…………………… 30
Appendix A - FAQ …….............………………........................ 31
Appendix B - Pin Outs and Cable Wiring …..…… 32
B.1 DC-In Jack ………………………………………….....…… 32
B.2 RJ-45 Pin Assignment ………………………………....…… 32
B.3 RS-232 Pin Assignment …………………………….....…… 32
B.4 RS-232 Wiring Diagram ……………………………...…… 33
B.5 RS-422 Pin Assignment …………………………….....…… 33
B.6 RS-422 Wiring Diagram …………………………....……… 33
B.7 RS-485 Wiring Diagram ……………………………....…… 33

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 3
1 1
Introduction
We provide new ways of connecting legacy serial devices to a Local Area Network (LAN)
or Wide Area Network (WAN). Modbus TCP/IP converters are designed to operate serial
ports over 100M bps Ethernet networks. The data is transmitted via Modbus TCP/IP
protocol. Therefore, control is available via Ethernet, Intranet and Internet.
EX-9133C-2-MTCP converter is packaged in a PVC material case well suited for
industrial environments. It provides two serial ports one is a RS-232 and another is
RS-422/485 (Auto-Detect). All serial ports operate in common industrial configuration.
EX-9133C-2-MTCP converter is a low-cost, high performance design. By carefully
selecting high quality with competitive prices components in the world, the products
made network connectivity possible with affordable cost for virtually all kinds of devices.
EX-9133C-2-MTCP is a full set converter device with two serial ports as one is a RS-232
port and another is a RS-422/485 (Auto-Detect) and it provides one socket connection
port. This operation manual will guide you step by step to learn the various functions of
the EX-9133C-2-MTCP converter.
The following topics are covered in this chapter:
□
□
□ Overview
□
□
□ Block Diagram
□
□
□ Product Features
□
□
□ Product Specifications

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 4
Overview
EX-9133C-2-MTCP converter is designed to make your industrial serial devices
Internet ready instantly. ARM Cortex-M4 CPU of EX-9133C-2-MTCP converters makes
them the ideal choice for connecting your RS-232 and RS-422 or RS-485 serial
device—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it
possible for your software to access serial devices anywhere and anytime over a local
LAN or the Internet.
ARM Cortex-M4 CPU Series converters ensure the compatibility of network software
that uses a standard network API (Winsock or BSD Sockets) by providing TCP Server
Mode, TCP Client Mode, and UDP Mode. Model EX-9133C-2-MTCP provides 1
socket connection for remote management. ARM Cortex-M4 CPU Series Virtual COM
driver and software that works with COM port can be set up to work over a TCP/IP
network in no time. This excellent feature preserves your software investment and let
you enjoy the benefit of networking your serial devices instantly.
ARM-Cortex-M4 CPU series converter supports manual configuration via the handy web
browser console and many protocols including TCP, IP, UDP, HTTP, DHCP, ICMP,
and ARP. They are the best solution to network your serial devices.
Package Checklist
ARM-Cortex-M4 CPU products are shipped with the following items:
□
□
□1 unit of EX-9133C-2-MTCP converter
□
□
□1 unit of Power Adaptor/Supply(9V/12V/24VDC, 500mA) : Optional
□
□
□
Din Rail Mounting Kit : Optional
□
□
□Quick Installation Guide in Documentation & Software CD
NOTE: Please notify your sales representative if any of the above items is missing or
damaged.

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 5
Block Diagram
Low-cost devices usually are equipped with low speed processors and limited
memories. In reality, they have neither the capability nor practicality to manage
complicated network TCP/IP protocols. The ARM Cortex™-M4 32-bit processor
has been specifically developed to provide a high-performance, low-cost platform
for a broad range of applications including microcontrollers, automotive body
systems, and industrial control systems, networking by converting data stream
between network TCP/IP and popular serial port signals.
Instead of processing TCP/IP packets directly, devices need only deal with those
interface signals, which greatly simplifies the complexity of TCP/IP network in
linkage. The ARM Cortex-M4 processor provides outstanding computational
performance and exceptional system response to interrupt while meeting low cost
requirements through small core footprint, industry leading code density enabling
smaller memories, reducing pin count, and low power consumption.
The central core of ARM Cortex-M4 processor, based on a 3-stage pipeline
Harvard bus architecture, incorporates advanced features including single cycle

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 6
multiply and hardware divide to deliver an outstanding efficiency of 1.25
DMIPS/MHz. The ARM Cortex-M4 processor also implements the new
Thumb®-2 instruction set architecture, which combined with features such as
unaligned data storage and atomic bit manipulation delivers 32-bit performance at a
cost equivalent to modern 8- and 16-bit devices.

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 7
Product Features
□
□
□Data Conversion between RS-232 and RS-422/485 and Ethernet
EX-9133C-2-MTCP converter device (RS-232＊1 port , RS-422⁄485＊1 port )
data/signal into the Modbus TCP/IP package data/signal and send them out with the
Ethernet Data Stream; or convert the Modbus TCP/IP package data/signal into serial
device data/signal.
□
□
□Socket Communication
EX-9133C-2-MTCP is provided one socket connection.
□
□
□Dynamic IP Configuration
Support DHCP client mode, simplifying network address configuration and
management.
□
□
□Dual LAN Speed
Support 10/100 Mbps Ethernet, auto-detected.
□
□
□Server / Client Dual Modes
EX-9133C-2-MTCP converter device can be configured as network server or network
client. In the client mode, it can be installed in network which is protected by NAT
router or firewall without a real IP address.
□
□
□Web-based Setup
Parameters setup is based on HTTP protocol by using standard browsers (IE and
Netscape). No special software would be required.
□
□
□Built-in Security Control
Security protect by login password to prevent intruders.
□
□
□Remote Update
Firmware can be updated directly via Ethernet network to keep up with latest network
standards.

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 8
Product Specifications
CPU : ARM Cortex™-M4 32-bit processor , 120MHz
RAM : 128K Bytes SRAM
ROM : 512K Bytes Flash ROM
Ethernet
●Port Type : RJ-45 Connector
●Speed : 10 /100 M bps ( Auto Detect )
●Protocol : HTTP, DHCP, ModbusTCP to Modbus-RTU/ Modbus-ASCII(Slave),
Modbus-RTU/ Modbus-ASCII to ModbusTCP(Slave)
●Mode : Modbus TCP Client/ Server
●Setup : HTTP Browser Setup (IE & Netscape)
●Security : Login Password
●Protection : Built-in 1.5KV Magnetic Isolation
●About..to..json; Remote IP; Report ID Support
Serial Port
●No. of Ports : RS-232*1 Port and RS-422/485(Auto-Detect) * 1 Port
●Port Type：DB9 male * 1 and Terminal Block(7pin) * 1
●Speed：300 bps∼115.2K bps
●Parity：None , Odd , Even, Mark, Space
●Data Bit：5, 6, 7, 8
●Stop Bit：1 , 2
●Port 1：
One RS-232 Signals Port：Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
●Port 2：
One RS-422 /485 Port (Auto-Detect)
RS-422 Signals：Rx+ , Rx- , Tx+ , Tx- (Surge & Over Current Protect)
RS-485 Signals : Data+ , Data- (Surge & Over Current Protection)

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 9
Built-in RS422/RS485 Pull High-Low Resistor
Socket Port Connection：1 Connection
15KV ESD for all signal
Watch Dog Function
Virtual Support Windows 2000 /2003 / XP / Vista / 7
Firmware On-line Updated Via Ethernet
Power：DC 9 – 24V , 500mA (Terminal Block: Optional/ DC Jack: Default)
LED Lamp：
Port-1 (Red)
Port-2 (Green)
DI/DO (Red)
SYS (Green: It is a device status indicator)
Environment：
Operating Temperature：0℃∼70℃
Storage Temperature：-10℃∼80℃
Dimensions：115 * 90 * 27 mm ( W * D * H )
WEIGHT：140 gm
RoHS：Compliant with RoHS
Regulatory Approvals：FCC, CE
WARRANTY：1 year

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 10
2
2
EX-9133C-2-MTCP Description & Installation
Product Panel Views
Top Side
Right Side
Serial I/O Port of RS-232 and RS-422/485
Connect the serial data cable between the converter device and the serial devices.
Follow the parameter setup procedures to configure the converter (see the following
chapters).
DC-In
Power Outlet
Ethernet LAN Port
Serial I/O Port
RS-232
Serial I/O Port
RS-422/485
LED Indicators
Reset Button
RS-232
RS-422/485

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 11
3
3
EX-9133C-2-MTCP Installation

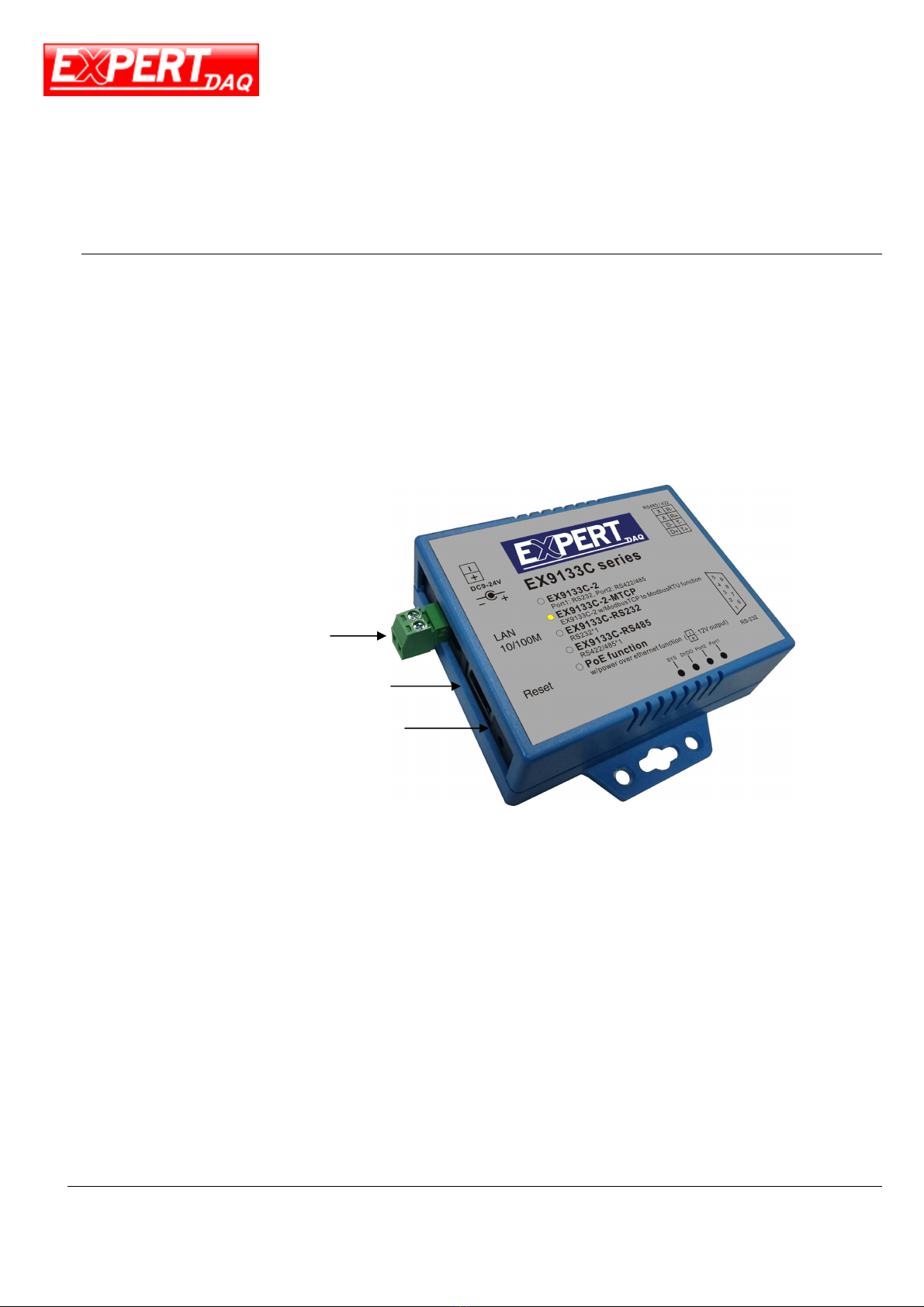

Power Supply(Left Side)
EX-9133C-2-MTCP converter device is powered by a single 9/12/24VDC (inner
positive/outer negative) power supply and 500mA of current. A suitable power supply
adapter is part of the packaging. Connect the power line to the power jack at the left
side of EX-9133C-2-MTCP converter device and put the adapter into the socket.
Ethernet LAN Port
The connector for network is the usual RJ45. Simply connect it to your network
switch or Hub. When the connection is made, the LAN LED indicator will light up.
When data traffic occurs on the network, red DATA LED indicator will blink during
data transferring and receiving.
Reset Button
If by any chance, you forget the setup password, or have incorrect settings making
EX-9133C-2-MTCP converter inoperable. First, turn on the power. Second, use any
point tip to push this button and hold it about 3 seconds All the parameters will be
reset to the factory default. But do not over 5 seconds , it will enter update mode
Ethernet LAN Port
Reset Button
DC-In
Power Outlet

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 12

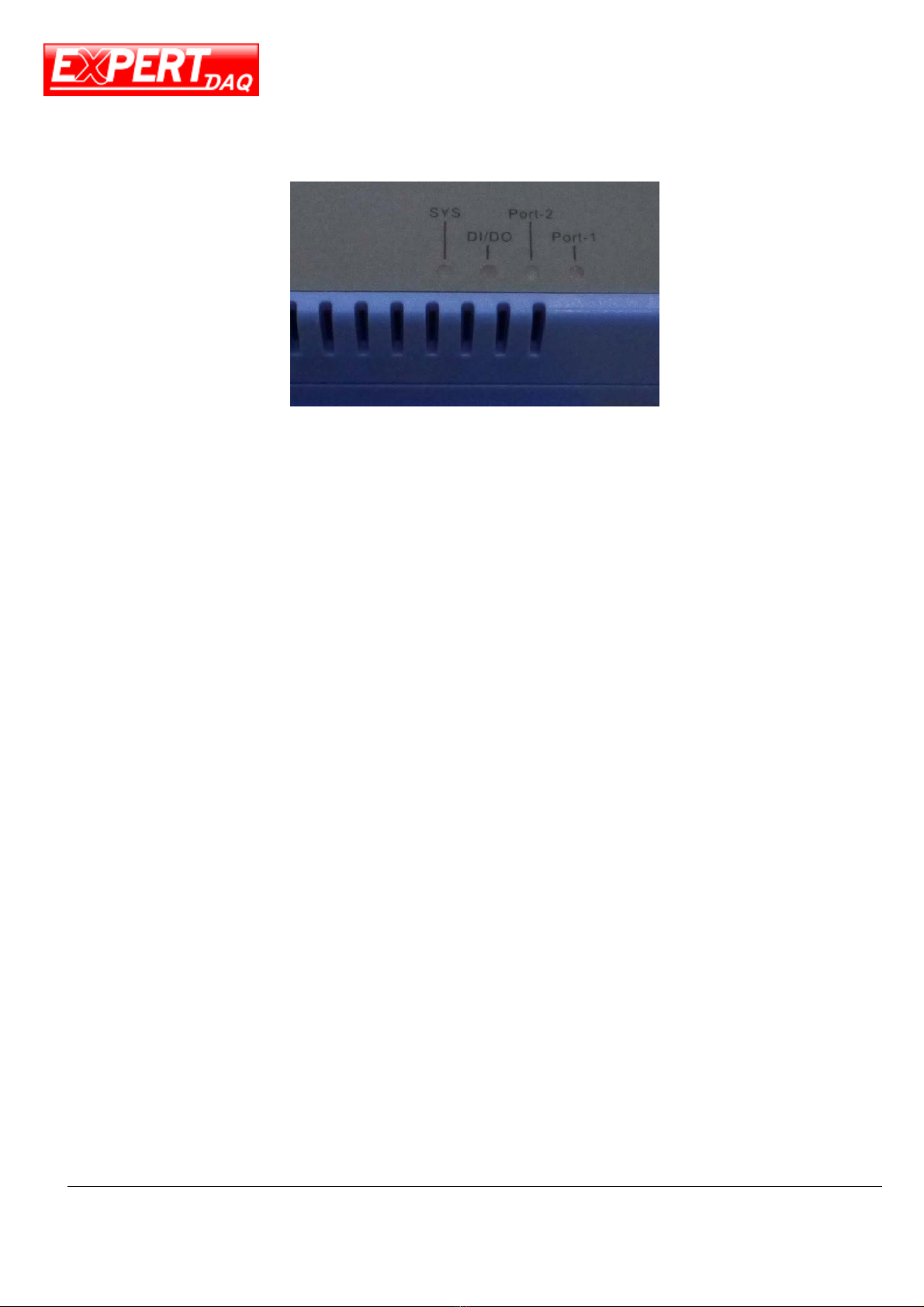

LED Indicators
PORT-1 (Red):
Port1 data transmitting indicator (When data are sending to the network, the LED will
blink.)
PORT-2 (Green):
Port2 data transmitting indicator (When data are sending to the network, the LED will
blink.)
DI/DO (Red):
Data input/output indicator (When data are input/output by the network, the LED will
blink.)
SYS (Green):
It is a device statues indicator (When EX-9133C-2-MTCP is operated in normal
statues, the LED will blink once per second.)

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 13
Wiring Architecture
RS-232 Wiring Architecture

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 14
RS-422/RS-485 Wiring Architecture
When you finish the steps mentioned above and the LED indicators are as shown in above
diagram, the converter is installed correctly. You can use the Setup Tool “EXBrowser.exe”
to setup the IP Address.
To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to
continue the detailed settings.

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 15
4
4
EX-9133C-2-MTCP Converter Configuration
Initial IP Configuration
When sett up your converter for the first time, the first thing you should do is to configure
the IP address. This chapter introduces the method to configure the device server’s IP
address. For more details about network settings, please see the Network Settings section
in Chapter 4, “Web Browser Configuration”.
The following topics are covered in this chapter:
□
□
□
Device Management Utility of EXBrowser
□
□
□
EXBrowser “View”
□
□
□
EXBrowser “Modify IP”
□
□
□
EXBrowser “Modify MAC”
Device Management Utility of EXBrowser
On PC we provide a Device Management Utility named “EXBrowser.exe” which is an
executable program in Windows 32-bit environments. EXBrowser setup tool is used to
detect and setup the installed converters. It uses UDP broadcast packets to query and
configure converters on the network.

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 16
When you activate the tool, it will detect the existence of the installed converters and
depict the converters’ status such as IP address, Subnet Mask, MAC Address, and
Device ID (see Figure 4.1). The Setup Tool only can setup one converter at a time.
Thus if there are more than one converter on the network, please shut down or
disconnect other converters. Otherwise the EXBrowser.exe can not detect the converter.
Due to the nature of broadcast UDP packets, EXBrowser has following characteristics:
□
□
□Broadcast packets are not limited by subnet. Even if the IP address of the converters
and the computer running EXBrowser that do not belong to the same subnet, it still
works fine.
□
□
□Broadcast packets can not pass routers. EXBrowser can only be used to monitor
devices with computer running EXBrowser in the same segment of local area
network.
(Figure 4.1)

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 17
EXBrowser “View”
□
□
□View -> Refresh
There are two ways for refreshing the status of existing devices. You may
select the item “View” to refresh the status of existing devices on LAN.
Another is to click the icon as red color remark as below. EXBrowser will send
another query to get updated information. (see Figure 4.2).
Note: Always run the “Refresh” after any data change.
(Figure 4.2)
□
□
□File -> Exit Alt+F4
Exit from the program (see Figure 4.3).
(Figure 4.3)

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 18
EXBrowser “Modify IP”
□
□
□Modify IP -> Dialog Frame
To click the device on the existing devices list in the EXBrowser table and then the
function bar will be enable. To press second icon of “Modify IP” on function bar
and a dialog frame table will be shown (see Figure 4.4).
(Figure 4.4)
Assign an IP Address with the same Subnet Mask of your computer, avoiding any
IP conflict with other network devices.
When you press “Confirm” button, the IP address will be refreshed in 2~3 seconds.

EX-9133C-2-MTCP User Manual
EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 www.topsccc.com
Page 19
(Figure 4.5)
After click “Confirm” button and then “Input Password” request will be pop-up on
screen (see Figure 4.5). Please simply press “Confirm” button and the new device’s
IP will be changed and save in table, if you changed it.
(Figure 4.6)
