Extremis Abachus User manual

ø 2003
1150
ø 1504
842
e content of this document, in particular the mentioned models, is protected by copyrights and/or design rights. e present document and its content is communicated to you
for information purposes only. Any partial or total reproduction or any other use without our prior written permission is strictly prohibited. is technical sheet remains subject
to possible changes. All dimensions are in mm, unless mentioned otherwise. Extremis is not responsible for the errors in the documentation of products. All measurements are
approximate and are provided for informational purposes only.
Tech
sheet
20190208
Abachus
Abachus
Small ashtray
Big ashtray
Floor fastening
Box dimensions (mm) L W H Qty (#) Volume (m3)
Gross
weight (kg)
Net
weight (kg)
Packaging
weight (kg)
Abachus Box 1 1380 1230 70 10,12 24,00 20,20 3,80
Box 2 1460 130 130 10,02 33,60 33,00 0,60
Box 3 435 390 70 10,02 6,40 5,90 0,50
Box 4 1150 210 150 10,04 8,00 7,50 0,50
total: 0,20 72,00 66,60 5,40
© design by Dirk Wynants
BOX 2: LEGS
BOX 3: CONNECTION PIECES + MOUNTING KIT
BOX 4: SEATING PROTECTION TUBES
BOX 1: TABLETOP

Tools for togetherness
Small ashtray (2L)
Big ashtray (3 x 2L)
ø 2003
1150
ø 1504
842
BOX 5: SMALL ASHTRAY
BOX 6: BIG ASHTRAY
Floor fastening
BOX 7: FLOOR FASTENING
110
ø 10
70
100
35
Box dimensions (mm) L W H Qty (#) Volume (m3)
Gross
weight (kg)
Net
weight (kg)
Packaging
weight (kg)
Small ashtray Box 5 335 335 80 10,01 1,70 1,40 0,30
ø 2003
1150
ø 1504
842
Box dimensions (mm) L W H Qty (#) Volume (m3)
Gross
weight (kg)
Net
weight (kg)
Packaging
weight (kg)
Big ashtray Box 6 645 335 80 10,02 5,40 5,00 0,40
Box dimensions (mm) L W H Qty (#) Volume (m3)
Gross
weight (kg)
Net
weight (kg)
Packaging
weight (kg)
Floor fastening Box 7 200 140 140 10,01 1,29 1,19 0,10

Abachus – Technical sheet
Materials Key facts Thickness
Layer
thickness Density In/outdoor Water
UV colour
fastness
Flame
retarding
mm micron
Iroko tabletop • Durability CLASS 1
• Feels comfortable in all
weather conditions
• Advisable to oil the wood
35 n.a. 600 à 700
kg/m³
Outdoor
& indoor
n.a. Untreated wood
turns grey aer
a while
/
Iroko tabletop • FSC® label
• Durability CLASS 1
• Feels comfortable in all
weather conditions
• Advisable to oil the wood
35 n.a. 600 à 700
kg/m³
Outdoor
& indoor
n.a. Untreated wood
turns grey aer
a while
/
Hot dip galvanised
steel frame & legs
• Most durable method for pro-
tecting metal from rusting
• Protective layer
• Very long life span
• 100% recyclable
• Cradle to Cradle Certied™
2 50 - 100 7,50 10³kg/m³ Outdoor
& indoor
n.a. Very good, gal-
vanisation will
however become
less shiny when
used outdoors
NEN-
EN13501-1
A1 *
Stainless steel tabletop
centreplate AISI 316
• High rust resistance
• Periodical maintenance
required
1,50 n.a. 8,00 10³kg/m³ Outdoor
& indoor
n.a. Ver y good NEN-
EN13501-1
A1 *
PVC protection tubes • Very strong and comfortable
to lean on
• Will not stain on clothing
• Dip moulding
2n.a. 1,16 10³kg/m³ Outdoor
& indoor
n.a. Ver y good /
* NEN-EN13501-1 A1 Class A1 products will not contribute to re in any stage, including fully developed re. For this reason, they are assumed
to be capable of satisfying all requirements of all lower classes as well.
Iroko hardwood*
Tabletop
Materials & colours
*Subject to change, check price list or www.extremis.com
Stainless steel 316
Tabletop
centreplate
Galvanised steel
Frame & legs

Abachus – Technical sheet

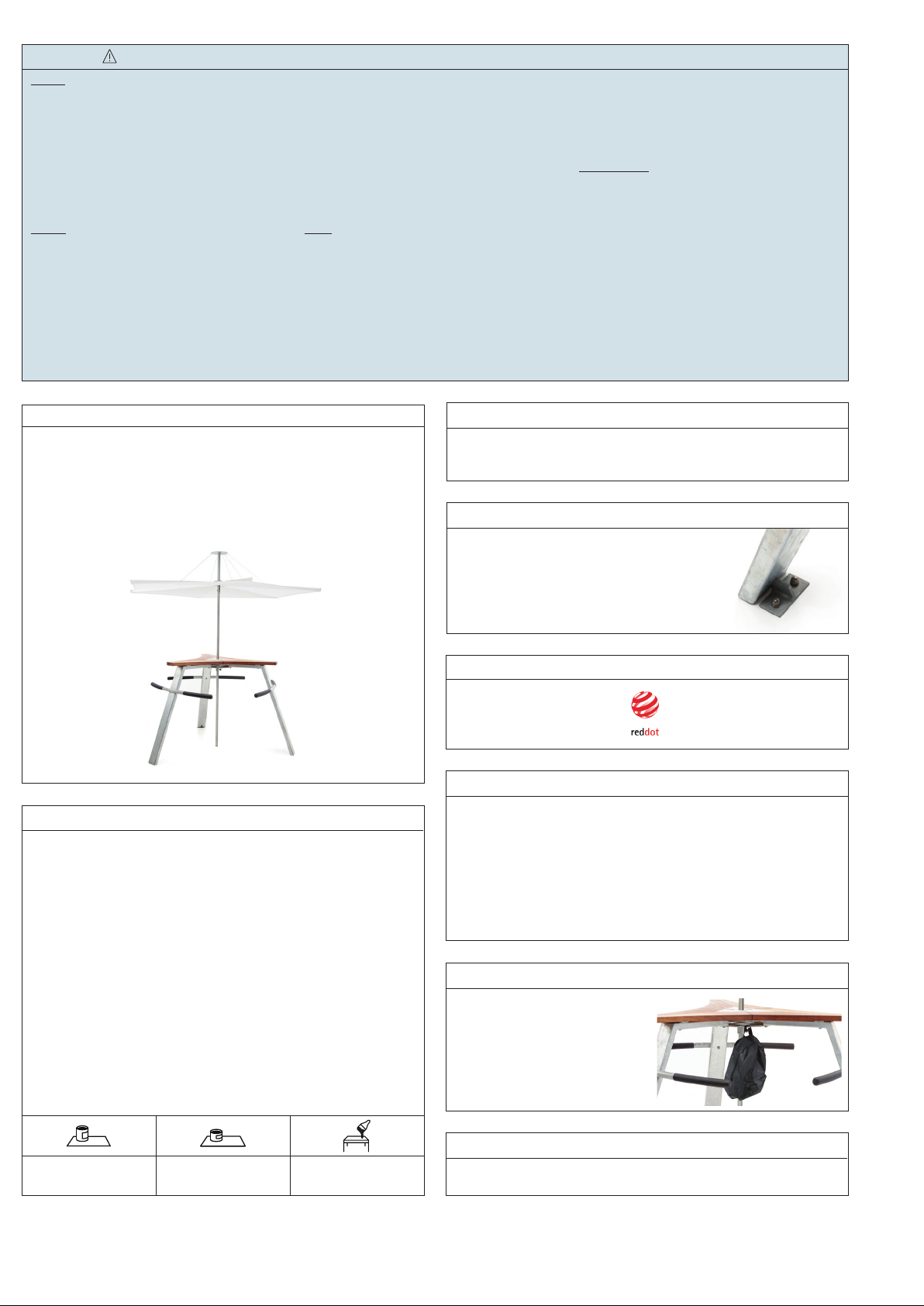

Applications
Project: pubs, restaurants, oce buildings, exhibition centres, or public spaces
requiring a smoking area.
Good to know
• Minimum space needed for legs: ø2003 mm.
• e hole in the tabletop to place a parasol in is ø35 mm.
• Small ashtray = 2 liter / Big ashtray = 6 liter (3 x 2L).
• If you purchase an Abachus without ashtray, it is not possible to mount an
ashtray on aerwards.
• e specic shape of the tabletop serves as an armrest.
• Abachus combines perfectly with Inumbrina ø250, no parasol foot needed. Floor fastening
Abachus can be xed to the oor with our anchoring
set (to be ordered separately): three steel plates to be
xed with bolts.
Fun fact
We have provided little hooks
underneath the tabletop to hang
purses, bags, etc.
F.a.q.
Q: Do you need to oil the wood?
A: Just like other types of wood, Iroko will gradually become rougher and
start to turn grey as a consequence of exposure to the sun and rain. Small
cracks and crevices can also appear as part of this process. We strongly
advise everyone to treat the furniture with our Wood Protector. is 100%
natural oil controls the moisture level within the wood, which makes the
planks stay stable for longer, and the layer of oil also helps to prevent spilled
liquids from being absorbed, so that stains tend to stay supercial. It is best to
repeat this treatment at regular intervals.
Website
www.extremis.com/abachus
Awards
Warnings
General
• Do not use any sharp tools to open the packaging.
• We strongly advise against using power tools.
• Tripping hazard, mind your step.
• Do not put out cigarettes on the table.
• Not gratti proof.
• Do not leave children unattended whilst playing on the
table.
• To avoid danger of suocation, keep plastic bags away
from babies and children.
• Colours can dier over years and from batch to batch.
Product
• Do not stand or jump on the table.
• Do not drag the table, but carry it with minimum 2
people.
• Anchoring the product has to be done by qualied
people.
• For anchoring: use suitable bolts or screws from a
specialized store depending on the material your terrace
is made of.
• Do not sit or stand on the arms, only to lean agaisnt, not
to hang.
• e table is not a climbing frame.
• Make sure all the cigarette butts have been extinguished
when you leave the Abachus unattended.
• We strongly advise you to empty the optional ashtrays
regularly to avoid leaving marks on the ground.
• Do not empty the optional ashtrays until all the ashes
have been extinguished!
• e optional ashtray is only intended for cigarettes.
Never use it for paper or other trash.
• e rope of an Inumbrina parasol must never come into
contact with the ashtray.
• Max. 3 people or 240 kg per armrest.
Wood
• When delivered, the wood is untreated.
• Wood is a natural material and its look is dierent for
every slat, plank and tree.
• Wood will gradually become rougher and start to
turn grey as a consequence of exposure to the sun
and rain. We recommend oiling the wood at regular
intervals depending from location and general weather
conditions.
• Clean regularly with mild detergent. Never use a high
pressure cleaner as this will roughen the wood’s smooth
surface and irreparably damage the wood’s ber.
• orough cleaning with Extremis Wood Cleaner.
• We strongly recommend that you treat your wood with
wood protector to protect it from stains - Small cracks
and crevices can also appear as part of this process. We
strongly advise everyone to treat the furniture with our
Wood Protector.
Galvanised steel
• Galvanisation will become less shiny when used
outdoors.
• Flame retarding - NEN-EN13501-1 A1 - Class A1
products will not contribute to re in any stage,
including fully developed re. For this reason, they are
assumed to be capable of satisfying all requirements of all
lower classes as well.
• Possible impurities in the immersion tank can cause
black marks during galvanization, which are intrinsic to
this industrial nishing technique.
• White marks on this zinc layer are also intrinsic to this
procedure and will disappear when the furniture is put
outdoors.
• is industrial nishing technique may result in a
rougher surface. is is intrinsic to the process.
Maintenance
Find maintenance instructions at the downloads section of extremis.com for:
GALVANISED PARTS
• How to repair a damaged zinc layer
WOOD
• Clean regularly with mild detergent
• orough cleaning with Extremis Wood Cleaner
• Oil the wood with Extremis Wood Protector. We recommend oiling the
wood at regular intervals depending from location and general weather
conditions.
• In order to smoothen the surface again aer a thorough cleaning, lightly
sand your wood with 80 grit sanding paper or a sanding pad.
STAINLESS STEEL
• Clean regularly with a dry cloth and some stainless steel cleaner.
RECOMMENDED USAGE
• For Extremis Wood Protector:
8 to 12 wood care
treatments
4 to 6 wood care
treatments
80 - 120 ml for one
Abachus
1L 0.5L
