DA2 HD 4K • Setup Guide
Overview
The Extron DA2 HD 4K distribution amplier distributes one
HDMIinput signal to two outputs simultaneously (following
the HDMI 1.4 specication at resolutions up to UHD and 4K).
This setup guide provides basic instructions for installation by
an experienced installer. For complete instructions, see the
DA HD 4K Series User Guide at www.extron.com.
Front Panel
AAB
BCCD
D
EEFF
DA2 HD 4K
CO
NFI
G
INP
UT
OU
TP
U
T
S
1
2
S
I
G
NA
L
HD
C
P
DA2 HD 4K
CONFIG
INPUT
OUTPUTS
12
SIGNAL
HDCP
APower status LED — Lights green when power is applied to the unit.
BUSB Config port — Used for SIS™ conguration, monitoring, and rmware updates.
CInput Signal LED — Lights green when a TMDS signal is detected on the HDMI input. If the source requires HDCP
encryption, this LED lights only when HDCP is authenticated.
DOutput Signal LEDs — Light green when HPD is detected from the corresponding sink device and when a TMDS
signal is detected at the input.
EInput HDCP LED — Lights green when the source requires HDCP encryption and it has been authenticated with the
HDMI input.
FOutput HDCP LEDs — Light green when HDCP is authenticated between the DA2 HD 4K output and the
corresponding sink device.
Rear Panel
DD
R
S
-232
Tx
Rx
G
1
2
INPUT
R
EM
O
TE
P
O
WE
R
12V
0.3A MA
X
RS-232
Tx Rx G
12
INPUT
REMOTE
OUTPUTS
POWER
12V
0.3A MAX
AAB
BC
C
APower input — Connect the provided 12 VDC, 1 A power supply to this two-pole captive screw connector.
ATTENTION:
• Do not connect the power supply before reading the Attention in the Power Supply section of the
DA Series HD 4K User Guide.
• Ne branchez pas la source d’alimentation externes avant d’avoir lu les mises en garde dans la section
«PowerSupply» du DA Series HD 4K User Guide.
BHDMI input — Connect a source device to this female HDMI type A connector.
CHDMI outputs — Connect up to two display devices to these female HDMI type A connectors.
DRS-232 — Used for SIS conguration, monitoring, and rmware updates (Pin 1 = Tx, Pin 2 = Rx, Pin 3 = Ground).
Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity.
POWER
12V
0.4A MAX
RS-232
TxRx G
1 2
INPUT
REMOTE
OUTPUTS
POWER
SDCARD USB
PLAY STATUS
MODEL80 MODEL80
13
1
4
2
3
1
4
2
3
1
4
2
2
3
100
LINK
ACT
COMIRINPUTRELAY
TXRX
R
IPL250
®
ON
OFF
DISPLAY
MUTE
SCREEN
UP
SCREEN
DOWN
VCR
DVD
DOC
CAM
LAPTOP
PC
Extron
DA2 HD 4K
Distribution
Amplier
HDMI Cables
4K Displays
4K Video Player
RS-232
TCP/IP
TouchLink
Control
System

2
68-2636-50 A
07 15
Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX [phone] FAX
Extron Europe
+800.3987.6673
(Inside Europe Only)
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.299.1800
+971.4.299.1880 FAX
Extron Korea
+82.2.3444.1571
+82.2.3444.1575 FAX
Extron India
1800.3070.3777
Inside India Only
+91.80.3055.3777
+91.80.3055.3737 FAX
© 2015 Extron Electronics All rights reserved. www.extron.com
DA2 HD 4K • Setup Guide (Continued)

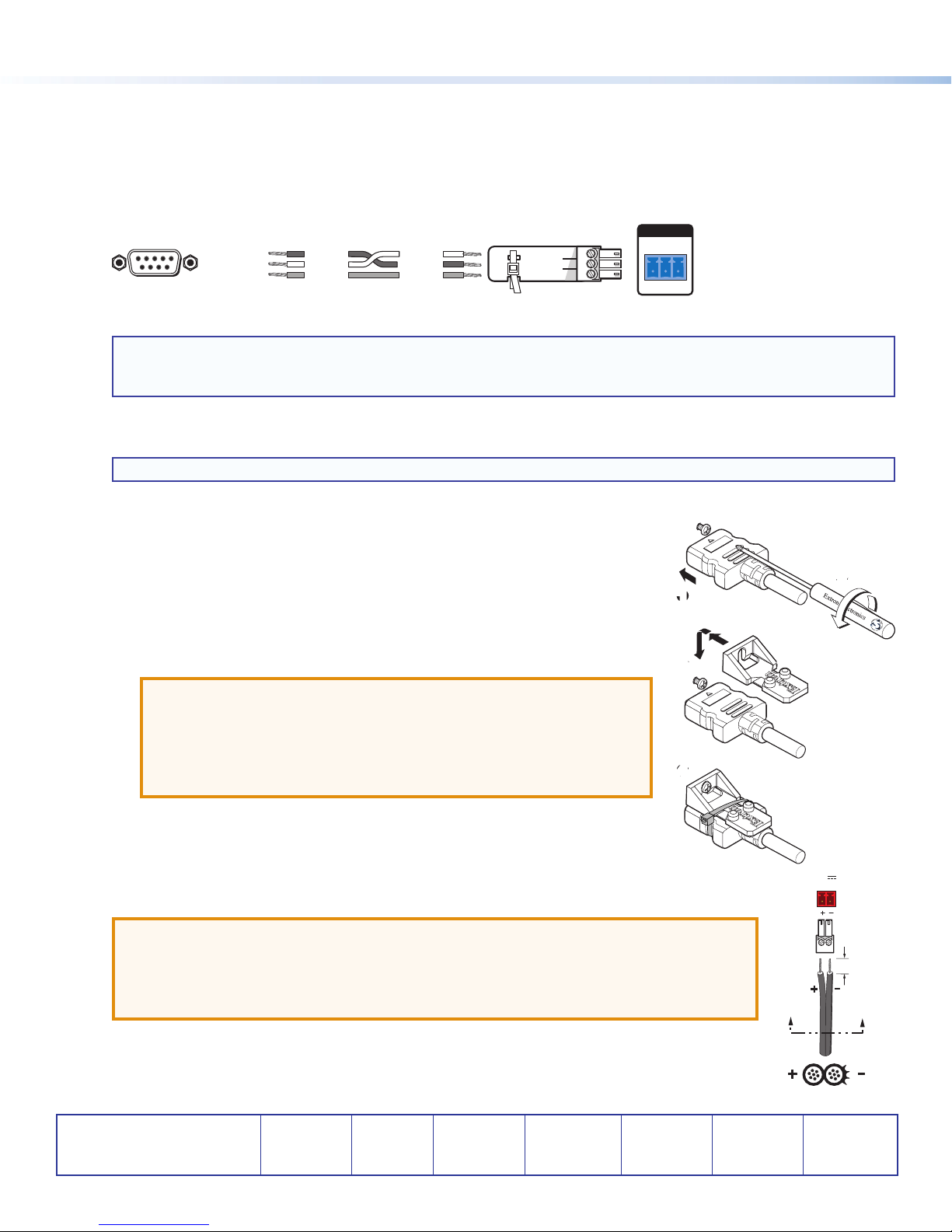

Installation
1. Mount the DA2 HD 4K in a suitable location (see www.extron.com for mounting options). Follow the instructions
provided with the mounting kit.
2. If required, connect a control PC to the USB Cong port (Front Panel Bon the previous page) or RS-232 connector
(Rear Panel Don the previous page). To connect the rear panel RS-232 connector to a PC, ensure that the PC
transmit connects to the RS-232 receive and the PC receive connects to the RS-232 transmit (see the diagram below).
RS-232
Tx Rx G
REMOTE
TransmitReceive
ReceiveTransmit
GroundGround
DB9 Pin Locations
Female
51
9
Pin 2 = Rx
Pin 3 = Tx
Pin 5 = G
Computer
DA2 HD 4K
NOTE: Use SIS commands to congure EDID Minder®, mute the video signal, mute the audio signal, adjust
the video color bit depth, or monitor the signal and HDCP status. See the “SIS Commands” section of the
DA HD 4K Series User Guide.
3. Connect the display devices to the rear panel HDMI outputs and power them on. Connect the primary display to
output 1. EDID from output 1 is stored automatically.
NOTE: Use the LockIt®HDMI cable lacing brackets provided to secure the HDMI connectors.
Follow these instructions to secure the input and output HDMI connectors to the unit with the LockIt HDMI lacing
bracket provided:
a. Plug the HDMI cable into the panel connection (1).
b. Loosen the HDMI connection mounting screw from the panel enough to
allow the LockIt lacing bracket to be placed over it (2). The screw does not
have to be removed.
c. Place the LockIt lacing bracket on the screw and against the HDMI
connector, then tighten the screw to secure the bracket (3).
ATTENTION:
• Do not overtighten the HDMI connection mounting screw. The
shield it fastens to is very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le
blindage auquel elle est attachée est très n et peut facilement
être dénudé.
d. Loosely place the included tie wrap around the HDMI connector and the
LockIt lacing bracket as shown (4).
e. While holding the connector securely against the lacing bracket, tighten the
tie wrap, then remove any excess length.
4. Connect the provided 12 VDC, 1.0 A power supply to the 2-pole captive screw connector.
ATTENTION:
• Do not connect the power supply before reading the Attention in the Power Supply
section of the DA Series HD 4K User Guide.
• Ne branchez pas la source d’alimentation externes avant d’avoir lu les mises en garde
dans la section «PowerSupply» du DA Series HD 4K User Guide.
5. Connect and power on the source device.
3
11
2
2
3
3
4
4
SECTION A–A
Ridges
Smooth
AA
3/16"
(5 mm) Max
.
