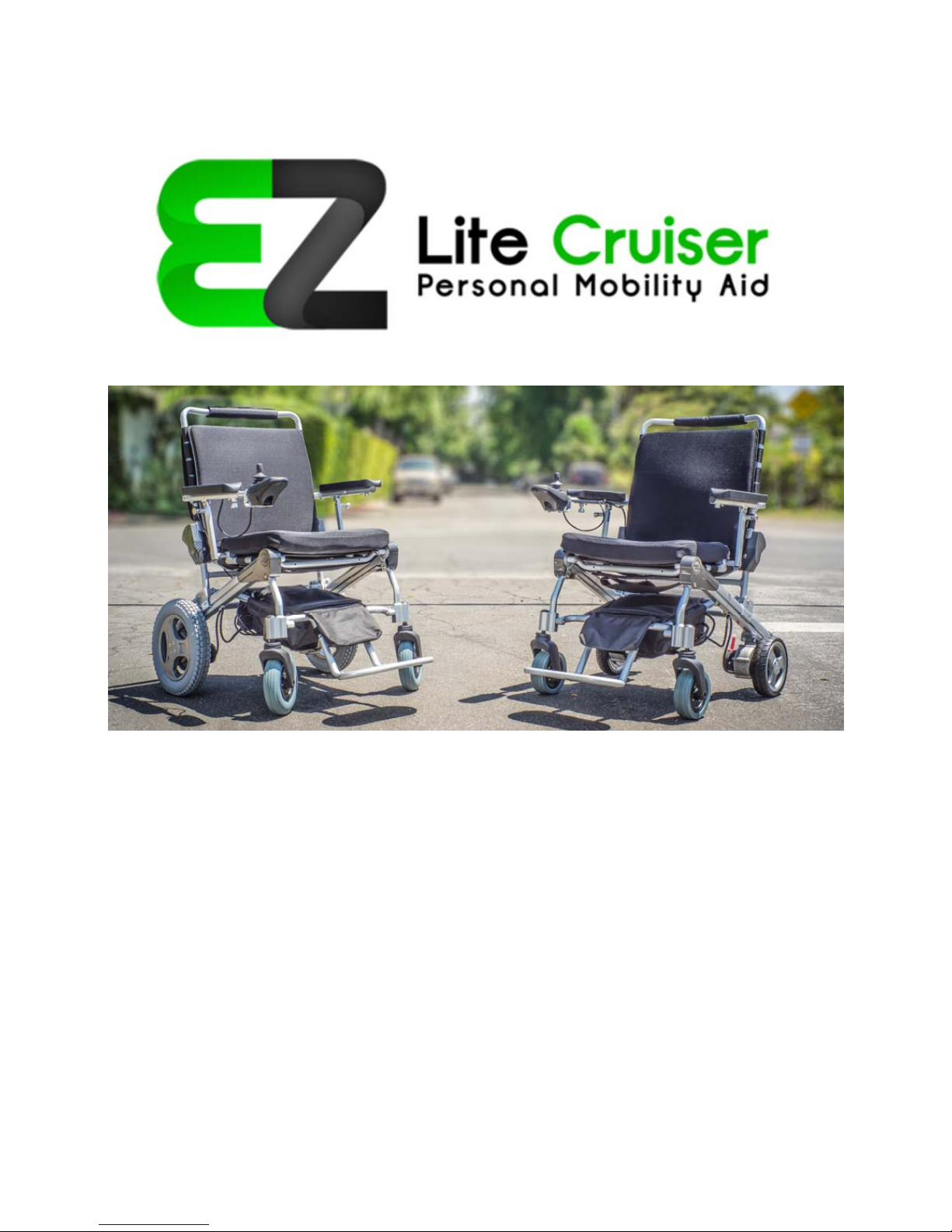

EZ Lite Cruiser Slim User manual

1



Website:www.EZLiteCruiser.com
E‐mail:[e-mail]
Phone(TollFree):1‐(888)544‐6054
Deluxe Models
Slim, Regular and Wide

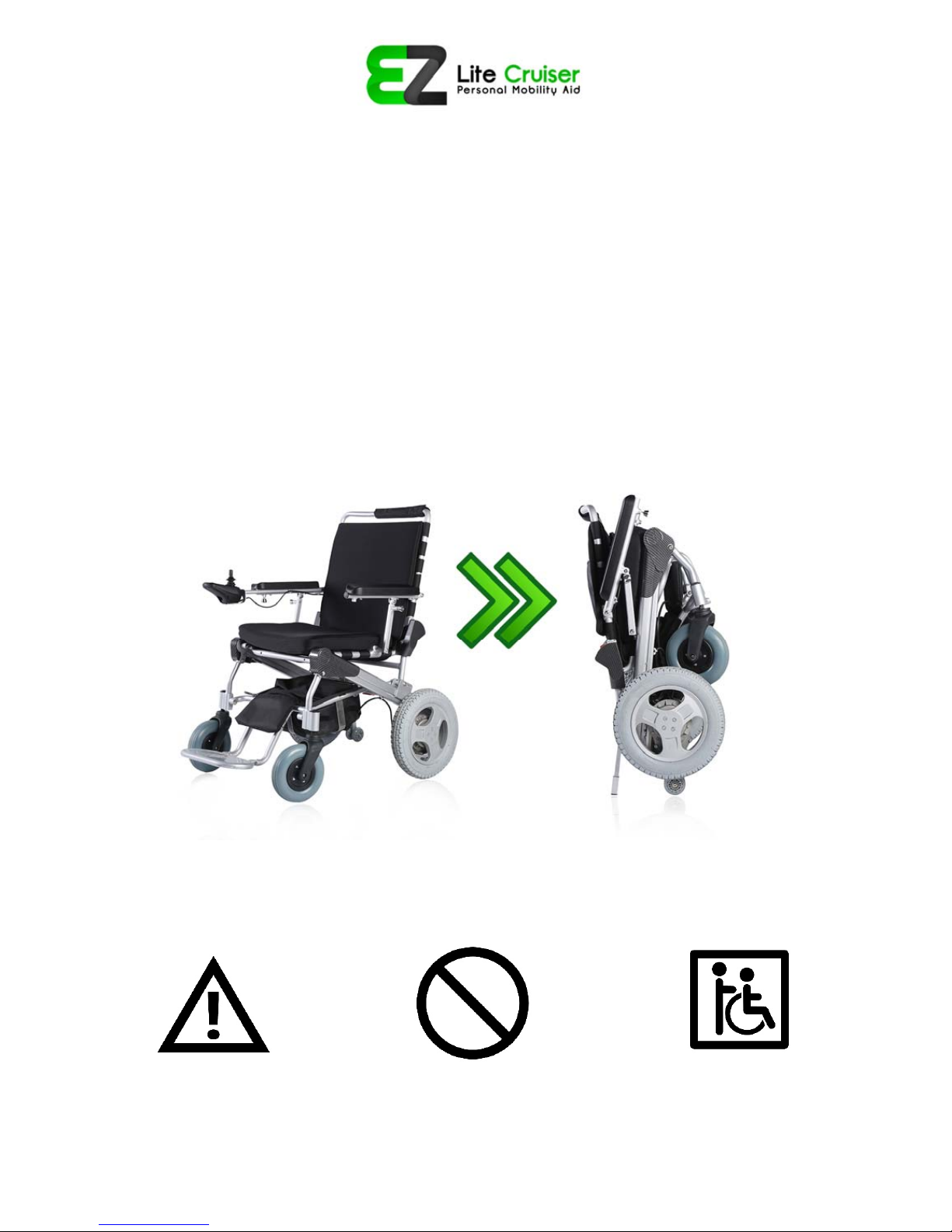

2
ThankyouforpurchasingtheEZLiteCruiser.Wesincerelyhopethatit
willbringconvenienceandenjoymenttoyourdailylife.

Pleasereadtheinstruconsbeforeusingthechairinordertooperate
andmaintainitproperly.EZLiteCruiserassumesnoresponsibilityfor
personalinjuryorpropertydamagesustainedbyorthroughtheuseof
thisproduct.Byusingtheproduct,youagreetoindemnifyEZLiteCruiser
fromanyinjuriessustainedfromandduringuse,regardlessoffault.












Pleasepayaenontothefollowingscontentwiththesewarningsym‐
bols.Failuretotakeprecauonscouldresultinseriousinjuries.Itcan
alsodamageordecreasethelifeexpectancyoftheEZLiteCruiser.





WARNINGDON’TDOTHISASSISTANCE
PRECAUTIONS

3
FrontCover—————————————————————————1
Precauons—————————————————————————2
IdenficaonofComponents—————————————————4
SafeUsageGuide——————————————————————‐ 6
BaeryGuide————————————————————————11
ChargingGuide———————————————————————‐ 12
UsingTwoBaeries—————————————————————‐ 15
Powered&ManualModeOperaon—————————————‐‐ 16
SafetyTips—————————————————————————‐ 17
Transport,Storage&Maintenance——————————————‐‐ 18
QuickStartGuide——————————————————————‐ 19
HelpfulLinksOnline—————————————————————29
JoysckInformaon—————————————————————30
FaultIndicators———————————————————————‐ 31
TroubleshoongGuide———————————————————‐‐ 32
Specificaons————————————————————————34
ServiceHistory———————————————————————‐ 35
WarrantyInformaon————————————————————‐ 35
BackCover—————————————————————————‐ 36
TABLEOFCONTENTS

4
IDENTIFICATIONOFCOMPONENTS
DX12 Model Shown for illustrative purposes. Your model components may vary slightly.

5
IDENTIFICATIONOFCOMPONENTS
DX12 Model Shown for illustrative purposes. Your model components may vary slightly.

6
BEFOREDRIVING—READTHISSECTIONCAREFULLY.

Theusermustbeofsoundmindandjudgment.They
mustbeconsciousandhaveunimpairedmotorfuncons
intheirhandtousethecontroller.Theusermustread
thisuser’sguidebeforeoperangthechairandgetfa‐
miliarwithitscomponentsandfeatures.


Theusershouldpraccedrivingskillswithassistanceon
open,flat,andsafegroundsbeforenormaluse.
MovingForwardandStopping

 Tomoveforward,pushthejoysckforwardlightly.
 Tostop,releasethejoysck.


MovingBackwards

 Tomovebackwards,pushthejoysckbackwardslightly.
 Theusermustbeawareofwhatisbehindthembeforemaneuvering
backwardstoavoidcollisions.


TurninginPlace

 Toturn,pushthejoyscktotheleorright.
 Theusermustbeawareofwhatistotheleorrighttoavoidcollisions
whenturning.
SAFEUSAGEGUIDE

7

PracceAvoidingObstacles

 Lightlypushthejoysckineitherdireconstoavoidand
maneuveraroundtheobstacle/s.Again,praccespeed
control.


DrivingFaster

 Pushthejoysckallthewayinthedireconyouwantto
go.Pullthejoysckbacktothemiddle/centerifyoudo
notfeelyouarenot100%incontrol.


DrivingOverSmallCurbsandThresholds

 Lightlypushthejoysckanddriveslowlyoverthecurb.
Thethresholdshouldnotbehigherthan1.25inchesver‐
cally.

DrivingonBendsorWindyPaths

 Lightlypushthejoysckinthedireconofthebend.
 Praccespeedcontrol.
 Avoidmakingsharporhardturns.Sharporhardturns
areonlytobedonewhenthechairisalreadyina
stoppedposion.
SAFEUSAGEGUIDE

8
DrivingUphill

 Keepyourbodyltedforwardtokeepthecenterofgravi‐
tystable.Driveslowlyandcalmly.
 Werecommendtheslopebelessthan8degreesforop‐
malperformance.

DrivingDownhill

 Makesuretheelectromagnecbrakeisengagedbefore
drivingdownhill.
 Werecommendtheslopebelessthan8degreesforop‐
malperformance.
 Driveallthewaythroughadeclineandstoponflatarea.

LimitDrivingtoSidewalks

 Theusershouldstayonthesidewalkandavoidentering
thestreetoranywherethereisamotorvehiclelane,un‐
lessitistocrossthestreet.Payaenontoobstacles
andavoidcontactwiththem.

CrossingtheStreet

 Payaenontotrafficsignals,postedsignsandavoid
motorvehicles.Onlycrosswhenyouareallowedto.
 Driveslowlyoverthecurb,togetbackonthesidewalk,
whichshouldnotbemorethan1.25incheshigh.
 Priortocrossing,makesureyouhavesufficientbaery
powertoavoidstoppinginthemiddleofthestreet.

SAFEUSAGEGUIDE

9
Entering&ExinganElevator

 Theusershouldpayaenontotheopeningandclosing
intervalsoftheelevatordoortoavoidacollisionwhileen‐
teringorexingtheelevator.

DrivingoverTrainorRailroadTracks

 Wehighlydiscourageyoufromevercrossingrailroad/
traintracksaloneintheEZLiteCruiser.Youshouldbeac‐
companiedbyanassistant,friend,orlovedone.

 Aempngtocrosstracksthatareelevatedtoohigh
(morethan1.25inches)couldresultinarolloveroracci‐
dent.Itcouldendangerthepersonalsafetyoftheuser.

Drivingoverahighcurb/steporsteepincline.

 Drivingovertoohighofacurb/step(morethan3cm)
couldresultinrollover.
 Drivingontoosteepofaninclinecouldalsoresultina
rollover.

TransferringIntoandOutoftheEZLiteCruiser

 Werecommendthattheuserhasassistancegenginto
andoutoftheseangarea.
 Movethearmrestsandfootrestoutofthewaybefore
enteringandexingthechair.
SAFEUSAGEGUIDE

10
SeatBelt

 Werecommendusingtheseatbelt.

SelfRepairoftheEZLiteCruiser

 Avoidaempngtorepairtheproductonyourown.It
maycausepermanentdamagetothechairandcouldput
yourselfatriskofinjury.
 Westronglyrecommendthattheproductshouldbere‐
pairedbyaprofessionalrepairshopormaintenanceser‐
vicepersonnel.

ContactWithWater

 DONOThosedown(Spray)thechairwithwaterorany
liquids.Itwillcausedamagetothechair.
 Foroverallcleanliness,wipethechairdownwithadamp
cloth.
 Theseatcushioncouldalsoberemovedtobewashed
separately.

UsageintheRainorSnow

 AvoidusingthechairinanyprecipitaonHeavydown‐
poursshouldbeavoidedatallcosts.
 Itmaycausedamagetothechair.Coverthechairwitha
ponchoincaseofthepossibilityofrain.
 Usageinsnowandwetgroundmaycausewheelstolose
tracon&slip.Ifnecessarytouseitinprecipitaon,
pleasedoitwiththeassistanceofanotherperson.
SAFEUSAGEGUIDE

11
BATTERYGUIDE
BaeryHandlingandCare

 DONOTleavethebaeryindirectsunlight.Itwillcause
permanentdamage,oravolalereacon.Storethe
baeryinacool,dryarea.

 DONOTremoveANYwrapping,whetheritisblue,clear,
plascorotherwise,fromthebaerypack.

 DONOTallowchildrenaccesstothebaeryorelectrical
componentsofthechair.

 DONOTplaceanyitemsonthechargerwhilecharging.

 DONOTstoreinaseverecoldenvironment.Itwilldam‐
ageanddecreasethelifeofthebaery.

 Keepthebaeryawayfromfireandheatsources.

 Ifthebaerybecomeshot,deformed,oremitsanodor
whilecharging,stopthechargingimmediately.

 Thechargermaygetslightlywarmwhencharging,thisis
acceptable.Thechargershouldnotgetoverlyhotwhere
itisuncomfortabletothetouch,anditshouldneveremit
smokeorfire.

 Thebaerycanbesafelychargedovernight.Itisequipped
withoverchargeproteconbywayofaBaeryManage‐
mentSystem(BMS).

 Fullychargethebaeryincaseofstorage.Thebaeryhas
dischargecharacteriscsandmustbechargedonceevery
monthoritcouldleadtooverdischargedamage,and
ceasefunconing.Failuretodothiswillvoidwarranty.

 OurLithiumBaeriesarerecyclable.Pleasediscardthem
responsiblythroughalocalrecyclingfacility.

12
CHARGINGGUIDE
GeneralInformaononChargingtheBaery

 PleaseusetheLithiumbaerychargersuppliedbyEZLite
Cruiserandneveruseachargerfromanotherpowerchair!

 UnlessinstructedbyanEZLiteCruiserTechnicalSupport
technician,DONOTturnonthecontrollerpoweroruse
thechairduringcharging.

 Ensurethatthebaeryiscoolwhilecharging.Thecharger
maygetalilewarmwhilecharging,duetocurrentrun‐
ningthroughit.ThechargershouldnevergetHOTtothe
touch.Pleasecheckitperiodically.Failuretocheckcan
causedamagetothechairandevenstartafire.

 Chargingmecanvaryfrom2to8hours,dependingon
thelevelofthebaerywhencharginghasstarted,andthe
capacityofthebaeryyouarecharging.

 Thechargercanbeusedovernightsafely.

 Thechargermustbedisconnectedfromthejoysckinor‐
dertooperatetheEZLiteCruiser.

 Keepchargerawayfrommoistureandimpact.

 ThechargerfortheEZLiteCruiseroperatesatvoltages
between100‐240VoltsACinput,meaningitwillwork
overseasinanycountrywherethewalloutletsprovide
between100to240Volts.Youwillsimplyneedto
changetheshapeofthewalloutletplugusingacommon
adaptertochangetheplugtomatchshapeoftheoutlets
forthecountryyouareusingtheEZLiteCruiserin.

13
CHARGINGGUIDE
ChargingtheBaery“OnBoard”

 “OnBoard”chargingmeansthebaeryisconnectedto
theEZLiteCruiser’sPowerInputconnecon,tosupplythe
chairwithpower.First,Plugthebaeryintothechair.

 Next,Insertthechargerintoanelectricaloutlet,whichwill
causethechargerlighttoturnon.ThelightwillbeGreen.

 Lastly,InsertthechargerroundmetalpintotheJoysck.

 GREENIndicatorlightmeanseitherthatthebaery
charginghasfinished,oristakingabreak**(seebelow).
It can also mean that there is no baƩery connected!

 REDIndicatorlightmeansthatthebaeryischarging.

 **Ifyouarepaentandwatchthebaerycharging,you
maynocethatthechargerlightwillchangefromRed
(charging)toGreen(notcharging)andshortlythereaer
backtoRed(charging)…..Green(notcharging),Red
(charging),etc.Thereasonthiswillchangemanymesis
thatthechargerisgoingthroughallofthe8cellsinthe
baerypackandchargingeachoneindividually.Please
bepaentandwaitforthechargingtobecompletedfully.
Beforedisconnecngthecharger.Disconnecngittoo
quicklyatthefirstGreenlightonthechargermaybea
false‐posiveindicaonthatcharginghascompleted,
wheninactualityithasnot!

 Whenyouseethatthelightonyourchargerhasre‐
mainedGreenforatleast30minutes,thatiswhenyou
knowthebaerycharginghascompleted.

 SeethePHOTOattheboomofPage24intheQuickStart
GuideSecon.

14
CHARGINGGUIDE
ChargingtheBaery“OffBoard”

 “OffBoard”chargingmeansthebaeryisNOTconnected
totheEZLiteCruiser’sPowerInputconnecon,anditis
notsupplyingthechairwithpower.

 Inthisscenario,youwillfirstconnectthechargerintoan
electricaloutlet,whichwillcausethechargerlighttoturn
on.ThelightwillbeGreen.

 Lastly,Insertthechargerroundmetalpintothematching
roundmetalpconnectoronyourbaery.

 Thesameprinciplesforthelightsonthechargerchanging
numerousmes,asdescribedonthepreviouspagefor
“OnBoard”charging,willapplyinthisscenario.

 SeethePHOTOonPage27intheQuickStartGuideSec‐
onforproperoff‐boardchargingconnecon.


ChargingTwoBaeriesAttheSameTime
 ItisNOTPOSSIBLEtochargeTWOBaerieswithONE
ChargerattheSAMETIME.IfyouhaveTWObaeries
thatyou’reusingtogether,withtheDualBaeryConnect‐
or,youmustDISCONNECTthebaeriesfromtheDual
BaeryConnector,&chargeeachbaerySEPARATELY.
ThisisVERYIMPORTANT.Ifyouchargebothbaeries
withtheDualBaeryConnector,youareONLYCHARG‐
INGONEBATTERYANDMAYCAUSEAFAILUREOFYOUR
SECONDBATTERY,whichwillvoidthebaerywarranty!
 YoucanchargeTwoBaeriesatthesameme,ifyou
haveasecondcharger,andyouchargethebaeriessepa‐
rately.YoucanchargeoneOnBoard,andoneOffBoard,
ORbothOffBoard(easier),onechargerperbaery.

15
USINGTWOBATTERIES
UsingtheDualBaeryConnectorCable

 YoucanconnectanduseTwobaeriesatthesameme.
Thepowerwillbedrawnfrombothbaeries.Inorderto
dothis,youmusthavepurchasedasecondbaery(your
chaironlycomeswithone)andaDualBaeryConnector.

 Asdescribedonthepreviouspage(Page14),chargingtwo
baeriestogetherwiththeDualBaeryConnectorcableis
notpossible.Eachbaerymustbechargedindividually.

















 Two10AhBaeriesareshownintheillustraonabove.
ThesamemethodologyforconneconappliestoTwo15
AhBaeries.Allconneconswouldbemadeinthesame
exactwaywithtwo15AhBaeries.

16
UsinginthePowered(Electric)Mode

 Fliptheredlevers(theelectromagneclocks,idenfiedinthecompo‐
nentsoftheEZLiteCruiseronpage5)onbothoftherearwheelsand
ensurethatthewheelsarelockedinplace,andarenotmovingatall.
 Whenthechairispoweredelectrically,thechaircannotbepushed
manually.
 Aertheuserisseatedinthechair,turnonthepower.
 Pushingthejoysckforwardtogoforward.
 Pullingjoysckbacktogoback.
 Pushingjoysckletoturnle.
 Pushingjoysckrighttoturnright.
 Thechairwillgofasterwhenthemagnitudeisgreater.
 Releasethejoyscktostopthechair.
 Pressthepoweroffbuontoshutdownthepower.
UsingintheManualMode

 EnsurethatthepowerisOFF.
 Fliptheredlevers(theelectromagneclocks,idenfied
inthecomponentsoftheEZLiteCruiseronpage5)on
bothoftherearwheels.Thiswillallowyoutorollthe
wheelsmanually.
 Ifoneofthewheelsrollsandtheotherdoesnot,flipthe
redlevertothesameposionasthewheelthatdoesroll.
Ifneitherwheelsroll,fliptheredleverstotheopposing
posionforbothwheels.Youwillheara‘clunk’noise
whentheleverisflipped.
 Iftheuseroperatesthechairwithoutassistance,the
electromagnecbrakemustbeattheengagedposion.
Otherwise,theuserwillnothavecontroloverthechair.
POWERED&MANUALMODEOPERATION

17
AddionalWarnings&Precauons

 IftheEZLiteCruiserisnotlockedintheopenposion,it
cancollapsewhenaempngtositonthechair.Thiscan
causedamagetothechairandalsohurttheuser.Please
ensurethatthechairisfullyunfoldedbeforesinginit.

 Check,double‐checkandtriple‐checktomakesurethe
chairisunfoldedallthewayandlockedintoposion.

 Ifthefrontwheelisnotintheproperposionthechair
willnotfoldghtlyandcouldcausedamage.Makesure
thefrontwheelsareinthecorrectposionbeforeclosing.

 Thecableshouldbearoundarmrestinordertoavoidpull‐
ingonthejoysck.

 Watchtoensurethejoysckcableisnotcaughtbetween
anymetalframepartsofthechairastheycometogether.

 DONOTusethejoysckunlessyouaresinginthechair.

 DONOTdisconnectanyplugsbypullingonthewire.Only
disconnectbypullingontheplugsnearthesocketstopre‐
ventdamagetothewiring.Anyplugsshouldbeun‐
screwedbeforetheyarepulledon.

 DONOTDRINKANDDRIVE.Operangthechairisprohib‐
itedwhileintoxicate.Failuretocomplycouldleadtoseri‐
ousinjuryorevendeath.
SAFETYTIPS

18
Transport&Storage

 Topickupthechair,standitupwhenitisfolded.Lithechairbymetal
framepartsalways,neverbyanycushions,strapsorplascparts.
 Thebaeryshouldbefullychargedandthechairshouldbeplacedin
cool,dry,andvenlatedplaceincaseofthechairwilllong‐termplace‐
ment.
 Thebaeryneedstobechargedonceeverytwomonths,otherwiseit
couldleadtoover‐dischargedamage.
 Avoidingstoringthechairaroundheat,coldordirectsunlight.Therub‐
berpartswillagequickerandshortentheservicelife.
 Thebaeryisverysensivetohightemperatureenvironmentsandto
pressure.Avoidhightemperatureandpressure,asitmaycauseafire.
 Thereareelectroniccomponentsinthejoysck.Avoidpressingand
pungtoomuchpressureonit

Service&Maintenance

 Periodically(every6monthsorso)checktheframescrewstoseeif
theyareloose&ghtenthemasnecessary
 Checkifthefrontandrearwheelsarerotangeasily.Ifthereissignifi‐
cantresistance,pleasechangethebearing.
 Checkiftheres,armrestandotherrubberandplascpartsarewear‐
ing.Replacethemaccordingly.
 Checkifthefoldinglockswork.Ifitislooseorjamming,pleasereplace
itpromptly.
 Checkthean‐pwheels/device.Ifitislooseorjamming,pleasere‐
placeitpromptly.
 Partsreplacementshouldbedonebyprofessionalrepairshopor
maintenanceservicepersonnel.DONOTreplacethembyyourself.
TRANSPORT,STORAGE&MAINTENANCE

19
QUICKSTARTGUIDE
YOUMUSTreadalloftheinformaononthepreviouspagesbefore
starngtouseyourEZLiteCruiser.Thepreviouspagescontainex‐
tremelyimportantsafetyinformaon,properusage,care&maintenance
ofyourEZLiteCruiser.Failuretoreadtheinformaoncanleadtoprob‐
lemsthatwillnotbecoveredunderyourwarranty,duetousererror.

Aerreadingthepreviouspages,connuereadingthisQuickStartGuide,
whichwillgiveyouaquickrunthroughbeforeyougetstarteddriving:

BaeryOuterPackaging
PleaseDONOTremoveANYoftheBLUEORCLEARWRAPoranypart
thatmakesuptheoutershellofyour(10Ah)baery!Thiswillexpose
theinnerpartsofthebaery,voidyourwarranty&canbedangerous.

BaeryStorage
Thebaerycanbekeptinthefiedblackpouchthatcamewithit,atall
mes.Thisfiedpouchisconvenientforcarryingthebaerywhendis‐
connected.

BaeryChargeLevelUponArrival
Whenyoureceiveyourbaery,itisalmostfullycharged!Youcanbegin
usingyourchairrightawaytotestitout.Beforedrivingitintensively,we
recommendchargingthebaerybackuptofull.

ChargingtheBaery
Thechargers(regularorSpeedy)fortheEZLiteCruiserhavearoundme‐
tallicpthatwillplugintothefrontofthejoysck.Withthisarrange‐
ment,thechargingwilloccuron‐boardthroughthejoysck,downtothe
baery.Yourbaerywillalsohaveasecondcircularroundmetallicp
connector,whichwillallowthechargertoplugintothemdirectly,allow‐
ingyoutochargethebaeryoff‐board.Seepage13fordetailsforOn‐
Boardcharging,andpage14fordetailsforOff‐Boardcharging.

20
QUICKSTARTGUIDE
ChargingTwoBaeries
Youcannotchargetwobaeriesatthesamemeusingthedual
baeryconnector.Formoreinformaononchargingtwobaeries,see
page14.Tochargetwobaeries,theeasiestwayistohavetwochargers
andchargeeachbaeryOffBoard.OrChargeonebaeryOnBoardand
onebaeryOffBoard,butyouwillsllneedasecondchargertodothis.
Ifyouhaveonecharger,youcanchargeonebaeryfirst,andchargerthe
secondbaerywhenthefirstoneisdone.

RedLeversontheRearWheels
Theredleversontherearwheelscontroltheelectromagneclockand
ulmatelythebrakingsystem.TheleversmustbeENGAGEDinorderfor
youtousethechairinthepoweredmode.

Howdoyouknowiftheyareengaged?
 WhenthedeviceispoweredOFF,andtheyareDISENGAGED,then
youwillbeabletorolltherearwheelsmanuallybypushingthechair.
 WhenthedeviceispoweredOFFandtheyareENGAGED,youwillnot
beabletorolltherearwheelsmanually.
 WhenthedeviceispoweredON,thelocksmustbeENGAGEDinorder
todriveit.Iftheyarenotengaged,thejoysckwillflashthetoplight
onthespeedseng,indicangthisfault.

BasicSeatBelt
Thebasicseatbelt,includedwithyourpurchaseforfree,islocatedinthe
zipperedcompartmentunderneaththeseat.Forhelpwithmounngthe
seatbelt,wehaveavideoshowingtheprocess.Pleasevisithp://
www.ezlitecruiser.com/go6

ThisBasicSeatBeltisNOTthesameastheDeluxeSeatBeltoponavail‐
ableatanaddionalcost.Ifyouneedamoresubstanalseatbelt,
pleasecontactustoorderaDeluxeSeatBelt.
