eZway 2000-V21 Specifications

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

2EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
• Always study this manual carefully before
operating the shower trolley.
• The operator/user must always have access to
the operating manual.
• The shower trolley is intended for professional
use only where the patient will be under
supervision of trained personnel.
• Operating instructions and recommended
maintenance procedures are explained in the
following pages.
• If you have any questions regarding the
operation or maintenance of your shower
trolley and cannot find the answer in this
manual, please contact us.
• The shower trolley is designed for years of
trouble- free operation, with proper use and
maintenance.
Mandatory to read the Operating manual
before using the equipment.
WARNING:
Table of Contents
Safety Notes ....................... 2
Manufacturer ...................... 3
Introduction ....................... 4
Unpacking......................... 5
Calibration/Initialization .............. 6
Intended Use....................... 7
2000-V21 Hydraulic shower trolley........ 7
3000-V21 battery operated shower trolley... 8
Safety Instructions .................. 9
General safety instructions .............. 9
In case of accident .................... 11
Features and Controls ............... 12
Product Description ................ 13
General product description 2000-V21 ... 13
General product description 3000-V21 .... 14
Possible combination with other equipment 15
Technical Specification .............. 16
General technical specifications ......... 16
Technical Specification .............. 18
Measurements 2000-V21 (standard version) 18
Measurements 3000-V21 (standard version)19
User Instructions................... 20
Height adjustment 2000-V21 ........... 20
Height adjustment 2000-V21 ........... 21
3000-V21 Emergency stop .............. 22
3000-V21 - Charging instructions ........ 23
Side rails ............................ 24
Corner bumper wheels ................. 25
Castors ............................. 26
Tilt function ......................... 27
Drainage ............................ 27
Patient handling...................... 28
– Introduction ....................... 28
– From wheelchair onto shower trolley .... 29
– From bed onto shower trolley .......... 30
– Showering the patient................ 31
Labels and Symbols................. 32
Routine Maintenance ............... 34
Before every use ...................... 34
Daily maintenance .................... 34
Monthly maintenance ................. 34
Maintenance every 3 years.............. 36
Maintenance every 5 years.............. 36
Maintenance every 10 years............. 36
Disposal / Recycling ................ 37
Cleaning Instructions ............... 38
Training Record ................... 41
Maintenance Record................ 42
Safety Notes

3EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Manufacturer
TR Equipment AB
Rundelgatan 2
SE-573 35 Tranås
Sweden
Phone: [phone]
www.trequipment.com
[email protected]
Manufacturer:
EZ Way Inc.
P.O. Box 89
Clarinda, IA 51632
[phone]
Fax [phone]
www.ezlifts.com
USA Distributor:

4EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Mandatory to read the Operating manual
before using the equipment.
WARNING:
Make sure you have read, understand, and
applied the information on the following
pages before using the shower trolley.
WARNING:
Introduction
Dear Customer,
Thank you for choosing one of our quality products. We hope you enjoy the 2000-V21 and 3000- V21
shower trolleys.
This manual shall, in conjunction with staff training, ensure that the operator/user is always using and/or
operating the 2000-V21 or 3000-V21 correctly.
New users must be trained by qualified and experienced staff.
TR Equipment AB requires that each user has read and understands the entire operating manual and
that they can apply the instructions as specified. This applies to anyone who was not present at the in-
service training.
This instruction manual should generally be kept easily accessible for every user. Copying the whole
manual is encouraged since its sole purpose is to improve the standard of training and safety.
Please order another copy from us if the instruction manual is lost or unusable, or if it has become
illegible over time.
If you need further information, do not hesitate to contact TR Equipment AB or one of our qualified
partners.

5EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
When moving the shower trolley from the
pallet, two people are required.
WARNING:

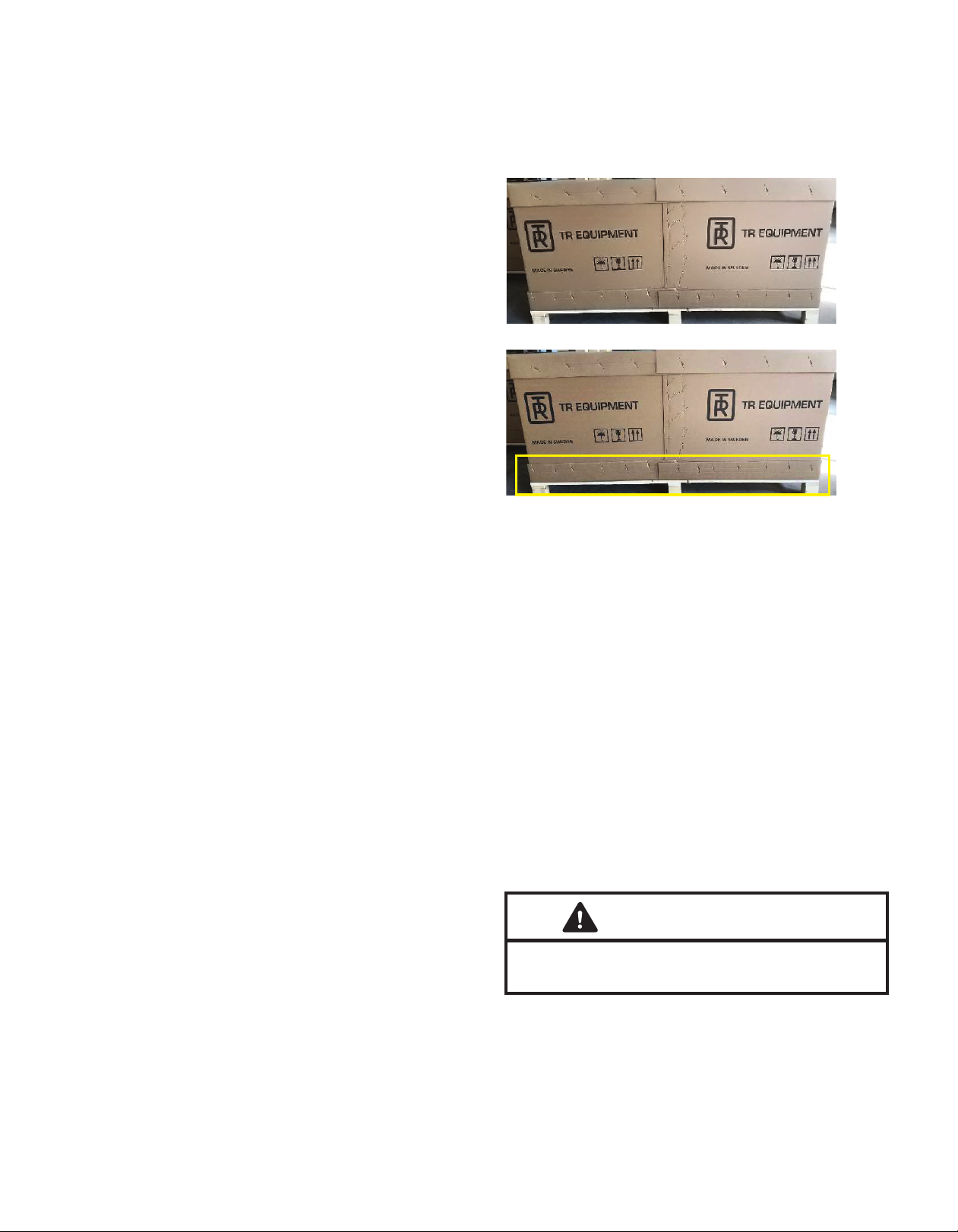

Unpacking
• 2000-V21/3000-V21 shower trolley is
delivered on a wooden pallet with a card
board box around it. If the cardboard box
is wrapped in plastic carefully cut and
remove the plastic.
• Start unpacking the 2000-V21/3000-V21
shower trolley by removing the lower carton
staples with a pliers. DO NOT use any sharp
tools that may scratch the shower trolley.
• Carefully lift off the cardboard frame
from the pallet. When lifted, do so
briefly and use at least two people.
• Carefully remove the shower trolley
from the pallet.

6EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com

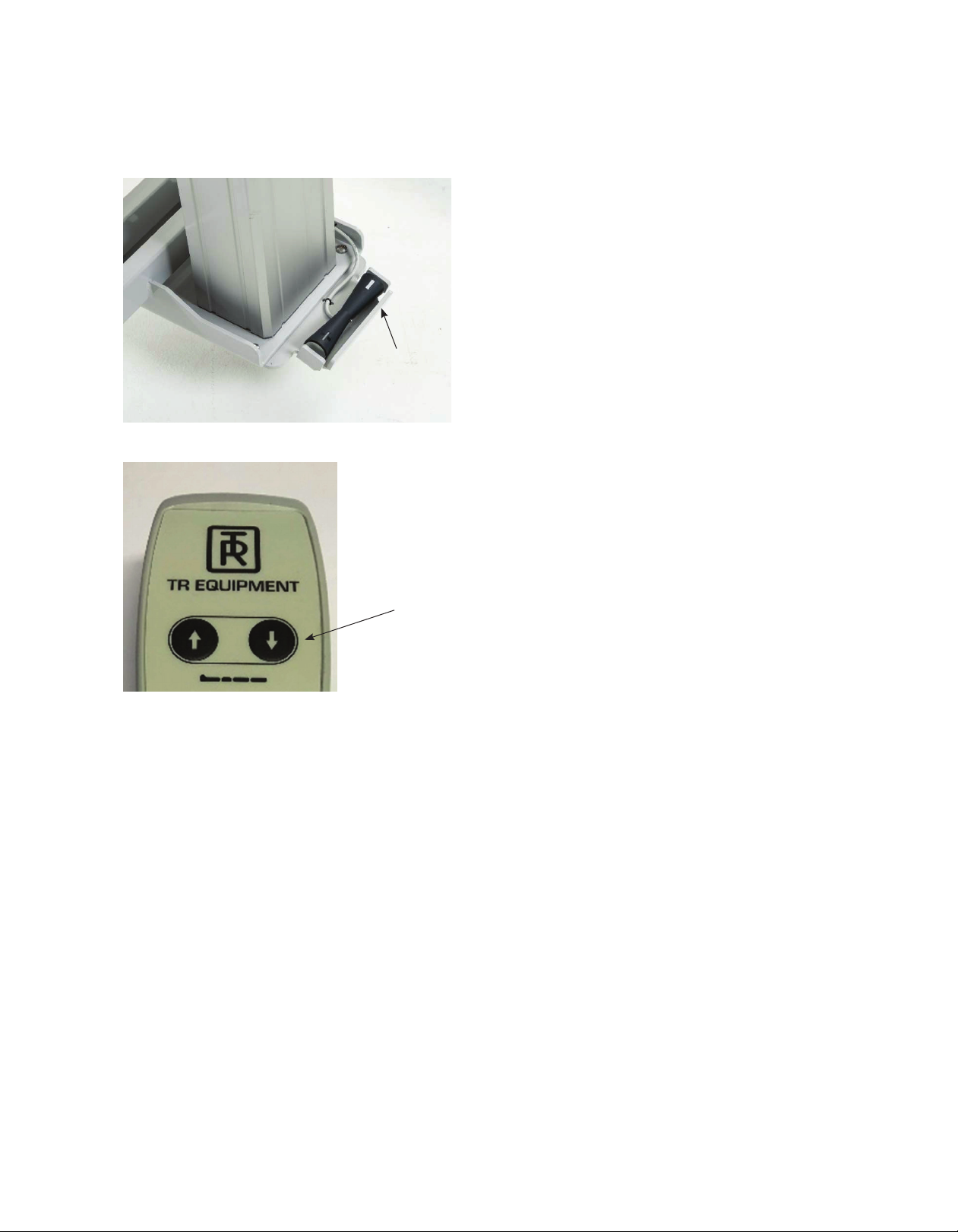

Calibration/Initialization
When the Emergency stop has been activated
it could be necessary to initialize the lifting
column.
• Lower the lifting column to the lowest
position.
• Press the DOWN (—) pedal once.
• Press the DOWN (—) pedal once more.
• When you hear two short signals the shower
trolley is ready to be used again.
3000-V21 as standard equipped with a foot control
3000-V21 with hand control (Option)
Down button
Down (—)

7EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Mandatory to read the Operating manual
before using the equipment.
WARNING:
Make sure you have read, understand, and
applied the information on the following
pages before using the shower trolley.
WARNING:
Intended Use
2000-V21 Hydraulic shower trolley
• The 2000-V21 shower trolley is a hydraulic operated shower trolley.
• The 2000-V21 shower trolley is intended to ease transferring and caring of the patient. Typical
situations where the 2000-V21 shower trolley is used include transporting the patient to and from a
shower area, showering and cleaning the patient, dressing the patient, and changing diapers.
Typical situations where the 2000-V21 shower trolley is used includes:
• Transporting the patient to and from a showering area.
• Showering and cleaning the patient.
• Dressing the patient.
• Changing diapers.
• The 2000-V21 is NOT intended to be used with patients that exceed a weight of 200kg. (440 lb.)
• The patient is typically a person who is unable to take care of their own personal hygiene.
• The 2000-V21 is only intended to be used for short term use <60 minutes when in contact with
breached or compromised skin.
• The 2000-V21 is intended to be used indoors in all types of care facilities and private homes,
including hygiene areas.
• The user is any adult person who is capable of reading and understands the operating manual and is
qualified to care for dependent persons/patients.
• Before using the 2000-V21, the user must read and understand the operating manual.

8EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Mandatory to read the Operating manual
before using the equipment.
WARNING:
Make sure you have read, understand, and
applied the information on the following
pages before using the shower trolley.
WARNING:
Intended Use
3000-V21 battery operated shower trolley
• The 3000-V21 shower trolley is a battery-operated shower trolley.
• The 3000-V21 shower trolley is intended to ease transferring and caring of the patient. Typical
situations where the 3000-V21 shower trolley is used include transporting the patient to and from a
shower area, showering and cleaning the patient, dressing the patient, and changing diapers.
Typical situations where the 3000-V21 shower trolley is used includes:
• Transporting the patient to and from a showering area.
• Showering and cleaning the patient.
• Dressing the patient.
• Changing diapers.
• The 3000-V21 is NOT intended to be used with patients that exceed a weight of 200kg. (440 lb.).
• The patient is typically a person who is unable to take care of their own personal hygiene.
• The 3000-V21 is only intended to be used for short term use <60 minutes when in contact with
breached or compromised skin.
• The 3000-V21 is intended to be used indoors in all types of care facilities and private homes,
including hygiene areas.
• The user is any adult person who is capable of reading and understands the operating manual and is
qualified to care for dependent persons/patients.
• Before using the 3000-V21, the user must read and understand the operating manual.

9EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Mandatory to read the Operating manual
before using the equipment.
WARNING:
NEVER use the 2000-V21/3000-V21
shower trolley in any way that varies from
the safety precautions and operating
procedures detailed in this manual. The
2000-V21/3000-V21 shower trolley must not
be operated by anyone until the user has
read and understands the instructions in
this manual.
WARNING:
Never sit at the ends of the stretcher.
WARNING:
Never leave the patient unattended.
WARNING:
Safety Instructions
General safety instructions
• Only qualified staff, who understand all operating and safety procedures may operate the shower
trolley.
• Always physically check the water temperature before and during showering.
• The patient must be positioned comfortably on the stretcher mattress, with side rails securely locked.
• Make sure that all parts that comes in contact with the patient are intact and without sharp edges.
• Ensure that the shower trolley can be moved, raised, or lowered safely to avoid any pinch injuries on
the patient.
• Castor brakes must be securely locked on the shower trolley before transferring a patient and once in
position over a drain.
• Operate the shower trolley carefully when transporting patients through narrow corridors or over
irregular uneven surfaces.
• Wipe dry under the stretcher to prevent water dripping on the floor.
• The shower trolley must be cleaned and wiped dry after every use. See cleaning instructions in table
of contents.

10 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Mandatory to read the Operating manual
before using the equipment.
WARNING:
NEVER use the 2000-V21/3000-V21 shower
trolley in any way that varies from the safety
precautions and operating procedures
detailed in this manual. The shower trolley
must not be operated by anyone until
the user has read and understands the
instructions in this manual.
WARNING:
Safety Instructions
General safety instructions
• Avoid skin or eye contact with detergent, which is highly caustic. If contact is made, rinse
immediately with excess water. If irritation occurs, consult a doctor. Always read and follow detergent
supplier instructions.
• Never clean mattress and pillow in gas sterilization unit. Mattress and pillow will explode.
• It is recommended that the batteries on the 3000-V21 shower trolley are charged daily or whenever
the shower trolley is not in use. The batteries cannot be overcharged.
• The TR battery charger is the only approved charger for the 3000-V21 battery operated shower
trolley.
• Do not use battery charger in wet or damp areas – Potential shock hazard.
• Make sure that all castors are clean, in place and free from damages.
• Make sure that side rails are in place and free from damage and all screws are tightened.
• Make sure that mattress and pillow must be kept well maintained in place.
• The shower trolley must be inspected visually for sign of wear. The shower trolley should not be used
if defects are noted. Prompt service is required.
If you have questions regarding operation or maintenance of your shower trolley and cannot find the
answer in this manual, please contact us!

11EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Safety Instructions
In case of accident
Note:
In case of a serious incident when using the 2000V-21/3000V-21 shower trolley, this should
be reported to the manufacturer and to the local authorities where you are established.
TR Equipment AB
Rundelgatan 2
SE-573 35 Tranås
Sweden
Phone: [phone]
www.trequipment.com
[email protected]
Group subsidiary:
TR Group Inc. Phone: [phone]
www.trequipment.com
[email protected]
Distributor:
EZ Way, Inc Phone: [phone]
www.ezlifts.com
[email protected]

12 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Features and Controls
1 Lifting column 10 Emergency stop
2 Stretcher 11 Charging connector
3 Tilt handle (under mattress and plastic plate) 12 Side rail
4 Short end 13 Side rail lock
5 Mattress 14 Bumper wheel
6a/b Castor with brake. Grey pedal 15 Mattress attachment straps
6b Straight steering castor (option) Black pedal 16 Drainage hose
7 3000-V21 Foot control UP (+) / DOWN (—) 17 Hose holder
8 3000-V21 Hand control Up/DOWN (Option) 18 Drainage
9 2000-V21 Foot pedal UP/DOWN 19 Drainage plug
20 Pillow
3000-V21
7
6b
6a
1
2
3
4
512
13
14
15
8
11
10
9
16, 17
18, 19
20
3000-V21 2000-V21

13EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Product Description
General product description 2000-V21
Height adjustable shower trolley. As standard
equipped with side rails in stainless steel,
four castors with brake, hydraulic pump, Blue
mattress, Blue pillow, drainages (2 pcs), drain
plugs (2 pcs), drain hose 1M (3 Feet) (1 pcs) and
hose holder (1 pcs).
2000-V21 is available in four different
lengths:
• 2000S-V21, 1600 mm (63 in.)
• 2000-V21, 1900 mm (75 in.)
• 2000L-V21, 2100 mm (83 in.)
• 2000W-V21, 1950 mm (77 in.)
Options:
• Straight steering castors (2 pcs) Drainage
hose 2.5M (8 Feet) Wedge pillow 15°
• Mattress fasteners and straps IV pole bracket
Contact EZ Way or your EZ Way representative
for part numbers.

14 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Product Description
General product description 3000-V21
Height adjustable shower trolley. As standard,
equipped with four castors with brake, batteries,
battery charger, Blue mattress, Blue pillow,
drainages (2 pcs), drain plugs, drain hose and
hose holder.
3000-V21 is available in three different
lengths:
• 3000S-V21, 1600 mm (63 in.)
• 3000-V21, 1900 mm (75 in.)
• 3000L-V21, 2100 mm (83 in.)
Options:
• Straight steering castors (2 pcs)
• Hand control UP/DOWN
• Drainage hose 2,5M (8 Feet)
• Wedge pillow 15°
• Mattress fasteners and straps
• IV pole bracket
Contact EZ Way or your EZ Way representative
for part numbers.

15EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Product Description
Possible combination with other equipment
Possible equipment combinations
2000-V21 / 3000-V21 Shower panel 2810

16 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
2000-V21/3000-V21 – Shower trolley
Maximum working load 200Kg (440 lb.)
Control 2000-V21 Hydraulic pump
Control 3000-V21 Foot control for height adjustment
Operating range 600 – 900 mm (23.62 in. - 35.4 in.)
Operating time UP, 3000-V21 30 seconds
Operating time DOWN, 3000-V21 30 seconds
Operating time UP, 2000-V21 18 pumps
Operating time DOWN, 2000-V21 15-20 seconds (depending on weight)
Floor clearance 160 mm (6.3 in.)
Mattress and Pillow Flame retardant PVC material
Structure Powder coated, zinc plated and stainless steel
Protection class IP X5
2000S-V21/ 3000S-V21 – Dimensions and weights
Length 1600 mm (63 in.)
Patient work area 1460 x 560 mm (57.5 in. x 22 in.)
Width 640 mm (25.2 in.)
Weight 73kg / 80kg (161 lb./176 lb.)
2000-V21/3000-V21 – Dimensions and weights
Length 1900 mm (75 in.)
Patient work area 1760 x 560 mm (69.29 in. x 22 in.)
Width 640 mm (25.2 in.)
Weight 79kg / 88kg (174 lb. / 194 lb.)
2000L-V21/3000L-V21 – Dimensions and weights
Length 2100 mm (83 in.)
Patient work area 1960 x 560mm (77.1 in. x 22 in.)
Width 640 mm (25.2 in.)
Weight 83kg / 92kg (183 lb./203 lb.)
2000W-V21 – Dimensions and weights
Length 1950 mm (77 in.)
Patient work area 1780 x 640 mm (70 in. x 25.2 in.)
Width 695 mm 27.4 in.)
Weight 82kg / 91kg (181 lb. / 201 lb.)
3000-V21 Voltage
Supply voltage 24 VDC, 7Ah (Lead-acid, rechargeable)
Supply voltage 3200R-V21 24 VDC, 4 Ah (Lithium, rechargeable)
Battery charger input 100-240VAC, 50/60Hz
Battery charger out put 24VDC
Technical Specification
General technical specifications

17EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Technical life span
Technical life span 10 years if the product is serviced and maintained according to
instructions in this manual.
Transport and storage
Ambient temperature -20°C - +70°C
-4°F - +158°F
Technical Specification

18 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Technical Specification

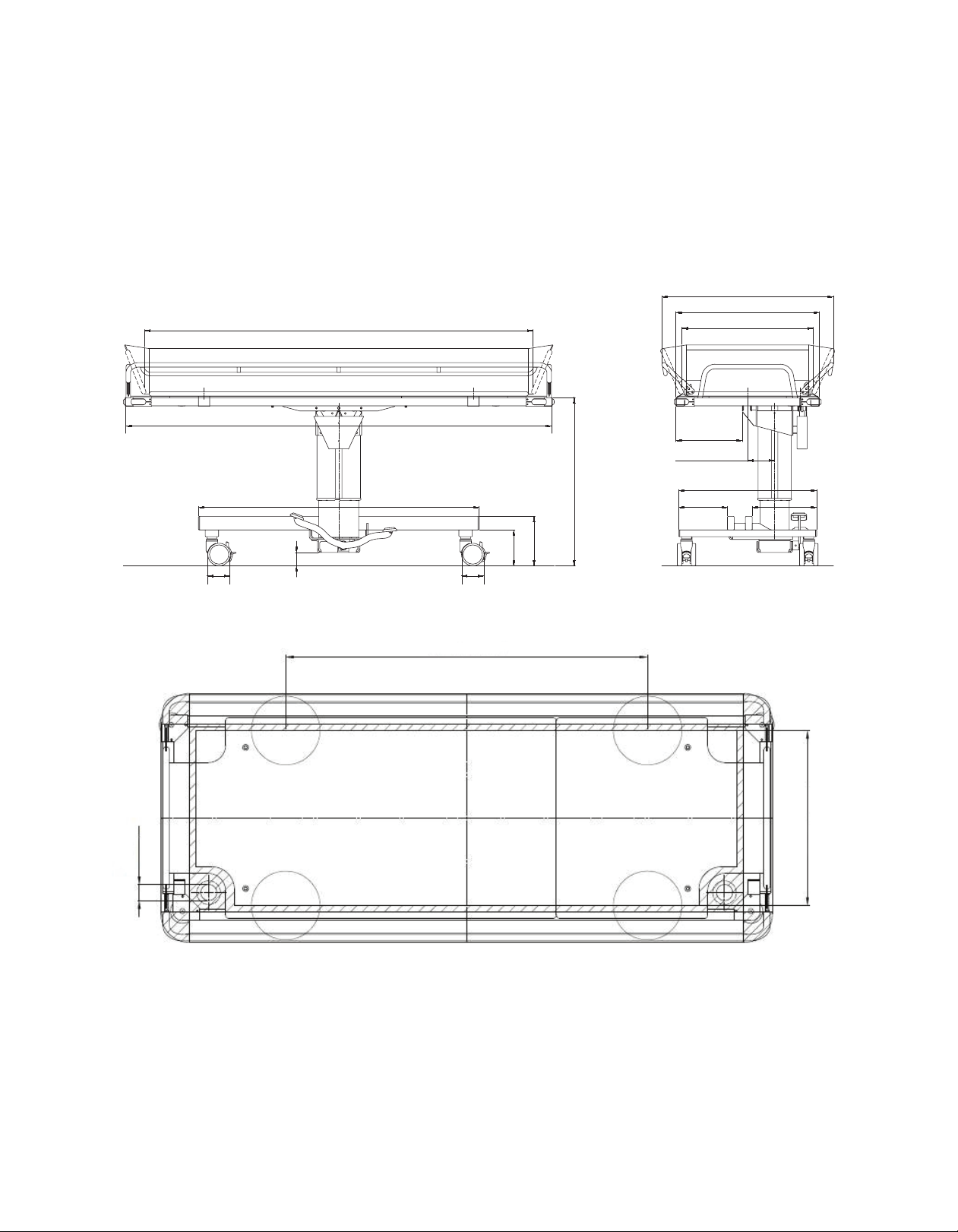

Measurements 2000-V21 (standard version)
Standard dimensions (see technical specification for 2000L-V21, W-V21 & S-V21)
Min. 23.6" , Max. 35.4"
24.25"
12"
2.4"
6.3"
8.7"
8.58" 11.35"
4"
23"
30.11"
25.2"
4.75" (off center)
68"
75"
49.21"
4"
44.5"
21.5"
Drainage

19EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Technical Specification

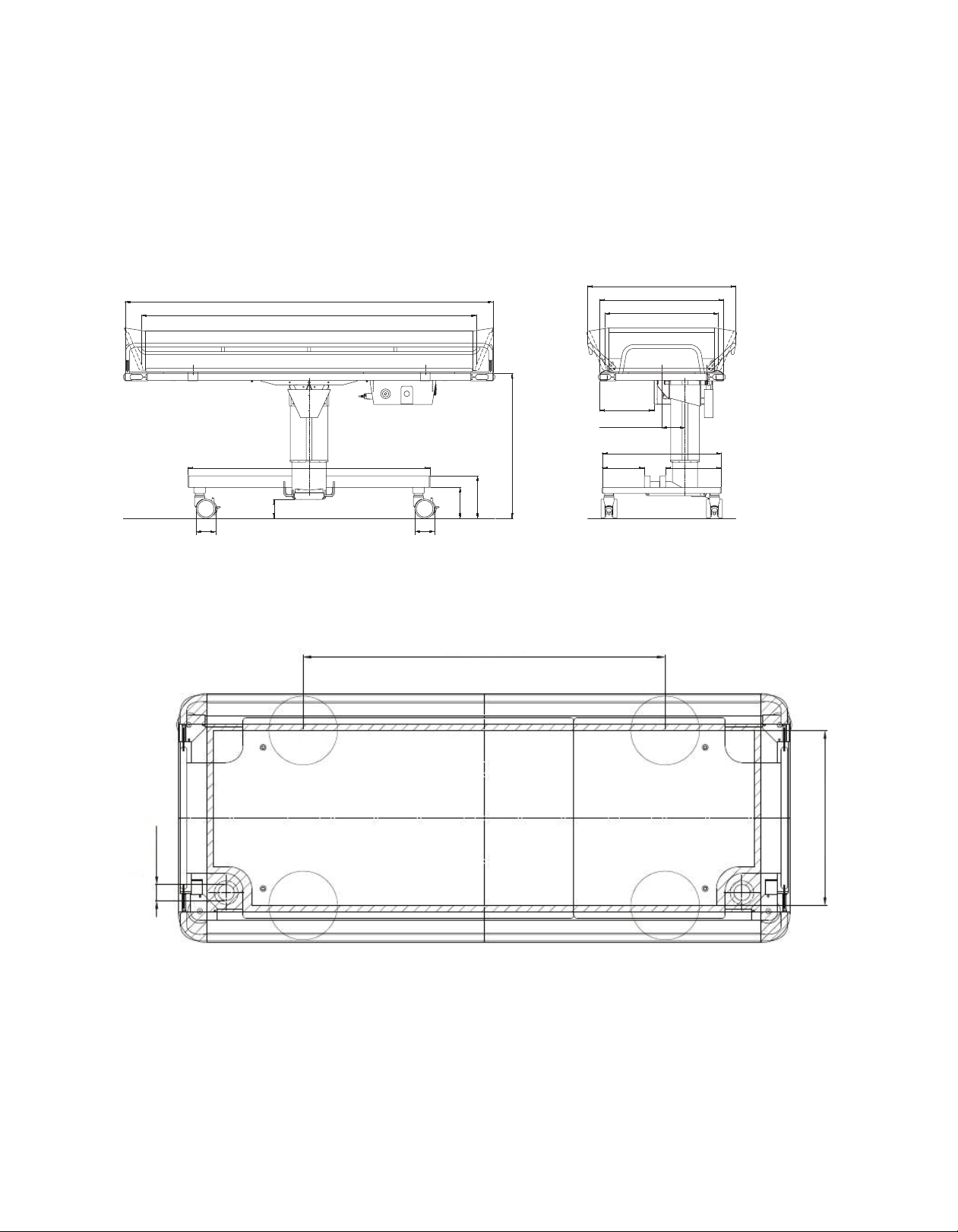

Measurements 3000-V21 (standard version)
Standard dimensions (see technical specification for 2000L-V21 & -S-V21)
Min. 23.6" , Max. 35.4"
13"
3.85"
6.3"
8.7"
4"
23"
30.11"
25.2"
4.75" (off center)
68"
75"
24.25"
8.58" 11.35"49.21"
4"
44.5"
Drainage
21.5"

20 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
User Instructions
Height adjustment 2000-V21
2000-V21 – Height adjustment

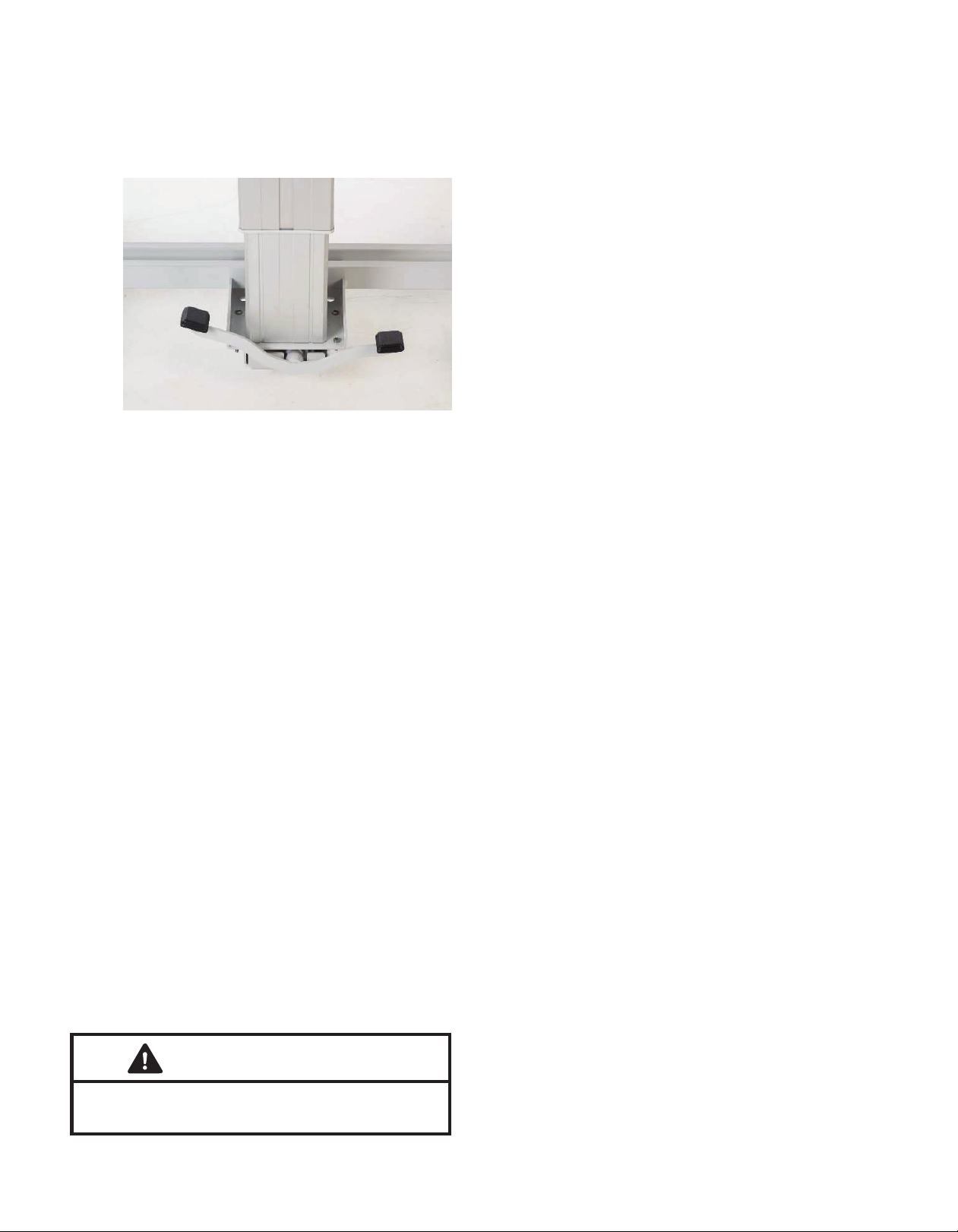

Raise or lower the shower trolley with the foot
pedal.
• Raise the stretcher by pumping the UP-foot
pedal
• Lower the stretcher by pressing the DOWN-
foot pedal downwards.
The stretcher lowers smoothly when the pedal is
pressed downwards and stops immediately when
the pedal is released.
When the stretcher hits the tops position a
safety valve opens in the hydraulic piston and
the stretcher stops moving upwards.
Maximum working load = 200kg (440 lb.)
WARNING:
UP
DOWN
