eZway 2000-V21 User manual

Service Manual
2000-V21 Hydraulic Shower Trolley
3000-V21 Battery Operated Shower Trolley
Form #2-367
5/2/22
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Table of Contents
Service Manual & Spare
Parts List
Version 2021-09-08
Registered at Medical Products
Agency, Sweden,
as a MD Class 1 product,
MDR 2017/745.
TR reserves the right to make
design changes and/or
improvements without notice.
Introduction ..............................................................3
Manufacturer .............................................................4
Spare Parts 2000-V21......................................................5
Spare Parts 3000-V21......................................................7
Spare Parts 3000-V21, On-Board Batteries ....................................9
Spare Parts 3000-V21, Removable Battery ...................................11
Wiring Diagram Circut Board 3000-V21, On-Board Batteries ....................13
Wiring Diagram Circut Board 3000-V21, Removable (Lithium) Battery ............14
Service Instructions ......................................................15
2000-V21 - How to replace the hydraulic pump and foot pedal....................15
3000-V21 – How to replace the battery powered lifting column ...................16

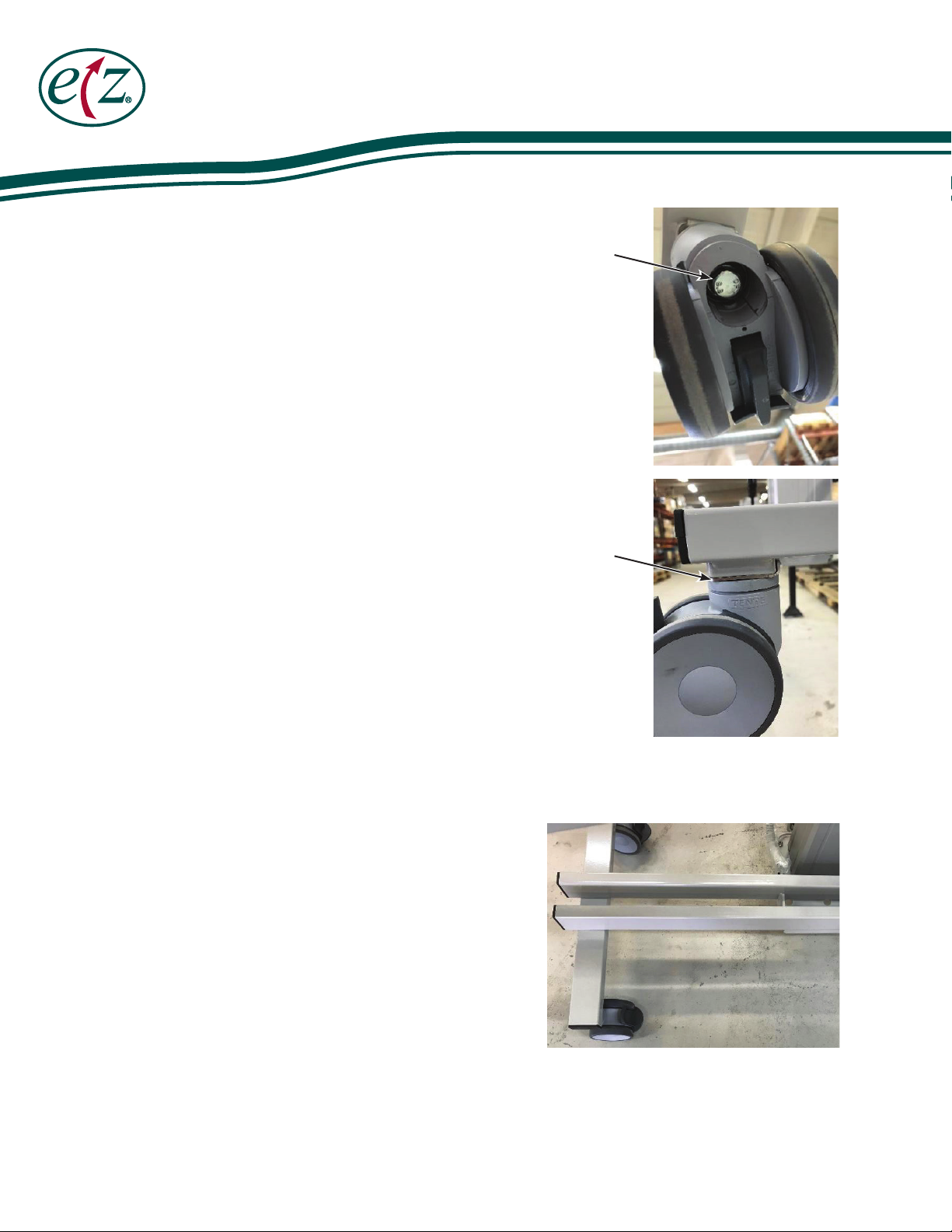

2000-V21 / 3000-V21 - How to replace the castors ............................17

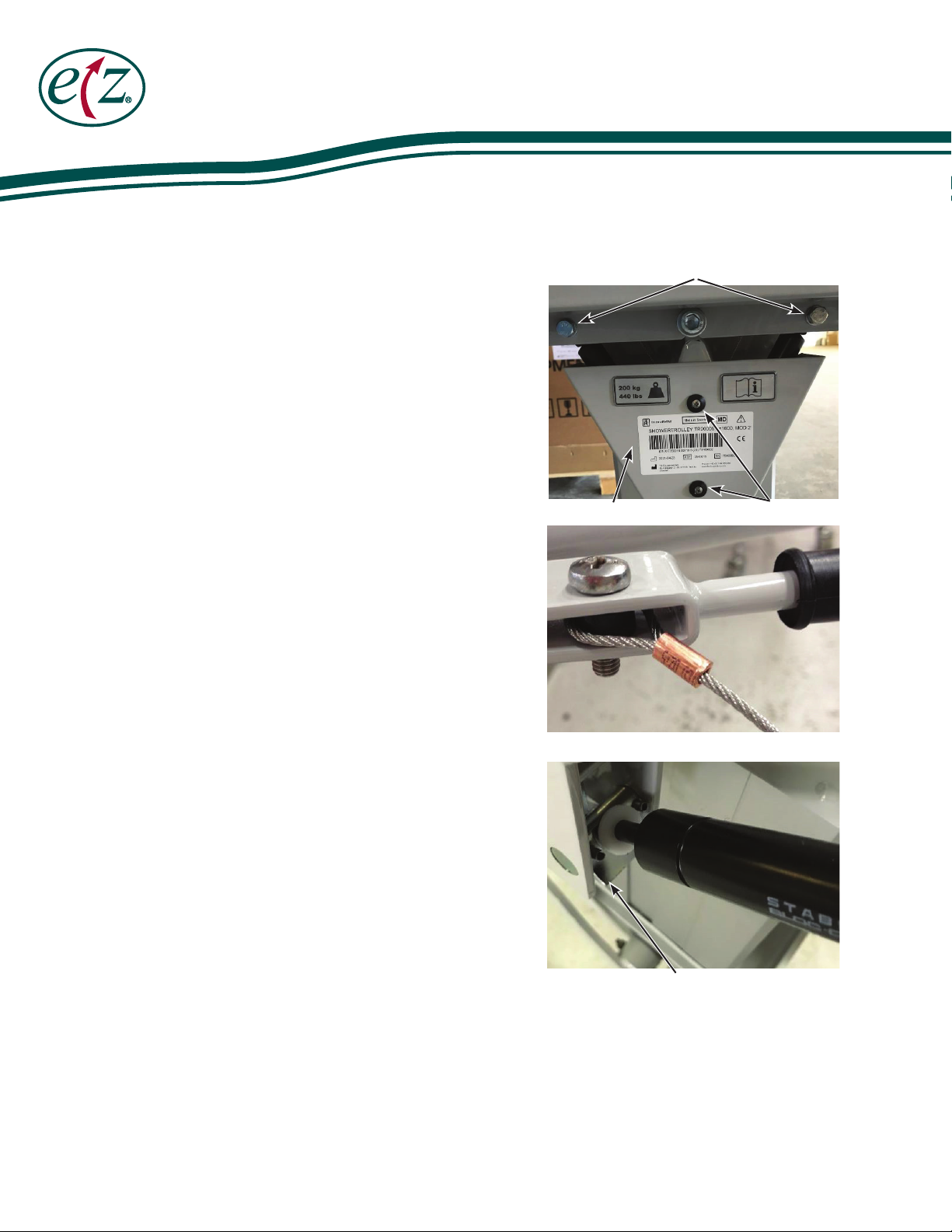

2000-V21 / 3000-V21 – How to replace the gas struts ..........................18
2000-V21 / 3000-V21 – How to replace the tilt wire ............................19
How to replace foot control or hand control...................................20
Battery enclosure on-board battery.........................................21
Battery enclosure removable battery........................................22
Electrical trouble shooting, 3000-V21 on-board batteries ........................23
Electrical trouble shooting, 3000R-V21 removable battery .......................24

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 3
Introduction
Dear customer,
If you need spare parts and can’t nd it in the spare
parts list, contact EZ Way at (800)-627-8940.

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 4
Manufacturer
TR Equipment AB
Rundelgatan 2
SE-573 35 Tranås
Sweden
Phone: [phone]
www.trequipment.com
[email protected]

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 5

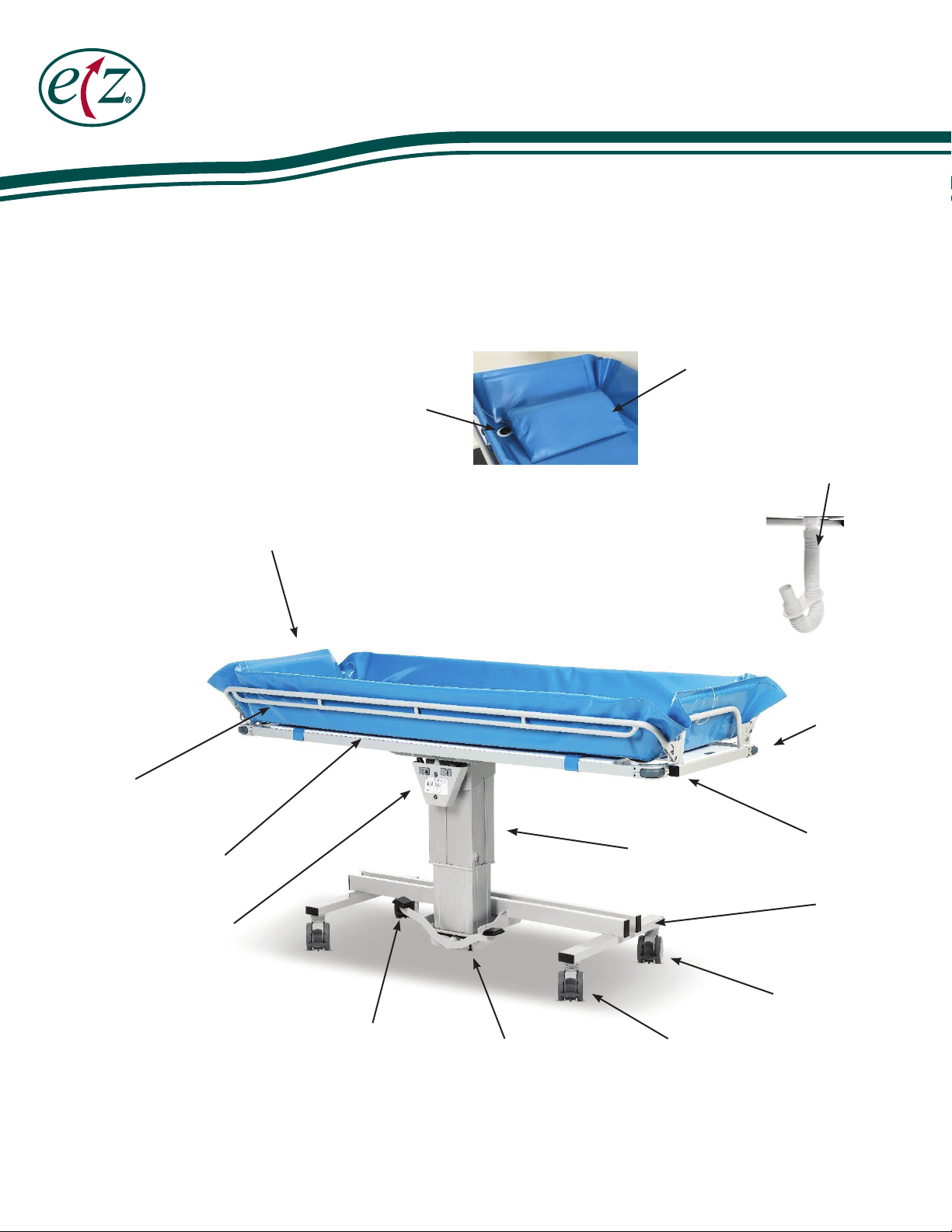

Spare Parts 2000-V21
2000-V21, Hydraulic Shower Trolley
2000-V21, S-V21, L-V21, W-V21
2, 3, 4
5
4
6
7
9
8
9
11a, 11b
12
13, 14
15
16a, 16b
17
1

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 6
Spare Parts 2000-V21
2000-V21, Hydraulic Shower Trolley
2000-V21, S-V21, L-V21, W-V21
Position Part number Spare part Standard equipment/Option
1 7334645-02 Mattress, Blue, 1900mm (75 in.) Standard equipment
1 7334645-05 Mattress, Blue, S-V21, 1600mm (63 in.) Standard equipment
1 7334645-08 Mattress Blue, L-V21, 2100mm (83 in.) Standard equipment
1 7333480-04 Mattress, Blue, W-V21, 1950mm (77 in.) Standard equipment
2 829392 Drainage Standard equipment
3 829391 Drainage plug Standard equipment
5 820818-4224 Drainage hose, 1M (3 ft.) Standard equipment
5 820818-4224-25 Drainage hose, 2.5M (8 ft.) Option
5 7419488-04 Pillow, Blue Standard equipment
5 7419488 Pillow, Grey Option
5 7419488-07 Pillow, Yellow Option
5 7418363-02 Wedge pillow, Blue, 15° Option
5 7418363 Wedge pillow, Grey, 15° Option
5 7418363-03 Wedge pillow, Yellow, 15° Option
6 850133-75 Bumper wheels Standard equipment
7 851738 End plug 35*35, stretcher Standard equipment
8 200121 Hydraulic lifting column Standard equipment
819200 Hydraulic pump (included in 200121) Standard equipment
850256 Tension spring (included in 200121) Standard equipment
9 850283 End plug 60*30, chassis Standard equipment
10 851760 Castor with brake (transfer side) Standard equipment
11a 851760 Castor with brake (nursing side) Standard equipment
11b 851761 Straight steering castor (nursing side) Option
12 3334291 Pedal arm, foot pedal Standard equipment
13 3428405 Pedal plate, foot pedal Standard equipment
14 7429583 Pedal plate cover, foot pedal Standard equipment
15 850268 Gas spring (2pcs behind the cover) Standard equipment
16a 7334060 Plastic plate 1, 2000-V21, 1222*625mm Standard equipment
16b 7334060-02 Plastic plate 2, 2000-V21, 662*625mm Standard equipment
16a 7334060-07 Plastic plate, 2000S-V21, 1600*640mm Standard equipment
16a 7334060-03 Plastic plate 1, 2000L-V21,1322*625mm Standard equipment
16b 7334060-04 Plastic plate 2, 2000L-V21, 762*625mm Standard equipment
16a 7334060-05 Plastic plate 1, 2000W-V21, 1247*680mm Standard equipment
16b 7334060-06 Plastic plate 2, 2000W-V21, 687*680mm Standard equipment
17 3234161-1900 Side rail 2000-V21 Standard equipment
17 3234161-1600 Side rail 2000S-V21 Standard equipment
17 3234161-2100 Side rail 2000L-V21 Standard equipment
17 3234161-1950 Side rail 2000W-V21 Standard equipment

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 7

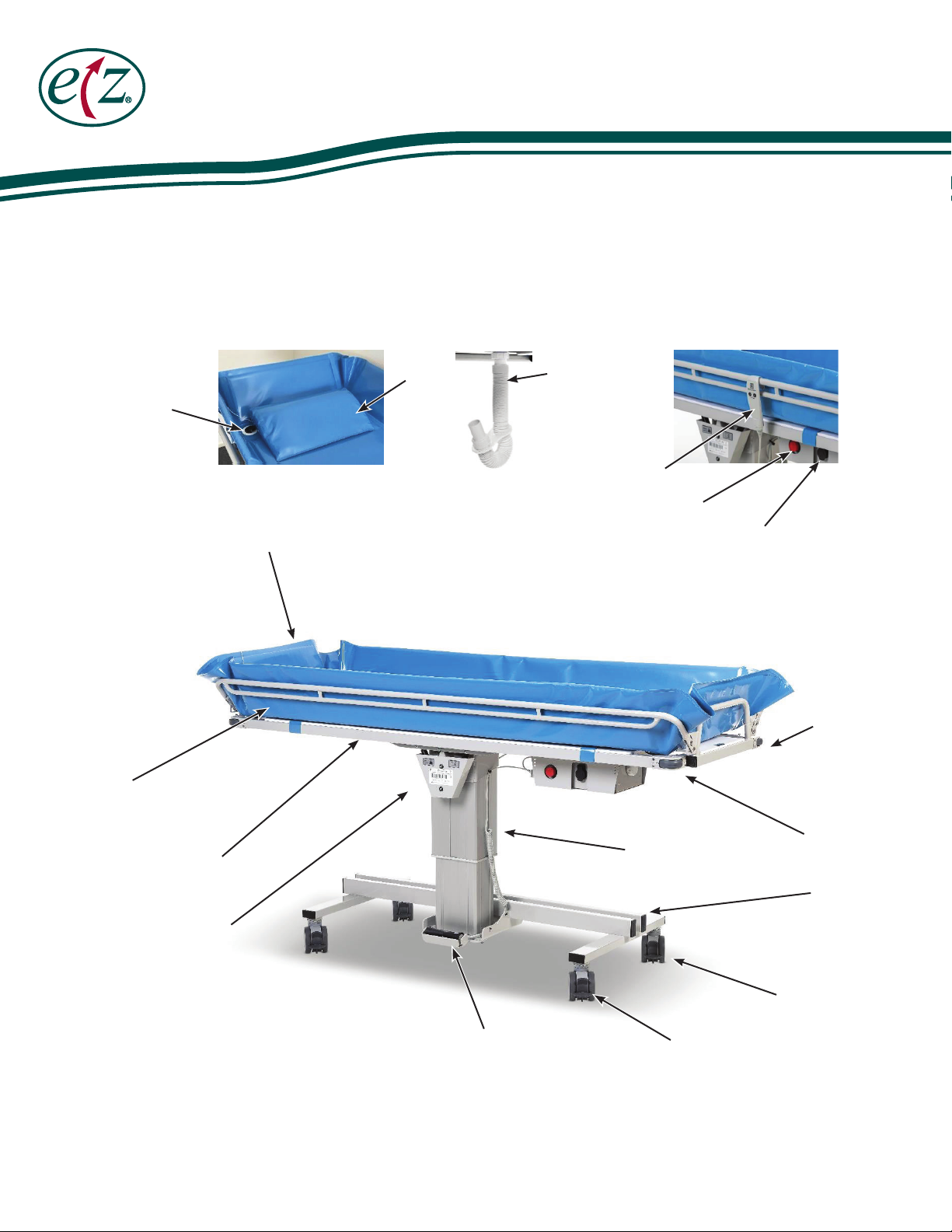

Spare Parts 3000-V21
3000-V21, Battery Powered Shower Trolley
3000-V21, S-V21, L-V21
2, 3, 4
18
13
14a, 14b
5 4
6
7
9
8
9
11a, 11b
12
15
16a, 16b
17
1

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 8
Spare Parts 3000-V21
3000-V21, Battery Powered Shower Trolley
3000-V21, S-V21, L-V21
Position Part number Spare part Standard equipment/Option
1 7334645-02 Mattress, Blue, 1900mm (75 in.) Standard equipment
1 7334645-05 Mattress, Blue, S-V21, 1600mm (63 in.) Standard equipment
1 7334645-08 Mattress Blue, L-V21, 2100mm (83 in.) Standard equipment
2 829392 Drainage Standard equipment
3 829391 Drainage plug Standard equipment
5 820818-4224 Drainage hose, 1M (3 ft.) Standard equipment
5 820818-4224-25 Drainage hose, 2.5M (8 ft.) Option
5 7419488-04 Pillow, Blue Standard equipment
5 7419488 Pillow, Grey Option
5 7419488-07 Pillow, Yellow Option
5 7418363-02 Wedge pillow, Blue, 15° Option
5 7418363 Wedge pillow, Grey, 15° Option
5 7418363-03 Wedge pillow, Yellow, 15° Option
6 850133-75 Bumper wheels Standard equipment
7 851738 End plug 35*35, stretcher Standard equipment
8 7440006 Electric lifting column Standard equipment
9 850283 End plug 60*30, chassis Standardutrustning
10 851760 Castor with brake (transfer side) Standard equipment
11a 851760 Castor with brake (nursing side) Standard equipment
11b 851761 Straight steering castor (nursing side) Option
12 7440008 Foot pedal incl. spiral cable Standard equipment
13a 819310 Emergency stop button Standard equipment
13b 819312 Contact block for 819310 (inside enclosure) Standard equipment
14a 819150 Mag Code, port Standard equipment
14b 819148 Mag Code, charging connector Standard equipment
15 850268 Gas spring (2pcs behind cover) Standard equipment
16a 7334060 Plastic plate 1, 3000-V21, 1222*625mm Standard equipment
16b 7334060-02 Plastic plate 2, 3000-V21, 662*625mm Standard equipment
16a 7334060-07 Plastic plate, 3000S-V21, 1600*640mm Standard equipment
16a 7334060-03 Plastic plate 1, 3000L-V21, 1322*625mm Standard equipment
16b 7334060-04 Plastic plate 2, 3000L-V21, 762*625mm Standard equipment
17 3234161-1900 Side rail TR 2000-V21/3000-V21 Standard equipment
17 3234161-1600 Side rail TR 2000S-V21 / 3000S-V21 Standard equipment
17 3234161-2100 Side rail TR 2000L-V21 / 3000L-V21 Standard equipment
18 7440001 Hand control Option

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 9

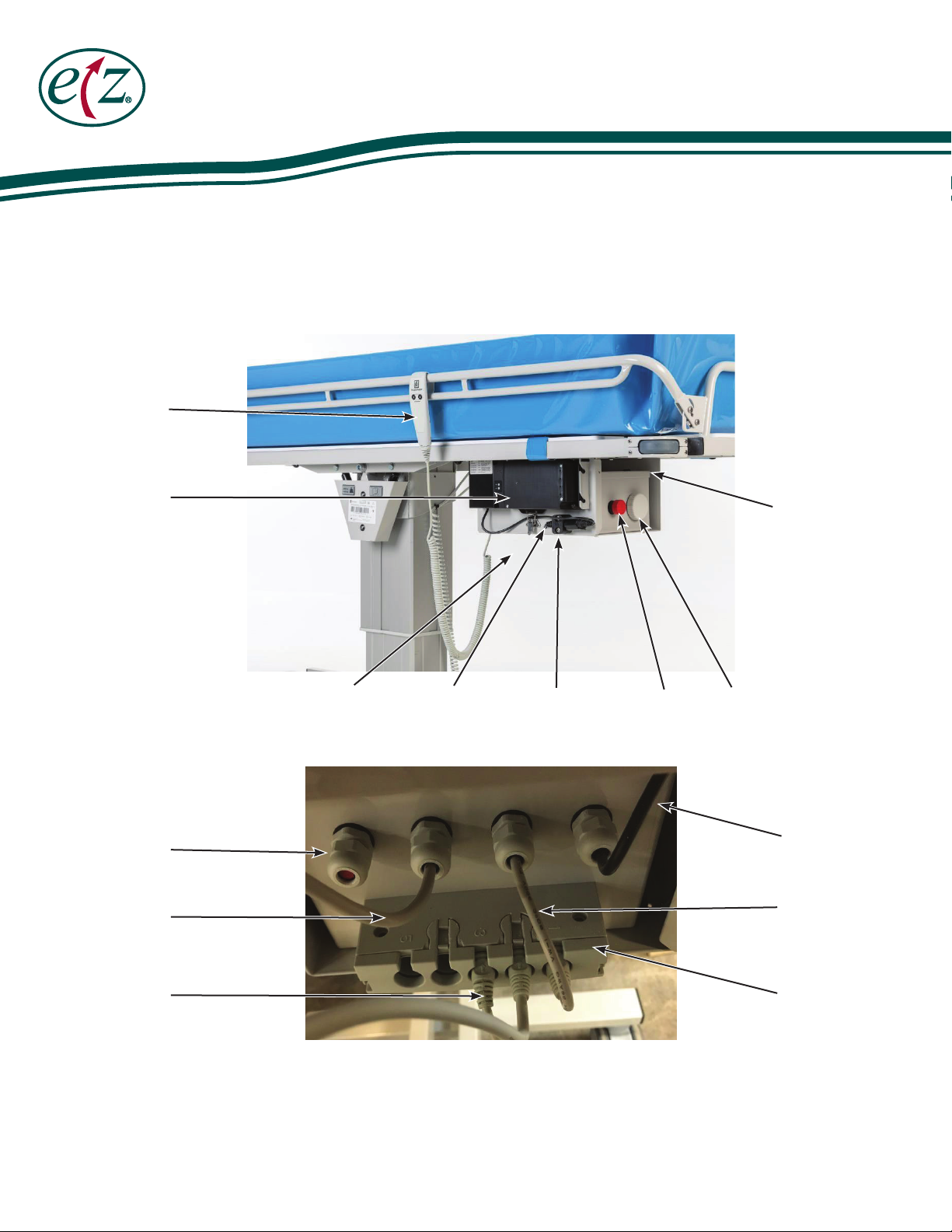

Spare Parts 3000-V21, On-Board Batteries
3000-V21, Battery Powered Shower Trolley
Battery enclosure 3000-V21, part number: 200119
13a, 13b
19
21
25
20
22
14a, 14b 23 24

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 10
Spare Parts 3000-V21, On-Board Batteries
3000-V21, Battery Powered Shower Trolley
Battery enclosure 3000-V21, onboard batteries
Position Part number Spare part
13a 819310 Emergency stop button
13b 819312 Contact block for 819310 (inside enclosure)
829144 EPDM gasket, emergency stop
14a 819150 Mag Code, port
14b 819148 Mag Code, charging connector
829143 EPDM gasket, Mag Code port
17 851650 Cable gland PG9
851650-03 EPDM gasket, cable gland PG9
851650-02 IP plugg for cable gland PG9
810146-5415 Nut for cable gland PG9
19 7440002 MJB Junction box
20 7440004 IP Plug, MJB junction box
21 7440003 Circuit board cable, MJB junction box
22 7440007 Cable, Lifting column
23 3334619 Mounting plate, battery enclosure
24 819171 Vent plug
25 3434698 Lid, battery enclosure
Inside enclosure
819030 Lead battery 12V 7Ah (2st)
819354-02 Circuit board
850722 Circuit board holder
7429679 Cabling
3330022 Battery holder
Battery charger
0541226 Battery charger Mag Code
819141 US Plug for battery charger

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 11
Spare Parts 3000-V21, Removable Battery
3000-V21, Battery Powered Shower Trolley
Enclosure 3000R-V21, removable battery
18
29
17
22
20
28 27 26 13a, 13b 24
25
27
21
19

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 12
Spare Parts 3000-V21, Removable Battery
3000-V21, Battery Powered Shower Trolley
Enclosure 3000R-V21, removable battery
Position Part number Spare part
13a 819310 Emergency stop button
13b 819312 Contact block for 819310 (inside enclosure)
829144 EPDM gasket, emergency stop
17 851650 Cable gland PG9
851650-03 EPDM gasket for cable gland PG9
851650-02 IP plugg for cable gland PG9
810146-5415 Nut for cable gland PG9
19 7440002 MJB Junction box
20 7440004 IP plug for MJB junction box
21 7440003 Circuit board cable, MJB junction box
22 7440007 Cable, Lifting column
24 819171 Vent plug
25 3434698 Lid, enclosure
26 850244 Holder for charging connector (2pcs required)
27 Male charging connector incl. cable
28 3334626 Mounting plate, enclosure & battery holder
29 Lithium battery
200110 Lithium battery incl. mounting plate and cable
853101 Adapter cable (included in 200110)
Inside enclosure
819354-02 Circuit board
850722 Circuit board holder
Battery charger
0521198 Battery charger US

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 13
Wiring Diagram Circut Board 3000-V21,
On-Board Batteries

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 14

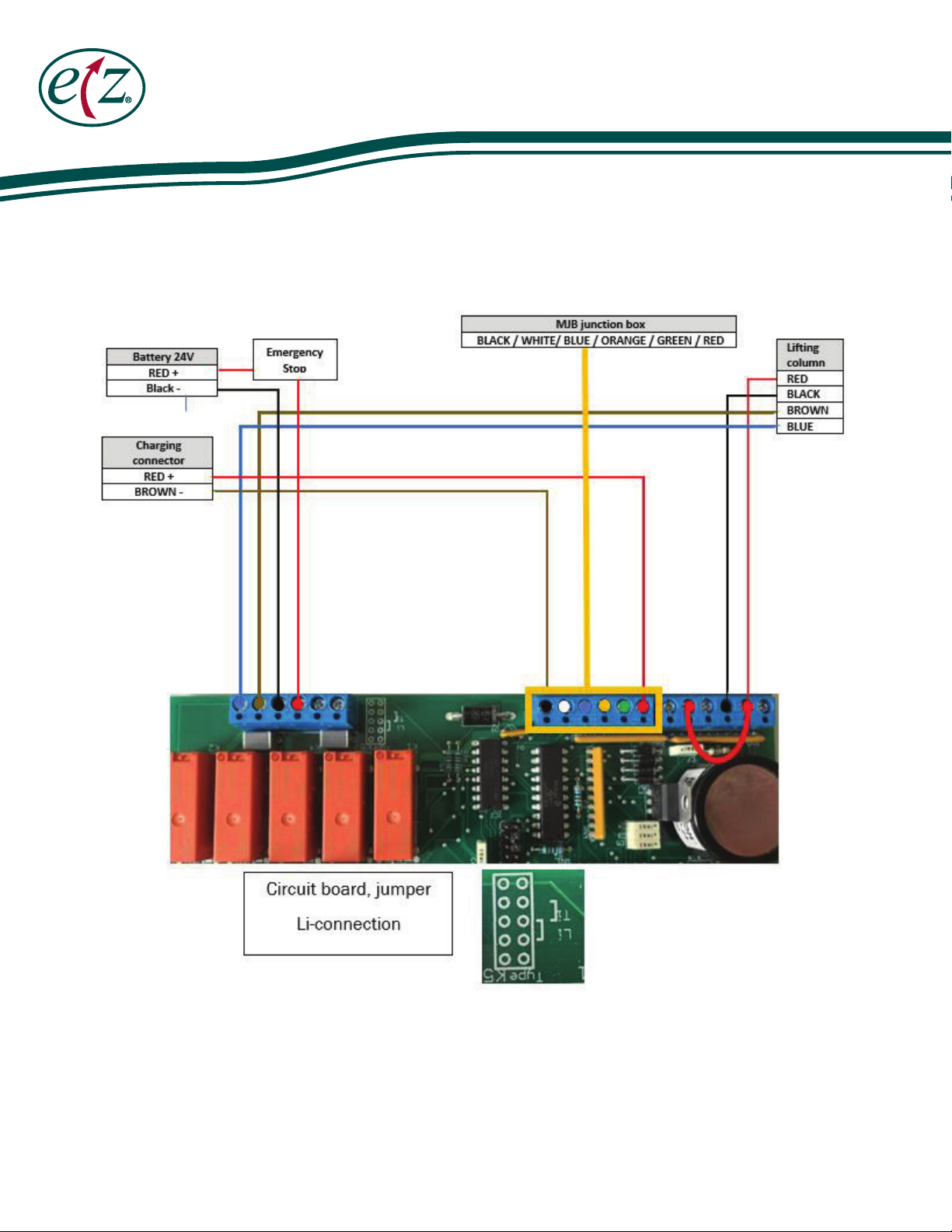

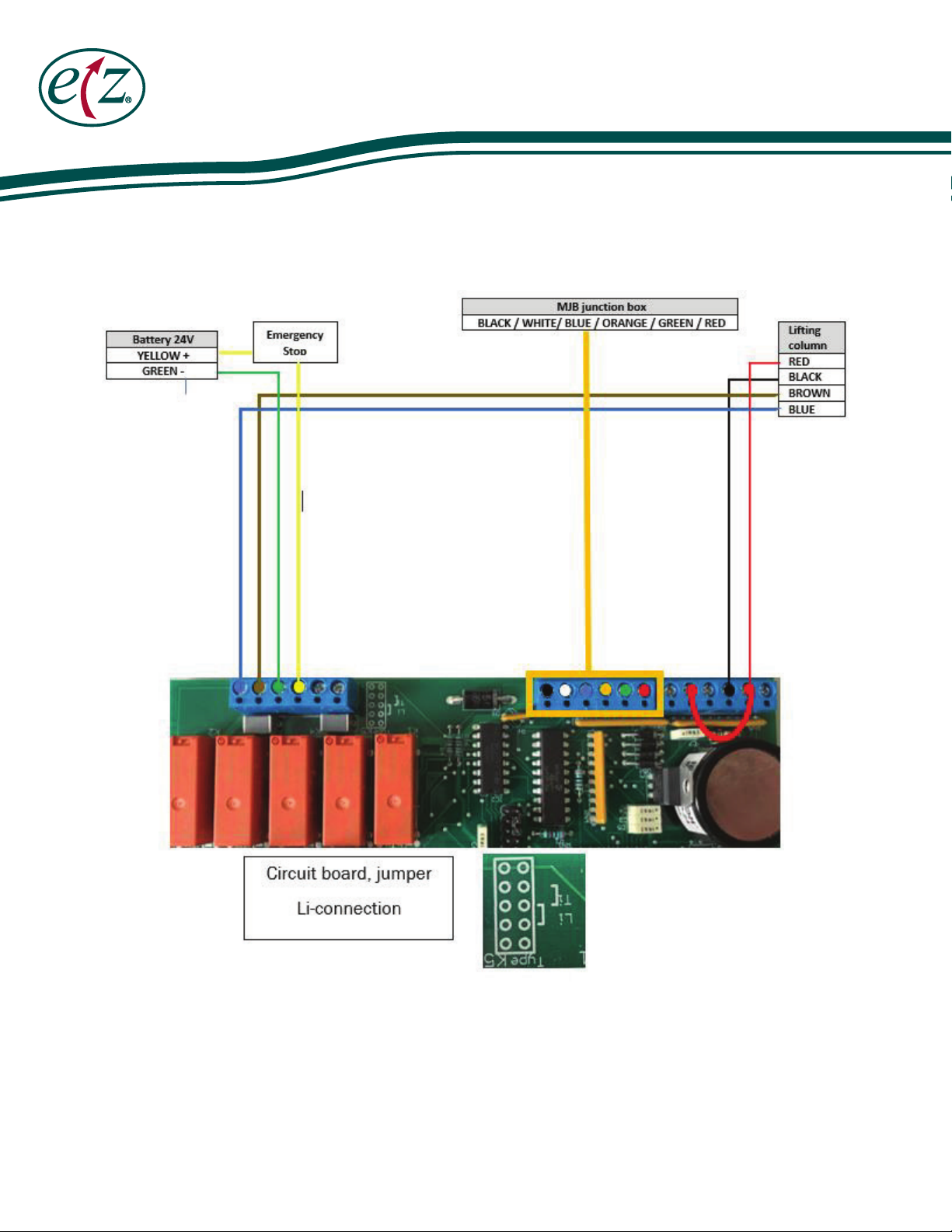

Wiring Diagram Circut Board 3000-V21,
Removable (Lithium) Battery

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 15
Service Instructions

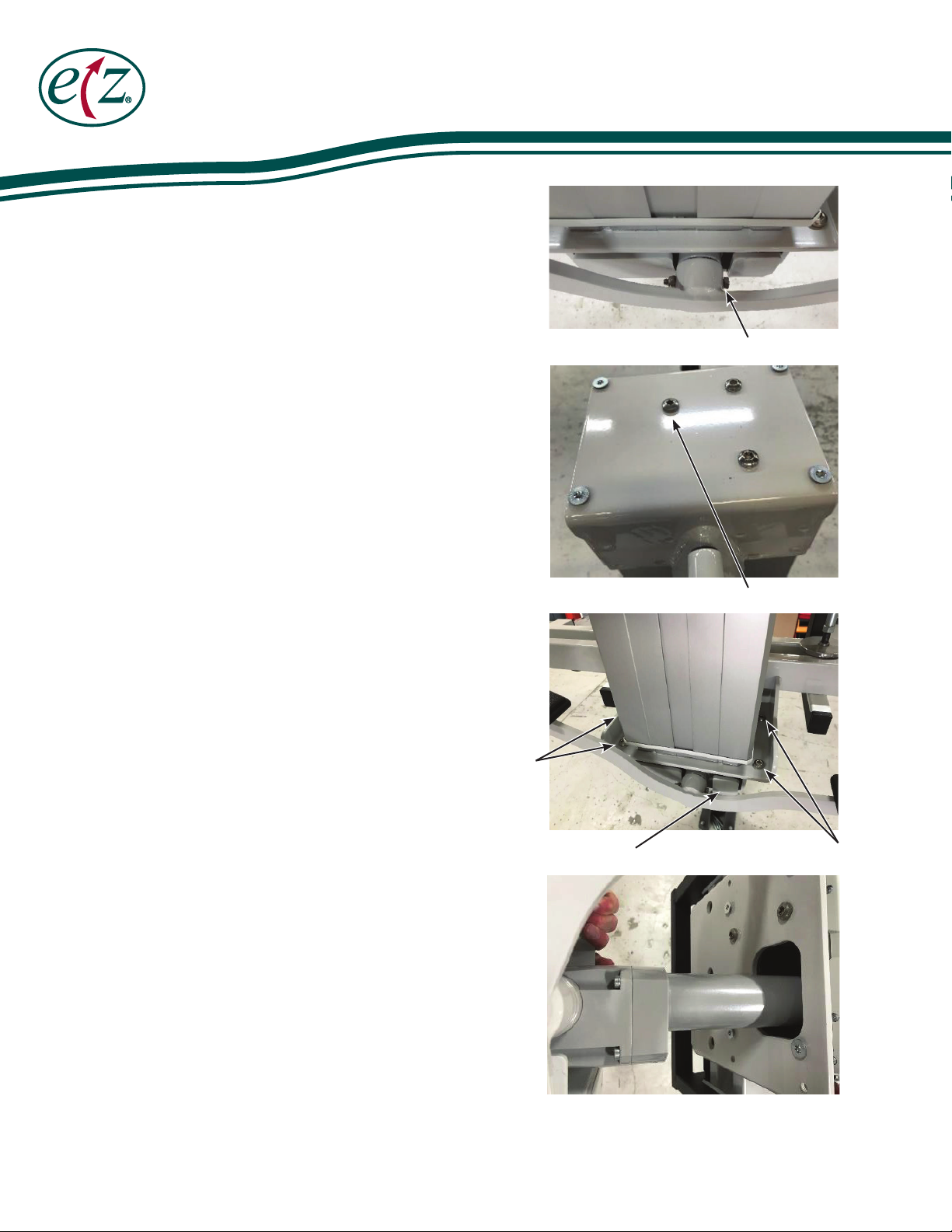

2000-V21 - How to replace the hydraulic pump and foot pedal
• Remove mattress, pillow, and plastic plate
from the shower trolley.
• Loosen and remove the Foot pedal screw.
• Loosen and remove the Piston rod screw.
• Loosen and remove the pump bracket.
• Pull out the pump and bracket from the
lifting column.
• Loosen and remove the hydraulic pump
from the Pump bracket.
• Assemble the new pump on the bracket and
push the pump into the lifting column.
• Fasten the piston rod with the piston rod
screw. Tighten the screw 50%.
• Fasten the pump bracket.
• Tighten the Piston rod screw 100%.
• Re-assemble plastic plate and mattress.
Pull out the pump / Assemble pump
Piston rod screw
Foot pedal screw
Pump bracket screws
Pump bracket screws
Pump bracket

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 16
Service Instructions
3000-V21 – How to replace the battery powered lifting column
• Remove mattress, pillow, and plastic plate.
• Disconnect the lifting column cable and the
cable from the battery enclosure.
• Loosen and remove the foot pedal cable
from the MJB Junction box.
• Unscrew the lifting column hat placed on
the top of the lifting column.
• Lift the stretcher and lifting column hat off
the lifting column.
• Unscrew the lifting column from
underneath.
• Assemble the new lifting column in reversed
order. Note the position of the lifting column
cable.
• If necessary, fasten cables with cable ties.
Loosen and remove the
four lifting column screws.
Lifting column connector
Lifting column hat.
Loosen and remove the screws.
MJB Junction box

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 17
Service Instructions
2000-V21 / 3000-V21 - How to replace the castors
Castor with brake
• Unscrew the bolt and washer and remove
the castor.
• Put the bolt and washer through the new
castor. Put Loctite 243 to the bolt threads.
• Make sure the washer between castor and
chassis is in correct position.
• Tighten the bolt.
• Verify that the brake function on the castor
is working properly.
Straight steering castor (factory
mounted option)
Same instructions as for the castor with brake,
but the washer between straight steering castor
and chassis has two straight steering pins.
• Press the Black straight steering pedal until
a click is heard.
• Rotate the castor disc until a click is heard.
• Put the bolt and washer through the new
straight steering castor. Put Loctite 243 to
the bolt threads.
• Assemble the straight steering castor with
the pedal pointing inwards.
• Tighten the bolt.
• Verify that the straight steering function on
the castor is working properly.
Note the position of the pedal when the straight
steering function is activated.
Bolt and
washer
Washer
between castor
and chassis.
Straight steering castor
(factory mounted option).

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 18
Service Instructions
2000-V21 / 3000-V21 – How to replace the gas struts
• Unscrew and remove the triangular cover.
• Loosen the tilt wire (DO NOT REMOVE) in
one of the short ends of the stretcher.
• Loosen and remove the Gas strut bolts.
• Unscrew the Gas strut counter clockwise,
from the bracket.
• Assemble the new Gas strut into the
bracket, tighten the black screw.
• Make sure you don’t damage/bend the gas
strut pin during the assembly.
Gas strut bracket
Gas strut bolts
Triangular cover Cover Screws
Tilting handle

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 19
Service Instructions
2000-V21 / 3000-V21 – How to replace the tilt wire
• Remove mattress, pillow, and plastic plate
from the shower trolley.
• Unscrew the tilt wire from both tilt handles
and remove the tilt wire from the stretcher
and gas strut bracket.
• Unscrew the triangular cover.
• Assemble the new tilt wire to one tilt
handle. Tighten the nut 50%.
• Place the tilt wire towards the wire wheel,
through the guide hole, through the column
hat, through the guide hole and wire wheel
on the opposite side and fasten the tilt wire
to the second tilt handle.
• Fasten the tilt wire on the second tilt wire.
• Tension the tilt wire and fasten screw and
nut 100%.
• Verify that the tilt function works properly. If
necessary, adjust the tensioning.
Column hatTriangular Cover
Tilt wire Tilt handle
Guide hole
Wire wheel

EZ Way, Inc.
EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com 20
Service Instructions
How to replace foot control or hand control
Use a small screwdriver for
following steps.
1. Press the lever 1 to release the MJB
bracket.
2. Push up the levers 2-5, one at a time.
3. Remove the plug and replace it with the
cable for the hand control.
4. Attach the cover again.
5, 4, 3, 2 1
