Ezze Mobile Tech SL599 User manual

- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel. [phone]
Fax.[phone]
SL599 Technical Manual
1. Product Specification
2. Mechanical Construction
3. Circuit Description
4. IC Information
5. Spare Part List

- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel. [phone]
Fax.[phone]
Section 1 – Product Specification
Contents Page
SL599 specifications ..……...…………..……………………………………………… 1.1
Standard charger …………………………..…………………………………………. 1.4
Batteries ………………………………..…………….………………………………… 1.5

- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel. [phone]
Fax.[phone]
Section 2 – Mechanical Construction
Contents Page
Disassembly ……………………………………………………………………………... 2.1
Phone disassembly …………………………..……………………………….……… ... 2.2
Phone Assembly ………………………………………………………………………… 2.6

- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel. [phone]
Fax.[phone]
Section 3 – Circuit Description
Contents Page
Baseband section ………………………………………………………………………… 3.1
MT6227 ( GSM/GPRS Baseband processor ) …………..………………………… 3.1
MT6305BN ( GSM Power Management System ) ………………………………… 3.38
2.0 M ( C-MOS Camera Module ) …… … … …… … ……………………………… 3.42
LRS18CA( MCP ) …………… …………………………………………………….… 3.43
MT6188( FM Radio ) ……….. ……………………………………………………….… 3.44
BTVZ0502SA ( Blue Tooth Module ) ……………………………………………….… 3.45
RF section ......................................................................................................................... 3.46
MT6120 ( RF Transceiver IC ) …………………………………………………………… 3.46
RF3146 ( QUAD-BAND Power Amplifier Module ) ………………………………….3.49
LMSP54HA-348TEMP ( Antenna Switch Module for Tri Band ) ………………… 3.51

- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel. [phone]
Fax.[phone]
Section 4 – IC Information
Contents Page
Pin out for U 650 …………………………………………………………...……….….. 4.1
Pin out for U 601 …………………………………………………………...……….….. 4.2
Pin out for BAT 200 …………………………………………………………...……….. 4.3
Pin out for CON 400…………………………………………………………...……….. 4.4
Pin out for CN 10 ……………………………………………………………...……….. 4.5
Pin out for U 20 …………………………………………………………...……….….. 4.6
Pin out for U 700……………………………………………………...……….……….. 4.7
Pin out for U111, U351…………………………………………………...……….….. .. 4.8
Pin out for U 550…………………………………………………………...……….….. 4.9
Pin out for F 450…………………………………………………………...……….…… 4.11
Pin out for U 200…………………………………………………………...……….…… 4.12
Pin out for U 201…………………………………………………………...……….…… 4.15
Pin out for U 150 ………………………………………………………………………… 4.16
Pin out for D200, D450, D451 …………………………………………………………… 4.18
Pin out for D30 – D41… ………………………………………………………………. 4.19
Pin out for ZD100 – ZD102 …………………………………………………………… 4.20
Pin out for ZD403 – ZD405 …………………………………………………………… 4.21
Pin out for D500……... ………………………………………………………..……..... 4.22
Pin out for U600 …………………..…………………………………………………….. 4.23
Pin out for U100 ……………………………………………………………………........ 4.26
Pin out for U350 ……………………………………………………………………........ 4.37
Pin out for U300 ……………………………………………………………………........ 4.39

- COMPANY CONFIDENTIAL -
EzzeMobileTech.,Inc Tel. [phone]
Fax.[phone]
Section 5 – Spare Part List
Contents Page
SL599 Part List ………………………………………………………………………... 5.1

Model SL599 Version V_1.0
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 1/5
SL599 Specifications
General specification Trial Band EGSM900 Class 4/DCS class
1 handheld cellular telephone
Type approval No. SL599
Dimensions (mm): Including 680mAh Li-Ion battery Standard: 85 (L) x 45 (W) x 15.6 (D)
Weight: Including 680mAh Li-Ion battery
Standard: about 75 grammes
Display type Main LCD
Sub LCD
2.0 Inch Dithering 262K TFT color
graphics display including LED backlight
0.97 Inch Mono color DFSTN
Display capacity 176x220 dots, Dithering 262K color, full
graphical
Display icons Soft icons: Signal, Battery, Message
Vibration, Alarm, Call divert & barring, ,
Broadcast
Normal operating temperature -20°C to +60°C
Keyboard 24 keys comprising:
1,2,3,4,5,6,7,8,9,*,0,#
YES(SEND), NO(END/ POWER),
2 Soft-Key
Navigation-Key
Shot-Key, Volume-Key(UP&DOWN)
Ring tones 30 user selectable tones and off
Battery types Standard:650mAh Li-Ion(Min)
Talk time: 680mAh Li-Ion battery 2¹ - 3² hours approximately
Standby time: 680mAh Li-Ion battery 160 hours approximately
Note²: Measured on EGSM 900 with power level 5
Note²: Measured on DCS 1800 with power level 0
Battery rapid charging time: 680mAh Li – Ion(standard)
The talk and standby times are subject to
network conditions.
1½-2 hours to >90% of full capacity
Charging Voltage 5.0V
Nominal battery voltage: 680mAh Li - Ion 3.8V
Battery charging CC and CV Mode
Antenna type Intenna Type
(subject to network implementation) 16X16,10X12,8X8 Numeral display
8x8,10x10,11x11,12x12,13x14 Roman
display

Model SL599 Version V_1.0
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 2/5
Support Phase 2 plus Feature
64 Poly stereo sounds
Graphics and animated icons
Phone memory location (200
numbers)
Dynamic text display
Easy text input (T9)
SIM application tool kit
External interface connections RS232, USB
Number of channels EGSM:174 Channel
DCS : 374 Channel
PCS: 299 Channels
Operating frequency range - transmitter EGSM TX : 880MHz to 915MHz
DCS TX : 1710MHz to 1785MHz
PCS TX: 1850 MHz to 1910 MHz
Operating frequency range - receiver EGSM RX : 925MHz to 960MHz
DCS RX : 1805MHz to 1880MHz
PCS RX: 1930 MHz to 1990 MHz

Model SL599 Version V_1.0
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 3/5
Battery Connector
Function Description
1 VBat Battery Supply Pin(Right)
2 Battery ID Battery ID Resistor Pin 10Kohm(Middle)
3 GND GND(Left)
I/O Connector layout
Pin description
Pin 1 EJ_Out_L Headset Receiver Left
2 EJ_Out_R Headset Receiver Right
3 GND GND
4 EJ_Mic Headset Mic Input
5 GND GND
6 EJ_GND Headset GND
7 TV_Out TV Out
8 TV_INT TV out, Headset Interrupt
9 Power_On_Off Power On Off
10 USB_DM USB D+ input / Output
11 USB_DP USB D- input / Output
12 RXD UART RX
13 TXD UART TX
14 Charger/USB Power USB Power / Charger
15 Charger?USB Power USB Power / Charger
16 NC Not connected
17 VBAT Battery Voltage +3.8V
18 VBAT Battery Voltage +3.8V

Model SL599 Version V_1.0
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 4/5
Standard charger
SL599 is supplied with a linear charger as standard. The charger is connected to the transceiver
through the bottom port.
Charging of the battery can only be carried out when the battery is fitted to the phone. There are no
serviceable parts within the main plug.
Input parameter Type Value Unit
Input voltage min 90 V
nom 230 V
max 264 V
Input frequency min 47 Hz
nom 50 Hz
max 63 Hz
Input current max 200 mA
Efficiency min >55 %
Output parameter Type Value Unit
Output current(CV) min 0.650 A
max 0.800 A
(CC) min 0.000 A
max 0.650 A
Output voltage(CV) min 3.0 V
max 4.9 V
(CC) min 4.9 V
max 5.3 V
Connector 18 Pin Bottom Connector
Cable length 1.9 m.

Model SL599 Version V_1.0
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 5/5
Batteries
Standard Battery 500mAh Li-Ion(Min)
Type: Lithium Ion Rechargeable Battery
Capacity 25°C: 680mAh
Standby time: up to 100 hours.
Talk time (900MHZ): 33dBm: 2.5 hours 3 hours*
Charging time: 1½-2 hours approximately to full capacity.
Charge temperature: 0 to +45°C.
Discharge temperature: -20 °C to +60°C.
Cycle life 100% cap. to 80% cap. 500 cycles.
Energy Density 344Wh/I 150Wh/kg
Dimension (W x H x L): 3.6 T x 34 W x 43 L mm.
Weight: 14.0 g.
*Operating times depend on network and usage. Variability will occur. DTX +40% (included).
Storage temperature:
Short period <1 month: -20°C to +45°C.
Long period <1 year: -20°C to +25°C.

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 1/11
Disassembly
This section covers the assembling and disassembly of the phone named SL599. In order to carry
out the assembling or disassembly the following precautions should be taken:
1. A Plus screwdriver is required to remove the screws, which holds the two casings together.
Ensure that the screwdriver is narrow enough to reach the screws without causing damage to
the casing parts.
2. The phone should always be placed on a soft surface to minimise the risk of damage being
caused to the casing, window and keypad. If the PCB is to be removed, then care should be taken
not to stress or scratch the exposed LCD.
3. Observe anti-static precautions when handling the main PCB or any of its components.
4. Repairs carried out by unauthorised persons will result in the warranty on the unit becoming
void.
5. Do not use solvents to clean any of the casing parts or the LCD window.
Phone disassembly

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 2/11

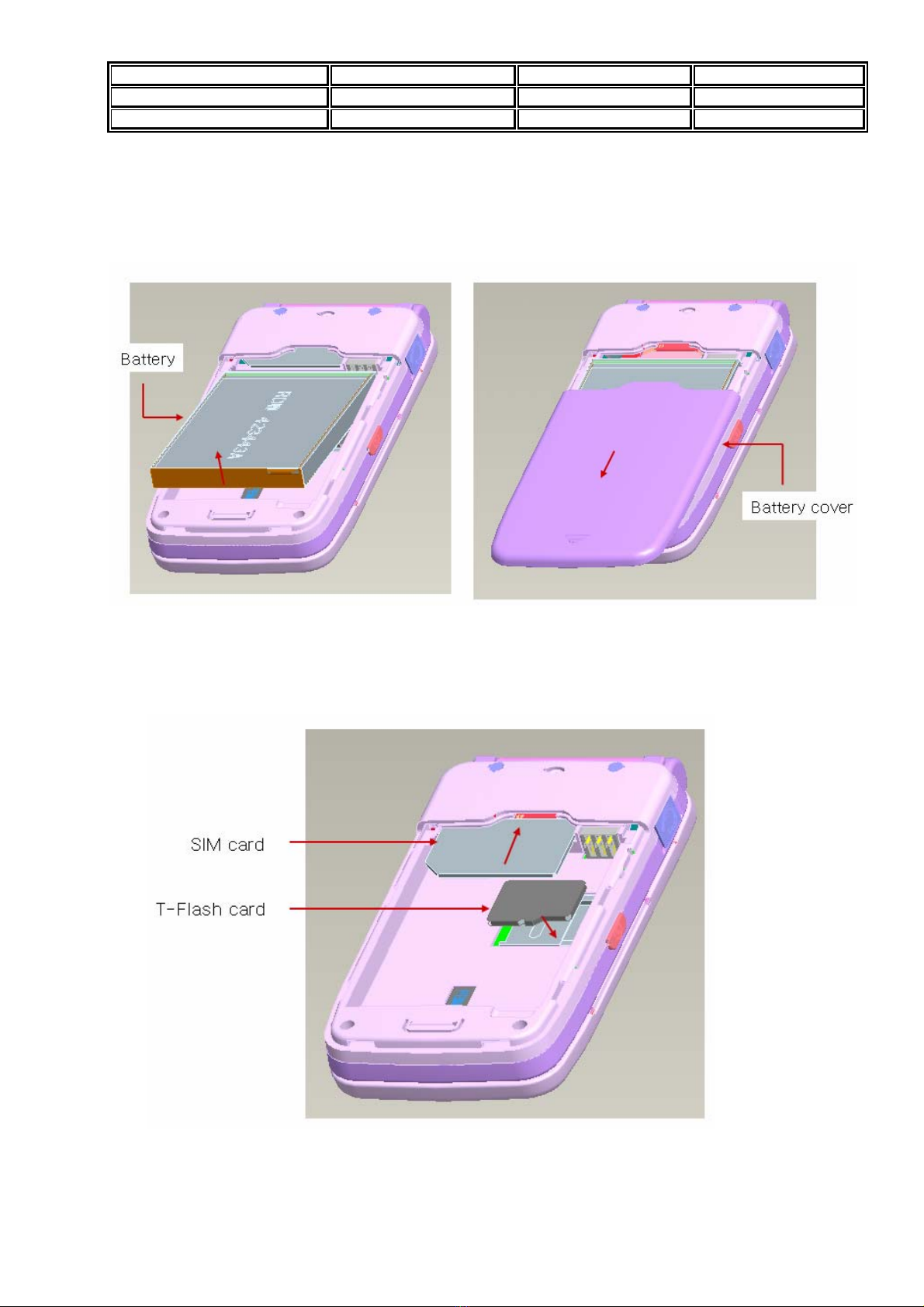

1. Battery Cover Disassembly
A. Shove battery cover out along the direction of arrow and remove battery cover.
B. Take out the battery along the direction of arrow and remove battery.
2. SIM card & TF card & caps & screws & rear cover Disassembly
A. Take out the SIM card and TF card
3. Side key & Camera key & Disassembly.

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 3/11
A. Take off screw caps.
B. Loosen the screws
C. Disjoin D cover
D. Disjoin the SIM holder
E. Disjoin BtoB connector
F. Take out the USB cap, ear cap, volume key ASS’Y, camera key ASS’Y and IRDA lens
G. Take out the main PCB
H. Take out the keypad
4. Folder Disassembly
A. Take off the screw cap

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 4/11
B. Loosen the 4 screws
C. Disjoin the A cover ASS’Y
D. Disjoin the LCD cover
E. Disjoin the LCD module
F. Take off the LCD cushion
G. Take off the main window

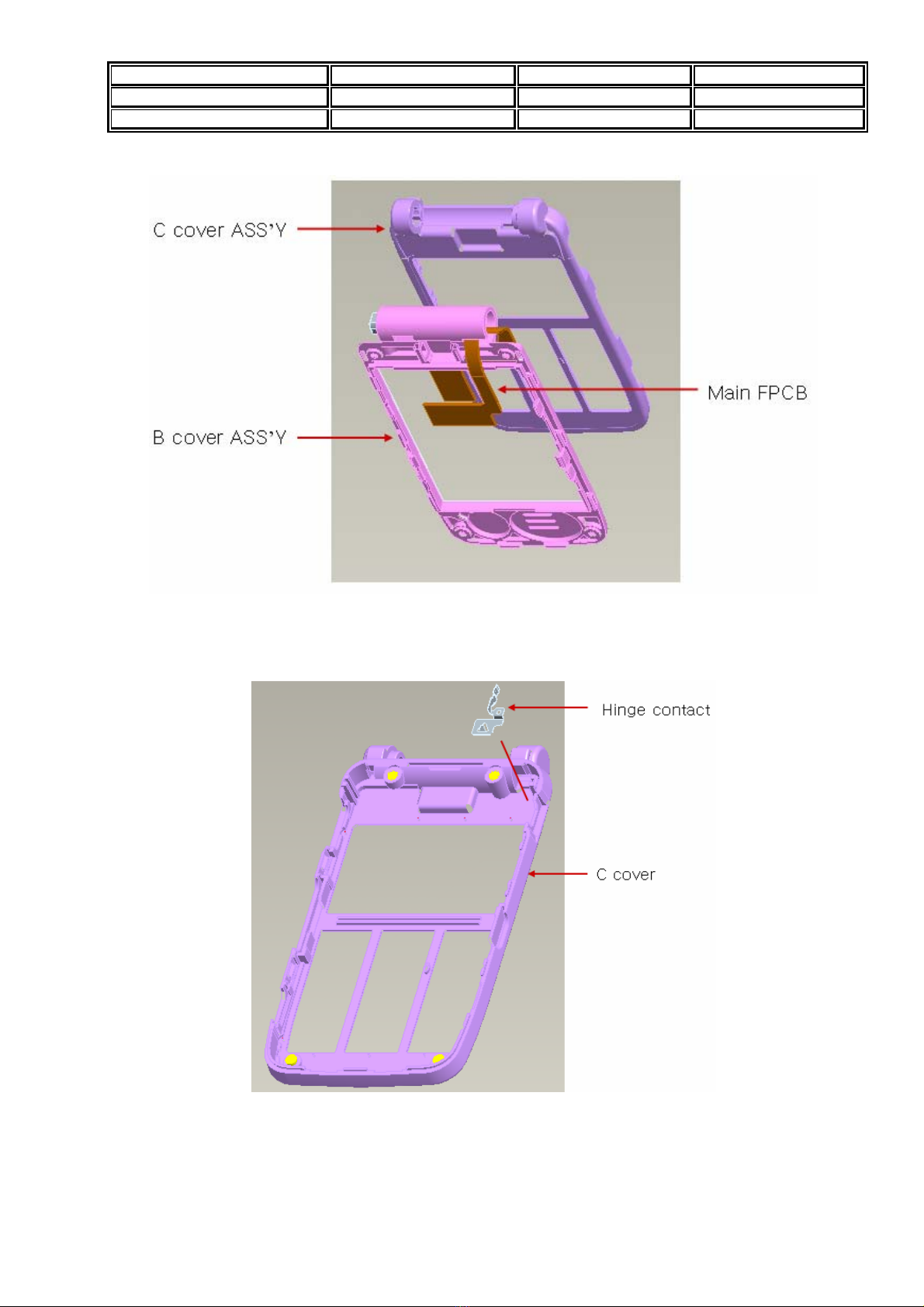

5. C cover ASS’Y & B cover ASS’Y Disassembly
A. Disjoin the C cover ASS’Y and B cover ASS’Y

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 5/11
6. C cover Disassembly
A. Remove Hinge contact
7. B cover assembling
A. Press the hinge to outside

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 6/11
B. Remove the “magnetic”
C. Remove the LCD double side tape

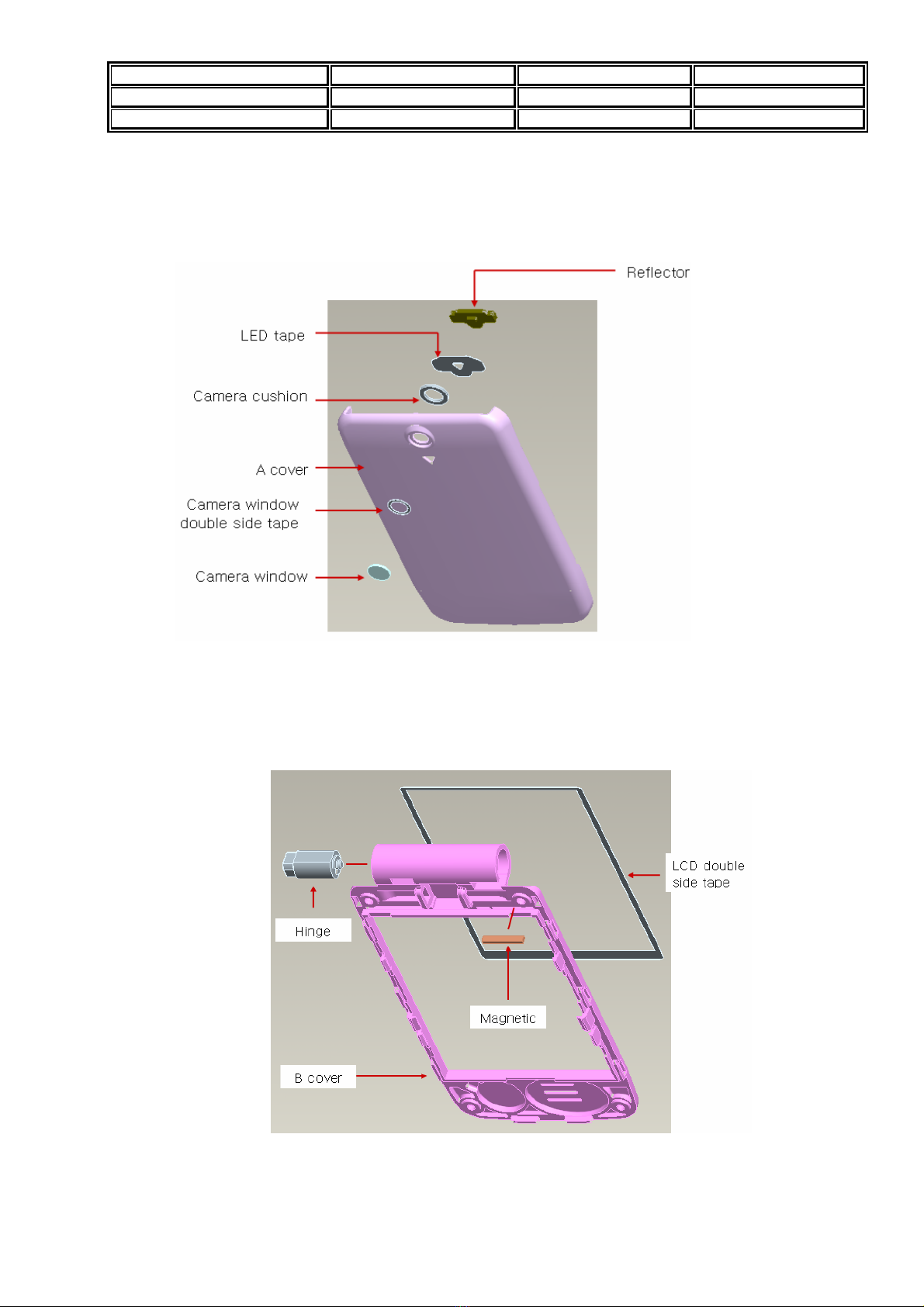

8. A cover Disassembly
A. Put off the camera window, camera window double side tape, reflector, LED tape and
camera cushion .
Phone Assembling
1. A cover assembling

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 7/11
B. Put the “camera cushion” on the inside of A cover
C. Put the “LED tape and Reflector” on the inside of A cover and .
D. Put the “camera window double side tape and camera window” on the out side of A
cover
2. B cover assembling
A. Put the “LCD double side tape”on the out side B cover
B. Put the “magnetic” in the magnetic hole
C. Put the hinge in the hinge hole
3. C cover assembling
A. Put the “hinge contact” on the inside of C cover by heat.

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 8/11
4. C cover assembling with B cover
A. Put the “main FPCB in the other side of the hinge hole of B cover and C cover.
5. Folder assembling with C cover
A. Put the “LCD cushion on the panel side of the LCD module

Model SL599 Version V_0.1
Prepared by H/W Date 2007.04.24
Subject Technical Manual Page 9/11
B. Put the “LCD module” in the LCD hole of the B cover
C. Put the “LCD cover on the Sub LCD side
D. Close the “A cover ASS’Y” with B cover
E. Screw in
F. Put the “main window” on
G. Put the screw cap in the screw hole
6. Main Assembling
A. Put the keypad in inside of the C cover.
