FAAC S450H User manual

24V Hydraulic Swing Gate Operator
UL325 - UL991
FAAC International Inc.
Headquarter & East Coast Operations
5151 Sunbeam Road
Suites 9-11
Jacksonville, FL 32257
Tel. [phone]
www.faacusa.com
FAAC International Inc.
West Coast Operations
357 South Acacia Avenue
Unit 357
Fullerton, CA 92831
Tel. [phone]
S450H

2FAAC Model S450H 24V Hydraulic Swing Gate Operator
CONTENTS
FAAC Model S450H - Rev: 02 - NOV 2011
Read this instruction manual before you begin installing the product.
= Information regarding personal safety and proper maintanence of the product.
IMPORTANT SAFETY INFORMATION 3
Important Safety Instructions 3
Important Installation Instructions 3
General Safety Precautions 4
UL325 Gate Operator Classications 5
Installing the Warning Signs 5
1. DESCRIPTION AND TECHNICAL SPECIFICATIONS 6
1.1 DIMENSIONS 6
2. PRESETS 6
3. INSTALLING THE AUTOMATED SYSTEM 6
3.1 INSTALLATION DIMENSIONS 7
3.2 INSTALLING THE OPERATOR 9
4. MANUAL OPERATION 11
5. ELECTRICAL CONNECTION OF THE ENCODER 11
6. BLEEDING 13
7. S450H PARTS DIAGRAMS 14
LIMITED WARRANTY 18

3
FAAC Model S450H 24V Hydraulic Swing Gate Operator
1. Install the gate operator only when the following
conditions have been met:
• The operator is appropriate for the type and usage
class of the gate.
• All openings of a horizontal slide gate have been
guarded or screened from the bottom of the gate to
a minimum of 4 feet (1.25 m) above the ground to
prevent a 2.25 inch (55 mm) diameter sphere from
passing through openings anywhere in the gate or
through that portion of the adjacent fence that the
gate covers when in the open position.
• All exposed pinch points are eliminated or guarded.
• Guarding is supplied for exposed rollers.
2. The operator is intended for installation on gates used
by vehicles only. Pedestrians must be provided with a
separate access opening.
3. To reduce the risk of entrapment when opening and
closing, the gate must be installed in a location that
allows adequate clearance between the gate and
adjacent structures. Swinging gates shall not open
outward into public access areas.
4. Before installing the gate operator, ensure that the gate
has been properly installed and that it swings freely in
both directions. Do not over-tighten the operator clutch
or pressure relief valve to compensate for a damaged
gate.
5. User controls must be installed at least 6 feet (1.83
m) away from any moving part of the gate and located
where the user is prevented from reaching over, under,
around or through the gate to operate the controls.
Controls located outdoors or those that are easily
accessible shall have security features to prevent
unauthorized use.
6. The Stop and/or Reset buttons must be located within
line-of-sight of the gate. Activation of the reset control
shall not cause the operator to start.
7. All warning signs and placards must be installed
and easily seen within visible proximity of the gate. A
minimum of one warning sign shall be installed on each
side of the gate.
8. For gate operators that utilize a non-contact sensor
(photo beam or the like):
• See instructions on the placement of non-contact
sensors for each type of application.
• Exercise care to reduce the risk of nuisance tripping,
such as when a vehicle trips the sensor while the
gate is still moving.
• Locate one or more non-contact sensors where the
risk of entrapment or obstruction exists, such as at
the reachable perimeter of a moving gate or barrier.
• Use only FAAC “Photobeam” photoelectric eyes to
comply with UL325.
Important Installation Instructions
WARNING - TO REDUCE THE RISK OF SEVERE
INJURY OR DEATH:
• READ AND FOLLOW ALL INSTRUCTIONS.
• Never let children operate or play with the gate
controls. Keep remote controls away from children.
• Always keep people and objects away from the
gate. NO ONE SHOULD CROSS THE PATH OF A
MOVING GATE.
• Test the gate operator monthly. The gate MUST
reverse on contact with a rigid object or when an
object activates a non-contact sensor. If necessary,
adjust the force or the limit of travel and then retest
the gate operator. Failure to properly adjust and retest
the gate operator can increase the risk of injury or
death.
• Use the manual release mechanism only when the
gate is not moving.
• KEEP GATE PROPERLY MAINTAINED. Have
a qualied service person make repairs to gate
hardware.
• The entrance is for vehicles only. Pedestrians must
use a separate entrance.
• SAVE THESE INSTRUCTIONS.
IMPORTANT SAFETY INFORMATION
Important Safety Instructions

4FAAC Model S450H 24V Hydraulic Swing Gate Operator
Gate Construction
Vehicular gates should be constructed and installed
in accordance with ASTM F2200: Standard Specica-
tion for Automated Vehicular Gate Construction.
For more information, contact ASTM at: www.astm.org
Installation
• If you have any questions or concerns regarding the
safety of the gate operating system, do not install the
operator and consult the manufacturer.
• The condition of the gate structure itself directly
affects the reliability and safety of the gate operator.
• Only qualied personnel should install this equipment.
Failure to meet this requirement could cause severe
injury and/or death, for which the manufacturer
cannot be held responsible.
• The installer must provide a main power switch that
meets all applicable safety regulations.
• It is extremely unsafe to compensate for a damaged
gate by increasing hydraulic pressure.
• Install devices such as reversing edges and photo
beams to provide better protection for personal
property and pedestrians. Install reversing devices
that are appropriate to the gate design and
application.
• Before applying electrical power, ensure that voltage
requirements of the equipment correspond to the
supply voltage. Refer to the label on your gate
operator system.
Usage
• Use this equipment only in the capacity for which it
was designed. Any use other than that stated should
be considered improper and therefore dangerous.
• The manufacturer cannot be held responsible
for damage caused by improper, erroneous or
unreasonable use.
• If a gate system component malfunctions, disconnect
the main power before attempting to repair it.
• Do not impede the movement of the gate, you may
injure yourself or damage the gate system as a result.
• This equipment may reach high thermal temperatures
during normal operation, therefore use caution when
touching the external housing of the gate operator.
• Use the manual release mechanism according to the
procedures presented in this manual.
• Before performing any cleaning or maintenance
operations, disconnect power to the equipment.
• All cleaning, maintenance or repair work must
performed by qualied personnel.
General Safety Precautions
9. For gate operators that utilize a contact sensor (edge
sensor or similar):
• Locate one or more contact sensors where the risk
of entrapment or obstruction exists, such as at the
leading edge, trailing edge, and post mounted both
inside and outside of a vehicular horizontal slide
gate
• Locate one or more contact sensors at the bottom
edge of a vehicular vertical lift gate.
• Locate one or more contact sensors at the bottom
edge of a vertical barrier (arm).
• Locate one or more contact sensors at the pinch
point of a vehicular vertical pivot gate.
• Locate hard-wired contact sensors and wiring so
that communication between sensor and gate
operator is not subjected to mechanical damage.
• Locate wireless contact sensors, such as those
that transmit radio frequency (RF) signals, where
the transmission of signals are not obstructed or
impeded by building structures, natural landscaping
or similar hindrances. Wireless contact sensors shall
function under their intended end-use conditions.
• Use only FAAC MSE MO, CN60 or M60 edge
sensors.
Important Installation Instructions (continued)

5
FAAC Model S450H 24V Hydraulic Swing Gate Operator
RESIDENTIAL VEHICULAR GATE OPERATOR CLASS I
A vehicular gate operator system intended for use in a single family dwelling, garage or associated parking area.
UL325 Gate Operator Classications
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR CLASS II
A vehicular gate operator system intended for use in commercial locations or buildings such as multi-family housing
units (ve or more single family units), hotels, parking garages, retail stores or other buildings that service the general
public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR CLASS III
A vehicular gate operator system intended for use in industrial locations or buildings such as factories, loading docks
or other locations not intended to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR CLASS IV
A vehicular gate operator system intended for use in guarded industrial locations or buildings such as airport security
areas or other restricted access locations that do not service the general public, and in which unauthorized access is
prevented via supervision by security personnel.
This FAAC swing gate operator is supplied
with two warning signs to alert people that a
possible hazard exists and that appropriate
actions should be taken to avoid the hazard or
to reduce exposure to it.
Permanently install one warning sign on each
side of the gate so they are fully visible to
trafc and pedestrians.
Use appropriate hardware such as metal
screws (not supplied) to permanently install
each warning sign.
Installing the Warning Signs

6FAAC Model S450H 24V Hydraulic Swing Gate Operator
Operator Specications
Model S450H 24V Hydraulic Swing Gate Operator
2
1
1
2
2
2
5
3
4
6
6
RX
RX
TX
TX
7
a
b
cd
e
f
g
1. DESCRIPTION AND TECHNICAL
SPECIFICATIONS
1.1 DIMENSIONS
a Front tting
bCover
cEmergency release with key
dPlastic cover for rear bracket
eRear bracket
fEncoder
gSpacer for opening mechanical stop
TECHNICAL
SPECIFICATIONS
CBAC
OPERATOR
SB
OPERATOR
Power Supply (VDC) 24 - 36
Power Consumption (W) 70 (nominal) - 288 (maximum)
Protection Class IP 55
Oil Type FAAC HP OIL
Operating Temperature -4°F to +113°F
Hydraulic Lock Installed Not installed
Max. Traction/Thrust Force (lbf) 1124
Max. Opening Angle See table 1
Max. Leaf Length (feet) 14 16
Linear Rod Speed adjustable up to 1"/sec
Effective Rod Stroke (inches) 12 1/4
Operator Weight (lbs) 15.6 15.2
2. PRESETS
S450H operators (2x2.5 mm² each motor)
(2x0.5 mm² each encoder bus)
RX Photocells (receiver)
(TRADITIONAL: 4 x 0.5 mm²; 2easy bus: 2 x 0.5 mm²)
TX Photocells (transmitter) (2 x 0.5 mm²)
Electronic control unit (power supply 3 x 1.5 mm²)
Key-operated push-button (e.g. T11) (3 x 0.5 mm²)
Flashing lamp 24 V dc (2 x 1 mm²)
Opening mechanical stops*
Electric lock and closing mechanical stop (2 x 1.5 mm)
* Not necessary when using opening mechanical stops inside the
operator (Fig.1 Ref. 7).
3. INSTALLING THE AUTOMATED
SYSTEM
Ensure that the following conditions have been met to ensure safety
and the efcient operation of the automated system:
• The gate structure must be suitable for automation. Verify that it is
sufciently strong and that its dimensions and weight correspond
to those stated in the technical specications.
• Verify the smooth and uniform movement of leaves, without irregu-
lar friction during the entire travel.
• Verify the good condition of hinges.
• Verify the presence of mechanical limit switches.
• Remove any locks and bolts.
• Carry out any metalwork operations before installing the
automated system.
Fig. 1
The FAAC S450H automated system for swing-leaf gates con-
sists of an electrical pump and an hydraulic piston transmitting
the leaf movement, assembled in a single block.
The model with hydraulic locking can automate leaves up to
6.5 feet long. It does not require the installation of electric
locks and guarantees that the leaf is mechanically locked
when the motor is not in operation. The model without hydrau-
lic locking always needs one or more electric locks to guaran-
tee the leaf mechanically locks. S450H automated systems
have been designed and built to automate swing-leaf
gates. Avoid any other use, whatsoever.
Fig. 3
43¾
29½
12¼
4¾
3⅜
3⅜
Dimensions in Inches
Fig. 2

7
FAAC Model S450H 24V Hydraulic Swing Gate Operator
TAB. 1 B
2.95-3.3 3.35-3.7 3.75-4.0 4.1-4.45 4.5-4.85 4.9-5.25 5.3-5.65 5.7-6.0 6.1-6.45 6.5-6.85
D
0.75-0.95 110° (3) 110° (3) 115° (3) 108° (3) 100° (3) 100° (3)
1.0-1.3 108° (3) 110° (3) 110° (3) 103° (3) 100° (3) 94° (3)
1.35-1.7 100° (3) 107° (3) 108° (3) 104° (3) 111° (2) 104° (2) 100° (2)
1.75-2.1 100° (3) 105° (3) 106° (3) 100° (3) 106° (2) 100° (2) 96° (2)
2.15-2.5 97° (3) 100° (3) 105° (3) 99° (3) 107° (2) 100° (2) 96° (2) 92° (2)
2.6-2.9 93° (3) 97° (3) 100° (3) 100° (3) 110° (2) 101° (2) 96° (2) 102° (1) 98° (1)
2.95-3.3 90° (3) 95° (3) 100° (3) 105° (2) 102° (2) 111° (1) 105° (1) 98° (1) 94° (1)
3.35-3.7 90° (3) 90° (3) 95° (3) 100° (2) 104° (2) 96° (2) 104° (1) 100° (1) 94° (1) 90° (1)
3.75-4.0 90° (3) 90° (3) 95° (3) 100° (2) 96° (2) 106° (1) 98° (1) 96° (1) 90° (1)
4.1-4.45 90° (3) 90° (3) 95° (2) 97° (2) 103° (1) 99° (1) 94° (1) 92° (1)
4.5-4.85 90° (3) 90° (2) 95° (2) 98° (1) 100° (1) 94° (1)
4.9-5.25 90° (2) 90° (2) 95° (1) 98° (1) 94° (1)
5.3-5.65 90° (2) 90° (2) 95° (1) 94° (1)
5.7-6.0 90° (1) 90° (1) 94° (1)
6.1-6.45 90° (1) 90° (1)
6.5-6.75 90° (1)
3⅜
41¾
234
Z
a° (3)
a° (2)
D
a° (1)
(3)
(2)
(1)
TAB.1 B
XXX XXXX
DXXX 120° (3) 120° (3)
XXX 110° (2) 110° (2)
XXX 115° (1) 110° (1)
a
B
ATTENTION: do not cut the rear bracket for any reason.
Refer to Figures 4 and 5 and Table 1 to determine the installation position of the operator.
INSTALLATION DIMENSION "B"
(SEE FIGURES 4 and 5)
INSTALLATION
DIMENSION
"D"
(SEE FIGURE 5)
- INTERSECT THE DIMENSIONS "D" AND "B" TO OBTAIN THE MAXIMUM VALUE OF OPENING ANGLES.
- ATTENTION: USE MECHANICAL LIMIT SWITCHES IN ORDER NOT TO EXCEED THE MAXIMUM OPENING ANGLES STATED IN TABLE 1 AND GUARANTEE
THE CORRECT OPERATION OF THE AUTOMATED SYSTEM.
HOLE TO BE USED
ON THE REAR
BRACKET
HOLE TO BE USED ON THE REAR BRACKET
Dimensions in Inches
Fig. 4 Fig. 5
Dimensions in Inches
3.1 INSTALLATION DIMENSIONS
3.1.1 APPLICATION WITH BRACKET FASTENED TO THE COLUMN
- - If the gate structure does not allow the stable xing of the front tting, create a rm bearing surface in the leaf structure.
- It is advisable to grease all xing pins - Opening and closing stops must always be installed - Pay special attention not to
damage the operator rod.

8FAAC Model S450H 24V Hydraulic Swing Gate Operator
TAB. 2 B1
5.0 - 5.25 5.5-5.65 5.7-6.0 6.1-6.45 6.5-6.85 6.85-7.25 7.3-7.65 7.7-8.0 8.1-8.45 8.5-8.8 8.85-9.2 9.25-9.6 9.65-10.05 10.1-10.4 10.45-10.75
D
1
4.75-4.85 110° (1) 110° (1) 115° (1) 108° (1) 100° (1) 100° (1) 108° (2) 100° (2) 100° (2) 100° (3) 100° (3)
4.9-5.25 108° (1) 110° (1) 110° (1) 103° (1) 100° (1) 94° (1) 103° (2) 100° (2) 94° (2) 100° (3) 94° (3)
5.25-5.65 100° (1) 107° (1) 108° (1) 104° (1) 100° (1) 96° (1) 92° (1) 100° (2) 96° (2) 92° (2) 96° (3) 92° (3)
5.65-6.0 100° (1) 105° (1) 106° (1) 100° (1) 96° (1) 90° (1) 100° (2) 96° (2) 90° (2) 96° (3) 90° (3)
6.1-6.45 97° (1) 100° (1) 105° (1) 99° (1) 94° (1) 92° (1) 99° (2) 94° (2) 92° (2) 94° (3) 92° (3)
6.5-6.85 93° (1) 97° (1) 100° (1) 100° (1) 96° (1) 100° (2) 100° (2) 96° (2) 100° (3) 96° (3)
6.85-7.20 90° (1) 95° (1) 100° (1) 96° (1) 95° (2) 100° (2) 96° (2) 100° (3) 96° (3)
7.25-7.65 90° (1) 90° (1) 95° (1) 97° (1) 90° (2) 95° (2) 97° (2) 95° (3) 97° (3)
7.65-8.0 90° (1) 90° (1) 95° (1) 90° (2) 90° (2) 95° (2) 90° (3) 95° (3)
8.0-8.45 90° (1) 90° (1) 90° (2) 90° (2) 90° (2) 90° (3) 90° (3)
8.5-8.8 90° (1) 89° (2) 90° (2) 90° (2) 90° (2) 90° (3) 90° (3)
Z
a° (3)
a° (2)
D1
a° (1)
(3)
(2)
(1)
TAB.2 B1
XXX XXXX
D1XXX 115° (1) 115° (1)
XXX 110° (2) 110° (2)
XXX 100° (3) 100° (3)
B1
2
3
4
3⅜
41¾
B1
D1
Z
a
- INTERSECT THE DIMENSIONS " D1" AND " B1" TO OBTAIN THE MAXIMUM VALUE OF OPENING ANGLES.
- ATTENTION: USE MECHANICAL LIMIT SWITCHES IN ORDER NOT TO EXCEED THE MAXIMUM OPENING ANGLES STATED IN TABLE 2 AND GUARANTEE
THE CORRECT OPERATION OF THE AUTOMATED SYSTEM.
HOLE TO BE USED ON THE REAR BRACKET
HOLE TO BE USED
ON THE REAR
BRACKET
INSTALLATION DIMENSION " B1"
(SEE FIGURE 41-51)
Dimensions in Inches
INSTALLATION
DIMENSION " D1" (SEE FIGURE 41-51)
Dimensions in Inches
Fig.51
Fig.41
3.1.2 APPLICATION WITH BRACKET FASTENED TO SIDE WALL
ATTENTION: do not cut the rear bracket for any reason.
Refer to Figures 41and 51and Table 2 to determine the installation position of the operator.

9
FAAC Model S450H 24V Hydraulic Swing Gate Operator
ab
2. While referring to Table 1 (see white or grey boxes),
choose the xing hole on the rear bracket and install the
fork (Fig. 7 Ref. a) by assembling it with the special pin
supplied (Fig. 7 Ref. b).
3. Install the encoder on the rear bracket by correctly
engaging it on the pin, then x it with the screw and nut
supplied (Fig. 8 Ref. a, b and c).
4. Slightly press the protection cover on the rear bracket
until it locks in position (Fig. 9).
a
b
xx°(3)
xx°(2)
xx°(1)
Fig. 7
3.2 INSTALLING THE OPERATOR
1. Check the perfect level then weld the rear tting to the pil-
lar or x it by means of suitable screws, dowels / thread-
ed inserts. Observe the dimensions stated in Tab.1 (never
cut the rear tting; moreover it must be installed with the
word "UP" facing up as shown in Figure 6 Ref. a).
a
b
c
Fig. 8
b
a
Fig. 10
Fig. 11
6. Screw one-half of the thread of the front articulated joint
on the operator rod and tighten the nut (Fig. 11 Ref. a).
7. Unlock the operator according to Section 4.
8. If no external mechanical stop point at closure is present,
you may use the stop point inside the operator (extend
the rod completely up to its internal stop point).
9. If an external mechanical stop point at closure is present,
extend the rod completely and then insert it 0.25 in.
10. Close the gate leaf and install the front tting on the rod
as shown in Fig. 11 Ref. b.
HOLE FOR
ENCODER
CABLE
ROUTING
a
INSTALL THE BRACKET
WITH THE WORD “UP”
FACING UP
Fig. 6
Fig. 9
HOLE FOR
ENCODER
CABLE
ROUTING
5. Assemble the operator and the rear bracket by means of
the pin and nut supplied (Fig. 10 Ref. a - b).

10 FAAC Model S450H 24V Hydraulic Swing Gate Operator
a
11. Establish the xing position of the front bracket on the leaf
and mark the xing points (Fig. 12) (the operator must be
perfectly level).
12. Disassemble the operator from the front bracket to avoid
damaging the rod when the front xing is installed on the
gate.
13 Weld the front bracket directly on the leaf or screw it by
means of threaded inserts.
14. If an opening mechanical stop on ground is not installed,
spacers can be used (Fig. 1 Ref. 7). Remove the front ar-
ticulated joint and insert on the rod the number of spacers
required to reach the desired opening angle (Fig. 14).
If an external mechanical
stop point at closure is
present, extend the rod
completely and then
insert it 0.25 inches.
Fig. 12
Fig. 13
Fig. 15
Fig. 16
MINIMUM
BENDING
RADIUS
2.5 INCHES MINIMUM
BENDING
RADIUS
2.5 INCHES Fig. 17
Fig. 14
15. Secure the operator to the front bracket (Fig. 15).
16. Remove the bleed screw (Fig.16 Ref. a) paying special
attention to leave the sealing O-Ring in its seat.
17. Install the metallic protection cover as shown in Fig. 16,
insert and tighten both tie-rods.
18. Connect the cable to the operator using the two screws
supplied, as shown in Fig. 17.

11
FAAC Model S450H 24V Hydraulic Swing Gate Operator
a
b
4. MANUAL OPERATION
OPEN
CLOSED
c
UNLOCKED
LOCKED
Fig. 18
5. ELECTRICAL CONNECTION OF THE ENCODER
The S450H operator is tted with an encoder system. The proper assignment of the leaf to the corresponding encoder depends
on the connection of the two encoder wires (leaf 1- encoder 1; leaf 2 - encoder 2).
THE ENCODER WIRES MUST BE CONNECTED TO THE BUS CONNECTOR OF THE ELECTRONIC EQUIPMENT.
To verify the proper combination LEAF 1 - ENCODER 1 - MOTOR 1 and LEAF 2 - ENCODER 2 - MOTOR 2, refer to the LEDs
on the encoders, as shown in Table 2 and Figures 19, 20 and 21.
To invert the leaf-encoder combination, change the encoder polarity by swapping its wires until the right LEDs are lit.
TABLE 3
LED ON BLINKING OFF
DL 1 Power supply ON and BUS - board
communication
Power supply ON but
no BUS communication
(e.g.: cabling fault)
Power supply OFF and no BUS communication
(e.g.: missing or broken connection)
DL 2 Encoder associated to leaf 1 / Encoder associated to leaf 2
DL 3 / Pulse reading during leaf movement Leaf stationary
DL 1: must always be ON to ensure the right connection between encoder and board.
DL 2: identies the leaf to which the encoder is installed.
If the encoder is installed on leaf 1, the DL 2 LED is ON.
If the encoder is installed on leaf 2, the DL 2 LED is OFF.
DL 3: when blinking at regular intervals, it signals the pulse reading during the leaf
movement. When the gate leaf is stationary, DL 3 is OFF.
If the gate is to be operated manually because of a power failure or an automated system fault, activate the release device.
1. Lift the protection lid (Fig. 18, Ref. a) and insert the key in the lock (Fig. 18, Ref. b).
2. Turn the key 90° clockwise to open the cover and lift it.
3. Turn the release knob (Fig. 18, Ref. c) counter-clockwise until it stops.
4. Open or close the leaf manually.
To restore the normal operation of the automated system, perform the above described operations in reverse order.
Models S450H and SB are not equipped with a release facility because, thanks to the particular conguration of the hydraulic
distributing ange, you do not need to release the operator to manually move the leaf.
b
The LEDs on the encoder also remain visible when the rear bracket protec-
tion cover is installed.

12 FAAC Model S450H 24V Hydraulic Swing Gate Operator
DL 2
DL 1
DL 3
DL 2
DL 1
DL 3
DL 2
DL 1
DL 3
DL 2
DL 1
DL 3
LEAF 1* LEAF 2
LEAF 2 LEAF 1*
THROUGH THE BRACKET COVER OF LEAF
1, VERIFY THAT THE LEDS DL1 AND DL2
ARE ON WHEN THE MOTOR IS NOT IN
OPERATION
THROUGH THE BRACKET COVER OF LEAF
2, VERIFY THAT THE LED DL1 IS ON WHEN
THE MOTOR IS NOT IN OPERATION
LEAF 1
TWO LEDS ON
LEAF 2
ONE LED ON
THROUGH THE BRACKET COVER OF LEAF
1, VERIFY THAT THE LEDS DL1 AND DL2
ARE ON WHEN THE MOTOR IS NOT IN
OPERATION
LEAF 1
TWO LEDS ON
THROUGH THE BRACKET COVER OF LEAF
2, VERIFY THAT THE LED DL1 IS ON WHEN
THE MOTOR IS NOT IN OPERATION
LEAF 2
ONE LED ON
Fig. 19
Fig. 20
Fig. 21
*
LEAF 1 OPENS FIRST AND CLOSES AFTER LEAF 2.
IF LEAF 1 AND LEAF 2 DO NOT OVERLAP, ON THE
ELECTRONIC CONTROL BOARD, IF AVAILABLE, THE
LEAF DELAY CAN BE SET TO ZERO.
BY SWAPPING THE ENCODER WIRES, THE ENCODER
ASSOCIATED TO LEAF 1 CAN BE COUPLED TO LEAF
2 AND VICE VERSA (see example Fig. 22)
ENCODER WIRES
SWAPPING
ENCODER
LEAF 1
ENCODER
LEAF 2
Fig. 22

13
FAAC Model S450H 24V Hydraulic Swing Gate Operator
b
a
6. BLEEDING
2. Remove the screw in Fig. 24 ref.d from the front tting
3. Remove the joint (Fig.24 ref.f) from the operator stem.
(Fig. 24 ref. g).
1. Loosen the tie-rods (Fig. 23 ref. a) and remove the metal
protective housing (Fig. 23 ref. b).
Remove the upper tie-rod and be careful with the
O-ring that must remain it its seat.

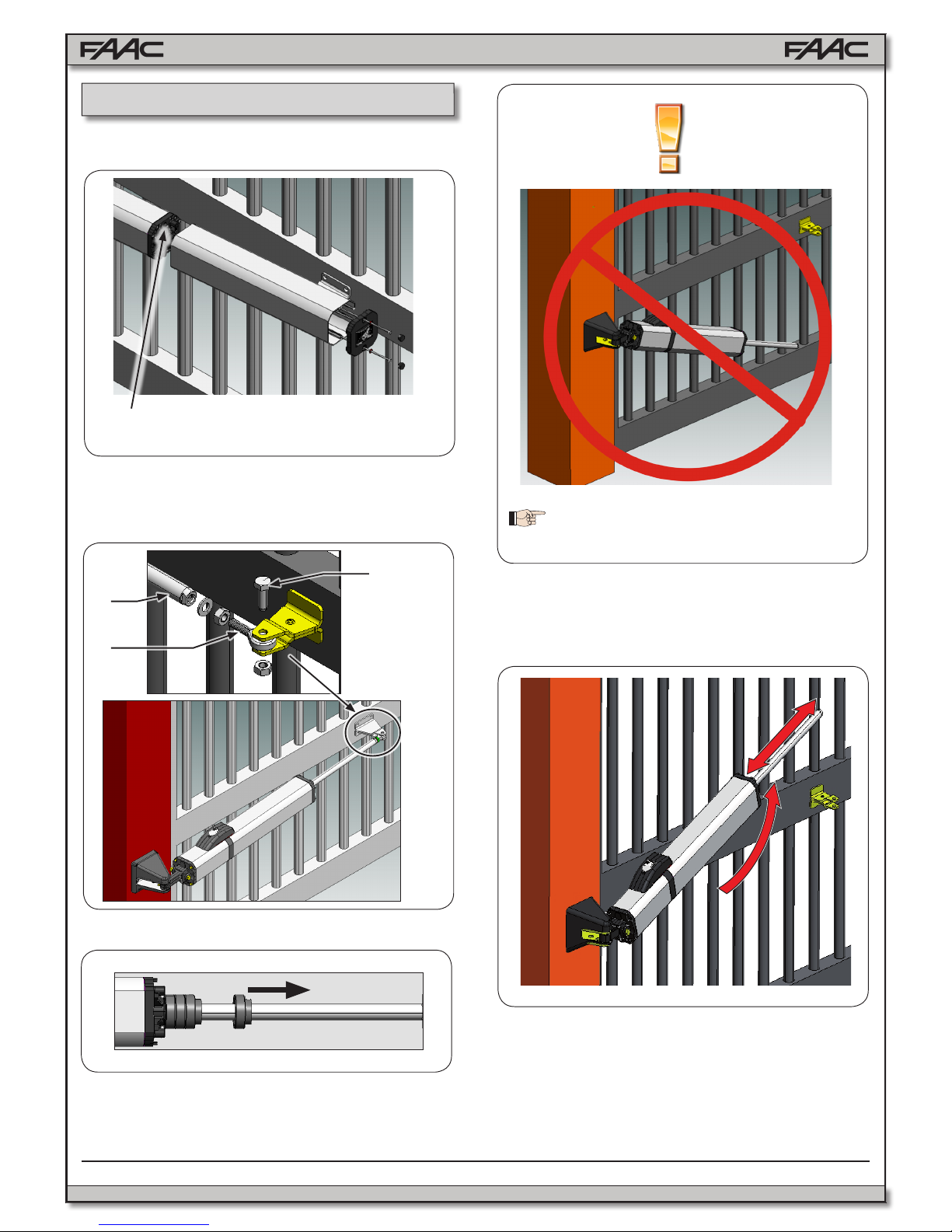

4. Remove all spacers, if present (Fig. 25).
5. Tilt the operator upward as much as possible. Do not force
the rear tting too much.
6. Supply the operator with power and repeatedly move the
stem in and out, over its complete stroke, until reaching a
smooth movement (Fig. 27).
7. After bleeding, repeat the operations described above in
reverse order.
TO PREVENT OIL LEAKAGE FROM
THE BREATHER HOLE, DO NOT TILT THE
OPERATOR DOWNWARD
Fig.23
d
f
g
Fig.24
Fig.26
Fig.25
Fig.27

14 FAAC Model S450H 24V Hydraulic Swing Gate Operator

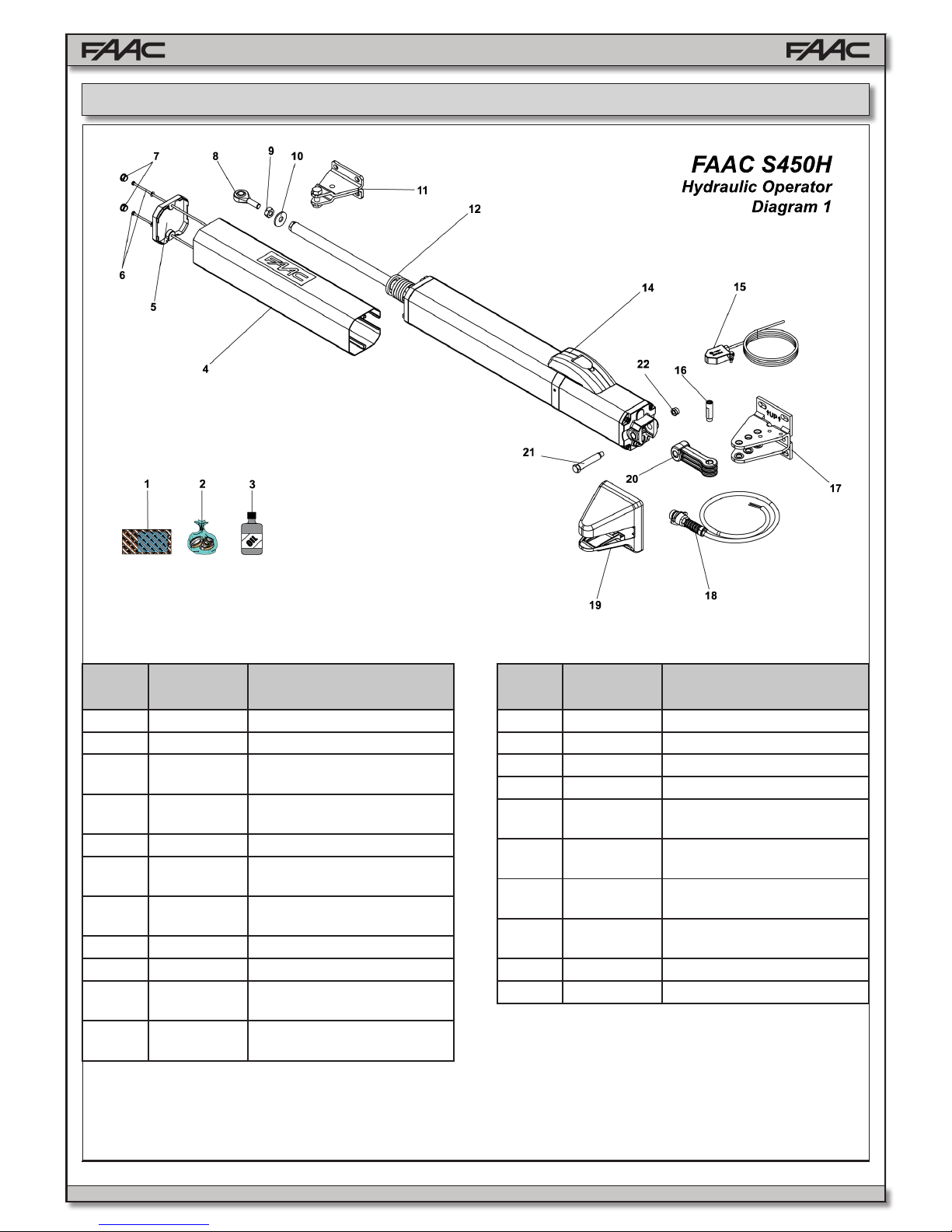

7. S450H PARTS DIAGRAMS
FAAC S450H
Hydraulic Operator
Diagram 1
Part Part
Number
Description
01 63001885 S450H SKINPACK
02 63000606 SEAL KIT S450H
03 714017 HYDRAULIC OIL FAAC HP
OIL LT. 1
04 63001895 S450H CARTER WITH FAAC
LABEL
05 4170015 CARTER 400/87
06 63001905 SCREW FOR CARTER
S450H
07 7119405 CAP FOR HOLES COVER
CARTER
08 7073035 M10 JOINT
09 702101 HEX. NUT 10 5588 5S Z
10 703027 WASHER 10 6593 CAT. C
R40 Z
11 63001945 S450H FRONT
FASTENING
Part Part
Number
Description
12 63001975 SPACERS KIT FOR S450H
14 63001985 RELEASE ASSY S450H
15 63001875 S450H ENCODER
16 63001965 S450H SHORT PIN
17 63001915 REAR BRACKET FOR
S450H
18 96001935 S450H MOULDED CABLE
FEMALE KIT
19 63001925 S450H BRACKET COVER-
ING
20 63001955 REAR EYE TIE ROD FOR
S450H
21 7182175 LONG PIN
22 702302 NUT AUT. 8 7474 5S Z

15
FAAC Model S450H 24V Hydraulic Swing Gate Operator
FAAC S450H
Hydraulic Operator
Diagram 2
Part Part
Number
Description
01 63000716 S450H FRONT FLANGE
02 63000656 S450H RIVETED PISTON
03 63000646 CYLINDER PISTON S450H
04 63000676 S450H CB GEAR FLANGE
05 7090010015 SEAL OR 4.48X1.78 (2018)
06 63000756 S450H PLUG SEAL
07 63000766 DIN 908 M8X1 PLUG
08 63001985 REALEASE ASSY S450H
09 63000746 S450H TANK SCREW
10 63000696 10010 S09-169 1.5 L/MIN
(S450H) PUMP
11 701996 TC M4X30 TORX T20 INOX
DE 7
12 63000626 S450H MOTOR COVER KIT
13 63000636 S450H MOTOR ASSEMBLY
14 63000806 S450H REAR FLANGE
15 63000786 S450H TIE ROD
16 703121 WASHER GROWER M5 A2
UNI 1751 (INOX)
Part Part
Number
Description
17 701985 TC M4X12 TORX T20 INOX
DE 7
18 63000706 S450H SPLINED JOINT
19 63000776 S450H MOTOR CARTER
20 903122 ETICH.PET+TRANSPARENT
ARGENTO 45X75
21 63001865 FAAC STICKER FOR S450H
22 63000736 S450H TANK
23 63000726 RETRACT TUBE S450H
24 7090815 -
25 63000013 S450H GASKET D80 SPARE
PART
26 701829 SCREW TC TORX M5X20
INOX WITH GROWER
27 708009 BUSHING 20X28X24.5 20E7
28 63000315 EU 2028/SP-Z20 SEAL
29 7090350025 GASKET OR 34.60X2.62
(3137)

16 FAAC Model S450H 24V Hydraulic Swing Gate Operator
FAAC S450H
Hydraulic Operator
Diagram 3: Distribution Flange
Part Part
Number
Description
01 63000816 VALVE RING NUT
02 63000816 VALVE RING NUT
03 7090050015 GASKET OR 10.82X1.78
(2043)
04 4404085 STOP VALVE IN ZAMACK
05 7090350025 GASKET OR 34.60X2.62
(3137)
06 7090280015 GASKET OR 5.28X1.78
(2021)
07 63000826 RELEASE VALVE S450H
Part Part
Number
Description
08 4180315 593-595 COMMUTATING
PISTON
09 7090010015 SEAL OR 4.48X1.78 (2018)
10 63000676 S450H CB GEAR FLANGE
11 4404095 2006 SUCTION VALVE
12 63000836 VALVE SPACER FOR S450H
13 4404065 SUCTION VALVE WITH
SPRING

17
FAAC Model S450H 24V Hydraulic Swing Gate Operator
FAAC S450H
Hydraulic Operator
Diagram 4: Emergency Lock Release
Part Part
Number
Description
01 63001985 RELEASE ASSY S450H
02 7290445 2005 RELEASE HAND GRIP
03 7090895 21X2 N70B200V SEAL
04 7131005 KEY MOD. 3889.0913
05 7275275 CAP FOR LOCK 400/422
RELEASE 2005
06 63000666 S450H RELEASE PIN
