Faac C720 User manual

C720-C721

1) ATTENTION! To ensure the safety of people, it is

important that you read all the following instruc-

tions. Incorrect installation or incorrect use of the

product could cause serious harm to people.

2) Carefully read the instructions before beginning

to install the product.

3) Do not leave packing materials (plastic, poly-

styrene, etc.) within reach of children as such

materials are potential sources of danger.

4) Store these instructions for future reference.

5) This product was designed and built strictly for the

use indicated in this documentation. Any other use,

not expressly indicated here, could compromise

the good condition/operation of the product and/

or be a source of danger.

6) FAAC declines all liability caused by improper use

or use other than that for which the automated

system was intended.

7) Do not install the equipment in an explosive at-

mosphere: the presence of inflammable gas or

fumes is a serious danger to safety.

8) The mechanical parts must conform to the provi-

sions of Standards EN 12604 and EN 12605.

For non-EU countries, to obtain an adequate level

of safety, the Standards mentioned above must be

observed, in addition to national legal regulations.

9) FAAC is not responsible for failure to observe Good

Technique in the construction of the closing ele-

ments to be motorised, or for any deformation that

may occur during use.

10) The installation must conform to Standards EN 12453

and EN 12445.

For non-EU countries, to obtain an adequate level

of safety, the Standards mentioned above must be

observed, in addition to national legal regulations.

11) Before attempting any job on the system, cut out

electrical power.

12) The mains power supply of the automated system

must be fitted with an all-pole switch with con-

tact opening distance of 3 mm or greater. Use of

a 6A thermal breaker with all-pole circuit break is

recommended.

13) Make sure that a differential switch with threshold

of 0.03 A is fitted upstream of the system.

14) Make sure that the earthing system is perfectly

constructed and connect metal parts of the

closure to it.

15) The automated system is supplied with an intrinsic

anti-crushing safety device consisting of a torque

control. Nevertheless, its tripping threshold must be

checked as specified in the Standards indicated

at point 10.

16) The safety devices (EN 12978 standard) protect

any danger areas against mechanical movement

Risks, such as crushing, dragging, and shearing.

17) Use of at least one indicator-light (e.g. FAACLIGHT

) is recommended for every system, as well as a

warning sign adequately secured to the frame

structure, in addition to the devices mentioned

at point “16”.

18) FAAC declines all liability as concerns safety and

efficient operation of the automated system, if

system components not produced by FAAC are

used.

19) For maintenance, strictly use original parts by

FAAC.

20) Do not in any way modify the components of the

automated system.

21) The installer shall supply all information concern-

ing manual operation of the system in case of an

emergency and shall hand over to the user the

warnings handbook supplied with the product.

22) Do not allow children or adults to stay near the

product while it is operating.

23) Keep remote controls or other pulse generators

away from children, to prevent the automated

system from being activated involuntarily.

24) Transit is permitted only when the automated

system is idle.

25) The user must not attempt any kind of repair or

direct action whatever and contact qualified

personnel only.

26) Check at least every 6 months the efficiency of

the system, particularly the efficiency of the safety

devices (including, where foreseen, the operator

thrust force) and of the release devices.

27) Anything not expressly specified in these instruc-

tions is not permitted.

WARNINGS FOR THE INSTALLER

GENERAL SAFETY OBLIGATIONS

C720-C721 2 732568 - Rev.E

ENGLISH

Translation of the original instructions

CONTENTS

1 GENERAL REMARKS ........................................................................................................................................ 3

2 DESCRIPTION AND TECHNICAL SPECIFICATIONS ............................................................................................ 3

3 DIMENSIONS .................................................................................................................................................. 4

4 ELECTRIC EQUIPMENT (standard system).......................................................................................................4

5 INSTALLATION OF AUTOMATED SYSTEM ......................................................................................................... 4

5.1 PRELIMINARY CHECKS...................................................................................................................................... 4

5.2 MASONRY FOR FOUNDATION PLATE ............................................................................................................... 5

5.3 MECHANICAL INSTALLATION ........................................................................................................................... 6

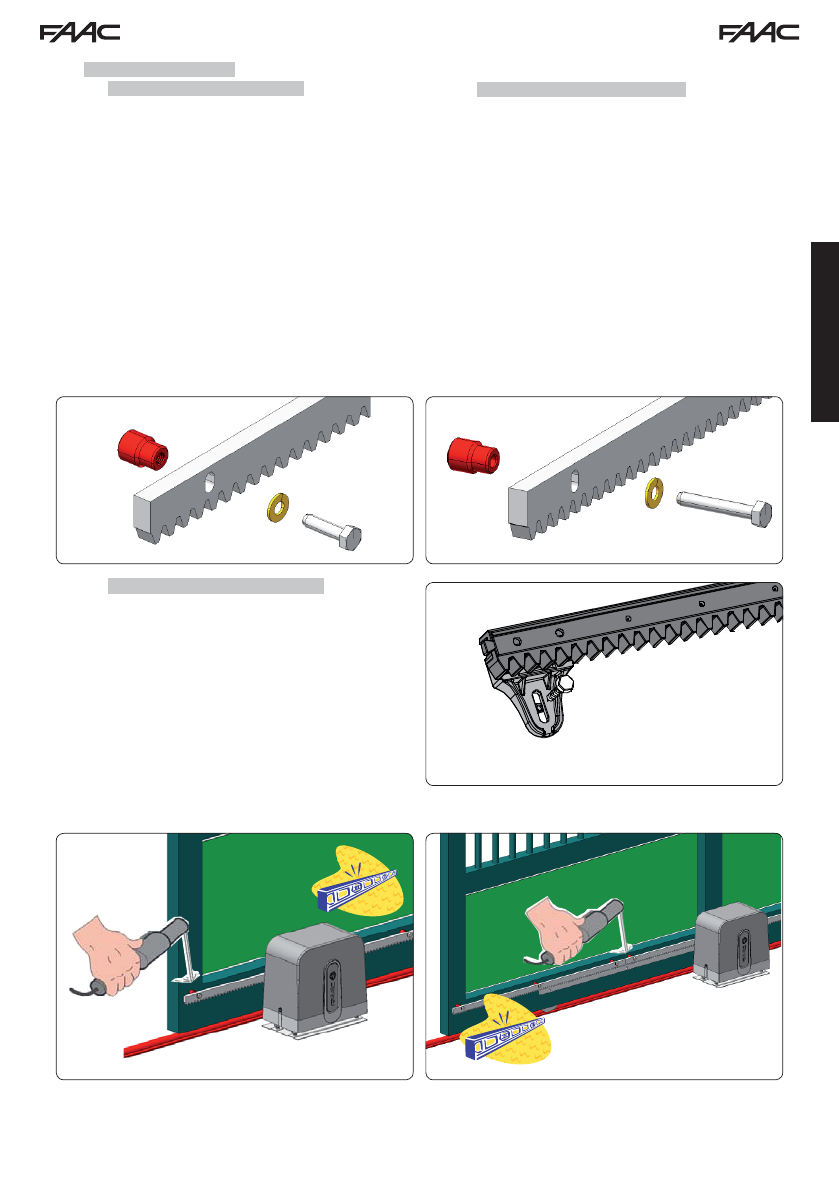

5.4 INSTALLING THE RACK......................................................................................................................................7

5.4.1 STEEL RACK TO WELD (Fig.11) ........................................................................................................................... 7

5.4.3 NYLON RACK TO SCREW (Fig. 13) .................................................................................................................... 7

5.4.2 STEEL RACK TO SCREW (Fig. 12) ....................................................................................................................... 7

6 OPERATIONAL START-UP ................................................................................................................................. 8

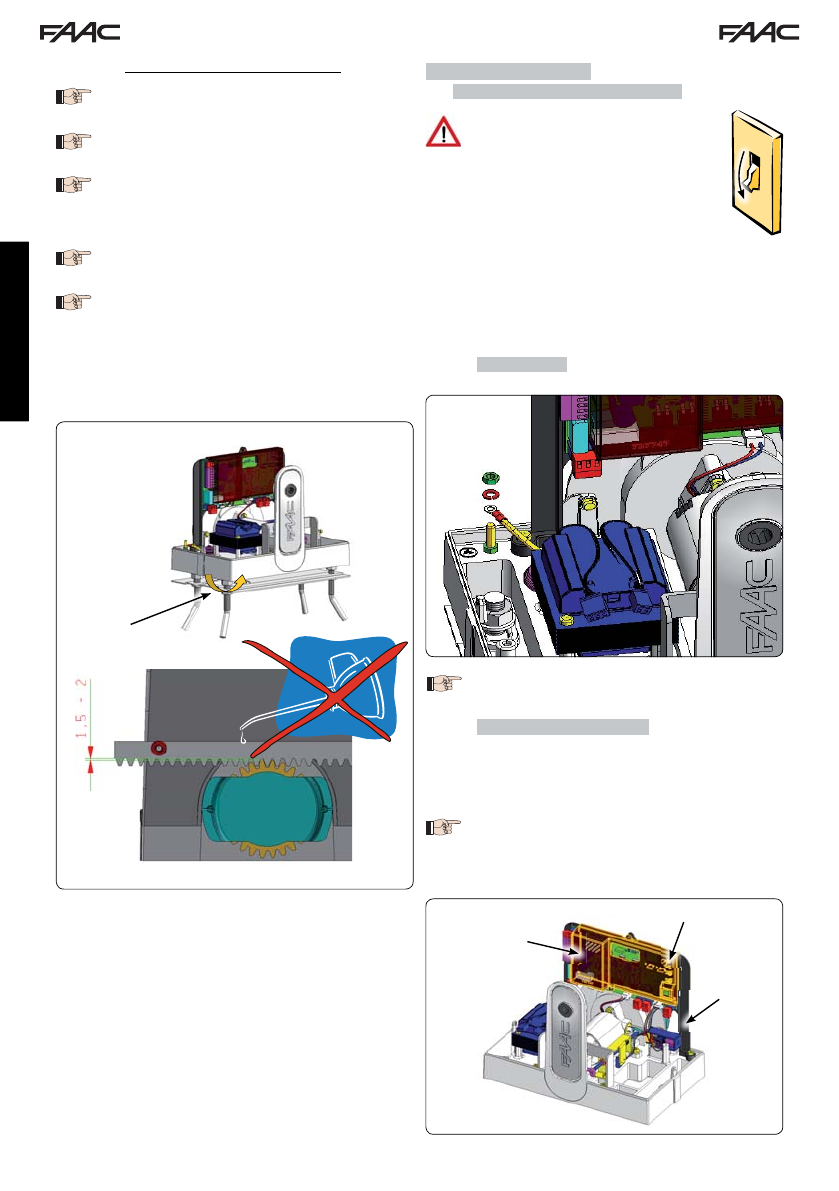

6.1 ELECTRONIC BOARD CONNECTION ................................................................................................................. 8

6.1.1 EARTHING ......................................................................................................................................................... 8

6.1.2 ELECTRONIC EQUIPMENT ................................................................................................................................. 8

6.2 POSITIONING OF LIMIT SWITCHES ................................................................................................................... 9

7 TESTING THE AUTOMATED SYSTEM .................................................................................................................9

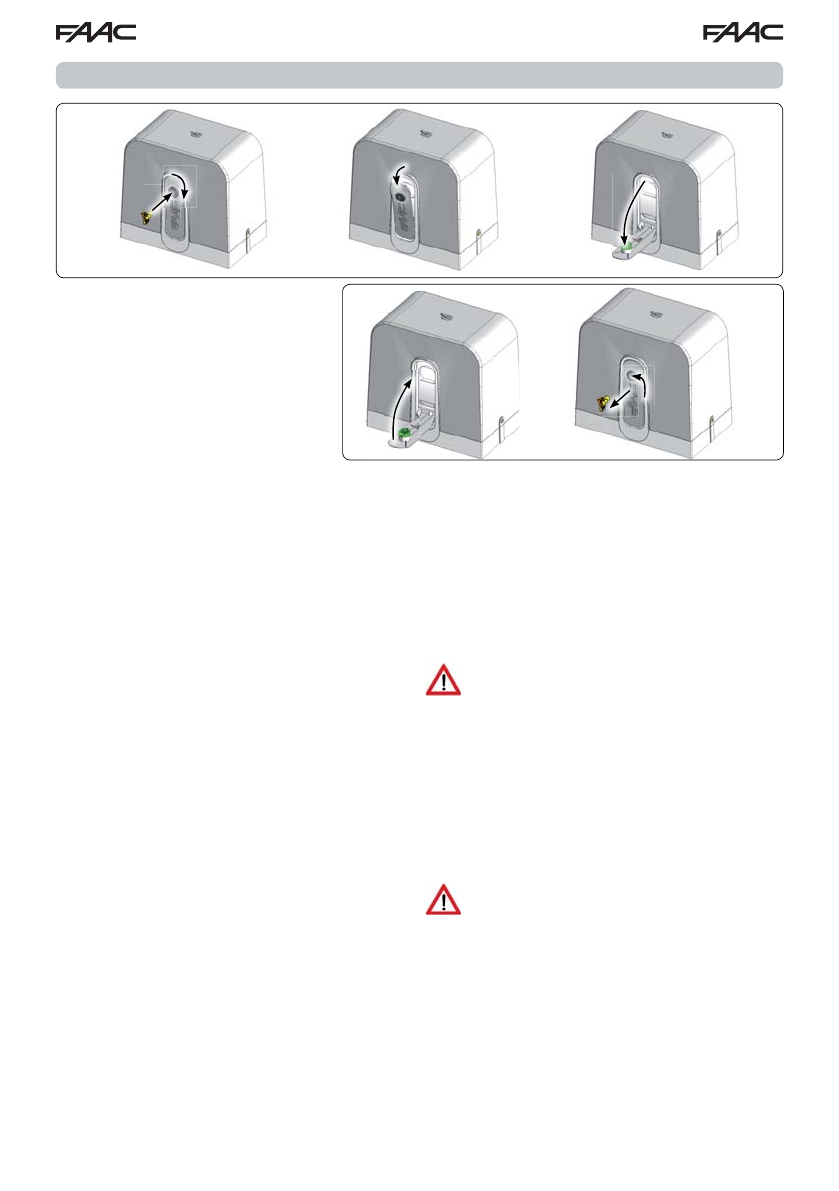

8 OPERATOR RELEASE/LOCK ............................................................................................................................. 9

9 MAINTENANCE ............................................................................................................................................ 10

10 REPAIR ....................................................................................................................................................... 10

11 ACCESSORIES ............................................................................................................................................ 10

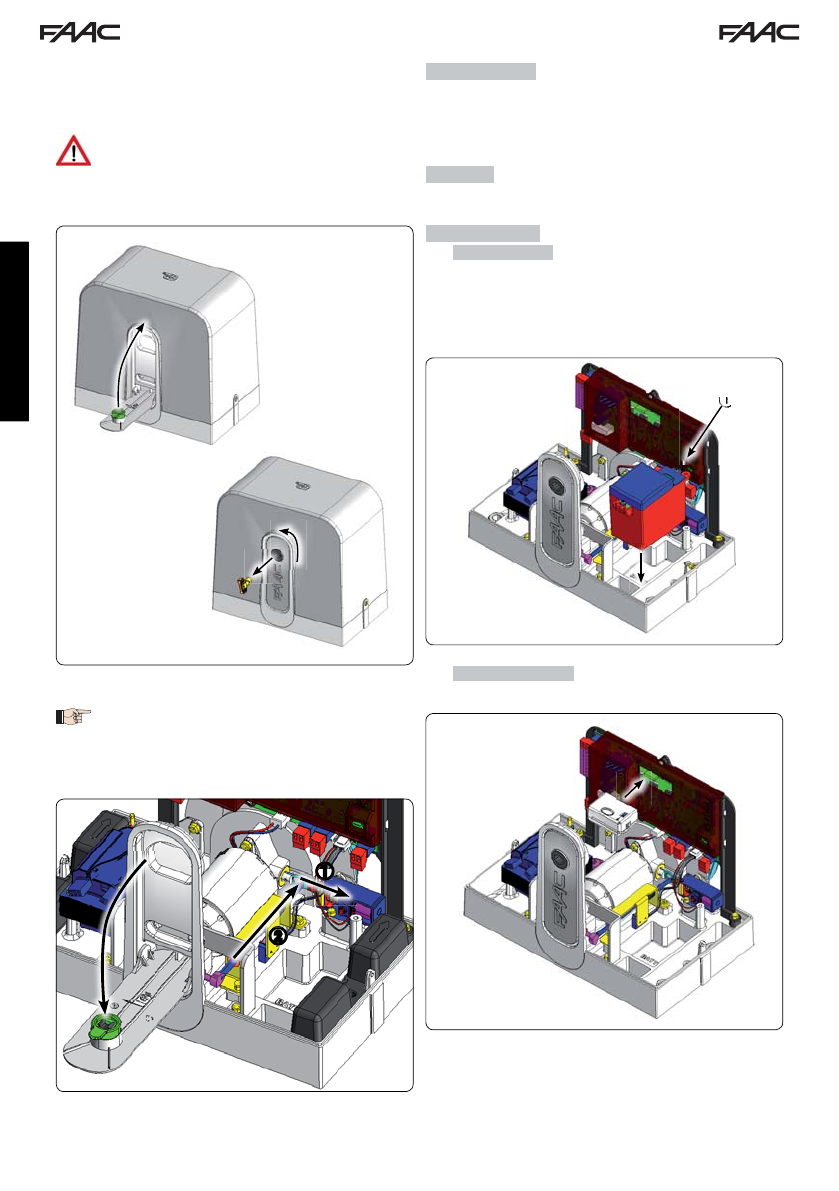

11.1 BATTERY KIT .................................................................................................................................................. 10

11.2 RADIO MODULE ............................................................................................................................................ 10

CE DECLARATION OF CONFORMITY FOR MACHINES

(DIRECTIVE 2006/42/EC)

Manufacturer: FAAC S.p.A.

Address: Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY

Declares that: Operator mod. C720 - C721

is built to be integrated into a machine or to be assembled with other machinery to create a machine under

the provisions of Directive 98/37/EC;

conforms to the essential safety requirements of the following EEC directives:

2006/95/EC Low Voltage Directive

2004/108/EC Electromagnetic Compatibility Directive

and also declares that it is prohibited to put into service the machinery until the machine in which it will be

integrated or of which it will become a component has been identified and declared as conforming to the

conditions of Directive 2006/42/EEC and subsequent amendments.

Bologna, 01-12-2011

The Managing Director

A. Marcellan

C720-C721 3 732568 - Rev.E

햲

햳

햴

햵

햶

햷

햸

햹

햺

Fig. 1

ENGLISH

Translation of the original instructions

C720 - C721

We thank you for choosing our products. We are certain that they will fully meet your needs with respect to the performance that

have been designed for.

These products have been designed and built to control vehicle access. AVOID ANY DIFFERENT USE.

Read this manual provided with the product carefully because it provides important information on safety,

installation, use and maintenance.

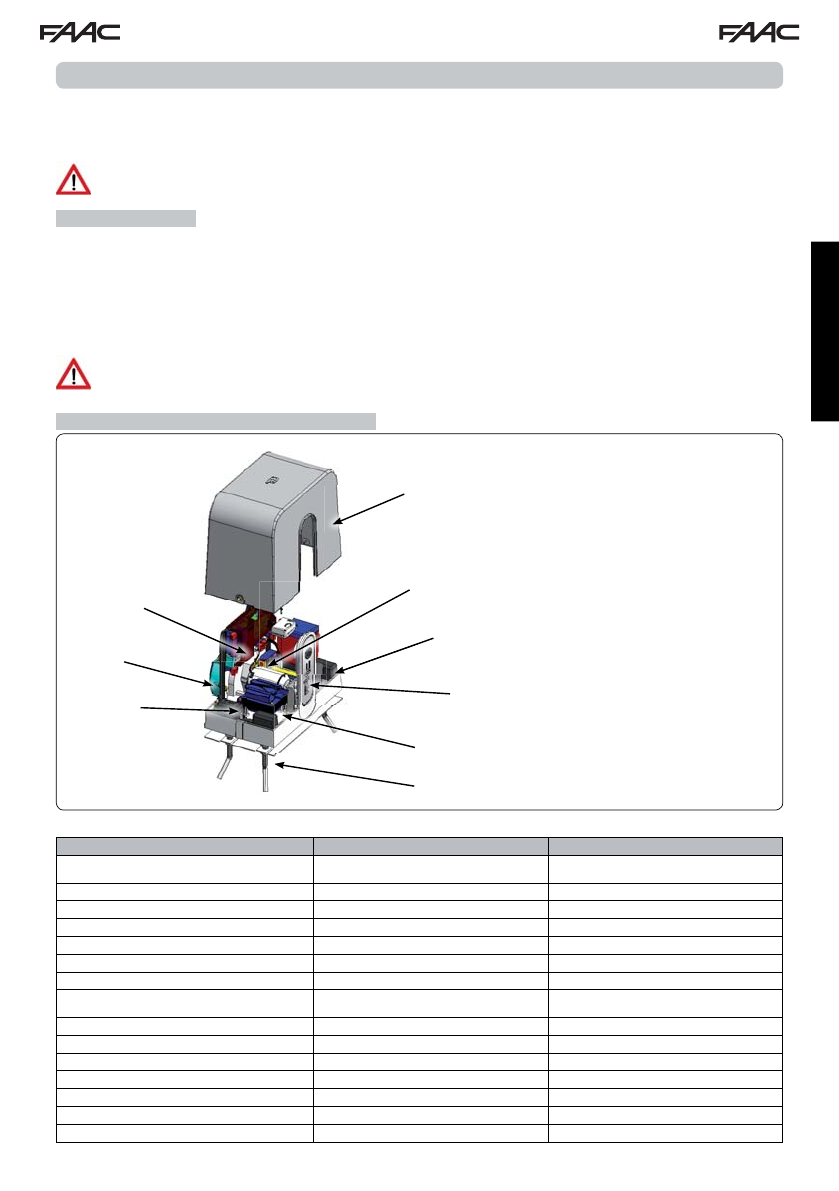

1 GENERAL REMARKS

These instructions apply to the following models:

C720 - C721

The above-mentioned models are electromechanical operators designed for sliding gates with different features and technical

specifications.

A practical and functional mechanical lock that acts directly on the motor ensures the gate is locked when the operator is not

working and, therefore, no electric lock needs to be installed.

A convenient manual release device allows the gate to be manoeuvred in the event of a power cut, if emergency batteries are

not installed or if the operator is not in service.

1. Cover casing

2. Motor lock

3. Link cover

4. Motor release handle

5. Transformer

6. Foundation plate

7. Cable passage holes

8. Pinion and pinion cover

9. Electronic board

2 DESCRIPTION AND TECHNICAL SPECIFICATIONS

These operators, in addition to having different features and technical specifications, also differ as to the following

components: motor (larger in the C721), transformer (larger in the C721), pinion (different materials), release lever

(different colours). These assembly instructions apply to both models, unless otherwise specified.

MODEL C720 C721

Power supply 230 V VERSION : 230 V~ 50 Hz

115V VERSION : 115 V~ 60 Hz 230 V~ 50 Hz

Max. Absorbed power (W) 170 290

Thrust on pinion (N) 320 530

Max. Torque (Nm) 18 30

Type of pinion Z28 module 4 Z28 module 4

Gate max. recommended length (m)

15 15

Max. leaf weight (Kg) 400 800

Gate speed (m/min) min 8

max 18

min 8

max 18

Limit switch type Magnetic Magnetic

Clutch Electronic Electronic

Operating temperature (°C) -20 +55 -20 +55

Gearmotor weight (kg) 610

Protection class IP44 IP44

Gearmotor dimensions See Fig.2 See Fig.2

Use frequency RESIDENTIAL RESIDENTIAL

C720-C721 4 732568 - Rev.E

Fig. 3

Fig. 2

쐃

쐇

쐋

쐏

쐄

ENGLISH

Translation of the original instructions

Dimensions in mm

1. Operator

2. Flashing lamp

3. 2easy-BUS Photocells

4. Conventional photo-

cells

5. Key-operated control

5 INSTALLATION OF AUTOMATED SYSTEM

5.1 PRELIMINARY CHECKS

To ensure safety and an efficiently operating automated system, make sure the following conditions are observed:

• The gate structure must be suitable for automation. The following are necessary in particular: wheel diameter must be in

proportion to the weight of the gate to be automated, an upper guide must be provided, plus mechanical limit switches to

prevent the gate derailing.

• The gate slide track must be linear and horizontal.

• Manual movement of the gate must be easy throughout its travel.

• The soil must permit sufficient stability for the foundation plinth.

• There must be no pipes or electric cables in the plinth excavation area.

• If the gearmotor is exposed to passing vehicles, install, if possible, adequate means of protection against accidental im-

pact.

• Check if an efficient earthing is available for connection to the gearmotor.

If the elements checked do not meet the above requirements, arrange to ensure their compliance.

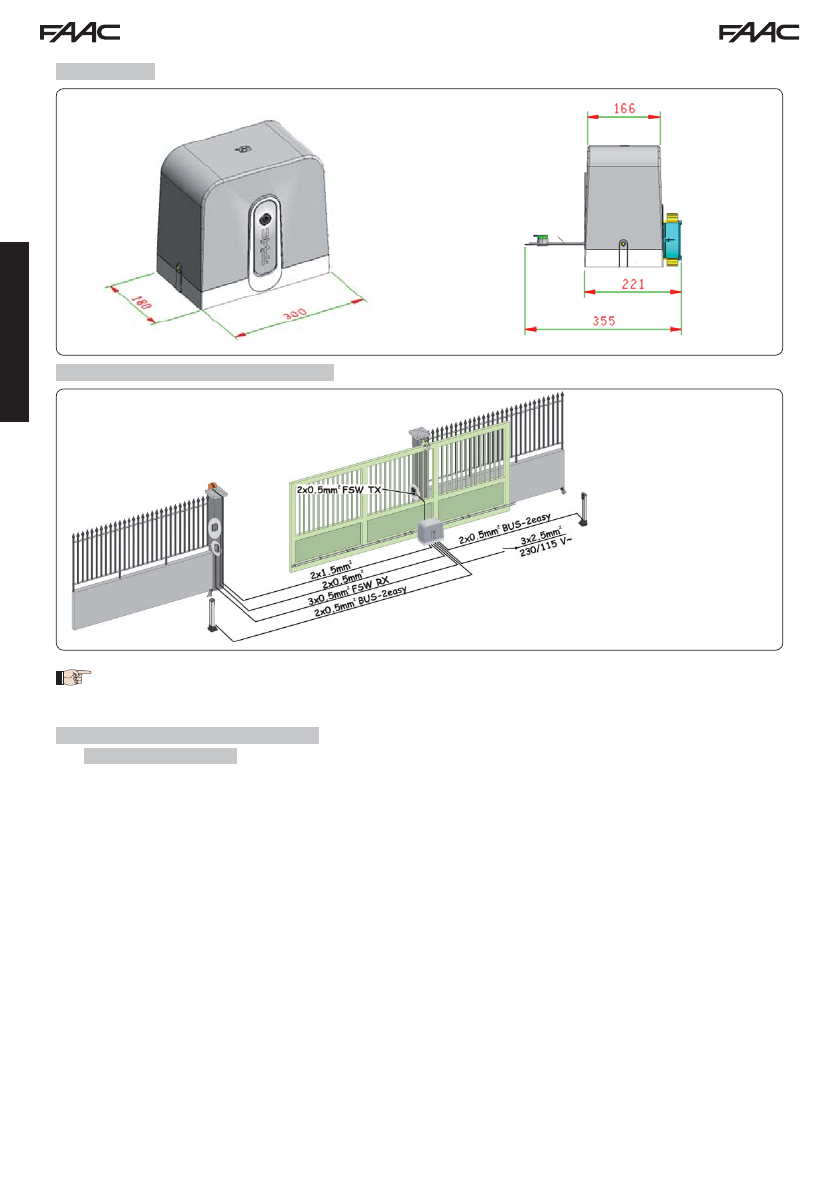

3 DIMENSIONS

4 ELECTRIC EQUIPMENT (standard system)

The dimensions and electrical preparations (standard system) are the same for operator C720 and for

operator C721

C720-C721 5 732568 - Rev.E

Fig. 4

Fig. 6

Fig. 7

300

Fig. 5

ENGLISH

Translation of the original instructions

5.2 MASONRY FOR FOUNDATION PLATE

1. Assemble the foundation plate as shown in Fig. 4.

2. The foundation plate must be located as shown in Fig. 5

(right closing) or Fig. 6 (left closing) to ensure the rack and

pinion mesh correctly.

Dimensions in mm

Positioning of plate with

GALVANISED STEEL rack

NYLON rack

right closure

Positioning of plate with

GALVANISED STEEL rack

NYLON rack

left closure

Dimensions in mm

This symbol must

always face to-

wards the gate

3. Prepare a foundation plinth as shown in Fig. 7 and wall in the

foundation plate, supplying one or more sheaths for routing

electric cables through the hole in the foundation plate.

Using a spirit level, check if the plate is perfectly

level.

Wait for the cement to set.

4. Lay the electric cables for connection to the accessories

and power supply as shown in Fig. 3.

To facilitate the connections in the control unit,

pull out the leads by at least 30 cm from the

hole on the plate.

Dimensions

in mm

Dimensions

in mm

C720-C721 6 732568 - Rev.E

Fig. 8

Fig. 10

Fig. 9

햲

ENGLISH

Translation of the original instructions

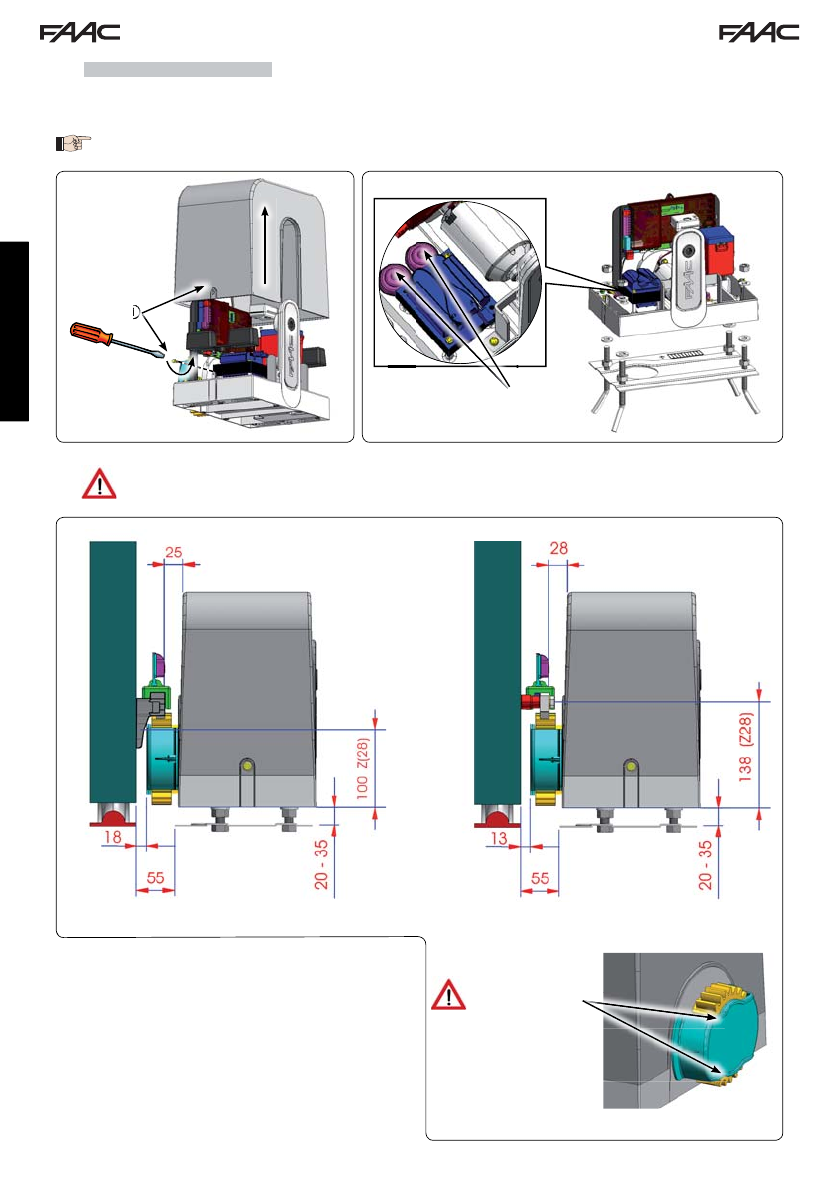

5.3 MECHANICAL INSTALLATION

1. Remove the cover casing by loosening the two suitable side bolts and lifting it (Fig. 8).

2. Position the operator on the foundation plate using the nuts and washers provided as shown in Fig. 9. During this operation,

pass the cables though openings in the motor casing (see Fig. 9 re. 햲).

Dimensions in mm with rack in

REINFORCED NYLON

Dimensions in mm with rack in

GALVANISED STEEL

3. Adjust the height of the gearmotor and the distance from the gate with reference to the dimensions in Fig. 10.

Operation required for correct fastening of the rack and to keep open the option of new adjustments.

4. Secure the gearmotor to the plate by tightening the fasten-

ing nuts.

5. Prepare the gearmotor for manual operating mode as

described in paragraph 8.

Make sure that

t h e g a t e , o r

the gate, or

p a r t s o f i t ,

parts of it,

do e sn’t t ou c h th e

doesn’t touch the

pinion support during

the whole movement.

Fig. 8 and Fig. 9 refer to operator C720

C720-C721 7 732568 - Rev.E

Fig. 11 Fig. 12

Fig. 13

Fig. 14 Fig. 15

ENGLISH

Translation of the original instructions

5.4 INSTALLING THE RACK

5.4.1 STEEL RACK TO WELD (Fig.11)

1. Place the three threaded pawls on the rack element, posi-

tioning them at the top of the slot. In this way, the slot play

will enable any adjustments to be made.

2. Manually take the leaf into its closing position.

3. Lay the first piece of rack level on the pinion and weld the

threaded pawl on the gate as shown in Fig. 14.

4. Move the gate manually, checking if the rack is resting on

the pinion, and weld the second and third pawls.

5. Bring another rack element near to the previous one, using a

piece of rack (as shown in Fig. 15), to synchronise the teeth

of the two elements.

6. Move the gate manually and weld the three threaded pawls,

thus proceeding until the gate is fully covered.

5.4.2 STEEL RACK TO SCREW (Fig. 12)

1. Manually take the leaf into its closing position.

2. Lay the first piece of rack level on the pinion and place the

spacer between the rack and the gate, positioning it at

the top of the slot. In this way, the slot play will enable any

adjustments to be made.

3. Mark the drilling point on the gate. Drill a Ø 6.5 mm hole and

apply thread with a Ø 8 mm male tap. Screw the bolt.

4. Move the gate manually, checking if the rack is resting on

the pinion, and repeat the operations at point 3.

5. Bring another rack element near to the previous one, using

a piece of rack (as shown in figure 15) to synchronise the

teeth of the two elements.

6. Move the gate manually and carry out the securing opera-

tions as for the first element, thus proceeding until the gate

is fully covered.

5.4.3 NYLON RACK TO SCREW (Fig. 13)

1. Manually take the leaf into its closing position.

2. Lay the first piece of the rack level on the pinion and mark

the drilling point on the gate; drill Ø 5.2 mm and screw in

the self-tapping screw provided with its reinforcing plate.

3. Move the gate manually, checking if the rack is resting on

the pinion, and repeat the operations at point 2.

4. Couple another rack element and fit to the previous ele-

ment.

5. Move the gate manually and carry out the securing opera-

tions as for the first element, thus proceeding until the gate

is fully covered.

C720-C721 8 732568 - Rev.E

Fig. 16

햲

OFF

Fig. 17

Fig. 18

햲

햳

햴

ENGLISH

Translation of the original instructions

Important notes on rack installation:

Make sure that, during the gate travel, all the

rack elements do not exit the pinion.

Do not, on any account, weld the rack elements

either to the spacers or to each other.

When the rack has been installed, to ensure it

meshes correctly with the pinion, we advise you

to lower the gearmotor position by about 1.5

- 2 mm by adjusting the nuts (Fig.16 re. 햲).

Do not use grease or other lubricants between

rack and pinion (Fig. 16)

Manually check if the gate regularly reaches

the mechanical limit switches and make sure

there is no friction during gate travel.

6 OPERATIONAL START-UP

6.1 ELECTRONIC BOARD CONNECTION

Before attempting any work on the control

board (connections, programming, mainte-

nance), always turn off power.

• Observe points 10, 11, 12, 13, 14 of the GENERAL

SAFETY OBLIGATIONS.

• Follow the instructions in Fig. 3 to arrange the cables

in the ducts and make the electrical connections

with the selected accessories.

• Always separate power cables from control and safety ca-

bles (push-button, receiver, photocells, etc.).

• Use separate sheaths in order to avoid any electrical inter-

ference.

6.1.1 EARTHING

Connect the earth cable as described in Fig.17.

6.1.2 ELECTRONIC EQUIPMENT

The electronic control equipment in the gearmotors is fastened

to a mount (Fig. 18 re. 햲) with a clear cover (Fig. 18 re. 햳).

The board programming buttons are positioned on the cover

(Fig.18 re. 햴) and this makes it possible to programme the board

without having to remove the cover.

To connect and program the control unit cor-

rectly, observe the specific instructions.

Dimensions

in mm

Fig. 17 refers to operator C720

C720-C721 9 732568 - Rev.E

Fig. 19

햳

햴

Fig. 20

햲

햳

햴햴

햴

햲햳햴

Fig. 21

ENGLISH

Translation of the original instructions

6.2 POSITIONING OF LIMIT SWITCHES

To ensure correct positioning of the limit switch magnets, the control unit must be installed and correctly con-

nected with all control and safety accessories .

The operator is equipped with a magnetic limit switch sensor built directly into the electronic control board.

The gate is stopped, during opening or closure, at the moment when the polarised magnet secured to the upper part of the rack

activates the sensor.

Assemble both magnets as shown in Fig. 19.

Prepare the operator for manual operating mode as described in chapter 8 and power the system.

To position the limit switch on the rack, refer to the electronic equipment instructions.

To avoid damage to the operator and/or interruptions in the operation of the automated system, approximately

40 mm must be left from the mechanical limit switches.

7 TESTING THE AUTOMATED SYSTEM

Once the operator has been installed, carry out a thorough

operational check of all accessories and connected safety

devices.

Press-fit the plastic covers of the operator fastening bolts, ensuring

that the arrow is facing the gate (Fig. 20 re. 햲), insert the cover

casing (Fig. 20 re. 햳) and fasten it by the two suitable side bolts

(Fig. 20 re. 햴).

Give the Customer the "User Guide" and explain the correct op-

eration and use of the gearmotor, highlighting potential high-risk

areas of the automated system.

8 OPERATOR RELEASE/LOCK

During the release/lock manoeuvre, take care

to prevent an involuntary pulse from operating

the gate.

Proceed as follows to release the gearmotor:

1. Turn the release clockwise as shown in Fig. 21 re. 햲. The

release lever will move slightly away from the operator body

(Fig. 21 re. 햳)

2. Fully lower the release lever to the mechanical stop Fig. 21

re. 햴.

3. Carry out the opening or closing manoeuvre manually.

C720-C721 10 732568 - Rev.E

햳

햲

Fig. 22

Fig. 24

햲

햲햲

햲

Fig. 25

Fig. 23

쐃

쐇

쐇쐇

쐃쐃

ENGLISH

Translation of the original instructions

Proceed as follows to lock the gearmotor:

1. Fully raise the release lever to the mechanical stop, Fig. 22

re. 햲.

2. Turn the release anticlockwise as shown in Fig. 22 re. 햳.

To maintain the operator intact, avoid pulsing

the gate to operate before resetting the lock

system.

9 MAINTENANCE

It is advisable to check the efficiency of the system at least

every 6 months, particularly the efficiency of the safety devices

(including the motor thrust force, which must comply with current

standards) and of the release devices.

10 REPAIR

Contact an authorised Repair Centre for repairs.

11 ACCESSORIES

11.1 BATTERY KIT

Install the battery kit as shown in Fig. 24, inserting it in its seat and

securing with screw re. 햲. Connect it to the appropriate con-

nector on the board (see relevant instructions).

Refer to the specific instructions for all information on the bat-

tery kit.

11.2 RADIO MODULE

Install the radio module as shown in Fig. 25.

Lowering the release lever, both the motor lock,

which is retracted (Fig. 23 re. 햲), and the safety

microswitch forcing the automation to STOP (Fig.

23 re. 햳) are operated.

햳

햲

Fig. 2

햲햳 햴

Fig. 1

Read the instructions carefully before using the

product and keep for any future needs.

GENERAL SAFETY REGULATIONS

The C720 and C721 automated systems, if

correctly installed and used, guarantee a high

level of safety.

Obeying some simple rules can also prevent

accidental problems:

• Do not allow children or adults to stay near the

automated system, particularly avoid it while

it is operating.

• Keep radiocontrols or other pulse generators

away from children, to prevent the automated system from

being activated involuntarily.

• Do not allow children to play with the automated system.

• Do not forcibly restrain the gate's movement.

• Prevent branches or shrubs from interfering with gate

movement.

• Keep the illuminated signalling systems efficient and very

visible.

• Do not attempt to operate the gate by hand until it has

been released.

• In the event of malfunction, release the gate to allow access

and wait for qualified technical personnel to repair it.

• Once manual operating mode has been set, turn off

the power supply to the system before restoring normal

operation.

• Do not in any way modify the components of the automated

system.

• The user must not attempt any kind of repair or direct action

whatever and contact qualified personnel only.

• Ensure the efficiency of the automated device, the safety

devices and the earth connection are checked at least every

six months by qualified personnel.

DESCRIPTION

The C720 and C721 automated systems are ideal for controlling

vehicle access areas with average transit frequency.

The C720 and C721 automated systems for sliding gates are

electromechanical operators that transmit the motion to the

sliding leaf using a rack and pinion.

The operation of the sliding gate is managed by an electronic

control device housed inside the operator or in a watertight

outdoor container.

When the device receives an opening command via a

radiocontrol or any other suitable device with the gate closed, it

operates the motor until the gate reaches its open position.

If automatic operation has been selected, the gate re-closes by

itself after the selected pause time.

If semi-automatic operating mode has been selected, a second

pulse must be sent to re-close the gate.

An opening pulse issued during the re-closing stage always causes

a reversal of motion.

A stop pulse (if applicable) always stops motion.

The warning light indicates the current gate movement.

For the detailed behaviour of the sliding gate during the various

operating modes, consult the installing technician.

The automated systems contain obstacle detection and/or safety

devices (photocells, edges) that prevent the gate closing when

an obstacle is located in the scanned area.

The system ensures the gate is mechanically locked when

the motor is not operating and no lock therefore needs to be

installed.

Manual opening is therefore only possible if the appropriate release

system is operated.

The gearmotor is equipped with a device with electronic anti-

crushing system that offers the necessary safety if the gate

should strike an obstacle during its motion by causing it to reverse

direction immediately.

A handy manual release makes it possible to move the gate in

the event of a power cut (if no back-up batteries are installed)

or malfunction.

MANUAL OPERATION

During the release/lock manoeuvre, take care

to prevent an involuntary pulse from operating

the gate.

Proceed as follows to release the gearmotor:

1. Turn the release clockwise as shown in Fig. 1 re. 햲. The

release lever will move slightly away from the operator body

(Fig. 1 re. 햳)

2. Fully lower the release lever to the mechanical stop Fig. 1

re. 햴.

3. Carry out the opening or closing manoeuvre manually.

RESTORING NORMAL OPERATION

Proceed as follows to lock the gearmotor:

1. Fully raise the release lever to the mechanical stop, Fig. 2

re. 햲.

2. Turn the release anticlockwise as shown in Fig. 2 re. 햳.

To maintain the operator intact, avoid pulsing

the gate to operate before resetting the release

system.

MAINTENANCE

It is advisable to check the efficiency of the system at least

every 6 months, particularly the efficiency of the safety devices

(including the motor thrust force, which must comply with

current standards) and of the release devices.

REPAIRS

Contact an authorised Repair Centre for repairs.

AVAILABLE ACCESSORIES

Refer to the catalogue for the available accessories.

C720 - C721 USER GUIDE

SEDE - HEADQUARTERS

FAAC S.p.A.

Via Calari, 10

40069 Zola Predosa (BO) - ITALY

Tel. +39 051 61724 - Fax +39 051 758518

www.faac.it - www.faacgroup.com

SUBSIDIARIES

AUSTRIA

FAAC GMBH

Salzburg - Austria

tel. +43 662 8533950

www.faac.at

FAAC TUBULAR MOTORS

tel. +49 30 56796645

[email protected]

www.faac.at

AUSTRALIA

FAAC AUSTRALIA PTY LTD

Homebush, Sydney - Australia

tel. +61 2 87565644

www.faac.com.au

BENELUX

FAAC BENELUX NV/SA

Brugge - Belgium

tel. +32 50 320202

www.faacbenelux.com

FAAC TUBULAR MOTORS

tel. +31 475 406014

[email protected]

www.faacbenelux.com

CHINA

FAAC SHANGHAI

Shanghai - China

tel. +86 21 68182970

www.faacgroup.cn

FRANCE

FAAC FRANCE

Saint Priest, Lyon - France

tel. +33 4 72218700

www.faac.fr

FAAC FRANCE - AGENCE PARIS

Massy, Paris - France

tel. +33 1 69191620

www.faac.fr

FAAC FRANCE - DEPARTEMENT

VOLETS

Saint Denis de Pile - Bordeaux - France

tel. +33 5 57551890

www.faac.fr

ASSISTENZA IN ITALIA

SEDE

tel. +39 051 6172501

www.faac.it/ita/assistenza

FIRENZE

tel. +39 055 301194

[email protected]

GERMANY

FAAC GMBH

Freilassing - Germany

tel. +49 8654 49810

www.faac.de

FAAC TUBULAR MOTORS

tel. +49 30 5679 6645

[email protected]

www.faac.de

INDIA

FAAC INDIA PVT. LTD

Noida, Delhi - India

tel. +91 120 3934100/4199

www.faacindia.com

IRELAND

NATIONAL AUTOMATION LIMITED

Boyle,Co. Roscommon - Ireland

tel. +353 071 9663893

www.faac.ie

MIDDLE EAST

FAAC MIDDLE EAST FZE

Dubai Silicon Oasis free zone

tel. +971 4 372 4187

www.faac.ae

NORDIC REGIONS

FAAC NORDIC AB

Perstorp - Sweden

tel. +46 435 779500

www.faac.se

POLAND

FAAC POLSKA SP.ZO.O

Warszawa - Poland

tel. +48 22 8141422

www.faac.pl

RUSSIA

FAAC RUSSIA LLC

Moscow - Russia

tel. +7 495 646 24 29

www.faac.ru

MILANO

tel +39 02 66011163

[email protected]

PADOVA

tel +39 049 8700541

[email protected]

ROMA

tel +39 06 41206137

[email protected]

TORINO

tel +39 011 6813997

[email protected]

SPAIN

CLEM, S.A.U.

S. S. de los Reyes, Madrid - Spain

tel. +34 091 358 1110

www.faac.

SWITZERLAND

FAAC AG

Altdorf - Switzerland

tel. +41 41 8713440

www.faac.ch

TURKEY

FAAC OTOMATİK GEÇİS SİSTEMLERİ

SAN. VE TİC. LTD. ŞTİ.

Çağlayan, Kağıthane, İstanbul - Turkey

tel.+90 (0)212 – 3431311

www.faac.com.tr

UNITED KINGDOM

FAAC UK LTD.

Basingstoke, Hampshire - UK

tel. +44 1256 318100

www.faac.co.uk

U.S.A.

FAAC INTERNATIONAL INC

Rockledge, Florida - U.S.A.

tel. +1 904 4488952

www.faacusa.com

FAAC INTERNATIONAL INC

Fullerton, California - U.S.A.

tel. +1 714 446 9800

www.faacusa.com

732568 - Rev.E

Other manuals for C720

This manual suits for next models

Table of contents

Popular Gate Opener manuals by other brands

F&F

F&F FOX Wi-TO2S2 manual

V2 ATRIS-700 user manual

Mhouse

Mhouse MhouseKit WS2S installation instructions

Calimet

Calimet CM6 Installation and owner's manual

fadini

fadini Junior 633 instruction manual

SOMFY

SOMFY Dexxo Compact RTS installation instructions

GATEMASTER

GATEMASTER 900 HD installation manual

CAME

CAME F1024 installation manual

Beninca

Beninca DU.30V Operating instructions and spare parts catalogue

Chamberlain

Chamberlain ART300 series manual

Life

Life Optimo OP3 Instructions and warnings for installation, use and maintenance

Genius

Genius Falcon 14 installation instructions

Mighty Mule

Mighty Mule Mighty Mule installation manual

Chamberlain

Chamberlain LC-36A quick start guide

AES

AES iGate 1200 quick start guide

vds

vds LINEAR-11 Technical installation manual

RIB

RIB SUPER 6000 manual

CAME

CAME 8K01MP-0408 Quick setup guide

FAAC C720 User manual

Popular Gate Opener manuals by other brands
