Contents

The procedures in this Guide require the user to perform
certain sequential actions on the SMARTGUARDair keypad.
To assist you, the combined state of the three LED indicators
on the keypad correspond with particular steps within a
procedure. When carrying out the procedures, please be
aware of the following:
The factory default Master Code ( is used
throughout this Guide as an example only. Refer to page 6
for instructions on how to change the Master Code.
Indicates a particular key to be pressed on the keypad
by the user
Indicates a lit LED
[ ] Indicates optional entries. If no variable is entered, the
system will use the default for the particular function,
where applicable
How to use this Guide
3 41 2
1
page 1

The CENTURION SMARTGUARDair is a durable, high quality
keypad designed to provide secure access control to
restricted areas. The weatherproof unit is wireless, and is
powered by two AA alkaline (penlight) batteries. When any
key is pressed, a backlight illuminates the keypad for ease of
use in low-light conditions.
Access is granted by the keying in of a valid access code.
The access code can vary from one to ten digits. Up to one
thousand different access codes can be stored within the
unit’s non-volatile memory.
Each access code is stored in a location of the memory,
referred to as an ‘address’.
New codes can be added and existing codes can be deleted
as required.
‘Token codes’ can be added, allowing only a preset number
of activations, after which the code automatically becomes
invalid.
Channel 3 is used as the Alarm Channel (refer to page 28)
and cannot be changed. If alarm functionality is required,
then it is advisable that Channel 3 is not assigned to any
other function.
Each code can activate one of fifteen channels built into the
SMARTGUARDair. A channel is very much the same as a
remote control button. Each channel can activate an external
CENTURION rolling code-compatible receiver, either stand-
alone, single channel, multichannel or integrated into
products such as the D5-Evo, D10, VECTOR2, etc.
General description
page 2

An Anti-hack feature can be enabled, causing the unit to
shut down after a pre-selected number of incorrect codes
have been entered. The unit will then reset after a pre-
selected time. A telltale LED will indicate that the Anti-hack
feature has been triggered.
Once programmed, the system can be backed up onto the
optional Backup Memory Module (Code PCA12201V1.0).
This allows the system to be easily restored if required.
An optional independent Anti-tamper Switch can be fitted
and wired internally to transmit an alarm signal if the unit
has been forced open, or removed from its mountings.
page 3

After a user has been added to the SMARTGUARDair’s
memory and the keypad has been paired with a compatible
rolling code receiver, access is granted by keying in a valid
code and confirming the entry with the #key.
For example, if the code is being used as
an access code, the user will enter the digits in sequence
and then press # . The green LED will illuminate briefly to
indicate that a valid access code has been entered. Briefly
pressing the # key after a code has been entered will
cause the SMARTGUARDair to transmit a signal for a
minimum of 750ms (milliseconds). However, holding down
the # key will allow for a transmission of up to eight
seconds which will accommodate receivers requiring longer
transmission times. (This may be referred to as Hash-Hold.)
General use
#
#
#
#
8 52 69
page 4

Powering up
In order to preserve battery life, the unit is packed
with the link fitted on the 12V side of the power
selection pins.
To select batteries as the primary power
source, bridge the pin marked ‘AA BATT’ with
the common (centre) pin.
For information on selecting 12V as the primary
power source, refer to page 36.
page 5

Glossary of terms
Access code
The code number the user will enter to gain access.
It can range in length from one to ten digits.
Address/User address
The location where the user’s code is stored in the keypad
memory. It can be any number between 1 and 999.
It should be recorded, allowing the user code to be
removed from the memory later if necessary.
Master Code
The code number required for programming the keypad.
It is stored in user address 0.
The default Master Code of a new unit
is .
For security reasons, the installer should
change this code at the time of installation.
Although 1234 is the default Master Code, up
to ten digits per code may be specified, and is
encouraged to improve security.
Refer to page 11 for instructions on how to change
the Master Code.
3 41 2
Enter key
In order to gain access, the user code must be followed by
the key. (Refer to General use section on page 4.)
#
#
page 6

Add a new access code at a specified address.
The code will operate Channel 1 only.
The following KwikLearn procedure and connection diagrams
(see pages 35 and 36) will enable you to start using your
SMARTGUARDair system right away.
KwikLearn
The SMARTGUARDair will have to be paired to a
valid receiver before a code will be able to activate it.
Thus, the KwikLearn procedure will store a new code
in the keypad’s memory, but the code will still have
to be associated with a receiver using either the
KwikPair facility described on page 9, or the Pairing
procedure on page 17.
1

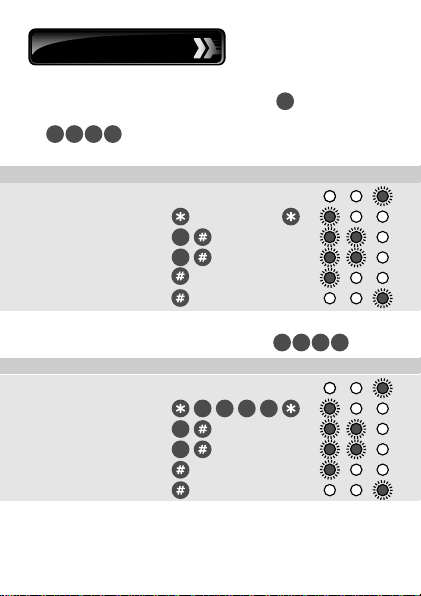

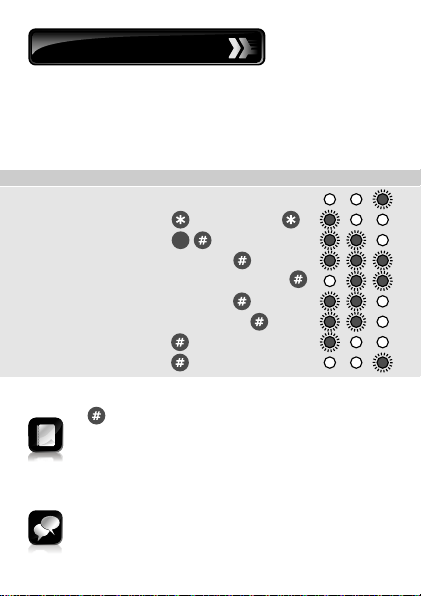

1.Enter Program Mode Master Code
2.Select KwikLearn
3.Enter user address
4.Enter access code new access code
1Default Master Code=1234
Indicator LEDs
Enter the following keystrokes:
0
0
STANDBY
page 7

Example:
KwikLearn access code into address
Master Code=
25
9 3 42 5
1.Enter Program Mode
2.Select KwikLearn
3.Enter user address
4.Enter access code
Enter the following keystrokes:
Indicator LEDs
0
3
32
4
44 5
1
19
2
23 2 5
page 8
STANDBY

The SMARTGUARDair must now be paired with a
CENTURION rolling code radio receiver.
1. Place the receiver into Learn Mode.
2. Enter a valid access code on the SMARTGUARDair,
followed by .
The SMARTGUARDair will now transmit for a short
time, and will pair with the receiver.
Hash-Hold may be used (as described on page 4) to
extend the transmission time to suit the learning
procedure associated with certain types of receivers.
3. Exit Learn Mode on the receiver
4. Test the system by entering a valid access code,
followed by .
KwikPair
page 9

Battery supply voltage
External power supply
Wireless range
Operating temperature
Operating humidity
Output
Housing material
Degree of protection
Battery life
Code length
Memory capacity
Memory retention
Token codes
Only replace with Alkaline batteries. Other types of batteries (NiMH,
Li-Ion, etc. ) as well as rechargeable batteries cannot be used with
this product.
Specified as Line of Sight (LOS) range
Non-condensing
Subject to usage - refer to table in the Battery Low Indication
Section on page 33
2 x AA Alkaline batteries
(voltage range: 2.6V - 3.3V)
External 12V DC power supply
30 metres
-18°C to +55°C
0 - 90%
14 standard channels + one alarm
channel
Polycarbonate
IP55
Two to five years
One to ten digits
1000 unique codes (non-volatile )
>200 years
1 - 254 activations
Technical specifications
page 10

1.Enter Program Mode
2.Select KwikLearn
3.Enter address
4.Enter access code
The following procedure will enable the user to change the
default Master Code or the currently stored
Master Code to a new Master Code. The Master Code may
also be learned into the system by following the procedure
on page 12, ‘Adding a New User’.
Enter the following keystrokes:
Indicator LEDs

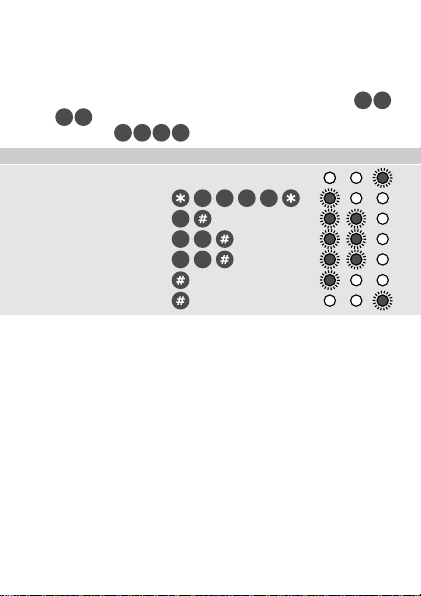

Example: Replace the default Master Code with
a new Master Code = 3\
0
0
3 7 8 1
3 4
Changing the Master Code
?
TheMasterCodemustalways bestoredataddress
?
The Master Code can be used as a normal access
codeandcanbe upto ten digits long
1
1.Enter Program Mode Master Code
2.Select KwikLearn
3.Enter address
4.Enter new code Master Code
1Default Master Code=
Indicator LEDs
Enter the following keystrokes:
0
0
0
1 2
3 41 2
3 41 2
3 41 2
8 13 7
page 11
STANDBY
STANDBY

STANDBY

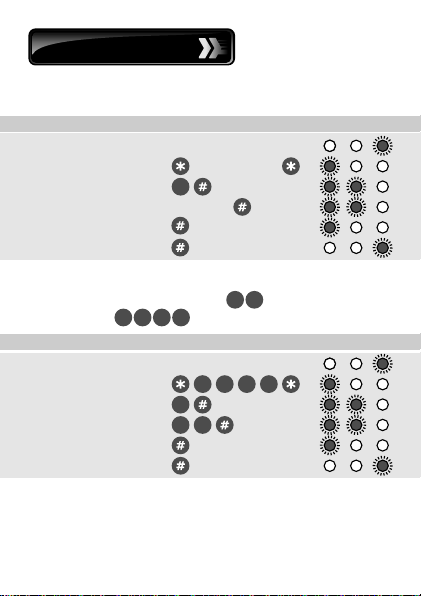

1.Enter Program Mode Master Code
2.Select Add Menu
3.Enter user address Address
4.Enter access code new access code
5.Select channel Channel
6.Enter access limit [Accesses]
7.Exit Add Menu
8.Exit Program Mode
The following procedure will add a new access code at a
specified location in the SMARTGUARDair’s memory,
referred to as an ‘address’ and will assign which channel the
code must activate and how many accesses are allowed
before the code becomes invalid.
Indicator LEDs
Enter the following keystrokes:
1
Adding a new user
&
Repeat steps 3 - 6 for additional users
&
[ ] denotes optional variable
&
If unlimited accesses are required, only enter
# at Step 6.
&
If no channel is specified, Channel 1 is selected by
default
&
If the number of accesses is not specified in Step 6,
unlimited access is set. Care must be taken to
ensure the desired access limit is correctly applied
page 12

1.Enter Program Mode
2.Select Add Menu
3.Enter user address
4.Enter access code
5.Select channel
6.Enter access limit
7.Exit Add Menu
8.Exit Program Mode
Example:
Add access code into address
?
The code must operate Channel 2
?
Code is valid forever
Master Code=
Indicator LEDs
Enter the following keystrokes:
1
1
13
2
0
4
57
2
2
75 12 0
3 41 2
page 13
STANDBY

1.Enter Program Mode Master Code
2.Select Delete Menu
3.Enter user address Address
4.Exit Delete Menu
5.Exit Program Mode
The following procedure will delete an access code at a
specified address.
Indicator LEDs
Enter the following keystrokes:
2
Deleting a user
1.Enter Program Mode
2.Select Delete Menu
3.Enter user address
4.Exit Delete Menu
5.Exit Program Mode
Indicator LEDs
Enter the following keystrokes:
2
9
13
2
9
4
Example:
Delete access code at address .
Master Code= 39
49 1 2
page 14
STANDBY
STANDBY

Example:
Delete access codes at multiple addresses, such as
and .
Master Code= 3
84 71
5
2
4
page 15
1.Enter Program Mode
2.Select Delete Menu
3.Enter user address
4.Enter user address
5.Exit Delete Menu
6.Exit Program Mode
Indicator LEDs
Enter the following keystrokes:
2
5
8
4
7
13
24
STANDBY

It is possible to delete all users stored in the
SMARTGUARDair’s memory, by entering as the user
address. This will cause the Master Code to be reverted back
to and erase all user codes programmed into
the memory.
Delete all users
0
3 41 2
1.Enter Program Mode Master Code
2.Select Delete Menu
3.Enter user address
4.Exit Delete Menu
5.Exit Program Mode
Indicator LEDs
Enter the following keystrokes:
2
0
STANDBY
page 16
1.Enter Program Mode
2.Select Delete Menu
3.Enter user address
4.Exit Delete Menu
5.Exit Program Mode
Example:
Delete all access codes. Master Code=
Indicator LEDs
Enter the following keystrokes:
2
0
13
24
3 41 2
STANDBY

A clear distinction must be made between the Pairing Menu
and the Adding Menu (refer to page 12).
The Adding Menu will be used whenever a new code is to be
added to the SMARTGUARDair’s memory. This will in turn
create a means of ‘unlocking’ transmission to a designated
receiver; whereby a valid code will have to be entered before
the unit will begin transmitting.
The Pairing Menu allows the user to pair the
SMARTGUARDair to one or more CENTURION rolling code
receivers within the specified range of transmission;
comparable to learning a remote control into a receiver.
Once transmission has ended, repeat Steps 3 and 4 for
additional channels.
Pairing
1.Enter Program Mode Master Code
2.Select Pairing Menu
3.Enter channel Channel
4. Enter receiver type* [ OR ]
5. Enter transmission time [0 - 90 seconds]
6.Exit Pairing Menu
7.Exit Program Mode
* for NOVA receiver
for future CENTURION receiver
Indicator LEDs
Enter the following keystrokes:
3
0
0
1
1
page 17
STANDBY

&
and will be automatically selected if no other value
is specified
&
The maximum transmission time is 90 seconds
&
If no receiver is specified, NOVA is selected by
default
&
Additional functionality, such as pulsing or latching
outputs is handled by the associated receiver
The default transmission duration is eight seconds,
Example:
Pair Channel 1 with a NOVA receiver, allowing for a
transmission duration of ten seconds.
Master Code=
1.Enter Program Mode
2.Select Pairing Menu
3.Enter channel
4. Enter receiver type
5. Enter transmission time
6.Exit Pairing Menu
7.Exit Program Mode
Indicator LEDs
Enter the following keystrokes:
3
0
1 0
1
13
24
3 41 2
page 18
STANDBY
