FAAC Estate Swing E-S 1100 Series User manual

Instruction Manual for the
Featuring
Manufactured by
E-S 1100 / E-S 1102 Series
! Warning !
Read all instructions before beginning installation or use
of this gate operator.
This operator exerts a high level of force.
Exercise caution at all times and stay clear of the system
during operation.

CE DECLARATION OF CONFORMITY OF MACHINES
(Directive 89/392/EEC, Annex II, Part B)
Manufacturer: FAAC S.p.A.
Address: Via Benini, 1 – 40069 Zola Predosa Bologna – Italy
Declares that: Domoswing A.K.A. Estate Swing (USA) mod operator
 Is built to be integrated into a machine or to be assembled with other machinery to create a machine under the provisions
of Directive 89/392/EEC, and subsequent amendments 91/368/EEC, 93/44/EEC.
 Conforms to the essential safety requirements of the following EEC directives:
o 73/23/EEC and subsequent amendment 93/68/EEC, 89/336/EEC and subsequent amendment 92/31/EEC and
93/68/EEC.
o And also declares the it is prohibited to put into service the machinery until the machine in which it will be
integrated or of which it will become a component has been identified and declared as conforming to the
conditions of Directive 89/392/EEC and subsequent amendments assimilated under national laws under DPR
#459 of July 24, 1996.
Bologna, January 1, 2002
Managing Director
A. Bassi
Warnings for the installer
General safety obligations
Abassi
1. Attention! To ensure the safety of people, it is important that you read all the following instructions. Incorrect installation or incorrect
use of the product could cause serious harm to people.
2. Carefully read the instructions before beginning to install the product.
3. Store these instructions for future reference.
4. This product was designed and built strictly for the use indicated in the documentation. Any other use, not expressly indicated here,
could compromise the good condition/operation of the product and/or be a source of danger.
5. FAAC declines all liability caused by improper use or use other than that for which automated system was intended.
6. Do not install the equipment in an explosive atmosphere; the presence of inflammable gas or fumes is a serious danger to safety.
7. The mechanical parts must conform to the provisions of Standards EN 12604 and EN 12605.
For non-EU countries, to obtain an adequate level of safety, the standards mentioned above must be observed, in addition to national
legal regulations.
8. FAAC is not responsible for failure to observe Good Technique in the construction of the closing elements to be motorized, of for any
deformation that may occur during use.
9. The installation must conform to Standards EN 12453 and EN 12445.
The safety level of the automated system must be C+D.
10. Before attempting any job on the system, cut out electrical power and disconnect the batteries.
11. The main power supply of the automated system must be fitted with an all-pole switch with contact opening distance of 3 mm or great-
er. Use of a 6A thermal breaker will all-pole circuit break is recommended.
12. Make sure that a differential switch with threshold of 0.03 A is fitted upstream of the system.
13. Make sure that the earthing system is perfectly constructed, and connect metal parts of the means of the closure to it.
14. The automated system is supplied with an intrinsic anti-crushing safety device consisting of a torque control. Nevertheless, its tripping
threshold must be checked as specified in the Standards indicated at point 10.
15. The safety devices (EN 12978 standard) protect any danger areas against mechanical movement risks, such as crushing, dragging, and
shearing.
16. Use of at least one indicator-light (e.g. FAACLIGHT 12VDC) is recommended for every system, as well as a warning sign adequately
secured to the frame structure, in addition to the devices mentioned at point “15”.
17. FAAC declines all liability as concerns safety and efficient operation of the automated system, is system components not produced by
FAAC are used.
18. For maintenance, strictly use original parts by FAAC.
19. Do not in any way modify the components of the automated system.
20. The installer shall supply all information concerning manual operation of the system in case of an emergency, and shall hand over to
the user the warnings handbook supplied with the product.
21. Do not allow children or adults to stay near the product while it is operating.
22. Keep remote controls or other pulse generators away from children, to prevent the automated system from being activated involuntari-
ly.
23. Transit through the leaves is allowed only when the gate is fully open.
24. The user must not attempt any kind of repair or direct action whatever and contact qualified personnel only.
25. Do not short-circuit the poles of the batteries and do not try to recharge the batteries with power supply units other than Master or Slave
cards.
26. Do not throw exhausted batteries into containers for other waste but dispose them in the appropriate containers to enable them to be
recycled.
27. Anything not expressly specified in these instructions is not permitted.
Estate Swing

Estate Swing Summary of Functions
The Estate Swing is only to be used for vehicular swing gates in a Class I
setting.
Class I: A vehicular gate opener (or system) intended for use in a home of one
-to-four single family dwelling, or a garage or parking area associated therewith.
The FAAC Estate Swing automated system was designed and built for controlling
vehicle access. Do not use for any other purpose.
The EstateSwing automated system automates residential swing-leaf gates with
leaves of up to 12’ in length.
It consists of a locking electro-mechanical linear operator, powered by a 12V DC
battery, coupled with control board recharging the battery. The SLAVE equipment
(required on 2-leaf gates only) is controlled by the MASTER equipment to which
all accessories and pulse generators are connected. The MASTER card can be pro-
grammed and is used to set the following: function logics, work times (by self-
learning) and pause times, leaf speed, and the sensitivity of the anti-crushing de-
vice.
The locking screw drive system will automatically lock when the motor is not op-
erating. A release system enables the gate to be moved by hand in case of a system
failure.
Keep this manual safely stored after
installation.
Serial Number__________________________
Date of Purchase_______________________
Place of Purchase______________________
Have this information on hand while handling all
service and warranty issues.
This manual and its contents are produced by Web Direct Brands, Inc. and is based on the instructions
written by FAAC, International.
Estate Swing

Table of Contents
The table of contents are listed to assist you locating a desired section. We do how-
ever strongly suggest studying every page of the instruction manual before at-
tempting installation.
SECTION:
 Review of specifications, warnings, parts, and tools 1
Specifications of the Estate Swing and Components 1.1
System Overview & Preliminary Checks 1.2
Estate Swing Parts List 1.3
Tools Needed for Installation 1.4
 Pre-installation charging 2

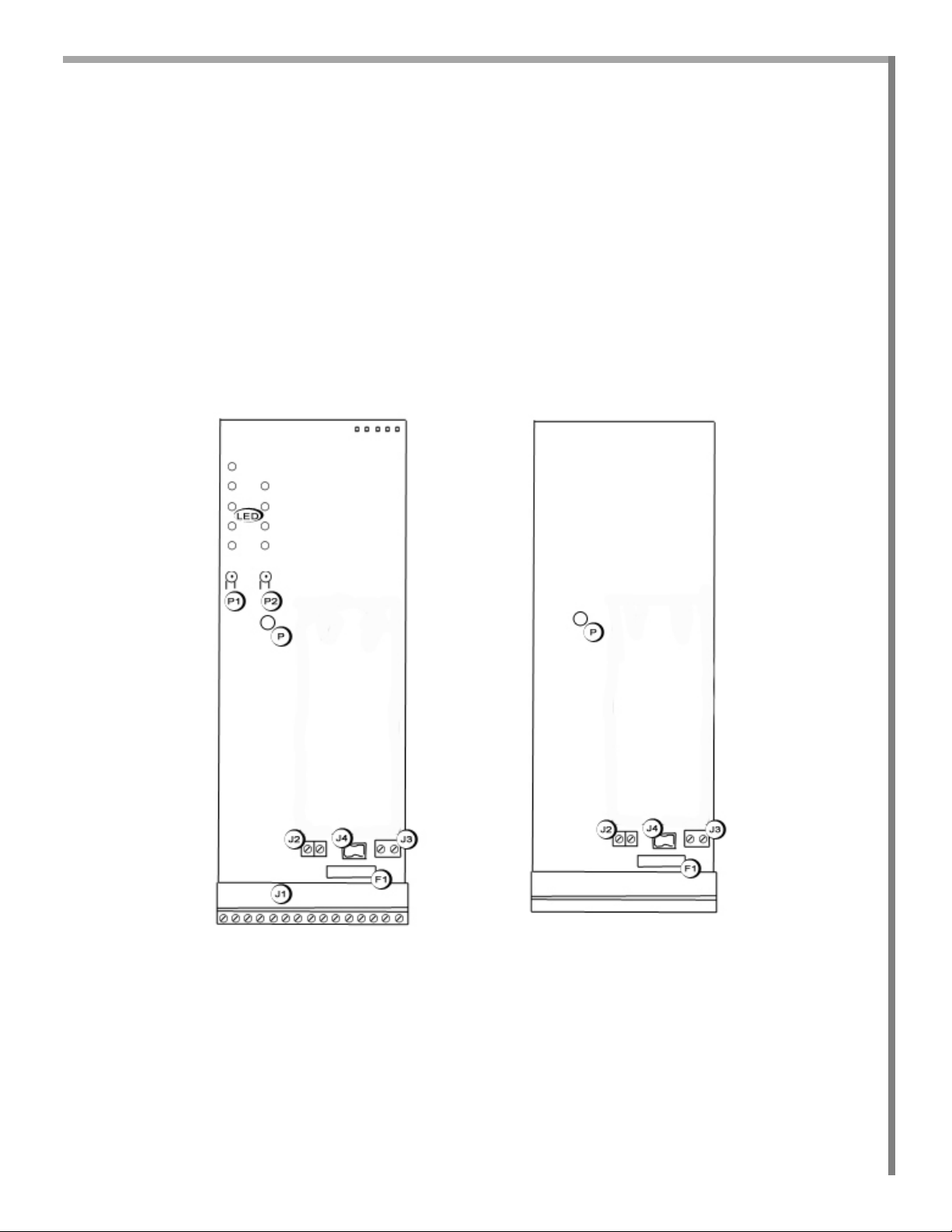

Control Board Layout 2.1
IMPORTANT: Charging Battery Prior to Use 2.2-.3
 Basic Installation 3

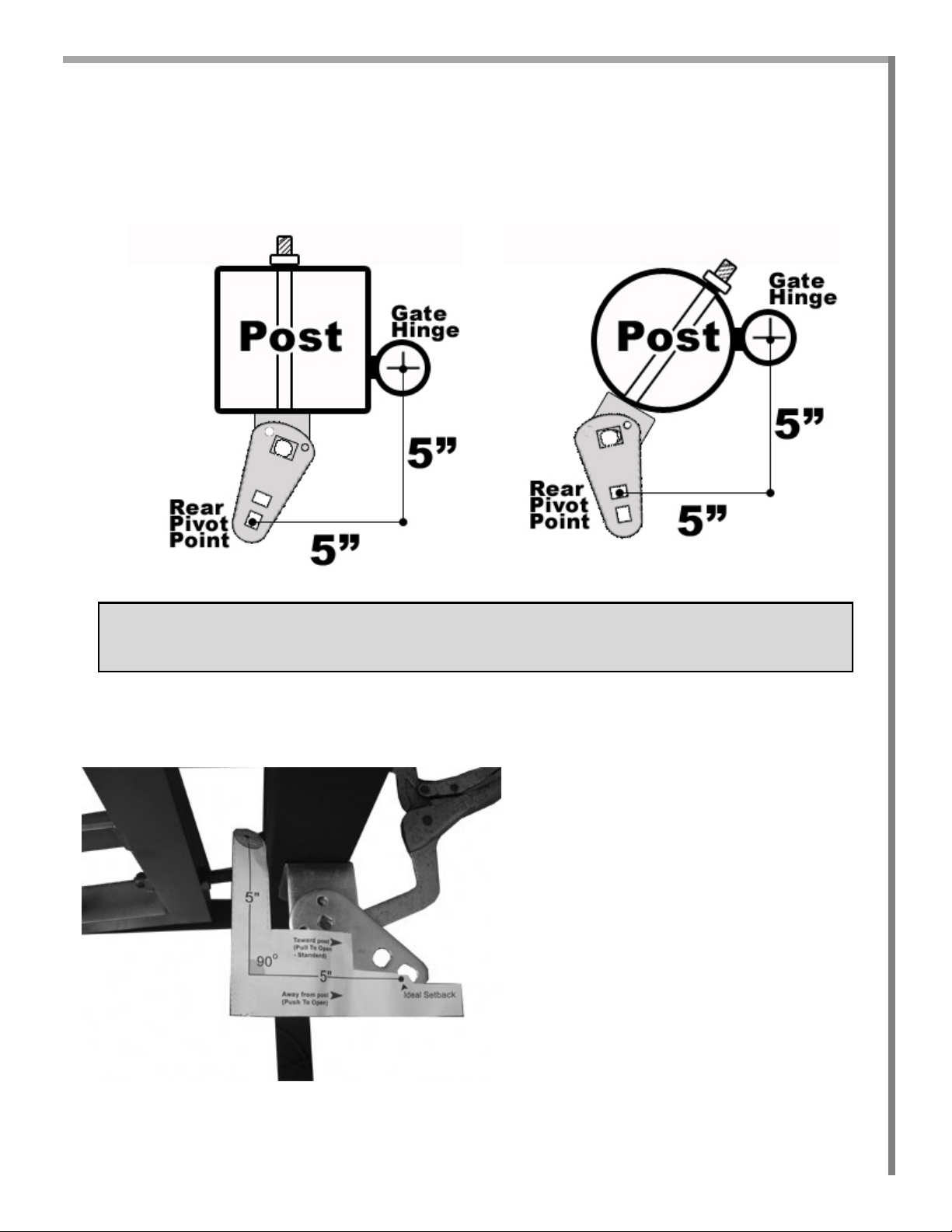

IMPORTANT: 5” x 5” Setback 3.1

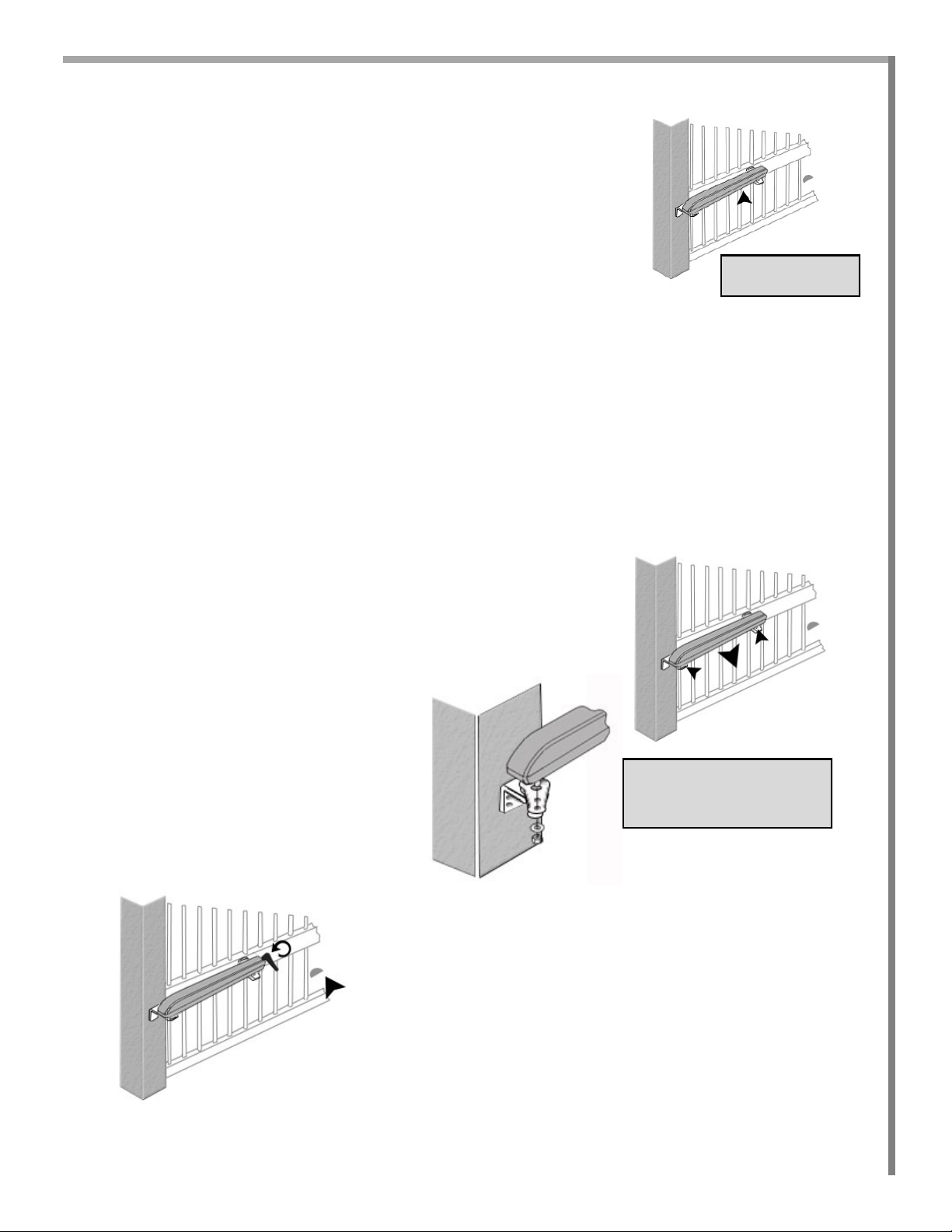

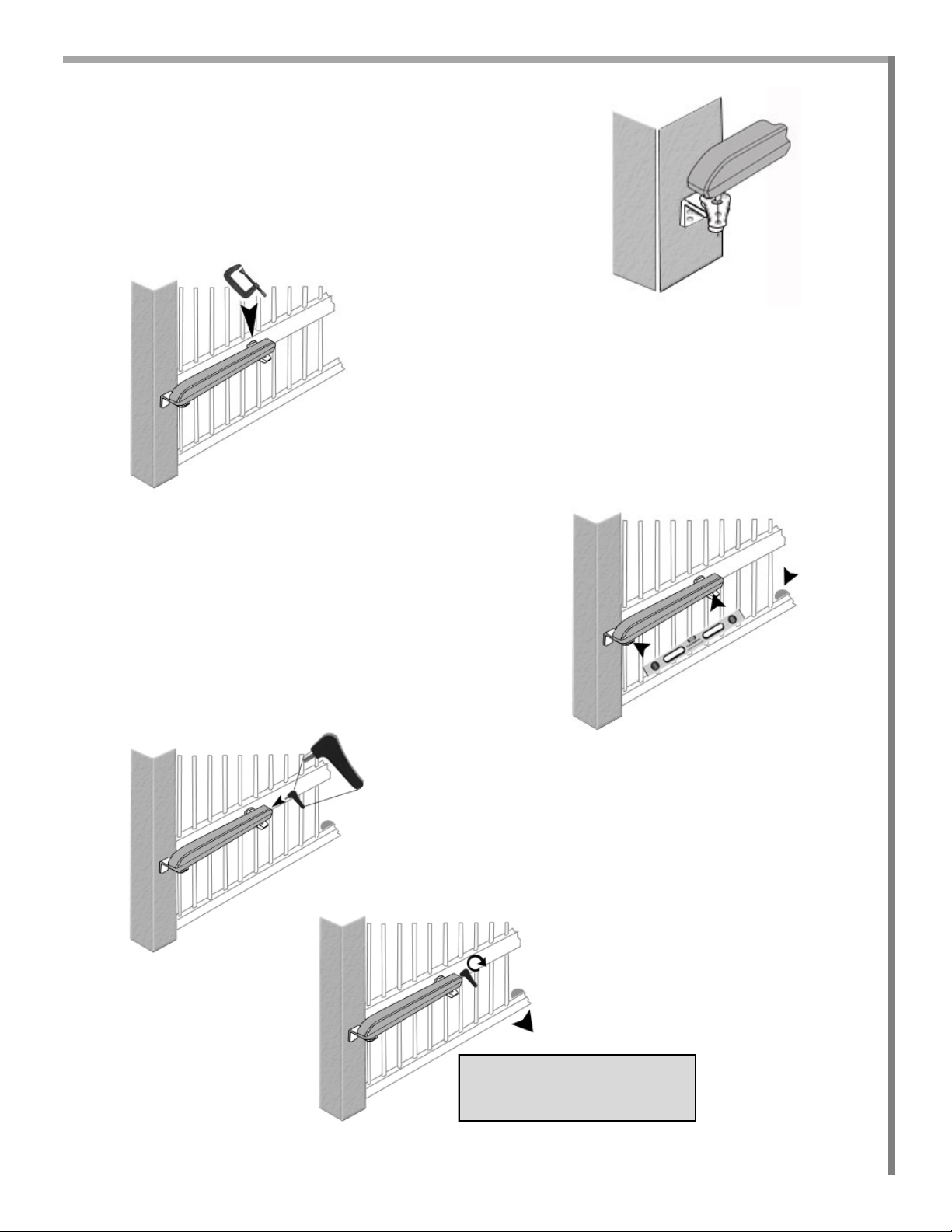

Installation of Mounting Hardware and Arm 3.2-.6

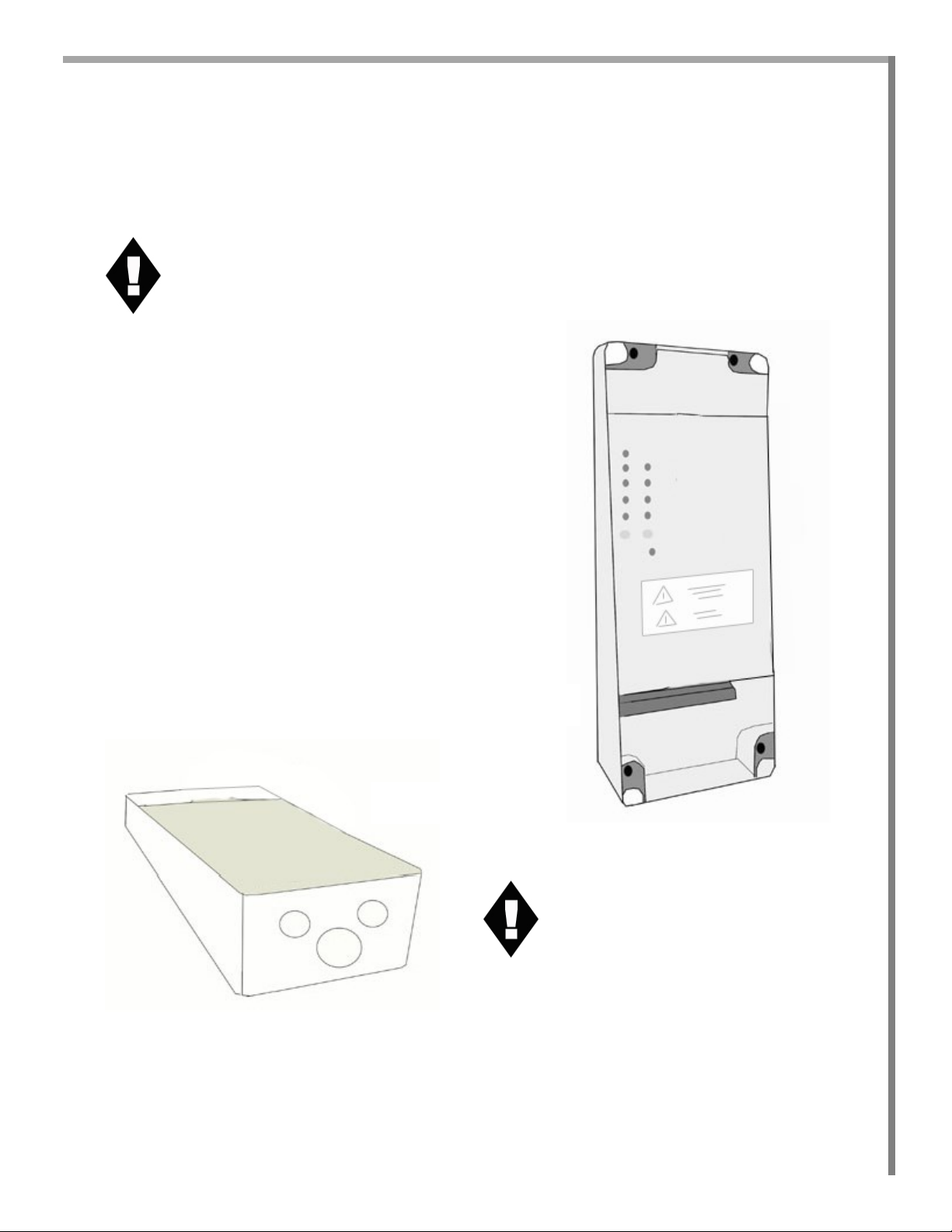

 Mounting Control Box 4
Finding Location and Mounting 4.1
 Pre-Learning Connections 5
Removable Terminal Strip 5.1
Installing Temporary Safety Jumpers 5.2

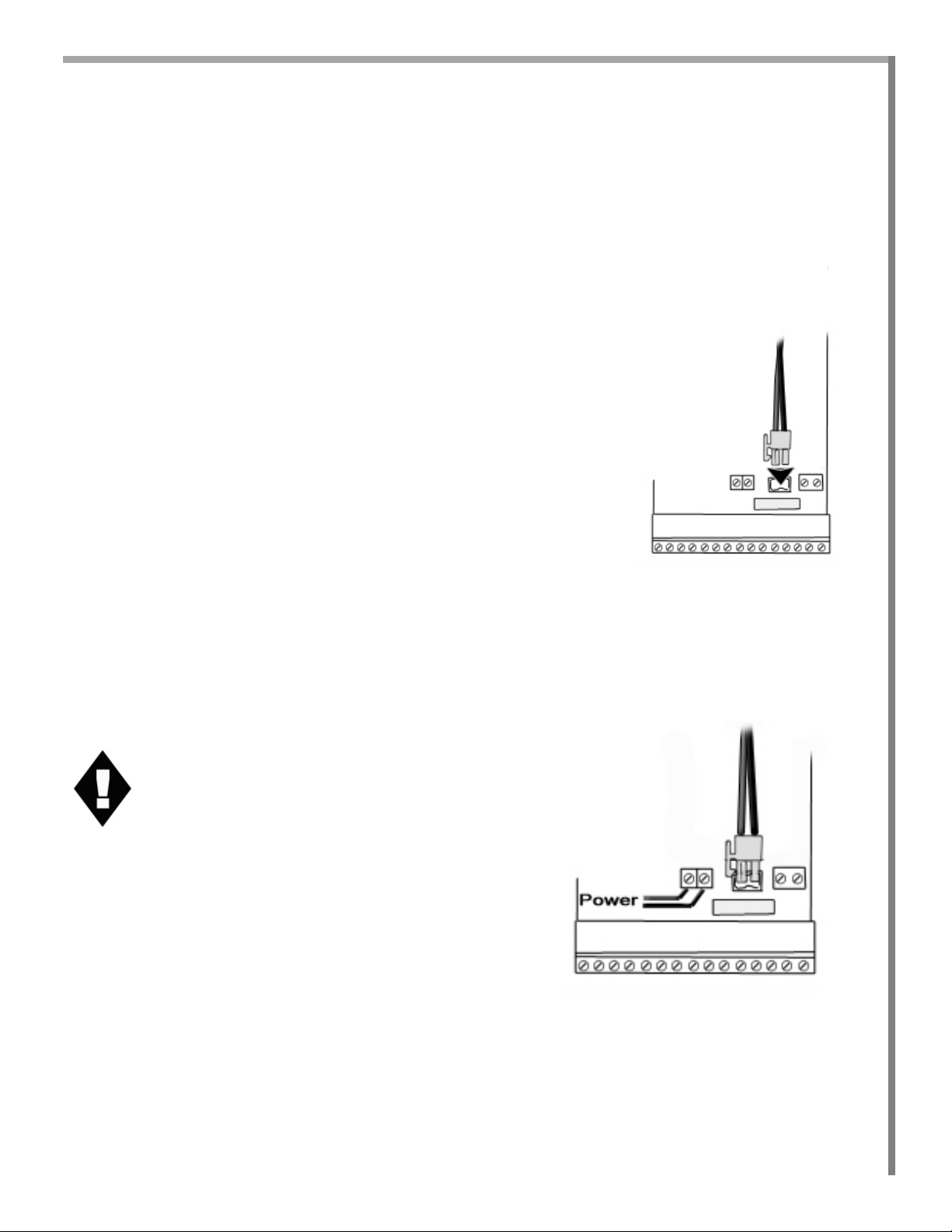

Actuator Arm and Dual Power Connections 5.3
Power 5.4
 Basic Programming 6
Programming Gate Movement Variables 6.1
i.e. auto close, speed, force, delays
Gate Movement Variables LED Chart 6.2
One Touch EZ Programming 6.3-.4
433 Plug-In Receiver 6.5-.6
Estate Swing

Table of Contents
The table of contents are listed to assist you locating a desired section. We do how-
ever strongly suggest studying every page of the instruction manual before at-
tempting installation.
SECTION:
 Diagnostics & Troubleshooting 7
Simple Diagnostics 7.1
Troubleshooting 7.2-.6
Logic Summaries and Flow Charts 7.7-.8
 Alternate Mounting and Programming 8
Push-to-Open Installation 8.1-.5
Complete Learning Process 8.6-.10
 Accessories 9
Accessory Terminals 9.1-.2
Photocell & Safety Device Guide 9.3-.4
Accessories 9.5-.6
Marks pages with opener or usage warnings. Although we have marked these as very im-
portant warnings, please read the entire manual. Every step is important to the cor r ect in-
stallation of your gate opener.
Estate Swing

MODEL Estate Swing
Power Supply 115V AC/ 12V DC
Rated Absorbed Power (W) 48
Max Static Force (N) 1700
Load-free linear speed (in./sec.) 1.25
Rod effective stroke (in.) 11
Use frequency (cycles/hour) 5
Consecutive cycles on charged battery Max. 15
Battery recharge time 10 min. for each full cycle
Operating ambient temperature -4 to 131 Deg F
Operator weight (lbs) 4.85
Protection class IP 44
Gate leaf max length (ft.) Up to 12
Gate leaf max weight (lbs.) Up to 550
Operator overall dimensions LxHxD(in.) See below
Length of operator power cable (ft.) 2.3
Specifications
1.1
Estate Swing

IMPORTANT
Preliminary Checks:
To ensure safety and an efficiently operating automated system, make sure the follow-
ing conditions are observed.
 The gate and post must be suitable for being automated. Check that the structure is
sufficiently strong and rigid, and its dimensions and weights conform to those
indicated on page 1.
 Make sure the leaves move smoothly without any irregular friction during entire
travel.
 Make sure the hinges are in good condition. Ball bearing hinges are ideal for gates
weighing over 200 lbs. or over 10’ in length.
 Make sure the gate is plumb and level.
 The fence post must be secured in the ground with concrete. This will prevent
alteration of alignments and leveling during installation and during cycles. 1.2

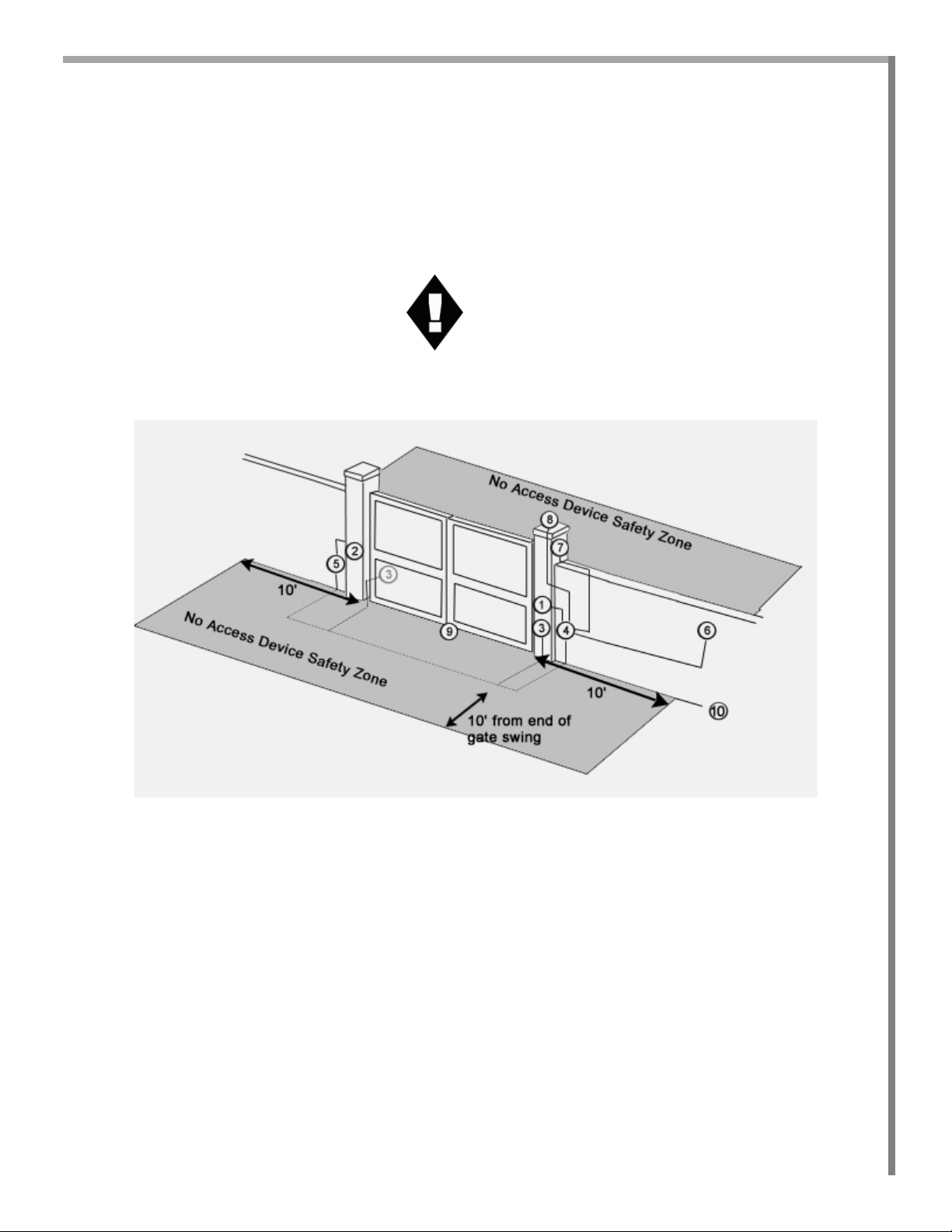

Standard System
Overview and Safety
Zones
The system display to the right is a
recommended standard system. Oth-
er approved accessories can be in-
stalled. Photo sensors and a flashing
light indicating gate movement is
recommended for safety purposes.
1,2 Estate Swing Operator
3 Photocells (not included)
4 Master control board
5 Slave control board
6 Push button opening device (not included)
7 Receiver extension (not included)
8 12Vdc flashing lamp (not included)
9 Positive stop
10 AC transformer
Notes: 1) Do not extend operator connection cables
2) When laying electrical cables, use
appropriate rigid and/or flexible tube
3) Do not run any wires in the same conduit as
110 AC power that may be in the area. This
will cause unwanted interference
Estate Swing

Estate Swing Parts List
A. Control Box
B. Operator Arm
C. Gate Mount Bracket
D. Post Mount Brackets
E. Transmitter
F. Receiver
G. Post Mounting nut, Manual Release Key &
Bracket Bushing
H. Transformer
I. Mounting Hardware
1 - 3/8”x1” Carriage bolts, washer, nut
1 - 1/4”x1” Hex bolt, washer, nut
4 - 1/4”x1 1/2” Carriage bolt, washers, nut
A. Control Box
B. Operator Arm
C. Gate Mount Bracket
D. Post Mount Brackets
G. Post Mounting nut, Manual Release
Key & Bracket Bushing
32’ 2 conductor stranded direct burial wire
I. Mounting Hardware
1 - 3/8”x1” Carriage bolts, washer, nut
1 - 1/4”x1” Hex bolt, washer, nut
4 - 1/4”x1 1/2” Carriage bolt, washers, nut
Master or Single Operator Slave Operator (If Applicable)
1.3
Estate Swing

Tools Needed
 Power Drill
 Crescent Wrench
 3/8”, 1/4”, Drill Bits
 Hacksaw
 Flat Head Screwdriver
 Phillips Head Screwdriver
 Tape Measure
 Level
 Wire Strippers
 C-clamps
Other items that may be needed prior to commencing installation. Bolded items are necessary
to all applications.

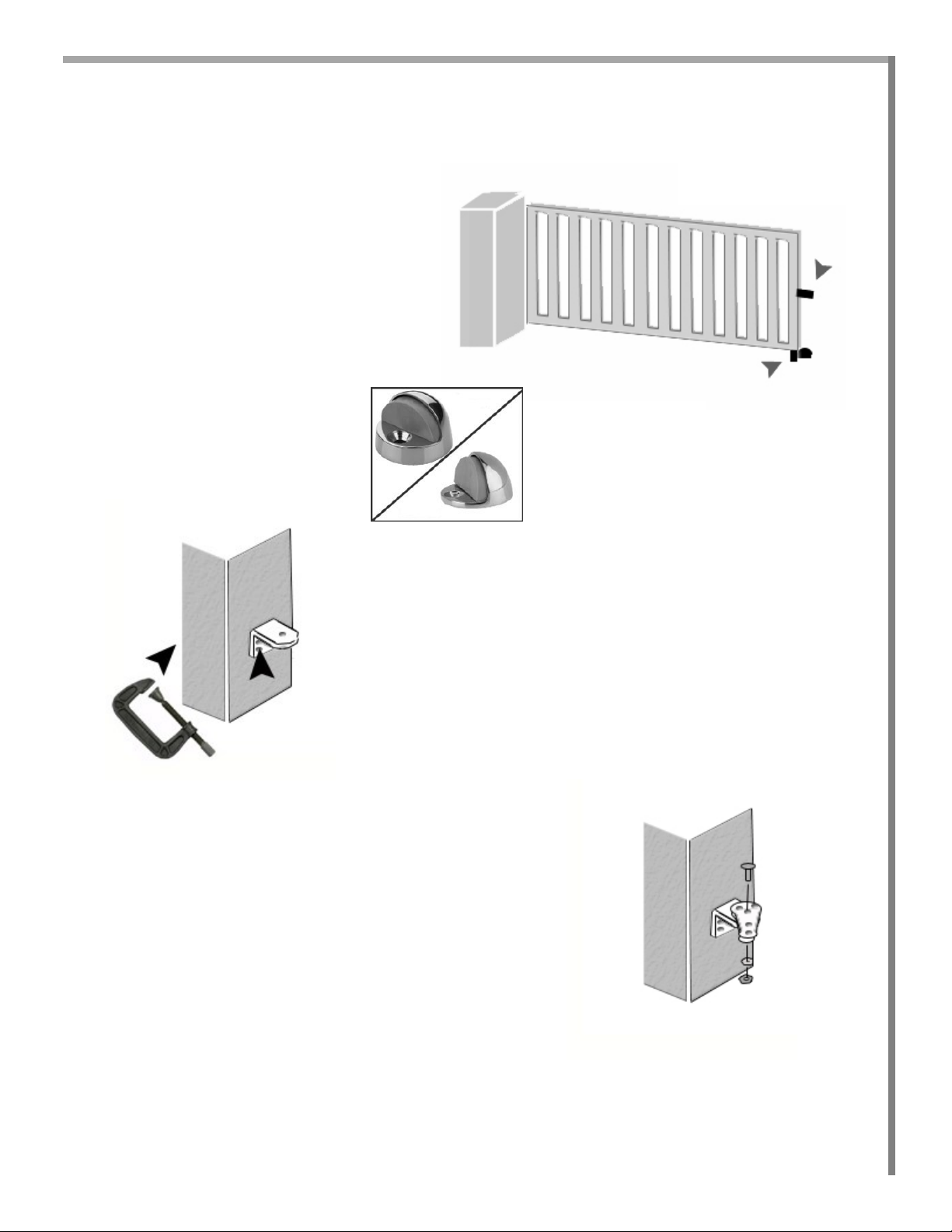

 Start and stop post, bracket or door stop. It is absolutely necessar y for the Estate Swing to have a
permanent closed position stop post or bracket, which is (If doing 1 touch programming it will require
one in the open position as well.)
 16 gauge 2 conductor stranded direct burial low voltage wire will be required to run power to
your operator. Length is determined by distance between tr ansfor mer power supply and the con-
trol box.
 2 - 3/8” Carriage Bolts with nuts and washers will be needed to connect the “L” shaped. Length
will be determined by the size of your posts.
 A metal support bracket may be needed to achieve the appropriate 5”x 5” setback. The metal support
bracket will be bolted or welded to your post to give a larger amount of space to mount the provided
mounting bracket.
 A voltage meter and digital camera may be necessary to run diagnostic checks.
 If your transformer is going to be plugged into an outdoor outlet you will need to weatherproof that out-
let and transformer. Electrical boxes or plug covers can be obtained from a local hardware store to ac-
commodate both the plug and transformer.
 Hardware to attach the control box to a post or fence.
 Watertight connectors for running wires into the control box.
 Protect all ingoing and outgoing wires with a surge suppressor. Consult your local dealer
for more information.
1.4
Estate Swing

ATTENTION: Study the control board and read this section
thoroughly before attempting to operate your gate opener.
Control Board Layouts
Warnings:
 Before attempting any job on the control board (connections, maintenance), turn
off electrical power and unplug the support battery.
 Install a surge protector upstream of your opener, the opener is not power surge
proof nor will power surge damage be covered under warrantee.
 Always separate power from control and safety cables (push-buttons, receivers,
photocells, etc.). To avoid any electrical noise, use separate sheaths or a shielded
cable (with earthed shield).
Layout of Master Control Board
Layout of Slave Control Board
LED Programming LEDs
P Power ON and diagnostics LED
P1 “Function” programming push-button
P2 “Value” programming push-button
F1 Battery and motor fuse - F15A
J1 Accessories Terminal board
J2 Transformer Terminal board
J3 Motor connection terminal
J4 Battery connector
J5 Minidec connector/RP receiver
P Power ON and diagnostic LED
F1 Battery and motor fuse - F15A
J2 Bus connection terminal board
J3 Motor connection terminal board
J4 Battery connector
2.1
Estate Swing

2.2
IMPORTANT: Charging Battery Prior to Use
Before beginning any electrical stages of installation we highly recommend charg-
ing the battery on the control board for 12 hours. This can be done anywhere there
is an outlet available.
1. Plug the battery into the control board (fig 1). For charg-
ing purposes it is not necessary to hook the receiver to
the battery or control board.
2. Insert the wires from the supplied AC transformer into terminal J2 of the Master
board which is to the left of the battery terminal and fuse (fig 2).
NEVER RUN 110V AC or POWER IN
THROUGH ANY OTHER METHOD BE-
SIDES THE PROVIDED TRANSFORMER
TO THE CONTROL BOARD.
Fig 1
Fig 2
Master or Single Unit
Charging ONLY
Estate Swing

2.3
3. For a Dual gate opener unit, charge the slave board by wiring it to the master
board terminal strip. [terminal 6 of the master must connect with the right side of
J2 on the slave and terminal 15 of the master must connect with the left side of
the slave] (fig 3)
NEVER CONNECT POWER FROM ANY SOURCE DIRECTLY TO
THE SLAVE BOARD. The slave board may ONLY be connected to the
Master control board.
Let the unit charge for 12 hours, after remove both the transformer power and the
battery. You can now proceed with the installation process.
Fig 3
Power from
Master ONLY
Dual Unit Slave Charging
Estate Swing

To determine your 5” x 5” setback position measure from the center of the gate hinge back to-
wards the inside of the gate, perpendicular to the gate, 5”.
Then making a 90 degree turn in the direc-
tion of the post, parallel to the gate,
measure 5”.
We have included a setback card with the
measurements in with your operator.
This point will be your rear pivot point for
your opener arm. Position your mounting
bracket so one of the holes lines up with the
determined post pivot point.
3.1
IMPORTANT: 5” x 5” Setback
The 5” x 5” is a very important requirement to be aware of during installation of the
post mounting bracket. The 5” x 5” setback allows the operator arm to achieve
appropriate and equal leverage during opening and closing cycles.
The purpose of this page is to clarify and show examples of the 5”x5” setback.
Install the brackets according to the installation directions following this page.
Estate Swing

Installation of Mounting Hardware and Arm
3.2
1. Set up closed stop points for your gate.
The closed stop points can be a plate on
the end of the gate that comes in contact
with an adjacent post or an industrial door
stop. (Many gates need an extension piece
added to make contact with the doorstop.
Examples of stops
Examples of industrial
door stops
2. First clamp the “L” shaped post mounting bracket to the
post. The side with two holes, rectangular in shaped, should
be against the post.
3. Line up the center hole on the “tear” shaped post
mounting bracket with the hole on the on the “L” shaped
bracket. Insert the 3/8”x1” bolt and loosely affix the nut
and washer.
Estate Swing

3.3
4. Measure the 5”x5” setback that was elaborated on in the
beginning of this section.
7. Check your operator arm. The pin should be stopped on the front part of the operator arm. If
the pin is not, turn the manual release key in the front lock hole clockwise until it reaches the
front stop position.
Extend the operator pin in this manner ONLY. Any other method may damage the arm.
NOTE: The front stop position IS NOT THE FULL CLOSED POSITION, it is
the common point of reference for counting manual turns.
5. Using the rear hole on the “tear” shaped bracket, drill a
5/16” diameter hole in the “L” shaped bracket.
6. Inset the 5/16” bolt in the drilled rear hole. Tighten the
nuts on both bolts and leave the combined brackets
clamped to the post.
Estate Swing

Bracket Release Position
8. Insert the bracket bushing into the gate mounting bracket.
Inside the black bushing you will see a small bump,
this bump must be facing away from the post to
prevent binding.
9. Insert the manual re-
lease key and turn it 5
counter clockwise
turns.
This will position the front fitting on the operator arm in the correct position to fit into the bracket
bushing.
5 Counter Clockwise turns from end.
10. While holding
the front fitting in
the bracket bushing
and gate mounting
bracket, insert the
manual release key.
Turn the key clockwise until the front fitting reaches the front stop position.
The bracket bushing is now locked in position on the front fitting.
NOTE: The front stop position IS NOT THE FULL CLOSED POSI-
TION, it is the common point of reference for counting manual tur ns.
Turn Clockwise to end as a common point of reference.
11. NOTE: Returning to
the common point of ref-
erence during the last
step is important for ac-
curacy in this step.
From the front stop posi-
tion turn the manual release key counter clockwise 3 turns. This will be the mounting
position.
3 Turns Counter Clockwise - This is the correct Closed Gate mounting position.
Important - Please adhere to this step
3.4
Estate Swing

3.5
8. Insert the threaded rear fitting into the already clamped
post mounting bracket.
9. Position the gate mounting bracket on a cross member of
the gate suitable for supporting the arm and bracket with the
gate in the FULL CLOSED POSITION pressed firmly
against the closed stop. Use a second C-clamp to hold it in
place.
10. Check the levelness of your operator on the Bottom
of the arm. Do not use the top to check levelness as it
is a sloped surface. Make the appr opriate adjust-
ments, and check your setback one last time to be sure
the positioning did not shift during leveling.
11. In order to remove your operator arm from the gate mount-
ing bracket for marking and drilling, the manual release key
will need to be turned counter clockwise for 2 turns.
IMPORTANT - During this procedure let the gate move
with the turning of the manual re-
lease key. DO NOT let the gate
mounting bracket slip from its
positioning or you will have to start
again at step 6.
Turn Counter Clockwise
at least 2 turns.
Estate Swing

3.6
12. Remove the operator arm from the brackets. Leaving the brack-
ets clamped in place mark your holes. If you are bolting your brack-
ets in place, remove the mounting brackets and drill the marked
holes using a power drill with a 3/8” drill bit for the post and 1/4”
drill bit for the gate.
Tip: Using a level on top of the drill as a guide helps you to keep
your holes level. Lift up on arm
13. Attach the mounting brackets either using a carriage bolt or lag bolt with a washer on both
sides of the structure and a nut on the back side of the structure or by welding. Always take the
proper precautions, protective eyewear, etc. when drilling or welding.
14. After properly affixing the mounting brackets insert the arm
fittings into the mounting brackets. Using the provided nut and
washer on the bottom of the threaded rear fitting attach the arm to
the post mounting bracket.
15. With the arm pin still turned 5 turns from the end position,
insert the pin in the gate mounting bracket and bushing. With
the front fitting in the gate mounting bracket and bracket
bushing, turn the manual release key clockwise 2 turns until
the gate reaches its full closed position.
Insert the arm in the
brackets
Estate Swing

4.1
1. The control box must be mounted near your actuator arm.
The wire on the back of the actuator arm cannot be shortened or
lengthened.
Keep you control box in a location at least 3 feet off the ground to avoid
water buildup.
2. Level your box and mark your mounting holes. The
holes are located in four corners of the control box
(fig 1).
3. After marking your holes drill them and attach the
control box to the post.
4. There are three separate knockouts on the bottom of the
control box. Find a water-tight connector at your local
hardware store that will fit one of the knockout as well
as fit all of your wires through it. Remove the neces-
sary knockout in the bottom of the box and affix a
watertight connection (fig 2).
Finding Location and Mounting Control Box
Fig 1
Fig 2
Your box must be kept water-
tight. Moisture can damage
your control board.
If you have trouble locating a water-
tight connector contact Estate Swing
1-800-640-GATE for assistance.
Estate Swing

5.1
For Your Convenience
The green numbered terminal strip at the
bottom of the control board is easily re-
moved for wiring. Simply pull straight
down on the terminal strip to remove it
from the board. It will slide right off.
Slide it back on when you are finished
with your wiring connections.
Estate Swing
