FAAC Safe Zone S418 User manual

Swing Gate Operator
FAAC International Inc.
Headquarter & East Coast Operations
3160 Murrell Rd
Rockledge, FL 32955
Tel. [phone]
www.faacusa.com
FAAC International Inc.
West Coast Operations
357 South Acacia Avenue
Unit 357
Fullerton, CA 92831
S418
UL325 - UL991

2FAAC Model S418 Swing Gate Operator
CONTENTS
FAAC Model S418 - Rev: 03 - OCT 2014
Read this instruction manual before you begin installing the product.
= Information regarding personal safety and proper maintanence of the product.
IMPORTANT SAFETY INFORMATION 3
Important Safety Instructions 3
Important Installation Instructions 3
General Safety Precautions 4
UL325 Gate Operator Classications 5
Installing the Warning Signs 5
1. DESCRIPTION 6
1.1 DIMENSIONS 6
2. TECHNICAL SPECIFICATIONS 7
3. INSTALLATION 7
3.1 ELECTRICAL PREPARATIONS SETUP 7
3.2 PRELIMINARY CHECKS 7
3.3 INSTALLATION DIMENSIONS 7
3.4 INSTALLING THE OPERATOR 8
3.5 WIRING THE OPERATOR 10
3.6 MECHANICAL STOPS 10
4. AUTOMATED SYSTEM TEST 11
5. MANUAL OPERATION 11
5.1 RESTORING NORMAL OPERATION 12
6. MAINTENANCE 12
7. REPAIRS 12
10. S418 PARTS DIAGRAM 13
E024U CONTROL BOARD AND LIMITED WARRANTY A2 - A18

3
FAAC Model S418 Swing Gate Operator
1. Install the gate operator only when the following
conditions have been met:
• The operator is appropriate for the type and usage
class of the gate.
• All openings of a horizontal slide gate have been
guarded or screened from the bottom of the gate to
a minimum of 4 feet (1.25 m) above the ground to
prevent a 2.25 inch (55 mm) diameter sphere from
passing through openings anywhere in the gate or
through that portion of the adjacent fence that the
gate covers when in the open position.
• All exposed pinch points are eliminated or guarded.
• Guarding is supplied for exposed rollers.
2. The operator is intended for installation on gates used
by vehicles only. Pedestrians must be provided with a
separate access opening.
3. To reduce the risk of entrapment when opening and
closing, the gate must be installed in a location that
allows adequate clearance between the gate and
adjacent structures. Swinging gates shall not open
outward into public access areas.
4. Before installing the gate operator, ensure that the gate
has been properly installed and that it swings freely in
both directions. Do not over-tighten the operator clutch
or pressure relief valve to compensate for a damaged
gate.
5. User controls must be installed at least 6 feet (1.83
m) away from any moving part of the gate and located
where the user is prevented from reaching over, under,
around or through the gate to operate the controls.
Controls located outdoors or those that are easily
accessible shall have security features to prevent
unauthorized use.
6. The Stop and/or Reset buttons must be located within
line-of-sight of the gate. Activation of the reset control
shall not cause the operator to start.
7. All warning signs and placards must be installed
and easily seen within visible proximity of the gate. A
minimum of one warning sign shall be installed on each
side of the gate.
8. For gate operators that utilize a non-contact sensor
(photo beam or the like):
• See instructions on the placement of non-contact
sensors for each type of application.
• Exercise care to reduce the risk of nuisance tripping,
such as when a vehicle trips the sensor while the
gate is still moving.
• Locate one or more non-contact sensors where the
risk of entrapment or obstruction exists, such as at
the reachable perimeter of a moving gate or barrier.
• Use only FAAC “Photobeam” photoelectric eyes to
comply with UL325.
Important Installation Instructions
WARNING - TO REDUCE THE RISK OF SEVERE
INJURY OR DEATH:
• READ AND FOLLOW ALL INSTRUCTIONS.
• Never let children operate or play with the gate
controls. Keep remote controls away from children.
• Always keep people and objects away from the
gate. NO ONE SHOULD CROSS THE PATH OF A
MOVING GATE.
• Test the gate operator monthly. The gate MUST
reverse on contact with a rigid object or when an
object activates a non-contact sensor. If necessary,
adjust the force or the limit of travel and then retest
the gate operator. Failure to properly adjust and retest
the gate operator can increase the risk of injury or
death.
• Use the manual release mechanism only when the
gate is not moving.
• KEEP GATE PROPERLY MAINTAINED. Have
a qualied service person make repairs to gate
hardware.
• The entrance is for vehicles only. Pedestrians must
use a separate entrance.
• SAVE THESE INSTRUCTIONS.
IMPORTANT SAFETY INFORMATION
Important Safety Instructions

4FAAC Model S418 Swing Gate Operator
Gate Construction
Vehicular gates should be constructed and installed
in accordance with ASTM F2200: Standard Specica-
tion for Automated Vehicular Gate Construction.
For more information, contact ASTM at: www.astm.org
Installation
• If you have any questions or concerns regarding the
safety of the gate operating system, do not install the
operator and consult the manufacturer.
• The condition of the gate structure itself directly
affects the reliability and safety of the gate operator.
• Only qualied personnel should install this equipment.
Failure to meet this requirement could cause severe
injury and/or death, for which the manufacturer
cannot be held responsible.
• The installer must provide a main power switch that
meets all applicable safety regulations.
• It is extremely unsafe to compensate for a damaged
gate by increasing hydraulic pressure.
• Install devices such as reversing edges and photo
beams to provide better protection for personal
property and pedestrians. Install reversing devices
that are appropriate to the gate design and
application.
• Before applying electrical power, ensure that voltage
requirements of the equipment correspond to the
supply voltage. Refer to the label on your gate
operator system.
Usage
• Use this equipment only in the capacity for which it
was designed. Any use other than that stated should
be considered improper and therefore dangerous.
• The manufacturer cannot be held responsible
for damage caused by improper, erroneous or
unreasonable use.
• If a gate system component malfunctions, disconnect
the main power before attempting to repair it.
• Do not impede the movement of the gate, you may
injure yourself or damage the gate system as a result.
• This equipment may reach high thermal temperatures
during normal operation, therefore use caution when
touching the external housing of the gate operator.
• Use the manual release mechanism according to the
procedures presented in this manual.
• Before performing any cleaning or maintenance
operations, disconnect power to the equipment.
• All cleaning, maintenance or repair work must
performed by qualied personnel.
General Safety Precautions
9. For gate operators that utilize a contact sensor (edge
sensor or similar):
• Locate one or more contact sensors where the risk
of entrapment or obstruction exists, such as at the
leading edge, trailing edge, and post mounted both
inside and outside of a vehicular horizontal slide
gate
• Locate one or more contact sensors at the bottom
edge of a vehicular vertical lift gate.
• Locate one or more contact sensors at the bottom
edge of a vertical barrier (arm).
• Locate one or more contact sensors at the pinch
point of a vehicular vertical pivot gate.
• Locate hard-wired contact sensors and wiring so
that communication between sensor and gate
operator is not subjected to mechanical damage.
• Locate wireless contact sensors, such as those
that transmit radio frequency (RF) signals, where
the transmission of signals are not obstructed or
impeded by building structures, natural landscaping
or similar hindrances. Wireless contact sensors shall
function under their intended end-use conditions.
• Use only FAAC MSE MO, CN60 or M60 edge
sensors.
Important Installation Instructions (continued)

5
FAAC Model S418 Swing Gate Operator
RESIDENTIAL VEHICULAR GATE OPERATOR CLASS I
A vehicular gate operator system intended for use in a single family dwelling, garage or associated parking area.
UL325 Gate Operator Classications
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR CLASS II
A vehicular gate operator system intended for use in commercial locations or buildings such as multi-family housing
units (ve or more single family units), hotels, parking garages, retail stores or other buildings that service the general
public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR CLASS III
A vehicular gate operator system intended for use in industrial locations or buildings such as factories, loading docks
or other locations not intended to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR CLASS IV
A vehicular gate operator system intended for use in guarded industrial locations or buildings such as airport security
areas or other restricted access locations that do not service the general public, and in which unauthorized access is
prevented via supervision by security personnel.
This FAAC swing gate operator is supplied
with two warning signs to alert people that a
possible hazard exists and that appropriate
actions should be taken to avoid the hazard or
to reduce exposure to it.
Permanently install one warning sign on each
side of the gate so they are fully visible to
trafc and pedestrians.
Use appropriate hardware such as metal
screws (not supplied) to permanently install
each warning sign.
Installing the Warning Signs

6FAAC Model S418 Swing Gate Operator
The FAAC Model S418 automated system for swing-leaf gates is an electro-mechanical operator which transmits its movement to
the gate leaf by means of a worm-screw system.
The irreversible system guarantees mechanical locking of the leaf when the motor is not operating. An easy-to-use release device
permits movement of the leaf in case of malfunction or a power outage.
The adjustable rear bracket permits the operator to be installed on most existing gate applications.
Fig. 1
Fig. 2
1. DESCRIPTION
Model S418 Swing Gate Operator
• Correct operation is only guaranteed when using authorized FAAC accessories, safety devices and control units.
• The S418 automated system has been designed and constructed to control vehicle access in residential units. Any
other use must be avoided.
1.1 DIMENSIONS
32 ½
5
13¾
4¼
*
Dimensions in Inches
Part Description Part Description
1 Operator 6 Power Cable
2 Release Device 7 Front Bracket
3 Mechanical Stop at Closing 8 Adjustable Rear Bracket
4 Mechanical Stop at Opening 9 Rear Fitting
5 Cable Cover

7
FAAC Model S418 Swing Gate Operator
3. INSTALLATION
Technical Specications S418
Power Supply (VDC) 24
Nominal Power (W) 35
Absorbed Current (A) 1.5
Maximum Thrust Force (lbf) 405
Stroke (inches) 13 3/4 1
Cycles per day at 68 °F (approx) 80
Class of operation Residential
Rod speed (inches/sec) 0.7
Maximum Size of Leaf (feet) 12
Ambient Operating Temperature (°F) -4 to 131
Operator Weight (lbs) 13.2
Protection Class IP54
1If you do not use the mechanical stops on opening and
closing, the operator stroke increases to 15 1/4 inches.
2. TECHNICAL SPECIFICATIONS 3.2 PRELIMINARY CHECKS
The structure of the gate directly inuences the reliability
and safety of the automated system. To ensure correct
operation, the structure of the existing gate, or that to be
tted, must have the following characteristics:
• The length of leaf must conform to what is shown in the
technical characteristics of the operator (Section 2).
• The structure of the leaves must be sturdy and rigid,
suitable for an automated system.
• There must be regular and uniform movement of the
leaves, with no friction or sticking along their entire
movement.
• Hinges must be suitably sturdy and in good condition.
It is recommended that any metalwork operations
should be performed prior to installing the automated
system.
3.1 ELECTRICAL SETUP
When laying electrical cables, use conduits with adequate
rigidity and/or exibility.
To avoid any type of interference, always separate low-
voltage accessories and command connection wiring from
power supply cables, use separate sheaths.
Fig. 3
Part Description Cables
1 Operators
2 x AWG 14 (max 30’)
AWG 12 (max 50’)
AWG 10 (max 100’)
2 Control Unit 3 x AWG 14 (AC Power)
3 TX Photocells 4 x AWG 20
4 RX Photocells 2 x AWG 20
5 Key Selector 2 x AWG 20 (1 contact)
6 Flashing Lamp 2 x AWG 14
7External Antenna Coaxial Cable
8 Mechanical Stops
Dimensions in Inches
3.3 INSTALLATION DIMENSIONS
Determine the assembly position of the operator, referring to
Figure 4 and relative table. It is a good idea at this stage to
choose whether or not you want to use the built in mechanical
positive stops; eliminating the mechanical stops increases the
working stroke of the operator and values Aand Bmust be
changed.
Fig. 4
aA B C 1D 2Z 3L E 3
With both
stops
90° 6½ 6½ 13 3½ 3 27 4⅛
6⅞ 6⅞ 13¾3½ 3⅛ 27 4⅛
110° 6 6 13⅜ 3⅛ 2¾27 4⅛
With open
stop
90° 6⅞ 6½ 13⅜ 4 3 28 4⅛
7 7 14⅛ 43⅛ 28 4⅛
110° 6¼ 6¼ 14⅛ 3½ 2¾28 4⅛
With no stops 90° 7 7 14⅛ 4 2¾28 4⅛
110° 6⅝ 6⅝ 15 4 2¾28 4⅛
1Working stroke of the operator.
2Maximum value.
3Minimum value.

8
FAAC Model S418 Swing Gate Operator
If the size of the pillar or the position of the hinge does
not permit the proper installation of the operator, a niche
will have to be made in the pillar (as indicated in Figure 6)
in order not to change value A (Figure 4). The size of the
niche must be such as to permit an easy installation of the
operator, not limiting its rotation and allowing activation of
the manual release device.
Fig. 8
Fig. 9
Fig. 6
The rear bracket is adjustable to different positions, which
limits modications necessary to satisfy installation values
Aand B.
Figure 7 shows some of the positions that the bracket can
take; all the positions intermediate to those shown may be
obtained.
The positions chosen must permit the assembly of the
bracket using both securing screws.
3.3.1 General Rules for Determining Installation Values
• To obtain opening of the leaf to 90°: A+B=C.
• To obtain opening of the leaf more than 90°: A+B<C.
• Lower A and B values produce higher peripheral leaf
speeds.
• Limit the difference between value A and value B to within
1½inches, greater differences may cause variations in
speed during opening and closing gate movements.
• Maintain a Z value that keeps the operator from striking
the pillar.
• The mechanical stops intervene during the rst and nal
1½inches of the stroke. Not utilizing the entire operator
stroke could limit the possible adjustments or reduce
them to zero.
3.4 INSTALLING THE OPERATOR
To correctly install the operator, follow the procedure below:
1. Secure the xed part of the rear bracket in the position
determined previously, using suitable assembly systems.
In the case of iron pillars, the bracket may be welded
directly to the pilaster, see Figures 8 and 9.
During assembly procedures, check that the bracket is
perfectly horizontal using a level.
6½
4⅞
4⅛
4¼
2⅞
2
2½
3¼
1½
2½
Fig. 7
Dimensions in Inches

9FAAC Model S418 Swing Gate Operator
2. Secure the rear bracket, as indicated in Figure 10, so
as to follow the A and B values determined previously.
2⅛
Fig. 12
1⅜
Fig. 13
Fig. 10
Fig. 11
Fig. 14
4. Check that the front tting is in the position indicated
in Figure 12 (with the mechanical stop at closing) or
in Figure 13 (with no mechanical stop at closing). If
this cannot be accomplished, the operator must be
temporarily powered* in order to bring the tting into
position.
* A 12 VDC battery may be used.
5. Secure the front bracket as indicated in Figure 14.
3. Secure the rear fitting of the operator as
indicated in Figure 11.
Dimensions in Inches
Dimensions in Inches

10
FAAC Model S418 Swing Gate Operator
!
Fig. 15
Fig. 16
Fig. 17
6. Secure the operator to the rear bracket using the
appropriate bolt supplied, as indicated in Figure 15.
7. Bring the leaf of the gate to the close position.
8. Bring the operator, together with the related bracket,
alongside the leaf.
9. Check that the operator is horizontal using a level, as
indicated in Figure 16, and temporarily secure it with
clamps or two welding points.
The axis of the securing holes of the front bracket must
be aligned with the axis of the securing holes of the rear
bracket, see Figure 17.
If the structure of the gate does not permit reliable
mounting, the structure of the gate must be reinforced
to provide a solid supporting base.
10. Prepare the operator for manual operation, see Section
5, and move the leaf manually, checking that it completes
the entire opening operation required, stopping at the
mechanical stops.
If, during the test, the operator hits the leaf of the gate,
value E may be increased, see Figure 4, up to a maximum
of 4½inches, using appropriate spacers placed between
the front bracket and the leaf of the gate.
11. Perform any corrective measures necessary and repeat
the procedures from Step 9.
12. Permanently secure the front bracket, using a suitable
securing system as indicated in Figure 18.
If it is decided to weld the bracket directly onto the leaf,
the operator must be released temporarily. Wait for the
bracket to cool before reattaching the operator.
Fig. 18
3.5 WIRING THE OPERATOR
The operator is supplied with the cable already connected. If the
cable has to be replaced, install a cable rated for outdoor use.
3.6 MECHANICAL STOPS
The S418 operator is supplied with mechanical stops on
opening and closing as standard. These may be used in place
of mechanical stop-points for the leaf. For adjustment of the
stops, proceed as follows:
3.6.1 Mechanical Stop at Opening
1. Prepare the operator for manual operation, see Section 5.
2. Manually move the leaf into its opening position.
3. Loosen the securing screw, Figure 19 Ref. 1. The screw
does not need to be completely removed.
4. Move the mechanical stop until it is close to the front
tting, as indicated in Figure 20.

11 FAAC Model S418 Swing Gate Operator
Fig. 19
Fig. 20
Fig. 21
Fig. 22
The mechanical stop is coupled to a toothed sector,
Figure 19 Ref. 2.
In the case of obstructions during movement, check
that the coupling is free. DO NOT FORCE IT.
3.6.2 Mechanical Stop at Closing
1. Prepare the operator for manual operation, see Section 5.
5. Tighten the securing screw once again.
2. Manually move the leaf into its closing position.
3. Loosen the securing screw, Figure 21 Ref. 1. The screw
does not need to be completely removed.
4. Move the mechanical stop until it is close to the front
tting, as indicated in Figure 22.
5. Tighten the securing screw once again.
The mechanical stop is coupled to a toothed sector,
Figure 21 Ref. 2.
In the case of obstructions during movement, check
that the coupling is free.
DO NOT FORCE IT.
• Once all necessary electrical connections have been
made, power up the system and program the control
unit based on your individual needs (see relevant
instructions).
• Perform a test of the automated system and of all
connected accessories, paying special attention to
safety devices.

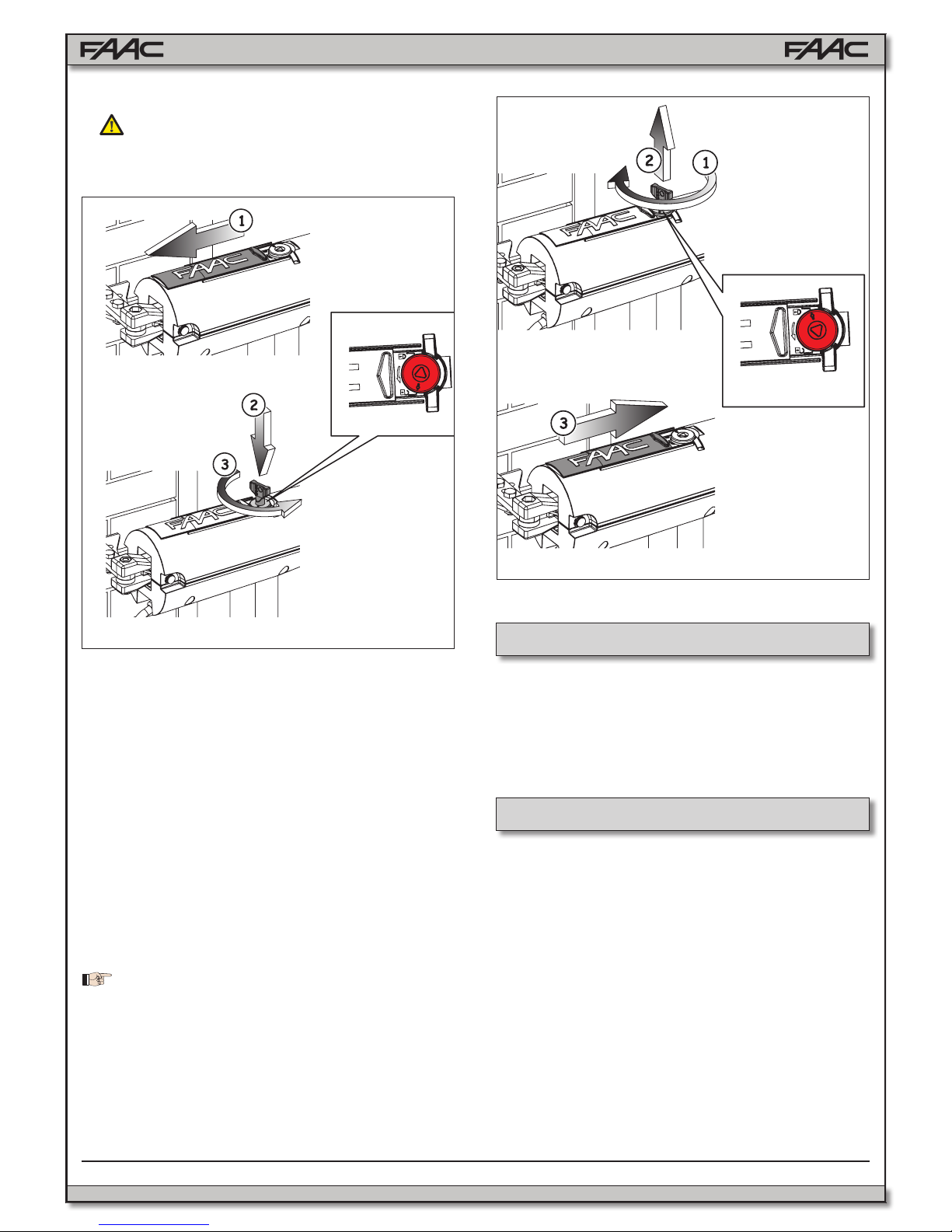

4. AUTOMATED SYSTEM TEST
If the automated system needs to be moved manually, due to
a power outage or operator malfunction, perform the following
steps to release the device:
1. Switch off the power supply to the system.
2. Slide off the protective cap, Figure 23 Ref. 1.
3. Insert the supplied release key, Figure 23 Ref. 2, and
turn it counter-clockwise until it stops, Figure 23 Ref. 3.
The release position is indicated by an open padlock.
4. Move the leaf manually.
5. MANUAL OPERATION

12
FAAC Model S418 Swing Gate Operator
Fig. 24
Fig. 23
5.1 RESTORING NORMAL OPERATION
To restore normal operation mode, proceed as follows:
1. Ensure that the system is not powered.
2. Turn the release key clockwise until it stops, Figure 24
Ref. 1, and remove the key, Figure 24 Ref. 2. The locking
position is indicated by a closed padlock.
3. Close the protective cap, Figure 24 Ref. 3.
4. Manually move the leaf until the device engages and
the leaf locks.
5. Power up the system and perform several open/close
operations to check that all functions of the automated
system have been restored.
During the rst cycle, the operator might not slow down
correctly. However, wait for the end of the cycle and then
give the opening command once again.
6. MAINTENANCE
In order to ensure correct operation and constant safety
over time, make a general check of the system every six
months, paying special attention to the safety devices.
7. REPAIRS
The user must not carry out any repairs or maintenance
operations; these must be performed only and exclusively
by qualied FAAC personnel or FAAC service centers.
To keep the operator in manual mode, the release
device must be left in its current (unlocked) position and
the system must not be powered.

13
FAAC Model S418 Swing Gate Operator
8. S418 PARTS DIAGRAM
Part Part
Number
Description
01 713002 RELEASE KEY
02 63001555 RELEASE COVER
03 63001565 RELEASE ASSEMBLY
04 63001575 OPERATOR BODY
05 63001585 REAR ADJUSTABLE BRACKET
06 63001515 FRONT BRACKET
07 63001595 LEAD NUT
08 63001525 SCREW
09 63001605 SCREW COVER
10 63001615 MOTOR
11 718366 LONG PIN
12 7228015 REAR FORK
13 7182075 SHORT PIN
14 63001625 MECHANICAL STOP
15 63001635 HARNESS COVER
16 60202215 TENSIONING SET
17 60202225 EXIT SHAFT
18 60202165 BUSH
19 718367 PIN W/SEEGER
20 60202355 BUSH FOR FIXING WORM GEAR
Part Part
Number
Description
21 63001545 10 SCREWS Ø4.8X13 S418
22 63001535 FRONT CAP
23 NOTA05 GLAND
24 701459 AUT. 3.5X 13 6954
25 701405 SCREW AUT. 3.5X9.5 6954 AB N
26 704049 SEEGER E 6 7434 INOX
27 XRO00120025Z WASHER 13X2.5 UNI 6592
28 702102 NUT ES. 12 5588 6S Z
29 704029 SEEGER E 18 UNI 7435
30 701110002 TE 6X 16 5739 8G Z G
31 703103 GROWER WASHER 6 1751 Z
32 701418 AUT. 2.9X 13 6954 AB
33 704002 CIRCLIP E10 7435
34 702106 NUT ES. 8 5588 6S Z
35 703104 GROWER WASHER 8 1751 Z
36 XRO00080016Z WASHER 8.4X1.6 UNI6592
37 701122002 TE 8X 25 5739 8G Z

SETTING
+
J24
DL19 DL20 DL21 DL22DL14 DL15 DL16 DL17 DL18
Main power supply 115 V~ 60 Hz
Secondary power
supply
24 Vdc - 16 A max.
(min. 20 Vdc. - max. 36 Vdc.)
Power consumption stand-by = 4W max. = 400 W
Max load per motor 7 A
Accessory
power supply 24 Vdc - 500 mA
Battery charge current 150 mA
Operating temperature -4 °F +131 °F (-20 °C +55 °C)
Protection fuses All self-resetting
Main power fuse 6.3 A Timed
Operating Logics E, A, S, EP, AP, SP, B, C
Operating time out 10 min.
Pause time Programmable (0 to 4 min)
with trimmer
Motor force, speed,
obstacle sensitivity,
closing delay
Programmable with
dedicated trimmer
Connector inputs Power supply, Battery,
Radio receiver, USB
Terminal strip inputs Encoder, Open A, OpenB, Stop,
Open safety fotocell, Closing safety
fotocell, Limit switches
Terminal strip outputs Lamp, Buzzer, Motors, Lock,
Programmable OUT,
accessory power supply
Programming With trimmers,
dipswitches
and pushbutton
RADIO Connector for the radio receiver
BATTERY Connector for the backup battery
J24 Jumper to disable battery charging
(With the jumper present the battery
is charged)
POWER SUPPLY DC Power supply input
TR1 to TR6 Programming Trimmers
+24 LED DC power indicator
SW1 - SETUP Pushbutton for automatic setup
DS1 - DS2 Programming dipswitches
LED ERROR Troubleshooting indicator
USB A USB connection for software upgrade
On the radio connector it’s possible to plug in receivers RP
and RP2. With a single channel radio RP it will be possible to
activate only the OPEN A input, with a dual channel radio RP2
it will be possible to activate both OPEN A and OPEN B inputs.
Plug in the radio board with the component side towards the
internal part of the board.
Make sure you insert or disconnect the board ONLY with the
power off.
1.1 TECHNICAL SPECIFICATIONS 1.2 LAYOUT AND COMPONENTS
1.3 RADIO CONNECTION
Fig. A1
1. E024U CONTROL BOARD DESCRIPTION & CHARACTERISTICS
A2 E024U CONTROL BOARD

A B STP CL OP
OPEN FSW
24 VDC
Maglock
Encoder
Fig. A2
MOT DL1 DL2
1 ON ON
2 ON OFF
PIN LABEL FUNCTION
2 EASY 2 EASY 2easy BUS input for encoders (S800H and S450H only), XIB and loop detector boards
1OPEN A N.O. Contact for total opening command
2 OPEN B /
CLOSE
OPEN B: N.O. Contact for opening of leaf 1 only
(with only one leaf the opening stops at 50% of traveling)
CLOSE (LOGIC B-C): N.O. Contact for closing command
3 STOP N.C. Contact for stop command
4 FSW CL N.C. Contact for closing safety
5 FSW OP N.C. Contact for opening safety
6 GND (-) 24 Vdc negative
7 GND (-) 24 Vdc negative
8 + 24 24 Vdc positive
9 OUT (-) Programmable output (See: DS1 SW 11-12)
10 FCA 1 Open limit switch Motor 1
11 GND (-) 24 Vdc negative
12 FCC 1 Close limit switch Motor 1
13 FCA 2 Open limit switch Motor 2
14 GND (-) 24 Vdc negative
15 FCC2 Close limit switch Motor 2
LAMP LAMP Audio alarm output (DS1 SW11=OFF)
Output for ashing light 24Vdc 15W max (DS1 SW11=ON)
LOCK LOCK Output for electrical lock, max 5A pulse (DS2 - SW 4=OFF) 12 Vac / 24Vdc
Always ON (maglock): max 1 A (DS2 - SW 4=ON) 24 Vdc
MOT1 MOT 1 Motor 1 output ( rst moving motor )
MOT2 MOT 2 Motor 2 output ( second moving motor )
USB A USB Firmware upgrade input
2. INPUT / OUTPUT DESCRIPTION
A3
E024U CONTROL BOARD

FSW
STP CL OP
How to connect Normally Open contacts.
(Connect them in parallel) How to connect Normally Close contacts.
(Connect them in series)
The photocells must be connected depending on which area
they must protect. (See Fig. A5)
Closing Safety D : These photocells protect the area covered
by the gate during the closing movement. They have no effect
during the opening movement.
Opening Safety B-C : These photocells protect the area covered
by the gate during the opening movement. They have no effect
during the closing movement.
Opening/Closing Safety A : These photocells protect the area
covered by the gate both during the opening and the closing
movements.
The E024U board allows the connection of several safety devices
(for example photocells). With photocells you can activate the
FAILSAFE function, which, before each movement of the ope-
rator, tests each fotocells. In case the test fails the movement
is inhibited. To activate this function set to ON the dip-switch N.
11 and 12 of DS1, and connect the negative of the transmitter
to the OUT pin (No.9).
Fig. A3
Fig. A5
Fig. A4
Connection of a pair of closing photocells and a pair of opening/closing photocells
To use the FAIL-
SAFE mode con-
nect the negative
power supply of the
transmitters to OUT
(pin 9), and set dip-
switch 11 and 12 to
ON on DS1
Fig. A6
RX= Photocell Receiver
TX= Ptotocell Transmitter
CL= Closing
OP= Opening
3. PHOTOCELLS CONNECTIONS
3.1 CONNECTIONS TO NORMALLY CLOSE (N.C.) PHOTOCELLS
A4 E024U CONTROL BOARD

FSW
STP CL OP
FSW
STP CL OP
Connection of two pairs of closing photocells
Connection of a pair of closing photocells, a pair of opening photcells and a pair of opening/closing photocells
Other optional safety devices to connect in series
Fig. A7
Fig. A8
To use the FAIL-SAFE
mode connect the nega-
tive power supply of the
transmitters to OUT (pin 9),
and set dip-switch 11 and
12 to ON on DS1
When using the FAIL-
SAFE mode also the safety
inputs not used (FSW CL,
FSW OP) must be con-
nected to OUT (pin No. 9)
To use the FAIL-SAFE
mode connect the nega-
tive power supply of the
transmitters to OUT (pin
9), and set dip-switch 11
and 12 to ON on DS1
RX= Photocell Receiver
TX= Ptotocell Transmitter
CL= Closing
OP= Opening
RX= Photocell Receiver
TX= Ptotocell Transmitter
CL= Closing
OP= Opening
A5
E024U CONTROL BOARD

88
FSW
STP CL OP
FSW
STP CL OP
FSW
STP CL OP
FSW
STP CL OP
To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9), and set dip-
switch 11 and 12 to ON on DS1
Connection of a pair of closing photocells and a pair of opening photocells
Fig. A9
Connection of no safety or stop devices
(NOT RECOMMENDED)
Connection of one pair of opening photocells
Other optional safety devices to
connect in series
Fig. A10
Fig. A11 Fig. A12
To use the FAIL-SAFE mode connect the ne-
gative power supply of the transmitters to OUT
(pin 9), and set dip-switch 11 and 12 to ON on
DS1
When using the FAIL-SAFE mode also the
safety inputs not used (FSW CL , FSW OP)
must be connected to OUT (pin No. 9)
RX= Photocell Receiver
TX= Ptotocell Transmitter
CL= Closing
OP= Opening
Connection of a generic closing safety device and a generic
open safety device
A6 E024U CONTROL BOARD

OPERATING LOGIC
DS 1: SW 1 - SW 2 - SW 3
LOGIC SW
1
SW
2
SW
3
PAUSE
TIME DESCRIPTION
E (default)
Semiautomatic OFF OFF OFF NO One command opens, the next one closes. A command du-
ring opening stops the gate
A
Automatic ON ON ON 0 - 4
min
One command opens, waits for the pause time an then closes
automatically
S
Security OFF OFF ON 0-4
min
One command opens, waits for the pause time and then clo-
ses automatically. If the closing safety is activated or another
command is given during the pause time it closes
EP
Semiautomatic
step by step
OFF ON OFF NO One command opens, the next one closes. During the move-
ment a command stops the gate
AP
Automatic
step by step
OFF ON ON 0-4
min
One command opens, waits for the pause time and then clo-
ses automatically. A command during the pause time holds
the gate open
SP
Security
step by step
ON OFF OFF 0-4
min
One command opens, waits for the pause time and then
closes automatically. If the closing safety is activated during
pause time the gate closes in 5 s. A command during pause
time holds open the gate
B
Manned Pulsed ON OFF ON NO An open A command opens the gate, an open B command
closes the gate
C
Manned Constant ON ON OFF NO Holding open A active opens the gate, holding Open B active
closes the gate
For more details on the operating logics please refer to Chapter 12 - Function Logics
4.1 DIP SWITCH DS1 SETTINGS FOR OPERATING LOGIC
4. PROGRAMMING
A7
E024U CONTROL BOARD

6
TR 3 – SPEED ADJUSTMENT FOR MOTOR1 AND MOTOR 2
Turn clockwise to increase the opening and closing speed
TR 4 – SENSITIVITY ADJUSTEMENT FOR OBSTACLE DETECTION FOR MOTOR 1 AND MOTOR 2
Turn clockwise to increase the sensitivity for obstacle detection.
See Par. 6.3 for more details about the obstacle detection feature
TR 5 – PAUSE TIME ADJUSTMENT ( 0 - 4 min. )
Turn clockwise to increase the pause time.
TR6 - CLOSING DELAY OF LEAF 1 OVER LEAF 2 ADJUSTMENT ( 0 - 15 sec )
Turn clockwise to increase the delay
TR1 – FORCE ADJUSTMENT MOTOR 1
Turn clockwise to increase the opening and closing force
1 min
2 min
3 min
4 min0 sec
30 sec
TR 2 – FORCE ADJUSTEMENT MOTOR 2
Turn clockwise to increase the opening and closing force
4.2 ADJUSTING TRIMMERS
Dip switches DS1: 1 to 3 need to
be set for an operating mode with
PAUSE time for this adjustment
to have any effect
A8 E024U CONTROL BOARD
