Faber E-matrix 800-500 i User manual

Installation manual

MatriX 800/500 I,II,III

MatriX 800/650 I,II,III

ENG

40011730-1940

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

2 < <<<

1.0

1.1

1.2

1.3

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

3 < <<<

1.4

1.5

1.6

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

4 < <<<

1.7

1.8

1.9

2.0

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

5 < <<<

2.1

2.2

2.3

2.4

2.5

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

6 < <<<

2.6

2.7

2.8

3.0

3.1

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

7 < <<<

3.2

3.3

3.4

3.5

3.6

3.7

3.8

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

8 < <<<

1Dear user

Congratulations on your purchase of a Faber fire! A

quality product from which you will experience

warmth and atmosphere for many years. We

recommend that you read this manual carefully

before using the fireplace. If any problem arises

despite our strict quality control, you can always

contact your dealer or Glen Dimplex Benelux B.V.

For any warranty claims, it is essential you first

register your fireplace. During this registration,

you’ll find all information regarding our warranty.

Please note!

The details of your fireplace can be found

in the user manual.

You can register your fire at: www.faber-fires.eu

Glen Dimplex Benelux B.V.

Address: Saturnus 8

NL-8448 CC

Heerenveen

Tel: +31 (0)513 656 500

Email: [email protected]

Info: www.faber-fires.eu

1.1 Introduction

Installation and maintenance of the appliance must

be carried out by a professional with proven

knowledge and competence. A professional takes

into account all technical aspects such as heat

radiation and gas connection as well as flue gas

exhaust requirements.

Where the installation instructions are not clear,

national/local regulations must be followed.

1.2 Check

Check the fireplace for transport damage and

immediately report any damage to your supplier.

1.3 CE Declaration

We hereby declare that Glen Dimplex Benelux B.V.

released Faber gas-atmosphere heating appliance

by its design and construction method complies

with the Regulation (EU): 2016/426 and (EU)

2015/1188.

Product: gas room heater

Model: MatriX 800/500 I,II,III

MatriX 800/650 I,II,III

This declaration will become null and void as soon

as the unit is in any way modified without written

authorization of Glen Dimplex Benelux B.V.

2Safety instructions

Please note!

It is advisable to always install a screen for the

fireplace if children, elderly or disabled people are

present in the same room as the fireplace. If

regularly vulnerable persons can be present in the

room without supervision, sufficient protection

must always be placed around the fireplace.

This appliance must be installed according

with the rules in force and used only in a

sufficiently space.

The appliance must be checked annually

in accordance with this installation

manual and the applicable national and

local regulations.

Ensure that the data on the type label

matches the local gas type and pressure.

The appliance is designed for atmosphere

and heating purposes. This means that all

visible surfaces, including the glass, can

become hotter than 100°C. An exception

by free standing models is the underside

of the fireplace and the control buttons.

Do not use the remote control and / or

app outside the room where the fire is

located. So that you are always aware of

the situation around the fireplace when it

is being operated.

The settings and the construction of the

fireplace must not be changed!

Do not place extra imitation wood or

other material on the burner or in the

combustion chamber.

Do not place any combustible materials

within 0,5m of the radiation area of the

fire.

Through the natural air circulation of the

fireplace moisture and uncured volatile

components from paint, building

materials and carpeted floors, etc. are

attracted. These parts can settle as soot

on cold surfaces. Therefore do not light

the fireplace shortly after installation.

2.1 Using the fire for the first time

Provide extra ventilation and open all the windows

of the room during the initial start-up of the fire.

Let the fire burn at the highest setting for a few

hours so that the paint gets the chance to harden

and any released vapours are safely removed. Keep

vulnerable people and pets out of this room during

this process.

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

9 < <<<

3Installation requirements

3.1 Appliance

This appliance may not be installed in a

chlorine-containing environment. (Pools

etc.).

This appliance must be built into an

existing or new false chimney.

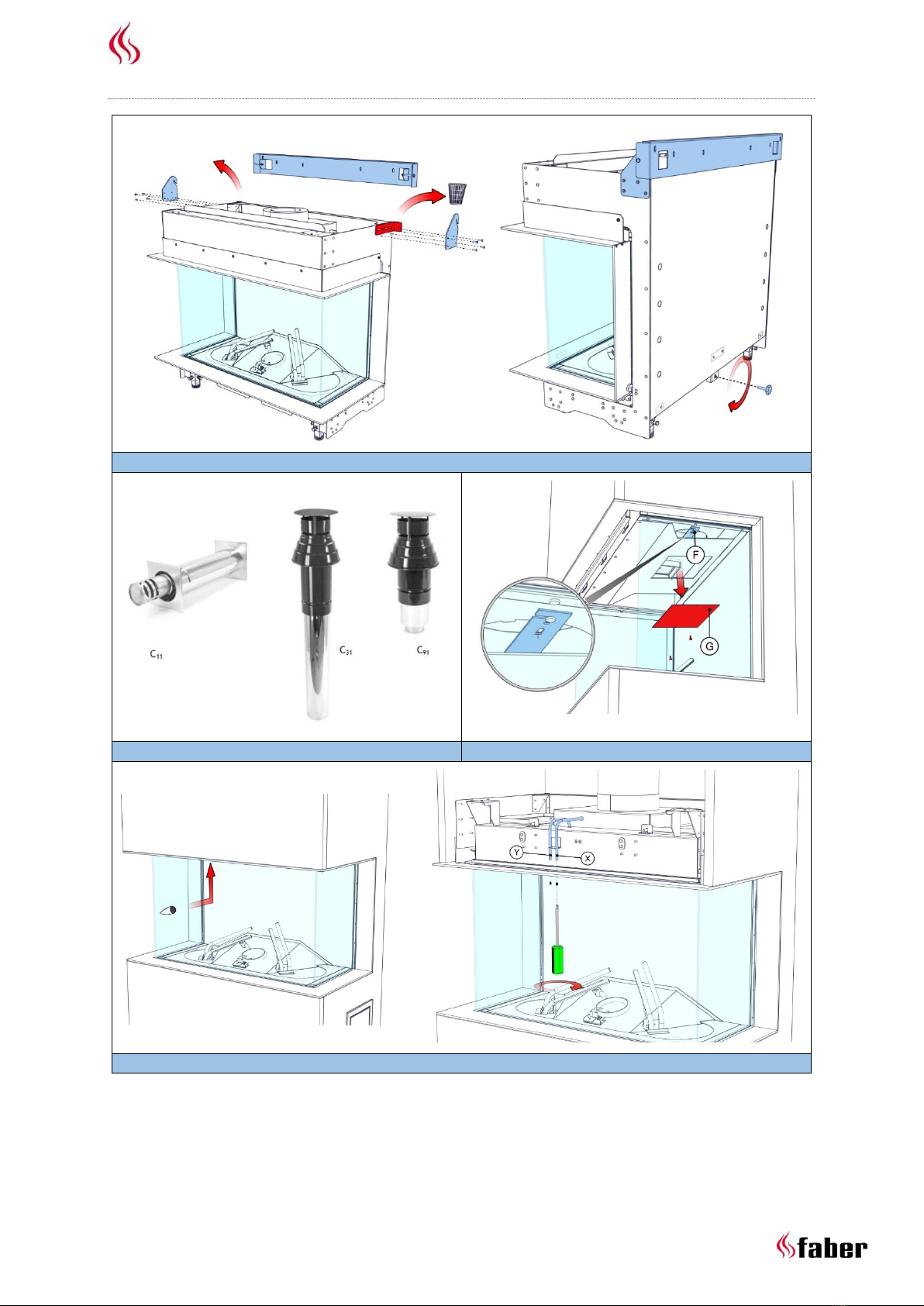

For transport reasons, for appliances with

flexible gas pipes, the control unit (fig.

1.6) is mounted at the bottom of the

crate. Detach and mount it together with

the control box and remote access door in

as low as possible position in the false

chimney. (See supplied instruction manual

40011721).

(To prevent damage to cables and pipes

during transport, they are bound together

by tie wraps. Remove these to ensure

proper operation of the appliance.)

If desired, a 2 meter pipe set is available

(article number 20901530).

3.2 False chimney

The false chimney should be of non-

combustible material.

The space above the fire should always be

ventilated using grids with minimal free

passage of 200cm² per grid.

Use for finishing special decorative plaster

(min. 100°C resistant) or fiberglass

wallpaper to prevent discoloration and

cracks etc., minimum drying time 24 hours

per mm applied finish.

The false chimney construction should not

rest on the built-in frame of the fireplace.

3.3 Discharge and outlet requirements

First, carry out a flue calculation (see chapter 11)

and place the right flue restrictor before installing

the outlet! (Generally a 30mm flue restrictor is

installed).

For supply and discharge always use the

prescribed and to be supplied Faber flue

materials. Please contact Glen Dimplex

Benelux B.V. Only with use of these

materials Faber can guarantee proper

performance.

The distance to combustible materials

must be min. 50mm, calculated from

outside of the flue material (EN 1856-1

T600 N1 D Vm –L20040 O(50)).

Outlets (fig. 1.8)

The balanced flue pipe for combined air supply and

discharge can use a wall terminal or a roof

terminal. Verify that the desired outlet meets the

local regulations regarding pollution and

ventilation openings.

Please note!

For proper functioning, the outlet must at

least be 0,5m away from:

Corners of the building;

Roof overhangs and balconies;

Roof edges (with the exception of the

ridge edge, see chapter 15).

C11, outlet via facade

Through a wall or façade, use a Faber wall outlet.

Depending on the flue calculation this can be

100/150mm or 130/200mm.

C31, outlet via roof

For a (flat) roof, use a Faber roof outlet with a

diameter of 100/150mm.

C91, existing chimney

For an existing chimney, use a Faber chimney

outlet with a diameter of 100/150mm.

In this case the existing chimney acts as air inlet an

inserted flexible stainless steel pipe discharges the

flue gas. The top (Faber chimney cover plate) and

the bottom (Faber chimney connection set) should

be airtight.

Depending on the calculated flue diameter, you

must use a flexible stainless steel pipe of

Ø100mm (article number AJ005503) or Ø130mm

(article number AJ005603) as specified by Faber.

For this, contact Glen Dimplex Benelux B.V.

Please note!

The minimum chimney diameter for a

130mm flexible stainless steel pipe must

be 200x200mm and for a 100mm flexible

stainless steel pipe and 150x150mm.

Don’t connect more than one fire at the

existing chimney.

The chimney must be in good condition:

oNo leakage;

oWell cleaned.

For more information about the connections to

existing chimney ducts, please request the

installation instructions “Chimney Connection Set”.

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

10 < <<<

4Preparation and installation

instructions

4.1 Gas connection

The gas connection must comply with the

applicable local standards.

Please note!

Provide a flexible gas connection with at

least 0,5m extra length, so that the

control unit can be removed for

installation and service!

Calculate the gas pipe so that no

pressure drop occurs.

We advise using a gas connection directly from the

gas meter to the appliance, with a shut-off valve in

the proximity of the appliance, which must always

be freely accessible. Position the gas connection so

that it is easily accessible for service and the

burner unit can be disassembled at any time.

4.2 Electrical connection

Install a 230VAC/50Hz wall socket near the

fireplace for connecting the Control box FAB1806.

See fig. 2.8 for the wiring diagram:

A = I.T.C. (Intelligent Technical Controller)

B = electronics

C = gas valve

D = solenoid valve

E = Symbio LED module (optional)

F = ignition pin

G = ionization pin

H = power cable

I = configuration plug

4.3 Smart Home installation

The controller can be connected to an external

source, such as a Domotica system, by using a

Faber Interface Unit (article number A9323000).

4.4 Preparing the fireplace

Remove the fireplace from its packaging.

Ensure that the gas supply pipes under

the appliance are not damaged.

Remove the glass and any mouldings,

store them at a safe place and remove the

packaged parts from the fireplace.

Prepare the gas connection on the

regulator.

4.5 Positioning the fireplace

Take into account the installation requirements

(see chapter 3). Place the fireplace at the right

place and level it.

Rough height adjustment:

With the adjustable (optional) legs.

Accurate height adjustment:

With the adjustable feet.

Hanging on the wall

The fireplace can also be mounted on the wall by

using the optional wall bracket set, see attachment

16.9 (article number A9322996).

Therefore remove the existing brackets and use

the supplied spacer for vertical alignment, see fig.

1.7.

4.6 Mounting flue gas exhaust materials

Assemble the flue gas exhaust materials according

to the installation manual supplied with the flue

gas exhaust material!

The distance to combustible materials

must be min. 50mm, calculated from

outside of the flue material.

Never start immediately with length-

adjustable concentric flue material on the

appliance.

Horizontal sections should be installed to

allow a slope towards the fireplace

(3 degrees).

Build the system from the fireplace. If this

is not possible you can make use of an

extendable adapter section.

For fitting of the flue system, the 0,5m

length-adjustable pipe must be used.

Make sure that the inner pipe is always

15mm longer than the outer pipe. Wall-

and roof terminal can also be cut. These

components must be secured with a self-

tapping screw.

4.7 Constructing the false chimney

Before positioning the false chimney, we advise to

perform a functional test with the fireplace as

defined in chapter 7 “Checking the installation”.

False chimney

Construct the false chimney of non-

combustible material in combination with

metal profiles or of masonry/concrete

blocks.

Always use a lintel or reinforcing bars

while bricking the false chimney. They

should not be placed directly on the

fireplace.

Make sure that the fireplace never

functions as a load-bearing construction,

because of the expansion of the fireplace

through warmth.

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

11 < <<<

Ventilation

Correct ventilation prevents damaging overheating

of the gas control block and its electronics and also

limits the temperature of the convection air. Use

the supplied Faber ventilation grids (article number

A9296400) or a similar alternative with a minimum

free passage of 200cm² per grid, in the space

above the fire, when building the false chimney.

Within the false chimney, an horizontal screen

plate, made of non-combustible material, must be

installed just above the ventilation openings. (see

“A”in fig. 1.1 for the 800 I, fig. 1.3 for the 800 II

and fig. 1.5 for the 800 III version).

Installation and finishing

Please note!

Take into account a minimum distance of

2mm due to expansion of the fireplace.

See fig. 2.7.

Take into account the thickness of any

finishing layer!

Method I: installation WITH cover strip (fig. 2.1)

The following points are of interest (fig. 2.2 and

2.3):

I = built-in frame

J = distance profiles

Built the false chimney against the built-in

frame “I” and distance profiles “J”.

Do not built the false chimney

(underneath the appliance) higher than

the top of the distance profile “J”

(fig. 2.3).

Method II: installation WITHOUT cover strip

(fig. 2.4)

Please note!

At the MatriX front glass only versions, the

cover strip is fixed by screws, remove those

first! (fig. 2.5).

The following points are of interest (fig. 2.6):

K = built-in frame

L = distance profiles

M = glass supports

N = top edge of the combustion chamber

Remove all distance profiles “L”.

Please note!

Make sure that the screws of the front

distance profile “L” will be replaced, in order

to ensure the air tightness of the appliance.

For the height of the plateau, see point

“N”(fig. 2.6 and 2.7).

Take into account a minimum distance of

2mm between plateau and glass support

“M”due to expansion of the fireplace.

(fig. 2.7).

5Removing glass

5.1 Front glass

MatriX I:

Disassemble cover strip “A” on both sides

(fig. 3.0).

Rotate clamp “B” clockwise on both sides

(fig. 3.0).

Place the suction cups on the glass, slide

frame “C” upwards and disassemble the

front glass (fig. 3.1).

For replacing the glass repeat the steps in reverse

order.

Please note!

Avoid fingerprints on the glass, these are no

longer removable once the fire is used.

MatriX II:

Disassemble cover strip “A” (fig. 3.0).

Rotate clamp “B” clockwise (fig. 3.0).

Place the suction cups on the glass and

slide frame “C” upwards (fig. 3.2).

Disassemble the front glass (fig. 3.3).

For replacing the glass repeat the steps in reverse

order.

Please note!

Avoid fingerprints on the glass, these are no

longer removable once the fire is used.

MatriX III:

Place the suction cups on the glass and

slide frame “C” upwards (fig. 3.4).

Disassemble the front glass (fig. 3.5).

For replacing the glass repeat the steps in reverse

order.

Please note!

Avoid fingerprints on the glass, these are no

longer removable once the fire is used.

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

12 < <<<

5.2 Side glass

For cleaning only it’s not necessary to remove the

side glass.

MatriX II and III:

Disassemble the front glass (section 5.1).

Disassemble the glass strip at the top

(fig. 3.6 and 3.7).

Place a suction cup and disassemble the

side glass (fig. 3.8).

For replacing the glass repeat the steps in reverse

order.

Please note!

Avoid fingerprints on the glass, these are no

longer removable once the fire is used.

6Placing decoration material

It is not permitted to use other or to add more

material in the combustion chamber.

See the supplied decoration instruction card or

chapter 17:

Divide the glass granulate “A” on the

bottom only. Avoid a double layer!

Place the log set.

oPlace the 2 large logs (fig. 17.2a).

Maintain space under the logs

(fig. 17.2b and c).

oPlace the log nearby the ignition

pin. Pay attention to the pin-hole

connection. (fig. 17.3.).

oPlace the remaining logs (fig. 17.4

till 17.6).

Divide the black and grey chips "B" around

the burner.

Keep ignition- and ionization pen free

from chips.

oMake sure there is no contact

with the overlying log and the

burner itself (fig. 17.2d).

Start the fireplace as described in the user

manual.

Assess whether the flame distribution and

if present, the Symbio effect (glow bed), is

good. Move or remove any chips/glass

granulate to create a nice glow bed.

Install the front glass and check the fire

image.

7Checking the installation

Checking for gas leaks

Check with a gas leak finder all connections and

pipes for gas leakage.

Check primary pressure

Check if the primary pressure correspond to the

data on the rating plate.

Measuring the primary pressure:

Close the shutoff valve. Turn the

measuring nipple “E”(fig. 1.6) a few turns

to open and connect a measuring hose to

the gas regulator.

Take this measurement when the

fireplace runs at high and low settings.

Do not connect the unit if the pressure is

too high (+20%).



Please note!

Close the pressure measuring nipple and check

for gas leakage.

Check ignition and burner

Ignite the fireplace by using the remote control as

described in the user manual and test all burner

possibilities.

Now repeat the above check by using the APP.

(App set to Dealer level).

Check:

the Actual measured values;

the Diagnosis messages.

7.1 Checking the flame image

Let the fireplace burn for at least 20 minutes at

highest setting and check the flame for:

flame distribution;

colour of the flames.

If one or both points are not acceptable then

check:

The position of the logs and/or the

amount of chips/glass granulates.

The pipe connections for leaks.

(in case of blue flames);

That the correct flue restrictor is fitted

(see fig. 1.9-F);

The outlet:

oWall terminal has the correct

position and side up;

oRoof terminal has the correct

position.

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

13 < <<<

If the maximum lengths of the flue gas

outlet is not exceeded.

If possible, carry out a flue gas analysis

(see section 7.2).

7.2 Flue gas analysis

It is possible to check the combustion gases and

supply air with a CO/CO2flue gas analyser.

There are two measuring pipes between the built-

in frame and the front glass (fig. 2.0).

X = measuring pipe air supply

Y = measuring pipe flue gas

The ratio CO2 and CO must not be greater than

1:100.

Example:

CO2 is 4% and CO is 400ppm, measured at the

highest point.

If the ratio is greater than 1:100 or flue gases are

measured in the air supply, check the points in

section 7.1.

8Instructions for client

Recommend that the fire should be

checked annually by a qualified specialist

to ensure the safe use and to guarantee a

long service life.

Provide instructions on the operation of:

othe appliance;

othe remote control;

oThe App and its settings.

Emphasize the danger of fingerprint burns

at the glass.

Give advice and instructions on care and

cleaning of the glass:

Handover to customer:

oinstallation manual;

ouser manual;

odecoration instruction card;

osuction cups;

osample Faber glass polish.

9Annual maintenance

Check

Check and clean if necessary:

the combustion chamber;

the burner;

the wooden logs for breakage;

the glass;

the outlet.

Replace chips and/or glass granulate if necessary.

Cleaning

Remove the front glass (see chapter 5).

You can clean the glass with Faber glass polish.

This is a specially formulated cleaning agent that

can be ordered at authorized Faber dealers.

Never use aggressive cleaning agents or abrasive

products.

Please note!

Avoid fingerprints on the glass; these are no

longer removable once the fire is used.

Now carry out check-up as described in chapter 7.

For an extensive maintenance instruction

"maintenance protocol gas fires" see:

10 Conversion to other gas type

This can only be done by replacing the burner. To

do so, please contact your dealer. Always provide

the type and serial number of the appliance when

ordering.

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

14 < <<<

11 Flue calculation

A simple way to calculate whether the exhaust

configuration is possible in combination with your

fireplace, use the “Faber Flue App V2”:

This is available free of charge and can be

downloaded via:

Internet:

Android and PC (Windows Store, (Windows 10)).

App Store:

iPhone, iPad and Mac.

Google Play:

Android smart phones and Android tablets.

Alternatively, you can use the calculation sheet

(see chapter 13).

The options for flue lengths and any flue restrictors

are defined in a restrictor table, see 11.1 till 11.5.

Start Length (STL), Total Vertical Height (TVH) and

Total Horizontal Length (THL) are used in the table.

Start length (STL):

The first part that is placed on the

fireplace and represents a certain value

(fig. 12.1, 12.2 and 12.3 A, N and F). You

can find this value in the upper row of the

restrictor table.

Total Vertical Height (TVH):

TVH is the height difference measured

from the top of the appliance to the

outlet. This can be measured or

determined in the building plan. For

clarification, see also the TVH indication in

the drawings (fig. 12.1, 12.2 and 12.3).

Total Horizontal Length (THL):

THL is the Total Horizontal Length and

consists of elbows and pipes entirely in

the horizontal plane. See elbows I, K and Q

and the elements H, J, L, M, P and R

(fig. 12.1 and 12.2).

Horizontal length:

The Horizontal Length consists of the

elements H, J, L, M, P and R

(fig. 12.1 and 12.2).

Elbows 90° in the horizontal plane:

Horizontal elbows are elbows entirely in

the horizontal plane

(fig. 12.1, 12.2 and 12.3 I, K and Q).

Elbows 45° or 30° in the horizontal plane.

Horizontal elbows are elbows entirely in

the horizontal plane.

Elbows 90° vertical to horizontal:

These are 90° elbows, which proceed from

horizontal to vertical (fig. 12.2 and 12.3 G,

O and S).

Elbows 45° or 30° vertical to horizontal

plane:

These are 30° or 45° elbows vertically

offset less than 45° (fig. 12.1 B and D).

Pipes at an angle of inclination:

These are pipes vertically ascending at an

angle of 30° or 45° (fig. 12.1 C). Fill in only

in combination with at least two 30° or

45° elbows in the vertical part.

Restrictor table:

See restrictor table for the correct vertical

(TVH) and horizontal length (THL).

In case of an “X” or if the values are outside the

restrictor table, the combination is not permitted.

Then adjust TVH or THL.

If a value is indicated, check that the calculated STL

value is not lower than indicated in the restrictor

table. In this case STL must be adjusted.

The value found indicates the width of the flue

restrictor to be placed (“0” means no flue

restrictor). Generally a 30mm flue restrictor is

installed (fig. 1.9-F), first remove hatch “G”.

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

15 < <<<

11.1 Restrictor table (100/150) NG MatriX 800/500 I,II,III and 800/650 I,II,III

Start length (STL) Vertical (TVH) and Horizontal (THL)

STL

0,2

1

1,5

THL

0

1

2

3

4

5

6

7

8

9

10

TVH

0

x

0,5

x

1

0,2

x

1,5

40,2

x

2

45,2

x

3

45,2

x

4

45,5

x

5

50,2

x

6

50,2

0,2

x

7

50,2

0,2

x

8

50,2

0,2

x

9

60,2

0,2

x

10

60,2

0,2

x

11

60,2

30,2

0,2

x

12

60,2

30,2

0,2

x

13

70,2

30,2

0,2

x

14

70,2

30,2

0,2

x

15

70,2

30,2

0,2

x

16

70,2

30,2

0,2

x

17

80,2

30,2

0,2

x

18

80,2

40,2

30,2

x

19

80,2

40,2

30,2

x

20

80,2

40,2

30,2

x

21

80,2

50,2

40,2

30,2

x

22

80,2

50,2

40,2

30,2

x

23

80,2

50,2

40,2

30,2

x

24

80,2

50,2

40,2

30,2

x

25

80,2

50,2

40,2

30,2

x

26

80,2

50,2

40,2

30,2

x

27

80,2

50,2

40,2

30,2

x

28

80,2

50,2

40,2

x

29

80,2

50,2

x

30

80,2

x

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

16 < <<<

11.2 Restrictor table (130/200) NG MatriX 800/500 I,II,III

Start length (STL) Vertical (TVH) and Horizontal (THL)

STL

0,2

0,5

1

THL

0

1

2

3

4

5

6

7

8

9

10

TVH

0

x

0,5

x

0,4

x

1

0,4

0,3

30,4

0,4

x

1,5

30,4

30,3

30,4

x

2

30,4

30,3

30,4

x

3

30,4

30,3

30,4

x

4

40,4

40,3

40,4

30,4

x

5

40,4

40,3

40,4

30,4

x

6

45,4

45,3

45,4

40,4

30,4

x

7

45,4

45,3

45,4

40,4

30,4

x

8

50,4

50,3

50,4

45,4

40,4

x

9

50,4

50,3

50,4

45,4

40,4

x

10

50,4

50,3

50,4

45,4

x

11

60,4

60,3

60,4

50,4

45,4

x

12

60,4

60,3

60,4

50,4

x

13

60,4

60,3

60,4

50,4

x

14

70,4

70,3

60,4

50,4

x

15

70,4

70,3

70,4

60,4

x

16

70,4

70,3

70,4

60,4

x

17

80,4

70,3

70,4

60,4

x

18

80,4

80,3

70,4

60,4

x

19

85,4

80,3

80,4

70,4

60,4

x

20

85,4

85,3

80,4

70,4

60,4

x

21

85,4

85,3

80,4

70,4

60,4

x

22

85,4

85,3

80,4

70,4

60,4

x

23

85,4

85,3

80,4

70,4

60,4

x

24

85,4

85,3

80,4

70,4

60,4

x

25

85,4

85,3

80,4

70,4

x

26

85,4

85,3

80,4

x

27

85,4

85,3

80,4

x

28

85,4

85,3

80,4

x

29

85,4

85,3

x

30

85,4

x

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

17 < <<<

11.3 Restrictor table (130/200) NG MatriX 800/650 I,II,III

Start length (STL) Vertical (TVH) and Horizontal (THL)

STL

0,2

0,5

1

THL

0

1

2

3

4

5

6

7

8

9

10

TVH

0

x

0,5

x

0,4

x

1

0,4

0,3

0,4

x

1,5

30,4

30,3

30,4

x

2

30,4

30,3

30,4

x

3

30,4

30,3

30,4

x

4

40,4

40,3

40,4

30,4

x

5

40,4

40,3

40,4

30,4

x

6

45,4

45,3

45,4

40,4

30,4

x

7

45,4

45,3

45,4

40,4

30,4

x

8

50,4

50,3

50,4

45,4

40,4

x

9

50,4

50,3

50,4

45,4

40,4

x

10

50,4

50,3

50,4

45,4

x

11

60,4

60,3

60,4

50,4

45,4

x

12

60,4

60,3

60,4

50,4

x

13

60,4

60,3

60,4

50,4

x

14

70,4

70,3

60,4

50,4

x

15

70,4

70,3

70,4

60,4

x

16

70,4

70,3

70,4

60,4

x

17

80,4

70,3

70,4

60,4

x

18

80,4

80,3

70,4

60,4

x

19

85,4

80,3

80,4

70,4

60,4

x

20

85,4

85,3

80,4

70,4

60,4

x

21

85,4

85,3

80,4

70,4

60,4

x

22

85,4

85,3

80,4

70,4

60,4

x

23

85,4

85,3

80,4

70,4

60,4

x

24

85,4

85,3

80,4

70,4

60,4

x

25

85,4

85,3

80,4

70,4

x

26

85,4

85,3

80,4

x

27

85,4

85,3

80,4

x

28

85,4

85,3

80,4

x

29

85,4

85,3

x

30

85,4

x

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

18 < <<<

11.4 Restrictor table (130/200) LPG MatriX 800/500 I,II,III

Start length (STL) Vertical (TVH) and Horizontal (THL)

STL

0,2

1

THL

0

1

2

3

4

5

6

7

8

9

10

TVH

0

x

0,5

x

1

0,4

40,4

30,4

0,4

x

1,5

40,4

30,4

0,4

x

2

50,4

40,4

30,4

0,4

x

3

50,4

40,4

30,4

x

4

60,4

50,4

40,4

30,4

x

5

60,4

50,4

40,4

x

6

60,4

50,4

40,4

x

7

60,4

50,4

x

8

60,4

50,4

x

9

70,4

60,4

50,4

x

10

70,4

60,4

x

11

70,4

60,4

x

12

70,4

60,4

x

13

70,4

60,4

x

14

70,4

60,4

x

15

70,4

x

16

80,4

70,4

x

17

80,4

70,4

x

18

80,4

70,4

x

19

80,4

70,4

x

20

80,4

70,4

x

21

80,4

70,4

x

22

80,4

70,4

x

23

80,4

70,4

x

24

85,4

80,4

70,4

x

25

85,4

80,4

70,4

x

26

85,4

80,4

x

27

85,4

80,4

x

28

85,4

80,4

x

29

85,4

x

30

85,4

x

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

19 < <<<

11.5 Restrictor table (130/200) LPG MatriX 800/650 I,II,III

Start length (STL) Vertical (TVH) and Horizontal (THL)

STL

0,2

1

THL

0

1

2

3

4

5

6

7

8

9

10

TVH

0

x

0,5

x

1

0,4

x

1,5

40,4

30,4

0,4

x

2

50,4

40,4

30,4

0,4

x

3

50,4

40,4

30,4

x

4

60,4

50,4

40,4

30,4

x

5

60,4

50,4

40,4

x

6

60,4

50,4

40,4

x

7

60,4

50,4

40,4

x

8

60,4

40,4

x

9

70,4

60,4

40,4

x

10

70,4

60,4

x

11

70,4

60,4

x

12

70,4

60,4

x

13

70,4

60,4

x

14

70,4

60,4

x

15

70,4

x

16

80,4

70,4

x

17

80,4

70,4

x

18

80,4

70,4

x

19

80,4

70,4

x

20

80,4

70,4

x

21

80,4

70,4

x

22

80,4

70,4

x

23

80,4

70,4

x

24

85,4

80,4

70,4

x

25

85,4

80,4

70,4

x

26

85,4

80,4

x

27

85,4

80,4

x

28

85,4

80,4

x

29

85,4

x

30

85,4

x

Installation manual MatriX 800/500 I,II,III and 800/650 I,II,III

20 < <<<

12 Examples flue materials

TVH

Faber e-MatriX 800-500 I User manual

Popular Indoor Fireplace manuals by other brands
