Faber PB80/85 User manual

78 Installation and User manual:
Model
Installation and User’s manual PB - GB
Subject to technical changes

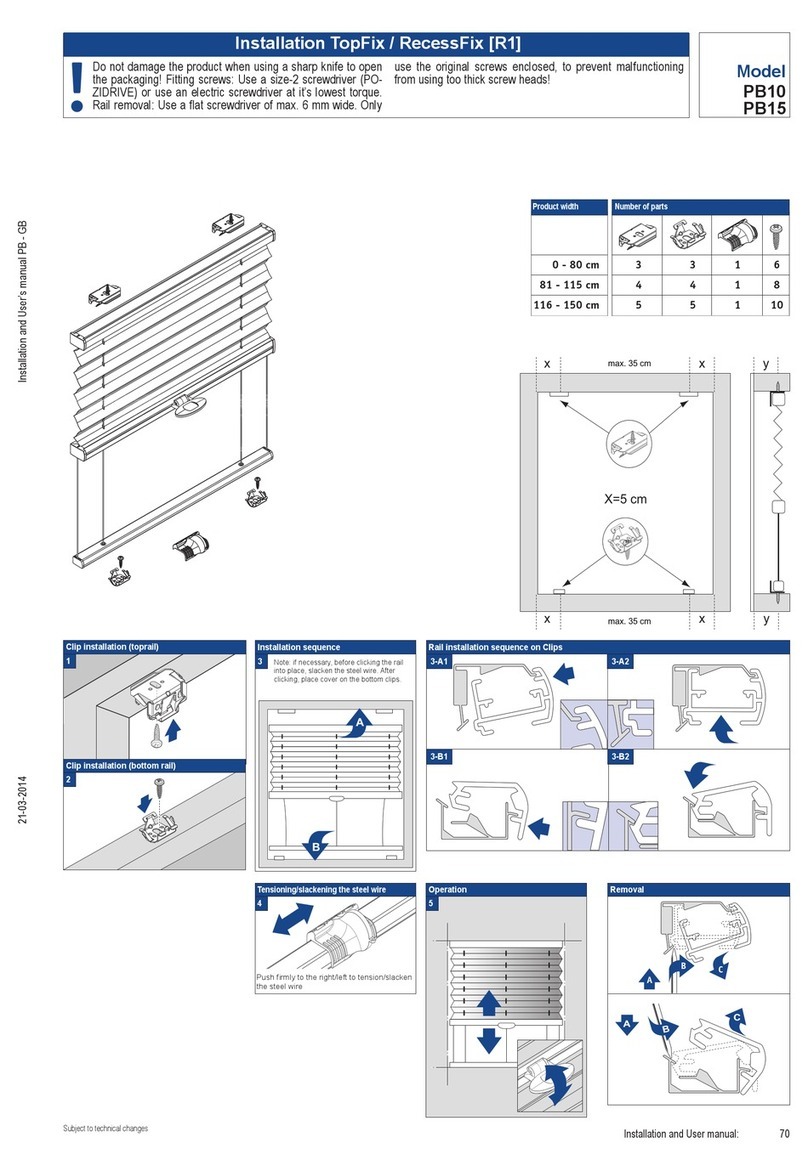

Installation TopFix / RecessFix [R1]
Do not damage the product when using a sharp knife to open
the packaging! Fitting screws: Use a size-2 screwdriver (PO-
ZIDRIVE) or use an electric screwdriver at it’s lowest torque.
Rail removal: Use a at screwdriver of max. 6 mm wide. Only
use the original screws enclosed, to prevent malfunctioning
from using too thick screw heads!
xx
x x y
max. 35 cm
max. 35 cm
xx
max.
35 cm
X = 5 cm
y
C
B
A
A
B
2
Clip installation (bottom rail)
1
Clip installation (high rail)
3
Installation sequence
3-A1 3-A2
3-B/C1 3-B/C2
Rail installation sequence on Clips
4
Tensioning/slackening the steel wire
C
A
B
A
BC
Removal
5
Operation
Note: if necessary, before clicking the rail
into place, slacken the steel wire. After
clicking, place cover on the bottom clips.
Push rmly to the right/left to tension/slacken
the steel wire
0 - 80 cm
81 - 115 cm
116 - 150 cm
3
4
5
var
var
var
1
1
1
var
var
var
Product width Number of parts
[R1]
21-03-2014
PB80/85
PB81/86

79 Installation and User manual:
Model
Installation and User’s manual PB - GB
Subject to technical changes
FaceFix installation to a window frame / wall [F1]
Do not damage the product when using a sharp knife to open
the packaging! Fitting screws: Use a size-2 screwdriver (PO-
ZIDRIVE) or use an electric screwdriver at it’s lowest torque.
Rail removal: Use a at screwdriver of max. 6 mm wide. Only
use the original screws enclosed, to prevent malfunctioning
from using too thick screw heads!
xx
x
x
max. 35 cm
max. 35 cm
xx
max.
35 cm
X = 5 cm
C
B
A
A
B
3 var var var 1 var var
4 var var var 1 var var
5 var var var 1 var var
0 - 80 cm
81 - 115 cm
116 - 150 cm
1
Clip installation (toprail)
2
Clip installation (bottom rail)
3
Fitting the covers
4
Installation sequence
5
Tensioning/slackening the steel wire
4-A1 4-A2
4-B/C1 4-B/C2
Rail installation sequence on Clips
C
A
B
A
BC
Removal
6
Operation
Note: if necessary, before clicking the rail
into place, slacken the steel wire. After
clicking, place cover on the bottom clips.
Push rmly to the right/left to tension/slacken
the steel wire
Number of partsProduct width
[F1]
21-03-2014
PB80/85
PB81/86
