FabiaTech Fanless Series User manual

FabiaTech Corporation
IPC Solution
Website: http://www.fabiatech.com
Email: [e-mail]
Small Cube System
Fanless Series
FX5408 User’s Manual
JAN 2019
Version: 1.3
Part Number: FX5408
i

Copyright
Copyright © 2016 FabiaTech Corporation, The content of this publication may not
be reproduced in any part or as a whole, transcribed, stored in a retrieval system,
translated into any language, or transcribed in any form or by any means,
electronic, mechanical, and magnetic… or otherwise without the prior written
permission of FabiaTech Corporation.
Disclaimer
FabiaTech makes no representation of warranties with respect to the contents of
this publication. In an effort to continuously improve the product and add features,
FabiaTech reserves the right to revise the publication or change specifications
contained in it from time to time without prior notice of any kind from time to time.
FabiaTech shall not be reliable for technical or editorial errors or omissions, which
may occur in this document. FabiaTech shall not be reliable for any indirect,
special, incidental or consequential damages resulting from the furnishing,
performance, or use of this document.
Trademarks
Trademarks, brand names and products names mentioned in this publication are
used for identification purpose only and are the properties of their respective
owners.
Technical Support
If you have problems or difficulties in using the system or setting up the relevant
devices, BIOS and software that are not explained in this manual, please contact
our service engineer for service, or send email to [e-mail].
Returning Your Board for Service & Technical Support
If your board requires servicing, contact the dealer from whom you purchased the
product for service information. You can help assure efficient servicing of your
product by following these guidelines:
A list of your name, address, telephone, facsimile number, or email address
where you may be reached during the day
Description of you peripheral attachments
Description of your software (operating system, version, application
software, etc.) and BIOS configuration
Description of the symptoms (Extract wording any message)
For updated BIOS, drivers, manuals, or product information, please visit us at
www.fabiatech.com.
ii

Table of Contents
FX5408 User’s Manual ...........................................................................................................i
Chapter 1 Introducing the FX5408 System ............................................................................... 1
Overview..................................................................................................................................1
Series Comparison Table.......................................................................................................2
Layout.......................................................................................................................................3
Specifications..........................................................................................................................4
Packing List..............................................................................................................................5
Chapter 2 Hardware Installation ............................................................................................... 7
Before Installation...................................................................................................................7
To install hardware- remove the bottom Cover............................................8
LED indicators....................................................................................................14
I/O Peripheral Connectors ..............................................................................14
Connecting the DC Power and Power Button ............................................17
Jumper Setting ..................................................................................................18
Chapter 3 BIOS Setup............................................................................................................... 19
Overview................................................................................................................................19
BIOS Functions ...................................................................................................20
Keyboard Convention.....................................................................................21
Main Setup ............................................................................................................................22
Advanced Setup..................................................................................................................23
ACPI settings......................................................................................................24
CPU Configuration............................................................................................26
IDE Configuration..............................................................................................28
USB Configuration.............................................................................................30
IT8786 Super IO Configuration.........................................................................33
Hardware Health Configuration.....................................................................36
Wake Configuration.........................................................................................37
Realtek PCIe GBE Family Controller (MAC)..................................................38
Chipset...................................................................................................................................39
North Bridge.......................................................................................................40
South Bridge.......................................................................................................43
iii

Boot ........................................................................................................................................46
CSM Parameters ...............................................................................................48
Security...................................................................................................................................50
Save & Exit.............................................................................................................................53
Chapter 4 Software Installation ............................................................................................... 55
Install AMD Catalyst ™ Drivers............................................................................................55
WIN XP/7 32/64 Driver................................................................................................55
Audio Driver...........................................................................................................................56
WIN XP/7 X86/X64 Driver ...........................................................................................56
LAN Driver (RTL 8111F)..........................................................................................................56
WIN XP/7 Driver X86/X64 Driver................................................................................56
BIOS Flash Utility.....................................................................................................................57
Watchdog Timer...................................................................................................................58
Watchdog Timer Setting..................................................................................59
Watchdog Timer Enabled ...............................................................................60
Watchdog Timer Trigger ..................................................................................60
Watchdog Timer Disabled...............................................................................60
Digital I/O (GPIO) programming........................................................................................61
Chapter 5 Technical Reference .............................................................................................. 63
Technical Reference............................................................................................................63
Physical and Environmental............................................................................63
Serial Ports..........................................................................................................64
Appendix................................................................................................................................... 68
Dimension..............................................................................................................................68
iv

v

FabiaTech Corporation
Chapter1IntroducingtheFX5408System
Overview
The FX5408 is an embedded system with AMD® G-Serial T40E Processor low-power
CPU module inside. This user’s manual provides information on the physical features,
installation, and BIOS setup of the FX5408.
Built to unleash the total potential of the AMD® G-Serial T40E Processor, Able to
support 1 GHz CPU, this unit supports two 10/100/1000 Base –TX LAN port, one PCIe
mini card socket for wireless/GPRS or m-SATA storage module, 2-In/2-Out digital I/O,
audio, six USB-2.0 ports, SATA/ CFAST socket, two So-DIMM socket supports up to
8GB DDR3L RAM, VGA and Display port.
Each FX5408 has four ports for I/O communications. Two RS232 and two RS232/
RS422/RS485 port are available.
The FX5408 is perfect for ATM machines, KIOSK, point-of-sales/point-of- information,
gaming and infotainment, measurement technology, lotteries, and banking and
small Embedded Control. The unit is only 200 mm (W) X130 mm (D) X52 mm (H).
1

FabiaTech Corporation
SeriesComparisonTable
Model FX5408
System Processor AMD® G-Serial T40E 1.0 GHZ
Memory
204 Pin-DIMM*2 DDR3L-1066 4GB / 8GB (Max.)
Audio Line-In,MIC-In and Ear-Phone
Display VGA (DB-15)/ DP
Multi I/O Two RS232 and
Two RS232/RS422/RS485
USB 2.0 Six
RJ45 LAN port
(10/100/1000 Mbps) Two Realtek RTL8111F
PCIe Mini Card Socket One (Wireless or m-SATA)
SIM Card Socket One
GPIO 2In - 2Out
One CFAST Socket
m-SATA (PCIe Mini Card Socket)
Storage
One 2.5’ SATA HDD Connector
Watchdog Timer Yes
Operating Temperature -20~+ 60℃(-4~140℉)
Dimensions (Unit: mm) 200(W) x 130 (D) X 52 (H)
2

FabiaTech Corporation
3

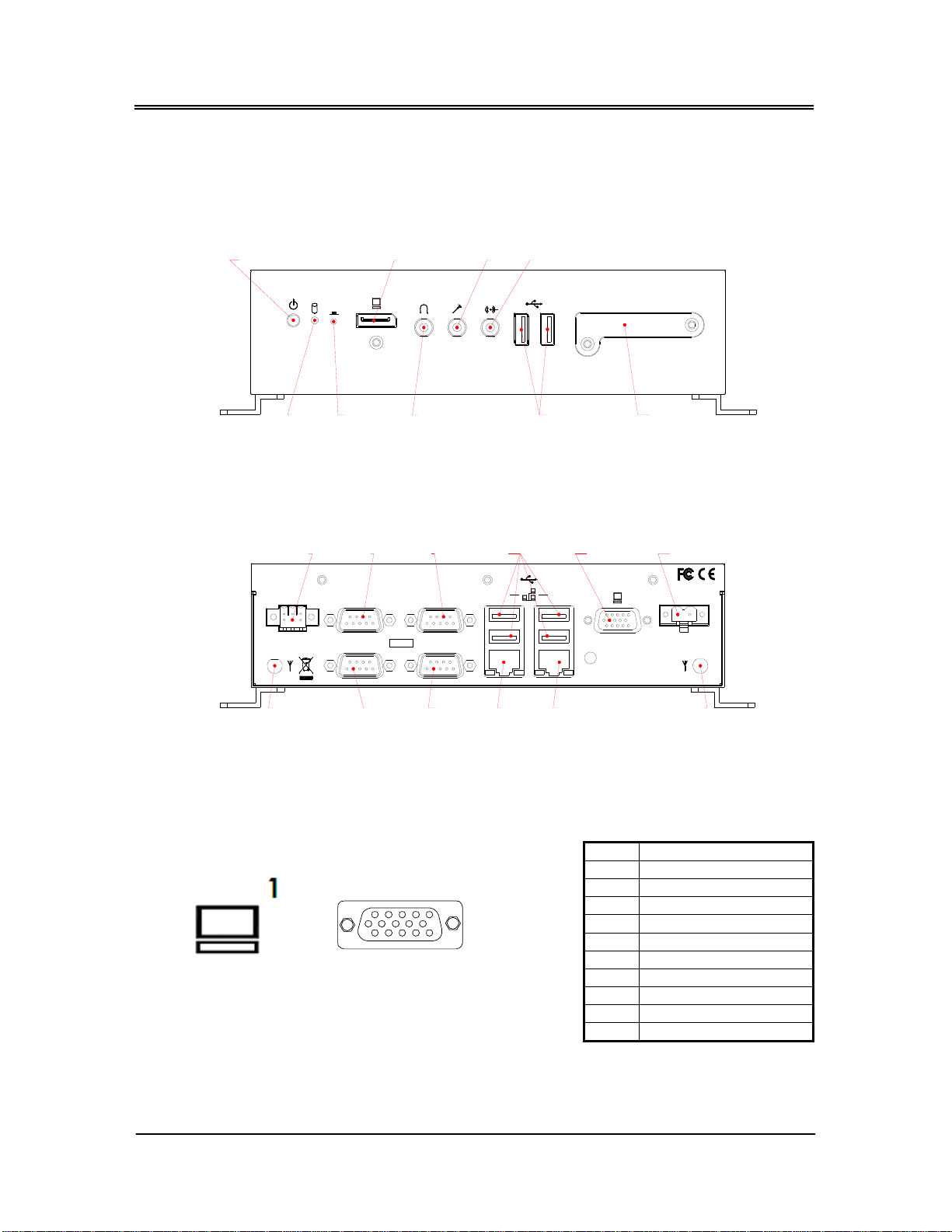

Layout
Front Panel
CFAST
POWER BUTTON
HDD RESET EAR-PHONE
MIC LINE IN
USB CFAST
2
DISPLAY
Rear Panel
0
112
IN
-
3
OUT
+
12~24V 10
4
1
10101
2
D I/O 1DC12~24V
-+
DIGITAL IO COM4
ANTENNA COM3
COM2
COM1 LAN2 LAN1
USB DC INVGA
ANTENNA

FabiaTech Corporation
Specifications
Processor Board –
AMD® G-Serial T40E 1.0 GHZ (512KB L2 Cache For Per Core) Dual Core Low
Power Processor with 4GB DDR3L/1066 RAM
I/O Outlets –
Two 10/100/1000 base-TX Ethernet LAN port with RJ45
VGA connector with DB15
Audio connectors for Microphone-in, Line-In and Ear-Phone
One terminal block for 2-In and 2-Out Isolated Digital I/Os
6 USB ports (2.0) with type A connector
2 RS-232 and 2 RS-232/RS422/RS485 port with DB9
One PCIe Mini card socket modules, especially for WLAN/GPRS module
One terminal block for DC-In and one power button
LED Indicator –
One power LED with power button, and one hard disk/CF access LED.
Storage Bay-
CFAST Compact Flash socket for CFAST Compact Flash modules
One PCIe mini card socket support m-SATA module
One SATA 2.5" hard disk space
Power requirement –
+12 ~ +24V DC, 2.4A maximum (1.1A typical) with DC 19V input
Dimensions -
200mm (W) x 130mm (D) x 52mm (H)
4

FabiaTech Corporation
PackingList
Upon receiving the package, verify the following things. Should any of the
mentioned happens, contact us for immediate service.
•Unpack and inspect the FX5408 package for possible damage that may
occur during the delivery process.
•Verify the accessories in the package according to the packing list and see
if there is anything missing or incorrect package is included.
•If the cable(s) you use to install the FX5408 is not supplied from us, please
make sure the specification of the cable(s) is compatible with the FX5408
system.
Note: after you install the FX5408, it is recommended that you keep the diskette or
CD that contains drivers and document files, and keep the document
copies, or unused cables in the carton for future use.
The following lists the accessories that may be included in your FX5408 package.
Some accessories are optional items that are only shipped upon order.
•One FX5408 embedded system.
•One pack of 2 apartable terminal blocks, 2-pin for Power input and 6-pin for
GPIO.
•One Pack of (4+2) screws for 2.5” SATA hard disk installation and mini-card
installation.
•One Pack of Wall Mounting kit (2 pieces of metals with 4 screws
•One compact disc includes software utility and manual.
Optional:
•AK1006- Half size mini PCIe module adapter kits. (PN: 0606010028G)
•FX5403K1 1U Rack Mounting fixers and 4 screws.(PN: 0606010011G)
•FX5504k1 Panel Mounting fixers and 2 screws. (VESA 75*75 /100 *100).
(PN:0606010012G)
•FX5407K2 Wall mounting fixers and 4 screws. (P/N: 0606010037R)
•FX5407K3 Panel mounting fixers and 10 screws (50*50/75*75/100*100).
(P/N: 0606010038R)
5

FabiaTech Corporation
6

FabiaTech Corporation
Chapter2HardwareInstallation
This chapter introduces the system connectors & jumper settings, and guides you to
apply them for field application.
BeforeInstallation
Before you install the system, make sure you follow the following descriptions.
1. Before removing the cover, shut down the operation System and disconnect
power cord and (or) unplug DC-In cable.
2. Install any connector, CFAST Compact Flash, and hard disk is sure that the
power is disconnected or power switch to off from the system. If not, this may
damage the system.
3. The ESD (Electricity Static Discharge) may be created from human body that
touches the board. It may do damage to the board circuit.
7

FabiaTech Corporation

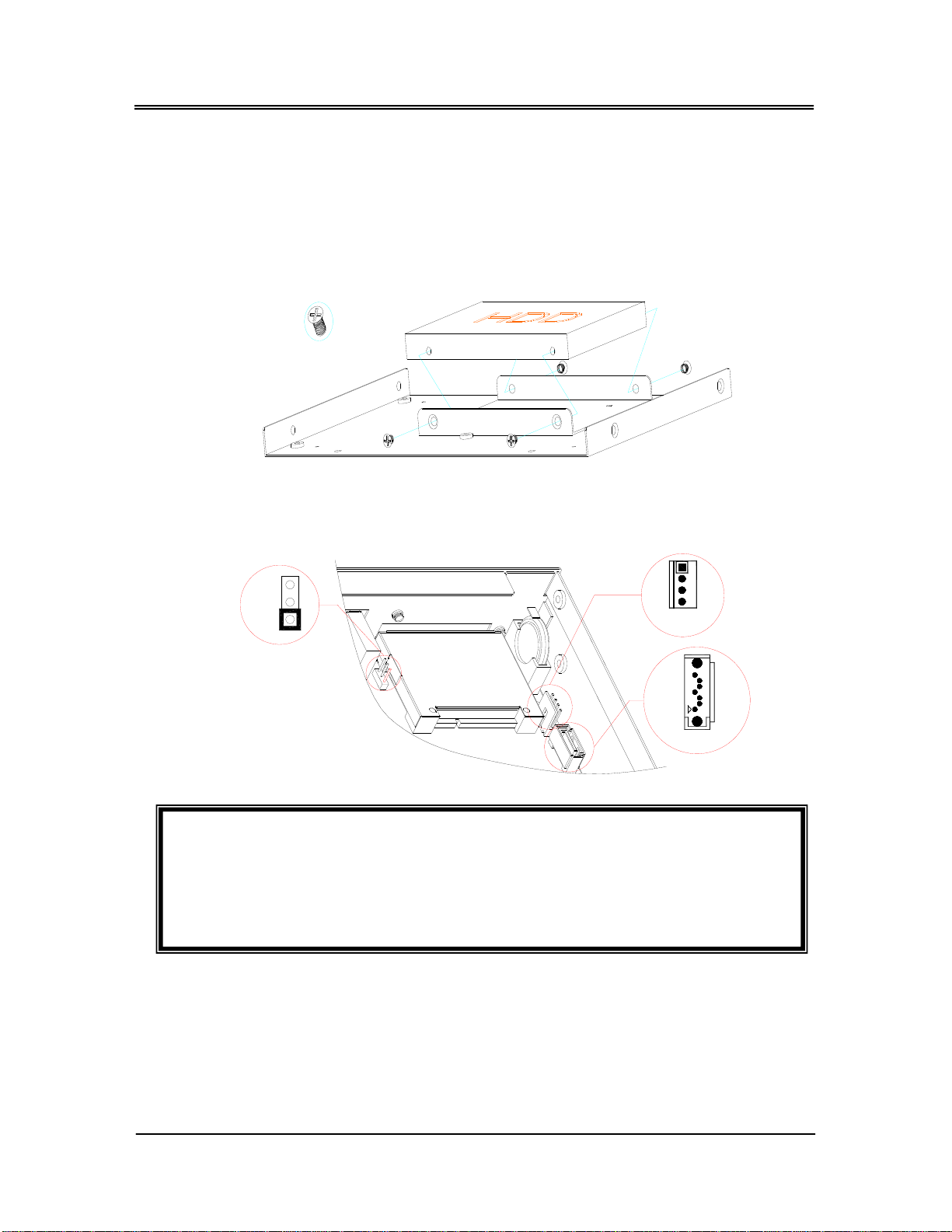

To install hardware- remove the bottom Cover
If you are installing following hardware items, you can remove the bottom cover.
The following figure will guide you how to install SATA 2.5" HDD, CFAST Compact
Flash modules, mini PCIe WLAN or GPRS module, DDR3L RAM module to the FX5408
and how to install the FX5408 fixers. (Please see the spots circled.)
¾a. Unscrew bottom cover
Use a cross-head screwdriver to remove seven screws that secure the bottom
cover.
M3*P0.5
¾b. Installing CFAST Compact Flash Card
Use a cross-head screwdriver to remove screws that secure the front cover.
M3*P0.5
8

FabiaTech Corporation
9
¾c. Installing Hard Disk
Fasten screws up the Hard disk device to HDD metal frame and connect the SATA
HDD cable and power cable. See following figure.
c1. Fasten screw the SATA HDD
M3*P0.5
c2. Installing SATA Cable
CN11
CN12
JP1
Note: Use caution when handling the hard disk to prevent damage to SATA
connector as you inserted hard disk. Be careful with the orientation when
installing connectors. The CN11 SATA connector used to connect a SATA
2.5" HDD with included SATA cable, CN12 is for SATA power connector.
(The CN12 support +5V Voltage only)

FabiaTech Corporation
10
¾d. Installing PCIe Mini Card or m-SATA Module
FX5408 supports PCIe mini card socket; you may extend additional PCIe mini card
module and SIM card or m-SATA module to system. Connect to the antenna cable
from rear side antenna holes to GPRS or Wireless LAN module and install the SIM
card for GPRS. See following figures.
d1. Installing PCIe Mini Card and SIM card
M2*P0.4
d2. Installing AK1006 kit (Optional): For Half Size Mini PCIe module
Note: 1. When installing PCIe GPRS Mini card on FX5408 system these is need
the installing the SIM Card to SIM socket of system.
2. The insert SIM card into the SIM card socket. Make sure that the SIM card
is properly inserted and that golden contact area on the card is facing
downwards.

FabiaTech Corporation
¾e. Installing Memory: So-DIMM Socket for DDR3L RAM Modules
If you may extend additional memory to system, see as following figure. The 204 pin
So-DIMM socket supports 2GB to 8GB of DDR3L RAM modules. Installing memory
module to So-DIMM socket of down side, when only one memory module. We
recommend that installing dual channel RAM module made by the same part
number and manufacturer.
11

FabiaTech Corporation
¾f. Installing the universal fixers
Please refer to the down side figure for installing the FX5408 with universal fixers.
f1. Standard Wall Mounting (See Dimension)
M3*P0.5
f2. FX5407k2– Wall Mounting (See Dimension)
M3*P0.5
f3. FX5403K1 – 1U Rack Mount Kit
M3*P0.5
12

FabiaTech Corporation
f4. FX5504K1– Panel Back Mounting (VESA Mount 100*100/75*75) Kit
M3*P0.5
f5. FX5407K3 – Panel mounting Kit
M4*P0.7
M3*P0.5
13

FabiaTech Corporation
14
LED indicators
The Power button with LED and HDD LED has two distinctive statuses: Off for
inactive and blinking light for activity operation.
CFAST
POWER BUTTON
HDD RESET EAR-PHONE
MIC LINE IN
USB CFAST
2
DISPLAY
I/O Peripheral Connectors
View from the rear and front side, if you are connecting the monitor, LAN, COM,
Audio, GPIO, and USB to the FX5408. See following figure and a side pictures.
0
112
IN
-
3
OUT
+
12~24V 10
4
1
10101
2
D I/O 1DC12~24V
-+
DIGITAL IO COM4
ANTENNA COM3
COM2
COM1 LAN2 LAN1
USB DC INVGA
ANTENNA
1. Connecting the VGA Display: VGA (CRT)
DB15 Signal
1 Red
2 Green
3 Blue
13 Hsync
14 Vsync
12 DDC Data(*)
15 DDC Clock(*)
5 & 10 Digital Ground
6,7,8 Analog Ground
Others Not Used

FabiaTech Corporation
15

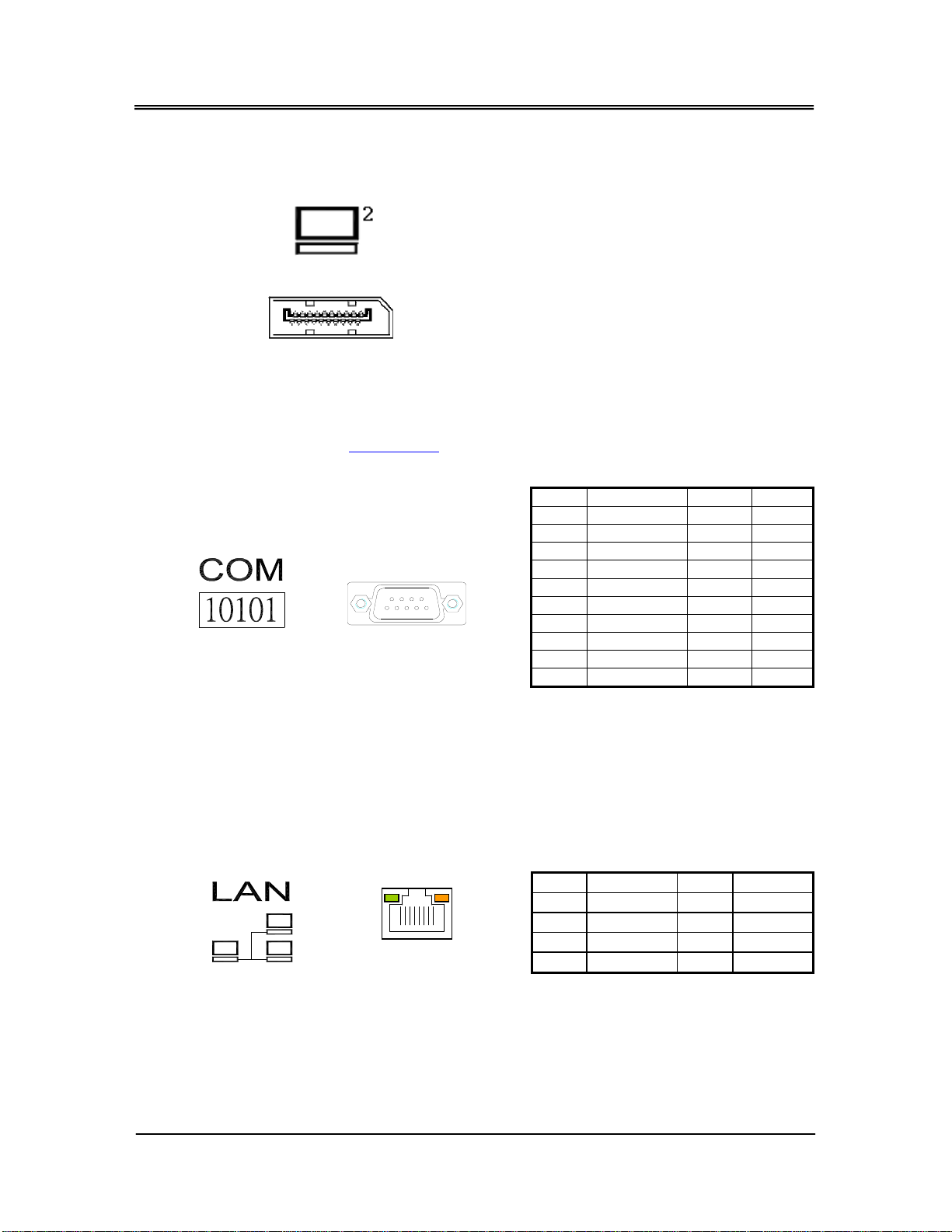

2. Connecting the Display port
3. Connecting the COM ports
The DB9-COM1 and COM2 are designed for multiple proposes. Its can select
RS232/RS422/RS485 by BIOS CMOSsetting. The following tables show the signal
connections of these connectors.
4. Connecting the LAN ports
The RJ45 connector with 2 LED’s for LAN. The orange LED indicates data is being
accessed and the green LED indicates on-line status.
DB-9 RS-232 RS-422 RS-485
1 -DCD TX- 485-
6 -DSR
2 RXD TX+ 485+
7 -RTS
3 -TXD RX+
8 -CTS
4 -DTR RX-
9 -RI
5 Ground
Metal Case Ground
RJ45 LAN RJ45 LAN
1 MDI0+ 5 MDI2+
2 MDI0- 6 MDI2-
3 MDI1+ 7 MDI3+
4 MDI1- 8 MDI3-
1 8
(Front View)
RJ45 connector
Display Port
