Fagor LFA086XL User manual

Rev 0.0 1
CONTENTS EN
CONTENTS
1 INTRODUCTION ........................................................................................3
2 IMPORTANT SAFETY INSTRUCTION.........................................................5
3 DESCRIPTION AND USE OF THE CONTROL ..........................................11

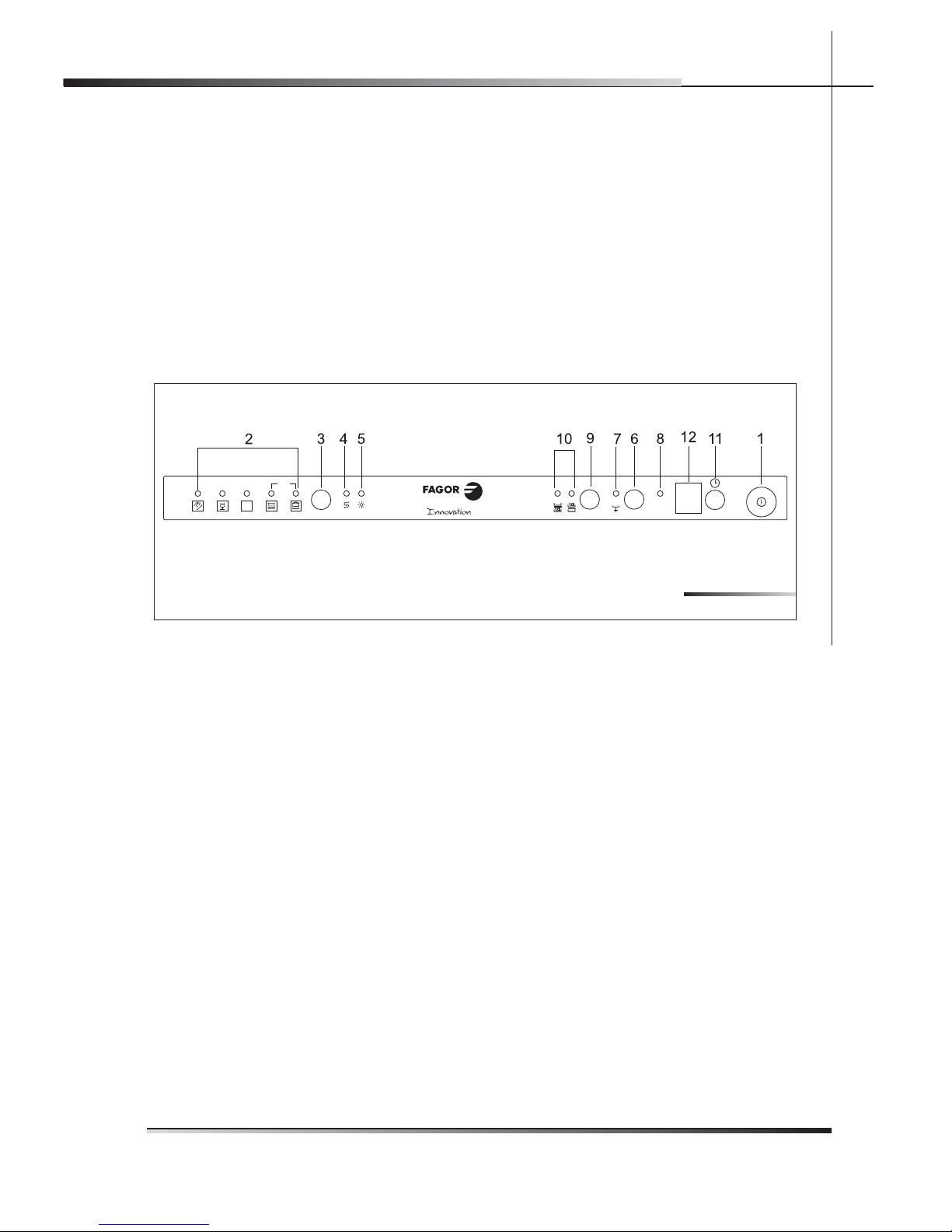

3.1 Upper panel .............................................................................................11
3.2 Setting the washing program and switching it on and off..........................12
3.2.1 Switching on ............................................................................................15
3.2.2 Selecting and starting the program........................................................... 16
3.2.3 End of program........................................................................................16
3.2.4 Interrupting a program..............................................................................16
3.2.5 Changing the current program .................................................................16
3.2.6 Canceling the current program................................................................. 17
3.2.7 Options....................................................................................................17
3.2.8 Switching off ............................................................................................ 19
3.3 Additional functions.................................................................................. 19
3.3.1 Adjusting the water softener..................................................................... 19
4 ENERGY SAVING AND ENVIRONMENTAL RESPECT.............................. 21
4.1 Reducing the consumption of detergent and respecting the environment.21
5 REMOVING THE DISHES......................................................................... 22
6 TROUBLESHOOTING..............................................................................23
7 INSTALLATION AND HOOK-UP ............................................................... 25
8 OPERATING INSTRUCTIONS ..................................................................27
8.1 Using the water softening system............................................................. 28

2 Rev 0.0
EN
8.2 Using the rinse-aid and detergent dispensers........................................... 30
8.2.1 Adding the rinse-aid.................................................................................31
8.2.2 Adjusting the rinse-aid dispenser system.................................................. 31
8.2.3 Adding the detergent ...............................................................................32
8.3 General warnings and recommendations .................................................34
8.4 Using the racks ........................................................................................ 36
8.4.1 Lower rack...............................................................................................37
8.4.2 Cutlery basket..........................................................................................39
8.4.3 Upper rack...............................................................................................40
9 CLEANING AND USER-MAINTENANCE ..................................................43
9.1 General warnings and recommendations .................................................43
9.2 Cleaning the water intake filter.................................................................. 44
9.3 Cleaning the spray arms...........................................................................44
9.4 Cleaning the filter unit............................................................................... 46
9.5 General warnings and recommendations for correct maintenance............47
9.6 Troubleshooting minor problems ..............................................................48
10 TECHNICAL DATA ................................................................................... 50

Rev 0.0 3
INTRODUCTION EN
1 INTRODUCTION
Thank you for choosing one of Fagor’s products. To use this
dishwasher correctly and safely, please read this manual carefully.
The manual is divided into sections giving you a step-by-step guide
to all your appliance’s functions. The text is easy to understand and
is complete with detailed illustrations. This user-friendly manual will
provide answers to all your questions of the use of the dishwasher.
Before using this dishwasher, carefully read chapter 2 “Important
safety instruction”.
For any other information about use and maintenance of the
dishwasher, read the enclosed general manual carefully.
This manual comprises the following sections:
INTRODUCTION: general information about the manual.
WARNINGS: a list of warnings concerning safety and use of the
dishwasher.
INSTALLATION INSTRUCTIONS: for the qualified technician who
must carry out the installation, hook-up and testing of the appli-
ance.
USER INSTRUCTIONS: instructions on using the dishwasher pro-
grams and information about all the dishwasher functions.
Nomenclature of figures and tables:
The progressive number of each figure is shown in the bottom right-
hand corner of the relative box. An example of a progressive number
is “Fig. 4-01”, where the first number (4) indicates the section to
which the figure belongs, while the second number (01) indicates
the progressive number of the figure in section 4 (Fig. 4-01 is the
first figure in section 4). The tables are numbered in the same way,
bearing in mind that “Table” is used instead of “Fig.” (e.g.: Table 4-01
is the first table in section 4). If a table occupies more than one page,
a letter is added after the progressive number (e.g.: “Table 4-01a”,
Table 4-01b”).

4 Rev 0.0
INTRODUCTION
EN
Symbols used in this manual (see table 1-01)
DANGER. This symbol highlights information and warnings which,
if not observed, may compromise personal safety or damage to
appliance.
DANGER OF ELECTROCUTION. This symbol highlights information
and warnings of an electrical nature which, if not observed, may
compromise personal safety or damage to appliance.
This symbol highlights general information and warnings.
Table 1-01

Rev 0.0 5
WARNINGS EN
2 IMPORTANT SAFETY INSTRUCTION
(Save this instructions)
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLI-
ANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE
DISHWASHER (INCLUDING THE “INSTALLATION” AND “DESCRIP-
TION OF CONTROLS” MANUALS, IF ATTACHED). BEFORE USING
THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PER-
FORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH
THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED
FOR DOMESTIC USE, AND COMPLIES WITH THE DIRECTIVES
CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND
ELIMINATION OF RADIO FREQUENCY INTERFERENCE. THE AP-
PLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASH-
ING AND DRYING OF DISHES; ANY OTHER USE SHALL BE
CONSIDERED IMPROPER. THE MANUFACTURER DECLINES
ALL RESPONSIBILITY FOR USES OTHER THAN THOSE DE-
SCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL
NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE IN-
NER EDGE OF THE DOOR. THE NAME PLATE MUST NEVER
BE REMOVED.
THIS APPLIANCE IS NOT SUITABLE FOR USE ON BOATS, CARA-
VANS OR THE LIKE.
DISHWASHERS CERTIFIED FOR DOMESTIC USE ARE NOT SUIT-
ABLE FOR AUTHORISED FOOD FACTORIES.
CHECK THAT THE VOLTAGE, FREQUENCY AND PROTECTION OF
THE DOMESTIC MAINS POWER SUPPLY MATCH THE RATINGS
ON THE NAME PLATE OF THE APPLIANCE.
DO NOT LEAVE DISCARDED PACKAGING MATERIALS UNSUPER-
VISED WITHIN THE HOME. SEPARATE THE VARIOUS PACKAGING
MATERIALS AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE. KEEP CHILDREN, PHYSICALLY AND/
OR MENTALLY IMPAIRED ADULTS, AND ANIMALS AWAY FROM
PACKAGING WASTE; DANGER OF SUFFOCATION.

6 Rev 0.0
WARNINGS
EN
BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT THE
MAINS POWER SUPPLY FROM THE WORK AREA.
DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT CON-
NECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVERHEAT-
ING OR BURNING OR PRODUCING A FIRE HAZARD.
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF
ON THE SHARP EDGES OF THE APPLIANCE; WEAR SAFETY
GLOVES.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNEC-
TION IN ACCORDANCE WITH THE ELECTRICAL SAFETY REGU-
LATIONS IN FORCE. IF IN DOUBT, HAVE THE SYSTEM CHECKED
BY A QUALIFIED ELECTRICIAN (SEE ALSO THE WARNINGS INDI-
CATED IN CHAPTER 7).
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
DAMAGE TO PERSONS OR PROPERTY RESULTING FROM
THE FAILURE TO EARTH THE APPLIANCE OR FROM A DE-
FECTIVE EARTH CONNECTION.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO
AVOID WASTING ELECTRICITY.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER
FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE
WATER TAP.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DUR-
ING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLI-
ANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER
OR BY A QUALIFIED TECHNICIAN.
ONLY USE DETERGENTS SPECIALLY FORMULATED FOR DISH-
WASHERS. DO NOT USE DETERGENTS FORMULATED FOR
WASHING DISHES BY HAND.
ONLY USE RINSE-AID SPECIALLY FORMULATED FOR DOMESTIC
DISHWASHERS.

Rev 0.0 7
WARNINGS EN
DO NOT INHALE OR SWALLOW DETERGENT AS THIS MAY CAUSE
BURNS AND/OR PERMANENT DAMAGE TO THE NOSE, MOUTH
AND THROAT, AND EVEN LEAD TO SUFFOCATION; KEEP DETER-
GENT AWAY FROM YOUR EYES. IF ONE OF THE ABOVE SITUA-
TIONS OCCURS, SEEK MEDICAL ASSISTANCE IMMEDIATELY.
TO PREVENT CHILDREN FROM COMING INTO CONTACT WITH
DETERGENT, FILL THE DISHWASHER JUST BEFORE STARTING
THE WASH PROGRAM AND THEN KEEP THE DETERGENT OUT
OF THE REACH OF CHILDREN.
THIS DISHWASHER MUST BE USED BY ADULTS. USE BY PER-
SONS WITH REDUCED MENTAL AND/OR PHYSICAL CAPABILI-
TIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A PER-
SON RESPONSIBLE FOR THEIR SAFETY.
DO NOT ALLOW CHILDREN TO APPROACH AND/OR PLAY IN OR
ON THE DISHWASHER. THE APPLIANCE MAY CONTAIN RESI-
DUES OF DETERGENT WHICH CAN CAUSE PERMANENT DAM-
AGE TO THE EYES, MOUTH AND THROAT, AS WELL AS POS-
SIBLE DEATH BY SUFFOCATION; IF THE ABOVE OCCURS, SEEK
MEDICAL ASSISTANCE IMMEDIATELY.
BEWARE; IT IS POSSIBLE FOR CHILDREN TO GET TRAPPED IN-
SIDE THE DISHWASHER!
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TUR-
PENTINE WHICH MAY CAUSE AN EXPLOSION.
DO NOT POUR POWDER AND/OR LIQUID DETERGENT INTO THE
RINSE-AID CONTAINER AS THIS WILL DAMAGE THE CONTAINER.
DO NOT POUR POWDER AND/OR LIQUID DETERGENT INTO THE
WASTER SOFTENER TANK AS THIS WILL DAMAGE THE TANK.
DO NOT USE INDUSTRIAL DETERGENTS AS THIS MAY DAMAGE
THE APPLIANCE AND/OR TRIGGER VIOLENT CHEMICAL REAC-
TIONS (E.G. EXPLOSIVE GAS).

8 Rev 0.0
WARNINGS
EN
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR
PAINTS.
DO NOT INTRODUCE ITEMS IN HEAT-SENSITIVE PLASTI¬C,
SUCH AS DISPOSABLE CUTLERY OR PLATES, AS THESE MAY
BECOME DEFORMED. DO NOT WASH OBJECTS IN PLASTIC UN-
LESS THEY ARE MARKED “DISHWASHER PROOF” OR THE LIKE.
FOR UNMARKED OBJECTS, FOLLOW THE INSTRUCTIONS OF
THE MANUFACTURER; IF NO INFORMATION IS AVAILABLE, DO
NOT WASH THESE OBJECTS IN THE DISHWASHER.
DO NOT INTRODUCE ANIMALS INTO THE DISHWASHER.
WHEN OPENING THE DISHWASHER DOOR DURING A CYCLE
THERE IS A RISK OF SCALDING DUE TO THE HEAT CONTAINED
INSIDE. DO NOT STAND IN OF THE STEAM THAT RISES FROM
THE APPLIANCE AND DO NOT TOUCH THE COMPONENTS IN-
SIDE.
WAIT 20 MINUTES AFTER THE END OF THE WASHING CYCLE OR
AFTER INTERRUPTING IT BEFORE REMOVING THE DISHES TO
ALLOW THEM TO DRY.
IN CERTAIN SITUATIONS, HYDROGEN MAY BE GENERATED IN-
SIDE A HOT WATER SYSTEM THAT HAS NOT BEEN USED FOR
OVER TWO WEEKS. HYDROGEN IS AN EXPLOSIVE GAS. IF THE
HOT WATER SYSTEM HAS NOT BEEN USED FOR TWO WEEKS
OR MORE, OPEN ALL THE HOT WATER TAPS AND ALLOW THE
WATER TO RUN FOR A FEW MINUTES BEFORE USING THE DISH-
WASHER. THIS WILL DISCHARGE ANY HYDROGEN BUILDUPS.
AS THIS GAS IS FLAMMABLE, DO NOT SMOKE OR USE NA-
KED FLAMES WHILE PERFORMING THIS OPERATION.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN
OPEN MAY CAUSE THE APPLIANCE TO OVERTURN, PUT-
TING PEOPLE AT RISK. NEVER LEAVE THE DISHWASHER
DOOR OPEN; PEOPLE MIGHT TRIP OVER IT.
DO NOT LEAN AGAINST OR STAND ON THE DISHWASHER
RACKS.

Rev 0.0 9
WARNINGS EN
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT
INSIDE THE DISHES OR DISHWASHER.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST
BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID
HORIZONTAL IN THE UPPER RACK. TAKE CARE NOT TO CUT
YOURSELF AND ENSURE THAT THEY DO NOT PROJECT FROM
THE RACK.
POSITION SHARP/POINTED OBJECTS SO AS TO PREVENT THEM
FROM DAMAGING THE DOOR GASKETS.
DO NOT OPERATE THE DISHWASHER UNLESS ALL THE OUTER
PANELS HAVE BEEN POSITIONED CORRECTLY.
DO NOT TAMPER WITH THE DISHWASHER CONTROLS.
AQUASTOP MODELS; THE AQUASTOP DEVICE PREVENTS
FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE AQUA-
STOP DEVICE IS TRIPPED (THE ERROR IS INDICATED ON THE
DISPLAY), CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND
REPAIR THE PROBLEM. IN MODELS EQUIPPED WITH THE AQUA-
STOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER
INTAKE HOSE. DO NOT CUT THE HOSE AND DO NOT ALLOW
THE SOLENOID VALVE TO DROP INTO THE WATER. IN THE
EVENT OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT
THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY AND
FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM
A QUICK TEST OF THE APPLIANCE (SEE “INSTALLATION” MAN-
UAL). IF THE DISHWASHER FAILS TO OPERATE CORRECTLY,
DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY AND
CALL THE NEAREST TECHNICAL SERVICE CENTRE. DO NOT
ATTEMPT TO REPAIR THE APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT
BY THE REGULATIONS IN FORCE CONCERNING SAFETY AND
ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD
BE CONDUCTED EXCLUSIVELY BY A TRAINED AND AUTHORIZED

10 Rev 0.0
WARNINGS
EN
TECHNICIAN: REPAIRS CARRIED OUT BY UNAUTHORIZED
PERSONS WILL INVALIDATE THE WARRANTY, AS WELL AS
POSE A POTENTIAL HAZARD TO THE USER.
BEFORE CLEANING OR SERVICING THE APPLIANCE, REMOVE
THE PLUG OR TURN OFF THE MULTI-POLE SWITCH.
REMOVE THE WASHING COMPARTMENT DOOR AND DISCON-
NECT THE MAINS POWER SUPPLY WHEN REMOVING THE OLD
DISHWASHER FOR MAINTENANCE OR DISPOSAL.
THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLI-
ANCE MAY NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD
IT SHALL BE HANDED OVER TO THE APPLICABLE COLLECTION
POINT FOR THE RECYCLING OF ELECTRICAL AND ELECTRONIC
EQUIPMENT. DISPOSAL MUST BE CARRIED OUT IN ACCOR-
DANCE WITH LOCAL ENVIRONMENTAL REGULATIONS FOR
WASTE DISPOSAL. FOR MORE DETAILED INFORMATION ABOUT
TREATMENT, RECOVERY AND RECYCLING OF THIS PRODUCT,
PLEASE CONTACT YOUR LOCAL CITY OFFICE, YOUR HOUSE-
HOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU
PURCHASED THE PRODUCT.
BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY,
YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENC-
ES FOR THE ENVIRONMENT AND HUMAN HEALTH.
THE MANUFACTURER DECLINES ALL RESPONSIBIL-
ITY FOR DAMAGE TO PERSONS, ANIMALS OR PROPER-
TY RESULTING FROM FAILURE TO OBSERVE THE ABOVE
PRECAUTIONS, FROM TAMPERING WITH EVEN A SINGLE
COMPONENT OF THE APPLIANCE, OR FROM THE USE OF
UNORIGINAL SPARE PARTS.
IF IN DOUBT ABOUT THE CONTENTS OF THIS MANUAL,
CONTACT THE TECHNICAL ASSISTANCE CENTER.

Rev 0.0 11
USER INSTRUCTIONS EN
3DESCRIPTION AND USE OF THE CONTROLS
3.1 Upper panel
All the dishwasher controls are grouped on the upper panel (see fig. 3-01). The
dishwasher can only be switched on, programmed, switched off, etc. with the
door open.
A brief description (see table 3-01) of the various controls on the upper panel is
provided on the table below.
END
P
AUTO
Sanitized
Sanitized
FIG. 3-01

12 Rev 0.0
USER INSTRUCTIONS
EN
1On/off button
Press to power the appliance.
2
Program indicator lights
These show which program is selected and whether there are any troubleshootings
(error messages).
3Program selection button
Press in sequence to select the required program.
4Add salt indicator light
Shows the appliance has run out of salt.
5Add rinse aid
Shows the appliance has run out of rinse aid.
6Supplementary program button
Press to select one of the five supplementary programs (see table 3-02b).
7Supplementary program indicator light
Shows that one of the five supplementary programs will be run (see table 3-02b).
8Sanitation indicator light
Shows that the function is active.
9Half-load wash button
Press to select the half-load wash option.
10
Half-load indicator lights
One of the lights shines to show that the half-load wash function has been selected in
the upper or lower rack.
11 Program delay button
Press to delay the start of the program up to 9 hours.
12 Information display (start delay, adjusting water softener)
Table 3-01
3.2 Setting the washing program and switching
it on and off
The dishwasher is equipped with a control panel (see fig. 3-02) which is used
to program the appliance and switch it on and off.
END
P
AUTO
Sanitized
Sanitized
ab
FIG. 3-02

Rev 0.0 13
USER INSTRUCTIONS EN
To select the most suitable program to wash the dishes, consult the following
table which specifies the most appropriate type of washing sequence de-
pending on the kind of dishes and how dirty they are (see tables 3-02a and
3-02b).
STANDARD PROGRAMS
NUMBER AND SYMBOL
DISHES AND
CUTLERY
PROGRAM
SEQUENCE
TIME CONSUMPTION
MINUTES
(2)
WATER
(1)
ENERGY
kWh (2)
1DISH
WARMING
Pans and
dishes to rinse
and dry
Rinse at 69°C
(156.2°F) Dry. 50 min. 3.9 l 1.03 gal. 0.64
2CRYSTAL Moderately
dirty
Wash at 45°C
(113°F)
Cold rinse.
Rinse at 69°C
(156.2°F)
Dry.
70 min. 10.8 l
2.85 gal. 0.6
3
AUTO
AUTO SUPER
WASH
ETL SANITATION
LISTED
Moderately
dirty, including
dried-on
residue
Cold pre-wash
(depends on the
type of dirt)
Wash at 65°C
(149°F).
Cold rinse.
Hot rinse at
70°C (158°F).
Dry.
115-130
min.
11-15 l
2.91-
3.96 gal.
1-1.2
4NORMAL Moderately
dirty
Cold pre-wash.
Wash at 55°C
(131°F).
Cold rinse.
Rinse at 68°C
(154.4°F).
Dry.
112 min. 14.8 l
3.91 gal. 0.8
5
EXTREME
WASH
ETL SANITATION
LISTED
Very dirty pans
and dishes,
including
dried-on
residue
Pre-wash at
45°C (113°F).
Wash at 70°C
(158°F)
2 cold rinses
Rinse at 70°C
(158°F)
Dry.
122 min. 18.3 l
4.83 gal. 1.12
Table. 3-02a

14 Rev 0.0
USER INSTRUCTIONS
EN
SUPPLEMENTARY
PROGRAMS NUMBER
AND SYMBOL
DISHES AND
CUTLERY
PROGRAM
SEQUENCE
TIME CONSUMPTION
MINUTES
(2)
WATER
(1)
ENERGY
kWh (2)
6
P
RINSE
Pans and dishes
waiting to be
washed
Cold pre-wash 16 min. 3.9 l
1.03 gal. 0.03
7
P
SHORT Slightly dirty
Wash at 38°C
(136.40°F)
Cold rinse.
Rinse at 58°C
(136.4°F).
37 min. 10.6 l
2.8 gal. 0.38
8
AUTO
P
AUTO
DELICATE
Wash
immediately
after use
Cold pre-wash
(depends on the
type of dirt)
Wash at 55°C
(131°F).
Cold rinse.
Hot rinse at
69°C (156.2°F).
Dry.
105-120
min.
11-15 l
2.91-
3.96 gal.
0.8-1
9
P
ECONOMY
Wash
immediately
after use
Wash at 55°C
(131°F).
Cold rinse.
Rinse at 69°C
(156.2°F).
Dry.
123 min. 11,9 l
3.14 gal. 0.9
10
P
HEAVY
WASH
Moderately
dirty pans and
dishes, including
dried-on residue
Wash at 70°C
(158°F)
2 cold rinses.
Rinse at 70°C
(158°F)
Dry.
102 min. 15.1 l
3.99 gal. 1.0
Table. 3-02b
(1) Average water consumption with the softener set to level 0 (zero).
Any other setting will increase water consumption to 2.5 l (0.66 gal.) / cycles with setting 5.
(2) The cycle times listed in the use and care manual are based on normal soil loads and 49°C
(120°F) incoming water and will vary based on your actual conditions.
- Only “AUTO SUPER WASH” and “EXTREME WASH” programs conforms to NSF std 184 and are
certified by INTERTEK with the ETL SANITATION LISTED.
- When the “Sanitized” light shines it means that the dishwasher and its contents have been saniti-
zed according to the requirements of the National Sanitation Foundation (NSF).
- When the “AUTO PROGRAMS” are selected, the dishwasher recognizes the type of dirt and
automatically adjusts the washing parameters as appropriate.

Rev 0.0 15
USER INSTRUCTIONS EN
Only run the soak program with half loads.
To run programs 6, 7, 8, 9, 10 (see table 3-02b), select the required standard
program (see programs 1, 2, 3, 4, 5 in table 3-02a) and then press the supple-
mentary program button (ref. 6 fig. 3-02).
After using the above tables to choose the most suitable washing cycle, pro-
gram the appliance.
Before starting a washing program, make sure that:
The water supply tap is• open.
There is regenerating• salt in the water softener tank.
The correct amount of detergent• has been added to the di-
spenser (to add detergent, see the instructions in the general
manual).
The spray arms are able to rotate• freely and without obstruction.
The racks have been• correctly loaded
The dishwasher door• is securely closed.
3.2.1 Switching on
Press the on/off button (ref. 1 fig. 3-02) to start the dishwasher. Then wait for
one of the program indicator lights to turn on (ref. 2 fig. 3-02).
FIG. 3-02
END
P
AUTO
Sanitized
Sanitized
ab

16 Rev 0.0
USER INSTRUCTIONS
EN
3.2.2 Selecting and starting the program
Press the• program selection button (ref. 3 fig. 3-02) several times until
the indicator light corresponding to the required program turns on (ref. 2 fig.
3-02);
if required, press the relative buttons to select any complementary functions•
(e.g.: “half-load”, “program delay”; see para 3.2.7 “options”);
close the door; the program will start after about• 2 seconds and the relative
indicator light will flash throughout the cycle (program running signal).
If the door of the dishwasher has not been closed or has been incor-
rectly closed, the washing cycle will not begin.
SUPPLEMENTARY PROGRAMS
The supplementary program button (ref. 6 fig. 3-02) adds five extra programs
to the ones that can be directly selected with the program selection button.
Press the supplementary program button (the indicator light turns on) after
selecting the “main” program (see 1, 2, 3, 4, 5 in table. 3-02a).
As the function is memorized, press the button again (the indicator light turns
off) if you wish to run one of the 5 main programs for the next cycle.
3.2.3 End of program
The end of the program is signaled by a short beep. Additionally the indicator
light of the standard and supplementary programs (marked “end”) flash.
3.2.4 Interrupting a program
To interrupt the current program simply open the door of the dishwasher; to
restart the program, simply close the door again. The program restarts from
where it was interrupted.
3.2.5 Changing the current program
To change the current program, simply open the door of the dishwasher and
select the new program. Close the door to run the new program automatical-
ly.

Rev 0.0 17
USER INSTRUCTIONS EN
3.2.6 Canceling the current program
To cancel the current program, open the door and press and hold down•
the program selection button (ref. 3 fig. 3-02) for a few seconds until the
indicator lights of the fourth and fifth programs turn on (ref. pr. 4, pr. 5 fig.
3-03).
Close the door again.•
After about 1 minute, the dishwasher terminates the cycle and the indica-•
tor lights of the fourth and fifth programs (ref. pr. 4, pr. 5 fig. 3-03) start
flashing.
pr. 4
pr. 5
AUTO
3.2.7 Options
HALF-LOAD
This option is particularly suitable for reduced loads and saves on water and
electricity.
Before selecting the half-load wash option, open the dishwasher door and
choose the required washing program (see para 3.2 “Setting the washing pro-
gram and switching it on and off”).
The half-load wash cycle can be selected in two different ways using the half-
load wash button (ref. 9 fig. 3-02):
press the button• once to select washing in the upper rack. This is confir-
med by the appropiate indicator light (ref. 10a fig. 3-02);
press the button• twice to select washing in the lower rack. This is confir-
med by the appropiate indicator light (ref. 10b fig. 3-02);
press the button• three times to return to the standard full load condition
(washing in both racks, both indicator lights off).
When washing with just the lower rack is selected, the cutlery basket can
be separated and just half used.
FIG. 3-03

18 Rev 0.0
USER INSTRUCTIONS
EN
PROGRAM DELAY
(available for all programs except soak)
The “Program delay” function delays the beginning of the washing program
up to 9 hours from the moment in which programming takes place. This makes
it possible to use the dishwasher at a certain time of day.
Before programming a delay, open the door of the dishwasher, select the
required washing program (see para 3.2 “Setting the washing program and
switching it on and off”). Select the day by pressing the Program delay button
(ref. 11 fig. 3-02); each time you press the button, the display increases the
delay by 1 hour before the appliances starts.

Rev 0.0 19
USER INSTRUCTIONS EN
3.2.8 Switching off
At the end of the program, the dishwasher sounds a short beep and the indi-
cator lights of the fourth and fifth program (ref. pr. 4, pr. 5 fig. 3-04) flash.
Turn off the appliance by opening the door and pressing the on/off button (ref.
1 fig. 3-02).
pr. 5
pr. 4
AUTO
3.3 Additional functions
3.3.1 Adjusting the water softener
N.B.: a different washing program from soak must be used to make
the following adjustment.
Press and hold down the program delay button (ref. 11 fig. 3-05) until the
preset value appears followed by a dot (normally 3.). Release the button and
then press it again and again until the required value is displayed, as indicated
in the table (see table. 3-03).
The 6 possible adjustment levels will appear in this sequence:
3., 4., 5., 0., 1., 2..
When the required value appears on the display, release the button; after 5
seconds the appliance automatically reverts to the program delay and the
adjustment is set to the chosen value.
FIG. 3-04

20 Rev 0.0
USER INSTRUCTIONS
EN
N.B.: the display indicates the water hardness adjustment and the
program delay. A dot (.) after the number means that the water
hardness adjustment is being displayed. If no dot (.) appears,
the program delay is being displayed.
END
P
AUTO
Sanitized
Sanitized
Water hardness table (see table. 3-03)
WATER HARDNESS
SETTING
German degrees (°D) French degrees (°F) American degrees
grains/galls
0 - 4 0 - 7 0 - 4.5 0.
5 - 15 8 - 25 4.6 - 14.5 1.
16 - 23 26 - 40 14.6 - 23.5 2.
24 - 31 41 - 60 23.6 - 35 3.
32 - 47 61 - 80 35.1 - 46.5 4.
48 - 58 81 - 100 46.6 - 58.5 5.
Table 3-03
Contact your local water board for information on the hardness of your water
supply.
If it is necessary to open the door during the washing cycle, the
program will be interrupted, the relative indicator light will continue to
flash and a beep will indicate that the cycle has not terminated. Wait
for about 1 minute before closing the door and continuing with the
program. When the door closes, the program will start from where it
was interrupted. This operation should be performed only if neces-
sary as it could cause irregular program performance.
FIG. 3-05
