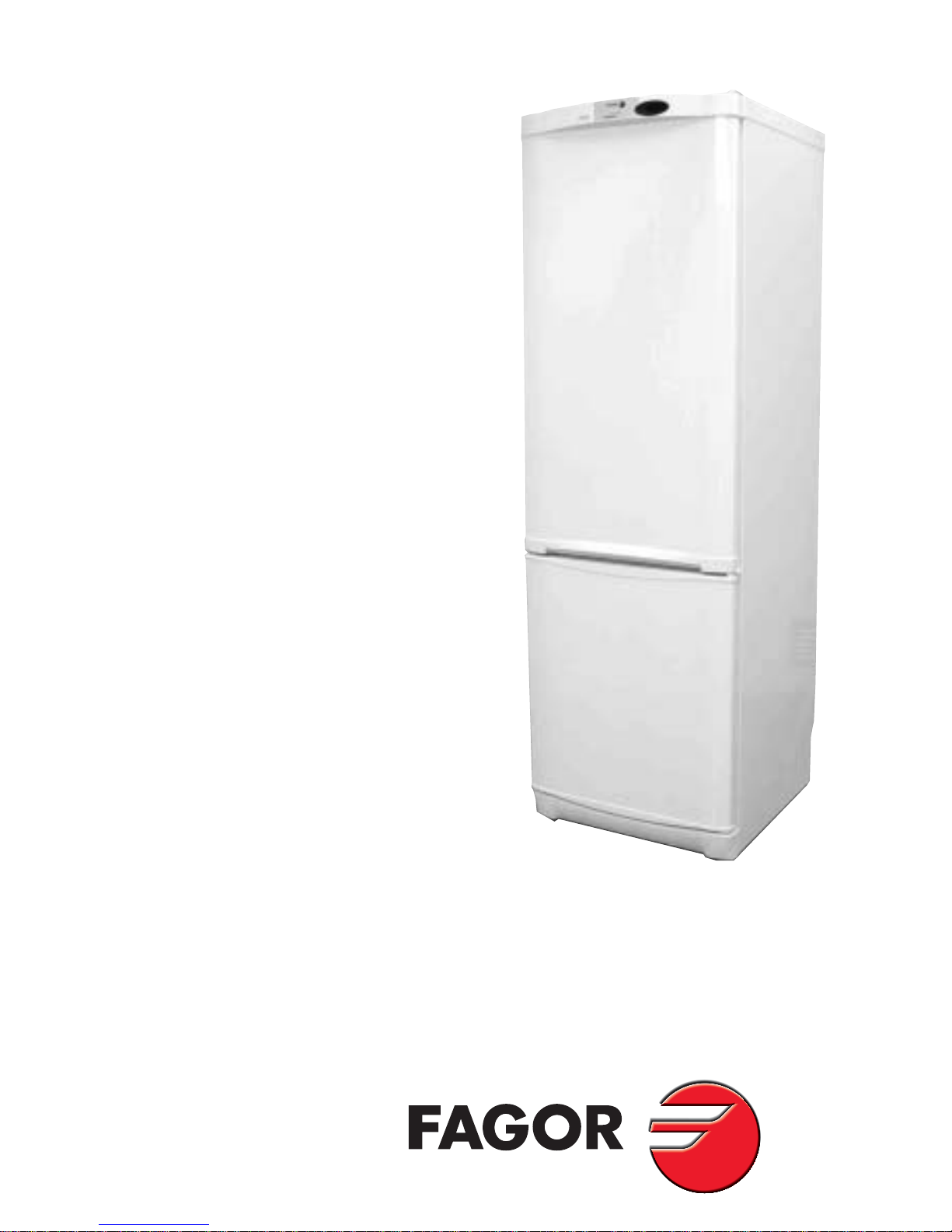

Fagor FC-48NF User manual

• Manual de instrucciones.
• Manual de instruções
• Mode d’emploi.
• Operating instructions.
• Bedienungsanleitung.
• Manuale di istruzioni

1. SAFETY INFORMATION AND GENERAL INSTRUCTIONS ... 2
2. DESCRIPTION OF THE REFRIGERATOR. ............................ 3
3. INSTALLATION. .......................................................................... 4
4. OPERATION AND USE OF THE REFRIGERATOR............... 6
5. CLEANING AND MAINTENANCE. .......................................... 12
6. NORMAL REFRIGERATOR NOISES. ...................................... 13
7. TROUBLESHOOTING. ................................................................ 14
8. TECHNICAL SERVICE CALLS. ................................................ 16
9. SPECIFICATIONS......................................................................... 16
CONTENTS
Page
1
Please read these instructions carefully before use. Keep
this manual for future reference
ENGLISH

RECYCLING:
OLD REFRIGERATOR:
➭To prevent environmental damage, use the municipal
collection service for disposal.
➭Make sure that the refrigeration circuit is not damaged: it
may contain substances which could affect the
environment.
➭Make the refrigerator unusable:
1. Cut off supply cable.
2. If possible remove the doors: leave the racks in place to prevent children
from getting in easily.
PACKING:
➭The packing materials used are completely recyclable,
(Cardboard, PE bubble wrap, EPS…).
➭WARNING: Keep packing materials out of the reach
of children: these materials are potentially hazardous.
➭With disposal, observe local standards of treatment of this
type of waste.
FEATURES OF THE REFRIGERATOR:
➭This refrigerator includes a four star ( * ***) freezer compartment enabling you
to freeze food.
➭Depending on the model, this refrigerator will operate correctly between the
following temperatures:
••
••One motor 10ºC-43ºC
••
••Two motors, models E, EV and ED 10ºC-38/43ºC
••
••No-Frost Models 10ºC-43ºC
2
1. SAFETY INFORMATION AND GENERAL
INSTRUCTIONS

3
Eggs
Light
Bottles
Fruit, vegetables
DOUBLEFRESH
optional
COLD ZONE
meat and fish
Tins, conserves,
jam
Legumes,
vegetables and
prepared dishes
Control and
temperature regulation
panel
Cheese, butter
Frozen food and ice
cubes
Optional
Ventilator
Extraction
Lip

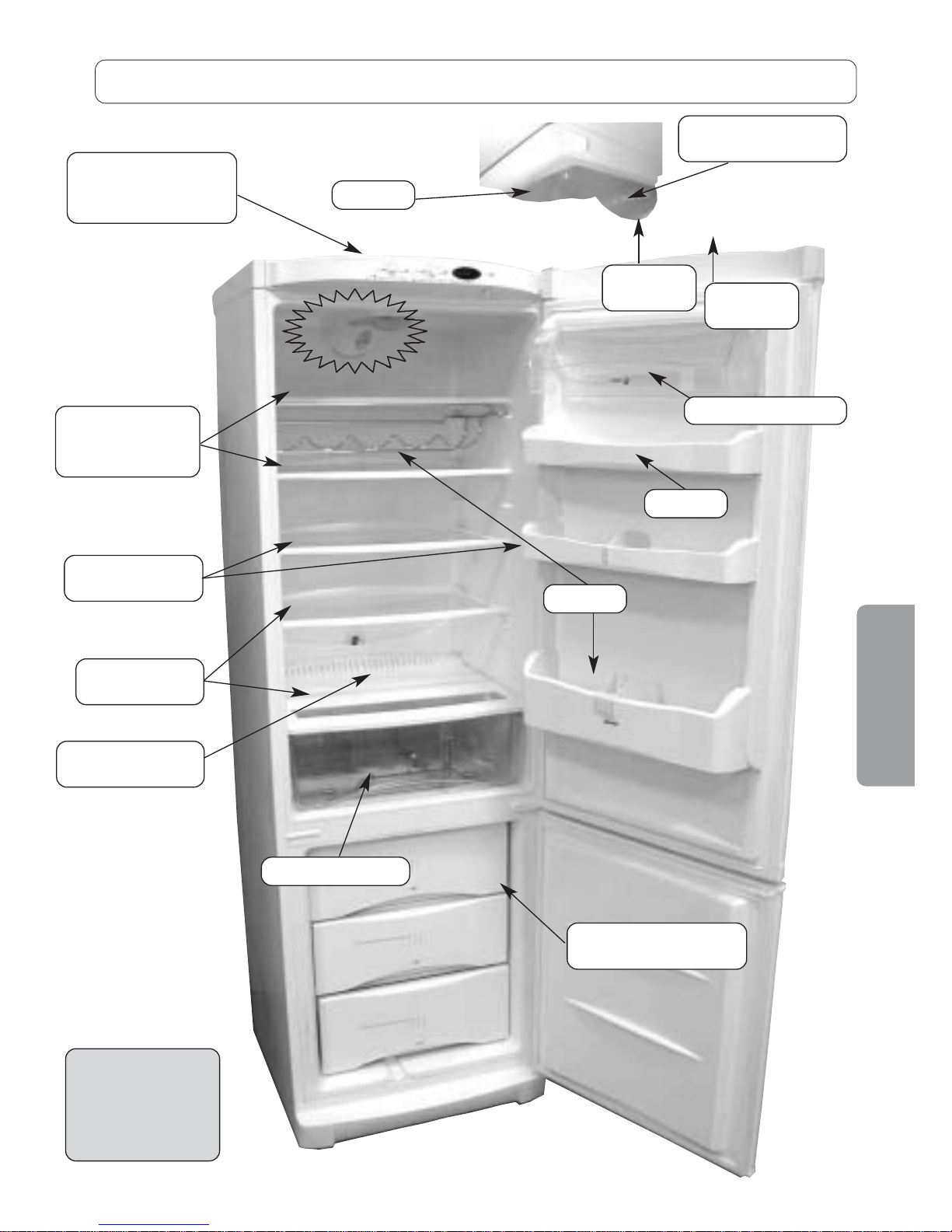

2. DESCRIPTION OF THE REFRIGERATOR
Optional Hygienizer
Filter
➞➞
ENGLISH
WARNING:
This diagram may
not correspond
exactly to your
refrigerator.

ELECTRICAL CONNECTION:
➭Plug specifications: 220-240V with earth.
➭Do not use adaptors or extension cables.
➭Ensure that the cable is not in contact with the motor.
➭Ensure that the cable is not caught under the refrigerator.
SAFETY: ➭This model refrigerator is commercialised with R600a coolant.
Points to note:
••
••This coolant does not affect the environment.
••
••It is inflammable, so the cooling circuit must be in perfect
condition. If damaged in any way, consult your distributor before
switching on.
➭This refrigerator must be repaired only by the technical assistance
service, using original spares.
➭Do not use flame-producing equipment or electrical apparatus inside the
refrigerator.
➭Do not allow children to play with the refrigerator.
➭Do not introduce volatile liquids or inflammable products.
LOCATION:
➭Ensure that the refrigerator is located away from heat sources
(stoves, radiators, etc.) and protected from direct sunlight, which
increases consumption.
➭Allow air flow around the rear of the refrigerator. Do not cover the
space between the skirting board and floor or the top of the
refrigerator with any object.
➭The refrigerator must not be installed outdoors, or exposed to rain.
➭To ensure better energy efficiency, a 20 mm space is recommended between the
back of the refrigerator and the wall.
➭On certain occasions, relative humidity and room temperature may generate
condensation on the inside and outside of the refrigerator.
To avoid vibrations and noise, ensure that the refrigerator is stable and level.
4
3. INSTALLATION

PROCEDURE:
1. Unplug the refrigerator and take everything from the
compartment.
2. Remove the cover from the top hinge.
3. Loosen the top hinge screws.
4. Take the door off with an upward movement.
5. Remove the cover of the central hinge screws, and loosen
the two screws holding it in place.
6. With the screws loose, move the freezer
door upward to release it.
7. Finally, take out the skirting board and screws and remove
the bottom hinge. 8. Change the position
of the bottom hinge shaft, placing it on the
opposite side.
9. If fitted, change the lateral handles to the
other side.
10. Reverse this procedure to refit the doors.
CHANGING THE DOOR-OPENING DIRECTION:
TOOLS REQUIRED:
➭An Allen screwdriver and a screwdriver with a TORX tip.
5
BEFORE SWITCHING THE REFRIGERATOR ON:
➭Clean the inside with warm water and bicarbonate of soda. Rinse and dry
carefully.
➭Wait for 2 hours before starting, to ensure that the motor lubricants have
stabilised.
➭If the refrigerator has been switched off, wait 4 hours after restarting before
placing food inside.
ENGLISH

6
➭In normal conditions, the recommended approximate
temperature is 4ºC in the refrigerator and about –21ºC in the
freezer.
➭To regulate the temperature, use the temperature selection
controls: temperatures are indicated in ºC.
TEMPERATURE REGULATION:
WARNING: The inside refrigerator temperature depends on:
■Room temperature.
■The location of the refrigerator.
■Door-opening frequency

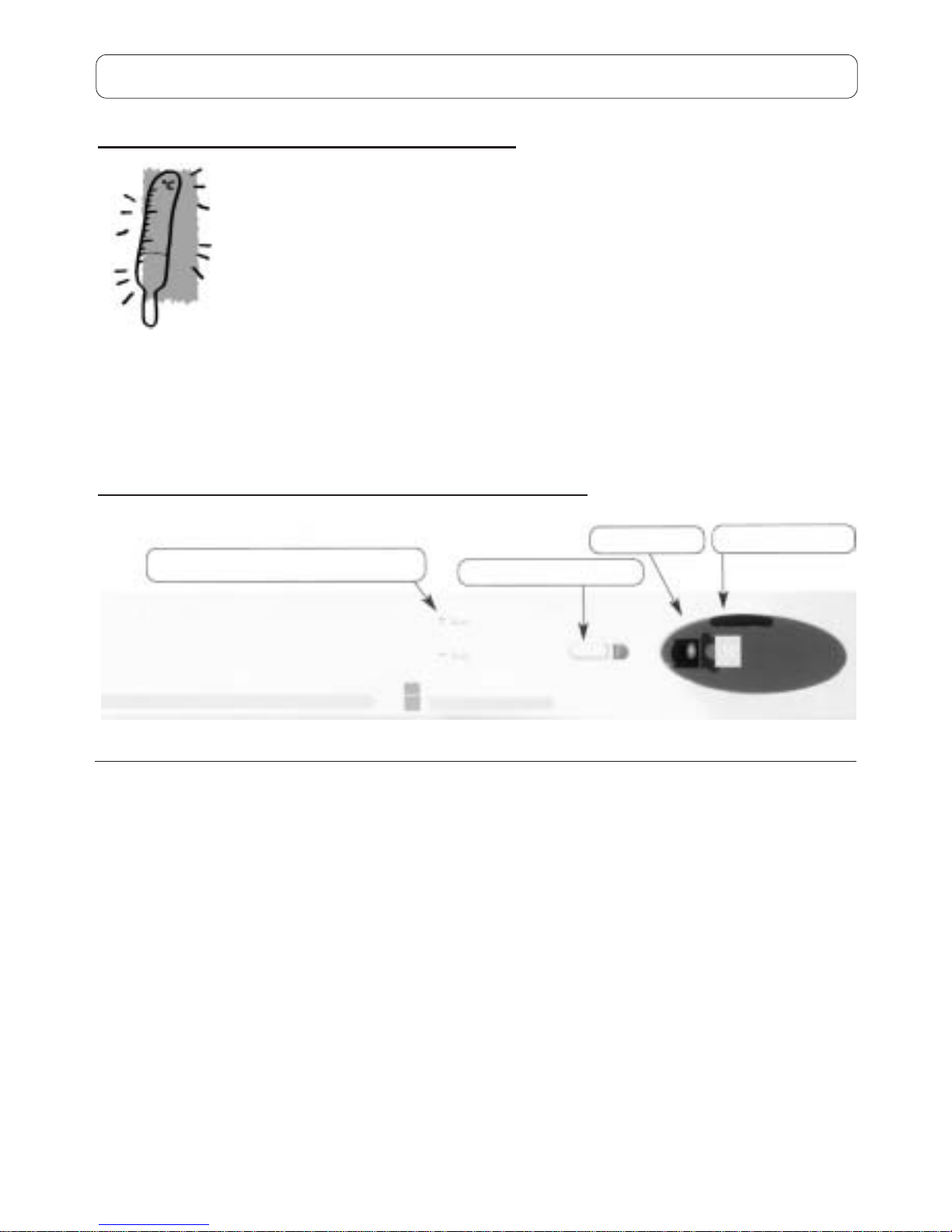

CONTROL PANEL (FAGOR one motor)
4. REFRIGERATOR OPERATION AND USE
FUNCTIONS
Temperature Connetion and Selection SUPER FREEZING
ALARM Display
"Temperature Connection and Selection" ➡➡To switch the refrigerator and freezer on
and off. Use the (+/-) keys to select the refrigerator and freezer temperatures in ºC.
"Display" ➡➡The electronic model permits digital display of the temperatures in the
refrigerator. While flashing, it is used to select the temperature required. Once that
has been done, the temperature in the compartment will be shown and will
gradually approach the level selected.
"SUPER FREEZING" ➡➡With this function running, the freezer temperature is
automatically adjusted to maximum cold. This is to facilitate freezing of food and
it is recommended that it is turned on 24 hours before introducing a large amount
of food. The function will turn off automatically, and can also be switched off
manually.
"Alarm" ➡➡When the refrigerator door is left open for more than 120 seconds, an
alarm will sound intermittently. This alarm will be switched off by closing the door.

7
CONTROL PANEL (FAGOR 2 regulation Models E and EV)
"Temperature selection" ➡➡Turn the control to select the refrigerator and freezer
temperatures in ºC.
"Connection" ➡➡To switch the refrigerator or freezer on and off. There is an ON light.
"SUPER COOLING" ➡➡With this function running, the refrigerator temperature is
regulated automatically to maximum cold for six hours. It switches off
automatically but can also be turned off automatically before the 6 hours is up.
"SUPER FREEZING" ➡➡With this function running, the freezer temperature is
automatically adjusted to maximum cold. This is to facilitate freezing of food and
it is recommended that it is turned on 24 hours before introducing a large amount
of food. The function will turn off automatically, and can also be switched off
manually.
"Alarm" ➡➡Alight and audio signal is activated if the freezer temperature is
abnormally low. The audio alarm can be turned off manually using the SUPER
FREEZING function.
When the refrigerator door is left open for more than 120 seconds, an alarm will
sound intermittently. This alarm will be switched off by closing the door.
"Cold level" ➡➡The number of lights on indicate freezer cold level. The more lights
on, the colder the freezer.
FUNCTIONS
Freezer
Temperature
Selection
Refrigerator
Temperature
Selection
SUPER
FREEZING
Freezer
connection
Refrigerator
connection SUPER
COOLING
ALARM
REFRIGERATOR FREEZER
Cold level
ENGLISH

8
CONTROL PANEL (FAGOR 2 regul. ED and No-Frost)
"Temperature Connection and Selection" ➡➡To switch the refrigerator or freezer
on and off. When you switch the freezer off, you also switch the refrigerator off.
Use the (+/-) keys to select the refrigerator and freezer temperatures in ºC.
"Display" ➡➡The electronic model permits digital display of the temperatures in
both freezer and refrigerator. While flashing, it is used to select the temperature
required. Once that has been done, the temperature in the compartment will be
shown and will gradually approach the level selected.
"SUPER COOLING" ➡➡With this function running, the refrigerator temperature is
regulated automatically to maximum cold for 6 hours. It switches off automatically
but can also be turned off automatically before the 6 hours is up.
"SUPER FREEZING" ➡➡With this function running, the freezer temperature is
automatically adjusted to maximum cold. This is to facilitate freezing of food and
it is recommended that it is turned on 24 hours before introducing a large amount
of food. The function will turn off automatically, and can also be switched off
manually.
"Alarm" ➡➡Alight and audio signal is activated if the freezer temperature is
abnormally low. The audio alarm can be turned off manually using the SUPER
FREEZING function.
When the refrigerator door is left open for more than 120 seconds, an alarm will
sound intermittently. This alarm will be switched off by closing the door.
FUNCTIONS
Refrigerator Temperature
Connection and Selection Freezer Temperature
Connection and Selection
SUPER
COOLING SUPER
FREEZING
ALARM
REFRIGERATOR FREEZER REFRIGERATOR
Display

➭Leave enough space between food items to let air to flow around them.
➭Do not place food in contact with the cold wall at the back of the refrigerator.
The racks have a stop which should not be exceeded.
➭Do not leave the door open longer than necessary.
➭Do not put hot food in the refrigerator.
9
CORRECT USE OF THE APPLIANCE:
MULTIFRESH SYSTEM (Optional)
If your refrigerator has a Multifresh compartment:
➭This guarantees ideal conservation of fresh food
such as meat and fish, and also vegetables, allowing
these items to be conserved for longer periods of
time without having to freeze them.
➭This area has the coldest temperatures in the refrigerator and is also the area
least affected by frequent opening.
➭For meat and fish, an intermediate refrigerator temperature is recommended.
➭For greater capacity in the refrigerator, remove the top rack and cover, and store
directly on the tray. This area loses the benefits outlined above.

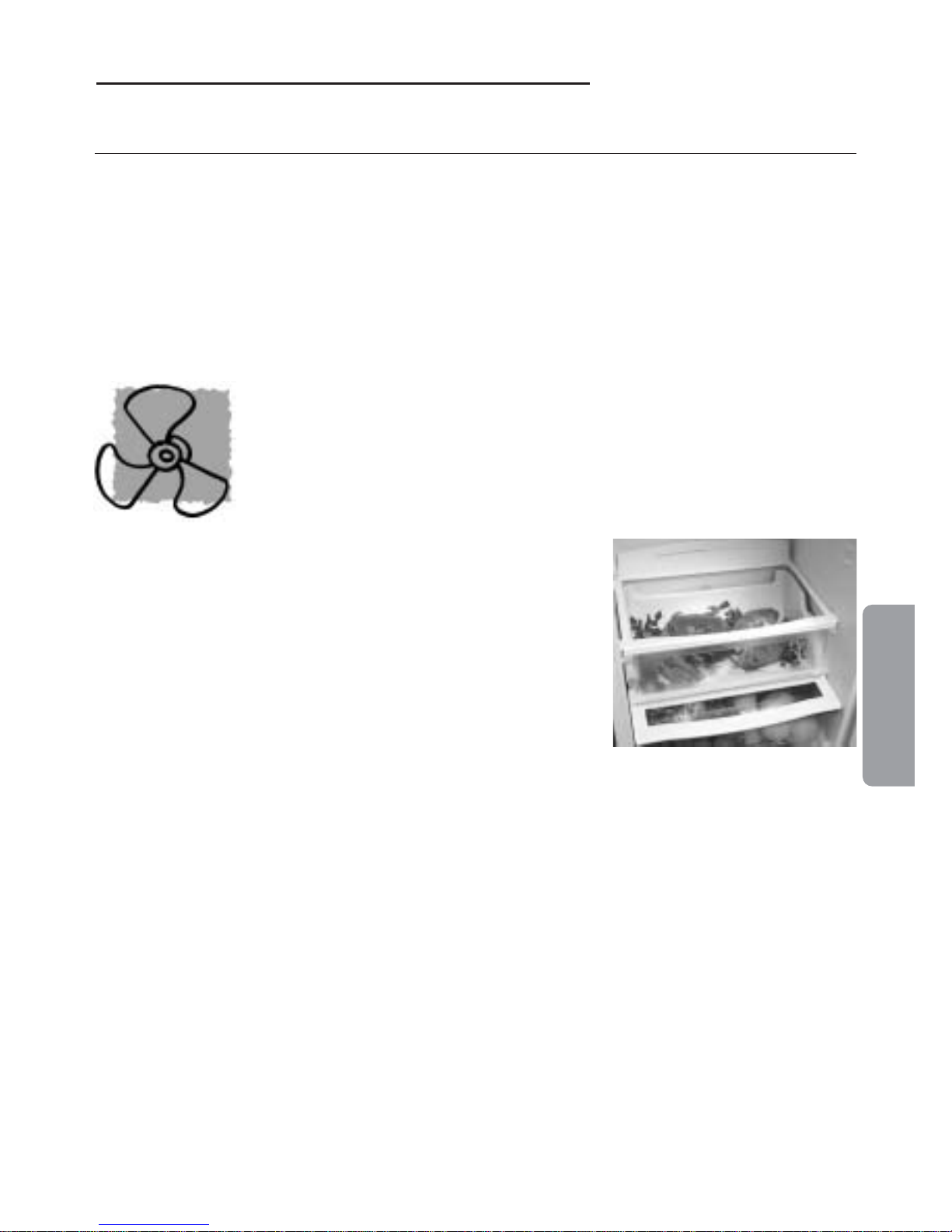

DOUBLE FRESH SYSTEM (Optional)
If your refrigerator is fitted with this system, the top rack covering the fruit and
vegetable baskets has a membrane filter maintaining a high level of humidity in the
baskets. The humidity level provided is ideal to ensure that vegetables do not dry,
out, ensuring that they retain all their texture, flavour and nutritional properties.
EVEN COLD (Optional)
Models with ventilator
➭Your refrigerator is designed for even cold distribution,
provided by the ventilator in the back at the top of the cabinet..
REFRIGERATOR
ENGLISH

10
HYGIENIZER FILTER (Optional)
This is an integrated system with a double filter. A major benefit is that, it
absorbs unwanted odours which may be given off by food and, and another is that
it retains the microorganisms (fungi and bacteria) in the air flow, reducing their
detrimental effect. It is recommended that it be changed every year, it will be
available from technical service or quoting the reference on the cartridge.
➭The amount of food to be frozen at once must not exceed the freezing power
indicated on the specifications plate.
➭Ensure that your food to be frozen is in good conditions.
➭Observe the best-by date.
➭To prevent the food from drying out, wrap it in aluminium foil or plastic film.
➭Do not put food to be frozen in contact with food already frozen.
➭Never refreeze thawed food.
➭Freeze in daily servings.
➭Do not store bottles with carbonated drinks or glass bottles containing liquids in
the freezer. They may burst.
➭Do not eat very cold ice-cream or food: this may burn the mouth.
➭Label the wrapping, indicating the content and the freezing date.
➭For maximum freezing capacity, we recommend that you remove the central
basket and place the food on the freezer shelf.
➭For maximum volume, we suggest that you remove the ice tray.
➭For best energy yield, keep the ice-cube holder full, along with the ice holder on
the upper basket tray.
FREEZER:
➭Fill the trays in the freezer up to three quarters, with water.
➭Place the trays in the freezer.
➭Once the water has frozen, the cubes can be removed by
twisting the tray slightly. Store the cubes in the ice
compartment.
ICE-MAKING:

11
DEFROSTING
REFRIGERATOR:
➭The refrigerator’s defrosting system is automatic, no manual defrosting is
required.
➭The refrigerator back wall is usually covered in small drops of water, or ice. This
is completely NORMAL and is part of the automatic defrosting process.
➭These drops are collected in a container over the motor and are evaporated by
the heat of the motor.
FREEZER:
➭With the passage of time, a layer of frost or ice forms on the freezer walls. If this
is excessive, it will cause your refrigerator to consume more energy. We
recommend that this layer of ice be removed at least twice yearly.
➭No-Frost refrigerators do not produce this layer of frost or ice and so manual
operation is required.
➭Defrosting must be done as quickly as possible; if the temperature of the food
rises, the period of conservation is reduced.
➭PROCEDURE FOR DEFROSTING:
1. Choose a time when there is not much food in the freezer.
2. Empty the freezer and place the frozen food in thermal bags in a cool
place.
3. Unplug the freezer and wait for the ice to melt.
4. To speed up the process, a plastic spatula can be used: never use sharp
metal or pointed objects (knives, forks, metal spatulas …) which may
damage the refrigerating circuit.
DEFROSTING FOOD
Not all food should be defrosted in the same way
➭If you have bought frozen food, follow the instructions on the pack.
➭Vegetables should be cooked directly.
➭In general, prepared or pre-cooked foods can be cooked directly.
➭Meat and fish must be defrosted slowly in the refrigerator over several hours. If
you have a microwave, this can speed this considerably.
ENGLISH

CLEANING:
WHAT TO DO IN CASE OF A POWER OUTAGE:
➭Before starting cleaning, switch the refrigerator off using the
switches.
➭Clean the interior with water or bicarbonate of soda, with the
help of a sponge or cloth: this will prevent the formation of
odours.
➭ Never use steam cleaning machines, solvents or abrasive
detergents, which may damage the inside of your refrigerator. Do not place the
inside fittings in the dishwasher.
➭From time to time clean the water trap and drain, using warm water with a few
drops of bleach.
➭It is recommended that the rear grill be cleaned once year using a vacuum
cleaner: if it is dusty and dirty, that reduces the refrigerator’s performance and
increases its consumption.
➭If possible, do not open the refrigerator doors.
➭When power is restored, check to see if the food has unfrozen.
➭Consume any defrosted food immediately. Do not re-freeze!
WHAT TO DO IF THE REFRIGERATOR IS NOT TO BE
USED FOR A LONG PERIOD OF TIME:
➭Empty the refrigerator.
➭Unplug and clean the unit as described above, and turn the light off at the switch.
➭Leave the doors open to prevent formation of unwanted odours.
➭Vacation function: If your refrigerator is not going to be used for a long period
but you wish to keep food frozen in the freezer, you can turn the refrigerator
section off and leave it closed: the appliance will continue to function with very
low consumption, without causing odours inside.
12
5. CLEANING AND MAINTENANCE
CHANGING THE LIGHT
➭Turn the light switch off.
➭Press the inside lip to remove the light reflector cover.
➭Remove the bulb which has failed and replace it with another
of the same sort, screw type E14, 220-240V, with a maximum
of 15 W.

13
➭The refrigerating gas may produce bubbling sounds as it
flows through the circuits.
➭The compressor may buzz and/or produce slight
knocking, which may be more marked on starting.
➭Cracking sounds produced by expansion and
contraction of the materials used.
➭The insulation used amplifies sound levels.
••
••If your apparatus has a ventilator, you will hear a whispering sound caused by
the air flowing inside the refrigerator.
➭In the freezers of No-Frost refrigerators, the effect will be noted of the ventilator
running to cool and to eliminate frost.
6. NORMAL REFRIGERATOR NOISE
ENGLISH
Fridges bearing the NET comp@tible logo are ready for
connection to the Fagor Digital Home or any other home
automation system, with advanced features such as remote
control by telephone call, telediagnosis, etc.
NET comp@tible fridges have a serial port for connection to a home automation
carrier current communications network system.
To connect a NET comp@tible fridge to the home automation system, you need to
purchase and connect an optional communications module that is sold separately,
and your home must have a Maior-Domo® Fagor home automation manager. The
connection of the optional communications module to the domestic appliance must
be made exclusively by Fagor’s Technical Service.
For further information, contact your usual distributor or call our customer service
on 902 10 50 10.
NET Comp@tible: CONNECTIVITY WITH AUTOMATED HOME NETWORKS
Connectivity with automated home networks is available for the Spanish market
only.

14
CAUSEPROBLEM SOLUTION
•It is not plugged in.
•There is no electrical current
to the plug because the fuse
has blown or the automatic
power limiter has activated.
•The connection controls are
not on.
•Plug in.
•Change the fuse or reset the
automatic power limiter.
•Switch the controls on.
•The refrigerator is
incorrectly levelled. •Level it, with the leveller bases.
•Temperature selection is set
too hot.
•The door is not properly
closed or is opened very
frequently.
•The space between the
skirting board and floor or
the top of the refrigerator has
been covered.
•The refrigerator is exposed
to direct sunlight or a heat
source.
•Alarge amount of food has
been introduced.
•Set temperature selection to
maximum cold.
•Ensure that the door does not
remain open too long.
•Keep these areas free as
described in the
"Installation" section in this
manual.
•Relocate the refrigerator or
protect it from these heat
sources.
•Consult the section on
"operation and use of the
refrigerator".
•The doors are not properly
closed.
•The doors are opened often.
•The food was introduced
recently.
•Temperature selection in a
high position.
•Close the door properly.
•Avoid opening the door
frequently.
•Wait for the appliance to
return to normal.
•Set the temperature switch to
less cold.
The refrigerator does not
operate
The refrigerator vibrates.
The refrigerator or freezer is
not very cold
The motor runs permanently.
7. TROUBLESHOOTING

15
PROBLEM CAUSE SOLUTION
•The refrigerator is not
correctly levelled.
•The door was closed vio-
lently.
•It is prevented from closing
by a product inside.
•Level the refrigerator
correctly.
•Close the doors gently.
•Put this product in a suitable
place.
•Automatic refrigerator cycle. •Do not worry: this is
completely normal.
•Drain ducting blocked.
•Food in contact with the
back wall.
•Clean the water ducting as
explained in the section on
cleaning.
•Do not place food or contai-
ners in contact with the back
wall.
•Wrap the food or cover it
correctly, or replace the
hygienizer in models which
have this function.
•Some food is transmitting
odours to the refrigerator.
•The food is not properly
wrapped. •Wrap the food or cover it
correctly.
•The light is loose.
•It has blown.
•The plug is not connected to
the power takeoff.
•There is no electrical current
to the plug because the fuse
has blown or the automatic
power limiter has activated.
•The light switch is off.
•Screw it in properly.
•Change the light as
explained in the manual.
•Plug in.
•Change the fuse or reset the
automatic power limiter.
•Set the switch so that the red
point is visible.
The door does not close.
Drops of water or ice on the
refrigerator back wall.
Water in the bottom of the
refrigerator.
Alot of ice forms on the freezer
walls or on the back wall of the
refrigerator.
The refrigerator light does not
come on.
•The door is open.
•The door has been opened
often.
•Check to see if food is pre-
venting the door from being
closed.
•Ensure that the door does not
remain open for too long.
Odour in the refrigerator.
The food dries out.
ENGLISH

DIMENSIONS
➭Read the manual carefully and, if you are unable to resolve the
problem, call the technical assistance service.
➭The address and telephone number closest to your address
appear in the index of official technical service offices we
supply with the refrigerator, or in your city telephone directory.
➭To facilitate the work of the technical assistance service, please provide them
with the following details.
••
••The refrigerator model.
••
••The refrigerator reference.
••
••Date of purchase.
••
••Adescription of the problem.
••
••Your home address and telephone number.
Height (mm) A 1710 1860 2010 2010
Width (mm) B 600 600 600 600
With door open (mm) C 1150 1150 1150 1150
Depth (mm) D 610 610 610 610
16
8. TECHNICAL SERVICE CALLS
9. SPECIFICATIONS
THESE UNITS COMPLY WITH
EEC DIRECTIVES 73/23, 93/68, 89/336,
92/75, 96/57
