FAL AWS-P55A 90CM User manual

Cooker hood
Instruction manual
Model No.:
AWS-P55A 60CM / 90CM
AWS-P55D 60CM / 90CM
AWS-P53B2 60CM / 90CM
AWS-S51B 90CM / AWG-S52C1 90CM
AWG-A38A2 60CM / AWG-A38C2 90CM

1
CONTENT
1……………………………………….Notice
2……………………………………….Feature
3………………………………………..Installation
4………………………………………..Notice of installation
5………………………………………..Safety Warning
6…………………………………………Use
7…………………………………………Maintenance
8…………………………………………..Warranty card

2
NOTICE
1. Thank you for choosing our cooker hood. Please read the
instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and
competent fitter.
3. The manufacturer disclaims all liability for any damage or
injury caused as a result of not following instructions for
installation contained in the following text.
The cooker hood is used on 220/240v, 50Hz.

3
(2)FEATURE
1. The cooker hood uses high quality materials, and is made with a
streamlined design.
2. Equipped with a large power low noise electric motor and
centrifugal leaf, it produces strong suction, low noise, non stick
grease filter and easy to clean.
3. With the isolated low voltage circuit board control, 12vAC
input, the lights are therefore safer.
4. Special wind tunnel construction and oil collector design, free
dirt will be absorbed in a second.

4
(3). Installation
If the model without Glass:

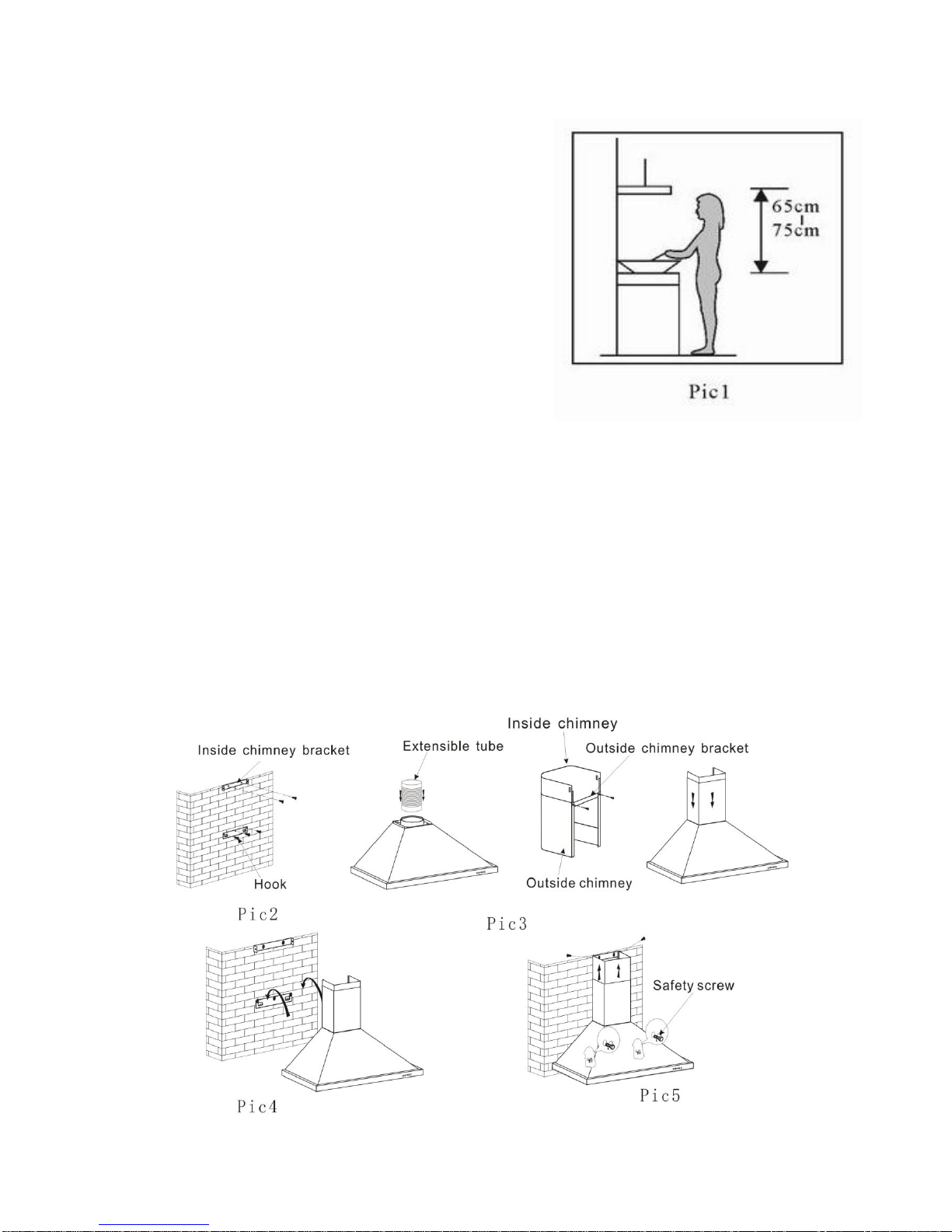

3.1 The cooker hood should be placed at a
distance of 65-75cm (26-30inch) from the
cooking surface for the best effect. See Pic
1.
3.2 Install the hook on a suitable place once
the installation height is fixed, and keep it in
line. The fixed position of the inside
chimney bracket is the place of chimney.
3.3 Fix the outside chimney bracket on the
outside chimney, and be sure that the inside
chimney can be adjusted the height in it freely as well as fixing the
extensible pipe. Afterwards, install the extensible pipe and chimney on
the cooker hood. See Pic 3.
3.4Put the cooker hood on the hook. See Pic 4.
3.5 Adjust the height of the inside chimney to the position of the inside
chimney bracket and fix on it by screw,after ajusting the position,fix the
body with safety screw. See Pic 5.
Note: The two safety vents are positioned on the back casing, with
diameter of 6mm.

5
If the model with Glass:
3.1 The cooker hood should be placed at a
distance of 65-75cm (26-30inch) from the
cooking surface for the best effect. See Pic 1.
3.2 Install the hook on a suitable place once the
installation height is fixed, and keep it in line.
The fixed position of the inside chimney
bracket is the place of chimney.
3.3 Fix the extensible pipe according to the lead
direction and way, and then put the cooker
hood on the hook. See pic 3.
3.4Put the glass according to the lead direction
and way on the cooker hood, and then use the
screws to fix the glass, also lead the extensible
pipe outside of the room, meanwhile adjust the height of the inside
chimney to the position of the inside chimney bracket and fix on it by
screw , here should be sure the inside chimney can be flexed freely. See
Pic 4.
3.5 Put the two chimneys together onto the cooker hood body, meanwhile
adjust the height of the inside chimney into the suitable height, and fix the
inside chimney to the inside chimney bracket by screw. Finally, fix the
body with safety screw. See Pic 5.
Note: The two safety vents are positioned on the back casing, with
diameter of 6mm.

6
(4) NOTICE OF INSTALLATION
1. Before installation, please ensure the area is clean to avoid
suction of the remaining bits of broken wood and dust.
2. It cannot share the same air ventilation tube with other
appliance such as gas tube, warmer tube, and hot wind tube.
3. The bending of ventilation tube should be≥120°, parallel or
above the start point and should be connected to the external
wall.
4. After installation, make sure that the extractor is level to avoid
grease collection at one end.

7
(5) SAFETY WARNING
Keep your children from using the cooker hood.
Your cooker hood is for domestic use only, not suitable for
barbecue, roast shop and other commercial use.
Any installation work must be carried out by a qualified
electrician or competent person.
The cooker hood and its filter mesh should be cleaned regularly
in order to keep in good working order.
Before cleaning, always ensure that you have switched your
cooker hood off.
Clean the cooker hood according to the instruction manual and
keep the cooker hood from the danger of burning.
No fire for drying your cooker hood.
If there is any fault with your cooker hood, please call the service
department appointed by agent for servicing.
Please keep the room draughty when your cooker hood and gas
hob are working.
Do not exhaust the gas from cooker hood through the same
heated flue which is for the gas from gas hob and other kitchen
appliances.
Before installation and usage, read all the instructions and make
sure that the voltage (V) and the frequency (Hz) indicated on
your cooker hood are exactly the same as the voltage (V) and the
frequency (Hz) in your home.
In order to get the most out of your cooker hood, please read the
instruction manual before installing & using, and keep it in a safe
place.
Ensure that you could get our guarantee for your cooker hood,
please provide the warranty card and purchase receipt, or the
guarantee will not be offered.

8
（6）Speed adjustment .See pictures

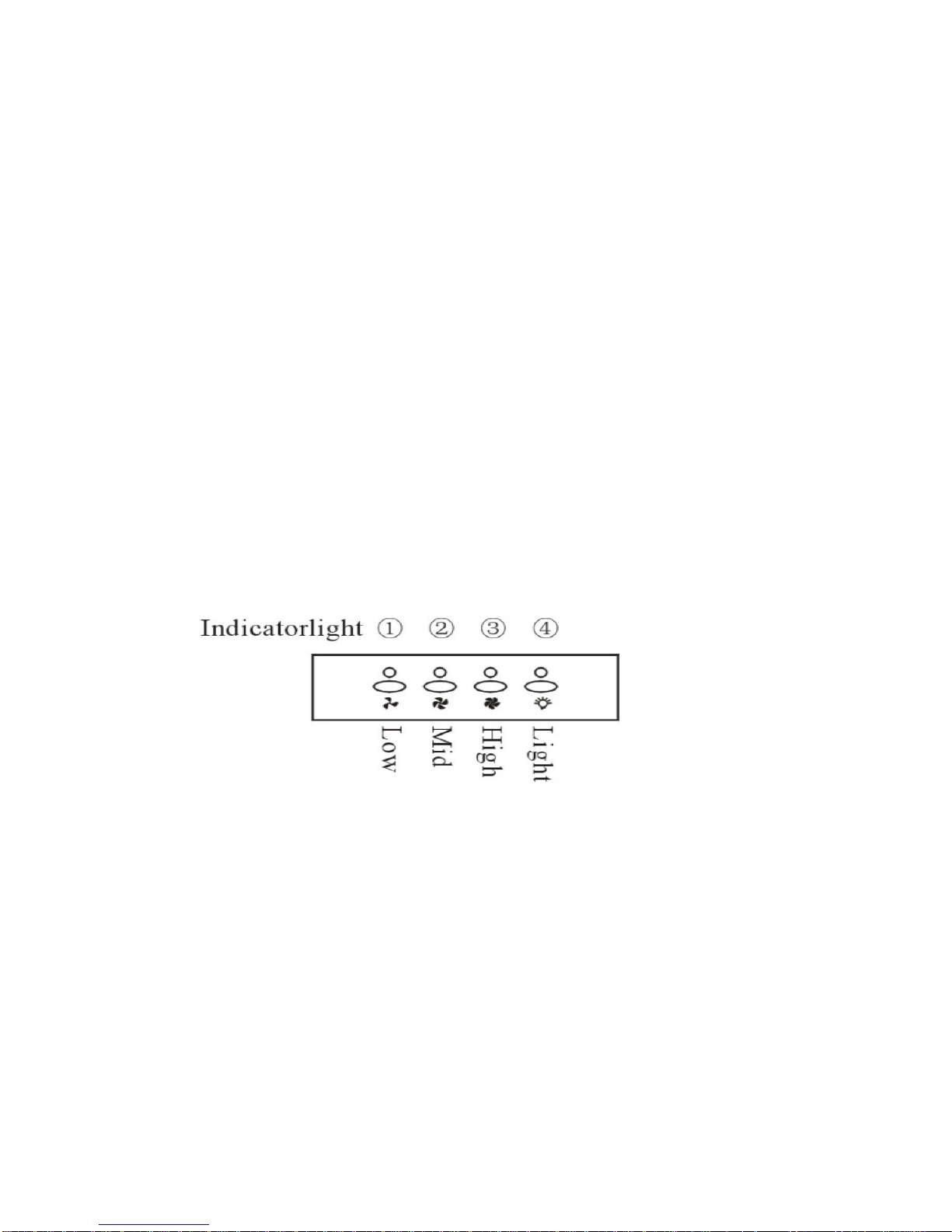

Electronic Button
1. Turn on the power; the buzzer will buzz five times. The sound
shows that the appliance is powered.
2. Push the low button, the indicating light 1 on, the buzzer will
buzz once, and the motor runs at low speed. Push it again and
the motor will stop.
3. Push the middle button, the indicating light 2 on, the buzzer
will buzz once, and the motor runs at mid speed. Push it again
and the motor will stop
4. Push the high button, the indicating light 3 on, the buzzer will
buzz once, and motor runs on high speed. Push it again and the
motor will stop
5. Push the light button; the indicating light 4 on, and the two
lighting lamps will come on. Push it again and the lamps will
turn off, with every push the buzzer will buzz one time.

9

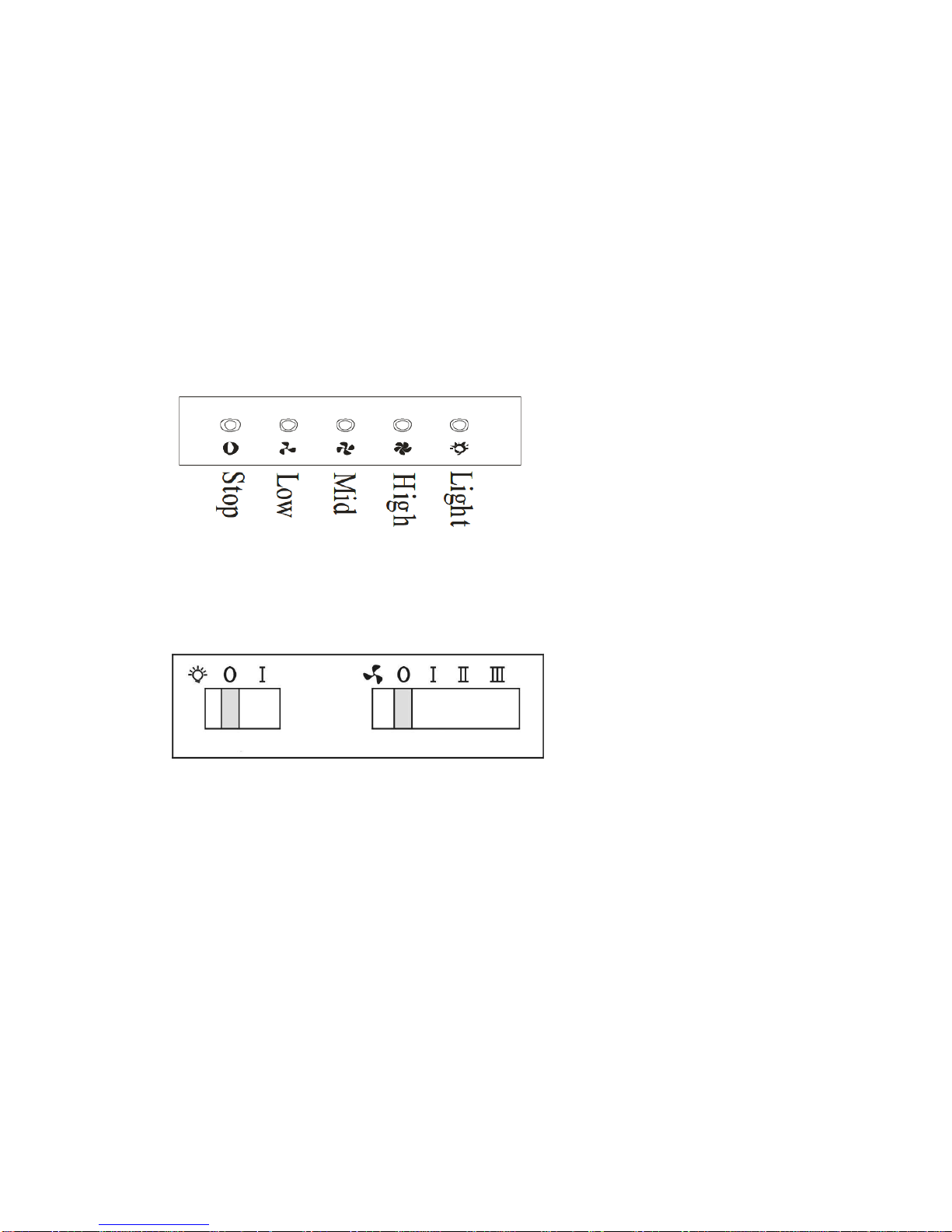

Push button
1. Push stop button, and the motor will stop.
2. Push the Low button, the buzzer will buzz once, and the motor
runs at low speed.
3. Push the high button, the buzzer will buzz once, and the motor
runs at mid speed.
4. Push the High button, the buzzer will buzz once, and the motor
runs at high speed.
5. Push the light button and the two lights will come on. Push it
again and the light will turn off.
Slide button
There are 3 speeds for the motor and on off switch for the lamp.
Slide the switch for operation.
Motor Operation
0- off
1- Low Power Setting
2- Mid Power Setting
3- High Power Setting
Light Operation
0- Off
1- On

10

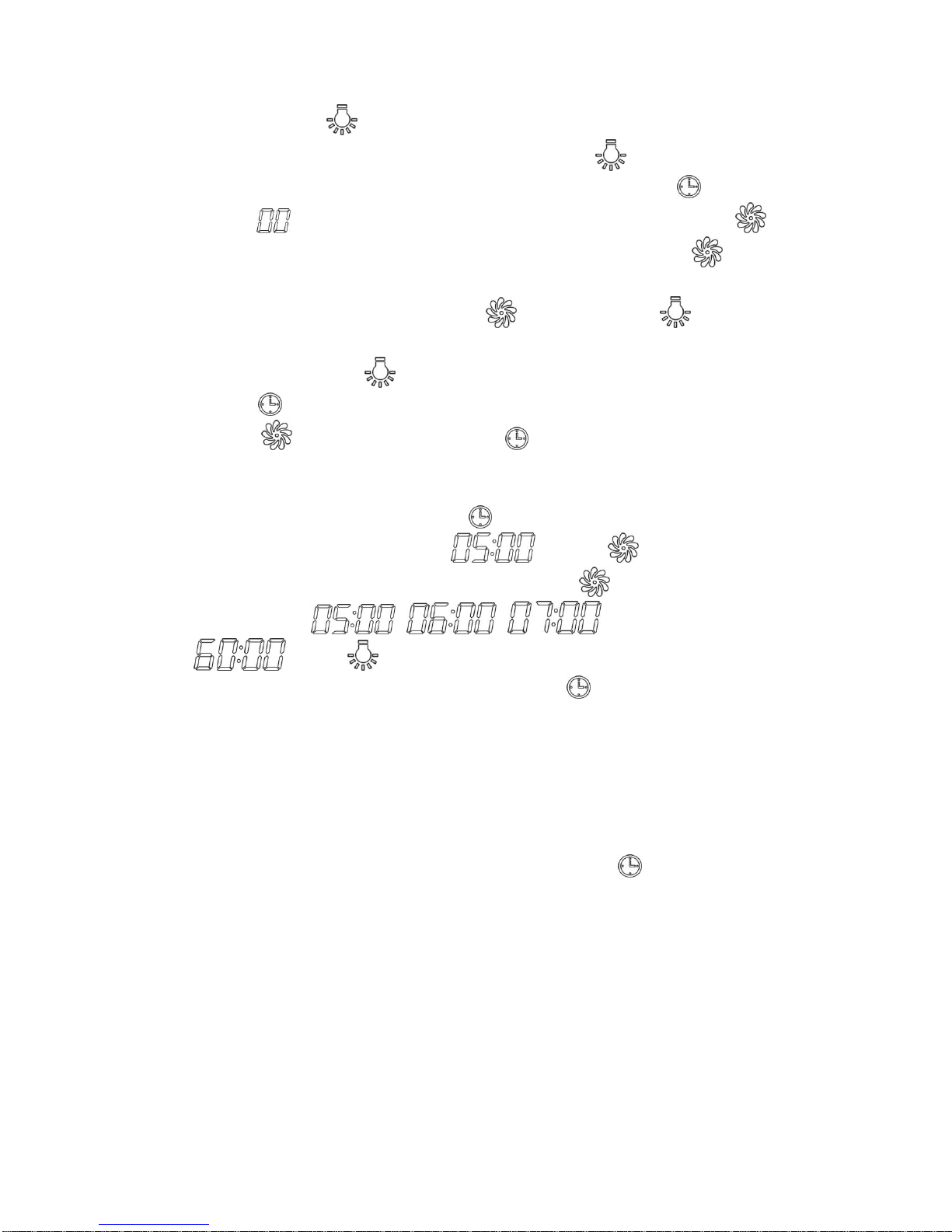

LCD Electronic button
1. Plug the hood; LCD will display 24-hour system with blue
backlight. Backlight will be extinguished after 30 seconds
without any operation.
2. Press “ ” button once; lights will be on and LCD will show
“ ”. Press “ ” button again; lights will be off and “ ” on
LCD will disappear.
3. Press “ ” button once; the hood works at LOW speed and LCD
will show “ ” and “ ” button will be on. Press “ ” button
again; the hood works at MEDIUM speed. Press “ ” button one
more time; the hood works at HIGH speed. Press “ ” button
again; the hood works at LOW speed again and it repeat. While
pressing “ ” button; the “ ” button is always on. If you want
to stop the hood now; press the “ ” button once.
4. When the hood is not working; press “ ” button once. The hood
will work at the speed it works last time and LCD will show
“ ”. Press “ ” button again; the hood stop working and “ ”
will disappear from LCD.
5. When both “ ” button and “ ” button don’t work; “ ”
button is used for time-setting. Press “ ” button for 2 to 3
seconds; will be shown on LCD and flashes; which
represents hour. Press “ ” button once the number adds by 01.
Continue pressing “ ” button; it will display from 13;14…until
23. When LCD shows 23; it doesn’t work by pressing “ ”

11
button. Press “ ” button once; the number reduces by 01. When
LCD shows 00; it doesn’t work by pressing “ ” button. After
setting hour; you can start setting minute by pressing “ ” button
again. on LCD flashes; which represents minutes. Press “ ”
button once the number adds by 01. Continue pressing “ ”
button; it will display from 01;02…until 59. When LCD shows
59; it doesn’t work by pressing “ ” button. Press “ ” button
once; the number reduces by 01. When LCD shows 00; it doesn’t
work by pressing “ ” button. After setting hour and minute;
press “ ” to confirm.
When “ ” button doesn’t work; “ ” button is used for delay
timer function. Delay timer function allows you to set the hoods
automatically power off according to the delay timer you set from
1 minute to 60 minutes. Press “ ” button once; it enters for delay
timer setting and LCD shows . Press “ ” button once
the number adds by 01. Continue pressing “ ” button; it will
display from ; ; …until
Press “ ” button once; the number reduces by 01.
After setting delay timer you want; press “ ” button to confirm.
If you set delay timer as 05:00; the LCD display will show from
05:00; 04:59…until 00:01 00:00. When LCD shows 00:00; the
hood will automatically power off and LCD display will only
show 24-hour system with blue backlight. After 30 seconds
without operation; blue backlight will disappear. But please note
the Lamp is not under control of delay timer. Next time; if you
want to use delay timer function and you press “ ” button
without any change on time. The hood will automatically count
time down from your previous setting after 5 seconds.

12
(7) MAINTENANCE

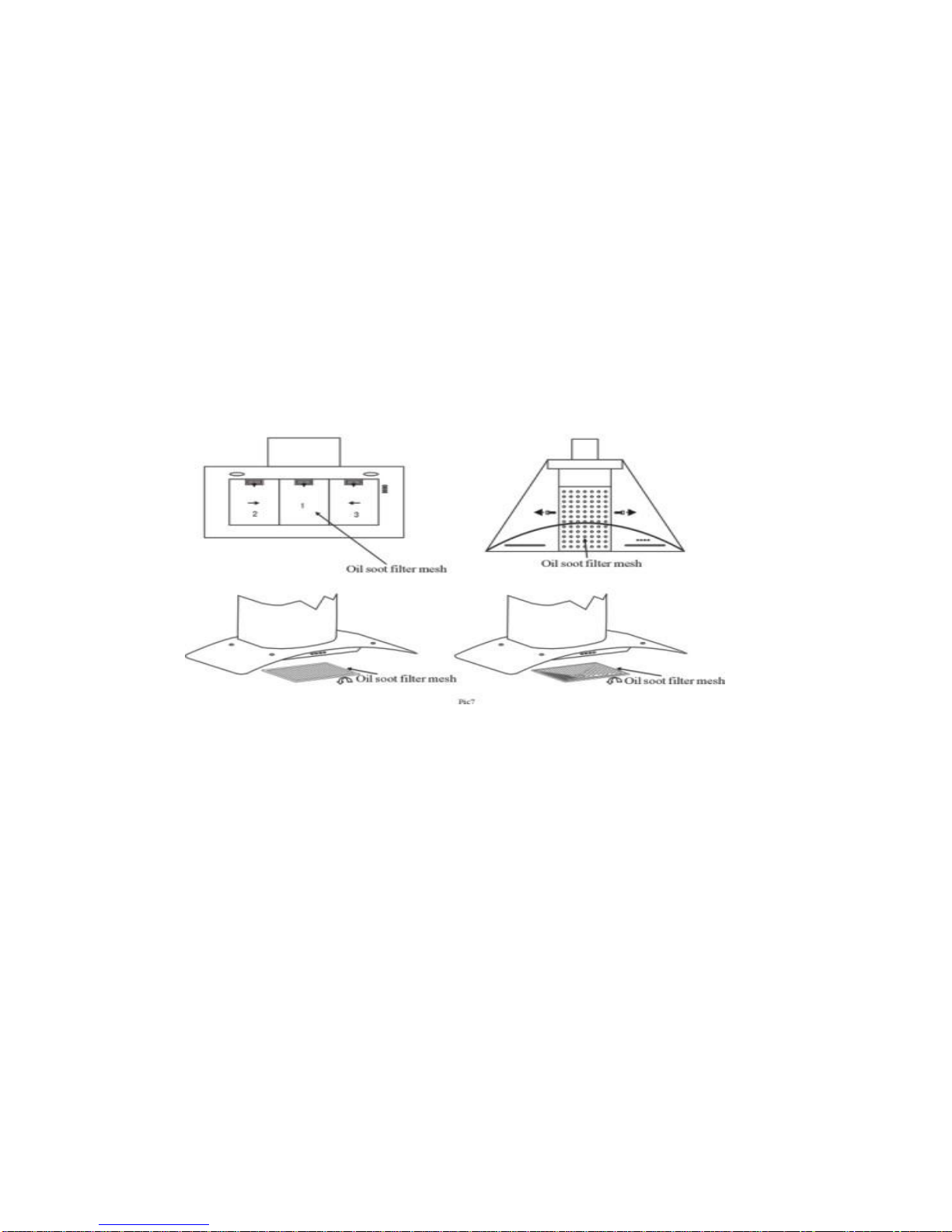

7.1 The cleaning of the carbon grease filter mesh
The filter mesh is made of high-density stainless steel. Please do not
use the corrosive detergent on it. Keeping this filter clean will keep
the appliance running correctly. Please strictly follow the guidelines
below.
Method 1: Put the mesh into 40-50 c clean water, pour on detergent,
and soak for 2-3 mins. Wear gloves and clean with a soft brush.
Please do not apply too much pressure, as the mesh is delicate and
will damage easy.
Method 2: If instructed to do so, it can be put into a dishwasher, set
the temperature at around 60 degrees.
7.2 Notice of cleaning cooker hood
A. To protect the main body from corrosion over a long period of
time, the cooker hood should be cleaned with hot water plus
non corrosive detergent every two months.
B. Please do not use abrasive detergent for it will damage the
body.
C. Keep the motor and other spare parts free from water, as this
will cause damage to the appliance.
D. Before cleaning the appliance please remember to cut off
power
E. The carbon filter shouldn’t be exposed to heat.
F. Please don’t tear open the fixed bar around the carbon filter
G. If the plug or cord is damaged, please replace it with special
soft cord.

13
8.Abnormity and Solution
Fault
Cause
Solution
Light on, but motor
does not work
The leaf blocked
Get rid of the blocking
The capacitor damaged
Replace capacitor
The motor jammed bearing
damaged
Replace motor
The internal with of motor off or
a bad smell from the motor
Replace motor
Light does not work,
motor does not work
Beside the above mentioned, check the following:
Light damaged
Replace lights
Power cord looses
Connect the wires as per
the electric diagram
Oil leakage
One way valve and the air
ventilation entrance are not
tightly sealed
Take down the one way
valve and seal with glue
Leakage from the connection
of U-shaped section and
cover
Take U-shaped section
down and seal with soap
or paint
Shake of the body
The leaf damaged and causes
shaking
Replace the leaf
The motor is not tightly
hanged
Lock the motor tightly
The body is not tightly
hanged
Fixed the body tightly
Insufficient suction
The distance between the
body and the gas top too long
Readjust the distance
Too much ventilation from
open doors or windows
Choose a new place and
resemble the machine
The machine inclines
The fixing screw not tight
enough
Tighten the hanging
screw and make it
horizontal
The hanging screw not tight
enough
Tighten the hanging
screw and make it
horizontal
