FAL HEE22-600MM User manual

USE AND CARE GUIDE
WALL MOUNTED HOOD

Fig. 1
Fig.2

Fig. 3
Fig.4

Fig. 4
Fig. 5
Fig.6
Fig.7

Fig.8
Fig. 9

ABCDEF
G
Fig. 10
GENERAL
Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations. The appliance has been designed for use in the ducting version
(air exhaust to the outside – Fig.1B), filtering version (air circulation on the
inside – Fig.1A) or with external motor (Fig.1C).
SAFETY PRECAUTION
1. Take care when the cooker hood is operating simultaneously with an open
fireplace or burner that depend on the air in the environment and are supplied
by other than electrical energy, as the cooker hood removes the air from the
environment which a burner or fireplace need for combustion. The negative
pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide
adequate ventilation in the environment for a safe operation of the cooker
hood. Follow the local laws applicable for external air evacuation.
Before connecting the model to the electricity network:
- control the data plate (positioned inside the appliance) to ascertain that the
voltage and power correspond to the network and the socket is suitable. If in
doubt ask a qualified electrician.
2. WARNING!
In certain circumstances electrical appliances may be a danger hazard.
A) Do not check the status of the filters while the cooker hood is operating
B) Do not touch bulbs or adjacent areas, during or straight after prolonged use
of the lighting installation.
C) Flambe cooking is prohibited underneath the cooker hood
D) Avoid free flame, as it is damaging for the filters and a fire hazard
E) Constantly check food frying to avoid that the overheated oil may become
a fire hazard

F) Disconnect the electrical plug prior to any maintenance.
G) There shall be adequate ventilation of the room when the range hood is used at the
same time as appliances burning gas or other fuels
H) There shall be adequate ventilation of the room when the rangehood is
used at the same time as appliances burning gas or other fuels
I) There is a risk of fire if cleaning is not carried out in accordance with the
instructions
J) If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
K) This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
L) Children should be supervised to ensure that they do not play with the
appliance.
M) There is a fire risk if cleaning is not carried out in accordance with the
instructions.
O) The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels
P) The minimum distance between the supporting surface for the cooking
vessels on the hob and the lowest part of the range hood. When the range
hood is located above a gas appliance, this distance shall be at least 65cm.
if the instructions for installation for the gas hob specify a greater
distance, this has to be taken into account;
Q) Regulation concerning the discharge of air have to be fulfilled.
INSTALLATION INSTRUCTIONS
Assembly and electrical connections must be carried out by specialized
personnel.
• Electric Connection
The appliance has been manufactured as a class I, therefore earth cable is
necessary.
The connection to the mains is carried out as follows:
IEC227 North America
L=live Brown Black
N=neutral Blue White
E=earth Green/Yellow Green

If not provided, connect a plug for the electrical load indicated on the
description label. Where a plug is provided, the cooker hood must be installed
in order that the plug is easily accessible.
An omnipolar switch with a minimum aperture of 3mm between contacts, in
line with the electrical load and local standards, must be placed between the
appliance and the network in the case of direct connection to the electrical
network.
• The minimum distance between the support surfaces of the cooking pots on
the cooker top and the lowest part of the cooker hood must be at least 65 cm.
If a connection tube composed of two parts is used, the upper part must be
placed outside the lower part.
Do not connect the cooker hood exhaust to the same conductor used to
circulate hot air or for evacuating fumes from other appliances generated by
other than an electrical source.

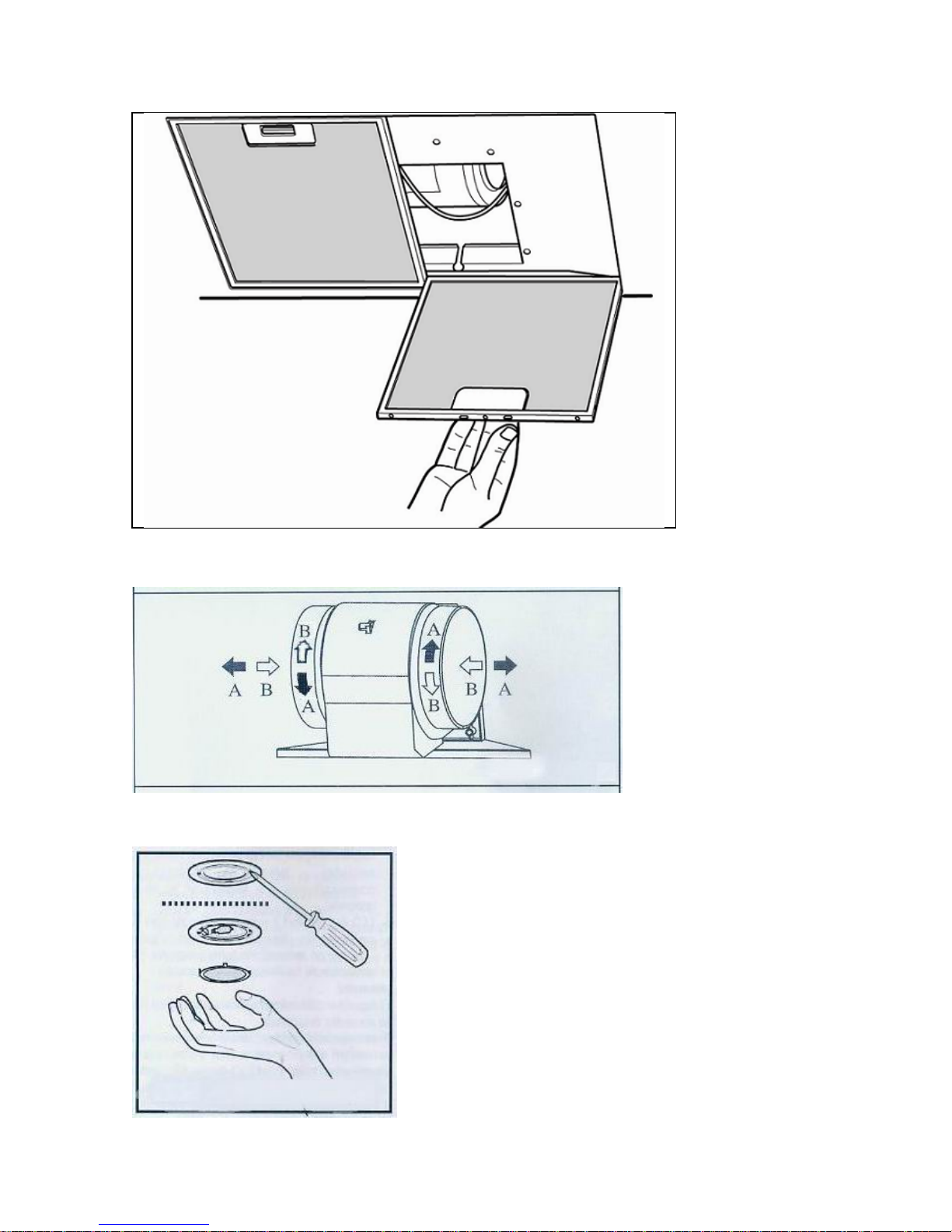

Before proceeding with the assembly operations, remove the anti-grease
filter(s) (Fig.5) so that the unit is easier to handle.
In the case of assembly of the appliance in the suction version prepare the hole
for evacuation of the air.
• FIXING TO THE WALL
Drill the holes A respecting the distances indicated (Fig.2).
Fix the appliance to the wall and align it in horizontal position to the wall
units. When the appliance has been adjusted, definitely fix the hood using the
screws A.
For the various installations use screws and screw anchors suited to the type of
wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and screw
anchors are provided with the product check that they are suitable for the type
of wall on which the hood is to be fixed.

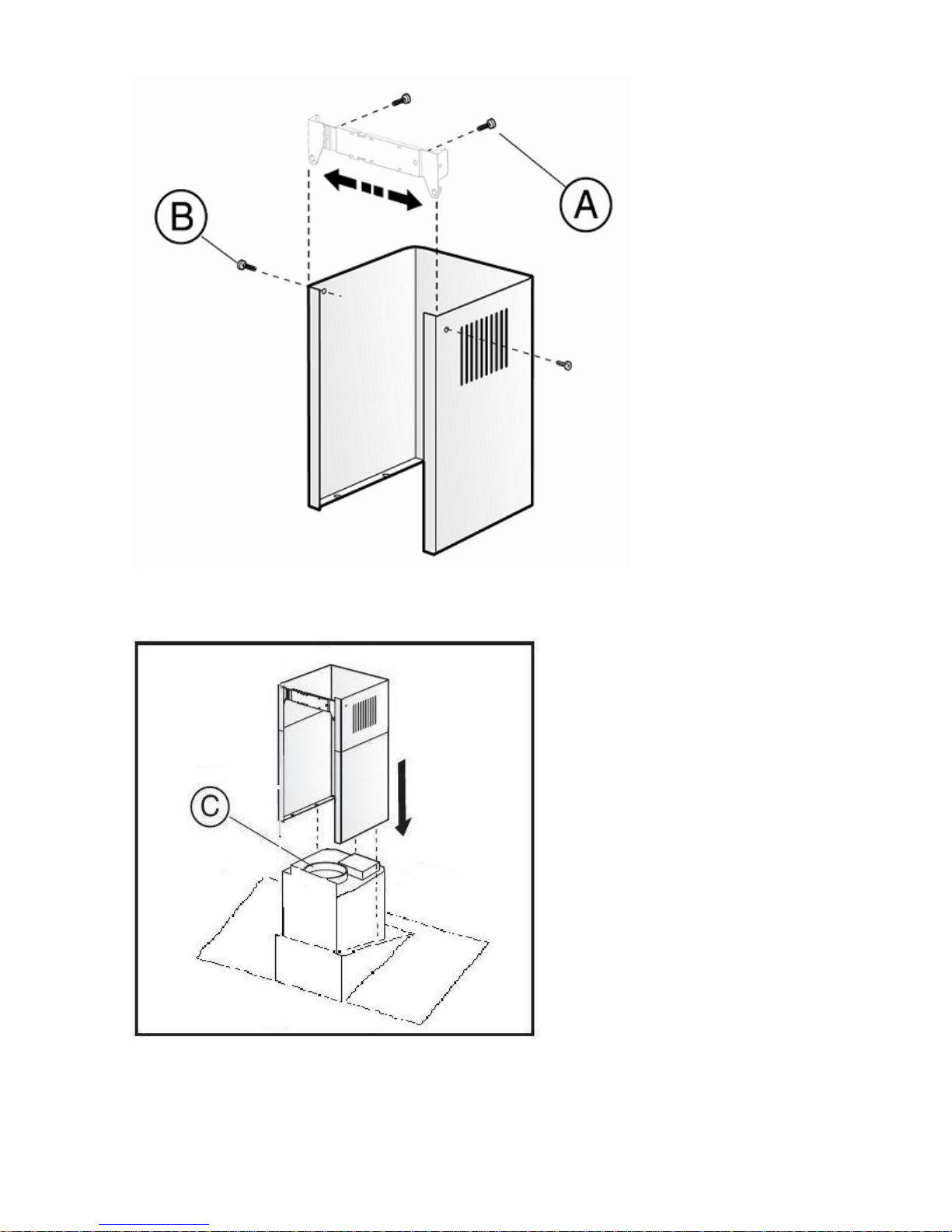

• FIXING THE DECORATIVE TELESCOPIC FLUE
Arrange the electrical power supply within the dimensions of the decorative
flue. If your appliance is to be installed in the ducting version or in the version
with external motor, prepare the air exhaust opening. Adjust the width of the
support bracket of the upper flue (Fig.3). Then fix it to the ceiling using the
screws A (Fig.2) in such a way that it is in line with your hood and respecting
the distance from the ceiling indicated in Fig.2. Connect the flange C to the air
exhaust hole using a connection pipe (Fig.4).

To transform the hood from a ducting version into a filtering version, ask your
dealer for the charcoal filters and follow the installation instructions.
• FILTERING VERSION
Install the hood and the two flues as described in the paragraph for installation
of the hood in ducting version. To assemble the filtering flue refer to the
instructions contained in the kit. If the kit is not provided, order it from your
dealer as accessory. The charcoal filters must be fitted in the ducting unit
located inside the hood.
USE AND MAINTENANCE
• It is recommended to operate the appliance prior to cooking.
It is recommended to leave the appliance in operation for
15 minutes after cooking is terminated in order to completely eliminate
cooking vapors and odours.
The proper function of the cooker hood is conditioned by the regularity of the
maintenance operations, in particular, the active carbon filter.
• The anti-grease filters capture the grease particles suspended in the air, and
are therefore subject to clogging according to the frequency of the use of the
appliance.
In order to prevent fire hazard, it is recommendable to clean the filter at a
maximum of 2 months by carrying out the following instructions:
- Remove the filters from the cooker hood and wash them in a solution of
water and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher.
The aluminum panels may alter in color after several washes. This is not cause
for customer complaint nor replacement of panels.
• The active carbon filters purify the air that is replaced in the environment.
The filters are not washable nor reuseable and must be replaced at maximum
every four months. The saturation of the active carbon filter depends on the
frequency of use of the appliance, by the type of cooking and the regularity of
cleaning the anti-grease filters. (Fig 6) To remove the charcoal filters place on
hand on one filter at a time and turn it toward the front part. The charcoal filter
can now be removed. Always ensure to replace both filters at the same time.

• Clean the fan and other surfaces of the cooker hood regularly using a cloth
moistened with denatured alcohol or non abrasive liquid detergent.
• The illumination installation is designed for use during cooking and not for
prolonged general illumination of the environment. Prolonged use of the
illumination installation notably reduces the duration of the bulb.
Use a one-edged screwdriver or any other appropriate tool to lift and remove
the overhead light fixture. Replace the damaged lamp. Use only halogen
lamps as the original specification, avoiding contact with hands. Return the
light fixture to its position (snap fastening). (Fig. 7)
• How to replace the charcoal filters:

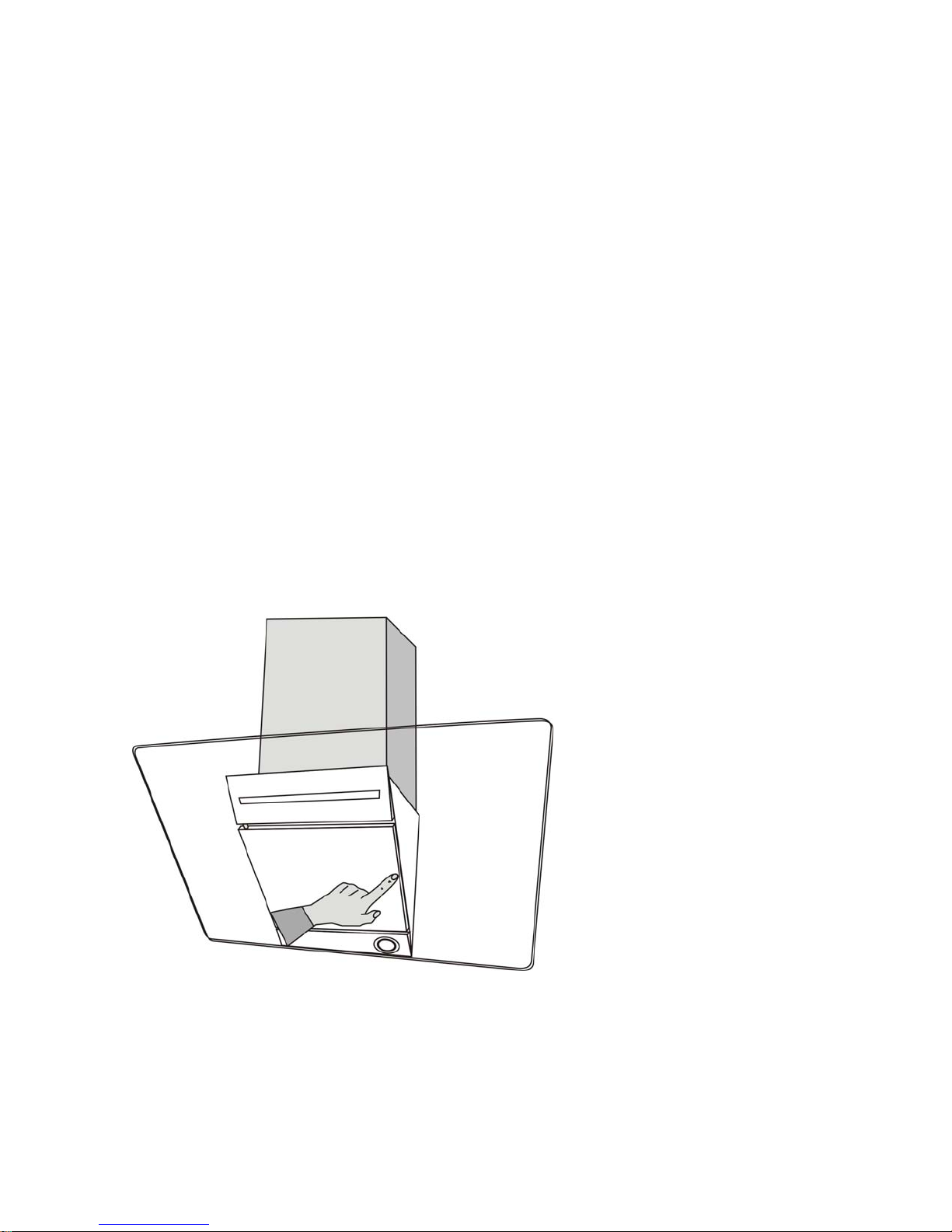

(1)Push the right middle corner on the glass of the decoration door (Fig.11),
the decoration door is open (Fig.12).
(2)Take out the aluminum filter (Fig.13);

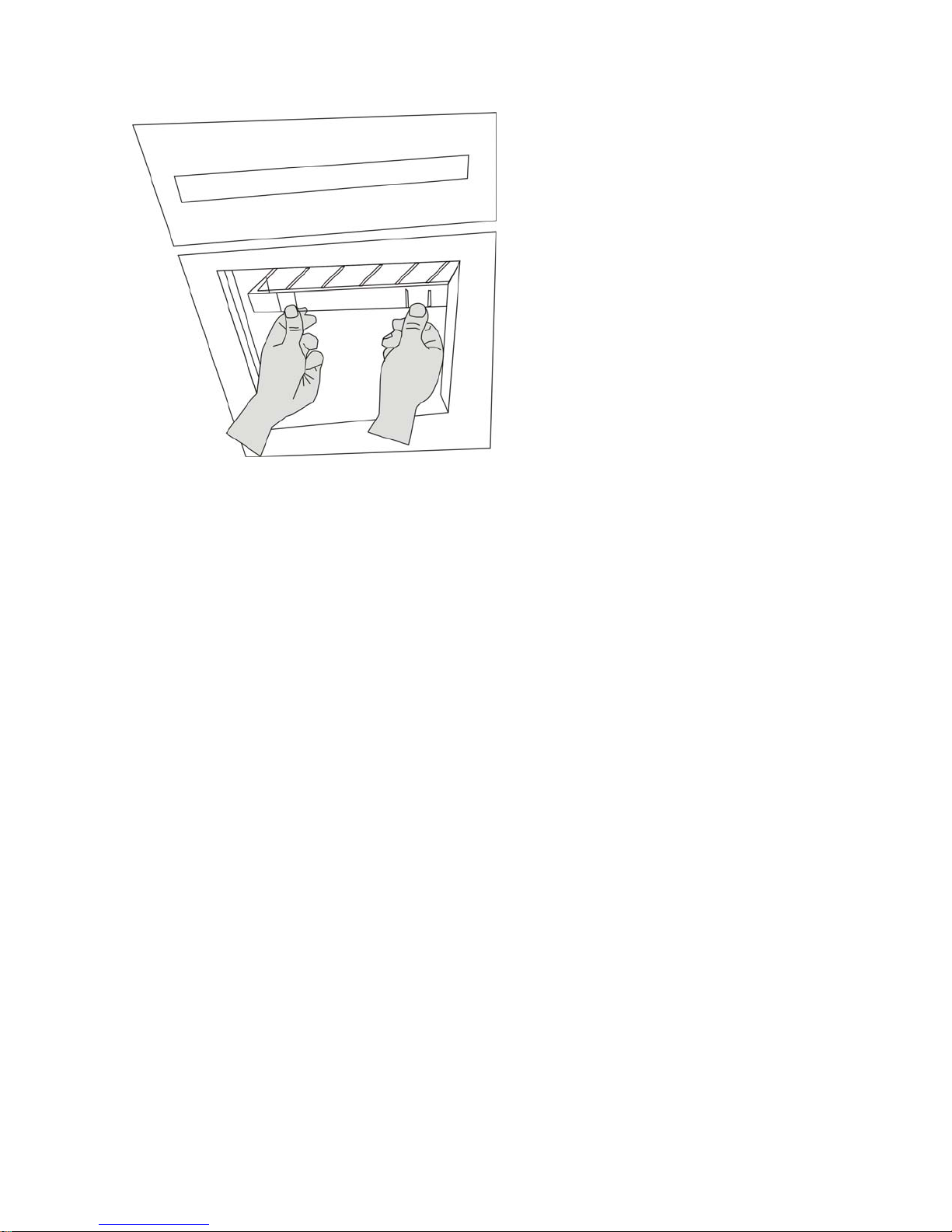

(3)Push the clips on the charcoal filters and then pull back, then the charcoal
filters can be taken down (Fig.14).
Fig.11

Fig.12
Fig.13

Fig.14

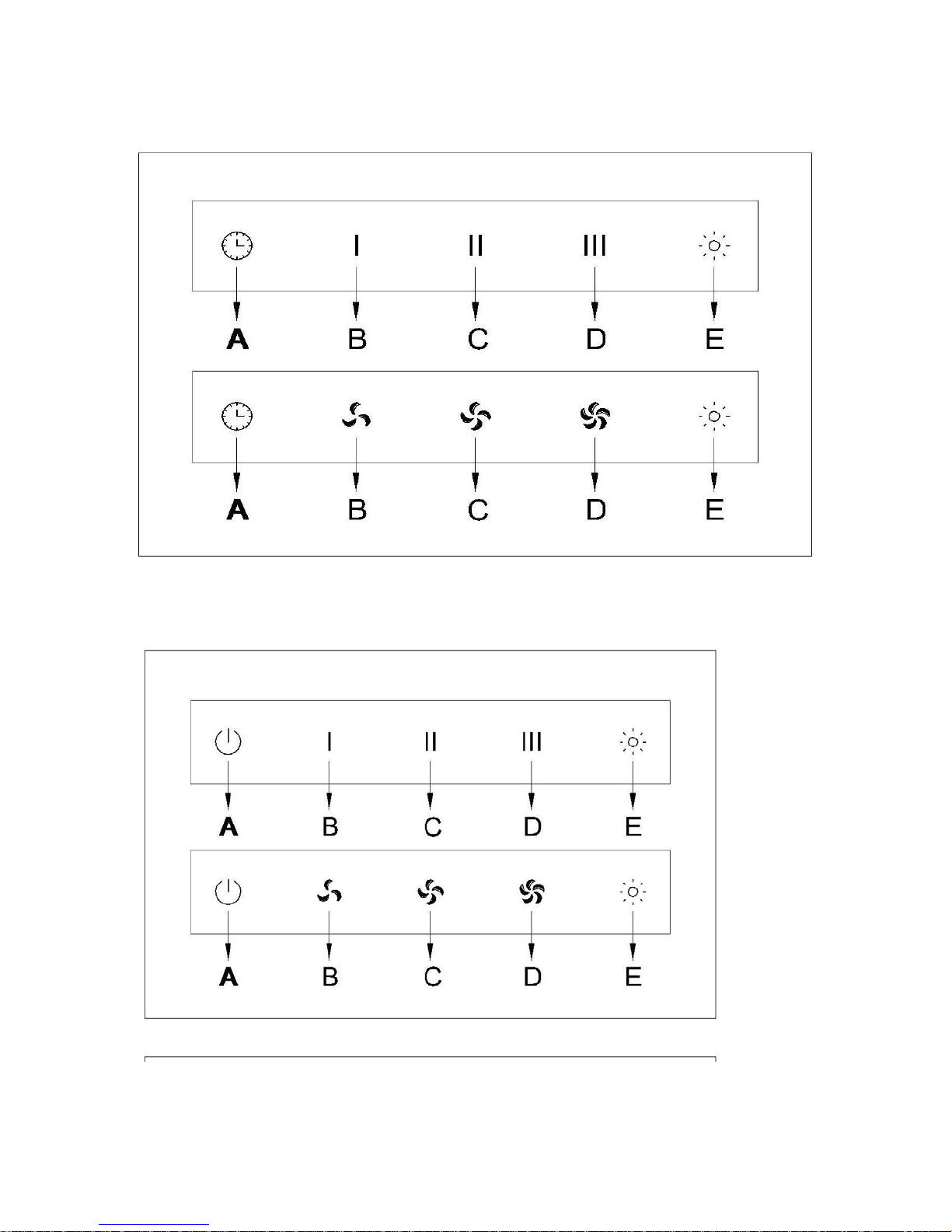

•COMANDS PATTERN :( Fig.8) •COMANDS PATTERN :( Fig.9)
A= OFF
B= SPEED I
C= SPEED II
D= SPEED III
E =LIGHT
A= TIMER --- 15 MINUTES
B= SPEED I / OFF
C= SPEED II / OFF
D= SPEED III / OFF
E =LIGHT
• If your appliance does not have the INTENSIVE speed function, press key
A for two seconds and it will be activated for 15 minutes after which it will
return to the previously set speed. When the function is active the LED
flashes.
By pressing any key for the exclusion of the hood light the hood will return
immediately to its normal functioning.
The “automatic stop timer” delays stopping of the hood, which will
continue functioning for 15 minutes at the operating speed set at the time
this function is activated.

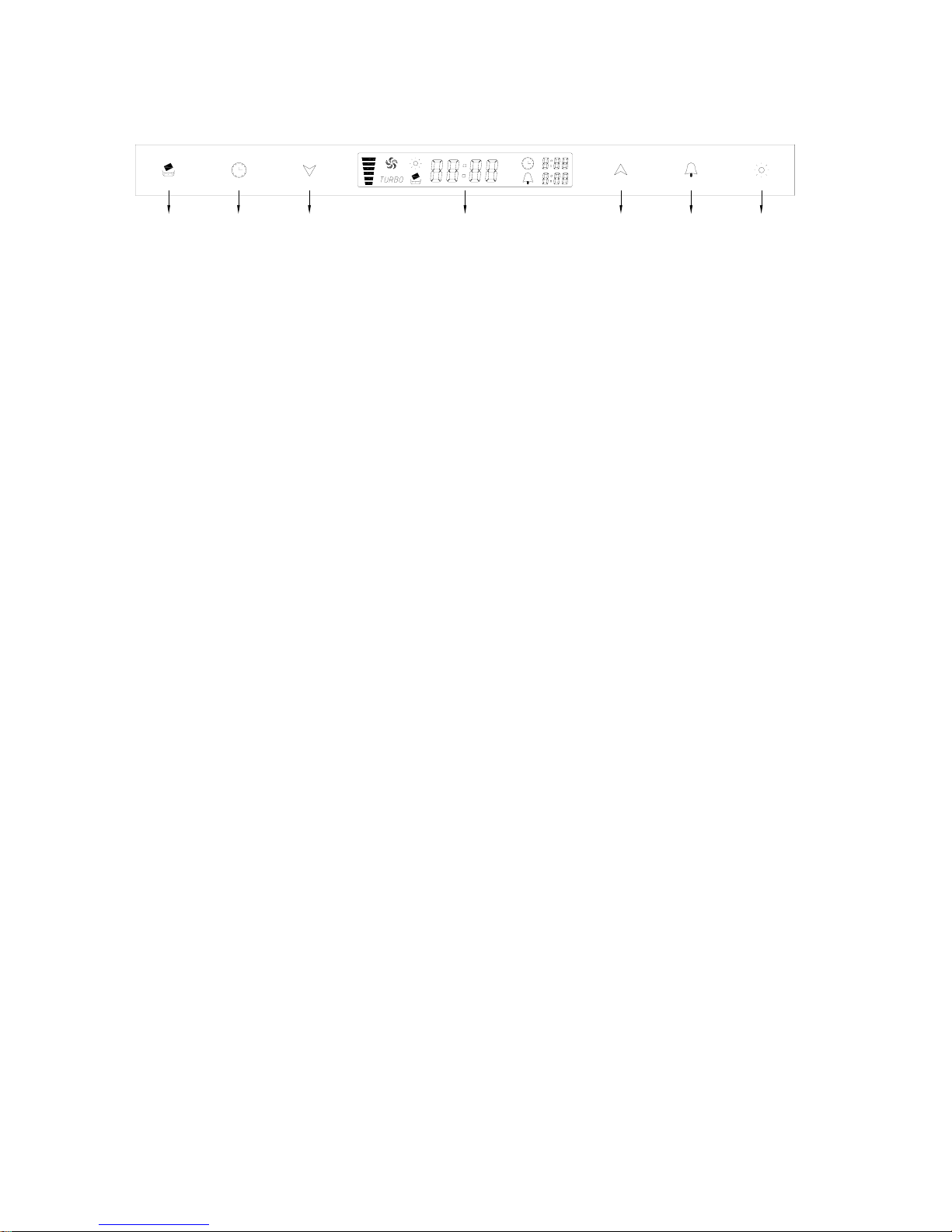

•COMANDS PATTERN :( Fig.10)
A= Filtering system / Set clock
B= Delay Timer

C= Speed S1/ “-” adjust / off
D= Digital display
E= Speed S1/ “+” adjust / off
F= Alarm
G= Light
When the Key A is flashing, at the same time “”is flashing on the
digital display, it reminds the user to clean the filters. After it’s cleaned and
then assemble back, push the key A till the light is off to set the function
again.
When pushing key A for 3 seconds, the clock “ ”on the digital display
flashing, push key A to switch to set hours and minutes, and then push C
or E to set the correct time. The Clock’s system is 24 hours.
When the motor is on, push the key B, the light is on, at the same time it
shows“”is flashing as well on the digital display,and to push
key B to switch hours and minutes, and it’s to set the time to automatically
shut off the motor by pushing key C or E. Push key B for 3 seconds to stop
the delay timer.
Push key C or E, the first speed is on, and it shows “”on the digital
display,and push key C once again to turn off;To run the 2nd, 3rd and
“Turbo” speed, then push Key E. If it’s “Turbo”speed on, then push E
once again to turn off; and to push key C down to 3rd, 2nd and 1st speed.
On the special function set, after the speed “TURBO” runs for 2
minutes, it automatically switches to 3rd speed.
Push the key F, the light is flashing, and it shows“”flashing on
the digital display,to push key F to switch hours and minutes,and to set
the alarm time by pushing the key C or E. To stop the alarm, push the key
F. And to cancel the alarm set, then push the key F for 3 seconds.
Push the key G, the light is on, and it shows“”on the digital display,
and push the G again to turn off the light.
Troubleshooting
Problem Possible reason Solution
Check the plug is connectedHood doesn’t work No electric supply Check the main switch is turned on
Aluminum grease
filters clogged Clean the filters and replace when
dry
Poor airflow
Charcoal filters
clogged Replace the charcoal filters

Motor running but no
air flow Butterfly valve jammed Contact technician
High temperature
safety device activated The kitchen is not sufficiently
ventilated
Motor cuts after a
few minutes The hood is installed
too near the cooking
stove
The hood must be least 65cm from
stove
Strong cooking smell Charcoal filters not
installed In re-circulating mode, charcoal
filters must be installed
Oil cup missing or not
installed Remove aluminum filter and
replace oil cup
Oil dripping onto
stove Aluminum grease filter
saturated Wash the aluminum grease filters
Whirring sound Something in contact
with fan blade Contact with technician
THE MANUFACTURORY DECLINES ALL RESPONSIBILITY FOR
EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE
WARNINGS.
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Warranty Information
The manufacturer provides warranty in accordance with the legislation

of the customer's own country of residence, with a minimum of 1 year
(Germany: 2 years), starting from the date on which the appliance is sold
to the end user.
The warranty only covers defects in material or workmanship.
The repairs under warranty may only be carried out by an authorized
service centre. When making a claim under the warranty, the original bill
of purchase (with purchase date) must be submitted.
The warranty will not apply in cases of:
- Normal wear and tear
- Incorrect use, e.g. overloading of the appliance, use of non-approved
accessories
- Use of force, damage caused by external influences
- Damage caused by non-observance of the user manual, e.g. connection
to an unsuitable mains supply or non-compliance with the installation
instructions
- Partially or completely dismantled appliances
This manual suits for next models
9
Table of contents
Other FAL Ventilation Hood manuals
Popular Ventilation Hood manuals by other brands

Porter&Charles
Porter&Charles Pyramid-30 instruction manual

System air
System air SAVE VTR 150/K user manual

CONTINENTAL EDISON
CONTINENTAL EDISON CEHDI9450VB9 user manual

Gram
Gram EFK 5490 Series instruction manual

Haier
Haier HFH60RSX1 installation instructions

Siemens
Siemens LC98BA521I Instructions for installation and use
