Fanaway ORBIT User manual

V1.1 AU (10/2020)
FANAWAY ORBIT
CEILING FAN
•INSTALLATION
•OPERATION
•MAINTENANCE
•WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

Fanaway Orbit Installation Instructions
2 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing this quality Fanaway product. To ensure correct function and safety, please read
and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep
instructions for future reference.
SAFETY PRECAUTIONS
1. The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local
wiring rules.
IN AUSTRALIA
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION
MUST BE INCORPORATED INTO THE FIXED WIRING IN
ACCORDANCE WITH THE WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum
electrical safety of this standard.
Please note warranty will be void if installation is without a means for an
all-pole disconnection incorporated in the fixed wiring in accordance with
the wiring rules.
Example: If a fan is connected to a circuit that can be isolated via an
all-pole safety switch at the switchboard, then this is considered to be an

Fanaway Orbit Installation Instructions
3 | P a g e
all-pole disconnection to the ceiling fan electrical circuit, meeting the
requirements of clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input of remote
control must also be included in the wiring, and located the same
room as the ceiling fan.
4. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems available. If
electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
ground water and get into the food chain, damaging your health and well-being.
5. The structure to which the fan is to be mounted must be capable of supporting a weight of 32 kg.
6. The fan should be mounted so that the blades are at least 2.1 m above the floor in Australia.
7. This fan is suitable for indoor use only. Mounting the fan in a location where it is subject to water or
moisture is dangerous and may increase the risk of damage, injury or electrical shock and will void the
warranty.
8. Must be assembled and installed by a licensed electrician.
9. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the ceiling
fan and contact the manufacturer, its service agent or suitably qualified persons.
10. The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.
11. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension
system shall be performed by the manufacturer, its service agent or suitably qualified persons.
12. The light source contained in the luminaire is non-user replacable. It shall only be replaced by the
manufacturer or his service agent or similar qualified person. The shade of the Light kit assembly MUST
NOT be removed during cleaning, maintenance or any other circumstances.

Fanaway Orbit Installation Instructions
4 | P a g e
PARTS LIST
•Unpack your ceiling fan carefully. Remove all parts and hardware.
•Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
•Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.
•Examine all parts, you should have the following:
1
Mounting bracket x 1
5
Mounting screws 4 pcs
2
Fan assembly x 1
6
Wall switch x 1 set
3
Light kit plate x 1
7
Wall switch screws x 2 pcs
4
Light kit assembly with LED and shade x 1
Fig. 1
1
3
2
4
6
5
7

Fanaway Orbit Installation Instructions
5 | P a g e
INSTALLING THE FAN
TOOLS REQUIRED:
- Phillips / flat head screwdriver
- Pair of pliers
- Adjustable spanner
- Step ladder
- Wire cutter
- Wiring, supply cable as required by local provincial and national wiring codes and regulations
INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the
blade to the nearest objects or walls.
•Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 32kg,
with the 4 long screws provided. Ensure at least 30mm of the screw is threaded into the support. (Fig. 2)
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for the
mounting surface and the surrounding environment.
ANGLED CEILING INSTALLATION
The hanging system of this fan is ONLY suitable for flat ceiling installation.
DO NOT install the fan on an angled ceiling.
Fig. 2
32 KG

Fanaway Orbit Installation Instructions
6 | P a g e
HANGING THE FAN ASSEMBLY
•Lift the fan assembly（1）up to the mounting bracket. Hang the fan assembly onto the J-hook (2) of the
mounting bracket. (Fig.3)
•Complete the electrical wiring according to the ‘ELECTRICAL WIRING DIAGRAM’ section below.
PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 4)
•WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
•NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
•Ensure the motor earth wire is connected to the single earthing terminal block “1” in the diagram below.
•USE WITH WALL SWITCH WIRING DIAGRAM: (Fig.4)
Fig. 3
（2）
1
Motor earth wire
Connect
togehter
Fig. 4
（1）
Fan assembly

Fanaway Orbit Installation Instructions
7 | P a g e
USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)
Ensure the motor earth wire is connected to the single earthing terminal block “1” in the diagram for (Fig.5
and Fig.6)
1/ Remote without plugs (manual wiring) Fig. 5
2/ Remote with plugs (using quick connectors)
Fig. 6
Fig. 5
Motor earth wire
1
Connect together
1
Motor earth wire
Connect together
Connect together
Fan assembly
Fan assembly

Fanaway Orbit Installation Instructions
8 | P a g e
INSTALL THE FAN ASSEMBLY TO THE MOUNTING BRACKET
•After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan
wiring via the quick connector plug.
•NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity
test from the fan’s accessible metal body back to the earth terminal at the terminal
block on the mounting bracket.
Install the fan assembly to the mounting bracket (Fig.7a):
•Loosen two canopy screws (1) and remove from the mounting bracket.
•Loosen two canopy screws with star washer (2) by half thread from the mounting bracket. (For L-shape
slot on canopy to be mounted).
•Lift the hanging canopy (3) of the fan assembly up to the mounting bracket and let the L-shape slot on
the hanging canopy (3) go through the two canopy screws with star washer (2).
•Turn the hanging canopy (3) until it locks in place at the end section of the L-shape slot, ensure the star
washer are between the hanging canopy (3) and screw head. Secure it by tightening the two canopy
screws with star washer (2).
•Secure and tighten the canopy screws (1) to the mounting bracket. The hanging canopy (3) shall have 4
screws (1) & (2) in total. Avoid damaging the electrical wiring prepared previously when hanging the
canopy.
Fig. 7a
2 –screw with star washer
2
3 - hanging canopy
1
1
Fig. 7b

Fanaway Orbit Installation Instructions
9 | P a g e
LIGHT KIT INSTALLATION
LIGHT KIT INSTALLATION (Fig. 6 & 7)
1. Loosen the screw (2) from the fan bracket. Align the two slot screws (1 and 3) with the keyhole slots (1
and 3) of the light kit plate . (Fig. 6)
2. Turn the light kit plate counterclockwise until the slot screws(1 and 3) are firmly at the end of the slots (1
and 3).
3. Secure screw (2) to the light kit plate. Tighten all three screws. Do not over-tighten.
4. Connect the quick connector to the light kit assembly with LED and shade . (Fig. 7)
5. Finally install the light kit assembly with LED and Shade to the laight kit plate by turning it clockwise (Fig. 7)
Fig. 11
Fig. 7
Fig. 7
Light kit plate
Fig. 6
Fan bracket
Light kit assembly
with LED and shade

Fanaway Orbit Installation Instructions
10 | P a g e

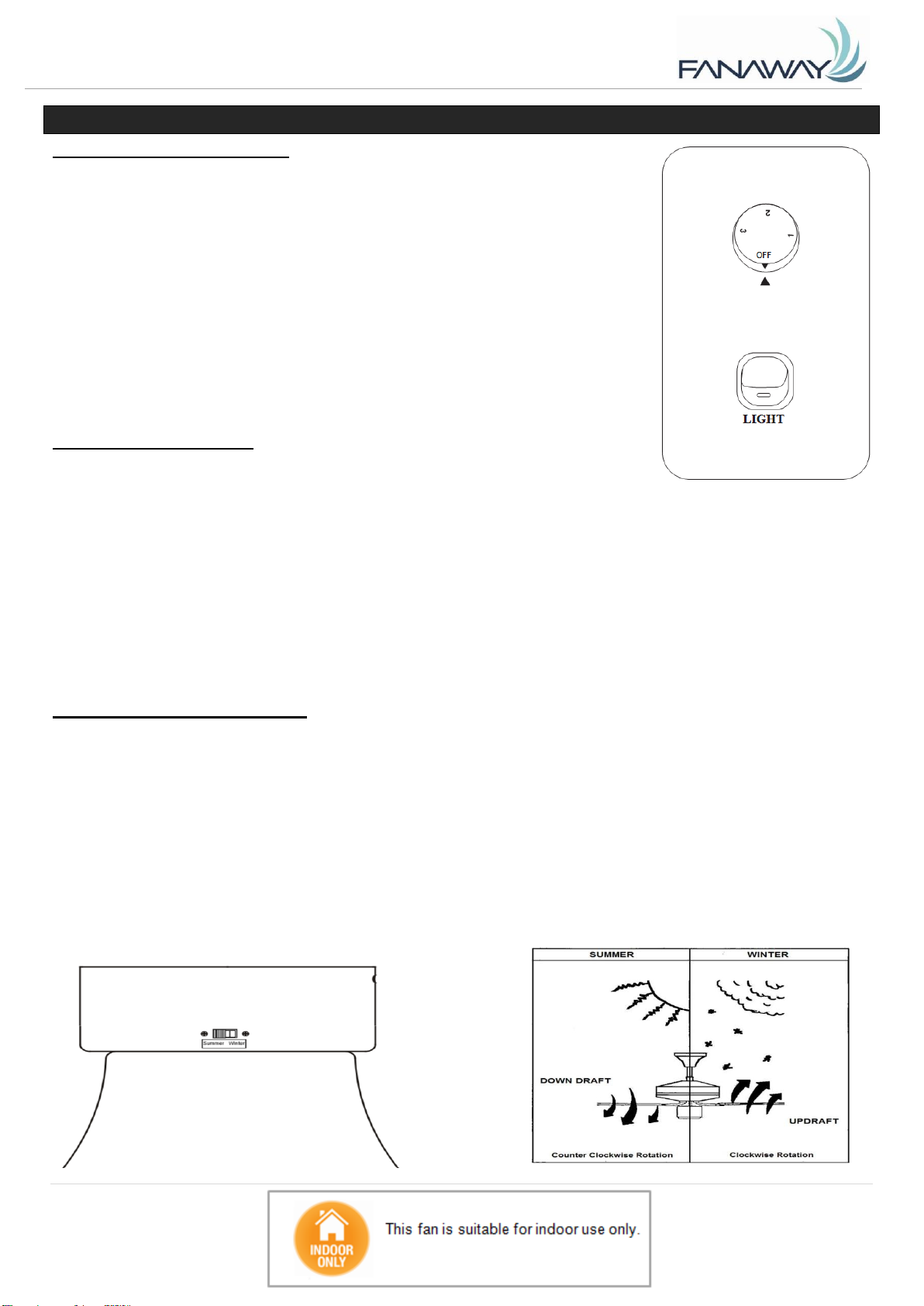

USING YOUR CEILING FAN
FAN WALL CONTROL (Fig. 8)
Turn on the power and check the operation of the fan.
• OFF Position – Fan Off
• 3rd Position – Low fan speed
• 2nd Position – Medium fan speed
• 1st Position –High fan speed
LIGHT CONTROL (Fig .8)
• Toggle Switch – ON / OFF
The LED Light Kit has a 3-step dimmable function which is controlled by an ON/OFF switch. Toggle the
switch ON/OFF to the luminaire 4 times within 5 seconds, the globe will light up in the following order:
100% brightness → 60% brightness → 10% brightness → 100% brightness
To switch back to 100% brightness at any stage, turn OFF the luminaire, and then after 5 seconds turn ON
the luminaire, it will reset to 100% brightness.
REVERSING FUNCTION (Fig. 9)
Your ceiling fan can operate in either summer or winter mode.
SUMMER Mode: The reverse switch should be in the SUMMER position to rotate the fan in an anticlockwise
direction. The airflow will be directed downwards, for cooling in summer.
WINTER Mode: The reverse switch should be in the WINTER position to rotate the fan in a clockwise
direction. The airflow will be directed upwards assisting in the circulation of warm air, for energy conservation
in winter.
Fig. 8
Fig. 9
