Fanco Breeze AC User manual

Breeze
ACAC
Installation Manual

Ceiling fan instruction booklet
Thank you for purchasing your Fanco Breeze AC Ceiling Fan. Please read all instructions
carefully before assembly and use.
IMPORTANT SAFEGUARDS
Read all instructions carefully, even if you feel you are quite familiar with this type of
appliance. When using electrical appliances, in order to reduce the risk of fire, electric shock,
and/or injury, these basic safety precautions should always be followed:
1. All wiring must be done by a licenced electrician as on-site warranty may be voided
if proof cannot be provided. This ceiling fan MUST be installed by a Qualified Electrical
Contractor in accordance with the local regulations, and all local, state and national
electrical codes. Any alterations or additions to building wiring must be completed by a
licensed electrical contractor, or person authorised by legislation to work on the fixed wiring
of any electrical installation.
2. The fan must be connected to a 240V AC 50Hz power supply.
3. All electrical work must only be undertaken after disconnection of the power by removing
fuses or turning off the circuit breaker, to ensure all pole isolation of the electrical supply.
4. The fan must be earthed.
5. The fan must be installed so that the blades are at least 2.1 metres above the floor.
6. The ceiling fan weight is max. 9 kg. The structure that the ceiling fan is mounted to must
be capable of supporting a weight of at least 45 kg. The fixing must be able to support the
moving weight of the fan and must not twist or work loose.
7. Make sure that the installation site will not allow the rotating fan blades to come into
contact with any object and that there is enough space from the blade tip to the wall or
ceiling. Please note that insufficient clearance distances might cause wobbling and the
bigger this clearance is the better the airflow from your fan will be.
8. This product can be installed in a position where it is covered or enclosed al fresco areas
and there is a minimum clearance of 1.50 m from the blade tip to all edges of the roof or
positions where could be exposed to water, moisture or other dangerous external elements.
9. DO NOT connect the fan motor to a dimmer switch. This may give an unsatisfactory
performance (motor hum) and cause damage to the motor and/or controller. Use ONLY the
provided wall control.
10. This appliance is not intended for use by young children or infirm persons without
supervision.
11. Young children should be supervised to ensure that they DO NOT play with the appliance.
12. It is NOT recommended that ceiling fans and gas appliances be operated in the same
room at the same time.
13. The fan must be turned off and stopped completely before reversing the fan direction.
This will prevent any damage to the motor of the fan or controller.
14. Do not insert anything into the fan blades whilst they are spinning. This will damage the
blades and upset the balance of the fan causing the unit to wobble.
15. After the fan is completely installed make sure that all base and fan blade fixings are
secured and tightened to prevent any problems.
16. Because of the fan’s natural movement, some connections may loosen. Check the support
connections, brackets and blade attachments twice a year to make sure they remain
secured. If any are loose, tighten.
17. If unusual oscillating movement is observed, immediately stop using the ceiling fan and
contact the manufacturer, its service agent or suitably qualified persons.
18. The replacement of parts of the safety suspension system device shall be performed by
the manufacturer, its service agent or suitably qualified persons.
1

19. If it is necessary to replace the live or neutral brushes to ensure operation of the motor
then both brushes and the earth brush shall be replaced at the same time. The brushes shall
only be replaced by a suitably qualified person.
20. An all-pole disconnection incorporated in the fixed wiring is to be provided, such as an
all-pole switch or a supply cord fitted with a plug.
21. The light source in light kit is not replaceable; when the light source reaches its end of life
the whole light kit shall be replaced by manufacture, his service agent or a qualified person.
22. The max operating temperature for the fan is 40 degree °C. Keep the fan away from any
heat sources, like fire place, heater and stove.
IMPORTANT NOTE:
The important safeguards and instructions given in this manual are not meant to cover
all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which cannot be built into any product.
FAULT FINDER:
Always check the “Trouble Shooting Checklist” included in this booklet before seeking
warranty claim.
Mechanical noise may be noticed on installation. Allow at least 8 hours settling-in period.
Some fans may wobble more than others, even if they are identical. This does not necessarily
indicate a fault.
PREPARATION:
1. Unpack your ceiling fan carefully, then remove all parts and components, and lay on
a cloth or soft surface to avoid damage. DO NOT lay the motor housing on its side, the
housing may get damaged.
2. Before commencing installation, check that all parts are included.
NB: You may need to remove all foam packaging material to ensure there are no missing
parts.
2

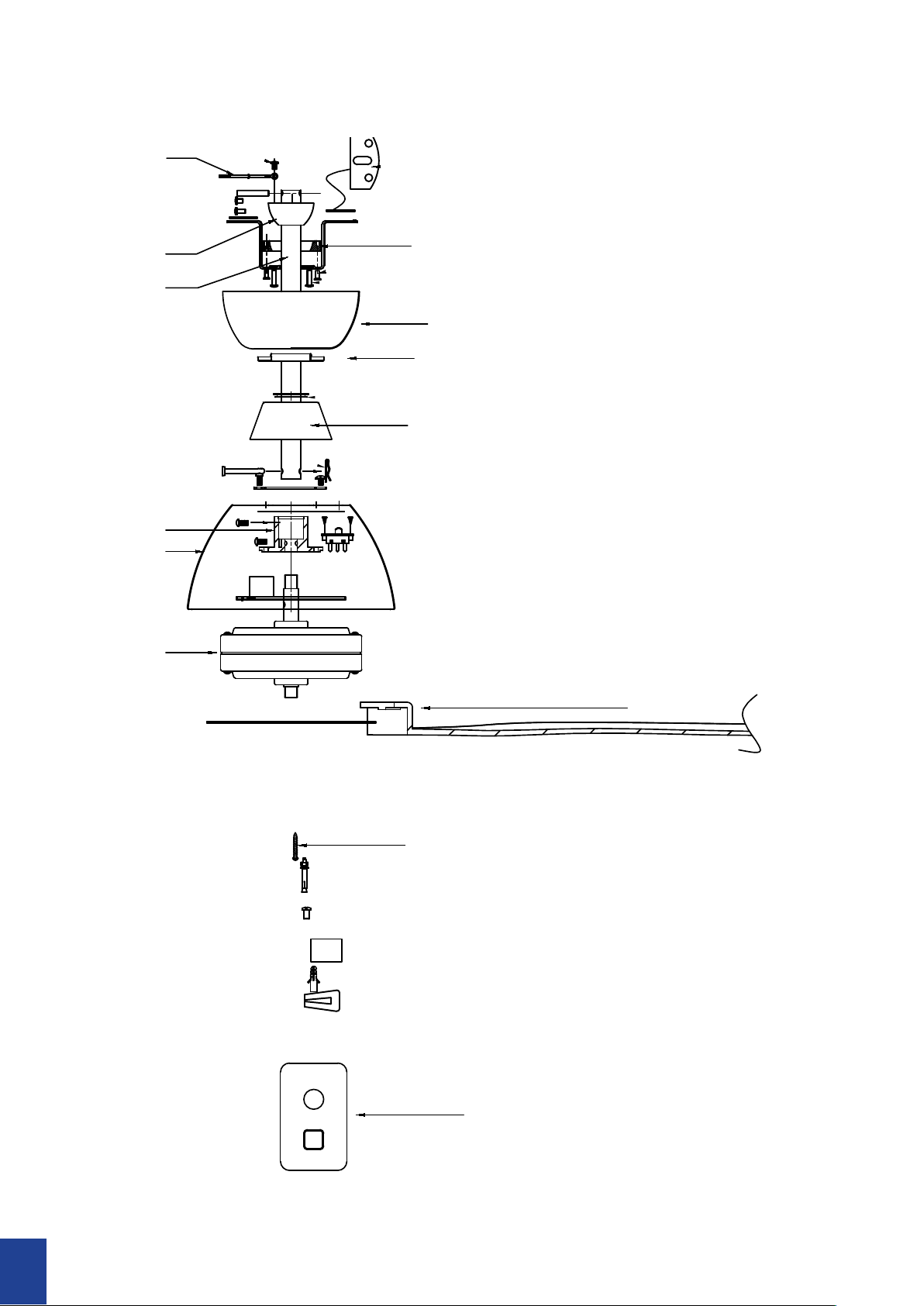

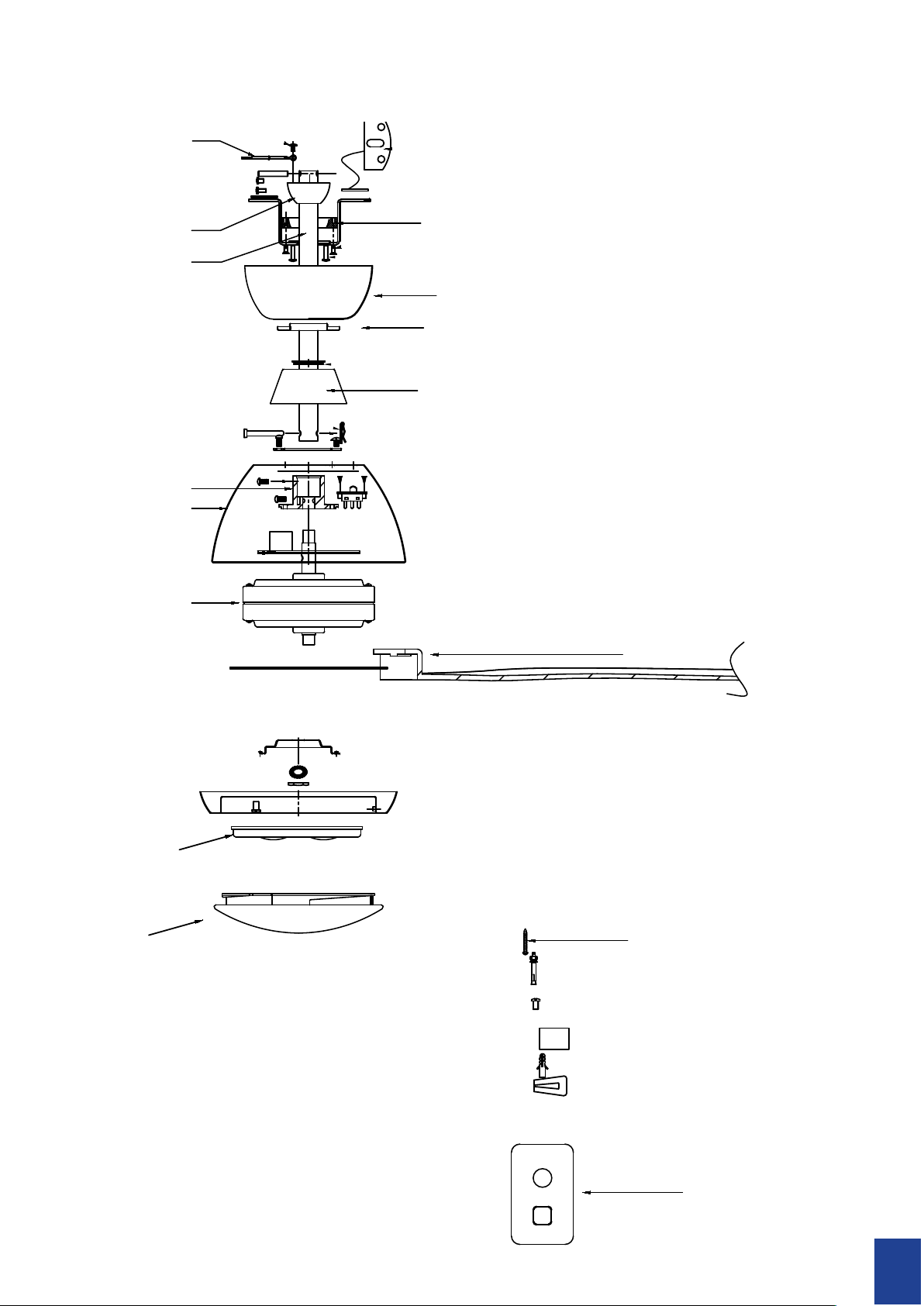

List of Components
1 Earth wire
2 Ball joint
3 Downrod
4 Hanging bracket
5 Canopy
6 Decorative ring
7 Coupling cover
8 Downrod holder
9 Motor housing
10 Motor
11 Blades
12 Screws pack & balancing kit
13 Wall control
WITHOUT LIGHT
1
2
3
4
5
7
8
9
10
12
11
容
OFF
1
2
3
LIGHT
6
13
3

1
2
3
4
5
7
8
9
10
14
11
容
OFF
1
2
3
LIGHT
6
15
12
13
List of Components
1 Earth wire
2 Ball joint
3 Downrod
4 Hanging bracket
5 Canopy
6 Decorative ring
7 Coupling cover
8 Downrod holder
9 Motor housing
10 Motor
11 Blades
12 Light
13 Diffuser
14 Screws pack & balancing kit
15 Wall control
WITH LED LIGHT
4

INSTALLATION AND ASSEMBLY
CAUTION: Before installing the fan make sure you have turned OFF the electricity supply.
SELECTING A LOCATION:
1. Choose a location for mounting the fan where the blades will have at least 2.1 metres of
clearance from the floor.
2. Make sure that the installation site will not allow the rotating fan blades to come into
contact with any object and that there is enough space from the blade tip to the wall or
ceiling. Please note that insufficient clearance distances might cause wobbling and the
bigger this clearance is the better the airflow from your fan will be.
3. This product can be installed in a position where it is covered or enclosed al fresco areas
and there is a minimum clearance of 1.50 m from the blade tip to all edges of the roof or
positions where could be exposed to water, moisture or other dangerous external elements.
4. Secure the hanging bracket to the ceiling joist or suitable structure that is capable of
carrying a load of at least 45 kg, with the two long fixing screws provided. Ensure that at
least 30mm of the screw is threaded into the support.
The fixing screws included are designed for use when ceiling fan is secured onto timber
joists. For all other surfaces, additional and suitable fixing screws for that surface will need
to be purchased.
5
ELECTRICAL CONNECTIONS
• Ensure the power is off when installing this fan.

6
WIRING DIAGRAM - WITHOUT LIGHT
N
LTo motor (L)
(N)
L
N
Double pole disconnection switch or 2 pin plug
WIRING DIAGRAM - WITH LIGHT
N
LTo motor (L)
To light (L)
(N)
L
N
Double pole disconnection switch or 2 pin plug

7
INSTALLATION STEPS
1. Remove screws off the bottom of the motor housing.
Align the blades with screw holes on motor housing, and secure with the screws and washers.
ab
cd
2. Remove side screws
from extension rod.
Put the motor housing
through the extension
down rod and secure
with 3 screws.
3. For models with light. Take off 3 screws on light
kit fixing plate. Align the light kit with screw holes
on motor housing, and secure with the screws and
washers. Connect the push plug wire attached on
the light kit with the push plug attached to the
motor.

8

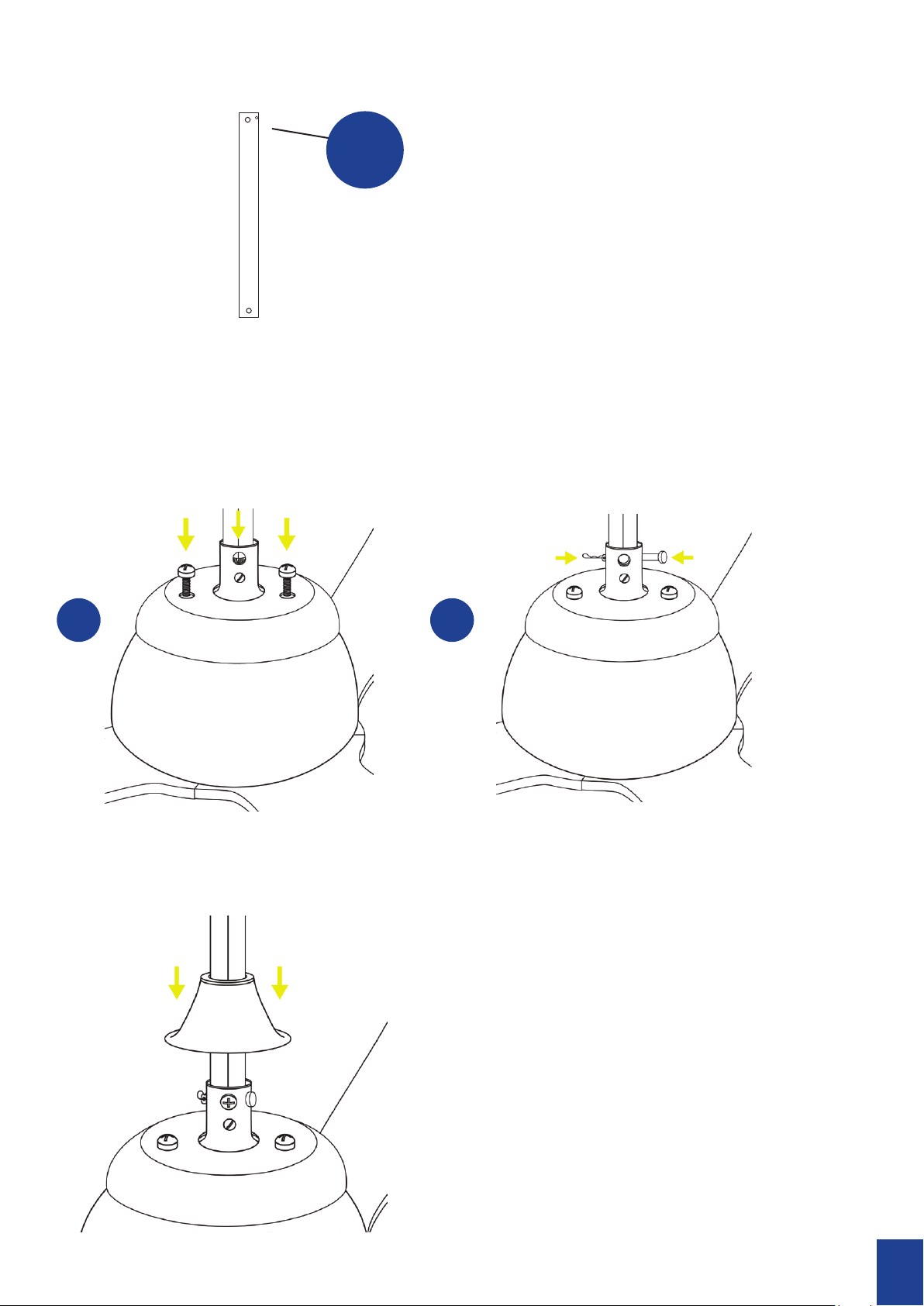

4. 125 mm and 250 mm downrods are included in the box. Pick one from the box. Keep the
side ith 3 holes up.

Holes
up
Feed the main motor wire plug up through the inside of the downrod, then insert the
downrod into the motor bush. Gently push the cross-pin through the holes aligned with the
base of the motor bush and downrod. CAUTION: DO NOT force the cross-pin, gently wiggle
and rotate it until it glides through both holes. Replace the cotter-pin on the other side of
the cross-pin to secure the downrod to the motor bush. Tighten up both cross screws to
make the downrod rigid in the motor bush.
a b
5. Snuggle the coupling cover down onto the top of the motor housing.
CAUTION: DO NOT remove rubber gasket on top of the coupling cover.

9

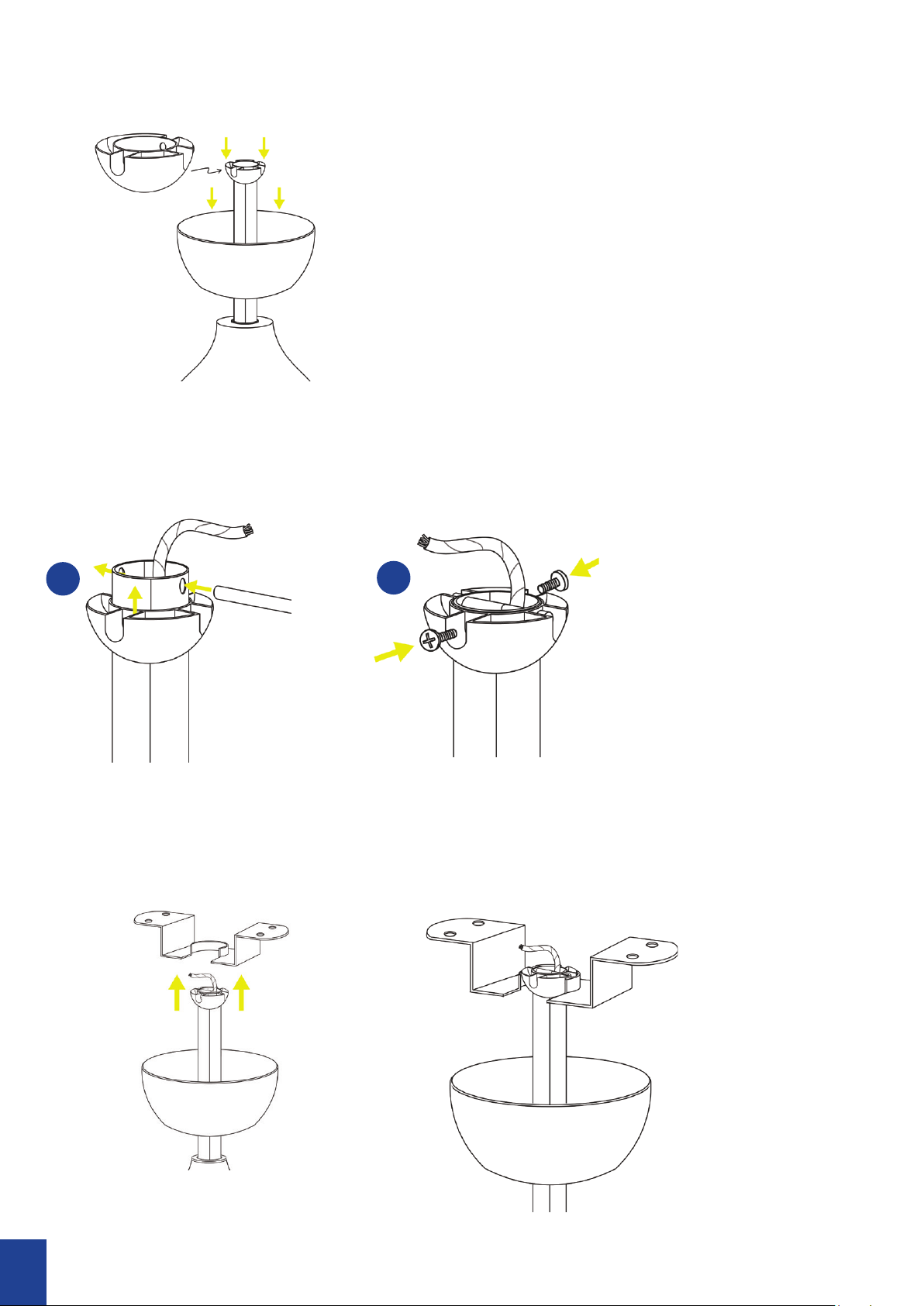

8. Face slot on hanging ball to the middle of the hanging bracket. Place hanging ball into
the bracket.
6. Put the decorative ring and canopy through the down rod.
7. Place the hanging ball on top of the down rod and secure it with the ball pin and two
screws. CAUTION: secure one screw through holes on the hanging ball and the downrod.
ab

10
10. Connect power and the fan as electrical wiring diagram.
IMPORTANT: The fan must be earthed! Double pole disconnection switch and wall switch
must be connected.
11. Place the canopy over the bracket, align the canopy holes with the screws and tighten.
Align decorative holes with the screws and twist it to secure it onto the canopy.
12. For the light model - hold the diffuser to the
bottom of the motor and rotate clockwise until
it locks into place.

REVERSE FUNCTION
The “Summer/Winter” reverse function is included to make the fan rotate in an anti-
clockwise direction during summer.
In winter, this can be reversed, so that the blades now move in a clockwise direction.
Adjust “Forward/Reverse” button on the motor housing to change “Summer/Winter” mode.
CARE & CLEANING:
• Periodic cleaning (approximately 6 months) of your ceiling fan is the only maintenance
required.
• Use a soft brush or lint free cloth to avoid scratching the finish. Please turn off electricity
when you do so.
• Do not use water when cleaning your ceiling fan. It could damage the motor or the wooden
blades and create the possibility of an electrical shock.
• The motor has a permanently lubricated ball bearing and as such, is maintenance free.
NOISE:
The manufacturer warranty covers actual faults that may develop, but NOT minor
complaints, e.g. motor operation noise - ALL ELECTRIC MOTORS ARE AUDIBLE TO SOME
EXTENT; this is more obvious when the fan is operating at low speeds.
WOBBLE:
• Ceiling fans are designed to move during operation because they are not generally rigidly
mounted
• Movement of a couple of centimetres is acceptable for safe operation.
• Balancing kits included should be used to adjust the balancing when first installed.
NORMAL WEAR AND TEAR:
Threaded components working slighting loose or blade carriers even slightly bent due to
vigorous cleaning or bumping can cause extra wobble and noise. THIS IS NOT COVERED
UNDER WARRANTY, but a little care and maintenance can reduce or prevent this problem.
11

Trouble Possible Cause Suggested Remedy
Fans does not start. A) Loose wire connections
or plugs to fan/receiver
B) No power goes into the
fan
A) Check wire connections
and ensure plugs are
positively connected
B) Check RCD/Switch
board and wiring on
premises
Fan keeps beeping, but
will not start.
Loose wire connections or
plugs to fan/receiver
Check wire connections
and ensure plugs are
positively connected
Fan wobbles. A) Screws on down rod are
not tightened
B) Blades are not balanced
A) Retighten the screws on
down rod
B) Use the balancing kit to
balance the blades.
Fan makes clicking sound. A) Coupling cover does
not sit securely on motor
housing
B) Rubber ring on coupling
cover is removed
A) Adjust coupling cover
and ensure it sits properly
on the motor housing
B) Check couple cover and
ensure there’s a rubber
ring on the top of the
cover.
Model Number Rated Voltage Motor Consumption Rated Light Power
CFFCBR3ACBL 220-240Vac Max. 70 W AC Motor N/A
CFFCBR3ACBLK 220-240Vac Max. 70 W AC Motor N/A
CFFCBR3ACWH 220-240Vac Max. 70 W AC Motor N/A
CFFCBR3ACLBL 220-240Vac Max. 70 W AC Motor 18 W LED
CFFCBR3ACLBLK 220-240Vac Max. 70 W AC Motor 18 W LED
CFFCBR3ACLWH 220-240Vac Max. 70 W AC Motor 18 W LED
12
