Fantec MM-CR35US User manual

User manual
1. NOTICES................................................................................3
2. CAUTION: ..............................................................................3
3. PRODUCT PERFORMANCES ..............................................4
3.1 .FEATURE:.........................................................................4
3.2 .SPECIFICATION..................................................................5
4. ACCESSORIES......................................................................6
5. PRODUCT USAGE ................................................................8
5.1 .DEVICE CONNECTION........................................................8
5.2 .USAGE OF MEMORY CARD ...............................................11
5.3 .OPERATION.....................................................................11
5.4 .PICTURE PLAYING:..........................................................12
5.5. MUSIC PLAYING:..............................................................12
5.6. MOVIES PLAYING:............................................................13
5.7. FILE MANAGEMENT..........................................................14

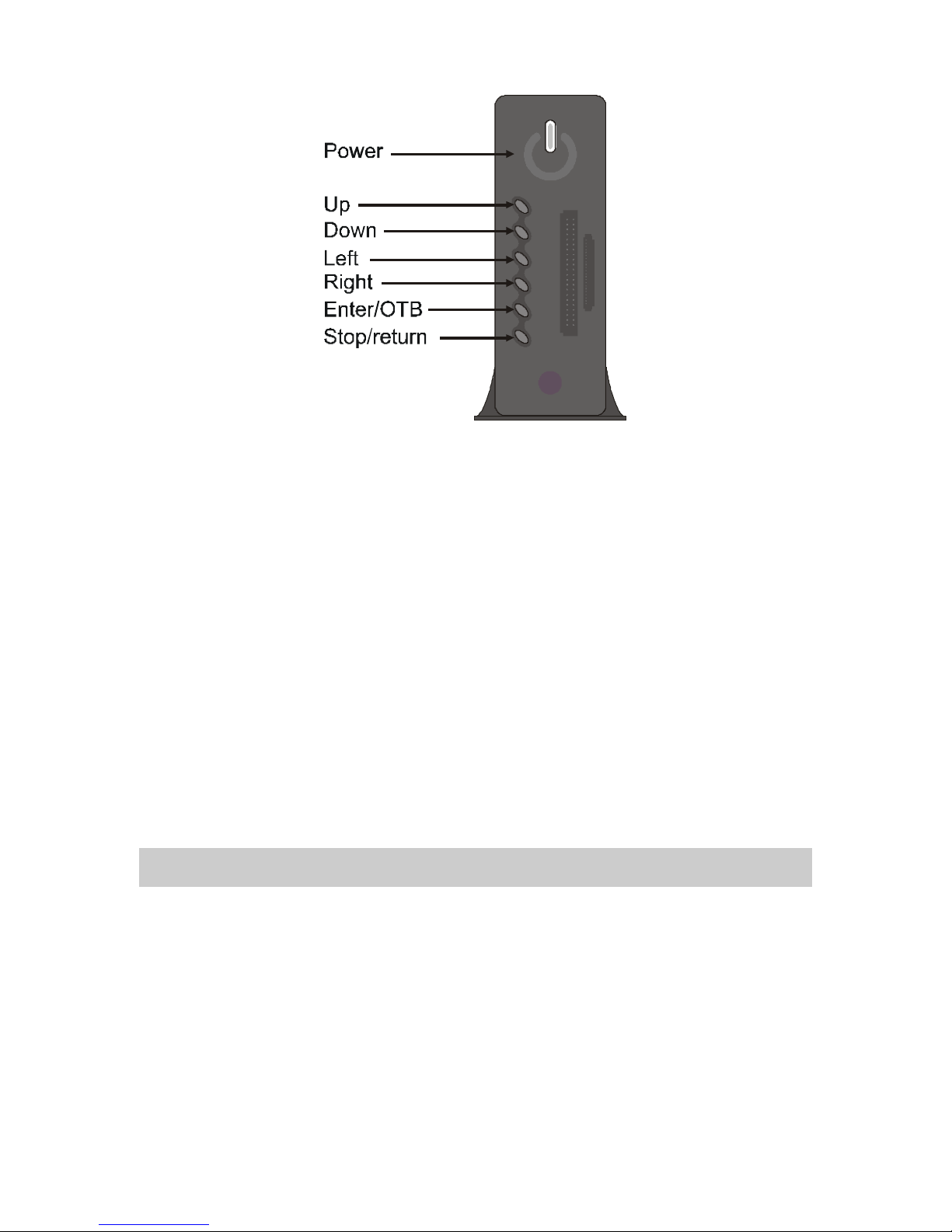

5.8. KEYS ON THE FRONT PANEL.............................................15
5.9. USED AS A STORAGE DEVICE ...........................................16
6. SYSTEM SETUP..................................................................16
7. APPENDIX............................................................................17

-
2
-
Many thanks for choosing this product. For your better usage
of this product, please read this User Manual carefully first
regarding points for attention and product operation and
functions.
National patent has been registered for this product
described here. Any imitation will be regarded as pirate, and
should assume legal liabilityaccordingly.
This product complies with national low-voltage electronic
appliances safety standards, and acquires American FCC
certificate with Standard Part 15 Class B, and European
Union CE certificate with Standard EN55022 Class B,
EN61000-6-3, EN61000-6-1.
The warrantysticker on the product is important proof for
guaranteed repairs against defects. Users need to present
the warranty paper for repair.
Not all the using environment is suitable for this product. The
after-sales service is provided only with respect to quality
issues and in accordance with promised guarantee terms.
The company will not hold liability for any data loss caused by
the product.
The company will not notify users individually any change of
design and specification because of technical or other reasons.

-
3
-
1. Notices
1. In order to shorten the time of searching files, we suggested
you that you should create 3 folders for “music” “picture” and
“Movie” in your HDD or other big capacitydevice of memory
card, then put the corresponding file to each folder.
2. Not all the media files can be played, so please choose the
correct media file.
3. Card reader cannot be connected with PC.
2. Caution:
1. Please do not use this product in environments of
high-temperature or high-humidity.
2. Magnetic fields with special frequencies may affect data
transfer.
3. Please do not move or strike the media player when it is
used.
4. Please use the power adapter we offered. Other Power
adapter not offered by our company may make the product
stop working or damage the product itself.
5. High-temperature will appear when it is used, as this is a
electronical product. This will not affect the product itself, so
no need to worry.

-
4
-
3. Product Performances
3.1 Feature:
1. The media player can work with big capacity of hard drive for
huge storage of movies, music and pictures.
2. The media player support multi popular memory cards.
3. The media player can connect to Home Theater for family
enjoyment.
4. The media player can be use as external storage device.
5. The media player is with multiple output ports for connection
of TV, VGA monitor and amplifier.
6. The media player support DVD navigation function.(Support
DVD IFO file format)
7. The media player support DVD wide-screen video display on
a wide-screen TV, support multi-angle and multi-language
function.
8. The media player can displaylyrics and be output sound
signal at the same time under playing the song files of MP3
and WMA format.(Support music LRC file format)
9. The media player can set different EQ mode when the music
playing.
10.The media player is with fashionable design of streamline
shape and aluminum housing.

-
5
-
3.2 Specification
HD capacity supported: unlimeted
Max HD partition: 4 primary partitions
HD files system:FAT32
Media files supported:
1.Subtitle:SRT,SSA,SMI
2.Audio: MP3 ,WMA,AAC,DTS
3.Video:MPEG1/2/MPEG4.XVID.DIVX.VCD.DVD(*.mpg;*.m
peg;*.dat;*.avi;*.vob;*.ifo)
4. Image: JPEG,MJPEG
Memory cards supported: CF.MMC.SD.SM.XD in FAT32 or
FAT16 format (important notice: the memory card reader
slots on the machine only for media input function, not for
computer card reader function, so when Media player
connected to PC as a USB hard disk, then card reader slots
are out of function).
output Mode: Composite video + L&R audio channels, VGA,
Progressive scan component video .
USB port: High speed USB2.0
Audio out: Analog stereo.
Video out: CVBS.VGA .YPbPr
Image resolution: 720*480(NTSC, YPbPr)/720*576(PAL,
YPbPr)/640*480(VGA)
Power supply: AC110~240V50/60Hz
Power dissipation•20W

-
6
-
4. Accessories
No. Name Quantity
1 FANTEC MM-CR35US 1 pc
2 Power Adapter 1 pc
3 Remote Controller 1 pc
4 AV cable 1 pc
5 Progressive scan component video
cable 1 pc
6 USB cable 1 pc
7 User Manual 1 pc
8 CD 1 pc
9 Batteries 2 pc
Functions of Remote Controller:
Key Function
POWER Turns the unit on/off
MUTE Turns the sound on/off
SETUP Enter setup of menu
ZOOM Zoom in images
MODE When picture SlideShow, it changes the
transition mode between pictures. When
music playing it changes the pre-equalized
modes.
ANGLE Rotation the images. Select to view the
same scene from different angle, if the DVD
recorded with multiple angles.

-
7
-
SUB-T Selection key for MPEG4 Subtitle file. it
activates and deactivates the subtitles while
video playing. Can use the up button or
down button to select a subtitle language
that is available on the DVD.
VIDEO Video output mode switching.
DISPLAY Display information of media file. In DVD
mode, select the button can view the time,
title or chapter on playing.
AUDIO Switching Audio channel
MENU Pressing once it returns to main menu from
Picture, Video or Music section. Pressing
twice returns to the storage unit menu (if
there is more than one).
Up
Down
Left
Right
ENTER Enter.
Stop.
Pause/play.
Previous.
Next.
Skip backward.
Skip forward.
VOL+ Increase the volume.
VOL- Decrease the volume.

-
8
-
REPEAT Change Repeat play mode.
INTERVAL
TIME Change the transition time between pictures when SlideShow.
SLIDE SHOW Plays pictures in continuous mode.
OTB One Touch Backup ---Backup the data of
memory card into the hard driver directly.
One key press needed only.
Music Play music
DVD play Use the DVD key, you can enter into DVD
navigation function
P/N Choice PAL/ NTSC/MULTi-SYSTEM TV
SR Playback DVD with Slow forward mode.
SF Playback DVD with Slow reverse mode.
Preview
On/off Be able to select preview on or preview off on in file mode
5. Product Usage
5.1 Device Connection
Connect the device as shown on the pictures, turn on power
and follow below steps:
1. You want to use AV(CVBS) mode: press INPUT CHOICE key
of the TV, and turn to AV INPUT MODE. If image cannot
appear, press VIDEO key of the Media player remote
controller and wait for a few seconds than press again, until it
turns to CVBS mode, thenmenu will appear on TV.

-
9
-

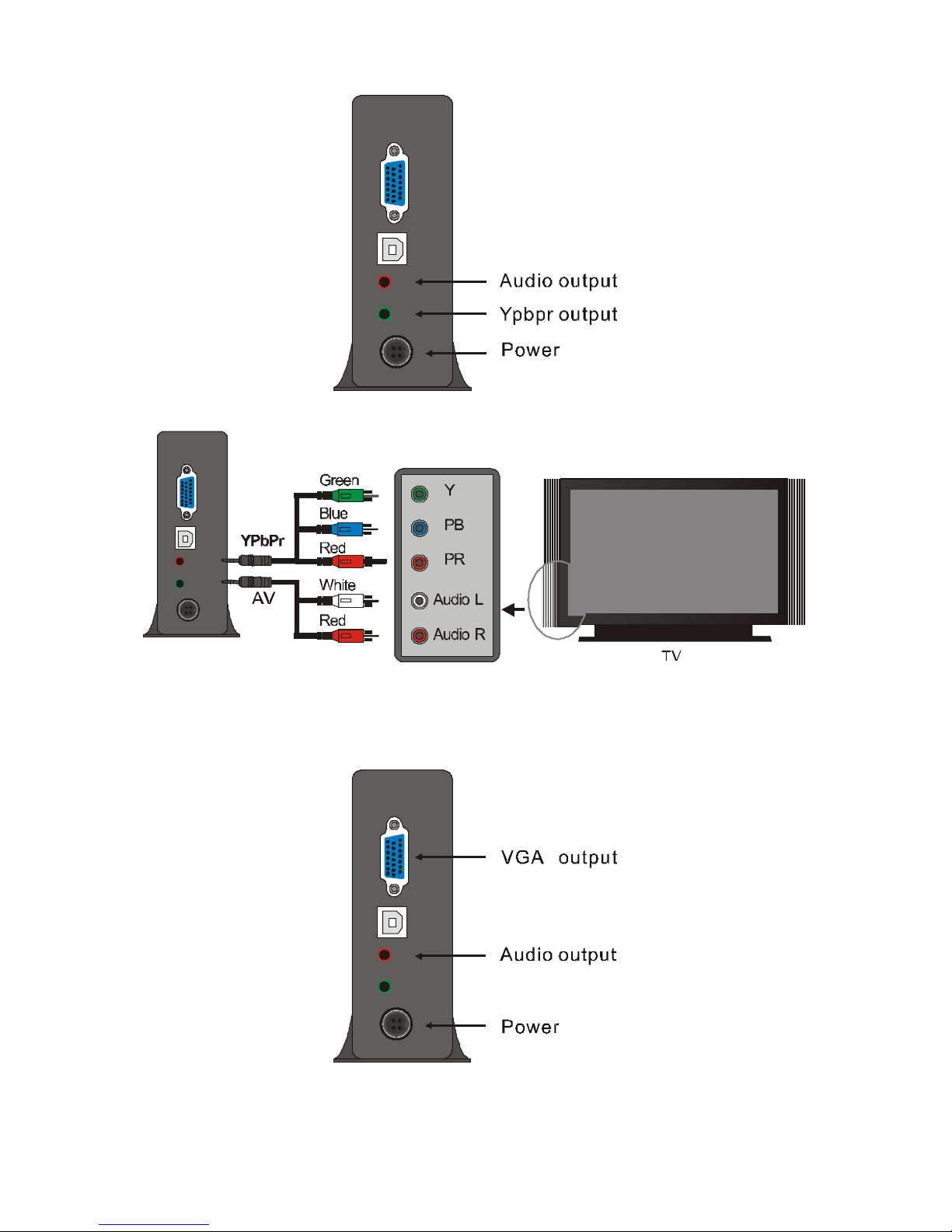

AV OUTPUT MODE
2. You want to use YPbPr output mode: choose YPbPr as input
mode for TV. Press VIDEO key of Media player remote
controller to choose YPbPr OUT mode, and menu will appear
on TV.

-
10
-
(Progressive scan component video)YPbPr OUTPUT MODE
Mode of VGAOutput

-
11
-
3. When connecting with TV and preparing to use VGA out put:
choose the VGA model ,then press the video KEY on remote
controller to switch the VGA Mode, then menu will shown on
TV.
4. When connecting to VGA monitor and preparing to use VGA
output mode, please press the video key to switch the VGA
out mode,then menu will be shown on monitor.
5.2 Usage of Memory card
After plug in the move memory card, a menu listed all of
storage equipment is displayed.
Press KEY, you could choose the storage
equipment. If press the ENTER KEY, you could enter to the
main menu of it.
Note: When insert memory card Media Player should be
in the stoped playback mode!
5.3 Operation
The main menu of storage equipment: when there are two or
more partitionsin Media player inside HD, or use the outside
storage equipment, the start window will appear as follow:

-
12
-
Then you could press the up and down key to chose the
equipment or the partition, and press the enter key to enter
menu as follow.
On the menu, there are four options, PHOTO, MUSIC,
VIDEO, and FILE. Then press the left and right key to choose
which you like. By pressing ENTER, you could enter the
corresponding menu:
5.4 Picture Playing:
Select PHOTO icon on main menu, press the ENTER key
into the picture browse mode, If press the direction key, you
could choose the picture, if you press ENTER key, it will
begin to play normally.
5.5. Music playing:
Select music icon on main menu, and press ENTER Key to
enter music library, Press direction key to select music, and
press ENTER Key to enter music EQ and Begin playing.
The media player can displaysong word and be output sound

-
13
-
signal at the same time under playing the song files of MP3
and WMA format. The song word of LRC will auto display
when the LRC file and song file are in the same folder
and the two files name must be same.
5.6. Movies playing:
Select movie icon on main menu, and press ENTER Key to
enter movie browse mode. Press direction keys to select
movies and ENTER key to play.
MPEG4 Subtitle Operation:
Put Subtitle file and video file in the same folder, in file library,
First press SUB-T key to choose file Subtitle, than choose
video file, press enter keyplaying.
DVD playing:
The DVD file playing mode is almost same as DVD player
operation. If press DVD PLAY button on remote controller,
you can move highlight line to select navigation function, then
the navigation menu will be display on the TV screen.
eg. How to play the sample movie <<car>>?
a. To connect the player with computer by USB cable. Then
you can see the contents in hard driver of the player from
computer.
b. Make a folder in the hard driver of the unit. .example: on E
disk build e:\movie\car folder. Then copy all the files of
<<car>> to the e:\movie\car folder from DVD disc or HD.
c. Then unplug USB cable. Connect AV cable to the TV.

-
14
-
d. enter the file manage .select car folder and press the DVD
PLAY button like DVD operation at your enjoyment.
Note: all contents of DVD must copy to the car folder of
the unit•include the empty folders. Otherwise it will not
playing.

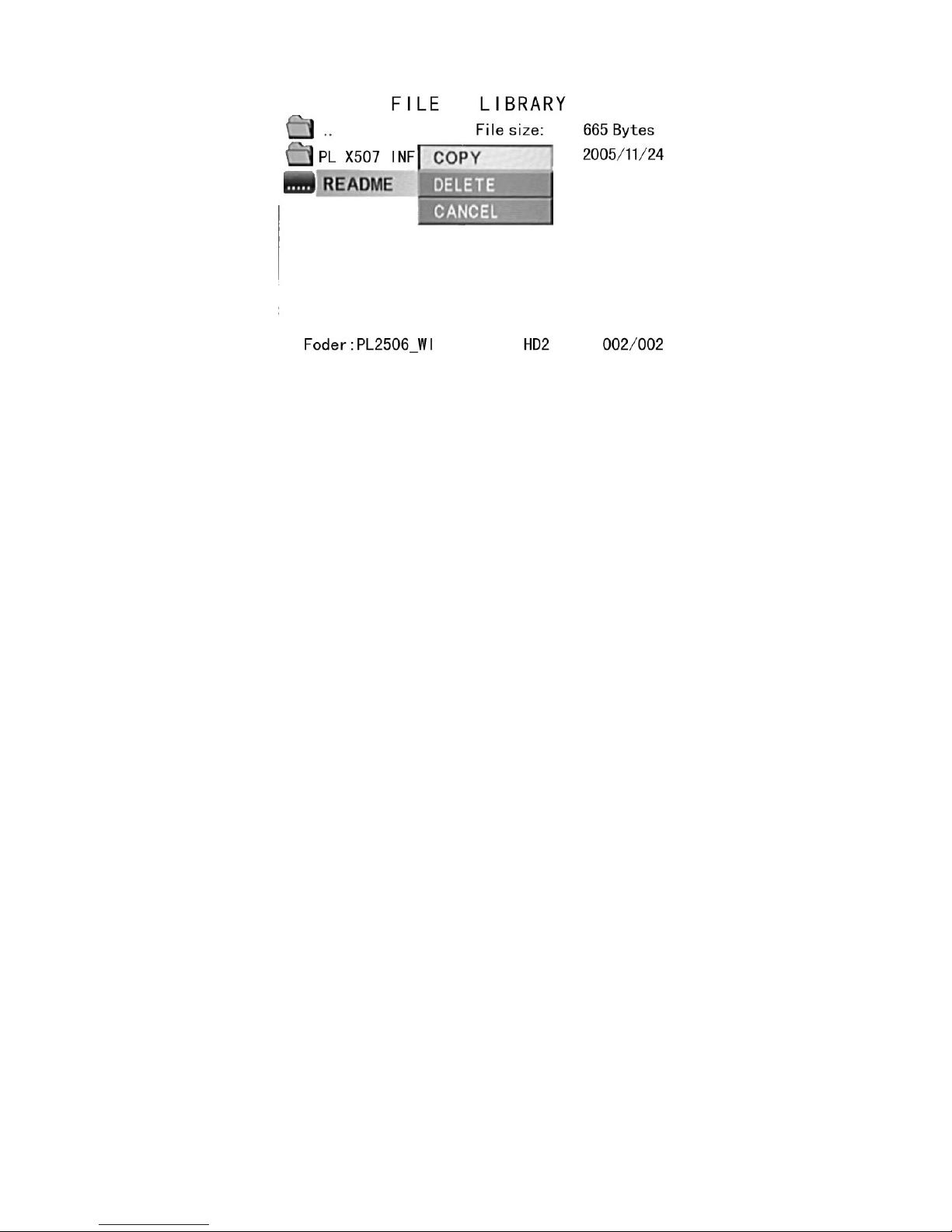

5.7. File management
Choose the icon FILE on main menu, press ENTER to
access File Library.
Pressing direction key can select file, pressing ENTER can
play the selected file.
Selecting the folder icon which locates the top of file
management, can return to main folder through pressing
ENTER key.
Files copy: press RIGHT direction key, and a command
dialog box will appear. Please choose the copy command
and click ENTER KEY, then symbols of memorizer will
appear on the right screen. Press RIGHT direction key and
the choice line will switch to the right screen, select a folder
for backup and press ”ENTER”. Press LEFT direction key
return to left screen and the choice line will switch to the
target file on left screen, press ENTER to copy.

-
15
-
Furthermore, it is an option to have OTB function for memory
cards.
It is available to copy the data of the card reader which
plugged in the slot to the media player, just throughpressing
the ”OTB”key on remote controller or pressing the “ENTER”
on the control panel for several seconds.
Files delete: select the target files and press RIGHT
direction key and ENTER key to enter the command dialog
box. Then choose DELETE to delete the file.
5.8. Keys on the FANTEC MM-CR35US Front Panel
User can press STOP/RETURN key, and wait for several
seconds to return main menu.

-
16
-
5.9. Used as a Storage Device
a. For the first time to use this product to back up or access
data, computers which are under old operationsystem
should be installed driver.
b. For the first usage, power onAlum PLUS and connect it
to computer through USB cable. The installation process
will be initialized on computer.After that the icon of green
arrow will appear right below on the system tray.Now it
can work as a storage device.
6. SYSTEM SETUP
Press SETUP keyto access system setup menu.
System setup options:
1. Music setup ->set up some function and parameter of
playing music
AUTO PLAY: When choose ON, the player will turn on and
auto-play music.

-
17
-
2. Movie setup ->set up some function and parameter for
playing movies
3. Slideshow setup->set up some function and parameter
for playing lantern slide
4. Preferences setup ->set up some function and parameter
of media player.
TV type:
MULTI-SYSTEM After pitch on this option, the output system
will be according to the program source.
NTSC•Taiwan, USA, Japan etc.Ž
PAL•Europe, mainland of China etc.Ž
Video output: Switch output mode
OSD language: Switch the language of Screen display
7. Appendix.
Function description:
production function 3.5”USB hard disk with media
playback function
hard disk 3.5” SATA hard disk
output interface AV output interface, progressive scan
component video output interface;
VGA output interface, power interface
media format sound:MP1.MP2.MP3.AC3
video:MPEG1.2.MPEG4.Divx.Xvid.V
CD.DVD(*.MPG;*.MPEG*.DAT;*.AVI;

-
18
-
*.VOB;*.MP4)
3. image: JPEG,MJPEG
audio output analog stereo
video output 1. composite video output(CVBS),TV
system NTSC/PAL
2.VGA output
3. progressive scan component Video
output
bus interface USB2.0 interface
memory cards CF, MMC, SD, SM, XD
Physics parameter•
outline dimension 205mm • 112mm • 40mm
Product material Aluminum
Product certificate specification•
CE •
FCC •
N791 •
