For your safety.
Read all safety warnings and
all instructions. Failure to fol-
low the warnings and instructions may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future-
reference.
Do not use this power tool before you
have thoroughly read and completely
understood this Instruction Manual, including
the figures, specifications, safety regulations
and the signs indicating DANGER, WARN-
ING and CAUTION.
Only carry out such operations with this
power tool as intended for by FEIN. Only use
application tools and accessories that have
been released by FEIN.
Please also observe the relevant national
industrial safety regulations.
Non-observance of the safety instructions in
the said documentation can lead to an electric
shock, burns and/or severe injuries.
This Instruction Manual should be kept for
later use and enclosed with the power tool,
should it be passed on or sold.
SAVE THESE INSTRUCTIONS.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool
or battery operated (cordless) power tool.
General safety rules.
1) Work area safety
a)Keep work area clean and well lit. Clut-
tered or dark areas invite accidents.
b)Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away
while operating a power tool. Distrac-
tion can cause you to lose control.
2) Electrical safety
a)Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified
plugs and matching outlets will reduce
risk of electric shock.
b)Avoid body contact with earthed or
grounded surfaces such as pipes, radia-
tors, ranges and refrigerators. There is
an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power
tool will increase the risk of electric
shock.
d)Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for out-
door use. Use of a cord suitable for out-
door use reduces the risk of electric
shock.
f) If operating a power tool in a damp loca-
tion is unavoidable, use a residual cur-
rent device (RCD) protected supply. Use
of an RCD reduces the risk of electric
shock.
3) Personal safety
a)Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the influ-
ence of drugs, alcohol or medication. A
moment of inattention while operating
power tools may result in serious per-
sonal injury.
b)Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing pro-
tection used for appropriate conditions
will reduce personal injuries.
WARNING
OBJ_BUCH-0000000122-001.book Page 3 Friday, April 19, 2013 10:39 AM

4en
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or bat-
tery pack, picking up or carrying the
tool. Carrying power tools with your
finger on the switch or energising
power tools that have the switch on
invites accidents.
d)Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotat-
ing part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose cloth-
ing or jewelery. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewelry or long hair can
be caught in moving parts.
g)If devices are provided for the connec-
tion of dust extraction and collection
facilities, ensure these are connected
and properly used. Use of dust collec-
tion can reduce dust-related hazards.
4) Power tool use and care
a)Do not force the power tool. Use the cor-
rect power tool for your application. The
correct power tool will do the job bet-
ter and safer at the rate for which it was
designed.
b)Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be
repaired.
c) Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any adjust-
ments, changing accessories, or storing
power tools. Such preventive safety
measures reduce the risk of starting the
power tool accidentally.
d)Store idle power tools out of the reach of
children and do not allow persons unfa-
miliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands
of untrained users.
e) Maintain power tools. Check for mis-
alignment or binding of moving parts,
breakage of parts and any other condi-
tion that may affect the power tool’s
operation. If damaged, have the power
tool repaired before use. Many accidents
are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to
bind and are easier to control.
g)Use the power tool, accessories and tool
bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those
intended could result in a hazardous sit-
uation.
5) Battery tool use and care
a)Recharge only with the charger speci-
fied by the manufacturer. A charger that
is suitable for one type of battery pack
may create a risk of fire when used with
another battery pack.
b)Use power tools only with specifically
designated battery packs. Use of any
other battery packs may create a risk of
injury and fire.
c) When battery pack is not in use, keep it
away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can
make a connection from one terminal to
another. Shorting the battery terminals
together may cause burns or a fire.
d)Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush
with water. If liquid contacts eyes, addi-
tionally seek medical help. Liquid
ejected from the battery may cause irri-
tation or burns.
6) Service
a)Have your power tool serviced by a qual-
ified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is main-
tained.
OBJ_BUCH-0000000122-001.book Page 4 Friday, April 19, 2013 10:39 AM

5
en
Special safety instructions.
Hold power tool by insulated gripping sur-
faces, when performing an operation where
the fastener may contact hidden wiring. Fas-
teners contacting a “live” wire may make
exposed metal parts of the power tool “live”
and could give the operator an electric shock.
Beware of any concealed electric cables, gas
or water conduits. Check the working area
before commencing work, e.g. with a metal
detector.
Wear personal protective equipment. Depend-
ing on application, use face shield, safety
goggles or safety glasses. Where appropriate,
wear dust mask, hearing protectors, gloves
and workshop apron capable of stopping
small abrasive or workpiece fragments. The
safety glasses must be capable of protecting
against flying particles generated by the vari-
ous operations. Prolonged exposure to high
intensity noise may cause loss of hearing.
Secure the work piece firmly. A work piece
that is gripped tightly in a clamping device or
vice, is more secure than if held by hand.
Hold the power tool firmly. High reaction
torque can briefly occur.
Do not machine any material containing
asbestos. Asbestos is cancerogenic.
Do not rivet or screw any name-plates or
signs onto the power tool. If the insulation is
damaged, protection against an electric shock
will be ineffective. Adhesive labels are recom-
mended.
Do not use accessories which are not specifi-
cally designed and recommended by the
power tool manufacturer. Safe operation is
not ensured merely because an accessory fits
your power tool.
Clean the ventilation openings on the power
tool at regular intervals using non-metal
tools. The blower of the motor draws dust
into the housing. An excessive accumulation
of metallic dust can cause an electrical hazard.
Never look or stare into the light of the power
tool's lamp from a short distance. Never point
the light of the lamp into the eyes of other
persons in close vicinity. The radiation pro-
duced by the lamp can be harmful for the eye.
Do not direct the power tool against yourself,
other persons or animals. Danger of injury
from sharp or hot application tools.
Use and handling of the battery
(battery pack)
To avoid hazardous situations such as burns,
fire, explosion, skin injuries, and other inju-
ries when handling the battery, observe the
following instructions:
Batteries must not be disassembled, opened
or reduced in size. Do not subject batteries to
mechanical impact or shock. Hazardous
vapours and fluid can escape in case of dam-
age and improper use of the battery. The
vapours can irritate the respiratory system.
Liquid ejected from the battery may cause
skin irritations or burns.
When battery fluid from a damaged battery
has come into contact with objects close by,
check the respective components, clean them
or replace them as required.
Keep the battery away from heat and fire. Do
not store the battery in direct sunlight.
Do not remove the battery from its original
packaging until it is going to be used.
Before any work on the machine itself,
remove the battery from the power tool. If the
power tool accidentally starts, there is danger
of injury.
Remove the battery only when the power tool
is switched off.
Keep the battery away from children.
Keep the battery clean and protect it against
moisture and water. Clean contaminated bat-
tery terminals and power tool connections
with a dry, clean cloth.
Use only intact original FEIN batteries that are
intended for your power tool. When working
with and charging incorrect, damaged,
repaired or reconditioned batteries, imita-
tions or other brands, there is danger of fire
and/or explosion.
Follow the safety warnings in the operating
instructions of the battery charger.
OBJ_BUCH-0000000122-001.book Page 5 Friday, April 19, 2013 10:39 AM

6en
Handling hazardous dusts.
When working with power
tools, such as when grinding,
sanding, polishing, sawing or for other work
procedures where material is removed, dusts
develop that are both hazardous to one’s
health and can spontaneously combust or be
explosive.
Contact with or inhaling some dust types can
trigger allergic reactions to the operator or
bystanders and/or lead to respiratory infec-
tions, cancer, birth defects or other reproduc-
tive harm.
Examples of such materials which contain
chemicals that can produce hazardous dusts,
are:
–Asbestos and materials containing asbestos
–Lead-containing coatings, some wood
types such as beech and oak
–Minerals and metal
–Silicate particles from bricks, concrete and
other materials containing stone
–Solvent from solvent-containing paint/var-
nish
–Arsenic, chromium and other wood pre-
servatives;
–Materials for pesticide treatment on boat
and ship hulls
–Stainless steel dust, metal dust and non-
ferrous metal dust
To minimize the unwanted intake of these
materials:
–Use dust extraction matched appropriately
for the developing dust.
–Use personal protective equipment, such
as a P2 filter-class dust protection mask.
–Provide for good ventilation of the work-
place.
The risk from inhaling dusts depends on how
often these materials are worked. Materials
containing asbestos may only be worked by
specialists.
Wood and light-metal dust can
cause spontaneous combus-
tion or explosions.
Hot mixtures of sanding dust and paint/var-
nish remainders or other chemical materials
in the filter bag or the vac filter can self-ignite
under unfavorable conditions, such as spark-
ing from sanding metal, continuous sunlight
or high ambient temperatures. To prevent
this:
–Avoid overheating the material being
sanded and the power tool.
–Empty the dust collector/container in time.
–Observe the material manufacturer’s
working instructions.
–Observe the relevant regulations in your
country for the materials being worked.
Hand/arm vibrations.
While working with this power
tool, hand/arm vibrations
occur. These can lead to health
impairments.
The vibration emission value
during actual use of the power
tool can differ from the declared value
depending on the ways in which the tool is
used.
It is necessary to identify safety
measures to protect the oper-
ator that are based on an estimation of expo-
sure in the actual conditions of use.
The vibration emission level given in this
information sheet has been measured in
accordance with a standardised test given in
EN 60745 and may be used to compare one
tool with another. It may be used for a pre-
liminary assessment of exposure.
The declared vibration emission level repre-
sents the main applications of the tool. How-
ever if the tool is used for different
applications, with different accessories or
poorly maintained, the vibration emission
may differ. This may significantly increase the
exposure level over the total working period.
An estimation of the level of exposure to
vibration should also take into account the
times when the tool is switched off or when
it is running but not actually doing the job.
This may significantly reduce the exposure
WARNING
CAUTION
WARNING
WARNING
WARNING
OBJ_BUCH-0000000122-001.book Page 6 Friday, April 19, 2013 10:39 AM

7
en
level over the total working period.
Identify additional safety measures to protect
the operator from the effects of vibration
such as: maintain the tool and the accessories,
keep the hands warm, organisation of work
patterns.
Emission values for sound and vibration (Two-figure – specifications as per ISO 4871)
Intended use of the power tool:
Hand-held impact wrench for screwing in and
unscrewing screws and nuts in weather-pro-
tected environments without water supply
using the application tools and accessories
recommended by FEIN.
Sound emission ASCD18W2 ASCD18W2C ASCD18W4 ASCD18W4C
A-weighted emission pressure
power level measured at the
workplace LpA (re 20 μPa), in
decibels 86 86 86 86
Measuring uncertainty KpA, in
decibels 3 3 3 3
Measured A-weighted sound
power level LwA (re 1 pW), in
decibels 97 97 97 97
Measuring uncertainty KwA, in
decibels 3 3 3 3
C-weighted peak sound pressure
level measured at the workplace
LpCpeak, in decibels 109 109 109 109
Measuring uncertainty KpCpeak, in
decibels 3 3 3 3
Vibrations
Mean vibrational value for drilling
in metal
–m/s2
–ft/s26
20 6 20 6 20 6 20
Measuring uncertainty K, in
–m/s2
–ft/s21.5
4.9 1.5 4.9 1.5 4.9 1.5 4.9
REMARK: The sum of the measured emission value and respective measuring inaccuracy rep-
resents the upper limit of the values that can occur during measuring.
Wear hearing protection!
Measured values determined in accordance with the corresponding product standard.
OBJ_BUCH-0000000122-001.book Page 7 Friday, April 19, 2013 10:39 AM

8en
Symbols.
Symbol, character Explanation
Do not touch the rotating parts of the power tool.
Make sure to read the enclosed documents such as the Instruction Man-
ual and the General Safety Instructions.
Observe the instructions in the text or graphic opposite!
Before commencing this working step, remove the battery from the
power tool. Otherwise there may be danger of injury caused by unin-
tentional starting of the power tool.
Use eye protection during operation.
Use ear protection during operation.
Use protective gloves during operation.
Do not charge damaged batteries.
Keep the battery away from fire. Protect the battery against heat, e. g.
against continuous intense sunlight.
Observe the notes in the text aside!
This symbol confirms the certification of this product for the USA and
Canada.
Confirms the conformity of the power tool with the directives of the
European Community.
This sign warns of a directly imminent, dangerous situation. A false reac-
tion can cause a severe or fatal injury.
This sign indicates a possible dangerous situation that could cause severe
or fatal injury.
This sign warns of a possible dangerous situation that could cause injury.
Recycling code: identifies recyclable materials
Worn out power tools and other electrotechnical and electrical prod-
ucts should be sorted separately for environmentally-friendly recycling.
Caution: Do not look or stare into the switched-on lamp!
DANGER
WARNING
CAUTION
OBJ_BUCH-0000000122-001.book Page 8 Friday, April 19, 2013 10:39 AM

9
en
Character Unit of measurement, national Explanation
n
0
rpm; /min; min-1; r/min No-load speed (with fully charged battery)
P W Electrical power
°Anglewidth
UV Electric voltage
fHz Frequency
I A Electric current intensity
mkg,lbs Mass
lft, in Length, width, height, depth, diameter or
thread
Ø ft, in Diameter of a round part
m, s, kg, A, mm, V, W, Hz, N,
°C, dB, min, m/s2Basic and derived units of measurement from
the international system of units SI.
OBJ_BUCH-0000000122-001.book Page 9 Friday, April 19, 2013 10:39 AM

10 en
Technical description and specifications.
Before mounting or replacing application tools or accessories, remove the bat-
tery. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.
All accessories described or shown in this instruction manual will not be included with your-
power tool.
WARNING
Gripping surface
Tool holder
Battery
LED indication on battery
Rotational direction switch
Battery-Unlocking button
On/Off switch
Light
Fig. 1
OBJ_BUCH-0000000122-001.book Page 10 Friday, April 19, 2013 10:39 AM

11
en
Type ASCD18W2 ASCD18W2C ASCD18W4 ASCD18W4C
Order number 7 115 01 61 7 115 01 62 7 115 02 61 7 115 02 62
Rated voltage 18 18 18 18
No-load speed 0–2200 /min 0–2200 /min 0–2200 /min 0–2200 /min
Impact rate 0–3200 /min 0–3200 /min 0–3200 /min 0–3200 /min
Torque 250 Nm 250 Nm 158 Nm 158 Nm
Hexagon socket tool
holder ½" ½" ¼" hex ¼" hex
Weight according to
EPTA-Procedure 01/2003 3.3 lbs (1.5 kg) 3.96 lbs (1.8 kg) 3.3 lbs (1.5 kg) 3.96 lbs (1.8 kg)
OBJ_BUCH-0000000122-001.book Page 11 Friday, April 19, 2013 10:39 AM

12 en
Assembly instructions.
Before mounting or replacing application tools or accessories, remove the bat-
tery. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.
Removing and charging the battery
(figure 2).
Prior to the first charging procedure,
read the operating instructions of the
battery charger.
Charge the battery completely before
putting into operation for the first time.
Release the battery by pressing the battery
unlocking button and pull the battery out of
the handle. Do not exert any force when
doing this.
Connect the battery charger to a socket out-
let, slide the battery onto the battery charger
and charge the battery. After the charging
process is over, insert the battery into the
power tool and pull the plug of the battery
charger out of the socket outlet.
A new battery does not reach its full capacity
until after several charging and discharging
procedures.
WARNING
Battery
Battery-Unlocking button
Fig. 2
OBJ_BUCH-0000000122-001.book Page 12 Friday, April 19, 2013 10:39 AM

13
en
Changing the tool.
Before mounting or replacing application tools or accessories, remove the bat-
tery. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.

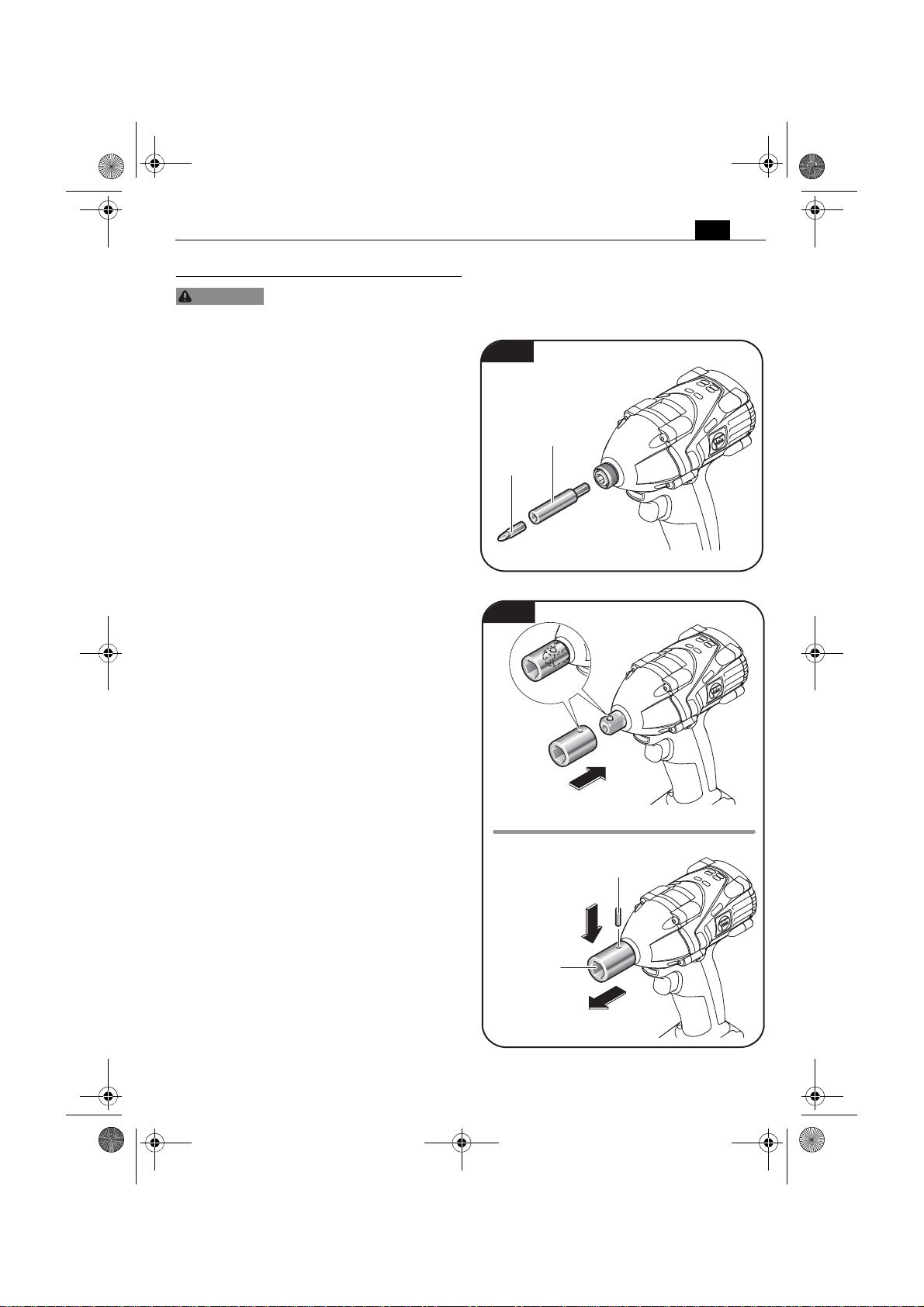

Mounting application tools
ASCD 18 W4 (figure 3).
Push the sleeve of the tool holder toward the
front.
Insert the application tool and release the
sleeve.
Mounting application tools
ASCD 18 W2 (figure 4).
Mount the socket to the square drive.
To remove the socket, press down the lock
on the square drive using a small pin.
WARNING
Fig. 3
Bit
Bitholder
Pin
Socket
Fig. 4
OBJ_BUCH-0000000122-001.book Page 13 Friday, April 19, 2013 10:39 AM

14 en
Working instructions.
Before mounting or replacing application tools or accessories, remove the bat-
tery. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.
Do not use accessories not specifically intended and recommended for this power tool by FEIN.
The use of non-original FEIN accessories can lead to overheating of the power tool and destroy
it.
For each job, use only the FEIN application tool released and intended for the
respective application.
Apply the power tool to the nut or screw
only when switched off, as a rotating applica-
tion tool could slip off.
The torque depends on the impact duration.
The maximum torque is reached after an
impact duration of 6–10 seconds. After this
period, further torque increase is only mar-
ginal. An unnecessary long impact period also
increases the wear of the power tool.
Determine the impact duration for each
required tightening torque. Check the actually
reached tightening torque with a torque
wrench.
Selecting the rotation direction
(figure 5).
To avoid accidental starting, e. g., during
transport, set the rotation selector switch to
the centre position.
Set the Rotation selector switch to right or
left rotation as required.
Adjust the rotation selector switch only
when the machine is at a complete stop.
WARNING
CAUTION
Fig. 5
Rotational direction switch
OBJ_BUCH-0000000122-001.book Page 14 Friday, April 19, 2013 10:39 AM

15
en

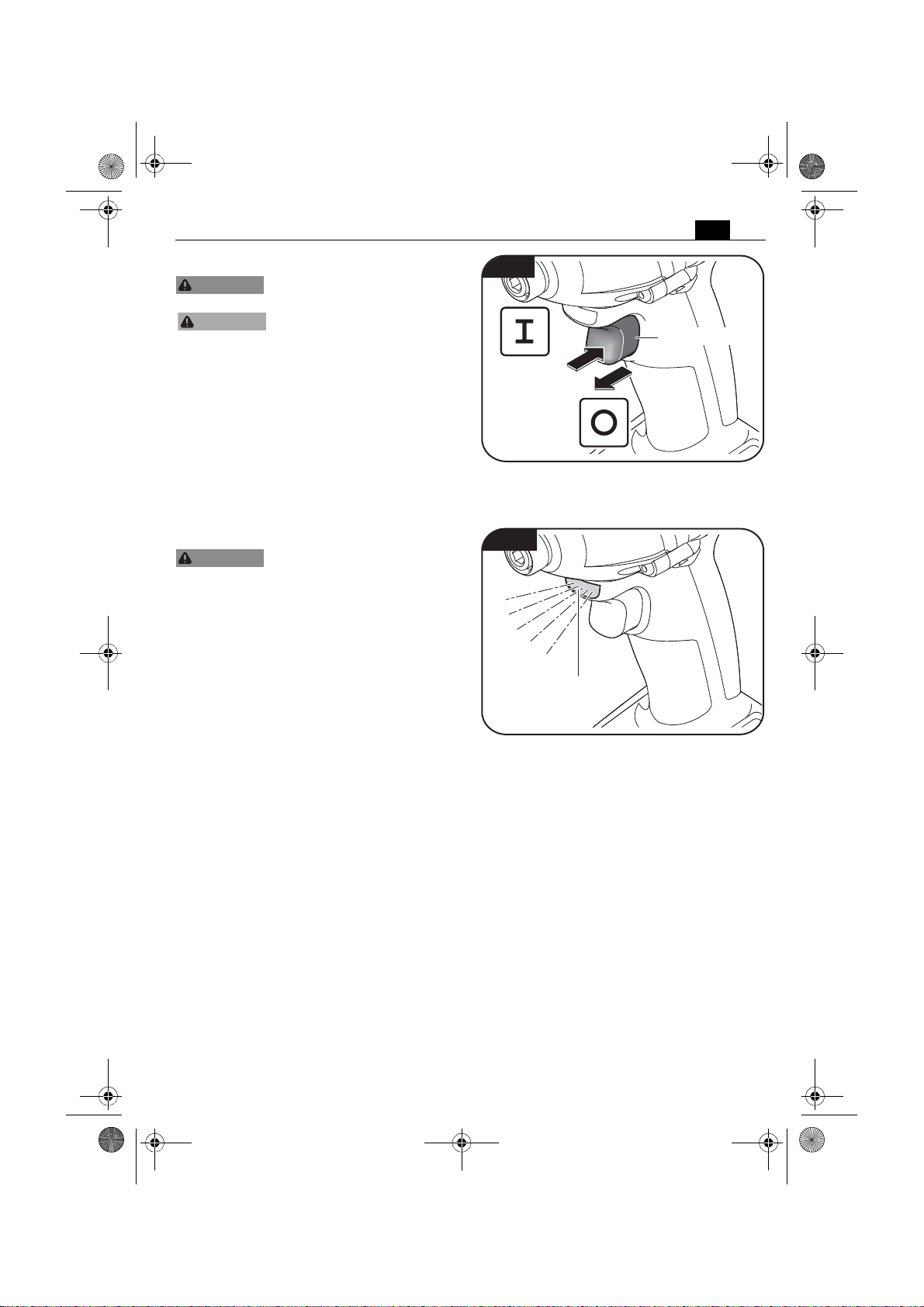

Switching on and off (figure 6).
Check the power supply cable
and the plug for damage.
Always hold the power tool
firmly. Otherwise, you could
lose control over the power
tool.
In case of overload, the machine switches off.
Switching on:
Press the On/Off switch. The speed increases
the more you press the On/Off switch.
Switching off:
To switch off the power tool, release the
On/Off switch.
Switching on and off (figure 7).
Never look or stare into the
light of the power tool's lamp
from a short distance. Never point the light of
the lamp into the eyes of other persons in
close vicinity. The radiation produced by the
lamp can be harmful for the eye.
When pressing the On/Off switch completely
in, the light and the power tool are on.
When pressing the On/Off switch completely
in, the light and the power tool are on.
Handling the battery.
Operate and charge the battery only within
the battery operating-temperature range of
0°C – 45°C (32°F –
113°F). At the beginning of the charging pro-
cedure, the battery temperature must be
within the battery operating-temperature
range.
WARNING
CAUTION
Fig. 6
On/Off switch
WARNING
Fig. 7
Light
OBJ_BUCH-0000000122-001.book Page 15 Friday, April 19, 2013 10:39 AM

16 en
Battery charge-control indicator
(figure 8).
Press the button to activate the LED indica-
tion.
The real percentage of the battery charge
condition is only indicated when the power
tool motor is stopped.
The electronics automatically switch off the
motor prior to the battery being deep dis-
charged.
LED
indicator Meaning Activity
1–4green
LED Percent- age of
charge
condition
Operation
Continu-
ous red
light
Battery is
almost
empty
Charge battery
Redflashing
light Battery is not ready
for opera-
tion
Bring the battery
into the battery
operating-tem-
perature range,
then charge
Fig. 8 LED indication on battery
100 %
75 %
50 %
25 %
0 %
OBJ_BUCH-0000000122-001.book Page 16 Friday, April 19, 2013 10:39 AM

17
en
Repair and customer service.
Exchangeable parts
If required, you can change the following
parts yourself:
Application tools, battery pack
Service.
Have maintenance carried out
only through qualified person-
nel. Incorrectly mounted leads and compo-
nents can cause serious injuries. Have the
required service carried out only through a
FEIN customer service agent.
The current spare parts list for this power
tool can be found in the Internet at
www.fein.com.
Cleaning.
Remove the battery prior to
any maintenance and cleaning.
This preventive safety measure rules out the
danger of injuries through accidental starting
of the power tool.
When using in environments
with conductive dust in the air,
such as when working metals, this dust can
settle in the interior of the power tool. There-
fore, regularly blow out the interior of the
power tool from outside via the ventilation
openings with dry, oil-free compressed air;
always wear eye protection when doing this.
Do not attempt to clean
clogged or dirty ventilation
openings of the power tool with pointed
metal objects; use nonmetal tools or objects
if necessary.
Do not use cleaning agents
and solvents that can cause
damage to plastic parts. These include: Gas-
oline, carbon-tetrachloride, chloric solvents,
ammonia and domestic cleaning agents that
contain ammonia.
Warranty and liability.
The warranty for the product is valid in accor-
dance with the legal regulations in the country
where it is marketed. In addition, FEIN also
provides a guarantee in accordance with the
FEIN manufacturer’s warranty declaration.
All accessories described or shown in this instruction manual will not be included with your-
power tool.
Environmental protection, dis-
posal.
Packaging, worn out power tools and acces-
sories should be sorted for environmental-
friendly recycling.
For further information, please contact your
specialist shop.
WARNING
WARNING
WARNING
CAUTION
CAUTION
OBJ_BUCH-0000000122-001.book Page 17 Friday, April 19, 2013 10:39 AM

18 en
Provided accessories (figure 9).
Fig. 9
Battery charger Battery
Battery
OBJ_BUCH-0000000122-001.book Page 18 Friday, April 19, 2013 10:39 AM

19
fr
fr
Pour votre sécurité.
Lisez tous les avertisse-
ments de sécurité et
toutes les instructions. Ne pas suivre les aver-
tissements et instructions peut donner lieu à
une électrocution, un incendie et/ou une
blessure sérieuse.
Conservez tous les avertissements et toutes
les instructions pour pouvoir vous y reporter
ultérieurement.
Ne pas utiliser cet outil électrique avant
d’avoir soigneusement lu et parfaitement
compris cette notice d’utilisation y compris les
figures, les spécifications, les consignes de sécu-
rité ainsi que les indications marquées par DAN-
GER, AVERTISSEMENT et ATTENTION.
N’utiliser cet outil électrique que pour les tra-
vaux pour lesquels il a été conçu par FEIN.
N’utiliser que des outils de travail et accessoi-
res autorisés par FEIN.
De même, respectez les dispositions concer-
nant la prévention des accidents du travail en
vigueur dans le pays en question.
Le non-respect des instructions de sécurité se
trouvant dans la documentation mentionnée
peut entraîner un choc électrique, un incendie
et/ou de graves blessures.
Bien garder cette notice d’utilisation en vue
d’une utilisation ultérieure ; elle doit être
jointe à l’appareil en cas de transmission ou de
vente à une tierce personne.
GARDER SOIGNEUSEMENT CES INSTRUC-
TIONS DE SECURITE.
Le terme « outil électrique » dans les consi-
gnes de sécurité fait référence à votre outil
électrique alimenté par le secteur (avec cor-
don d’alimentation) ou votre outil fonction-
nant sur batterie (sans cordon
d’alimentation).
Instructions générales de sécurité.
1) Zone de travail
a)Conserver la zone de travail propre et
bien éclairée. Les zones en désordre ou
sombres sont propices aux accidents.
b)Ne pas faire fonctionner les outils élec-
trique en atmosphère explosive, par
exemple en présence de liquides inflam-
mables, de gaz ou de poussières. Les
outils électroportatifs produisent des
étincelles qui peuvent enflammer les
poussières ou les fumées.
c) Maintenir les enfants et les personnes
présentes à l’écart pendant l’utilisation
de l’outil. Les distractions peuvent vous
faire perdre le contrôle de l’outil.
2) Sécurité électrique
a)Il faut que les fiches de l’outil électrique
soient adaptées au socle. Ne jamais
modifier la fiche de quelque façon que
ce soit. Ne pas utiliser d’adaptateurs
avec des outils à branchement de terre.
Des fiches non modifiées et des socles
adaptés réduiront le risque de choc
électrique.
b)Eviter tout contact du corps avec des
surfaces reliées à la terre telles que les
tuyaux, les radiateurs, les cuisinières et
les réfrigérateurs. Il existe un risque
accru de choc électrique si votre corps
est relié à la terre.
c) Ne pas exposer les outils à la pluie ou à
des conditions humides. La pénétration
d’eau à l’intérieur d’un outil augmentera
le risque de choc électrique.
d)Ne pas maltraiter le cordon. Ne jamais
utiliser le cordon pour porter, tirer ou
débrancher l’outil. Maintenir le cordon à
l’écart de la chaleur, du lubrifiant, des
arêtes ou des parties en mouvement.
Des cordons endommagés ou emmêlés
augmentent le risque de choc électrique.
e) Lorsqu’on utilise un outil à l’extérieur,
utiliser un prolongateur adapté à l’utili-
sation extérieure. L’utilisation d’un cor-
don adapté à l’utilisation extérieure
réduit le risque de choc électrique.
f) Si l’usage d’un outil dans un emplace-
ment humide est inévitable, utilisez une
alimentation protégée par un dispositif
à courant différentiel résiduel (RCD).
L’usage d’un RCD réduit le risque de
choc électrique.
AVERTISSEMENT
OBJ_BUCH-0000000122-001.book Page 19 Friday, April 19, 2013 10:39 AM

20 fr
3) Sécurité des personnes
a)Rester vigilant, regarder ce que vous
êtes en train de faire. Faire preuve de
bon sens dans votre utilisation de l’outil.
Ne pas utiliser un outil lorsque vous êtes
fatigué ou sous l’emprise de drogues,
d’alcool ou de médicaments. Un
moment d’inattention en cours d’utilisa-
tion d’un outil peut entraîner des bles-
sures graves des personnes.
b)Utiliser un équipement de sécurité. Tou-
jours porter une protection pour les
yeux. Les équipements de sécurité tels
que les masques contre les poussières,
les chaussures de sécurité antidérapan-
tes, les casques ou les protections
acoustiques utilisés pour les conditions
appropriées réduiront les blessures de
personnes.
c) Eviter tout démarrage intempestif.
S’assurer que l’interrupteur est en posi-
tion arrêt avant de retirer la fiche de la
prise de courant. Porter les outils en
ayant le doigt sur l’interrupteur ou bran-
cher des outils dont l’interrupteur est en
position marche est source d’accidents.
d)Retirer toute clé de réglage avant de
mettre l’outil en marche. Une clé laissée
fixée sur une partie tournante de l’outil
peut donner lieu à des blessures de per-
sonnes.
e) Ne pas se précipiter. Garder une posi-
tion et un équilibre adaptés à tout
moment. Cela permet un meilleur
contrôle de l’outil dans des situations
inattendues.
f) S’habiller de manière adaptée. Ne pas
porter de vêtements amples ou de
bijoux. Garder les cheveux, les vête-
ments et les gants à distance des par-
ties en mouvement. Des vêtements
amples, des bijoux ou les cheveux longs
peuvent être pris dans des parties en
mouvement.
g)Si des dispositifs sont fournis pour le
raccordement d’équipements pour
l’extraction et la récupération des pous-
sières, s’assurer qu’ils sont connectés
et correctement utilisés. Utiliser des
collecteurs de poussière peut réduire
les risques dus aux poussières.
4) Utilisation et entretien de l’outil
a)Ne pas forcer l’outil. Utiliser l’outil
adapté à votre application. L’outil adap-
té réalisera mieux le travail et de maniè-
re plus sûre au régime pour lequel il a
été construit.
b)Ne pas utiliser l’outil si l’interrupteur ne
permet pas de passer de l’état de mar-
che à arrêt et vice versa. Tout outil qui
ne peut pas être commandé par l’inter-
rupteur est dangereux et il faut le répa-
rer.
c) Débrancher la fiche de la source d’ali-
mentation en courant et/ou le bloc de
batteries de l’outil avant tout réglage,
changement d’accessoires ou avant de
ranger l’outil. De telles mesures de
sécurité préventives réduisent le risque
de démarrage accidentel de l’outil.
d)Conserver les outils à l’arrêt hors de la
portée des enfants. Ne pas permettre à
des personnes ne connaissant pas
l’outil ou les présentes instructions de le
faire fonctionner. Les outils sont dange-
reux entre les mains d’utilisateurs novi-
ces.
e) Observer la maintenance de l’outil. Véri-
fier qu’il n’y a pas de mauvais aligne-
ment ou de blocage des parties mobiles,
des pièces cassées ou toute autre
condition pouvant affecter le fonction-
nement de l’outil. En cas de dommages,
faire réparer l’outil avant de l’utiliser.
De nombreux accidents sont dus à des
outils mal entretenus.
f) Garder affûtés et propres les outils per-
mettant de couper. Des outils destinés à
couper correctement entretenus avec
des pièces coupantes tranchantes sont
moins susceptibles de bloquer et sont
plus faciles à contrôler.
g)Utiliser l’outil, les accessoires et les
lames etc., conformément à ces instruc-
tions et aux prescriptions en vigueur
pour ce type d’appareil. Tenir compte
également des conditions de travail et
du travail à réaliser. L’utilisation de
l’outil pour des opérations différentes
de celles prévues pourrait donner lieu à
des situations dangereuses.
OBJ_BUCH-0000000122-001.book Page 20 Friday, April 19, 2013 10:39 AM
