For your safety.
Read all safety warnings,
instructions, illustrations
and specifications provided with this power
tool.Failure to follow all instructions listed
below may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future
reference.
Do not use this power tool before you
have thoroughly read and completely
understood this Instruction Manual, includ-
ing the figures, specifications, safety regula-
tions and the signs indicating DANGER,
WARNING and CAUTION.
Only carry out such operations with this
power tool as intended for by FEIN. Only
use application tools and accessories that
have been released by FEIN.
Please also observe the relevant national
industrial safety regulations.
Non-observance of the safety instructions in
the said documentation can lead to an elec-
tric shock, burns and/or severe injuries.
This Instruction Manual should be kept for
later use and enclosed with the power tool,
should it be passed on or sold.
SAVE THESE INSTRUCTIONS.
The term “power tool” in the warnings
refers to your mains-operated (corded)
power tool or battery operated (cordless)
power tool.
General Power Tool Safety
Warnings.
1) Work area safety
a)Keep work area clean and well lit.
Cluttered or dark areas invite acci-
dents.
b)Do not operate power tools in explo-
sive atmospheres, such as in the pres-
ence of flammable liquids, gases or
dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away
while operating a power tool. Distrac-
tions can cause you to lose control.
2) Electrical safety
a)Power tool plugs must match the out-
let. Never modify the plug in any way.
Do not use any adapter plugs with
earthed (grounded) power tools.
Unmodified plugs and matching out-
lets will reduce risk of electric shock.
b)Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric
shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or
wet conditions. Water entering a
power tool will increase the risk of
electric shock.
d)Do not abuse the cord. Never use the
cord for carrying, pulling or unplug-
ging the power tool. Keep cord away
from heat, oil, sharp edges or moving
parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for out-
door use. Use of a cord suitable for
outdoor use reduces the risk of elec-
tric shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a)Stay alert, watch what you are doing
and use common sense when operat-
ing a power tool. Do not use a power
tool while you are tired or under the
influence of drugs, alcohol or medica-
tion. A moment of inattention while
operating power tools may result in
serious personal injury.
WARNING

4en
b)Use personal protective equipment.
Always wear eye protection. Protec-
tive equipment such as a dust mask,
non-skid safety shoes, hard hat or
hearing protection used for appropri-
ate conditions will reduce personal
injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying
the tool. Carrying power tools with
your finger on the switch or energising
power tools that have the switch on
invites accidents.
d)Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a
rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair
and clothing away from moving parts.
Loose clothes, jewellery or long hair
can be caught in moving parts.
g)If devices are provided for the connec-
tion of dust extraction and collection
facilities, ensure these are connected
and properly used. Use of dust collec-
tion can reduce dust-related hazards.
h)Do not let familiarity gained from fre-
quent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a sec-
ond.
4) Power tool use and care
a)Do not force the power tool. Use the
correct power tool for your applica-
tion. The correct power tool will do
the job better and safer at the rate for
which it was designed.
b)Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be
repaired.
c) Disconnect the plug from the power
source and/or remove the battery
pack, if detachable, from the power
tool before making any adjustments,
changing accessories, or storing
power tools. Such preventive safety
measures reduce the risk of starting
the power tool accidentally.
d)Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and
any other condition that may affect the
power tool’s operation. If damaged,
have the power tool repaired before
use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to
bind and are easier to control.
g)Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those
intended could result in a hazardous
situation.
h)Keep handles and grasping surfaces
dry, clean and free from oil and
grease. Slippery handles and grasping
surfaces do not allow for safe handling
and control of the tool in unexpected
situations.
5) Battery tool use and care
a)Recharge only with the charger speci-
fied by the manufacturer. A charger
that is suitable for one type of battery
pack may create a risk of fire when
used with another battery pack.

5
en
b)Use power tools only with specifically
designated battery packs. Use of any
other battery packs may create a risk
of injury and fire.
c) When battery pack is not in use, keep
it away from other metal objects, like
paper clips, coins, keys, nails, screws
or other small metal objects, that can
make a connection from one terminal
to another. Shorting the battery termi-
nals together may cause burns or a fire.
d)Under abusive conditions, liquid may
be ejected from the battery; avoid con-
tact. If contact accidentally occurs,
flush with water. If liquid contacts
eyes, additionally seek medical help.
Liquid ejected from the battery may
cause irritation or burns.
e) Do not use a battery pack or tool that
is damaged or modified. Damaged or
modified batteries may exhibit unpre-
dictable behaviour resulting in fire,
explosion or risk of injury.
f) Do not expose a battery pack or tool to
fire or excessive temperature. Expo-
sure to fire or temperature above
130 °C may cause explosion.
g)Follow all charging instructions and do
not charge the battery pack or tool
outside the temperature range speci-
fied in the instructions. Charging
improperly or at temperatures outside
the specified range may damage the
battery and increase the risk of fire.
6) Service
a)Have your power tool serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power
tool is maintained.
b)Never service damaged battery packs.
Service of battery packs should only
be performed by the manufacturer or
authorized service providers.
Special safety instructions.
Hold the power tool by the insulated gripping
surface when performing operations where
the application tool could contact hidden
wires. Contact with a “live” wire will also
make exposed metal parts of the power tool
“live” and shock the operator.
Use clamps or another practical method to
secure and support the work piece on a sta-
ble surface. When holding the work piece
only by hand or against your body, it
remains in an unstable position, which can
lead to loss of control.
Do not use accessories which are not specif-
ically designed and recommended by the
power tool manufacturer. Safe operation is
not ensured merely because an accessory
fits your power tool.
Grasp/hold the power tool in such a safe
manner that your body never comes in con-
tact with the application tool, particularly
when working with application tools point-
ing toward the gripping area, such as with
saw blades or cutting tools. Touching sharp
cutting edges or edges can lead to injury.
Wear personal protective equipment.
Depending on application, use a face shield,
safety goggles or safety glasses. As appro-
priate, wear dust mask, hearing protectors,
gloves and workshop apron capable of stop-
ping small abrasive or work piece frag-
ments. The eye protection must be capable
of stopping flying debris generated by vari-
ous operations. The dust mask or respirator
must be capable of filtrating particles gener-
ated by your operation. Prolonged expo-
sure to high intensity noise may cause
hearing loss.
Do not direct the power tool against your-
self, other persons or animals. Danger of
injury from sharp or hot application tools.
Do not rivet or screw any name-plates or
signs onto the power tool. If the insulation is
damaged, protection against an electric
shock will be ineffective.

6en
Clean the ventilation openings on the power
tool at regular intervals using non-metal
tools. The blower of the motor draws dust
into the housing. An excessive accumulation
of metallic dust can cause an electrical haz-
ard.
After working gypsum-containing materials:
Blow out the ventilation openings of the
power tool and the switch element with dry
and oil-free compressed air. Otherwise,
gypsum-containing dust can settle in the
power tool housing and switch element,
which can harden in connection with humid-
ity. This can impair the switching mecha-
nism.
Use and handling of the battery
(battery pack)
These safety warnings apply only for 18V
FEIN AMPShare lithium-ion batteries.
Use the battery only in AMPShare partner
products. 18V batteries marked with AMP-
Share are fully compatible with the follow-
ing products:
–All products of the FEIN-18V-AMPShare
system
–All 18V products from AMPShare part-
ners.
When working with and charging incorrect,
damaged, repaired or reconditioned batter-
ies, imitations or other brands, there is dan-
ger of fire and/or explosion.
Observe the battery recommendations in the
operating instructions for your product.
Only in this way can the battery and the
product be operated safely, and the batteries
are protected from dangerous overload.
Only charge the batteries with chargers rec-
ommended by FEIN or one of the AMPShare
partners. A charger that is suitable one type
of battery pack may create a risk of fire
when used with another battery pack.
The battery is supplied partially charged. To
ensure full battery capacity, completely
charge the battery in the battery charger
before using for the first time.
Store batteries out of the reach of children.
Batteries must not be disassembled, opened
or reduced in size. Do not subject batteries
to mechanical impact or shock. Hazardous
vapors and fluid can escape in case of dam-
age and improper use of the battery. The
vapors can irritate the respiratory system.
Liquid ejected from the battery may cause
skin irritations or burns.
In case of skin contact with battery fluid,
rinse immediately with plenty of water. In
case of eye contact with battery fluid, wash
out the eye with clean water and immedi-
ately seek a doctor for treatment!
When the battery fluid has come into con-
tact with objects close by, check the respec-
tive components. Avoid skin contact by
wearing protective gloves. Clean the parts
with dry household paper or replace the
parts if necessary. Escaping vapors can irri-
tate the respiratory system. Liquid ejected
from the battery may cause skin irritations
or burns.
Do not short-circuit the battery. Keep the
battery not being used away from paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a con-
nection from one terminal to another. Short-
ing the battery terminals together may cause
burns or a fire.
The battery can be damaged by sharp
objects such as nails or screwdrivers or by
external force. An internal short-circuit may
occur and the battery can burn, smoke,
explode or overheat.
Never maintain damaged batteries. Any
maintenance of batteries should be per-
formed only by the manufacturer or by
authorised after-sales service centers.
Protect the battery against heat, e.g.,
against continuous intense sunlight,
fire, debris, water, and moisture. Dan-
ger of explosion and short-circuiting.
Operate and store the battery only at ambi-
ent temperatures between -20 °C and
+50 °C. As an example, do not leave the bat-
tery in a vehicle in summer. At temperatures
< 0 °C, machine-specific performance
restrictions are possible.
max.50°C

7
en
Charge the battery only at ambient temper-
atures between 0 °C and +35 °C. Charge the
battery via USB connection only at ambient
temperatures between +10 °C and +35 °C.
Charging the battery outside the tempera-
ture range may damage the battery or
increase the risk of fire.
Handle discharged batteries with care. Bat-
teries are a source of danger, as they can
cause a very high short-circuit current. Even
when Li-ion batteries appear to be in a dis-
charged state, they never fully discharge.
Do not immerse the battery in liquids, such
as (salt) water or beverages. Contact with
liquids can damage the battery. This may
result in heat build-up, smoke generation,
ignition or explosion of the battery. Do not
continue to use the battery and contact an
after-sales service authorized by FEIN.
Do not use a damaged battery. The use of a
battery pack must be stopped immediately
as soon as abnormal properties, such as
odor development, heat, discoloration or
deformation occur. Continued operation
can cause the battery to generate heat and
smoke, ignite or explode.
Do not open, crush, overheat or set fire to
the battery. Non-observance of this warning
may result in burns and fire. Follow the
manufacturer's instructions.
Extinguish burning Li-ion batteries with
water, sand or a fire blanket.
Avoid physical blows/impact. Impact and
penetration of objects can damage batter-
ies. This may result in leakage, heat build-up,
smoke generation, ignition or explosion of
the battery.
Never charge the battery unattended over-
night. Fire and explosion hazards can result
in case of non-observance.
Do not remove the battery from its original
packaging until it is going to be used.
Remove the battery only when the power
tool is switched off.
Before any work on the machine itself,
remove the battery from the power tool. If
the power tool accidentally starts, there is
danger of injury.
Protect the battery against moisture and
water. Clean contaminated battery terminals
and power tool connections with a dry,
clean cloth.
Remove the battery when transporting and
storing the power tool.
Observe the safety instructions in the manu-
als of the chargers from FEIN or the AMP-
Share partners.
Handling hazardous dusts.
When working with power
tools, such as when grind-
ing, sanding, polishing, sawing or for other
work procedures where material is
removed, dusts develop that are both haz-
ardous to one’s health and can spontane-
ously combust or be explosive.
Contact with or inhaling some dust types
can trigger allergic reactions to the operator
or bystanders and/or lead to respiratory
infections, cancer, birth defects or other
reproductive harm.
Examples of such materials which contain
chemicals that can produce hazardous dusts,
are:
–Asbestos and materials containing asbes-
tos;
–Lead-containing coatings, some wood
types such as beech and oak;
–Minerals and metal;
–Silicate particles from bricks, concrete
and other materials containing stone;
–Solvent from solvent-containing paint/
varnish;
–Arsenic, chromium and other wood pre-
servatives;
–Materials for pesticide treatment on boat
and ship hulls;
–Stainless steel dust, metal dust and non-
ferrous metal dust;
WARNING

8en
To minimize the unwanted intake of these
materials:
–Use dust extraction matched appropri-
ately for the developing dust.
–Use personal protective equipment, such
as a P2 filter-class dust protection mask.
–Provide for good ventilation of the work-
place.
The risk from inhaling dusts depends on
how often these materials are worked.
Materials containing asbestos may only be
worked on by specialists.
Wood and light-metal dust
can cause spontaneous com-
bustion or explosions.
Hot mixtures of sanding dust and paint/var-
nish remainders or other chemical materials
in the filter bag or the vac filter can self-ignite
under unfavorable conditions, such as spark-
ing from sanding metal, continuous sunlight
or high ambient temperatures. To prevent
this:
–Avoid overheating the material being
sanded and the power tool.
–Empty the dust collector/container in
time.
–Observe the material manufacturer’s
working instructions.
–Observe the relevant regulations in your
country for the materials being worked.
Hand/arm vibrations.
While working with this
power tool, hand/arm vibra-
tions occur. These can lead to health impair-
ments.
The vibration emission value
during actual use of the
power tool can differ from the declared
value depending on the ways in which the
tool is used.
It is necessary to identify
safety measures to protect
the operator that are based on an estimation
of exposure in the actual conditions of use.
The vibration emission level given in this
information sheet has been measured in
accordance with a standardized test given in
EN 62841 and may be used to compare one
tool with another. It may be used for a pre-
liminary assessment of the vibrational
impact.
The declared vibration emission level repre-
sents the main applications of the power
tool. However, if the power tool is used for
other applications with different accessories
or poorly maintained, the vibration emission
may differ. This may significantly increase
the vibrational impact over the total work-
ing period.
An estimation of the level of exposure to
vibration should also take into account the
times when the tool is switched off or when
it is running but not actually doing the job.
This may significantly reduce the vibrational
load over the total working period.
Identify additional safety measures to pro-
tect the operator from the effects of vibra-
tion such as: Maintain the power tool and
the accessories, keep the hands warm, orga-
nization of work patterns.
CAUTION
WARNING
WARNING
WARNING

9
en
Emission values for sound and vibration (Two-figure – specifications as per ISO 4871)
Sound emission AMM700 1.7Q AS (**)
A-weighted emission pressure power level measured at the
workplace
L
pA
(re 20 μPa), in decibels 77.0
Measuring uncertainty
K
pA
, in decibels 3.0
Measured A-weighted sound power level
L
wA
(re 1 pW),
in decibels 85.0
Measuring uncertainty
K
wA
, in decibels 3.0
C-weighted peak sound pressure level measured at the work-
place
L
pCpeak
, in decibels 90.3
Measuring uncertainty
K
pCpeak
, in decibels 3.0
REMARK: The sum of the measured emission value and respective measuring inaccuracy
represents the upper limit of the values that can occur during measuring.
Wear hearing protection!
Measured values determined in accordance with the corresponding product standard.
Vibration
Classification accord-
ing to performance
class*
Weighted
acceleration**
STARLOCK 6.3 m/s2
20.7 ft/s2
STARLOCK PLUS 6.9 m/s2
22.7 ft/s2
STARLOCK MAX 8.3 m/s2
27.2 ft/s2
Ka1.5 m/s2
* Measured with adapter for SuperCut with
QuickIN35222952050.
** These values are based on a no-load measure-
ment with maximum speed stage (6) for STAR-
LOCK and STARLOCK PLUS and with speed
stage (4) for STARLOCK MAX. In each case, the
application tool corresponds to the highest mass
inertia of its performance class.

10 en
Intended use of the power tool:
hand-guided power tool for use in weather-
protected environments without water sup-
ply, using the application tools and accesso-
ries recommended by FEIN:
–for cutting polyurethane beads for glazier
work in automobiles, trucks and busses
–for sawing out chassis sections and
removing underseal materials
–for sanding of chassis parts
In environments subject to interference, a
reduction of the operating quality is possi-
ble; this can include temporary failure, tem-
porary reduction of the function or the
intended operating behaviour, for the cor-
rection of which intervention by the opera-
tor is required.
Symbols.

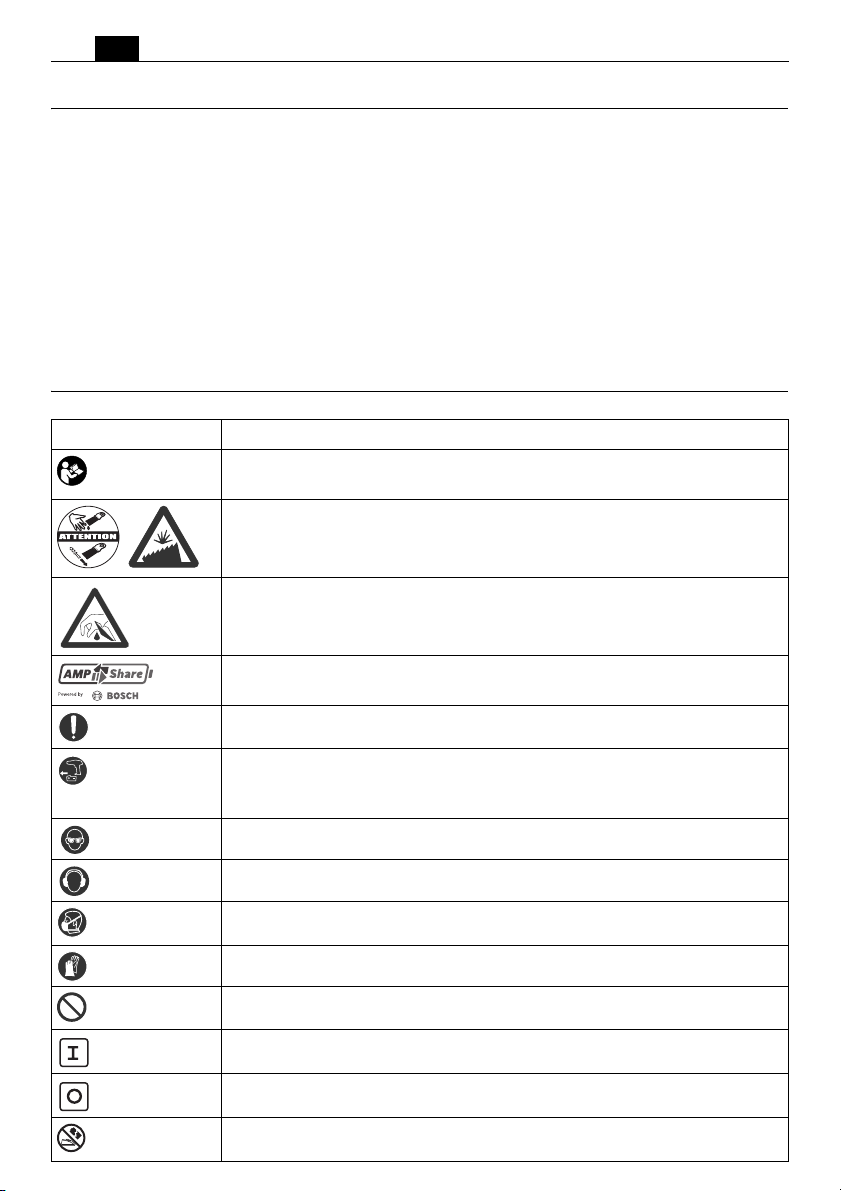

Symbol, character Explanation
Make sure to read the enclosed documents such as the Instruction
Manual and the General Safety Instructions.
Do not touch the saw blade. Danger of sharp application tools mov-
ing back and forth.
Warning against sharp edges of application tools, such as the cutting
edges of the cutter blades.
AMPShare is the shared battery system that allows you to use many
tools from many professional brands with just one battery.
Observe the instructions in the text or graphic opposite!
Before commencing this working step, remove the battery from the
power tool. Otherwise there may be danger of injury caused by
unintentional starting of the power tool.
Use eye protection during operation.
Wear hearing protection while working.
Use a dust mask during operation.
Use protective gloves during operation.
General prohibition sign. This action is prohibited.
Switching on
Switching off
Do not charge damaged batteries.

11
en
Keep the battery away from fire. Protect the battery against heat, e. g.
against continuous intense sunlight.
Protect the battery against heat, e.g., against continuous intense sun-
light, fire, debris, water, and moisture.
Observe the notes in the text aside!
Confirms the conformity of the power tool with the guidelines of the
European Community.
This symbol confirms the certification of this product for the USA
and Canada.
This sign warns of a directly imminent, dangerous situation. A false
reaction can cause a severe or fatal injury.
This sign indicates a possible dangerous situation that could cause
severe or fatal injury.
This sign warns of a possible dangerous situation that could cause
injury.
Recycling code: identifies recyclable materials
Worn out power tools and other electrotechnical and electrical
products should be sorted separately for environmentally-friendly
recycling.
Battery type
Charger type
Low oscillation rate
High oscillation rate
** may contain numbers and letters
(Ax – Zx) Marking for internal purposes
Symbol, character Explanation
max.50°C
DANGER
WARNING
CAUTION

12 en
Character Unit of measurement,
national Explanation
n
0
rpm; /min; min-1; r/min Rated oscillation rate
P W Electrical power
° Oscillation angle
UV Electric voltage
fHz Frequency
I A Electric current intensity
m lbs Mass
lft, in Length, width, height, depth, diameter or thread
Ø ft, in Diameter of a round part
K... Uncertainty
m/s2Vibrational emission value according to EN 62841
(vector sum of three directions)
m, s, kg, A, mm, V, W,
Hz, N, °C, dB, min, m/s2Basic and derived units of measurement from the
international system of units SI.

13
en
Technical description and specifications.
Before mounting or replacing application tools or accessories, remove the
battery. This preventive safety measure rules out the danger of injuries
through accidental starting of the power tool.
Not all accessories described or shown in this instruction manual will be included with your-
power tool.
WARNING

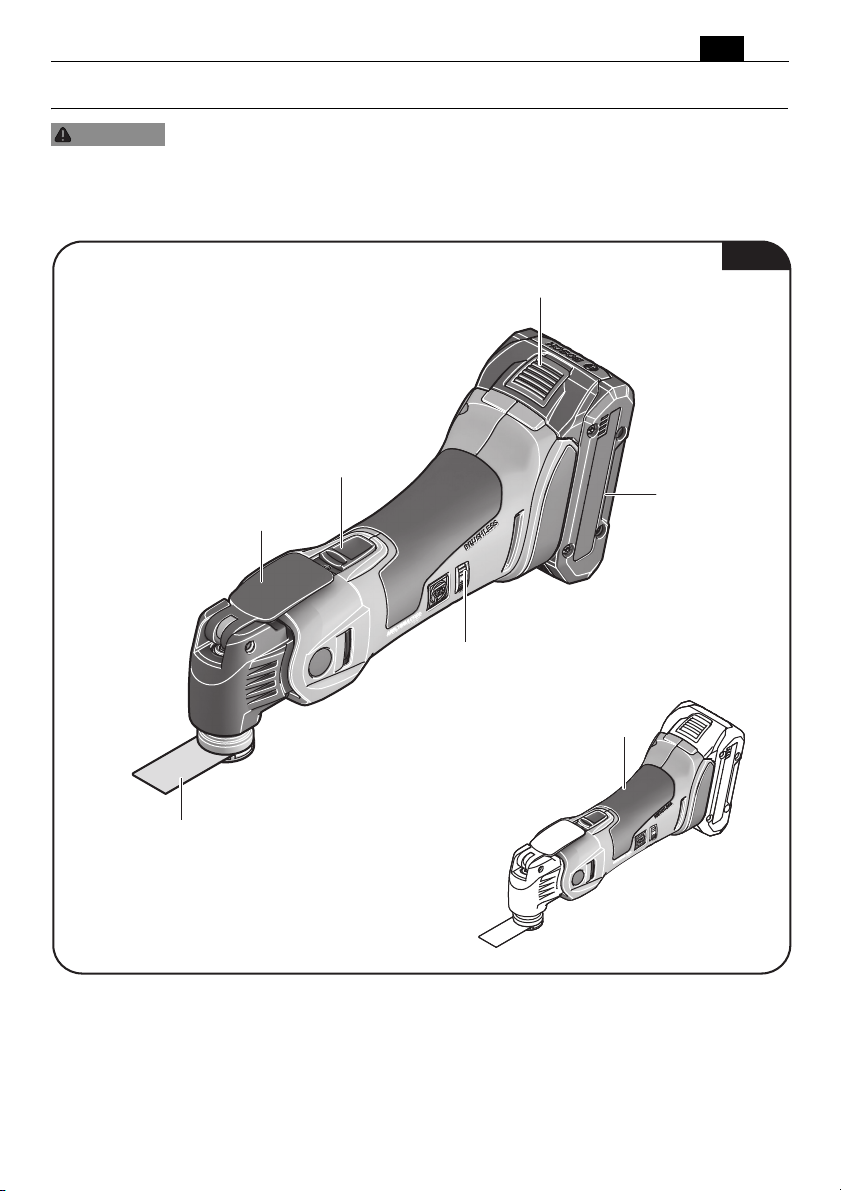

Thumbwheel for pre-selection
of oscillating frequency
Clamping lever
Application tool
Battery-Unlocking button
Gripping surface
Fig. 1
Battery
On/Off switch

14 en
Type AMM700 1.7Q AS (**)
Order number 7 129 ...
Rated voltage 18 V
Rated oscillation rate 10000 – 19500 /min
Oscillation angle 2 x 1.7°
Weight according to EPTA-Procedure 01 2.43 lbs
1.1 kg
Type GBA 18V
2 Ah CORE 18V 4 Ah
Battery type Lithium ion Lithium ion
Rated voltage 18 V 18 V
Weight according to EPTA-Procedure 01
(Battery) 0.77 lbs
0.35 kg 1.15 lbs 0.52 kg
Battery charger BC1880, GAL 18V-160

15
en
Assembly instructions.
Before mounting or replacing application tools or accessories, remove the
battery. This preventive safety measure rules out the danger of injuries
through accidental starting of the power tool.
For all work or when changing application tools, always wear protective
gloves. Danger of injury from the sharp edges of the application tools. Appli-
cation tools can become very hot while working. Danger of burns!
Removing and charging the battery
(figure 2).
Prior to the first charging procedure,
read the operating instructions of the
battery charger.
Charge the battery completely before
putting into operation for the first time.
Release the battery by pressing the battery-
unlocking button and pull the battery out of
the handle. Do not exert any force when
doing this.
Connect the battery charger to a socket out-
let, slide the battery onto the battery char-
ger and charge the battery. After the
charging process is over, insert the battery
into the power tool and pull the plug of the
battery charger out of the socket outlet.
A new battery does not reach its full capacity
until after several charging and discharging
procedures.
WARNING
CAUTION
Fig. 2
Battery
Battery-Unlocking button
1.
2.

16 en
Handling the battery.
Store, operate and charge the battery only
using FEIN battery chargers within the oper-
ating-temperature range between 5°C –
45°C (41°F – 113°F). At the beginning of
the charging procedure, the battery temper-
ature must be within the battery operating-
temperature range.
Battery charge-control indicator
(figure 3).
The charge condition can be indicated by the
green LEDs of the charge-control indicator
on the battery. Press the charge-control
indicator button or to indicate the
charge condition.
The real percentage of the battery charge
condition is only indicated when the power
tool motor is stopped.
The electronics automatically switch off the
motor prior to the battery being deep dis-
charged.
When no LED lights up after pressing the
charge-control indicator button, the battery
is defective and must be replaced.
Mounting the depth stop (figure 4).
Mount the depth stop with the 2 screws to
the bottom side of the gear case.
LED indi-
cator Meaning Activity
1–4
green LED Percent- age of
charge
condition
Operation
Continu-
ous red
light
Battery is
almost
empty
Charge battery
Red flash-
ing light Battery is not ready
for opera-
tion
Bring the battery
into the battery
operating-temper-
ature range, then
charge
Fig. 3
60-100 %
30-60 %
5-30 %
0-5 %
80-100 %
60-80 %
40-60 %
20-40 %
5-20 %
0-5 %
Depth stop Screws
Fig. 4
2.
1.

17
en
Changing the tool.
Before mounting or replacing application tools or accessories, remove the
battery. This preventive safety measure rules out the danger of injuries
through accidental starting of the power tool.
For all work or when changing application tools, always wear protective
gloves. Danger of injury from the sharp edges of the application tools. Appli-
cation tools can become very hot while working. Danger of burns!
The application tool can be offset in 30°
steps and fastened in the most favorable
working position.
When changing application
tools with sharp cutting
edges, use cover to protect yourself against
hand injuries.
Before using, sharpen used and even new
cutter blades with a sharpening stone.
The symptom for worn blades is a clearly
increased feed force at lower working prog-
ress.
Firmly press in the fastening
element to the stop. Then
lock the clamping lever.
Protect your hand and fin-
gers against bruising when
locking the clamping lever. The clamping
lever snaps back vigorously by means of
spring force.
Mounting or replacing a sanding
sheet (figure 5).
The sanding pad (round or triangle-
poligon) or the carbide rasp can be fas-
tened on the drive shaft at the suitable posi-
tion. An adapter is required for working
with the sanding pad.
Align the sanding sheet and press it manually
against the sanding pad.
Firmly press the power tool with the sand-
ing sheet against a flat surface and briefly
switch the power tool on. This provides for
good adhesion and prevents premature
wear.
When only one tip or corner of the sanding
sheet is worn, it can be removed again and
reattached turned by 120°.
WARNING
CAUTION
CAUTION
CAUTION
CAUTION
Fastening element
Sanding pad
Tool holder
Adapter
Sanding sheet
Clamping lever
Fig. 5
180°

18 en

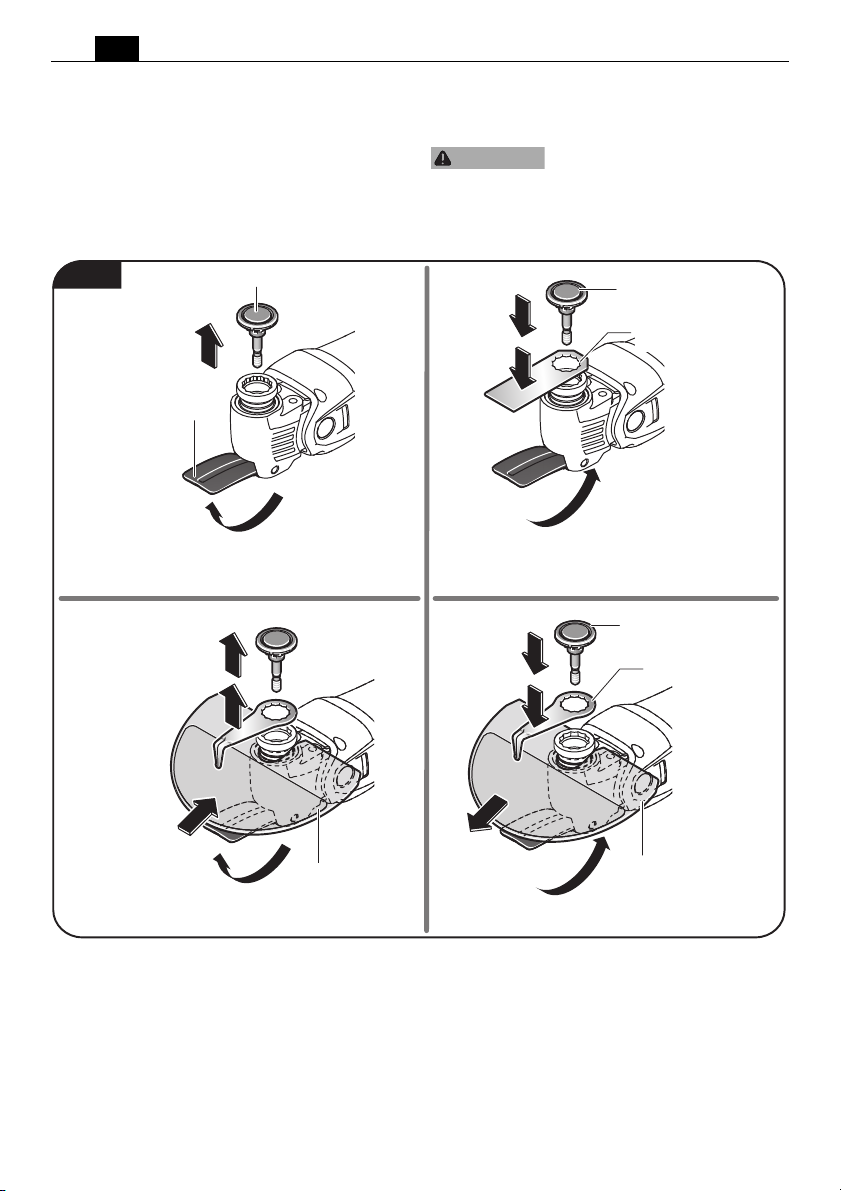

Mounting application tools
(figure 6).
Release the clamping lever and tilt it to the
stop.
Pull out the fastening element.
Clean the tool holder, the application tool
and the fastening element.
Insert the application tool accurately onto
the tool holder. Pay attention that the appli-
cation tool is mounted flush.
When changing application
tools with sharp cutting
edges, use cover to protect yourself against
hand injuries.
CAUTION
180°
2.
1.
180°
4.
2.
1.
3.
180°
6.
5.
7.
8.
180°
5.
4.
3.
Fig. 6 Fastening element
Application tool
Fastening element
Cover
Cover
Fastening element
Application tool
Clamping lever

19
en
Cutter blades for automobile glazing
applications (figure 7).
Guide the straight, bent or offset cutter
blades at a right angle to the window flange;
blade A – D.
For U-shaped cutter blades, pay attention
that the traverse of the cutter blade is led
parallel to the window pane of the vehicle;
blade E – F.
The scraper knife is used for cutting back
bond remainders on the window flange or
the pane. Before re-bonding the vehicle
window, cut back the remaining bead to a
height of approx. 2 mm; blade G.
Cutter blades marked with a symbol may
only be operated as indicated.
C
AB D
EF G
Fig. 7
Symbol on the cutting blade

20 en
Working instructions.
Before mounting or replacing application tools or accessories, remove the
battery. This preventive safety measure rules out the danger of injuries
through accidental starting of the power tool.
Do not use accessories not specifically intended and recommended for this power tool by
FEIN. The use of non-original FEIN accessories can lead to overheating of the power tool
and destroy it.
For each job, use only the FEIN application tool released and intended for
the respective application.

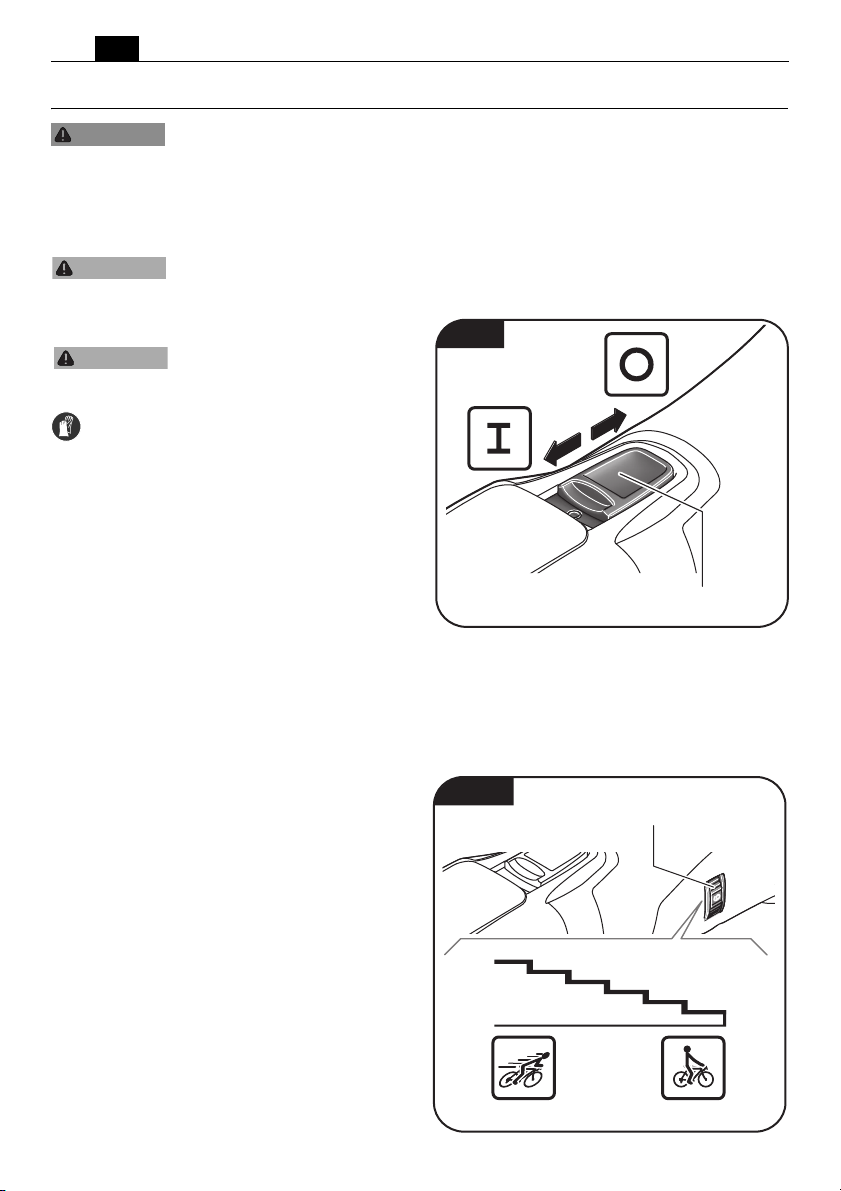

Switching on and off (figure 8).
Always hold the power tool
firmly. Otherwise,you could
lose control over the power tool.
Guide the power tool toward the work
piece only when switched on.
The self-start prevention lock prevents the
power tool from automatically starting
when the battery is inserted while the on/off
switch is set to on.
If the power tool shuts off without the
switch being actuated, switch the power
tool switch off, remove the battery and reat-
tach it.
Switching on:
Push the switch toward the front (I).
Switching off:
Push the switch toward the rear ().
Setting the oscillating frequency
(figure 9).
Adjust the oscillating frequency infinitely
variable with the dial control.
Increasing the oscillating frequency:
Turn the dial control in clockwise direction.
Decreasing the oscillating frequency:
Turn the dial control in counterclockwise
direction.
WARNING
CAUTION
CAUTION
Fig. 8
On/Off switch
1
2
3
4
5
6
Fig. 9 Thumbwheel for pre-selection
of oscillating frequency
