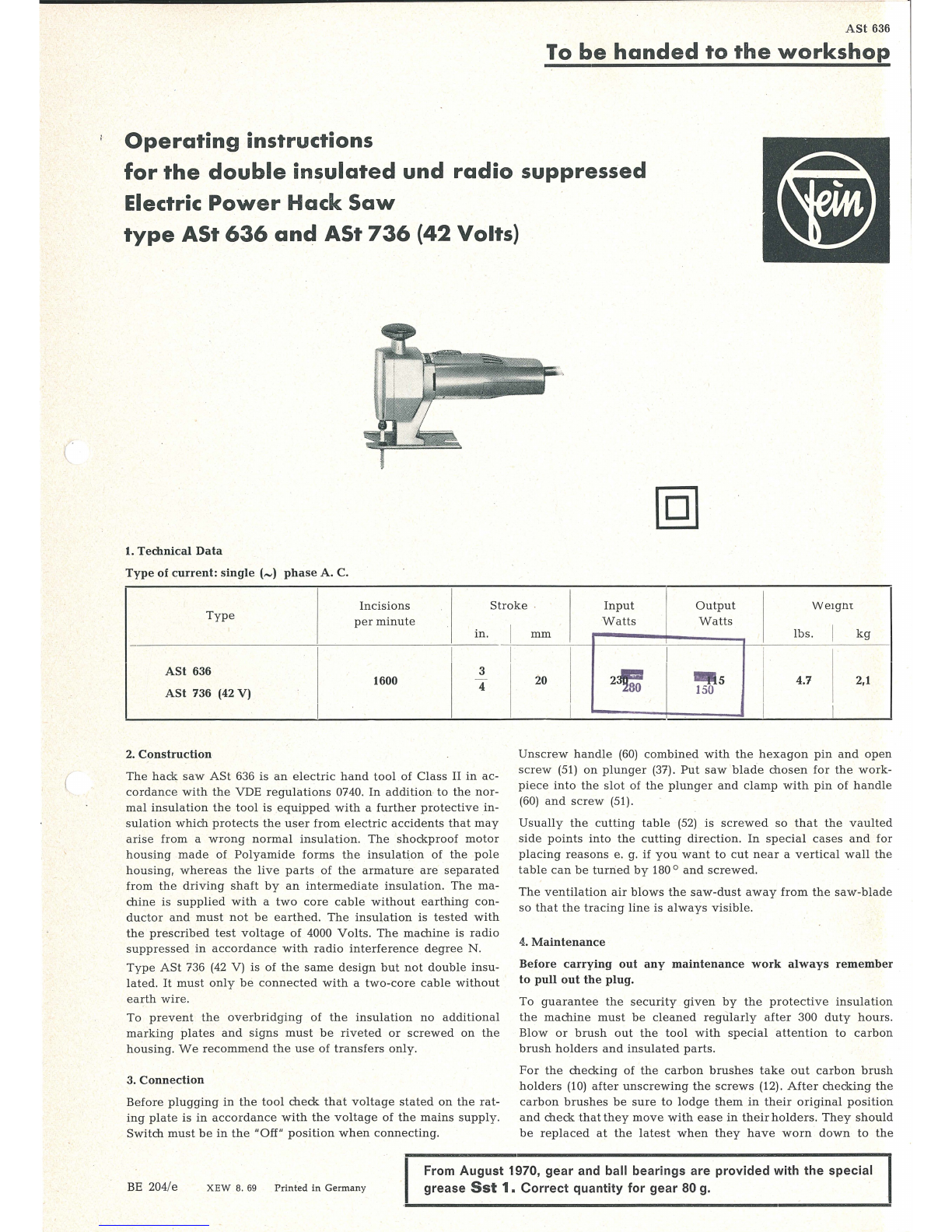

Operating instructions
for the double in~ulated und radio suppressed
Electric
Power Hack Saw
type ASt 636 and ASt 736 (42 Volts)
I. Technical Data
Type of current: single (-) phase A. C.
Incisions
Stroke .
Input
Output We1gm
Type
per minute
in.
I
ASt 636 3
1600 -
ASt 736 (42V)
4
I
2. Construction
The hack saw ASt 636 is an electric hand tool of Class II in ac-
cordance with the VDE regulations 0740. In addition to the nor-
mal insulation the tool is equipped with a further protective in-
sulation which protects the user from electric accidents that may
arise from a wrong normal insulation . The shockproof motor
housing made of Polyamide forms the insulation of the pole
housing, whereas the live parts of the armature are separated
from the driving shaft by an intermediate insulation . The ma-
chine is supplied with a two core cable without earthing con-
ductor and must not be earthed. The insulation is tested with
the prescribed test voltage of 4000 Volts. The machine is radio
suppressed in accordance with radio interference degree N.
Type ASt 736 (42 V) is of the same design but not double insu-
lated. It must only be connected with a two-core cable without
earth wire.
To prevent the overbridging of the insulation no additional
marking plates and signs must be riveted or screwed on the
housing. We recommend the use of transfers only.
3. Connection
Before plugging in the tool check that voltage stated on the rat-
ing plate is in accordance with the voltage of the mains supply.
Switch must be in the "Off" position when connecting .
I
Watts Watts
mm
lbs.
I
kg
I
2e
20 5 4.7
2,1
150
I I
Unscrew handle (60) combined with the hexagon pin and open
screw (51) on plunger (37). Put saw blade chosen for the work-
piece into the slot of the plunger and clamp with pin of handle
(60) and screw (51).
Usually the cutting table (52) is screwed so that the vaulted
side points into the cutting direction. In special cases and for
placing reasons e. g. if you want to cut near a vertical wall the
table can be turned by 180 ° and screwed.
The ventilation air blows the saw-dust away from the saw-blade
so that the tracing line is always visible.
4. Maintenance
Before carrying out any maintenance work always remember
to pull out the plug.
To guarantee the security given by the protective insulation
the machine must be cleaned regularly after 300 duty hours.
Blow or brush out the tool with special attention to carbon
brush holders and insulated parts.
For the checking of the carbon brushes take out carbon brush
holders (10) after unscrewing the screws (12). After checking the
carbon brushes be sure to lodge them in their original position
and check that they move with ease in their holders. They should
be replaced at the latest when they have worn down to the
BE 204/e
XEW 8. 69
Printed in Germany
IFrom
August 1970, gear and ball bearings are provided with the special
grease Sst 1. Correct quantity for gear 80 g.

42 •
45---
37 fl
37a - - / ;I[
I,,
I
46
I
48
~
47 @
51
~
~
~
G
I
43
38 39 40
l l I
~~~Q - l
I
44
53
____ J
I
~ - _j
I
41 55 59
--,
65.67 66 6r
,_
60
~@--
sl~
~~I I
62
I
52
I
I
I
"'
56
57
58 63 I
I
____ ..
r---- -------- --------
__ _ 1133
• j lJ' "", ·-
&:c ·a @) , ·' -
1
~ 0 I 1 :: ;. ... _, I
•
:=:::.. aP ®
= ~ f ...__
'ilf- 5 1 I I I
. ~ 4 26 11 9 B 7 6 I
~ ---- --------· --------- _____ J
1~~~ 1
-~~ .~~~~- "' ---2 15 19 18 7
.. · ~ '¥!~ j
- >£20 . ~--~
~ ~ ~j l l
~~ ·Y
\ ~' " ...--··- -· 20 ~ '--A
, "'" A ---
, ' --
\, //_ , ----
'-
I
t
o- ®
I I
L- ~ .IJii ---::._ =-
1 ) JJ do
64 33
--
, ....
I
I
1--
49
50
10 - --
13 ----
ct
14 70 ·
16 22
21
23

Component Parts .
Item Order
;::,
No Reference
0
Description
Item Order
;::,
No
Reference
0
Description
I
1-23
MK 1-17-2 1 motor housing, assembled 44 WB 5-17 1
crankshaft
1-16 MK 1-17-1 1 motor housing, assembled
45 s 14-41 1
sliding piece
1
MK 1-17 1 motor housing
46 BF 17-181 1
tension bolt
2
SA 16-25 1
switch bar
47
PT 35-41 1
sealing cap
3
SA 16-28 1 trigger
48 DJ 1-57 1
felt ring
4
SA 5-48 1 switch grip
49 RJ 7-38 1
clamping ring
5 SR
3-M4x6
1
fillister screw
50 SR 19-55 1
threaded pin
6 state type
1
pole housing assembled with
51 SR 33-M5x8 1
hexagon socket screw
and voltage
winding 52 s 14-43 1
cutting table
7
PT6-M3,5
2
spring washer
53 LK 8-2,5
31
balls
8 SR 2-M3,5x50 2
cylindrical screw 54
SR5-M4x12 4 countersunk screw
9
JS 28-7 1 grease retaining ring
55
SR5-M4x22
4 countersunk screw
10
EZ 12-45-1 2 carbon brush holder, assembled
56 LK 1-8 1
groove ball bearing
11
EZ 11-62 2
carbon brush 57 ZR 15-31x0,75 1
gear wheel
12 SR 3-M3,5x20 2
fillister screw
58 LK 1-4 1
groove ball bearing
13 SR 3-M3,5x15 2
fillister screw
59
PT 19-47 1
bearing plate
14
EZ 1-60 1
switch, 2 poles
60
MZ 19-35 1
handle, assembled
15
EZ 22-37 1
capacitor
61
SR 2-M4x22 4
cylindrical screw
16
SR 3-M3,5x6 1
fillister screw
61a
PT6-M4
4
spring washer
17 EZ 7-101 1 cable (220 V) 62 BF 42-5x55 2
cylindrical pin
.
18
JS 13-7 1
cable protecting sleeve
63 BF 1-3x10 2
cylindrica l pin
19
PT 31-21 1
cable clamping bridge
64
RJ 12-52 1
sealing ring
20 SR 3-M3,5x!O 2 fillister screw
65 SR 2-M3,5x25 2
.. cylindrical screw
21
PT 27-28 1
cover
66
PT 5d-M3,5 4
securing plate
22 SR 6k-M3,5x8 1
fillister head countersunk screw
67 SR_2-M3,5x42 2
cylindrical screw
23 SR 3-M3,5x32 1
fillister screw
26 s
tate type
1
armature with winding, collector
Parts for 42 Volts
and voltage
and fan,
30 ZR 4-42 1
armature drive
31 SR 2-M3,5x6 3
cylindrical screw
1-23 1 MK 1-17-3 I
~ I
motor housing, assembled
17 EZ 6-126 cable
32 PT 5d-M3,5 3
securing plate
Accessories
33 LK 16-35 2
groove ball bearing
z22-35 1
hack saw blade for metal and
35 -6 3 , GH 9-5-1 1 gear head, assembled
soft sheet steels
z22-36 1
hack saw blade for aluminium
35 GH9-5
1
gear housing
sheet, sheet brass, copper sheet,
36 PT 29-42 1 gear housing cover
plastics
37 A9-54
1
plunger
z 22-37 1
hack saw blade for hard- and
37a
BF 38-2x12 1
clamping sleeve softwood, plywood
38
RJ 34-6x0,7 1
"Seeger" circlip
z22-38
1:
hack saw blade for hard- and
39 BF 17-184 1
bolt
softwood
40 s 14-40 1
counterweight
z22-39 1
hack saw blade for eternit,
41 s 14-42 1
connecting rod
insulating plates, plastics
42
MR 7-47 1 slotted nut
SR 33-M5x8 1
hexagon socket pin
43
LK 6a-13 1
needle beanng
70 EZ 11-62 1
spare carbon brushes, packed up
-

max. permissable 7 mm {
1/4").
Please only use original Fein car-
bon brushes (order reference EZ 11-62). After fitting the new
orushes run tool unloaded for about 15 minutes to allow brushes
to bed lin.
One pair of spare carbons (70) will be found in the motor hous-
ing; please do not forget to reorder . them in time.
Check cable at regular intervals to prevent possible accidents.
To replace the cable take off the screws (22) and (23), then re-
move cover (21). The cable is clamped off from the switch (14)
and may be taken out after unscrewing the screws (20) of the
cable clamping bridge (19).
5. Lubrication and
overhaul
We recommend to renew the gear grease after 300 duty hours .
Please only use Fein grease.
After approx. 900 duty hours the machine should be cleaned
thoroughly. Dismantle following the instructions of section 6
and clean component parts. Ball bearings and gearing parts are
rinsed in clean solvent. The space between inner and outer ring
of the ball bearings is to be one third filled with grease (FK 3) in
order to avoid overheating .
No claims can be entertained for damage due to negligent
maintenance and inadequate lubrication.
Quantity
Grease tube
Contents
Grease type
I
order ref . I
oz. g oz. g
FK 3 for gear and
I
2 60 MZ 60-3/ FK3 3
80
f, or ball bearing
6. Dismantling
The tool should only be taken apart by an expert.
1. Unscrew gear cover (36). Only in case of damages dismantle
parts mounted in the gearing cover; after unscrewing the
slotted nut (42) the plunger (37) may be pulled out.
2. Turn crankshaft (44) into the upper position, take off needle
bearing (43) and "Seeger" circlip (38) pull out bolt (39) and
turn connecting rod (41) out of the slot of the counterweight
(40).
3. Unscrew 4 countersunk screws (55) , pull out bearing plate
(59) with assembled pieces.
4. Push crankshaft (44) out of bearing plate, gear wheel and
two ball bearings ; remove carefully connectin .g rod (41) in
order that the balls (53) put in movably are not lost .
5.
Remove cover of motor housing (21) after unscrewing the
screws (22) and (23).
6.
Clamp off all connection cables, remove switch (14) and ca-
pacitor (15).
7. After unscrewing the screws (12) remove carbon brush holder
(10).
8. Unscrew 4 cylindrical screws (65, 67) and remove gear hous-
ing (35).
9. Only in case of damages pull out armature (26), unscrew 3
screws (31) and remove armature drive (30).
10. Remove grease retaining ring (9), unscrew screws (8) and
take off pole housing (6).
Attention! Hits and blows on the ventilation fan affect the good
running conditions of the armature and should be prevented.
Re-assemble in reverse sequence.
Please bear in mind that existing washers are to be placed in
the right places . The ir loss would lead to damage.
7. Repair and spare parts
We recommend our Fein Service Stations to carry out all over-
haul and repair w ork quickly and expertl y.
When ordering spare parts, please, quote model and serial N°
in addition to Order Reference or send in sample part.
We draw your attention to the need to carry out a high voltage
test in accordance with your local regulations (or VDE regula -
tion 0740) before taking a tool into service after any repair
carried out by our own staff.
(
