POWERSHRED 320

120
120 CC Paper shredder
2 1.598.999.100 Edition 11/00
Paper shredder Fellowes 120/120 CC ............................................................. 3 – 8
Déchiqueteuse Fellowes 120/120 CC ............................................................ 9 – 14
Destructora de documentos Fellowes 120/120 CC ...................................... 15 – 20
Aktenvernichter Fellowes 120/120 CC .......................................................... 21 - 26
E
F
D
USA

120
Paper shredder 120 CC
Edition 11/00 1.598.999.100 3
Contents
Contents Page
1. Important Safety Instructions.................................................................................. 4
2. Parts Identification .................................................................................................. 4
3. Caution ................................................................................................................... 4
4. Technical Specifications ......................................................................................... 5
5. Supplies.................................................................................................................. 6
6. Installation .............................................................................................................. 6
7. Operation................................................................................................................ 6
8. Checklist for Inoperative Machine .......................................................................... 7
9. Malfunctions ........................................................................................................... 7
10. Maintenance ........................................................................................................... 7
11. Warranty ................................................................................................................. 8
12. Customer Service ................................................................................................... 8
USA

120
120 CC Paper shredder
4 1.598.999.100 Edition 11/00
1. Important Safety Instructions
1. Read all instructions before use.
2. Save these instructions for later use.
3. Follow all warnings and instructions
marked on the proudct.
4. Unplug this product before cleaning.
Clean with a damp cloth using a mild
soap and water solution. (Do not use
abrasives or petroleum products.)
5. Place this product as close as possible to
power source for quick and easy
unplugging.
6. Do not use this product near water.
7. This product should never be placed near
or over a radiator or heat source.
8. Operate from the type power source
indicated on the marking label. If you are
not sure of the type of power available,
consult your dealer or local electric
company.
9. Do not allow anything to rest on the power
cord. Do not place this product where
people may walk on the cord.
10. If an extension cord is used with this
product, make sure that the total of the
ampere ratings on the products plugged
into the extension cord do not exceed the
extension cord ampere rating. Also, make
sure that the total of all products plugged
into the wall outlet does not exceed 15 amps.
11. Do not attempt to service this product
yourself, as opening or removing covers
may expose you to dangerous live parts
or other risks.
12. Unplug this product and refer servicing to
qualified personnel under the following
conditions:
A) When the power cord or plug is damaged
or frayed.
B) If liquid has been spilled on the product.
C) If the product has been exposed to rain.
D) If the product does not operate normally
when the operating instructions are
followed.
E) If the product has been dropped or
the casing has been damaged.
13. Keep out of reach of children.
14. This shredder should be operated only with an
operator in attendance.

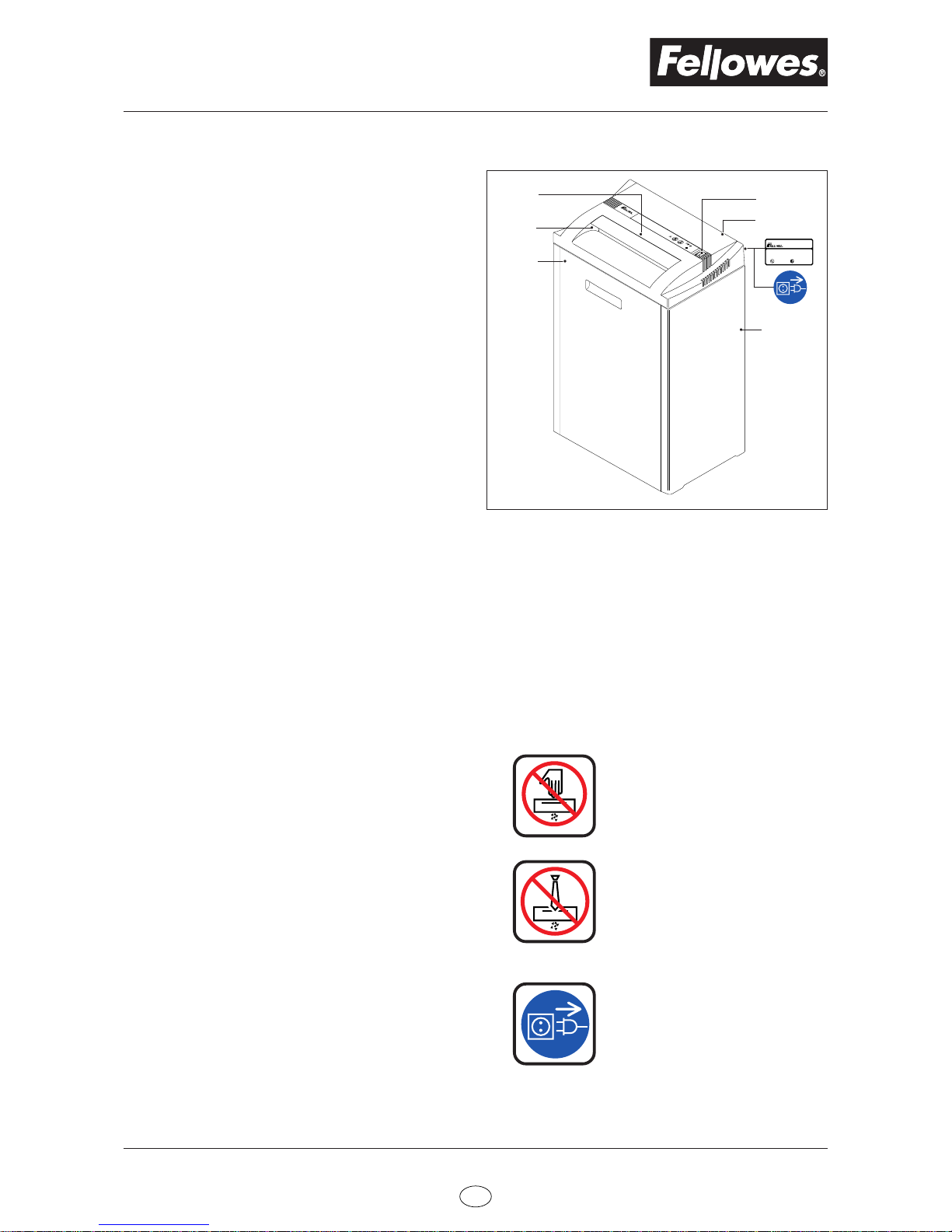

2. Parts Identification
1. Rocker switch
2. Cover
3. Serial label
4. Caution label
5. Cabinet
6. Waste container
7. Paper feed opening
8. Automatic start stop control
3. Caution
Never insert hand, fingers or any
foreign objects into the feed
opening.
Serious injury may result.
Keep all loose articles of
clothing, ties, jewelery, long hair
or other loose objects away from
feed opening.
Injury may result.
Always turn off and unplug the
machine before moving,
servicing, cleaning or any other
conduct other than normal
operation.
Serious injury may result.
USA
ON
POWERSHRED 320
6
2
1
4
5
3
Fellowes Manufacturing Co.
1789 Norwood Avenue
Itasca, IL 60143 USA
Model:
Serial #:
Voltage: Motor:
Current: Manufactured:
R
R
R
7
8

120
Paper shredder 120 CC
Edition 11/00 1.598.999.100 5
4. Technical Specifications
Model 120 Model 120CC
Cutting style Strip cut Cross cut
Shred size 5/32" 5/32" x 1"
(3.9 mm) (3.9 x 30 mm)
Security rating DIN 32757–1 23
Sheet capacity -
8-1/2" x 11" - 20 lb. 12 8
A4, 70g/m2(16 lb.) 14 10
Speed 20FPM 22FPM
(80 mm/s) (90 mm/s)
Entry width approx. 93/4" approx. 93/4"
(240 mm) (240 mm)
**Motor power 2/3 H.P. 2/3 H.P.
(270 W) (270 W)
Input voltage 100 V, 50 Hz 100 V, 50 Hz
(Depending on country) 115V, 60 Hz 115V, 60 Hz
220/240V, 50 Hz 220/240V, 50 Hz
Dimensions 143/4" x 10" x 211/2" (375 x 250 x 550 mm)
Weight 241/4lbs. (11 kg)
Waste container volume 7.6 gallons (29 liters)
Noise level 53 dB in idle – 59 - 63 dB under load
USA
*Paper DIN 19307 SM 4a – 70
** for the maximum number of sheets

120
120 CC Paper shredder
6 1.598.999.100 Edition 11/00
Switching equipment ON
– Press rocker switch to pos. (1)
• Controller switch locks in "on" position.
• Equipment is ready for operation
(standby).
– Feed paper
• The shredding process is started by
automatic start stop control in the paper
feed opening. Insert paper and
shredding begins automatically.
• When the shredding is complete, the
cutting system automatically stops
after approx. 3 seconds.
Switching equipment OFF
– Press rocker switch to pos. (3)
•switch resets to center position and
stops the cutting system.
5. Supplies
– Bags for cut material
(Packed in dispenser carton, 50 or 100 bags
to a roll depending on size. For bag informa-
tion, see label on inside of the waste container.
If label is missing, contact Fellowes or your
local Fellowes dealer for the stock number of
the bag that fits your machine.)
– Cutting block oil for cross-cut units
Stock # 35250.
6. Installation
– The paper shredder is supplied ready for
operation.
– Operate this product only from the type of
power source indicated on the marking label.
– Install the paper shredder so that the plug is
easily accessible.
– Shredder must be operated in upright position
only.
– Set up paper shredder so that the ventilation
slots are unobstructed. To ensure sufficient
ventilation of the shredder a minimum distance
of 4" (10 cm) to the wall or to the furniture must
be maintained.
7. Operation
Read operating instructions before
operating the shredder.
Insert plug in power outlet.
To avoid motor overload, the paper
shredders may cut out automatically
after approx. 20 minutes of continuous
operation.
1
USA
3

120
Paper shredder 120 CC
Edition 11/00 1.598.999.100 7
8. Checklist for Inoperative Machine
If the equipment does not work properly, please
check the following points first:
– Is the plug inserted ?
– Is the switch turned on ?
– Is waste container pushed in properly ?
– Is waste container full ?
Empty container
– Is there a paper jam in the shredder ?
See Malfunctions
– Is the motor overheated ?
Switch machine off and allow motor to
cool down for approximately 15–20 min.
If none of the above applies and the equipment still
does not run, please contact the appropriate
customer service department.
9. Malfunctions
Paper jam
• Press rocker switch to center position
(2) to stop the cutting system.
• Press and hold down rocker switch in
pos. (3) to reverse the cutting system
and back out jammed material
(paper is pushed out)
Caution!
Do not press rocker switch alternately
forwards/backwards in pos. (1 and 3)
• Remove excess paper.
• Return switch to pos. (1) and continue
shredding in smaller quantities so as
not to jam the machine further.
2
2
3
3
1
1
1
USA
Door contact interrupted
– Paper shredder switches off automati-
cally. Press rocker switch to center (2)
position.
• Check whether cut material container is
properly pushed into bottom frame.
• Return switch to "on" position (1) and
continue shredding.
Cut material container full
– Paper shredder switches off automati-
cally.
• Press rocker switch to center (2)
position.
• Empty cut material container or
exchange cut material bag.
• Return switch to "on" position (1) and
continue shredding.
10. Maintenance
(Cross cut unit only)
– When tearing capacity drops or the noise
increases:
• Spray special cutting block oil onto
cutting system.
• Run cutting system forward (1) and
backward (3) several times without
feeding paper.
• Continue shredding.
2
1
3
1

120
120 CC Paper shredder
8 1.598.999.100 Edition 11/00
12. Customer Service
United States
Fellowes Manufacturing Co.
1789 Norwood Avenue
Itasca, IL 60143
Tel.: [phone]
Canada
Fellowes Manufacturing of Canada Ltd.
2750 John Street
Markham, Ontario L3R 2W4
Tel.: [phone]
United Kingdom
Fellowes Manufacturing UK Ltd.
Doncaster Road
Kirk Sandall
Doncaster, South Yorkshire DN3 1HT
Tel.: [phone]
Australia
Fellowes Manufacturing (Australia) Pty.Ltd.
10 Fellowes Court
Tullamarine, Victoria 3043
Tel.: [phone] in Melbourne
1-800-331-177 outside Melbourne
Nederland
Fellowes
P.O. Box 180
4130 Ed Vianen
Nederland
Tel.: [phone]
Germany
Fellowes GmbH
Dieselstraße 27
D-30827 Garbsen
Tel.: [phone]
France
Fellowes Lynx S.A.
194 allée de la Croix des Hormes
69250 Montanay
Tel.: [phone]
11. Warranty
FELLOWES®POWERSHRED LIMITED
WARRANTY
1 year on all parts and labor
5 years parts and labor on cutting cylinders
Fellowes®warrants this product to be free from
defects in material and workmanship for a
period of one year from the date of purchase by
the original consumer. At it's option, Fellowes®
will repair or replace without charge for material
or labor, any component found to be defective
during the warranty period. Additionally, the
cutting cylinders are warranted for 5 years from
the original purchase date and will be replaced
without charge for material or labor if found by
Fellowes®to be defective.
Warranty Exclusions
The parties agree that the buyer's sole and
exclusive remedy against Fellowes®shall be for
the repair or replacement of defective parts as
provided herein. The buyer agrees that no
other remedy (including, but not limited to,
incidental or consequential damages for lost
profits, lost sales, injury to property or any other
incidental or consequential loss) shall be
available to him. This warranty shall NOT apply
and is void under the following circumstances:
1. When this product or any part thereof has been
subjected to accident, alteration, abuse, or
misuse.
2. When the original Model and Serial Number
Plate has been altered, effaced or removed.
3. When repair or service covered under this
warranty (other than routine maintenance
(as described in the Owner's Manual ) has been
performed by personnel without the express
written consent of Fellowes®.
4. When the product has been used pursuant to
any verbal or written rental, lease or loan
agreement.
THIS WARRANTY DESCRIBED HEREIN SHALL
BE IN LIEU OF ANY OTHER WARRANTY,
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. ANY REPRESENTA-
TIONS OR PROMISES INCONSISTENT WITH OR
IN ADDITION TO THIS WARRANTY ARE
UNAUTHORIZED AND SHALL NOT BE BINDING
UPON FELLOWES.
USA
